1360×480 resolution · 133 DPI · Black / White / Red / Yellow · dual-sided independent content · BLE 5.0 + NFC + gateway · 1800 mAh battery, about 1 year at 2 refreshes per day.
1360×480 at 133 DPI on both sides, with a 259.76×91.68 mm active area. True black, white, red and yellow under an anti-glare cover with a nearly 180° viewing angle — eye-friendly and readable from any seat.
1360×480 Resolution 133 PPI 4 Colors
Zero Power to Hold the Image
Bistable E Ink keeps every name, role and logo on screen with no power draw. The built-in 1800 mAh battery delivers roughly one year of operation at two refreshes per day, recharged over USB Type-C.
1800 mAh ~1 Year 0 mW hold
Wireless App / NFC / Gateway
Update content by NFC tap, by phone over BLE 5.0, or from a computer through a Bluetooth base station — all with a range of 15 m or more. Open RESTful API and NFC OTA keep the fleet connected and current.
BLE 5.0≥15 m Open API

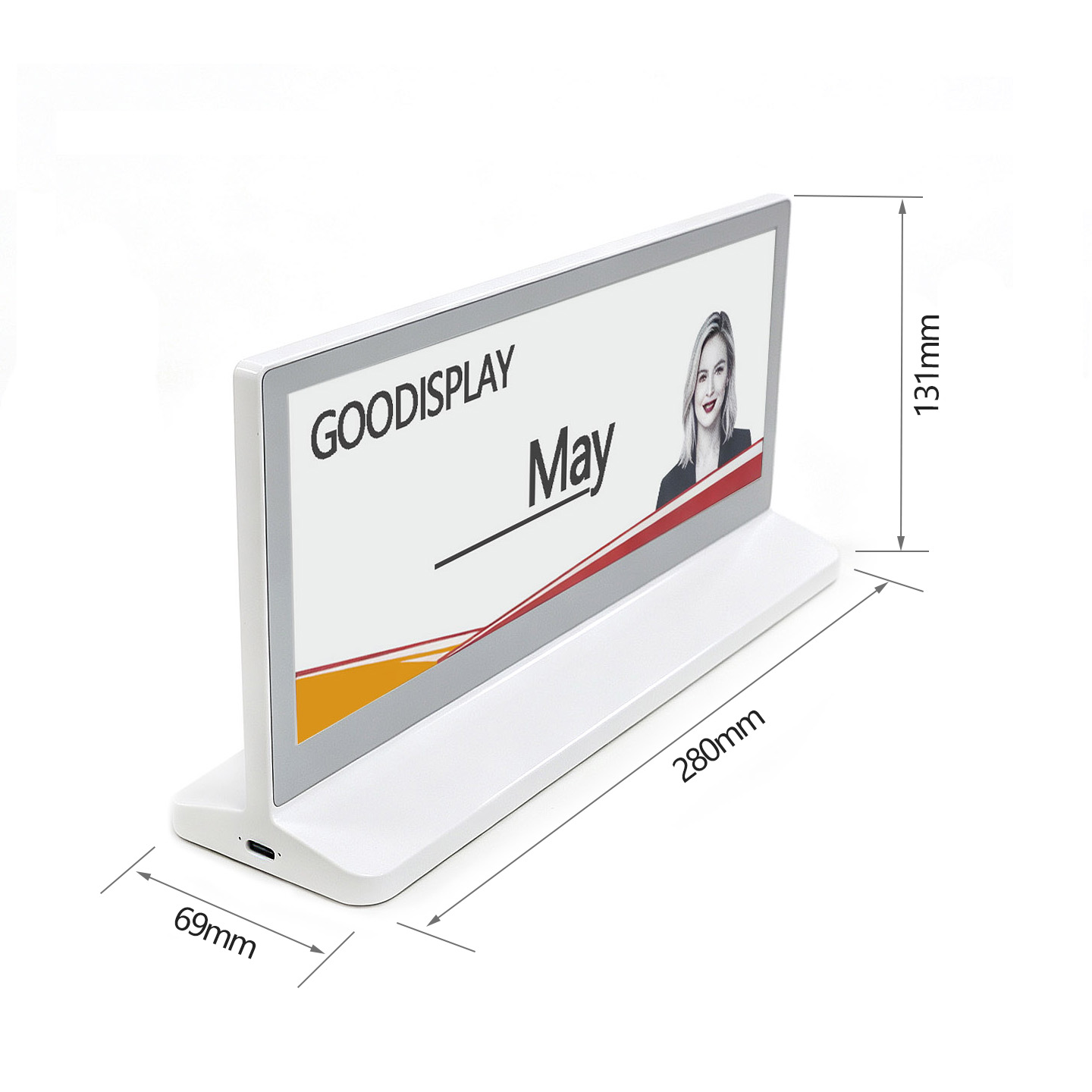

Technical Specifications
280 mmLength
131 mmWidth
69 mmHeight
Model
GD-T1085BW4-GH
Screen Size
10.85 inch dual-sided EPD
Display Type
Bistable E Ink
Resolution
1360 (H) × 480 (V)
DPI
133
Active Area
259.76 × 91.68 mm
Color
Black, White, Red, Yellow
Viewing Angle
Anti-glare, nearly 180°
Orientation
Landscape
Appearance Color
Silver, Gray, White
Product Dimensions
280 × 131 × 69 mm
Net Weight
615 ± 5 g
Housing
Aluminum alloy
Built-in Battery
1800 mAh
Battery Life
~1 year at 2 refreshes/day
Charging
USB Type-C
Bluetooth
BLE 5.0
NFC
ISO/IEC 14443-A
Wireless Band
2.402 ~ 2.480 GHz
Data Rate
1 Mbps, 2 Mbps supported
Channel Spacing
2 MHz
Wireless Range
≥15 m, open space
Operating Temp.
0℃ ~ 40℃
Storage Temp.
-25℃ ~ 60℃
Content Transfer
App · NFC · Gateway
Firmware
OTA supported
MODE 01
Image transmission via NFC on the display screen
MODE 02
Image transmission via mobile phone Bluetooth, effective range over 15 m
MODE 03
Computer control and image transmission via Bluetooth base station, range over 15 m
Purpose-Built Performance
Four High-Contrast Colors
Distinguish names, roles, branding and status — no glowing screen needed.
Independent Dual Sides
Show different information to participants and to the room.
Wireless Control
Bluetooth 5.0 with a transmission range of 15 m or more.
Open API
Integrate with meeting, office and venue management systems.
OTA Updates
Upgrade firmware by NFC without collecting deployed devices.
Get the SmartTable App
01 · ANDROID / HARMONYOS
Important setup
Settings → Personal Center → Basic Settings → Switch Desk Plate Type → 1360×480.
02 · iOS
Device resolution
Settings → Personal Center → Device Resolution → 1360×480.
SmartTable · Android / iOS / HarmonyOS
Search “SmartTable” in the iOS App Store.
Please note: this device runs on a proprietary system. The SmartTable app is custom-built for this hardware and is not interchangeable with other table card products.
Mobile OS
Android 7.0+ · iOS 9.0+ · HarmonyOS
Server System
Windows 7 · Linux
Cloud Server
Supported
System Docking
Third-party systems supported
Background Image Requirements
Background image resolution must match the actual resolution of the nameplate. Every pixel of the background image must use one of the following RGB values.
BlackRGB 0, 0, 0
WhiteRGB 255, 255, 255
RedRGB 255, 0, 0
YellowRGB 255, 255, 0
One Format, Many Roles
Exhibitions
Product info, pricing and QR codes refreshed in seconds.
Executive Meetings
Premium, reusable seat identification for boardrooms.
Hospitality
Guest welcome messages, menus and reserved seating.
Training
Participant names, roles and timetable information.
Software Features
05.1
Venue Seating & Participant Management
Flexible seating arrangement for temporary seat changes. One-click batch import of Excel participant lists, batch delivery to multiple nameplates, and independent on-site editing for last-minute additions, deletions or seat swaps.
05.2
Grouping, Sorting & Device Identification
Multi-level grouping by floor, meeting room or research group with isolated data and delivery tasks. Custom sorting rules, custom ID remark naming for main, observer and guest seats, and fast delivery by device group.
05.3
Screen Editing, Font & Image Beautification
Built-in fonts plus external custom font import, intelligent typesetting with stretching, auto-shrink and auto line-wrap, image dithering to simulate grayscale, reusable custom templates, and AI automatic background map generation.
05.4
Real-Time Monitoring & Troubleshooting
Monitor online, offline, low-battery and communication-abnormal status in real time. One-click reading of MAC address, remaining power, firmware version, communication mode and refresh records, plus historical content memory to locate any seat fast.
05.5
Device Management & Security Encryption
Account-bound device encryption so only the bound account can deliver or modify content. Dual software and hardware encrypted transmission for images and personnel data, plus one-click batch screen clearing after meetings.
05.6
O&M Support & System Expansion
Templates, background images and participant lists are stored in the cloud for shared access by multiple accounts — no repeated material uploads when replacing devices. NFC near-field OTA upgrade supported.
Multi-language iOS App: Russian · German · Simplified Chinese · Traditional Chinese · English · Portuguese · Spanish · Vietnamese · Arabic
Can we start with the App first and add Bluetooth base station management later?
Yes. The same desk plate supports both methods, so existing devices do not need to be replaced.
Does the display consume power while showing content?
No. Bistable e-paper retains the image without power; energy is used only when content refreshes and during communication.
Can each side show different content?
Yes. The two display sides can be managed independently.
Can it integrate with an existing meeting system?
Yes. It supports Bluetooth base station management and open RESTful API integration.
About Us
Thank you for your interest in GD-T1085BW4-GH, the 10.85″ four-color e-paper digital name plate for meeting environments. For more information, please visit www.good-display.com.
