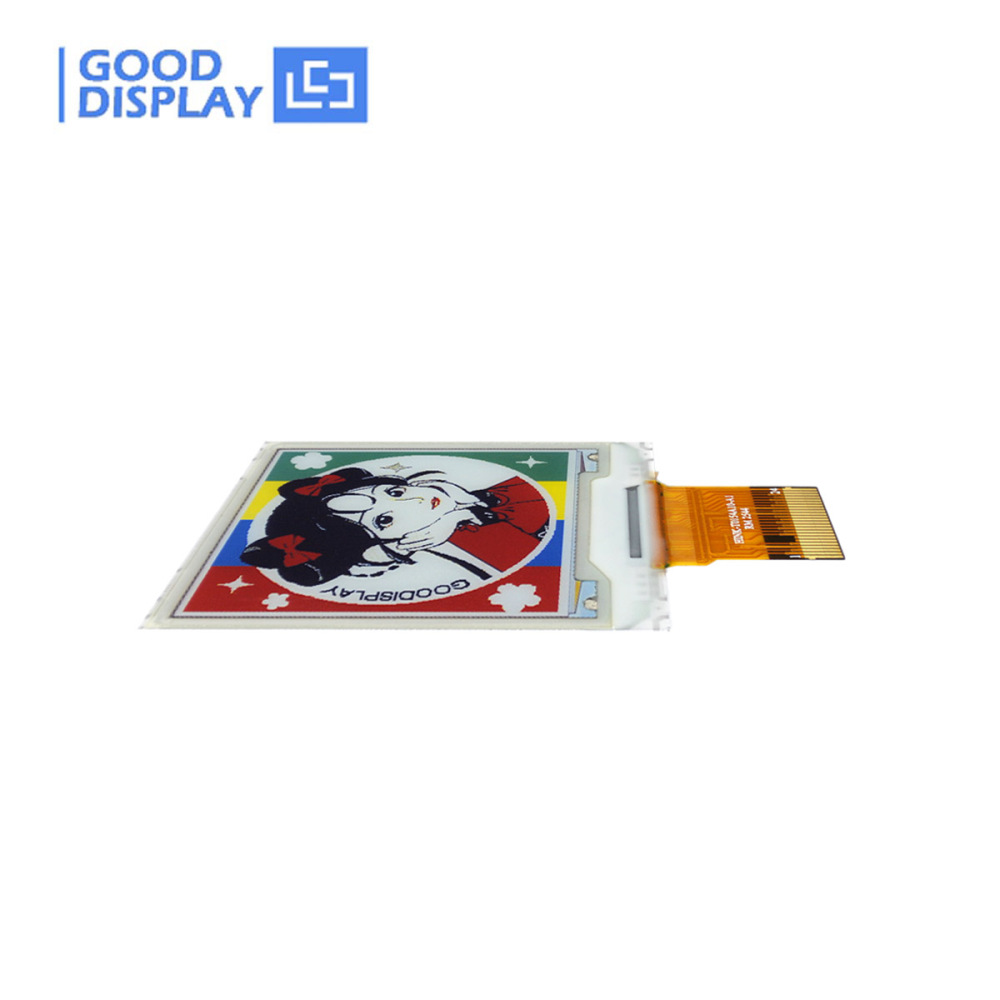

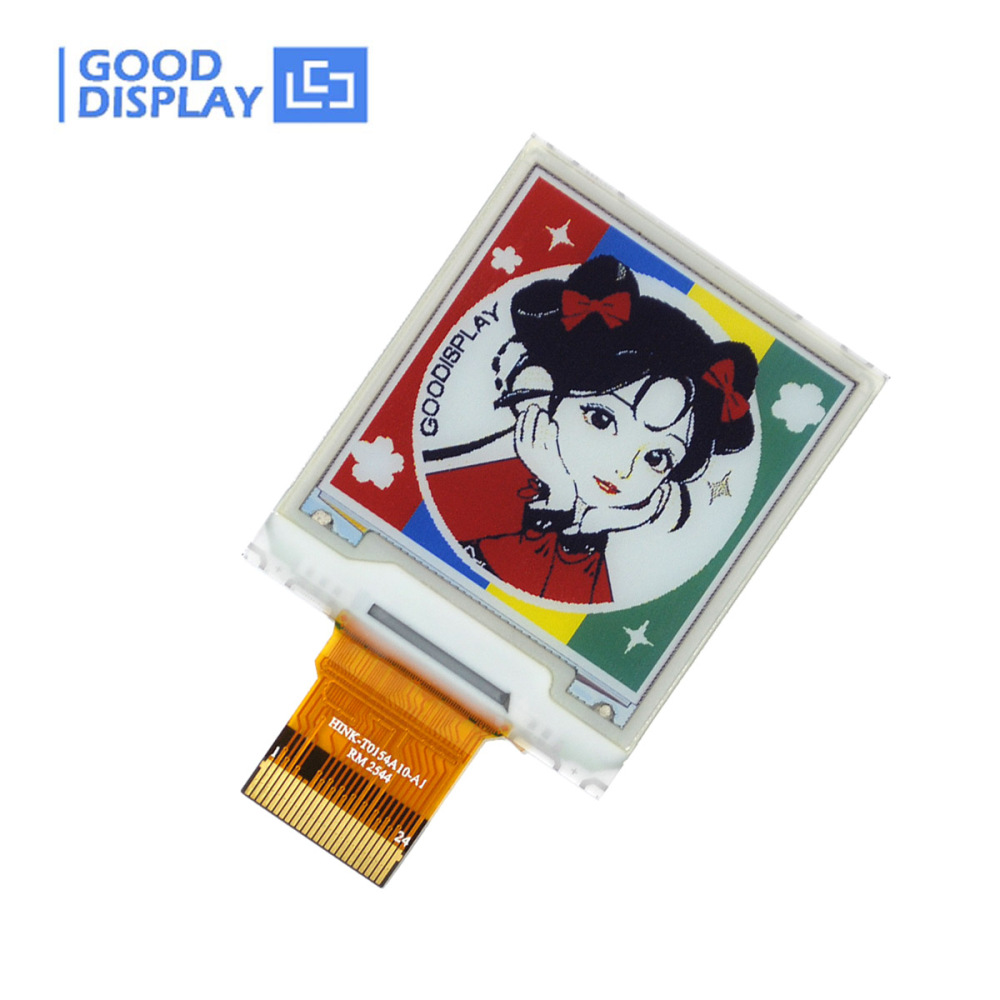

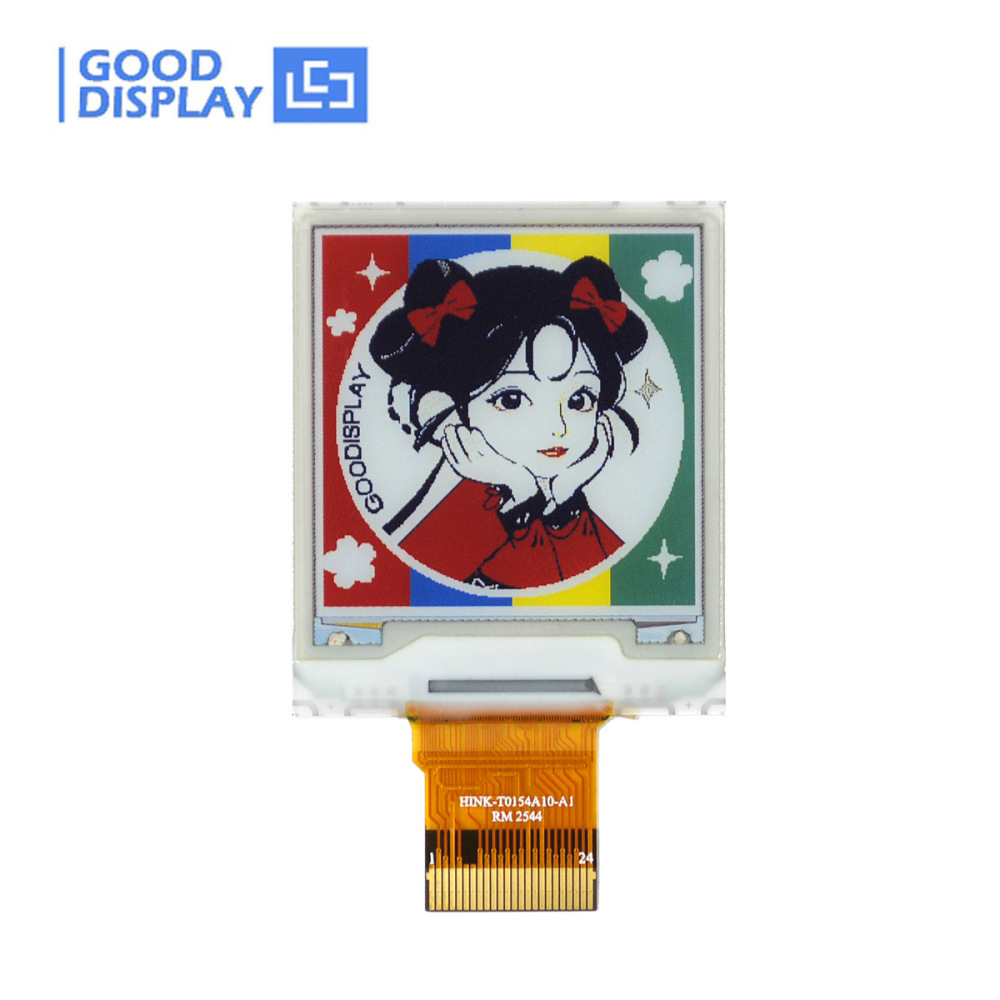

1.54 Inch 6-Color E-Ink Display Module 220PPI Ultra Low Power E6 Electronic Ink Screen, GDEH0154E01

Name: 1.54 Inch 6-Color E-Ink Display Module 220PPI Ultra Low Power E6 Electronic Ink Screen, GDEH0154E01
Brand: GOOD DISPLAY
Price: 8.91 USD
Availability: InStock

(0)

34 Sold

$8.91 ~~$9.68~~

8% OFF

Vibrant 1.54" Full-Color E-Ink Display with E6 6-color Eink. 240×240 220PPI delivers sharp text & vivid graphics with ultra-low power consumption. Simple SPI interface, fully CE & RoHS certified.

GET $3.00 OFF ON ORDERS OVER $59.00

Get it

ERP72QDC

Received successfully

Coupon Code

CONTINUE SHOPPING

Discount

2% OFF WITH PURCHASE OVER 2 UNITS
5% OFF WITH PURCHASE OVER 3 UNITS

Add to Favorites (0)

1/1

Description

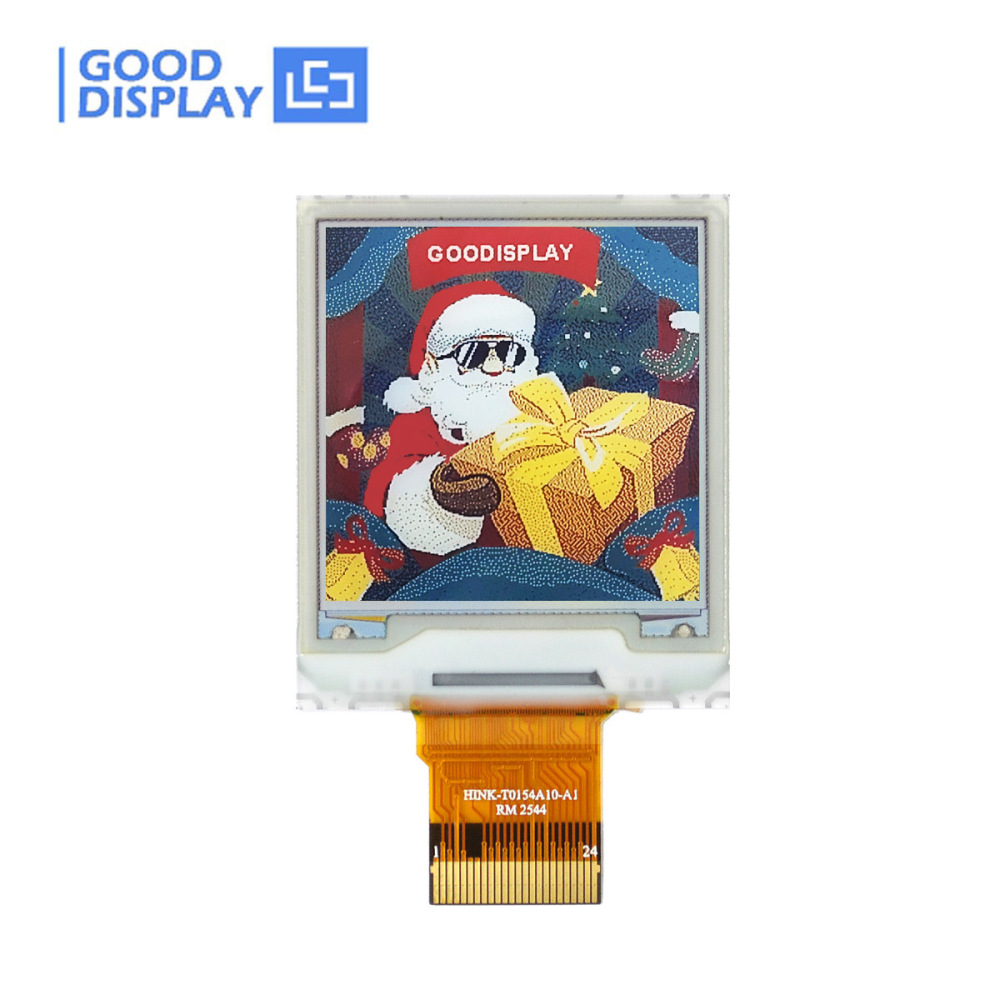

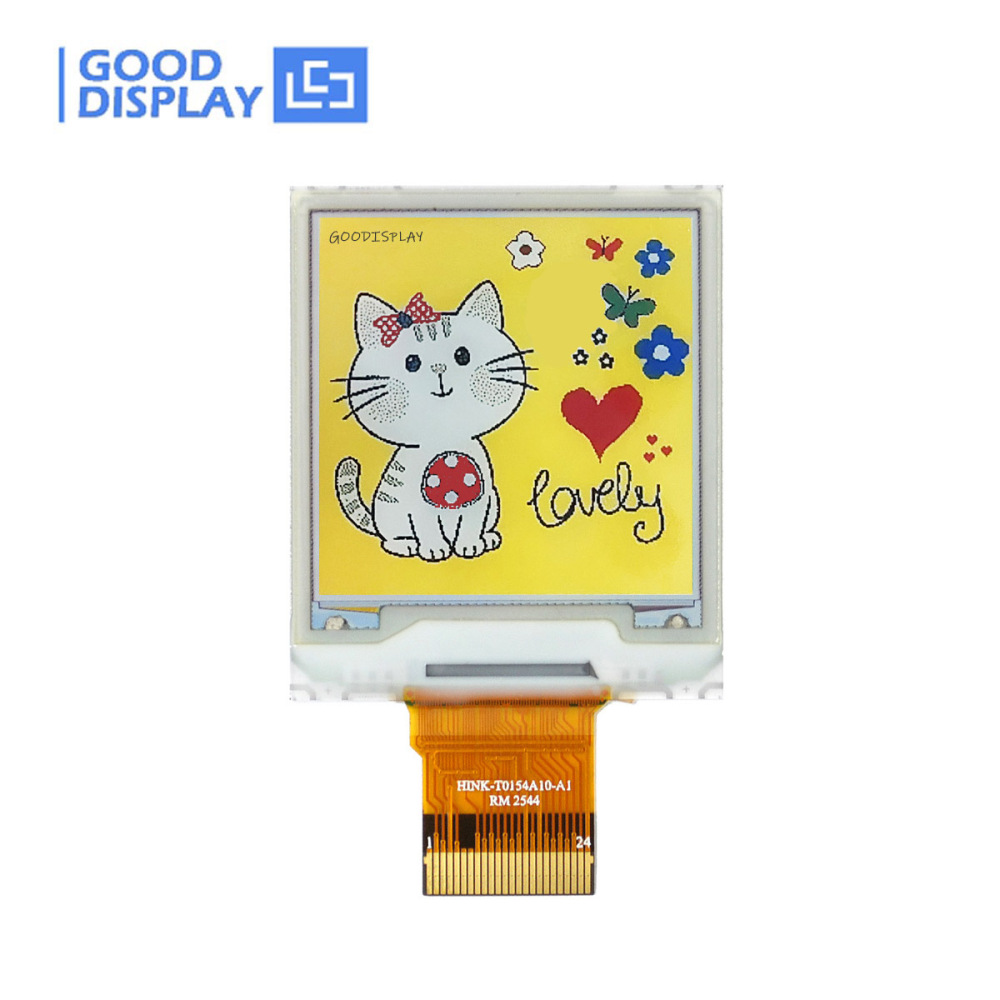

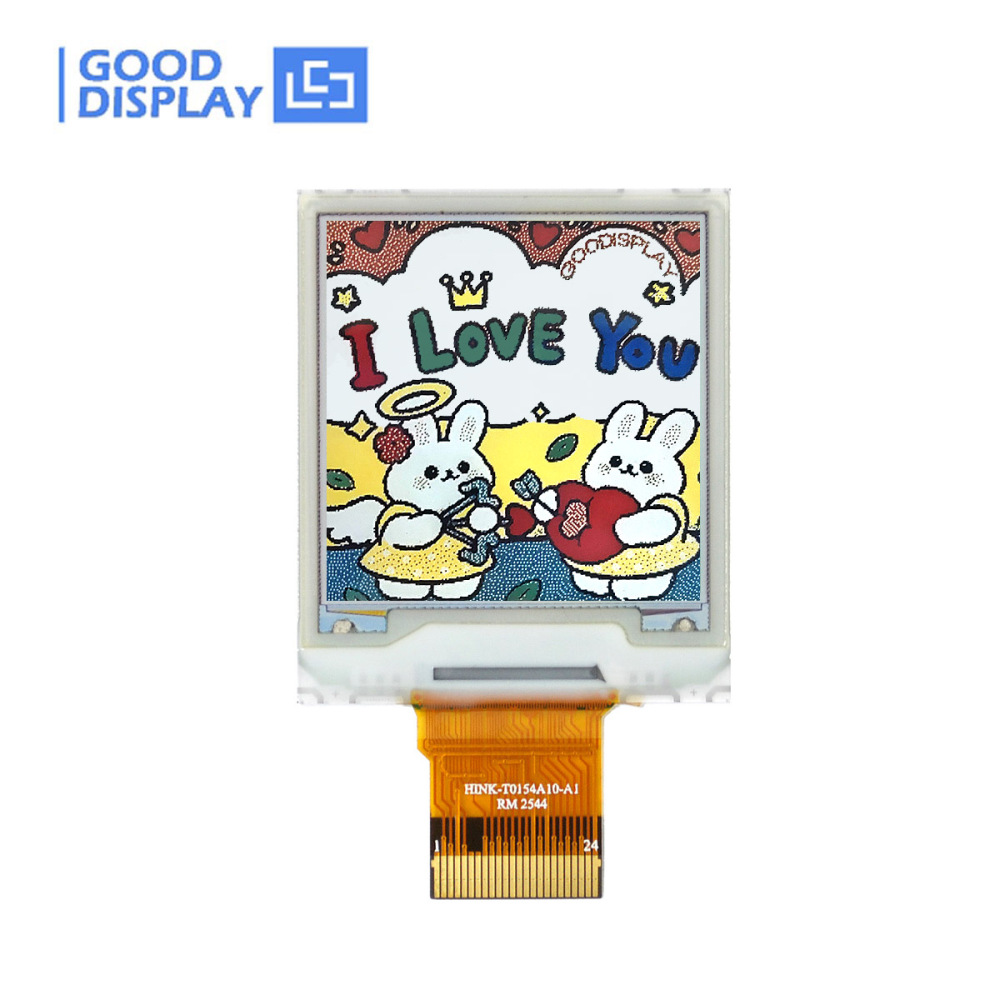

1.54" Square Full-color Display

Ultra‑compact 1.54" E Ink Spectra 6 – 6 vivid colors, 220 PPI, and anti‑glare for sunlight readability. Zero standby power, refresh‑only consumption, plus flexible SPI and integrated driver to speed up your design.

Stand out with lasting color – Request Samples now and launch faster.

Color Revolution^® · Engineered for Excellence

Native 6-Color E-Paper · 220 PPI · Zero Compromise Readability

64%Wider Gamut +300%Saturation 0.85mm Ultra-Thin ESP32Instant Drive

Spectra™ 6 · 6-Color Native

85% NTSC 4,096Colors 300%Vibrance

Industry Leading

Previous Gen · Legacy

50% NTSC LimitedPalette BaselineSaturation

— Outperformed —

220 PPI

True Native Color No Color Filter Array · No Compromise

Spectra 6 eliminates the color filter array, delivering full 220 PPI resolution at every pixel. Combined with our advanced anti-glare coating — zero washout, zero rainbow artifacts.

✦ Sunlight Optimized

0.85 mm

Ultra-Thin · Fully Integrated Zero External Analog Components

At just 0.85 mm thick, the module integrates DC-DC boost, oscillator, waveform LUT, and VCOM on-chip. No external components are required, dramatically reducing the PCB footprint.

⚡ Space-Saving Design

ESP32 Ready

Instant Drive · Production Ready 3-Wire, 4-Wire, & Quad SPI Support

Complete ESP32 hardware & software solution with full SPI interface support. The pre-loaded waveform LUT works out-of-the-box — refresh your screen with just a few lines of code.

🚀 Zero Friction Development

Technical Specifications

Part Number GDEH0154E01

Size 1.54"

Color Black, White, Red, Yellow, Blue, Green

Outline Size(mm) 31.8x37.32x0.85

Active Size(mm) 27x27

Pixel Pitch(mm) 0.1125×0.1125

Resolution 240x240

Pixel Configuration Rectangle

PPI 220

Operating Temp. 0~50℃

Weight 1.5±0.5g

Storage Temp. -25℃~60℃

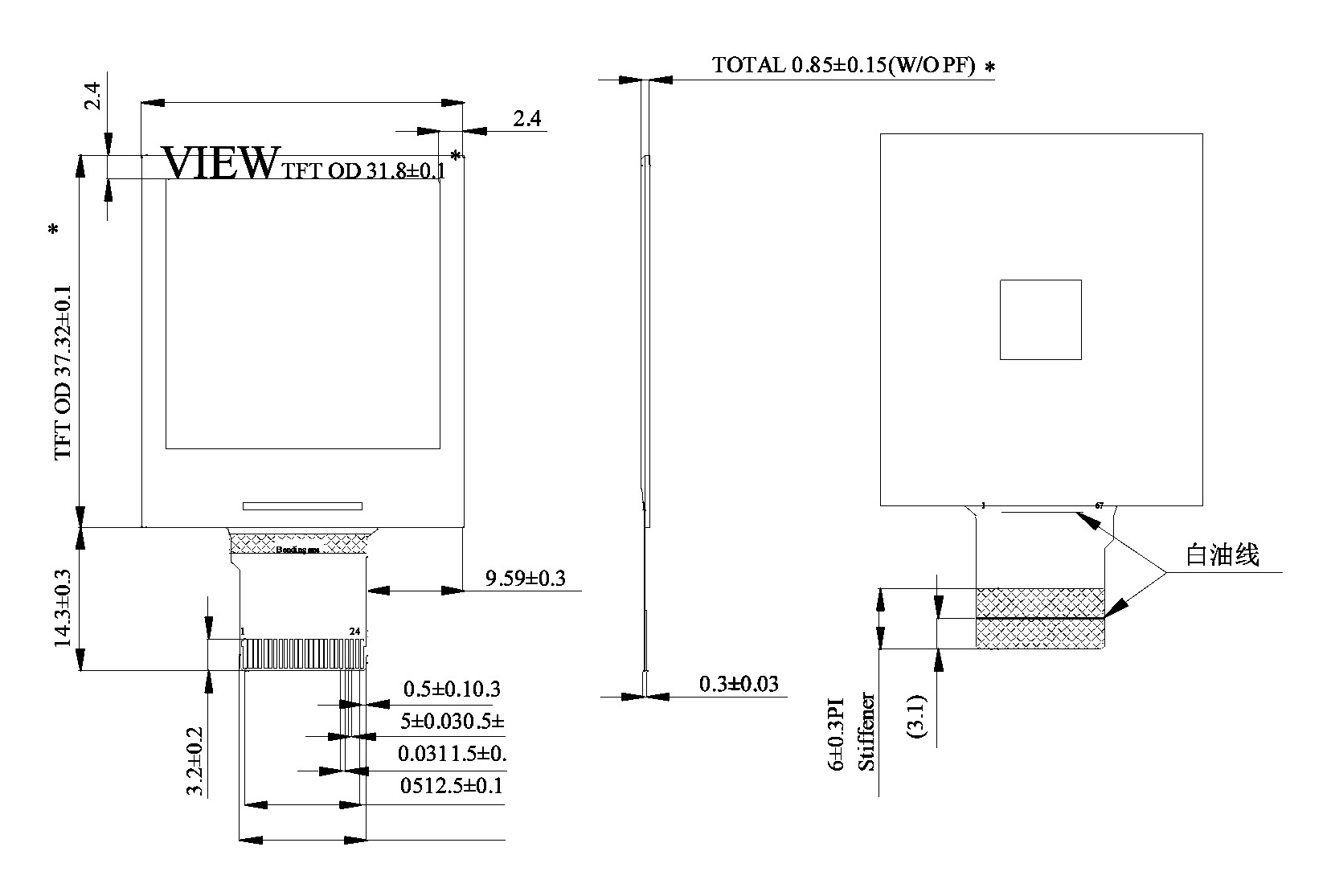

Drawing Detail

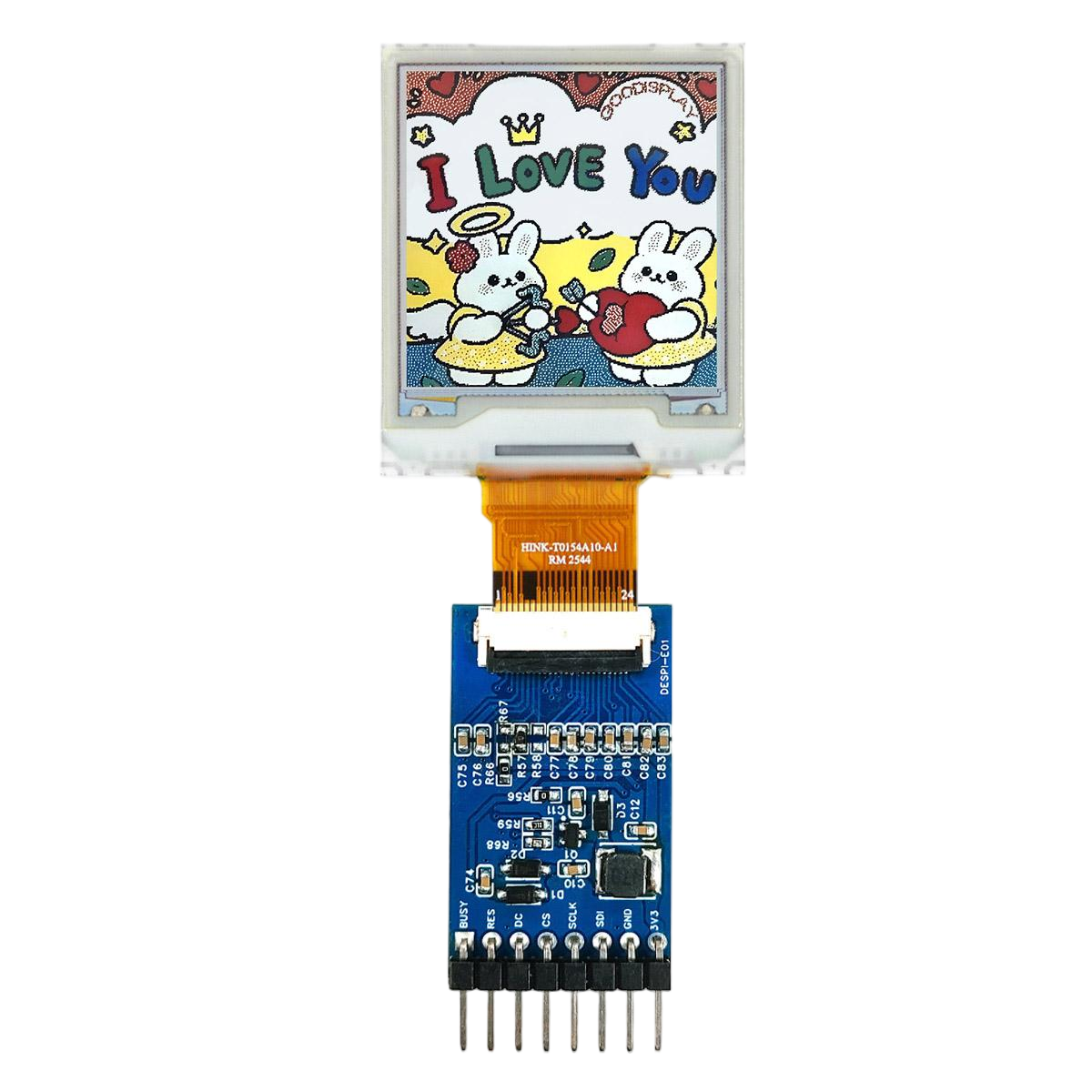

ESP32 Display Solution

Display

GDEH0154E01

6‑Color EPD

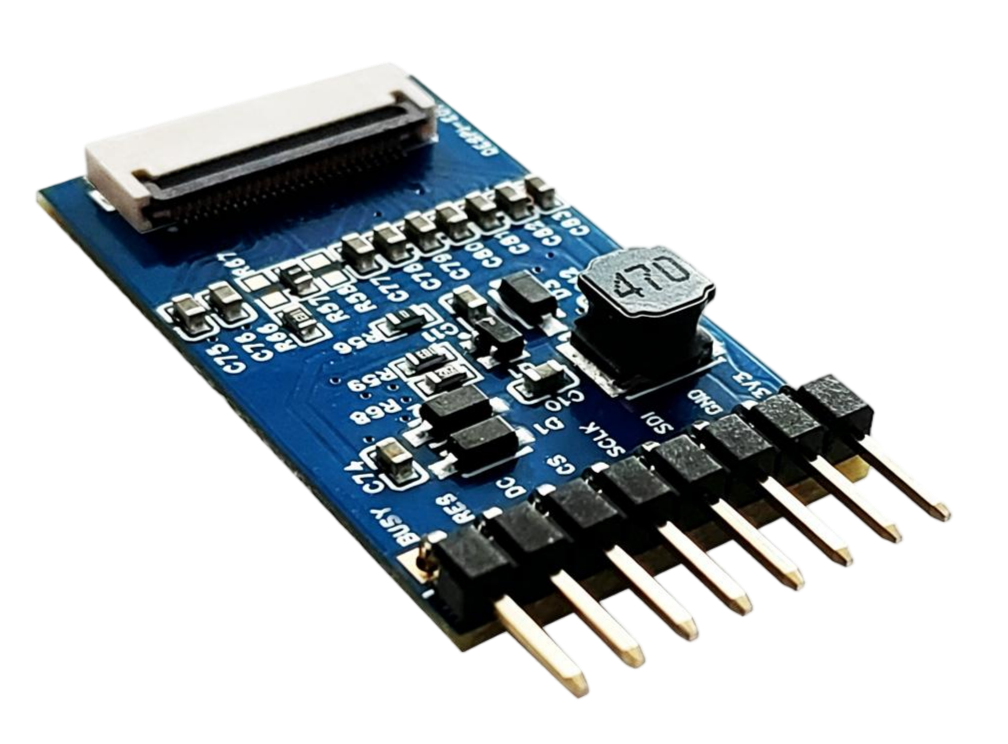

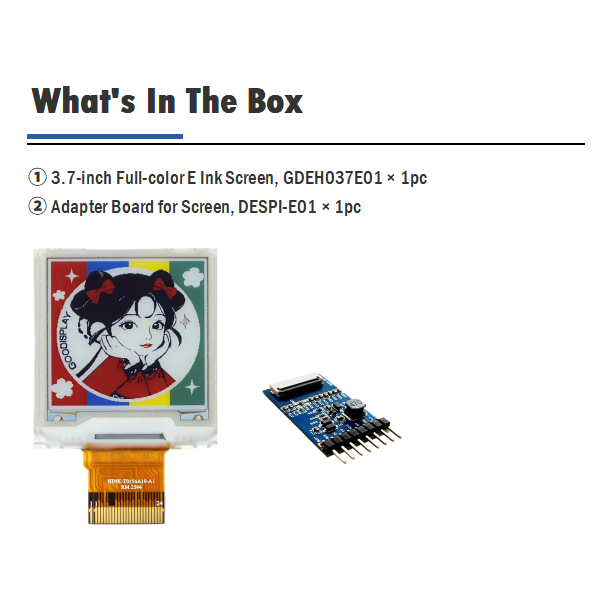

Small size e6 hat

DESPI-E01

Adapter Board

Connection Diagram

Ready to Use

Files & Download

GDEH0154E01_Specification ↓ ESP32 Sample Code ↓ Adapter Board_DESPI‑C169_Specification ↓ ePaper Display Usage Guidelines ↓ Why can't I download the files? ↓

Typical Applications

Temperature tester

Employee Card

Price tag

More E6 Products

Sustainable Technology

Paperless Future

Each display saves ≈3,000 sheets annually. Join 15,000+ businesses reducing paper waste with ePaper solutions.

Sustainable Packaging

95% recycled materials with FSC-certified packaging. 100% plastic-free protective materials.

Energy Leadership

90% less energy than LCDs. Annual CO₂ reduction equivalent to 50 mature trees.

About Us

Thank you for your interest in our product. We could provide front light, touch screen, and other accessories for you. For more information, please refer to the relevant manual available in our Library or visit our official website at www.good-display.com.
If you need any further assistance or have any other questions, please feel free to contact us. We sincerely invite you to send your inquiries to our email at buyepaper@good-display.com.
