E-ink raspberry epd display epaper 5.83 inch color UC8179C e-paper display electronic shelf label, GDEY0583Z31

This is a color 5.83 inch e ink display with 648x480 resolution, SPI interface, and the display is capable to display images with black, white and red content. It supports 20s full refresh.
Have a question?
Price:
USD
$30.30
  • Product:
    EPD
    EPD with adapter board
    EPD with STM32 Demo Kit
    EPD with ESP32 Demo Kit
Quantity:
-
+
(8 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
Inquiry Now
Add to Favorite Items
  • Description
  • Selection Guide
  • Selection Guide (Above 4.2 inch)
  • Reviews



☆ INTRODUCTION



This is a color 5.83 inch e ink display with 648x480 resolution, SPI interface, and the display is capable to display images with black, white and red content. It supports 28s full refresh. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely.

This 5.83 inch epd GDEY0583Z31 is perfect for low power devices powered by solar or batteries, or the products that require slow updates or semi-static content such as digital price tags, electronic shelf labels or signage.



We provide the E-Ink Adapter Board for you to connect the E-paper Display.

We could provide front light, touch screen and other accessories for you.
Relevant manual about this product on Library or you could go to our official website (www.good-display.com), contact us please.



☆ THE ABOVE PRICE INCLUDE

Package A +
  a. 5.83 inch color UC8179C e-paper display electronic shelf label, GDEY0583Z31 * 1pc   b. FPC Connector * 1pc

Package B + +

  a. 5.83 inch color UC8179C e-paper display electronic shelf label, GDEY0583Z31 * 1pc   b. FPC Connector * 1pc   c.Epaper HAT Connection Adapter Board for E Ink Display, DESPI-C02* 1pc
Package C + + +
a. 5.83 inch color UC8179C e-paper display electronic shelf label, GDEY0583Z31 * 1pc   b. FPC Connector * 1pc   c.STM32 E-paper Panel Driver Board Type-C Interface Eink Development Kit, DESPI-L(C02) * 1pc   d. USB Cable * 1pc
Package D + + +
a. 5.83 inch color UC8179C e-paper display electronic shelf label, GDEY0583Z31 * 1pc   b. FPC Connector * 1pc   c. ESP32 Arduino Platform E-paper Panel Driver Board Type-C Interface Eink Development Kit, ESP32-L(C02) * 1pc   d. USB Cable * 1pc






☆ MAIN PARAMETERS



PART NUMBER

GDEY0583Z31

SIZE

5.83 inch

 STORAGE TEMP. -25℃~60℃

TYPE

Dot Matrix

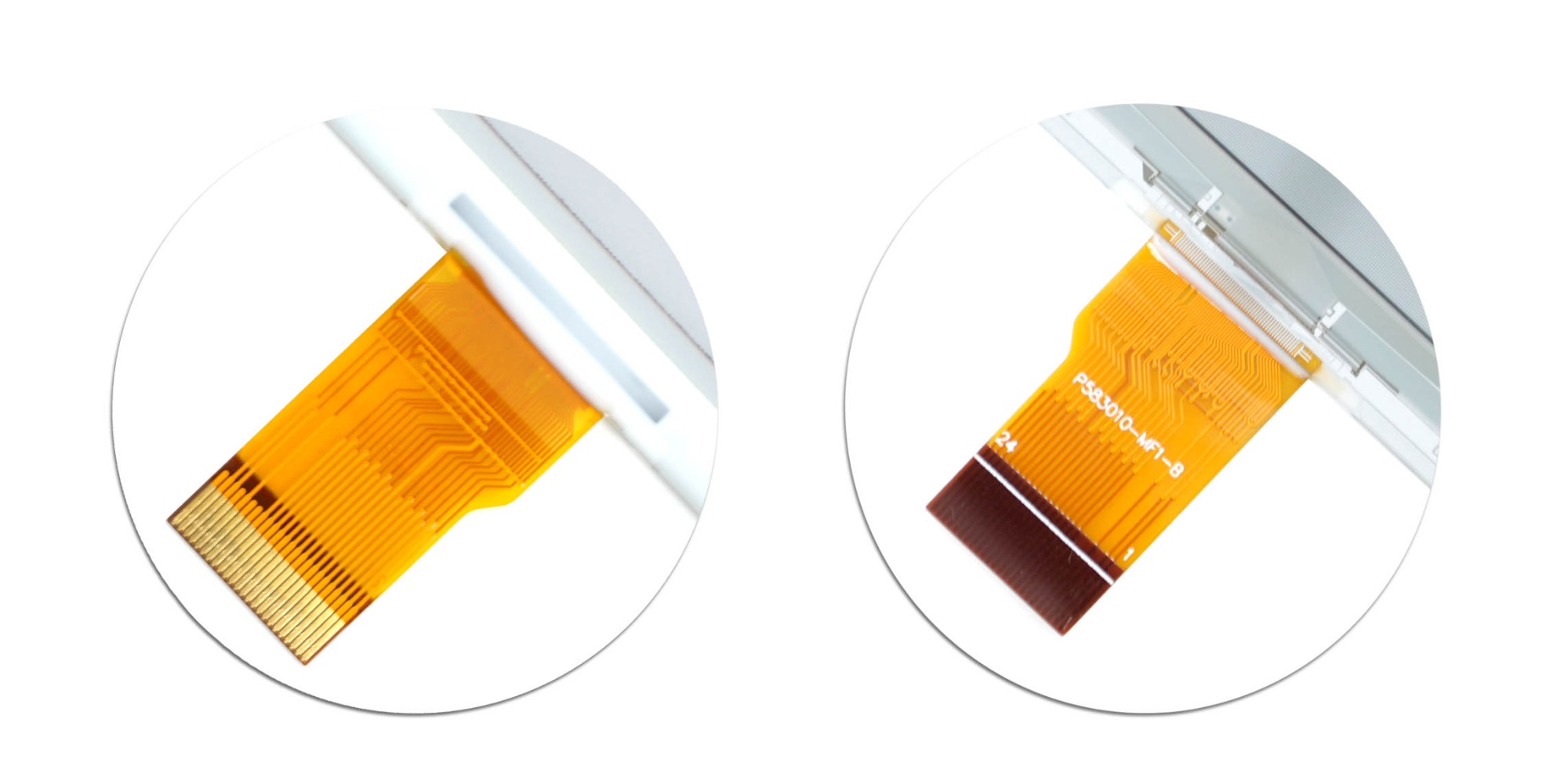

 CONNECTOR 24 Pin FPC

IC

UC8179C

 INTERFACE SPI

RESOLUTION

648x480

 COLOR Black,White, Red

OUTLINE SIZE(mm)

125.4x99.5x1.112

 FULL REFRESH(s) 28

ACTIVE SIZE(mm)

118.7784x88.224

 POWER CONSUMPTION OF THE REFRESH(mW) 9.9

PIXEL PITCH(mm)

0.1833x0.1833

 STANDBY POWER CONSUMPTION (mW) 0.0066

OPERATING TEMP.

0℃~40℃






☆ FEATURE



●  Versatile. Use in portrait or landscape format.
●  Bistable. (Will continue to display with no power source)
●  I2C Signal Master Interface to read external temperature sensor.
●  Color Optional. We also have other color for you to choose.

●  Development platform available STM32 / ESP8266 / ESP32



☆ DRAWING




☆ 5.83 INCH E-INK DISPLAY



Part Number

Color

 Resolution

Feature

 Full refresh time
GDEW0583C64 B/W/Y 600x448 Three colors,SPI interface 25s
GDEW0583Z83 B/W/R 648x480 Three colors,High resolution 12s
GDEY0583T81 B/W 648x480 High resolution 3.5s





☆ MATCHED DEVELOPMENT KIT



● DESPI-C02 (E-ink Display HAT)

● DESPI-L(C02) (STM32 Platform/Universal)


● ESP32-L(C02) (WiFi / Bluetooth)


● ESP8266-L(C02) (WiFi)



☆ RELATED INFORMATION DOWNLOAD

● GDEY0583Z31_Specification

● IC Driver UC8179

● Picture Production and Bitmap Convert for GDEY0583Z31

● GDEQ0583Z31 STM32 Sample Code

● GDEQ0583Z31 ESP32 Sample Code

● GDEQ0583Z31 ESP8266 Sample Code



☆ WE ALSO SUGGEST...



5.83 inch Epaper Fast Update Screen 648x480 Resolution Paper-Like Eink Display, GDEQ0583T31

5.83 inch high resolution color red e-paper display Tri-color e-ink screen module buy GDEW0583Z83

5.83 inch 3-color three colors yellow e-paper display eink screen module GDEW0583C64

5.65 inch ACeP 7-Color E Ink Gallery Palette e-paper, GDEP0565D90




☆ ABOUT US


Thank you for your interest in our product. If you need any further assistance or have any other questions, please feel free to contact us. We sincerely invite you to send your inquiries to our email at [buyepaper@good-display.com].

PART NUMBER SIZE COLOR GREY SCALE RESOLUTION ACTIVE SIZE(mm) FULL REFRESH TIME (S) OPERATING TEMP. PARTIAL REFRESH FLEXIBLE INTERFACE
GDEW0097T50 0.97'' BW 2 184x88 22.264x10.648 4 0℃~50℃ √   SPI
GDEW0097C50 0.97'' BWY 2 184x88 22.264x10.648 22 0℃~40℃     SPI
GDEW0102T4 1.02'' BW 2 128x80 21.76x14 3 0℃~50℃ √   SPI
GDEW0102I3F 1.02'' BW 2 128x80 21.76x14 3 0℃~50℃ √ √ SPI

GDEW0102I4FC

1.02''

BW

2

128x80

21.76x14

3

0℃~50℃

√

√

SPI
GDEW0154M10 1.54'' BW 2 152x152 27.512x27.512 3 -10℃~60℃     SPI
GDEY0154D67 1.54'' BW 4 200x200 27x27 2 0℃~50℃ √   SPI
GDEW0154T8D 1.54'' BW 4 152x152 27.51x27.51 3 0℃~50℃ √   SPI
GDEY0154Z90 1.54'' BWR 2 200x200 27x27 16 0℃~40℃     SPI
GDEW0154I9FC 1.54'' BW 4 152x152 27.51x27.51 3 0℃~50℃ √ √ SPI
GDEW0213I5FD 2.13'' BW 4 212x104 48.55x23.71 3 0℃~50℃ √ √ SPI
GDEY0213B74 2.13'' BW 4 250x122 48.55x23.7046 3 0℃~50℃ √   SPI
GDEY0213Z98 2.13'' BWR 2 250x122 48.55x23.7046 14 0℃~40℃     SPI
GDEW0213T5D 2.13'' BW 4 212x104 48.55x23.71 3 0℃~50℃ √   SPI
GDEW026T0D 2.6'' BW 4 296x152 60.09x30.7 3 0℃~50℃ √   SPI
GDEY0266T90 2.66'' BW 4 296x152 60.088x30.704 3 0℃~50℃ √   SPI
GDEY0266Z90 2.66'' BWR 2 296x152 60.088x30.704 12 0℃~40℃     SPI
GDEY027T91 2.7'' BW 4 264x176 57.29x38.19 3 0℃~50℃ √   SPI
GDEY029T94 2.9'' BW 4 296x128 66.896x29.056 3 0℃~50℃ √   SPI
GDEY029Z94 2.9'' BWR 2 296x128 66.896x29.056 12 0℃~40℃     SPI
GDEW029I6FD 2.9'' BW 4 296x128 66.9x29.06 3 0℃~50℃ √ √ SPI
GDEQ031T10 3.1'' BW 2 320x240 62.72x47.04 3 0℃~50℃ √   SPI
GDEY037Z03 3.71'' BWR 2 416x240 81.54x47.04 12 0℃~40℃     SPI
GDEY037T03 3.71'' BW 2 416x240 81.54x47.04 3 0℃~50℃     SPI

PART NUMBER SIZE COLOR GREY SCALE RESOLUTION ACTIVE SIZE(mm) FULL REFRESH TIME (S) OPERATING TEMP. PARTIAL REFRESH FLEXIBLE INTERFACE
GDEW042C37 4.2'' BWY 2 400x300 84.8x63.6 28 0℃~40℃     SPI
GDEW042T2 4.2'' BW 4 400x300 84.8x63.6 3 0℃~50℃     SPI
GDEY042T91 4.2'' BW 2 400x300 84.8x63.6 3 0℃~50℃     SPI
GDEQ042Z21 4.2'' BWR 2 400x300 84.8x63.6 19 0℃~40℃     SPI
GDEY0579T93 5.79'' BW 2 792x272 139.00×47.74 3 0℃~50℃     SPI
GDEY0579Z93 5.79'' BWR 2 792x272 139.00×47.74 20 0℃~40℃     SPI
GDEW0583C64 5.83'' BWY 2 600x448 118.80x88.26 25 0℃~40℃     SPI
GDEY0583T8 5.83'' BW 2 648x480 118.78x88.22 3 0℃~50℃     SPI
GDEW0583Z83 5.83'' BWR 2 648x480 119.232x88.32 12 0℃~40℃     SPI
GDEY075T7 7.5'' BW 4 800x480 163.2x97.72 3 0℃~50℃ √   SPI
GDEY075Z08 7.5'' BWR 2 800x480 163.2x97.72 12 0℃~40℃     SPI
GDEP097TC2

9.7''

BW

16

1200x825

202.8x139.425

1

0℃~50℃

√



Parallel
GDEQ102T90 10.2'' BW 2 960x640 215.52x143.68 4 0℃~50℃     SPI
GDEQ102Z90 10.2'' BWR 2 960x640 215.52x143.68 4 0℃~50℃     SPI
GDEH116T91 11.6'' BW 2 960x640 244.512x163.008 5 0℃~50℃     SPI
GDEH116Z91 11.6'' BWR 2 960x640 244.512x163.008 30 0℃~35℃     SPI
GDEY1248Z51 12.48'' BWR 2 1304x984 252.98x190.90 25 0℃~40℃     SPI
GDEP133UT3 13.3'' BW 16 1600x1200 270.4x202.8 1 -15℃~65℃     Parallel
