Name: 24PIN E-Paper Adapter Board Front Light, Touch, SD Card SPI Raspberry Pi & DESPI-M02L Compatible, STM32-FT01
Brand: GOOD DISPLAY
Price: 9.35 USD
Availability: InStock

$9.35 ~~$10.99~~

15% OFF

ESP32-FTS02 is a compact, all-in-one adapter board designed for SPI e-paper displays. It integrates front light, touch panel support, and micro SD storage, while seamlessly working with Raspberry Pi and ESP32-L boards.

GET $3.00 OFF ON ORDERS OVER $59.00

Get it

ERP72QDC

Received successfully

Coupon Code

CONTINUE SHOPPING

Discount

3% OFF WITH PURCHASE OVER 2 UNITS
5% OFF WITH PURCHASE OVER 3 UNITS

Please select the information you want X

Product:

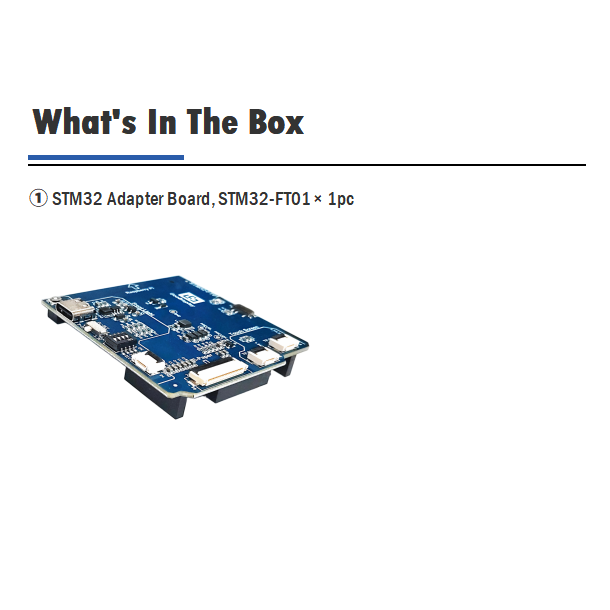

Adapter Board Only

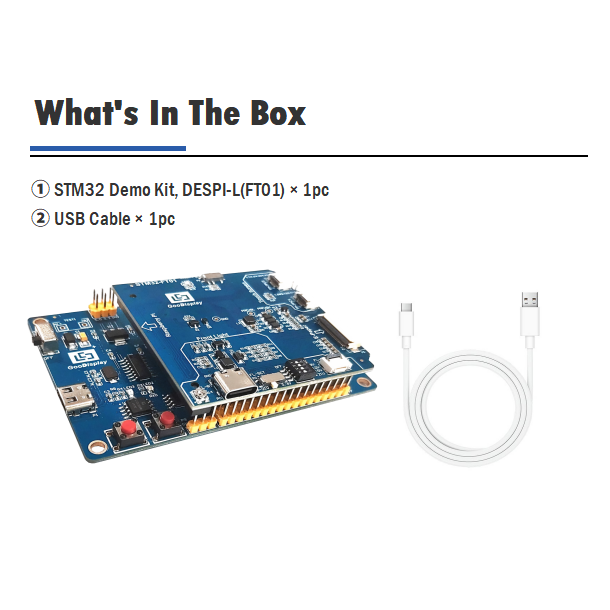

with STM32 Demo Kit

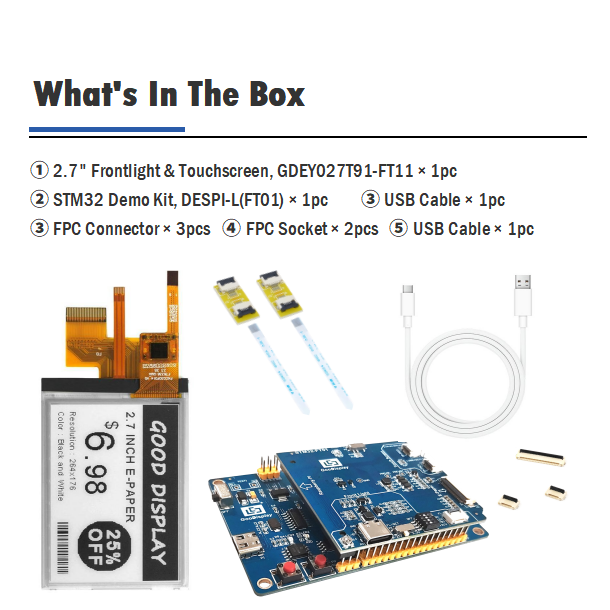

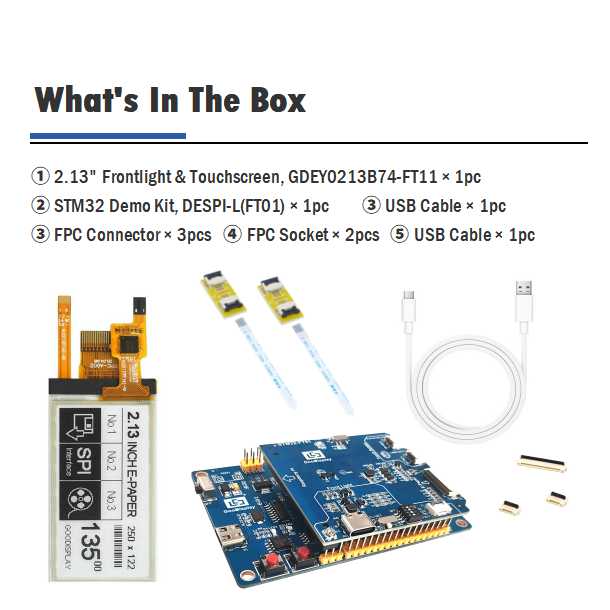

Kit with 2.13" Frontlight & Touchscreen

Kit with 2.7" Frontlight & Touchscreen

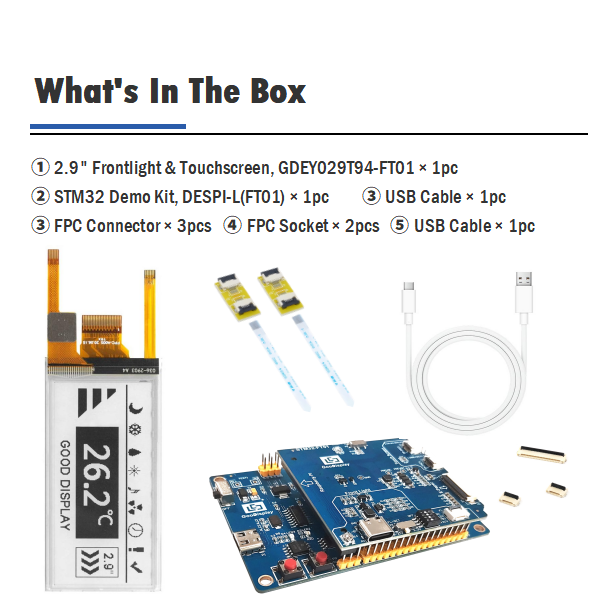

Kit with 2.9" Frontlight & Touchscreen

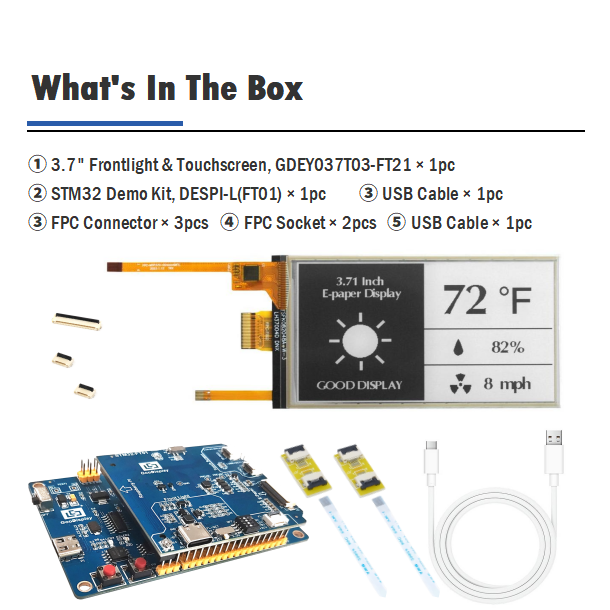

Kit with 3.7" Frontlight & Touchscreen

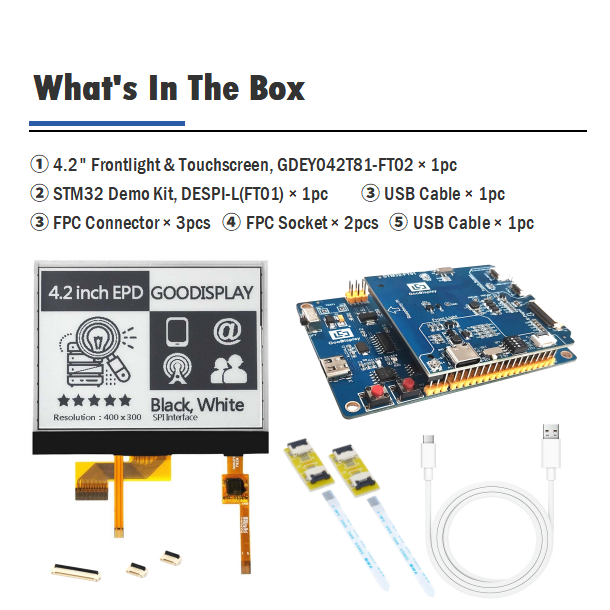

Kit with 4.2" Frontlight & Touchscreen

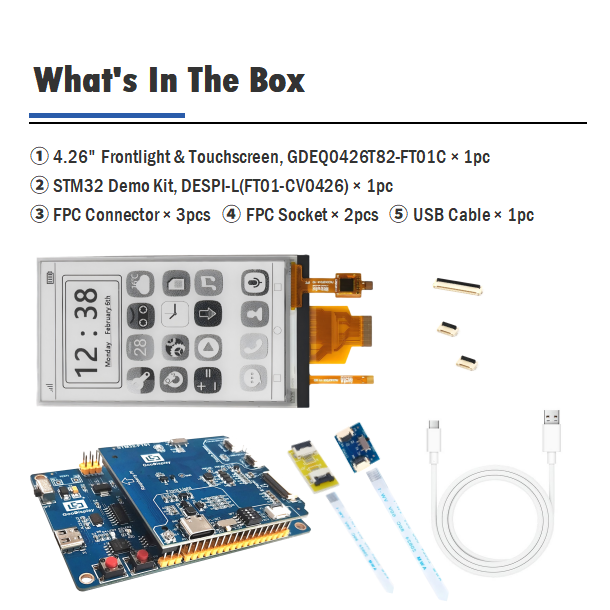

Kit with 4.26" Frontlight & Touchscreen

Quantity:

0 in stock

Add to Favorites (0)

1/1

Description

STM32-FT01 – E-Paper Adapter Board with Front Light, Touch

STM32-FT01 is a compact, all-in-one adapter board designed for SPI e-paper displays. It integrates front light, touch panel support, and micro SD storage, while seamlessly working with Raspberry Pi and DESPI-M02L mainboards. Built-in DIP-switch resistor matching ensures optimal display performance with various driver ICs. Multiple interface options, flexible form factor, and included Keil4 example code make development fast and hassle-free.

Technology Highlights

Driver IC Compatibility

Instant RESE matching via DIP switch selects boost reference resistor – 0.47Ω (UltraChip) or 2.2Ω (Solomon & four‑color). No PCB rework needed.

①

0.47Ω – UltraChip (UC) series driver ICs

②

2.2Ω – Solomon (SSD) series driver ICs

③

2.2Ω – Four‑color (B/W/R/Y) e‑paper displays

Boost & Front Light

Pre‑validated boost circuit with test points (PREVGH/PREVGL). Multi‑voltage front light support (3.3V ↔ 9‑21V) with continuous dimming.

①

P2: 3.3V ↔ 9‑21V selection

②

SS1: 9/12/15/21V voltage steps

③

R14: continuous front‑light dimming

Dual‑Platform Plug‑in

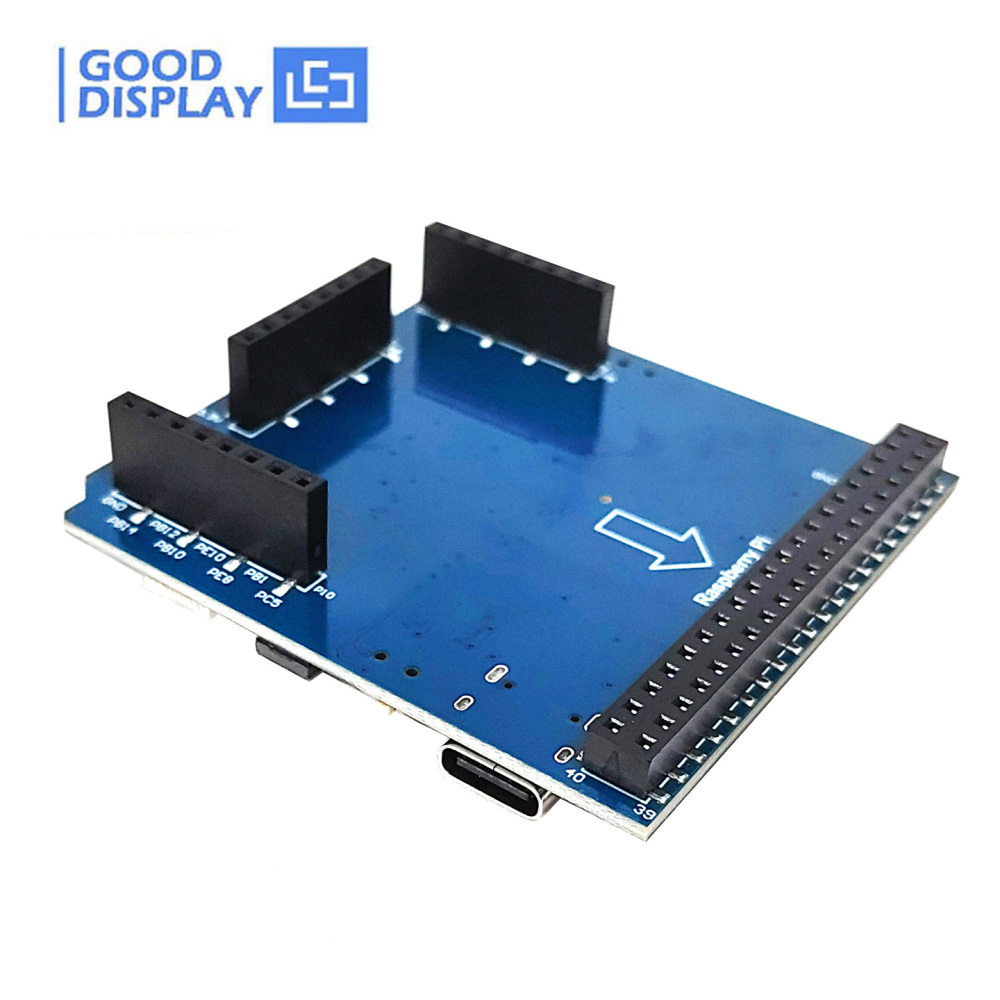

Direct connection to Raspberry Pi (P1, rear) and DESPI‑M02L mainboard (P8‑P10, rear). Prototype on Pi, develop on STM32 – one board, two workflows.

①

Raspberry Pi 40‑pin direct plug‑in

②

DESPI‑M02L mainboard interface (P8‑P10)

③

Clean stacking with rear‑side connectors

Touch Panel Support

Dual touch interfaces for ≤2.9″ (P6) and ≥3.7″ (P7). Supports touch panels up to 7.5 inches, with reverse insertion for 2.9″ and 7.5″ models.

①

P6 – for touch panels ≤2.9″

②

P7 – for touch panels ≥3.7″

③

Physically isolated from front‑light to prevent misinsertion

EPD FPC & Waveform OTP

24‑pin, 0.5mm pitch FPC connector (P5) with display‑side‑up insertion. Waveforms pre‑burned into OTP – call built‑in fast/partial refresh without LUT tuning.

①

Supports all SPI e‑paper displays up to 13.3″

②

Pre‑stored waveforms for instant refresh

③

Fast / partial update support

Development Ecosystem

Complete Keil4 example code, full documentation, and test points for debugging. 58.6 × 54.7 mm compact size, 3.3V logic (front light 5V).

①

Keil4 example projects with image data

②

PREVGH/PREVGL test points for boost verification

③

18 years EPD expertise – validate in days

Technical Specifications

Model STM32-FT01

Feature Supports e‑paper, touch screen, front light, Raspberry Pi & DESPI‑M02L interfaces

Outside Dimension 58.6 × 54.7 mm

Operating Temp -20~70℃

Suitable Size E‑paper with SPI interface below 13.3 inches (24‑pin)

Development Platform Keil4

Interface 24‑pin and 6‑pin FPC 0.5mm

Example Code Available

Power Input DC3.3V (Front Light DC 5V)

Reserved Function Front light brightness adjustment, micro SD card image storage

Raspberry Pi 3.0+ Compatibility

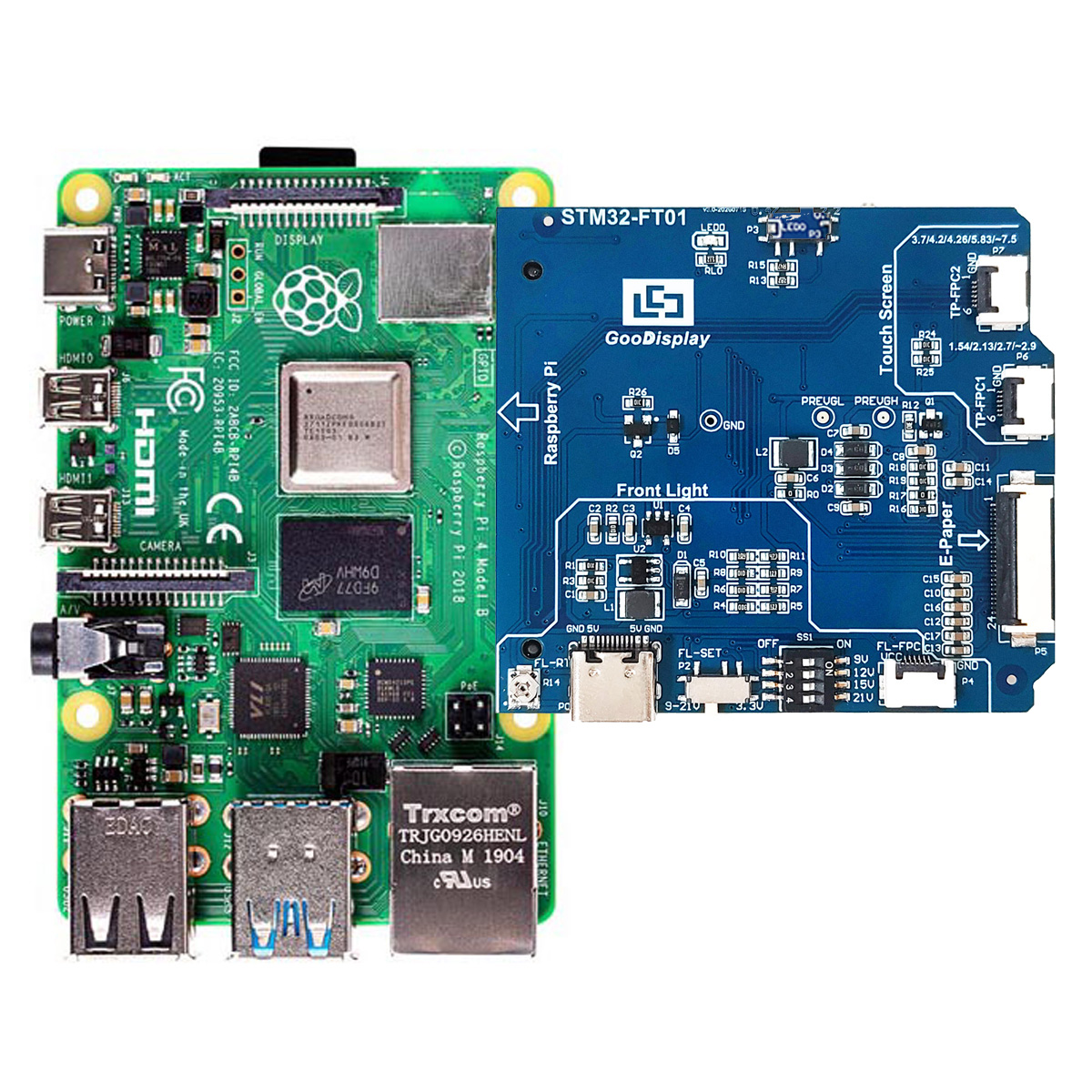

Direct Connection: Connects directly via the P1 interface (rear side).

Plug-and-play setup
No extra wiring needed
Space-saving design
Stable and reliable connection

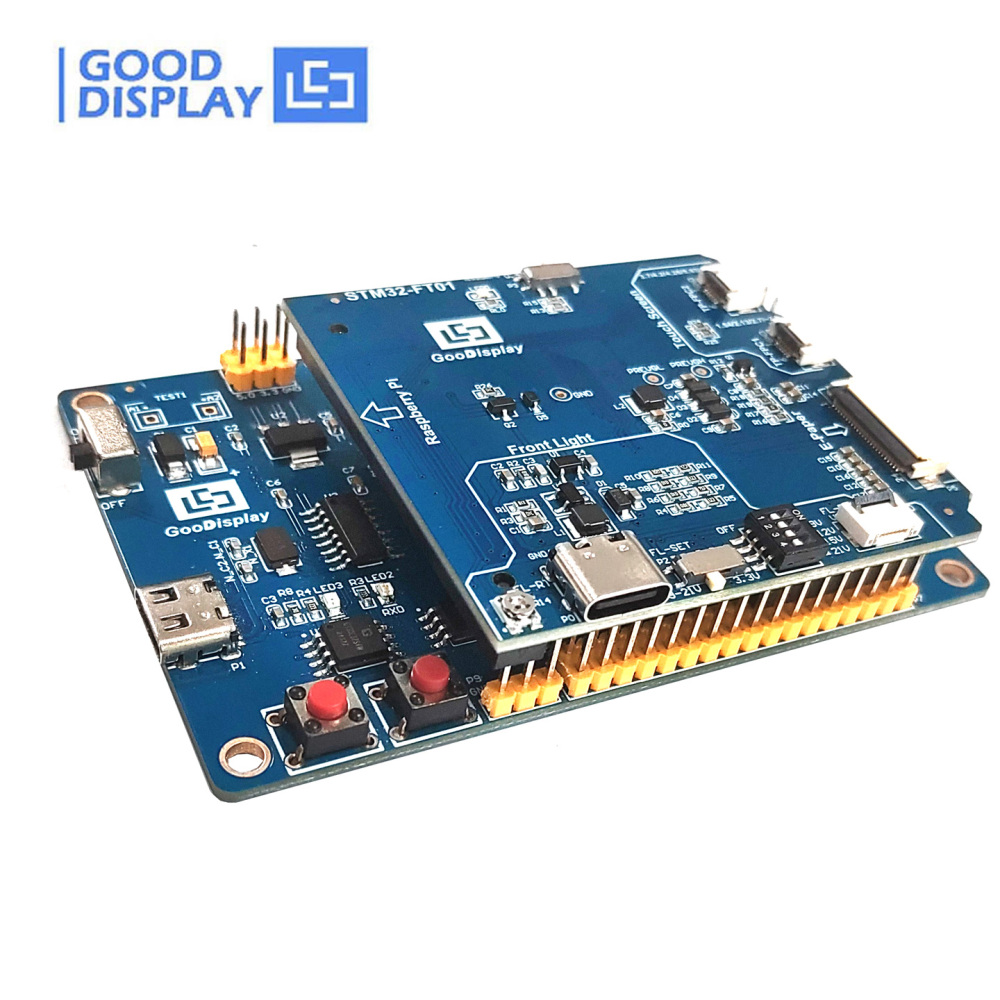

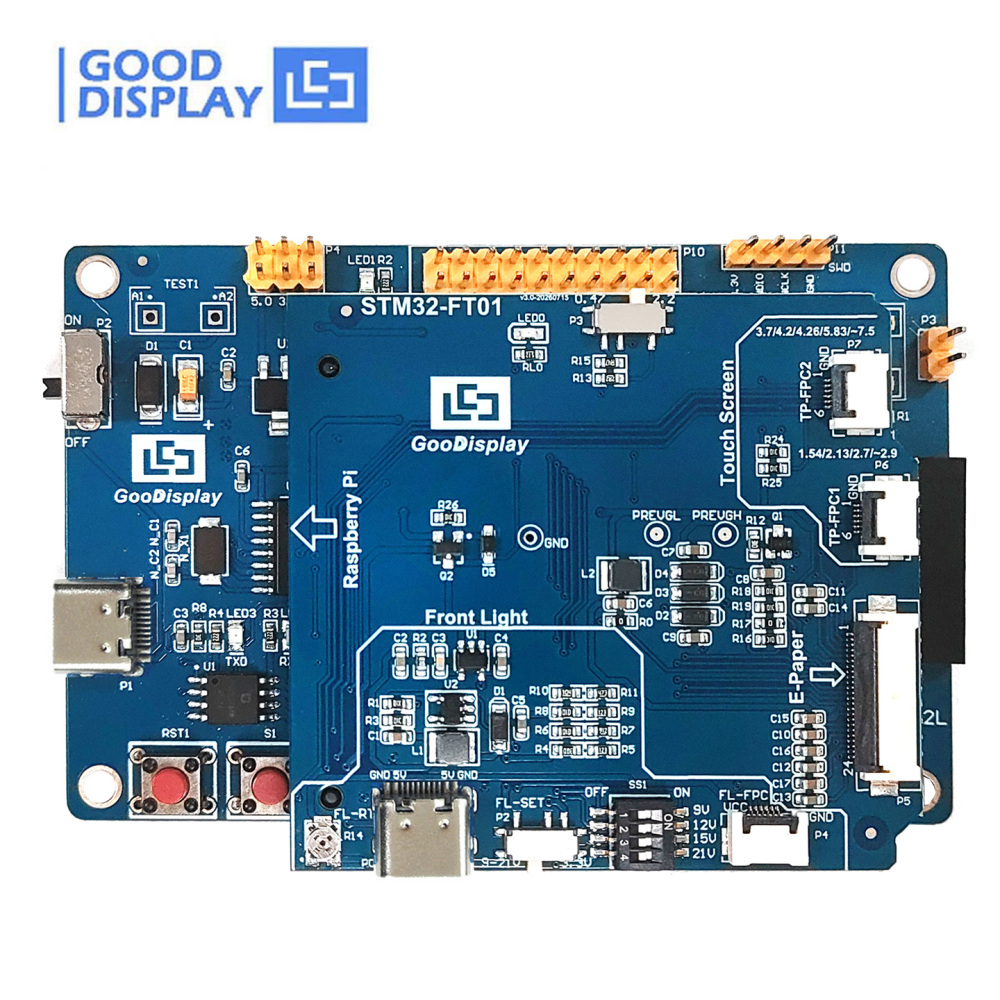

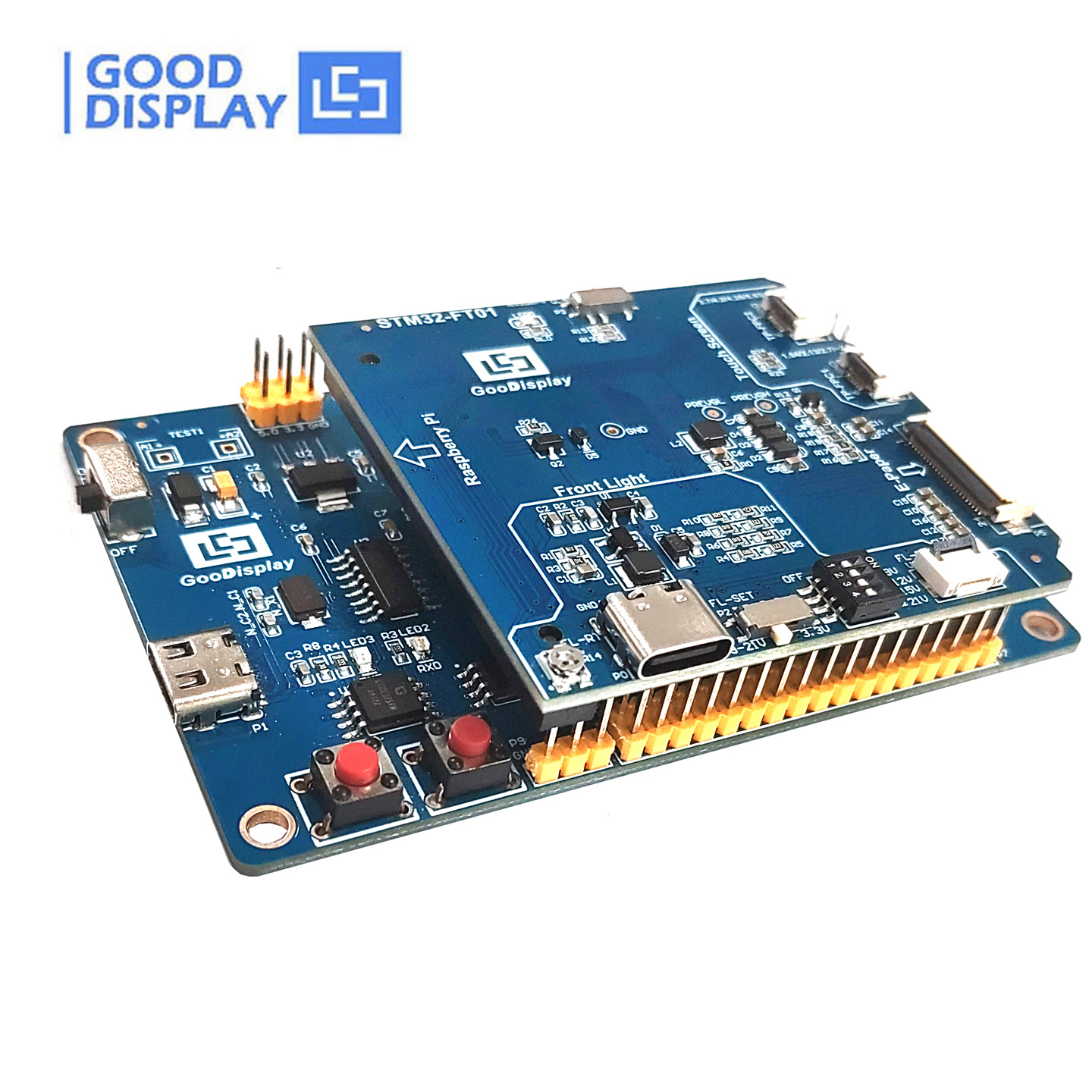

DESPI-M02L Mainboard Compatibility

Multi-Interface Connection: Uses P8–P10 interface group (rear side) for flexible integration.

E-paper display testing
Touchscreen driver testing
Front-light display testing
Full STM32 development workflow

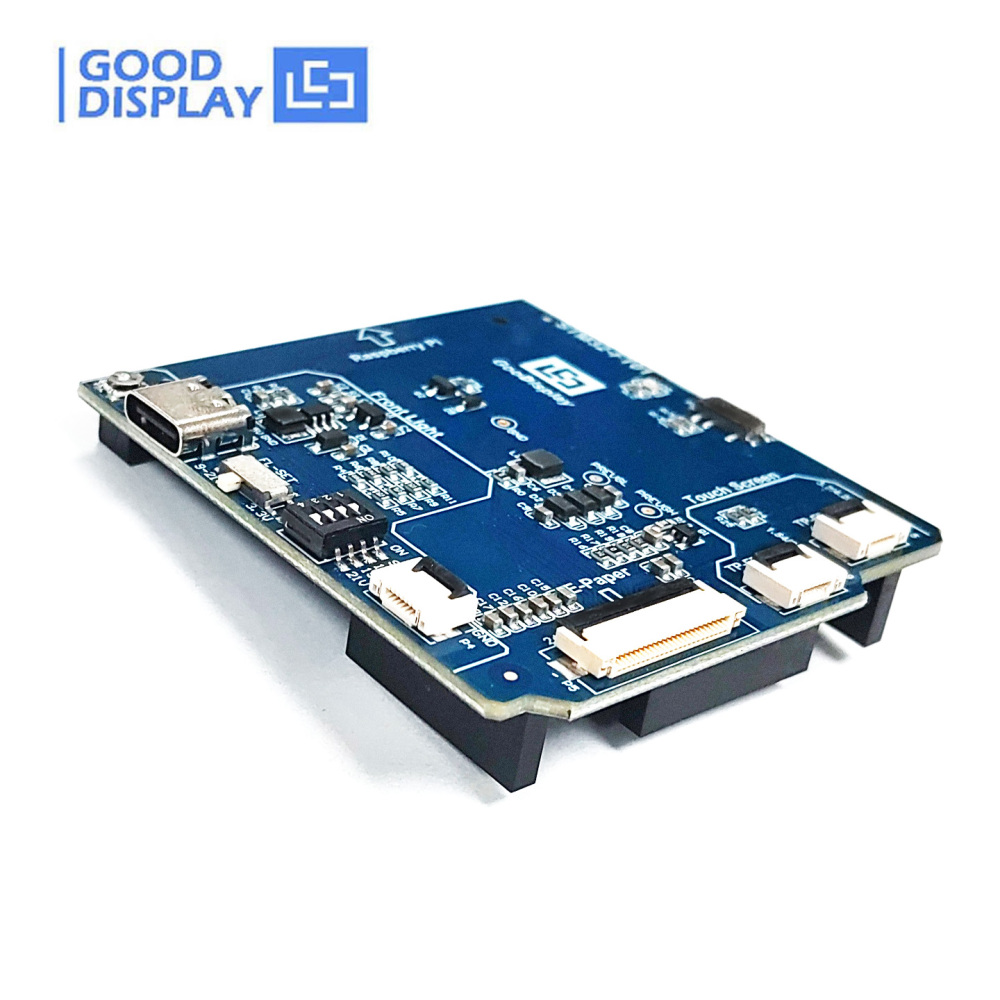

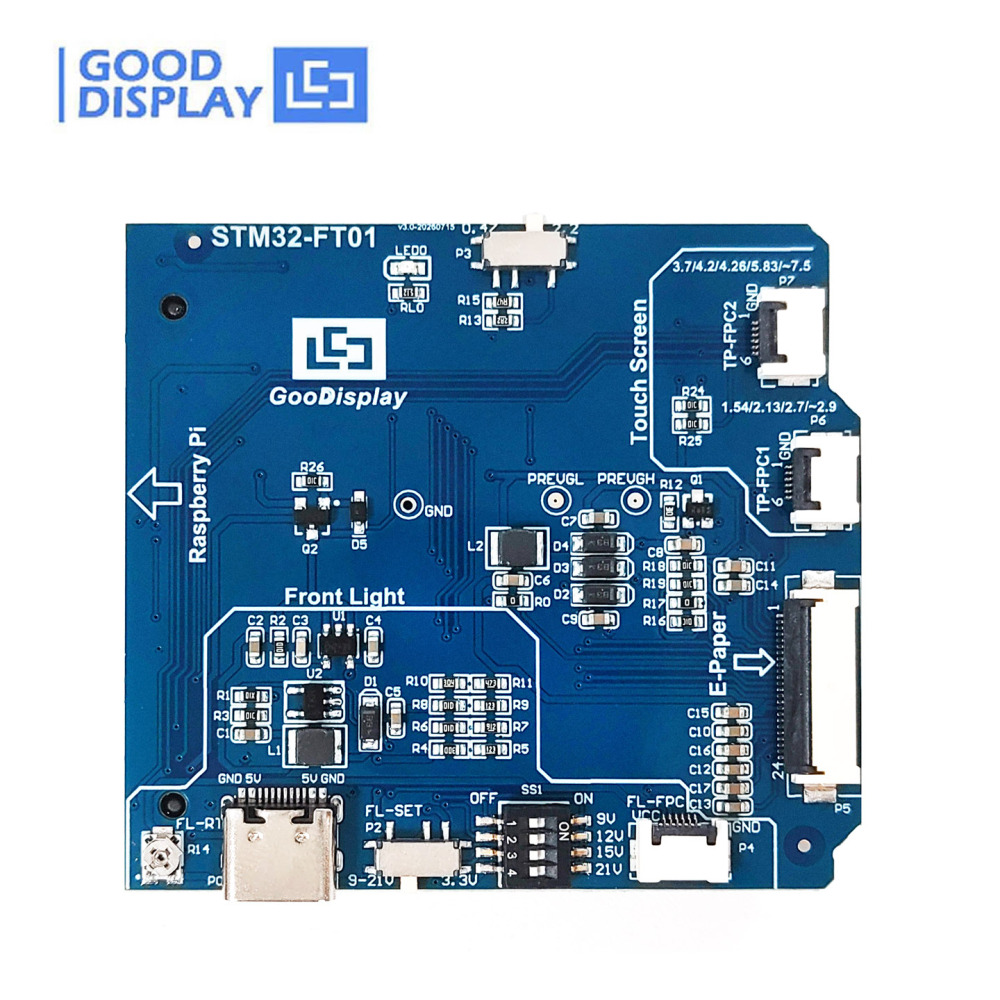

Structure Diagram Details

1 Front Light Voltage Setting
2 Front Light Brightness Control
3 Front Light Power Supply
4 E‑paper Resistance Selection
5 Touch Screen Interface
6 E‑paper Interface
7 Front Light Voltage Selection
8 Front Light Interface
9 Raspberry Pi Interface
10 DESPI‑M02L Main Board Interface

Files & Download

[PDF] STM32-FT01_Specification

[PDF] DESPI-M02L (FT01)_Specification
