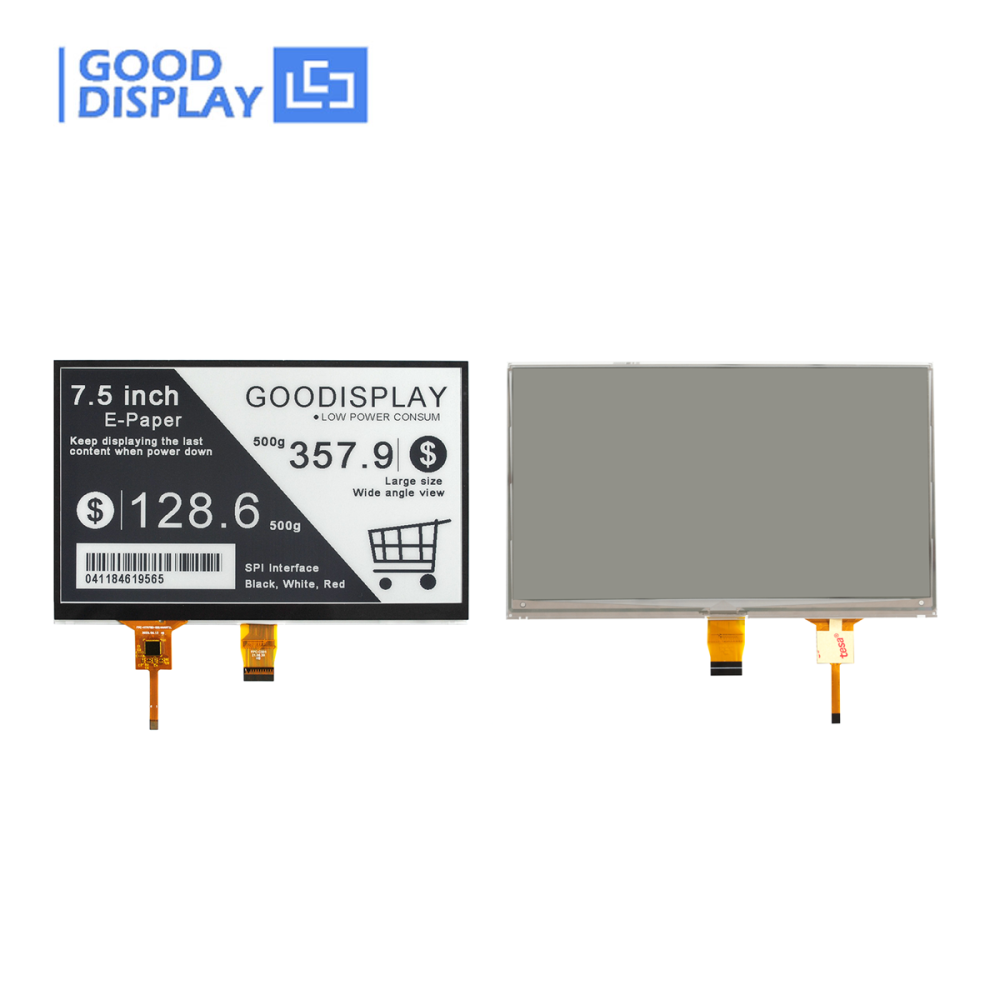

Name: 7.5-Inch Touch E-Paper E-Ink Display HAT 800x480 Resolution Black&White Paper-like Display, GDEY075T7-T01
Brand: GOOD DISPLAY
SKU: GDEY075T7-T01
Price: 41.25 USD
Availability: InStock
Rating: 5 (10 reviews)

$41.25 ~~$49.10~~

16% OFF

This 7.5 inch electronic paper monitor GDEY075T7-T01 is perfect for low-power touchable devices.

GET $3.00 OFF ON ORDERS OVER $59.00

Get it

ERP72QDC

Received successfully

Coupon Code

CONTINUE SHOPPING

Discount

3% OFF WITH PURCHASE OVER 2 UNITS
5% OFF WITH PURCHASE OVER 3 UNITS

Quantity:

0 in stock

Add to Favorites (6)

1/1

Description

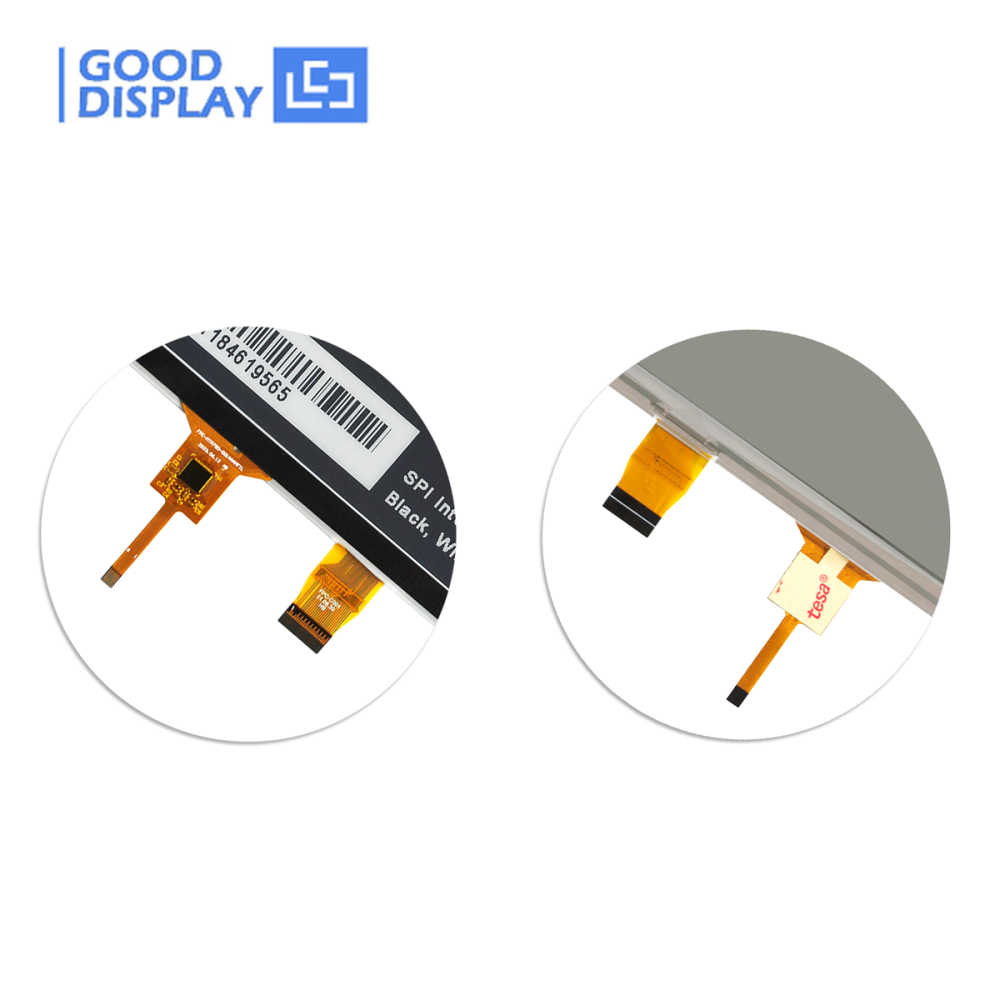

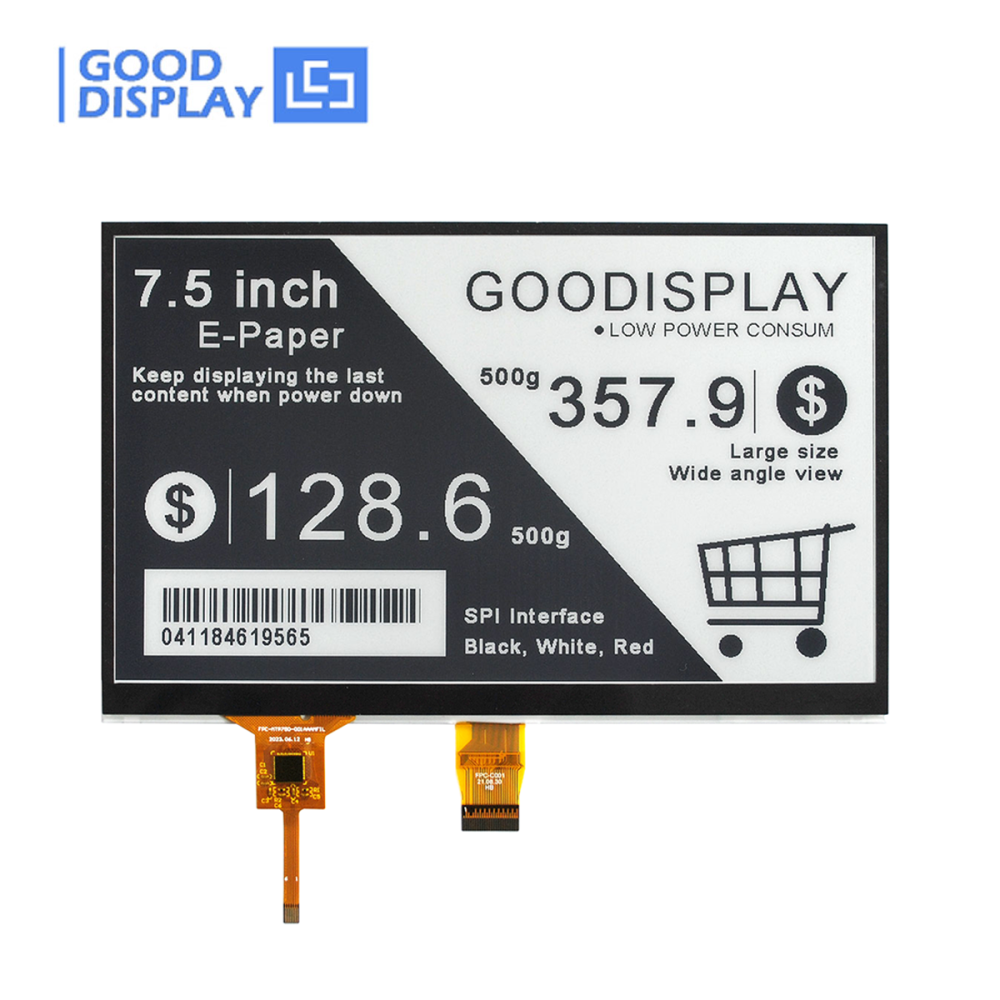

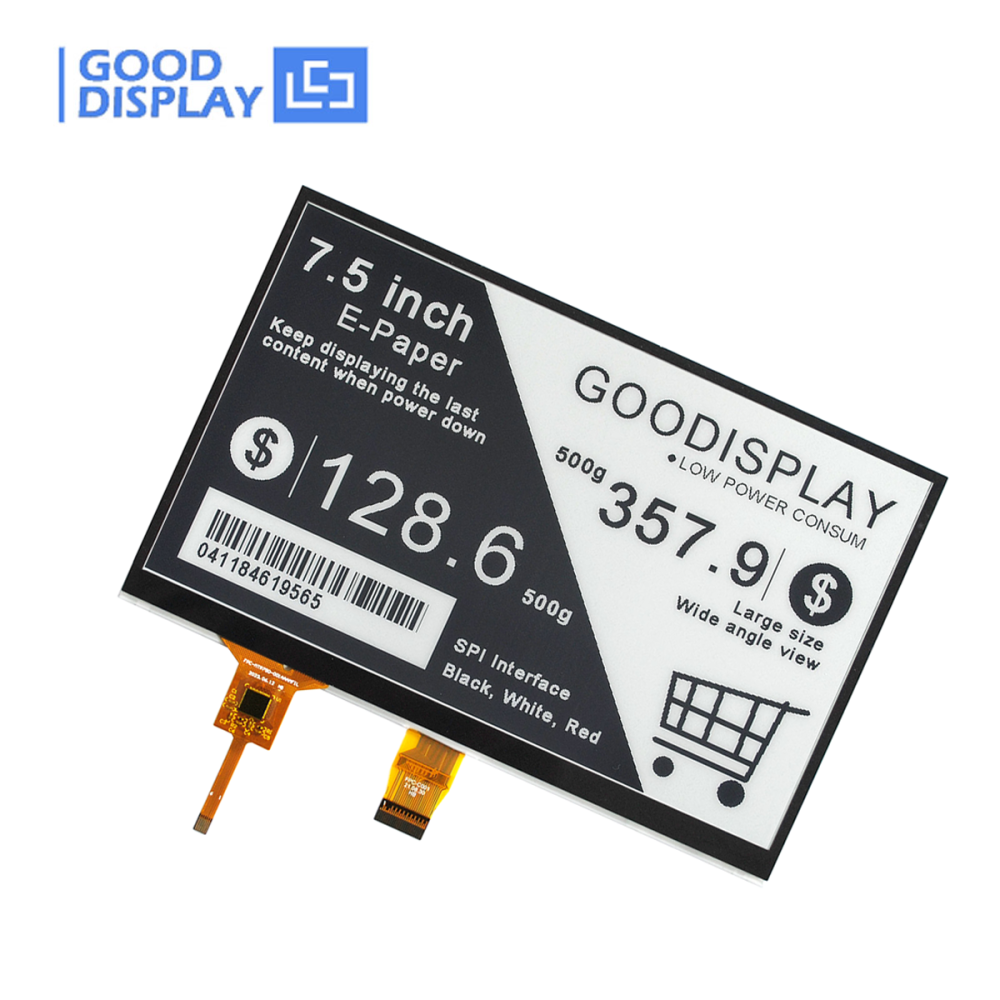

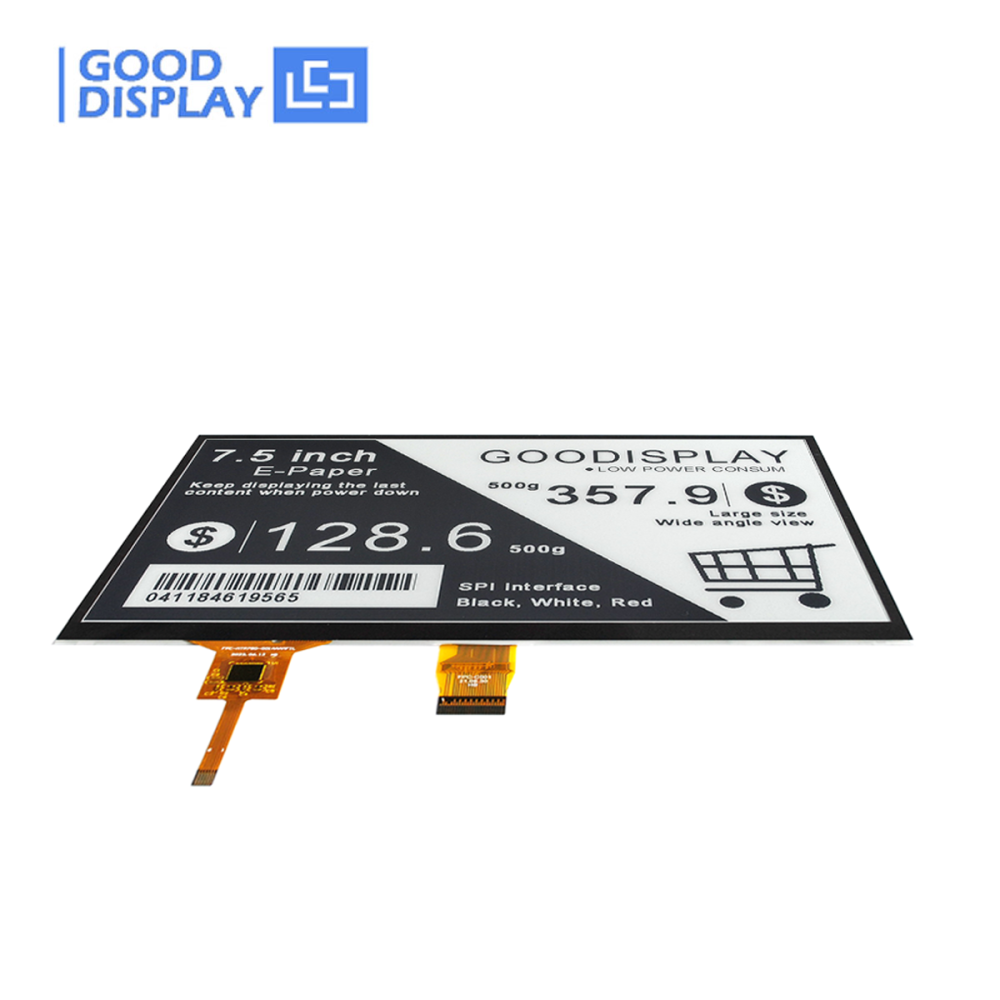

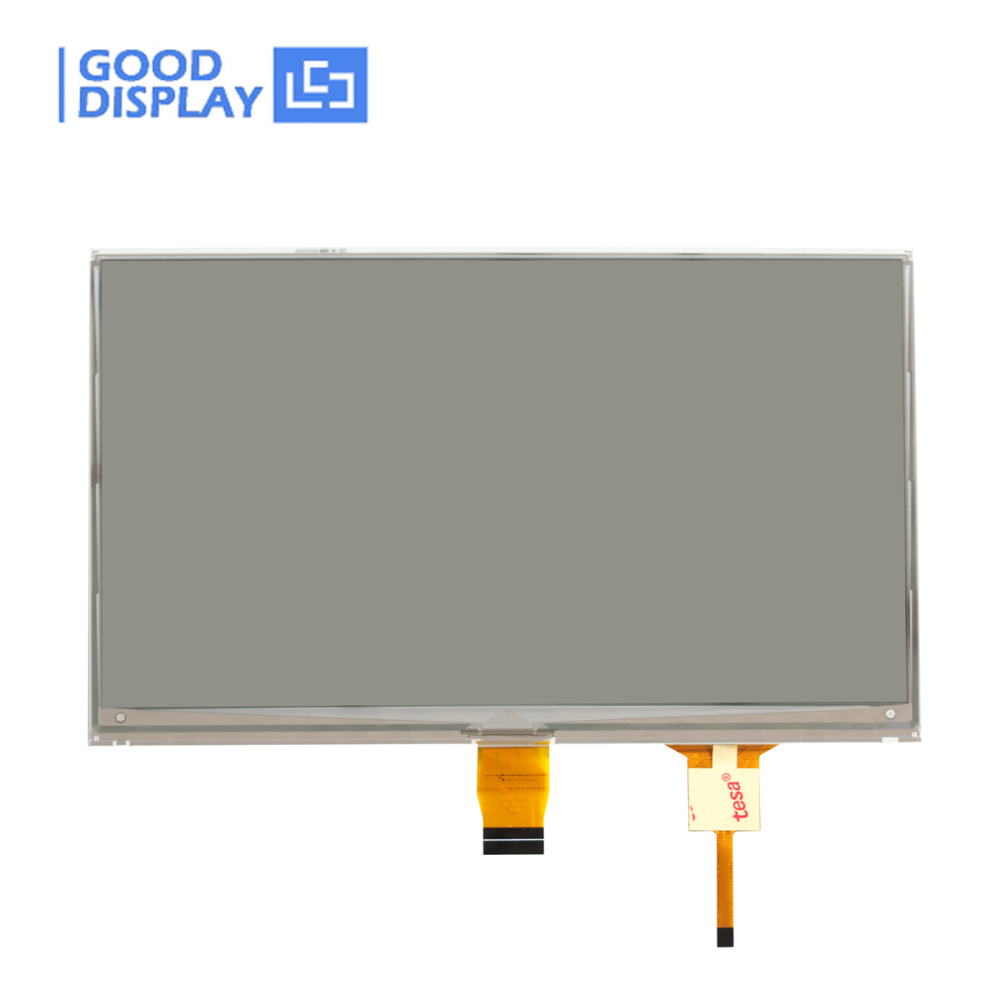

✦ Large-Format Touch ePaper

GDEY075T7-T01

7.5″ Interactive E-Ink® with 5-Point Capacitive Touch

This 7.5″ touch e-paper module combines an 800×480 monochrome electrophoretic display with a GT911 capacitive touch panel. It supports 5-point touch through an I²C interface and offers fast, partial, and full refresh modes for interactive low-power applications such as e-book readers, handwriting pads, planners, smart notebooks, and smart home control panels.

800×480Resolution

5-PointTouch

0.0165 mWStandby Power

0.3 sPartial Refresh

View Kits → ESP32 Wiring Guide

GDEY075T7-T01 · 7.5″ 5-point capacitive touch ePaper

Performance at a Glance

📐

800×480

Resolution

🎨

4 Levels

Max Grayscale

👆

5-Point

Capacitive Touch

🚀

1.5 s

Fast Refresh

🔄

0.3 s

Partial Update

📦

3 s

Full Update

✦ Large-Format Interaction

More Screen Space, More Natural Touch Control

The 7.5″ format provides a larger interactive area while maintaining the low-power benefits and paper-like visual characteristics of e-paper technology.

800×480 monochrome display with 4-level grayscale
GT911 controller with 5-point capacitive touch
Suitable for readers, handwriting devices, planners, and smart control panels

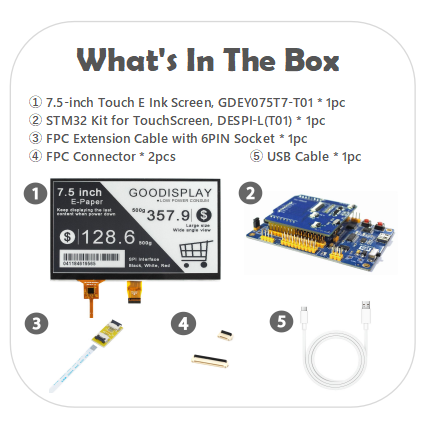

Choose Your Development Kit

SKU Option	What's Included	Best For

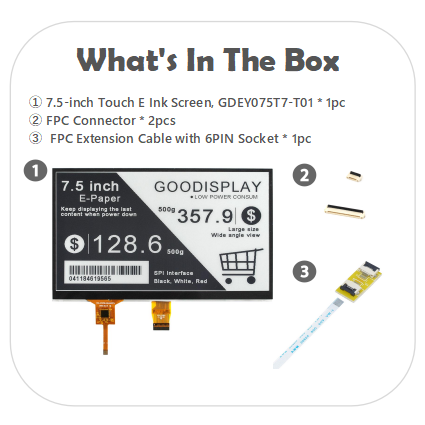

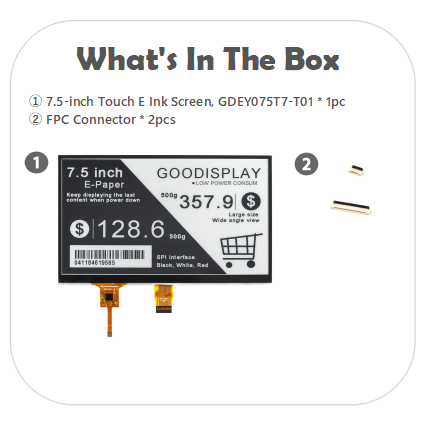

EPD Only	GDEY075T7-T01 Touch EPD	Customers with existing driver hardware
+ Adapter Board	EPD + ESP32-FTS02 Adapter Board	Own MCU / Raspberry Pi / ESP32

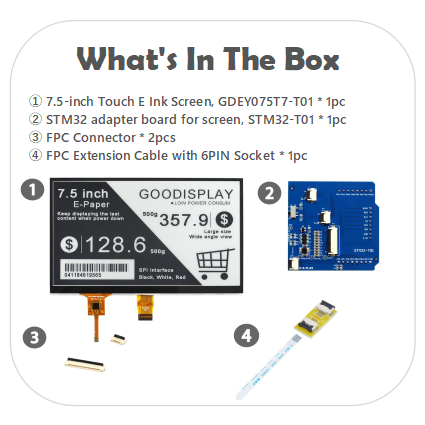

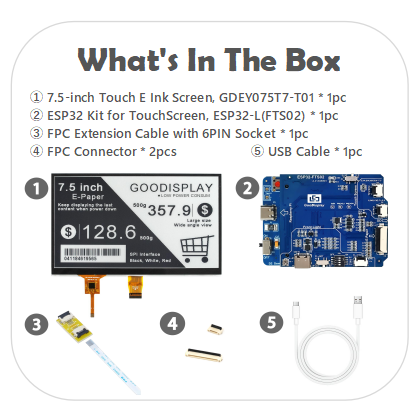

+ ESP32-L Starter	EPD + ESP32-L(FTS02) Demo Kit	Beginners & rapid prototyping
+ ESP32-M1 All-in-One New	EPD + ESP32-M1 Driver Board	★ Best Advanced devs, commercial & portable projects (battery-ready)

Matching Driver Boards

Adapter ESP32-FTS02

Integrates front light & touch. Works with your own MCU, Raspberry Pi, or ESP32.

Starter ESP32-L Starter

ESP32-WROOM-32D onboard · WiFi + Bluetooth · Type-C 5V — ideal for beginners.

Advanced ESP32-M1 All-in-One

🔋 Li-ion ready

Professional SPI driver · supports up to 13.3″ ePaper · built-in touch, frontlight, microSD · Li-ion battery ready — ideal for portable and battery-powered devices.

How to Connect to ESP32

Complete wiring guide for the GDEY075T7-T01 touch e-paper module and ESP32 development boards. The EPD uses 4-wire SPI, and the touch panel uses I²C.

📷 Click to enlarge — GDEY075T7-T01 and ESP32 connection overview

🔌

EPD → SPI

4-wire SPI + 4 control pins

👆

Touch → I²C

GT911 + INT + RST

⚡

3.3V Logic

VCI / VDDIO = 3.3V

🔧

BS1 → GND

Selects 4-wire SPI mode

EPD 24-Pin FPC → ESP32 SPI

Pin	Signal	Type	Connect To
8	BS1	SPI SEL	→ GND (4-wire SPI)
9	BUSY	SPI	→ GPIO4
10	RES	SPI	→ GPIO16
11	D/C	SPI	→ GPIO17
12	CS	SPI	→ GPIO5
13	SCL	SPI	→ GPIO18
14	SDA	SPI	→ GPIO23
15	VDDIO	POWER	→ 3.3V
16	VCI	POWER	→ 3.3V
17	VSS	GND	→ GND
18	VDD	CAP	1µF → GND
2	GDR	MOSFET	Q1 gate (see ref. circuit)
3	RESE	SENSE	R2 0.47Ω → GND
5, 20–24	VSH/VGH/VSL/VGL/VCOM	CAP	1µF → GND each
1, 4, 19	NC / VPP	NC	Leave open

Touch 6-Pin FPC → ESP32 I²C

Pin	Signal	Type	Connect To
1	VCC	POWER	→ 3.3V
2	GND	GND	→ GND
3	SDA	I²C	→ GPIO21
4	SCL	I²C	→ GPIO22
5	INT	I²C	→ GPIO35
6	RST	I²C	→ GPIO15

⚠️ Touch FPC pin order may vary by batch — always verify against the TP075-Y01 specification before wiring.

Select Interface Mode

Wire BS1 (Pin 8) to GND to select 4-wire SPI. This is the recommended mode for ESP32 and matches the sample code.

Connect EPD Power

Tie VDDIO (Pin 15) and VCI (Pin 16) to 3.3V, and VSS (Pin 17) to GND. Add 1µF decoupling capacitors to VDD and all VSH/VGH/VSL/VGL/VCOM pins.

Route SPI Signals

Connect SCL→18, SDA→23, CS→5, D/C→17, RES→16, BUSY→4. Keep the SPI wires short (<10cm).

Wire Touch I²C

Connect SDA→21, SCL→22, INT→35, RST→15, plus 3.3V and GND. Add 4.7kΩ pull-ups on SDA/SCL.

⚠️ Wiring & Debugging Tips

Do not bend or pull the flexible FPC cable — it is fragile and cannot be repaired once broken.
Touch not working? First re-seat the 6-pin FPC and ensure the gold fingers are fully in contact with the connector. Verify I²C address 0x5D (GT911 default) with an I²C scanner.
EPD not refreshing? Check that BUSY is low during refresh and that BS1 is firmly tied to GND. Verify the SPI mode (CPOL=0, CPHA=0) and 4-wire configuration.
Use in dry environments — moisture can cause panel malfunction. If condensation occurs, let the module dry at room temperature before powering on.
Power sequencing: Apply 3.3V to VCI/VDDIO before sending SPI commands. The GT911 and UC8179 share the same 3.3V rail.

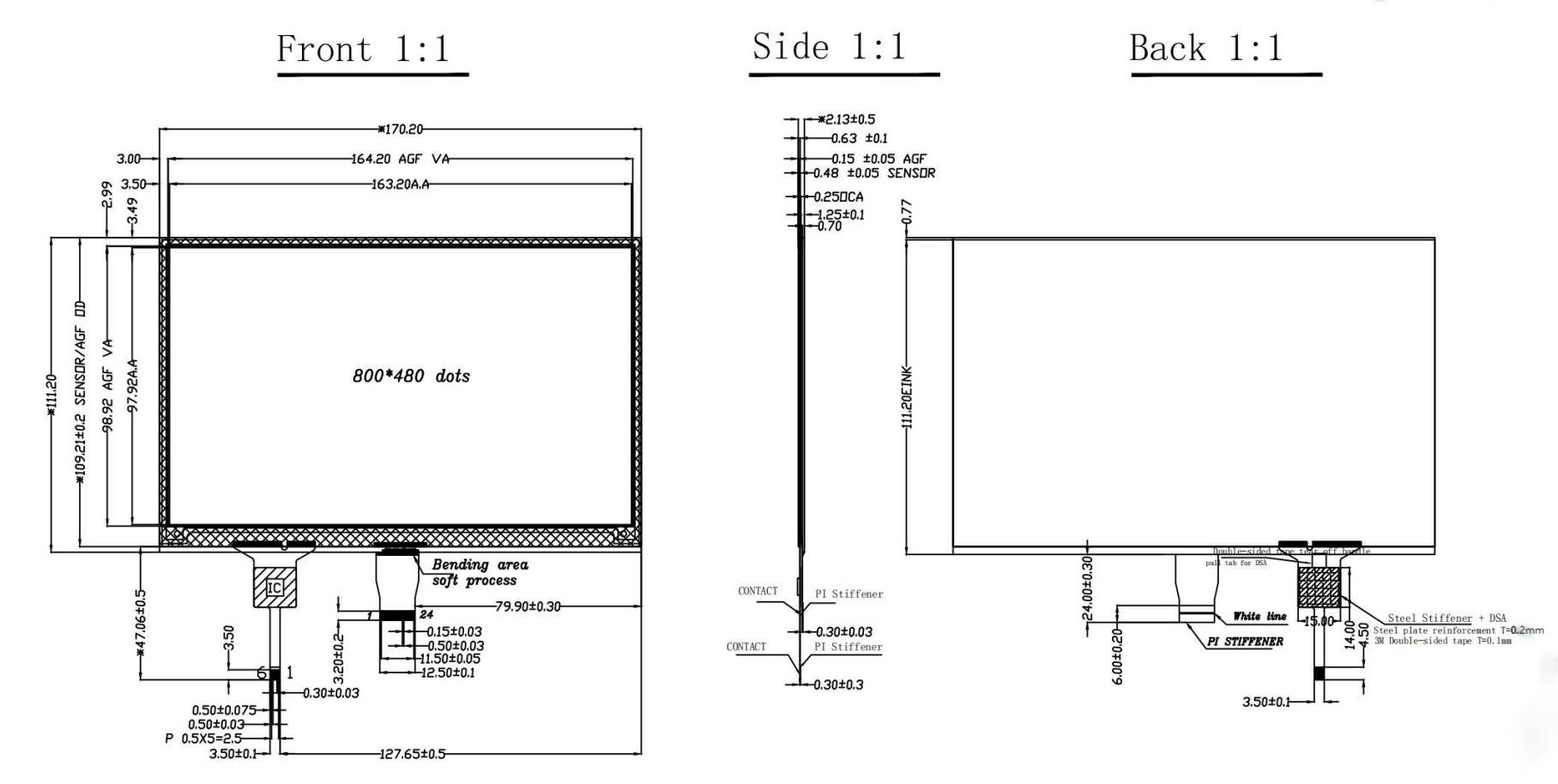

Technical Specifications

Part Number	GDEY075T7-T01	EPD Connector	24-Pin FPC
Type	Dot Matrix	Max Grayscale	4
Size	7.5″	Color	Black / White
Driver IC	UC8179	Full Refresh	3 s
Resolution	800 × 480	Fast Refresh	1.5 s
Outline (mm)	170.2 × 111.2 × 2.13	Partial Refresh	0.3 s
Active Area (mm)	163.2 × 97.92	Refresh Power	26.4 mW
Pixel Pitch (mm)	0.204 × 0.204	Standby Power	0.0165 mW
Operating Temp	0℃ ~ 50℃	Touch Connector	6-Pin FPC
Storage Temp	-25℃ ~ 70℃	Touch Controller	GT911
Interface	SPI	Touch Voltage	2.8 V ~ 3.6 V
Touch Interface	I²C	Touch Points	5-Point
Supply Voltage (VCI)	2.5 V ~ 3.6 V	Touch Current	4.32 mA (active) / 55 µA (standby)
Deep Sleep Current	≤ 25 µA	Weight	65 ± 0.5 g
