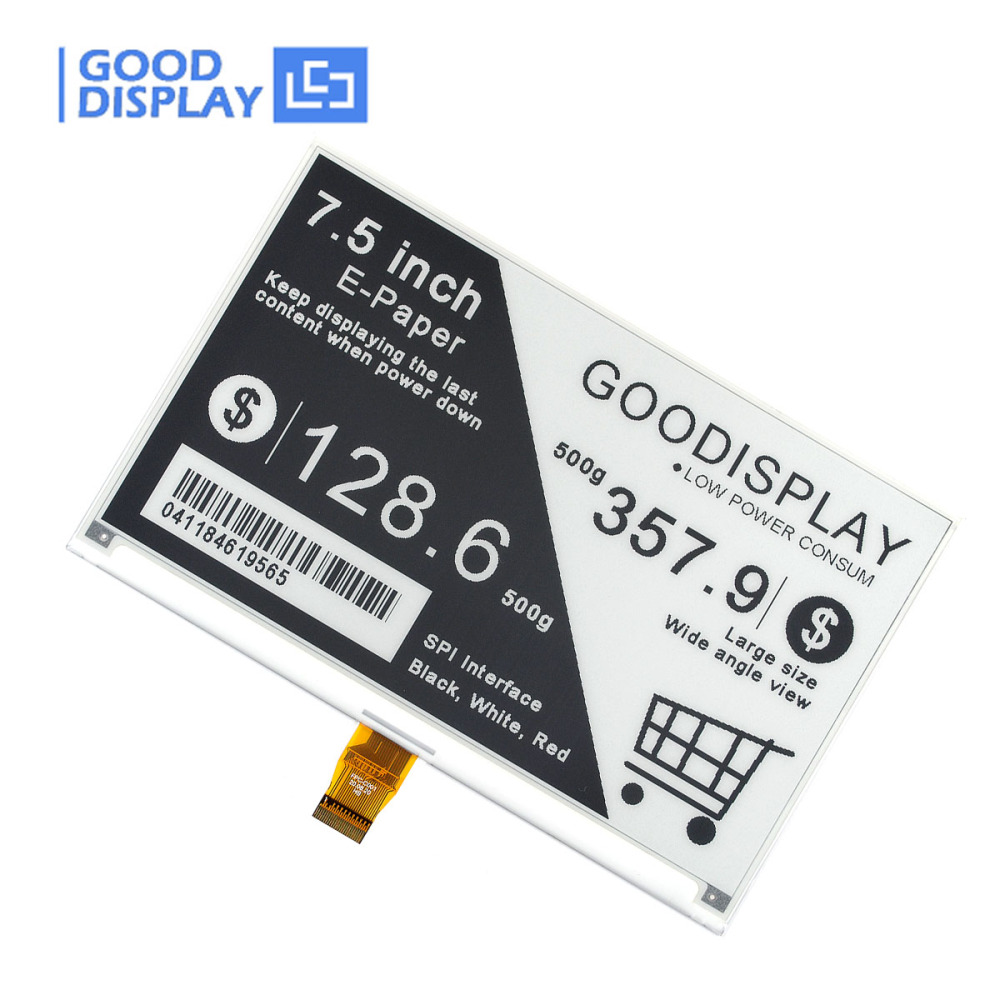

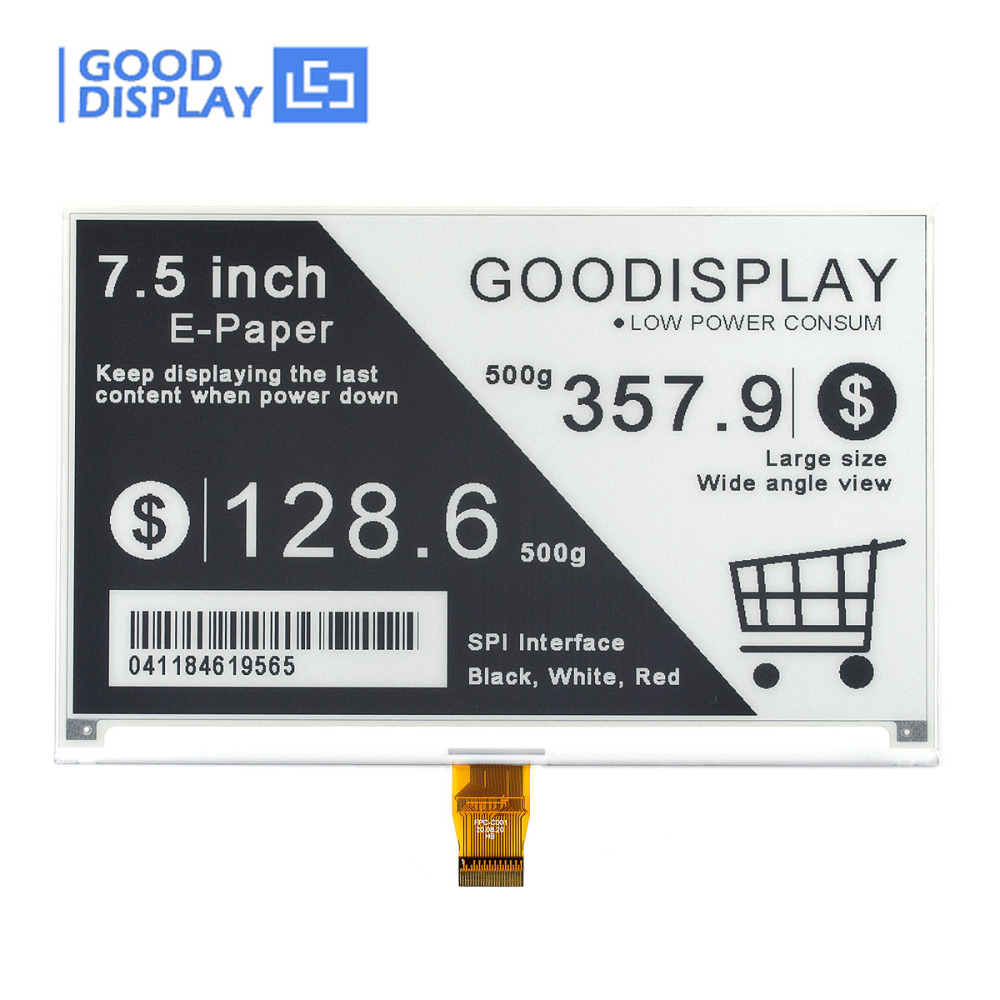

GooDisplay 7.5inch E Paper Screen Module 4-Grayscale E-Ink Display HAT 0.34s Refresh SPI Interface

GDEY075T7
This is a 7.5 inch SPI e-ink display with 800x480 Resolution, 24 pins FPC connection, 3s/frame.
10 Review(s) Sold:110
Have a question?
Price:
USD
$38.80
  • Product:

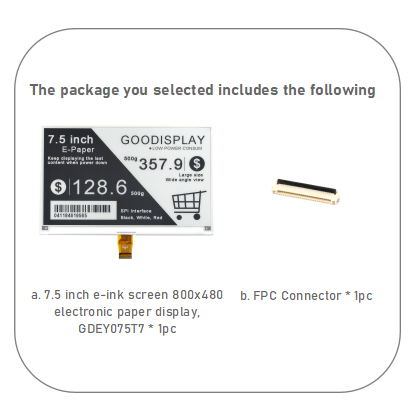

    EPD

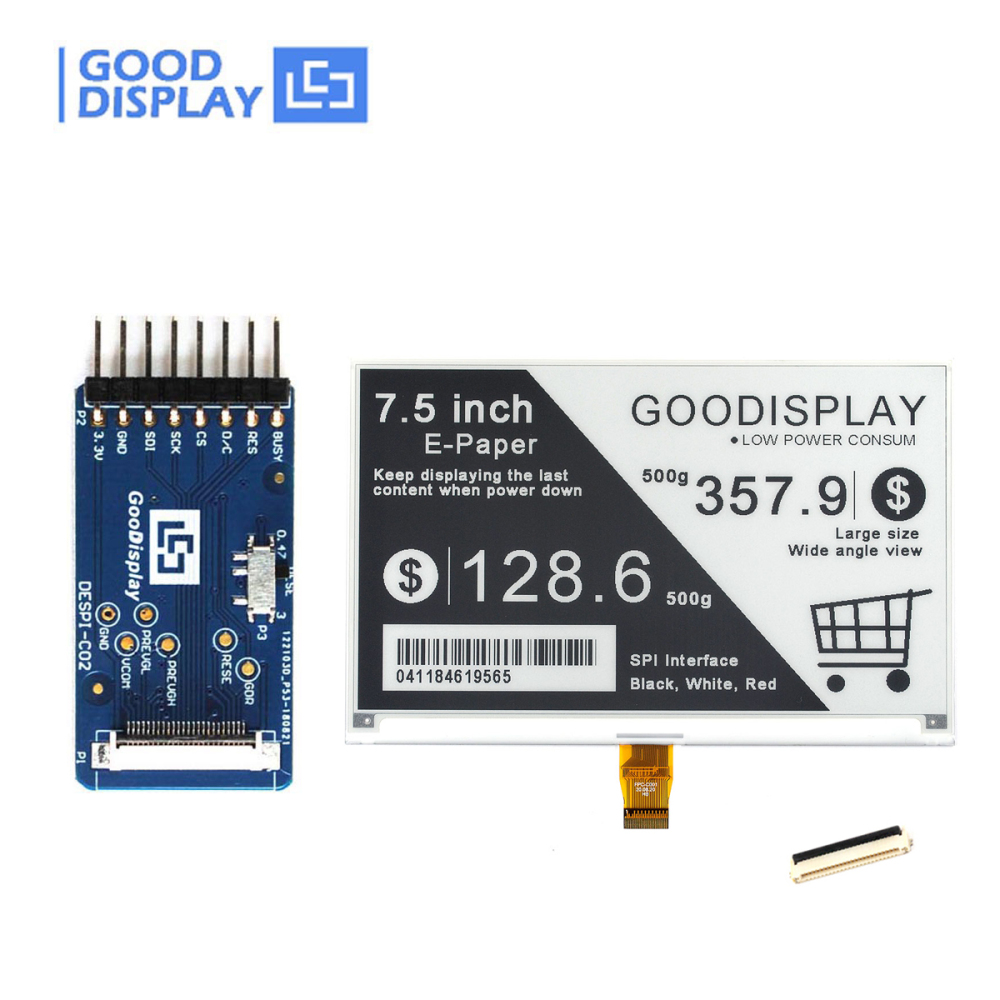

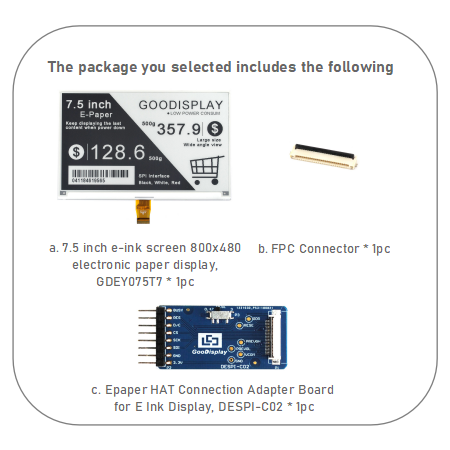

    EPD with adapter board DESPI-C02

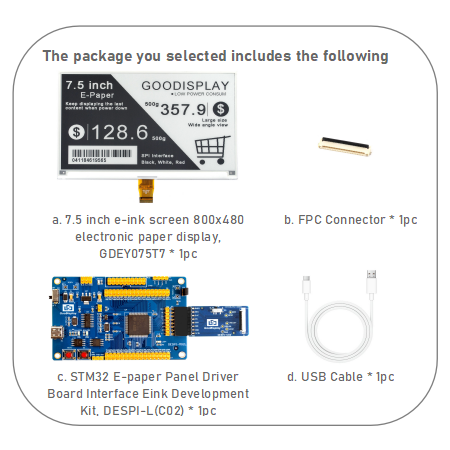

    EPD with demo kit DESPI-L(C02)

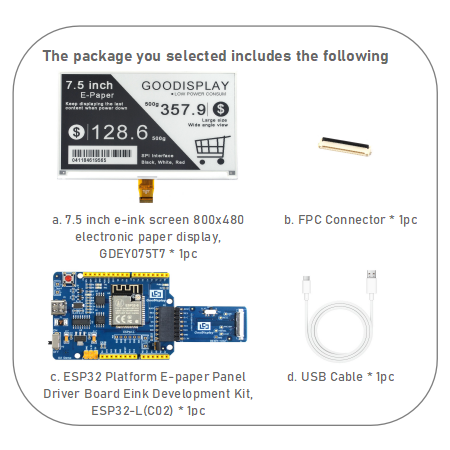

    EPD with ESP32 demo kit ESP32-L(C02)
    adapter board
Quantity:
-
+
(240 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
Inquiry Now
Add to Favorite Items
  • Description
  • Reviews(10)


Speed Up Your Displays 7.5-Inch ePaper Screen with 0.34s Partial Refresh & 1.5s Fast Refresh

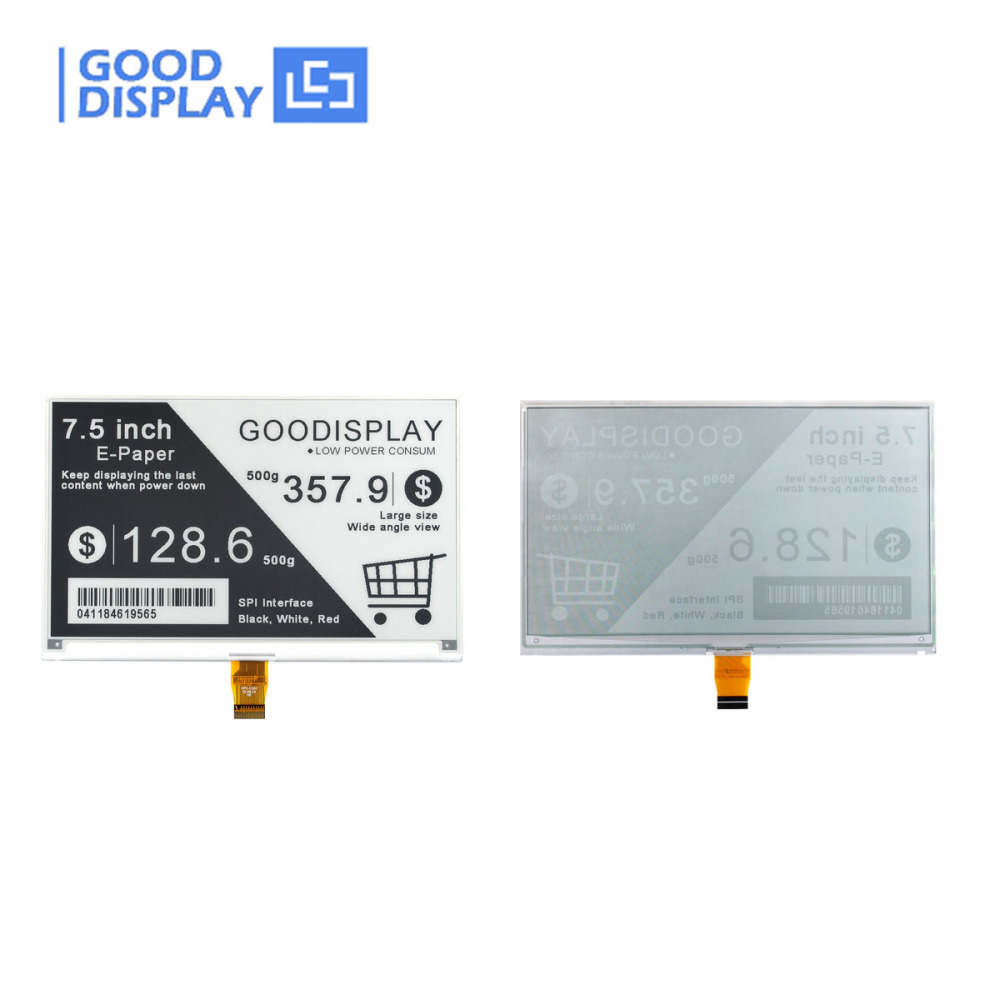

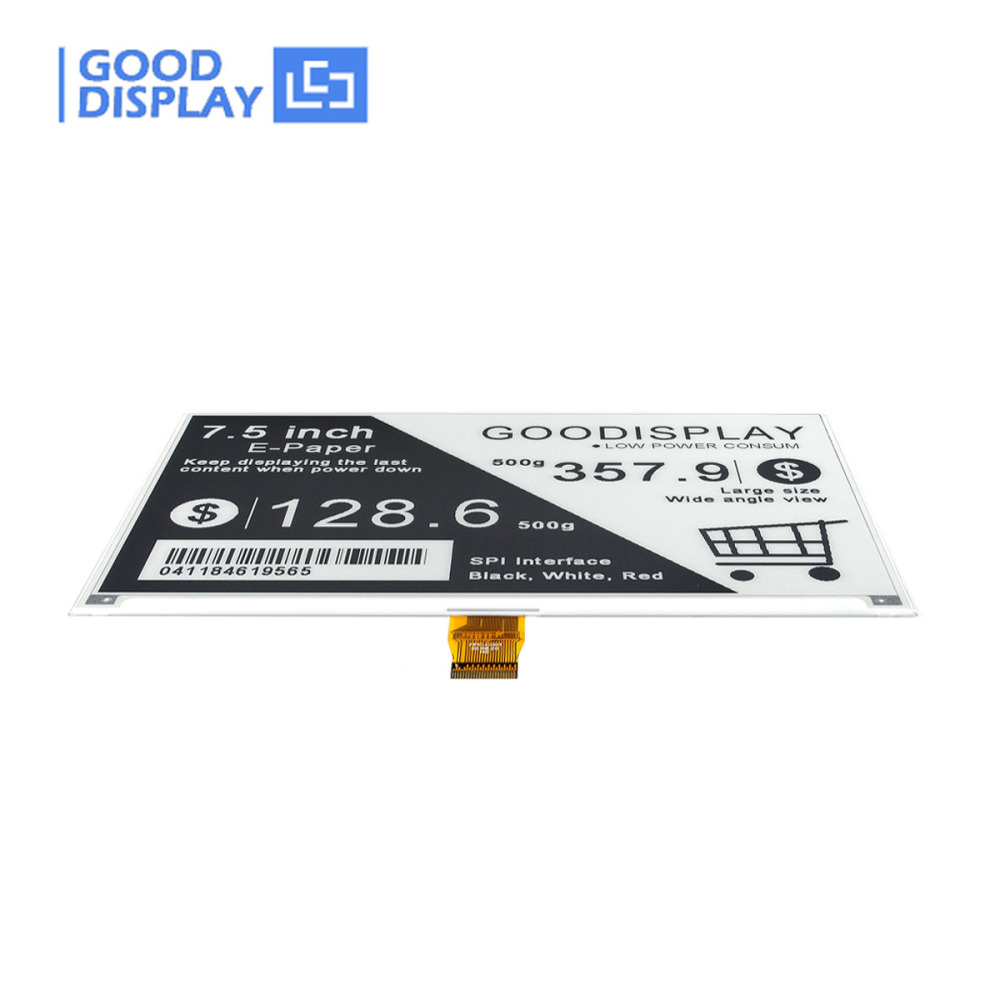

    This is a 7.5-inch ePaper display with an 800x480 resolution, black-and-white imaging, and an SPI interface. Powered by the UC8179 driver IC and operating at 3.3V, it performs optimally within 0-50℃. With versatile refresh modes (full in 3.5s, fast in 1.5s, partial in 0.34s) and flexible orientation (horizontal or vertical), this bistable display retains content without power and offers a wide viewing angle over 170 degrees with an anti-glare surface. Eye-friendly with no blue light or radiation, it's perfect for smart signs, smart home applications, and industrial instruments. Customization options include a touch screen, plastic enclosure, and cover plate. Ideal for low-power devices, it's great for applications like digital price tags and electronic shelf labels where content remains visible indefinitely without power.







Special Features


    Our product boasts distinctive features that set it apart from the competition
      ●  Ultra-Low Power, Persistent Display: Minimal energy consumption with content that remains visible even when powered off.
  ●  Versatile Refresh Modes, Quick Response: Full refresh (3.5s), fast refresh (1.5s), and partial refresh (0.34s) to meet various application needs.
  ●  Wide Viewing Angle, High Contrast: 170-degree wide viewing angle ensures clear readability from any perspective.
  ●  Eye-Friendly Design, No Blue Light: Zero blue light and radiation-free, perfect for extended use without eye strain. Anti-Glare Surface: Hard-coated to maintain clear visibility even in bright light conditions.
  ●  Flexible Installation, Custom Options: Easily switch between horizontal and vertical orientations, with customizable options like touch screen, enclosure, and cover plate.

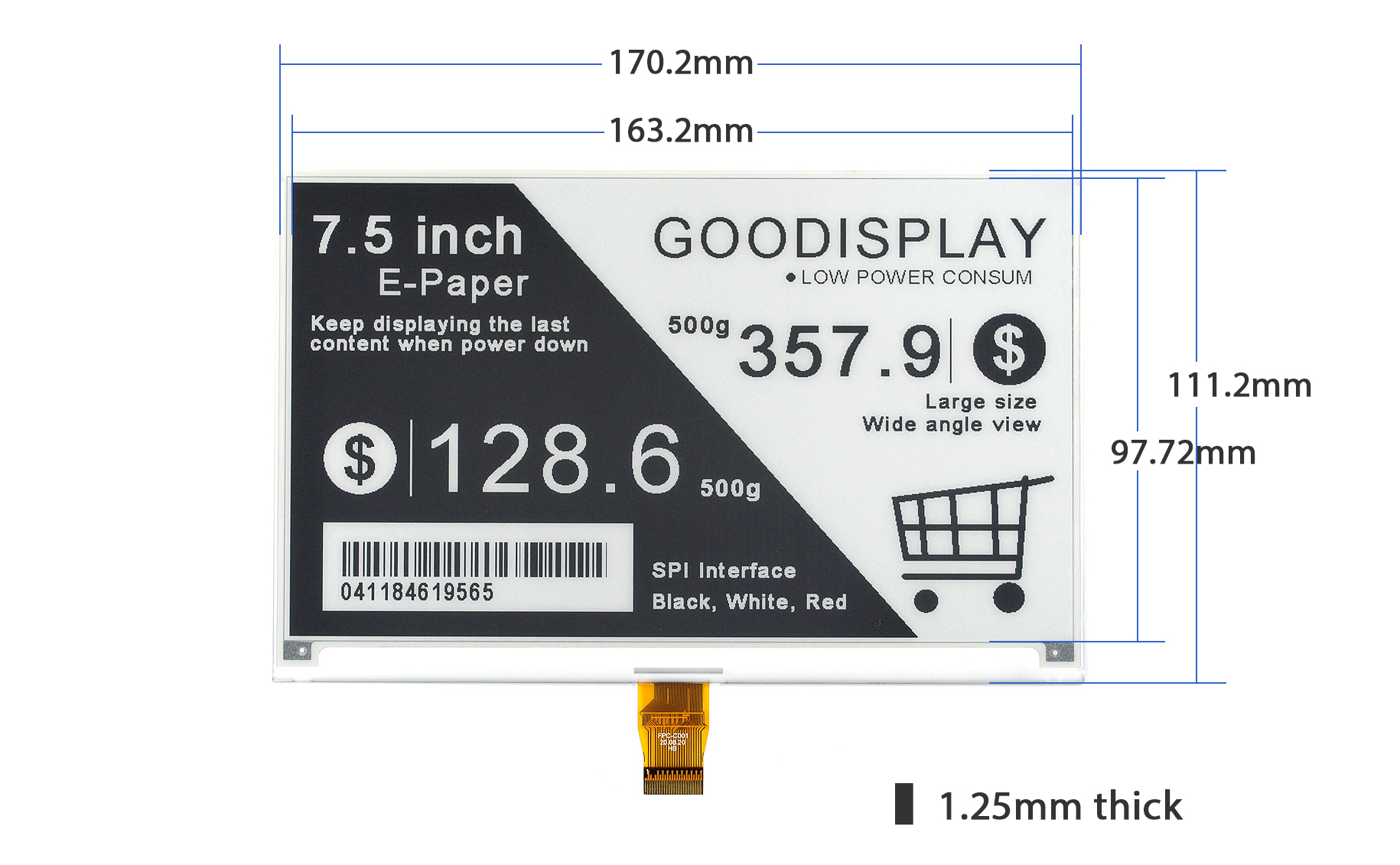

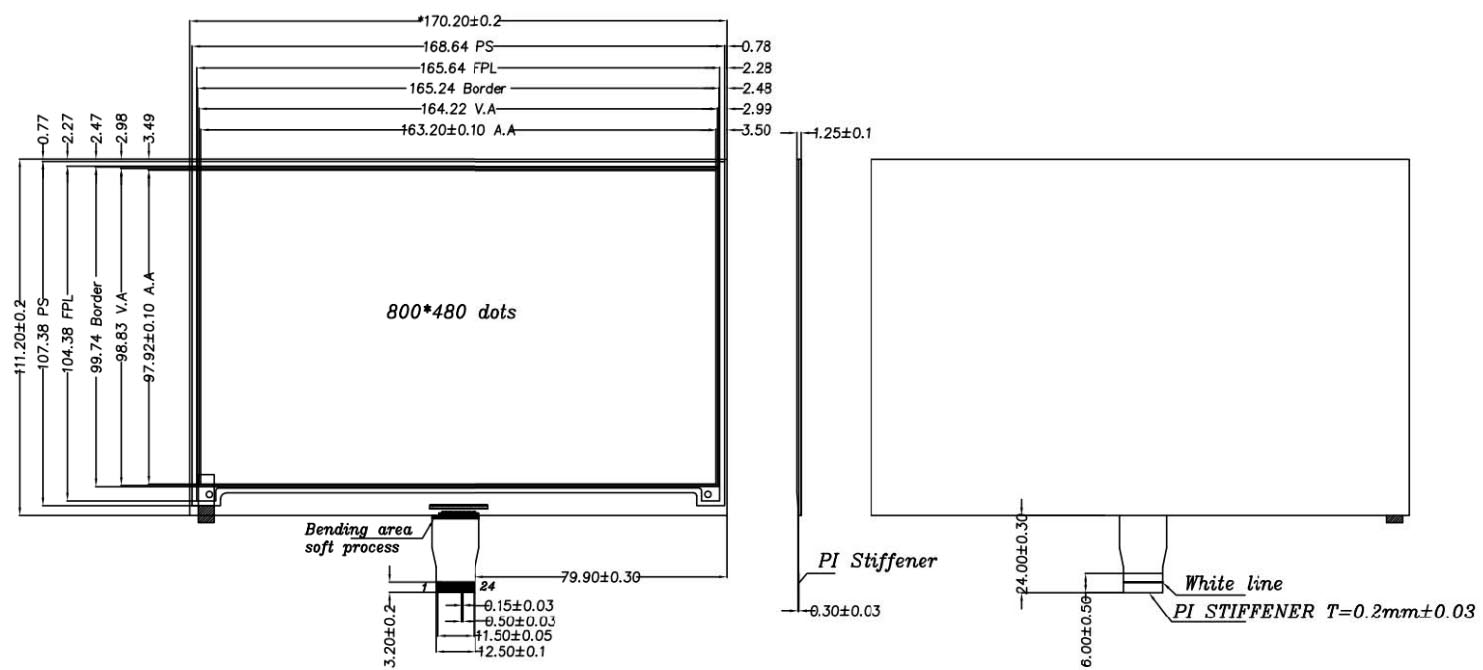

Product Drawings


    Please refer to the product drawings for detailed dimensions








Product Specifications


    Please refer to the product specifications for more details

PART NUMBER GDEY075T7 CONNECTOR 24 Pin FPC
SIZE 7.5 inch MAX GRAYSCALE 4
TYPE Dot Matrix COLOR Black,White
IC UC8179 INTERFACE SPI
RESOLUTION 800x480 FULL REFRESH(s) 3.5
OUTLINE SIZE(mm) 170.2x111.2x1.25 FAST REFRESH(s) 1.5
ACTIVE SIZE(mm) 163.2x97.72 PARTIAL REFRESH(s) 0.34
PIXEL PITCH(mm) 0.204x0.204 POWER CONSUMPTION OF THE REFRESH(mW) 26.4
OPERATING TEMP. 0℃~50℃ STANDBY POWER CONSUMPTION (mW) 0.0165
STORAGE TEMP. -25℃~70℃





Matching Driver Board
To facilitate the testing and comparison of e-paper, we recommend the following driver boards for you.

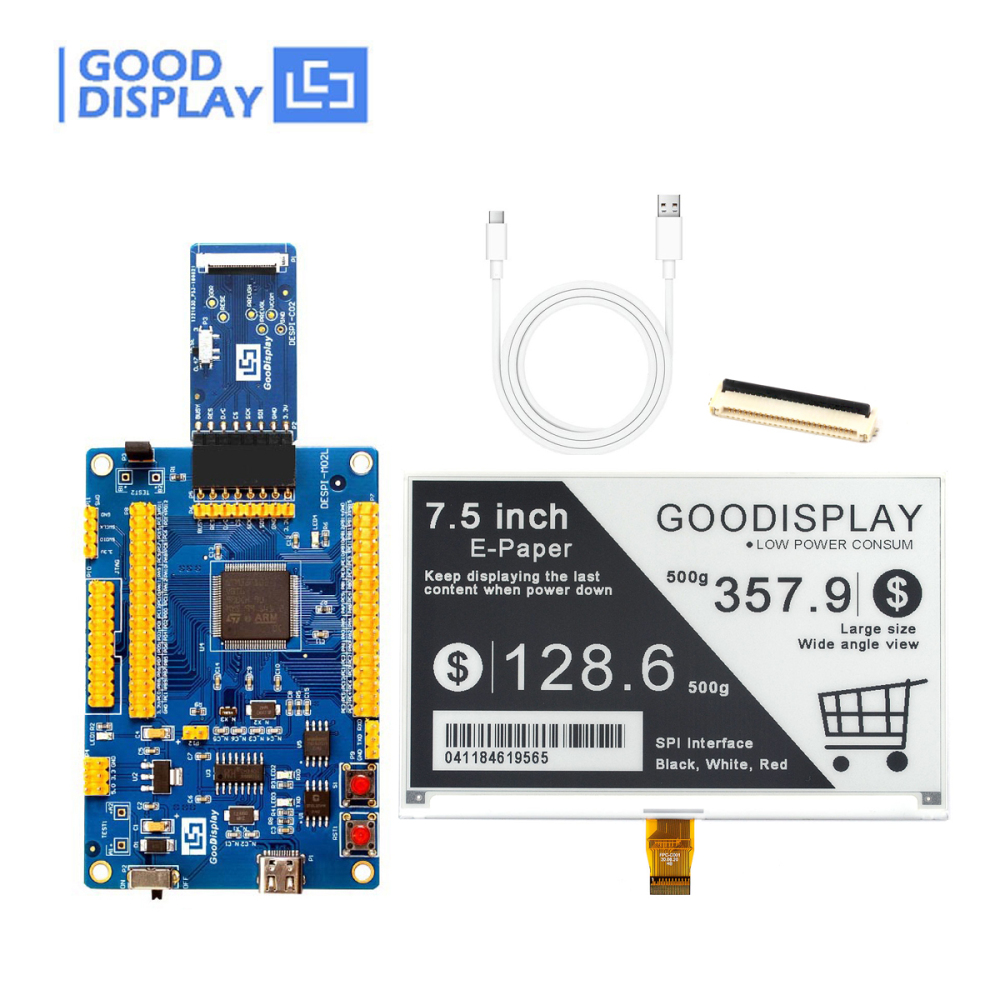

a. DESPI-C02 (E-ink Display adapter Board) b. DESPI-PICO (Raspberry Pi E-paper HAT) c. DESPI-L(C02) (STM32 Demo Kit)

d. DEArduino-L(C02) (Arduino Demo Kit)

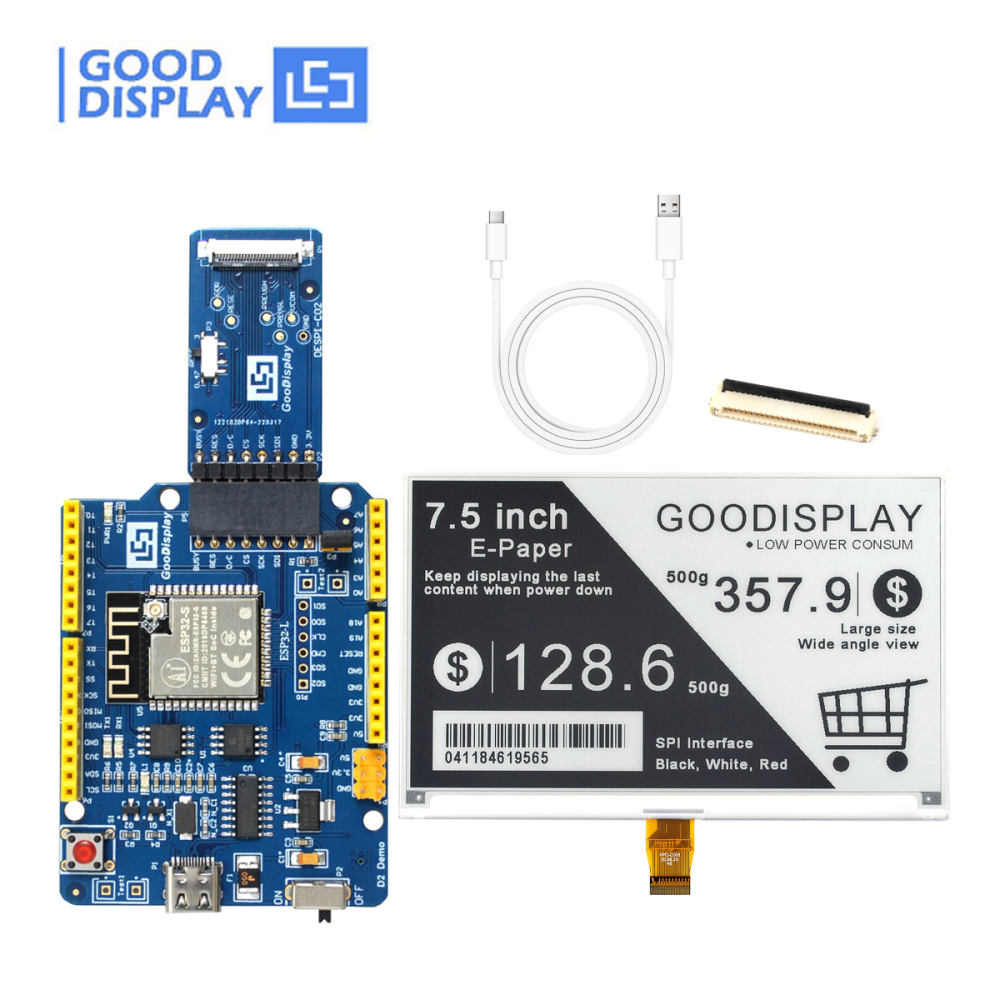

 		   e. ESP8266-L(C02) (ESP8266 Demo Kit)   f. ESP32-L(C02) (ESP32 Demo Kit)







Related Information Download

Click on the subheadings below to download

  ● GDEY075T7 Specification ● GDEY075T7 ESP32 Sample Code
  ● IC Driver UC8179 ● GDEY075T7 Raspberry Pi Sample Code
  ● GDEY075T7 Picture Production and Bitmap Conversion ● Disabling-Pop-Up-Blockers
  ● GDEY075T7 STM32 Sample Code ● Company Profile
  ● GDEY075T7 Arduino Sample Code ● ePaper display RoHS Report
  ● GDEY075T7 ESP8266 Sample Code ● ePaper Display Reach Report
