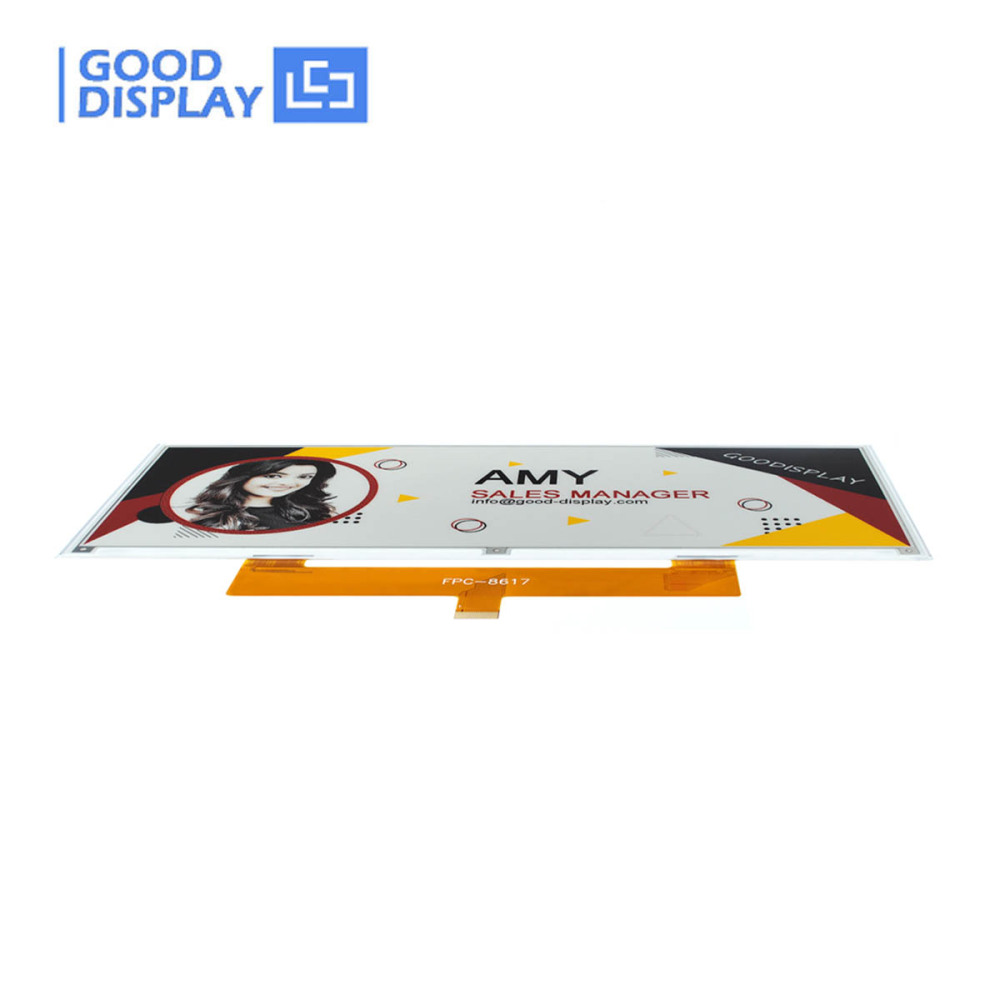

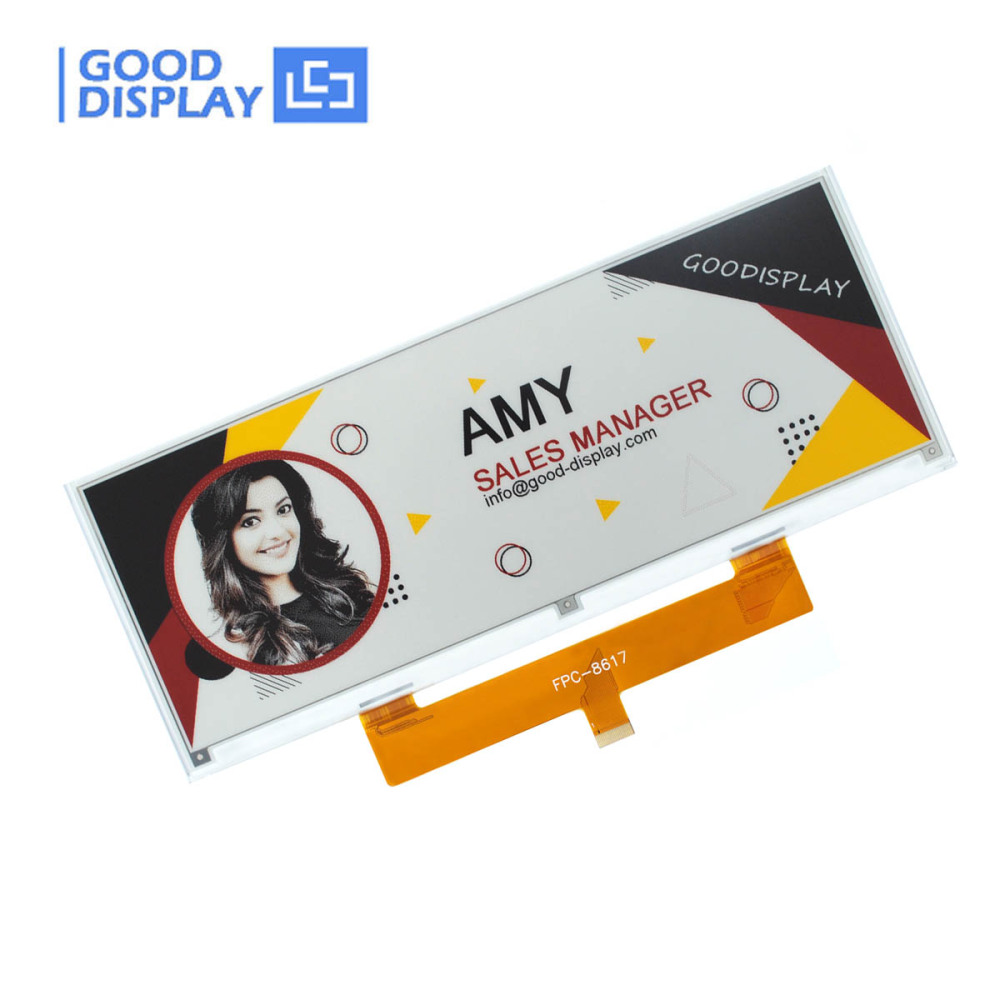

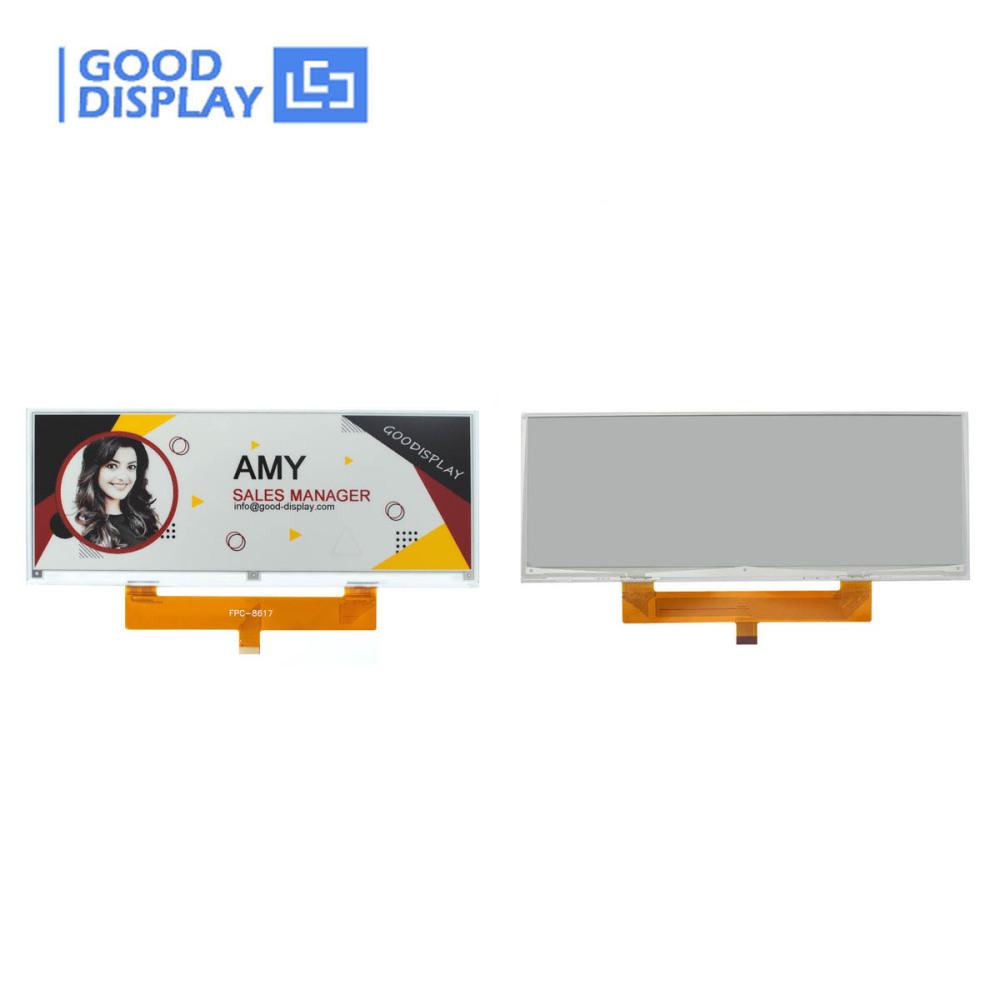

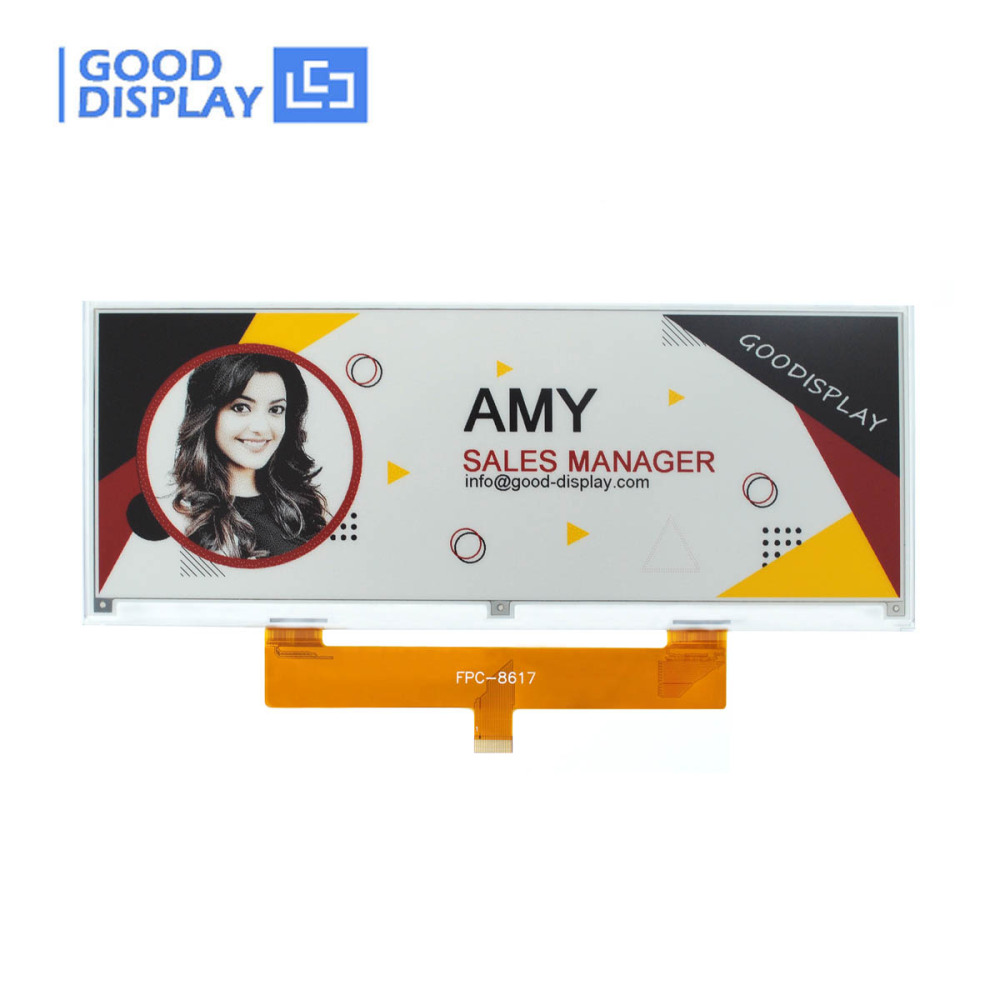

Large Size 10.85" 4-Color E Ink Display, 1360×480, 12s Fast Refresh GDEY1085F51

Name: Large Size 10.85" 4-Color E Ink Display, 1360×480, 12s Fast Refresh GDEY1085F51
Brand: GOOD DISPLAY
Price: 62.4 USD
Availability: InStock

(0)

10 Sold

$62.40 ~~$78.00~~

20% OFF

Upgrade to our 10.85-inch Four-Color E-Paper Display and experience vibrant, energy-efficient, and eye-friendly technology. Perfect for all your display needs! Click to learn more and see why our display stands out from the rest!

GET $3.00 OFF ON ORDERS OVER $59.00

Get it

ERP72QDC

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

		10.85-Inch Four-Color E-Paper Display 1360x480 SPI Interface
		This 10.85-inch Four-Color E-Paper Display – the perfect blend of high-res magic and vibrant hues!This SPI interface wonder is a power-saver, retaining your content without guzzling energy. Enjoy wide viewing angles, anti-glare goodness, and eye-friendly tech – all in one sleek package. Ideal for smart tags, home gadgets, and industrial displays, it's your go-to for colorful, efficient, and eye-catching screens!

Special Features

● High-Res, Vivid Colors: Dive into a 1360x480 resolution with stunning black, white, red, and yellow. Perfect for making your content pop!
● Eco-Friendly Power Saver: Thanks to bistable display tech, it only uses power when refreshing. Your content stays put without draining the battery!
● Wide Viewing Angles & Anti-Glare: Enjoy over 170 degrees of clear viewing from any angle. Plus, our anti-glare surface means you’ll always see clearly, even in bright light.
● Easy Integration with SPI Interface: Seamlessly integrate with your devices. Perfect for smart tags, home gadgets, and industrial displays.
● Eye-Friendly Technology: Say goodbye to blue light and radiation. Our display is designed to be easy on your eyes, even with long-term use.
● Persistent Display: Content remains visible even when the power is off. Ideal for critical information that needs to be displayed continuously.

Technical Details

Product Specifications
PART NUMBER	GDEY1085F51	CONNECTOR	24 PIN
SIZE	10.85 inch	COLOR	Black, White, Red, Yellow
TYPE	Dot Matrix	FULL REFRESH TIME(s)	20
PPI	132.92	FAST UPDATE TIME(s)	12
RESOLUTION	1360x480	POWER CONSUMPTION OF THE REFRESH(mW)	66

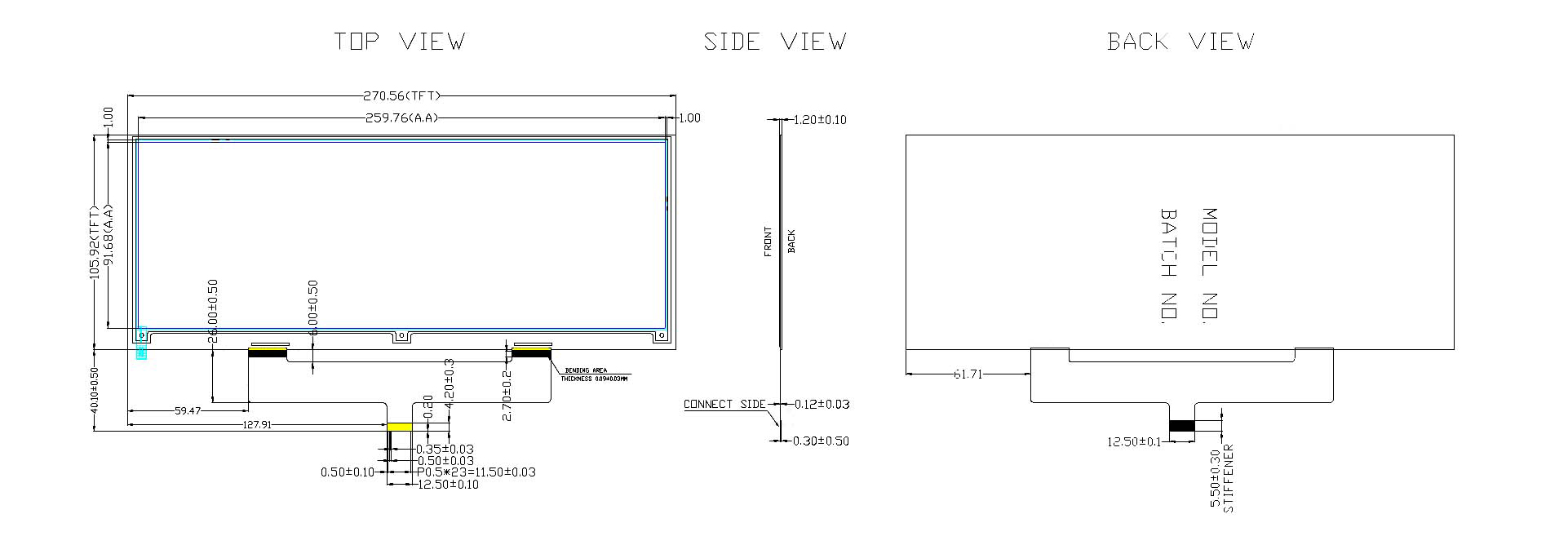

OUTLINE SIZE(mm)	270.56×105.92 ×1.20	STANDBY POWER CONSUMPTION (mW)	0.003
ACTIVE SIZE(mm)	259.76×91.68	OPERATING TEMP.	0℃~40℃
PIXEL PITCH(mm)	0.191×0.191	STORAGE TEMP.	-25℃~70℃
IC	JD79665AA	INTERFACE	SPI

Matching Driver Boards

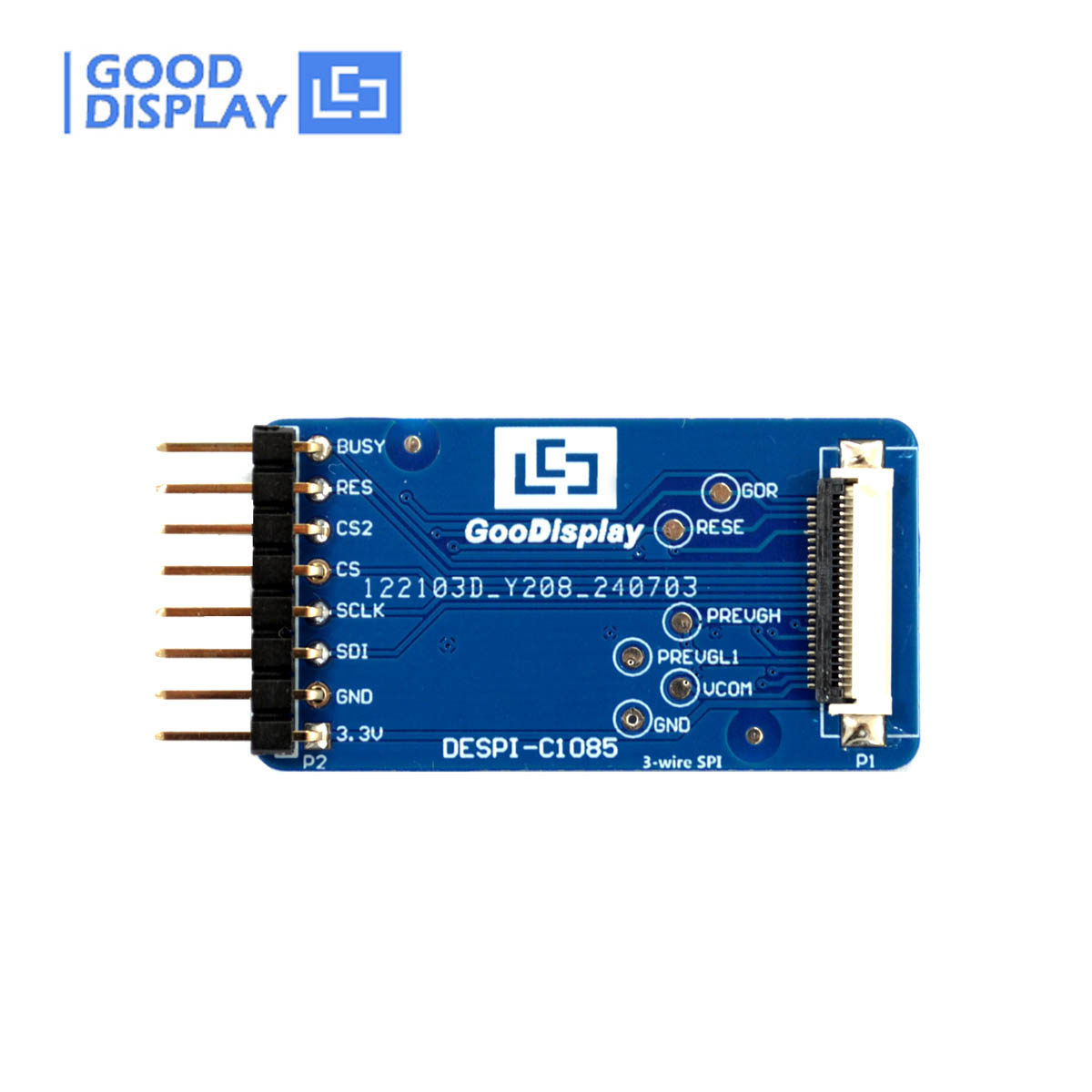

Ⅰ. DESPI-C1085 (E-ink Display adapter Board)

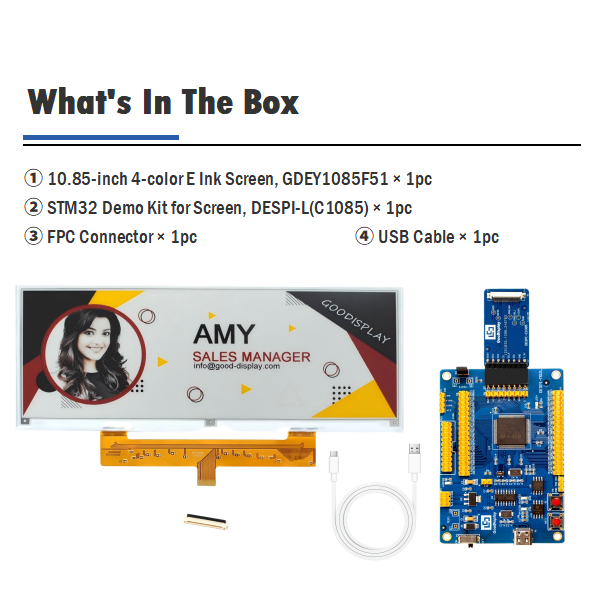

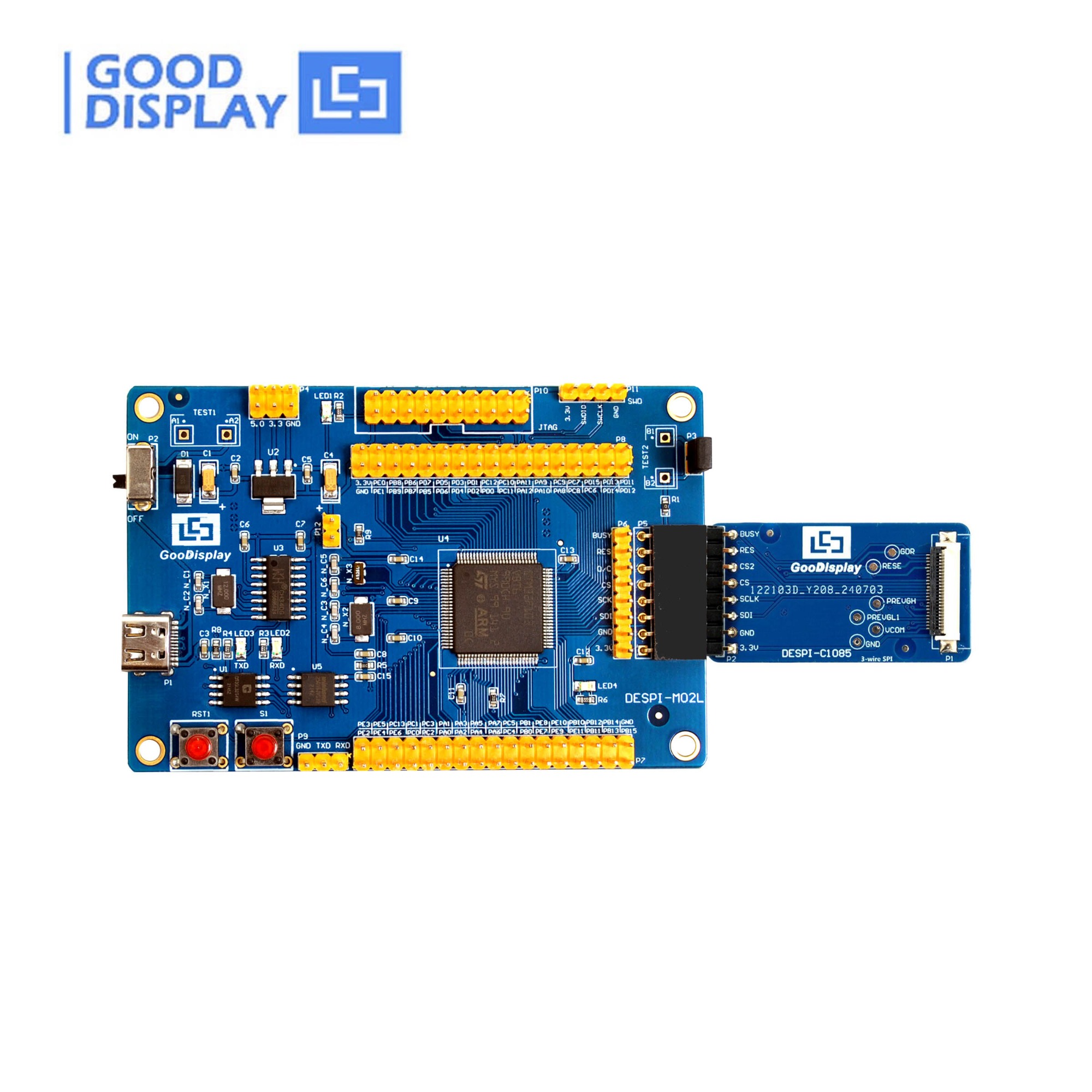

Ⅱ. DESPI-L(C1085) (STM32 Demo Kit)

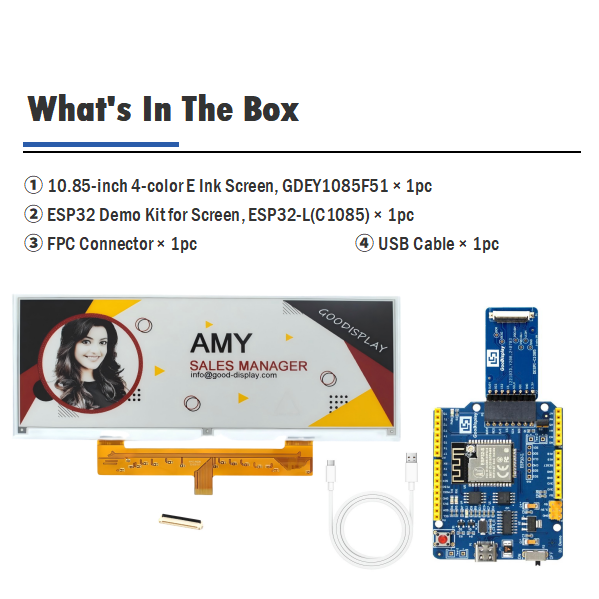

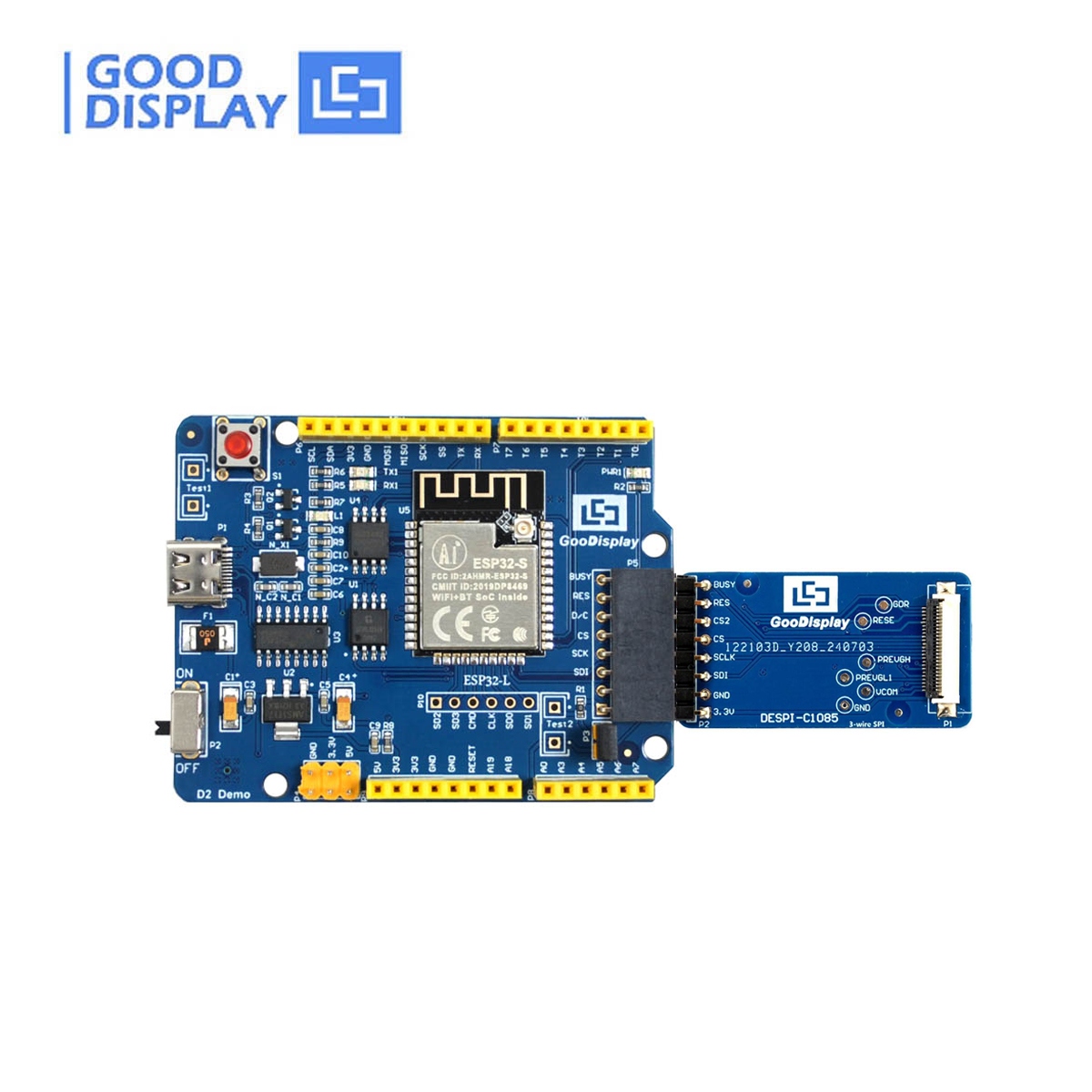

Ⅲ. ESP32-L(C1085) (ESP32 Demo Kit)

Ⅳ. ESP32E6-E01 (E Ink Spectra™ 6 Demo Kit)

Files And Download

	● GDEY1085F51 Specification	● GDEY1085F51 ESP8266 Sample Code
	● JD79665AA Driver IC Datasheet	● GDEY1085F51 Arduino Sample Code
	● GDEY1085F51 STM32 Sample Code	● Why can't I download the files(updated)?
	● GDEY1085F51 ESP32 Sample Code	● The latest Catalog of ePaper display

We Also Recommend

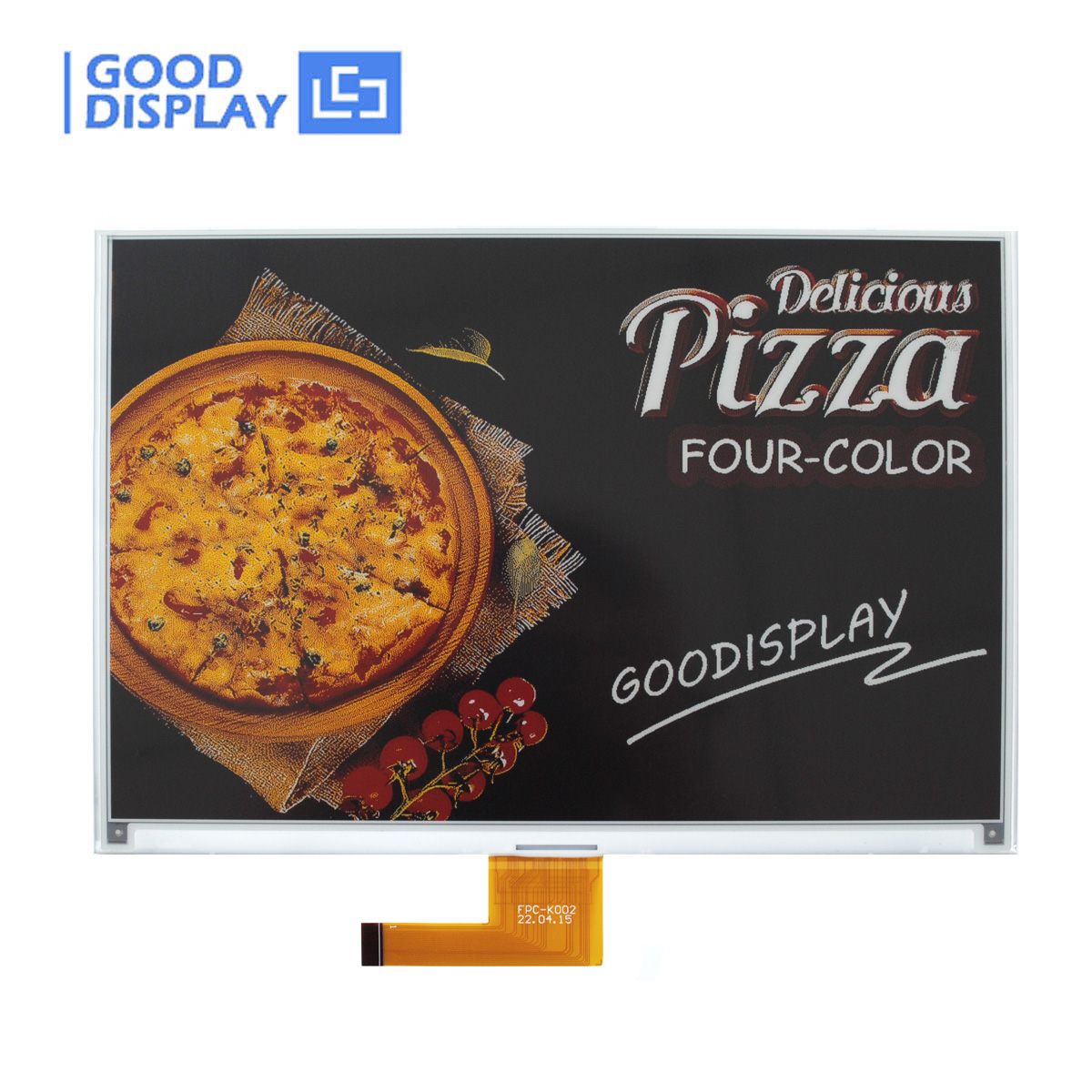

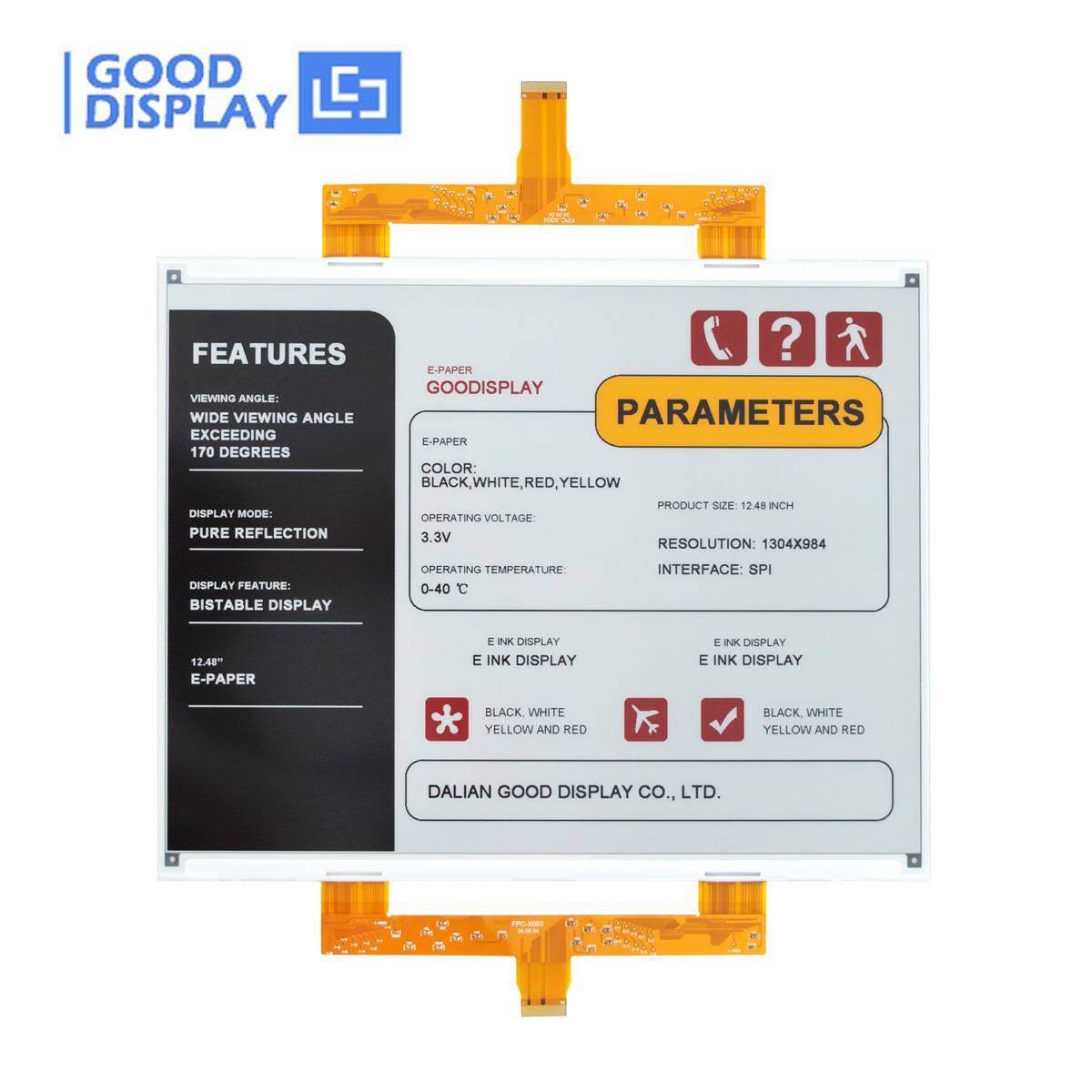

10.85-inch large E Ink screen narrow display 1360x480 with 0.4s Partial Update GDEM1085T51	10.85-inch large ePaper red tri-color narrow E Ink screen 1360x480, GDEM1085Z51	Large 11.6" E-Ink Displays Vivid Color Electronic Ink Module 16s Fast Refresh EPD 960x640 Pixels GDEY116F91	12.48" 4-Color E Ink Display – Low Power E-Paper for Smart Retail & IoT – GDEY1248F51

Why GooDisplay E-Paper Refreshes Faster

Optimized Fast-Refresh FPL

We rigorously select fast-refresh FPL films at the raw material level, laying a solid hardware foundation for high-speed performance.

Smart Temp-Controlled Drive

Our engineers optimize waveform files for different temperature ranges, ensuring excellent display quality even during rapid refresh cycles.

Chip-Level Integrated Solution

Optimized waveforms are built into the display driver chip—activate fast refresh mode with a simple code call!

Display Type	Refresh Capability	Available Sizes
Black & White (B/W) Displays	Supports fast refresh, partial refresh, and 4-level grayscale	0.97" to 10.3"
Black, White & Red (BWR) Displays	Supports fast refresh and partial B/W refresh	2.13" to 11.6"
Black, White, Red & Yellow (BWRY) Displays	Supports fast refresh with multi-color layered updating	0.97" to 11.6"
