This is a set of e-paper NFC board with 1.54 inch e-paper display SPI interface 4 Grayscale eink display with 152x152 resolution, SPI interface, and the display is capable to display images with black and white content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This eink display GDEW0154T8D is perfect for low power devices powered by solar or batteries.

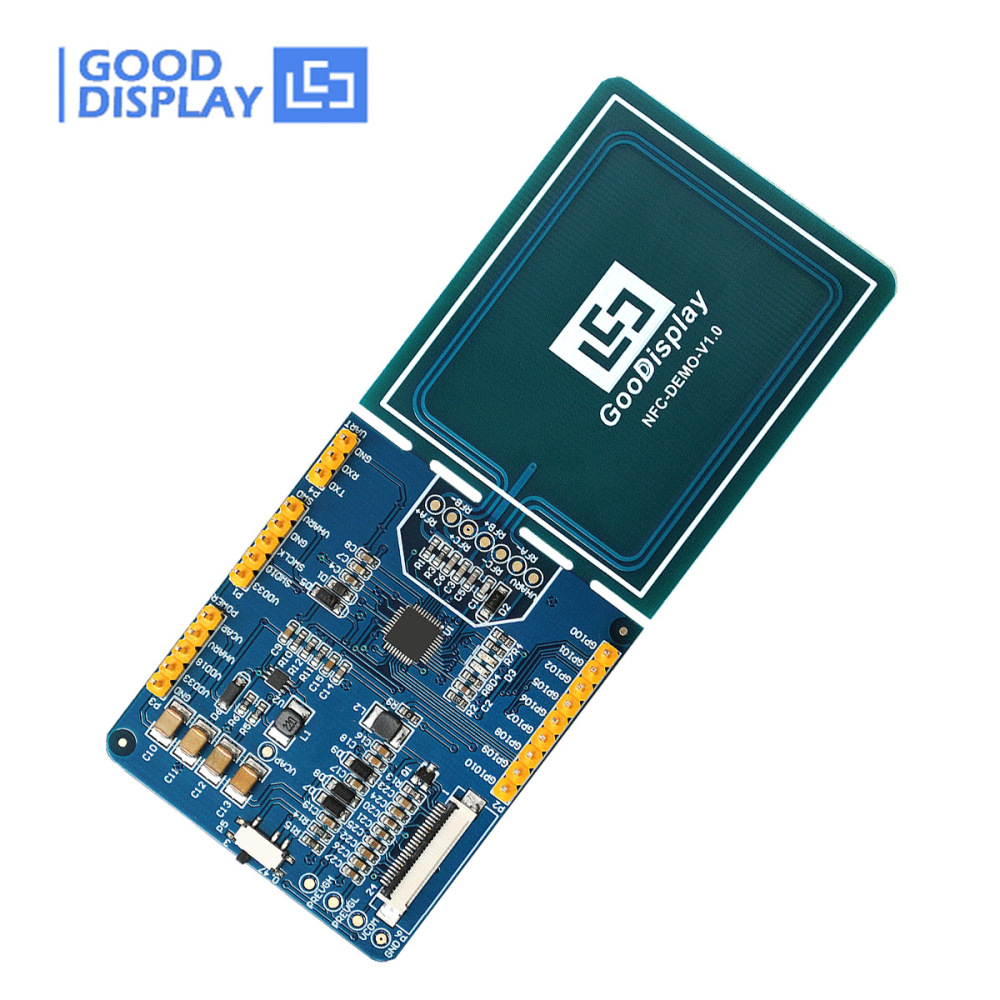

DENFC-M01 is a passive NFC demo development board integrated with ISO14443A tag interface. This demo supports efficient NFC energy harvesting. When combined with mobile phones with NFC function, DENFC-M01 can collect up to 300MW power. Such a high acquisition of power can not only support DENFC-M01 running at full speed in passive mode but also can supply power for external devices such as image sensor and e-paper display.
Relevant manual about this product on Library or you could go to our official website (www.good-display.com), contact us please.
* Note: Its Software can only be applied to Android phones.
● Support 4 Grayscale
● Fast refresh (0.82s/frame)
● Black and white monochrome is easy to read
● Versatile. Use in portrait or landscape format
● It supports partial refresh, the refresh rate is 0.3s/frame
● Bistable. (Will continue to display with no power source)
● I2C Signal Master Interface to read external temperature sensor

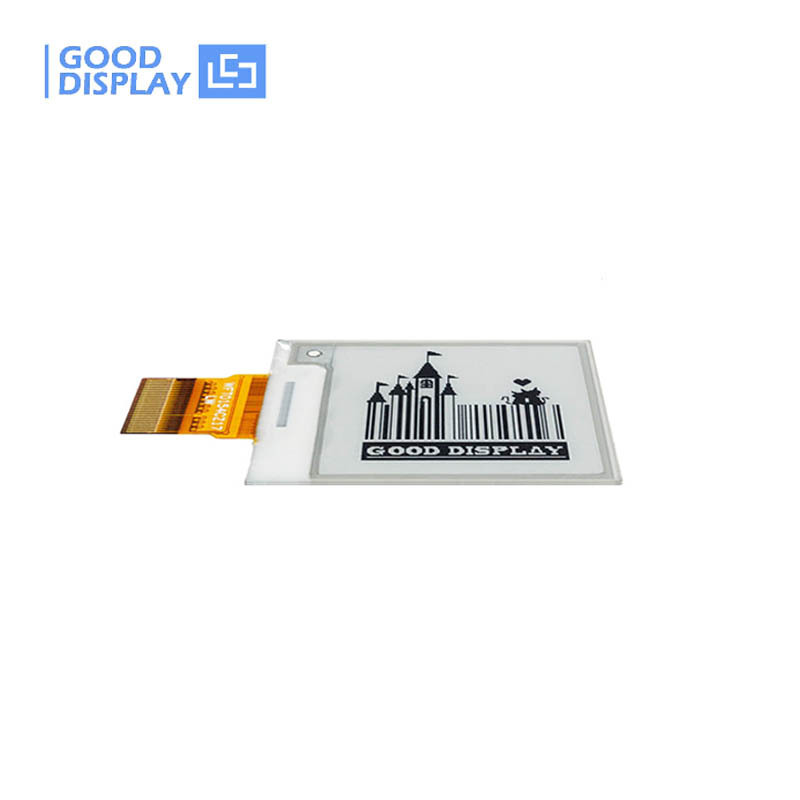

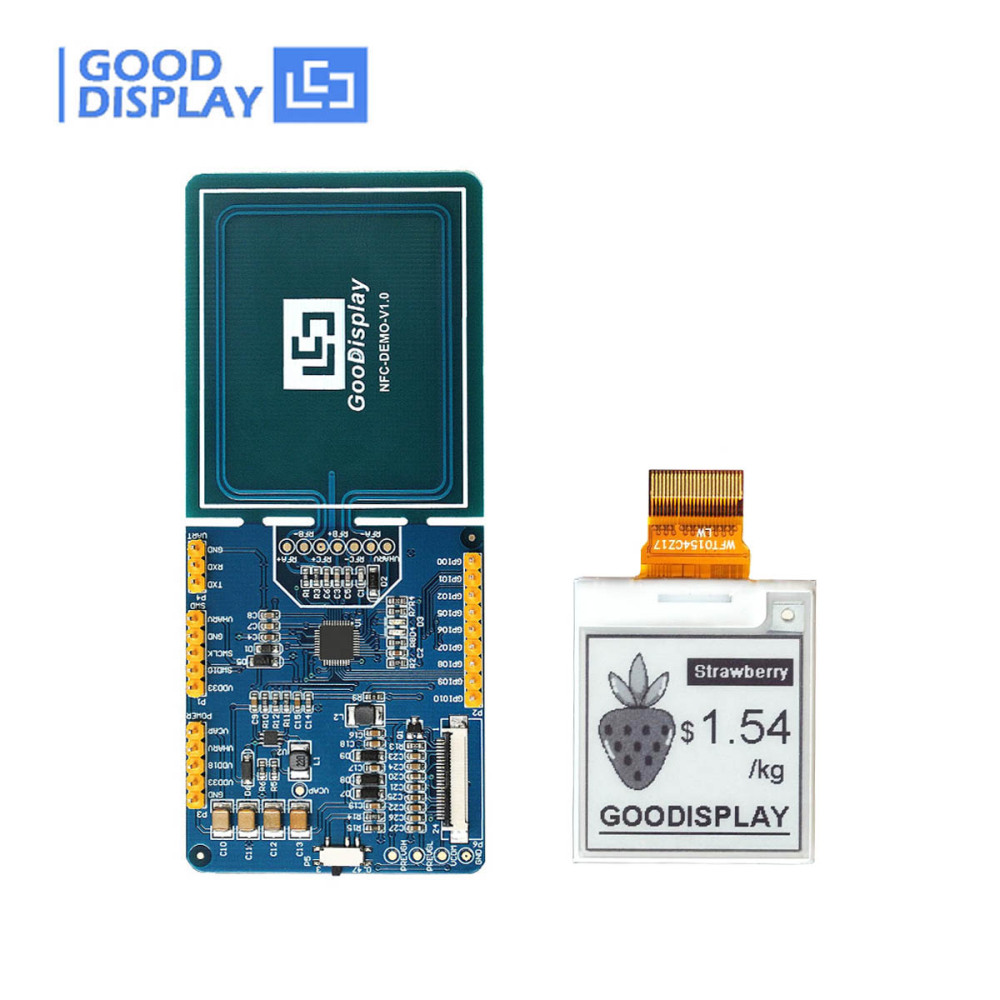

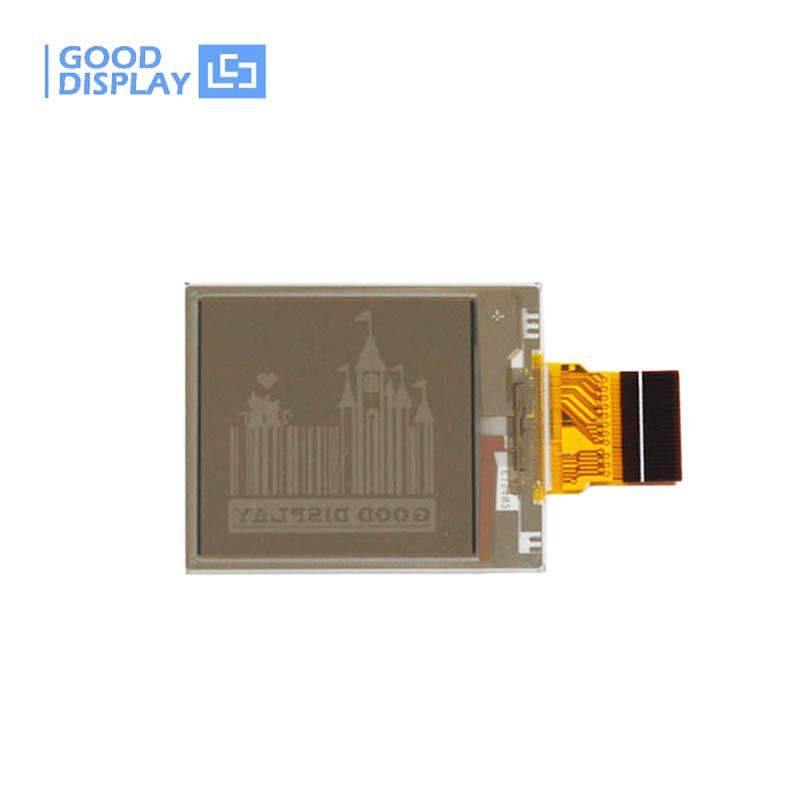

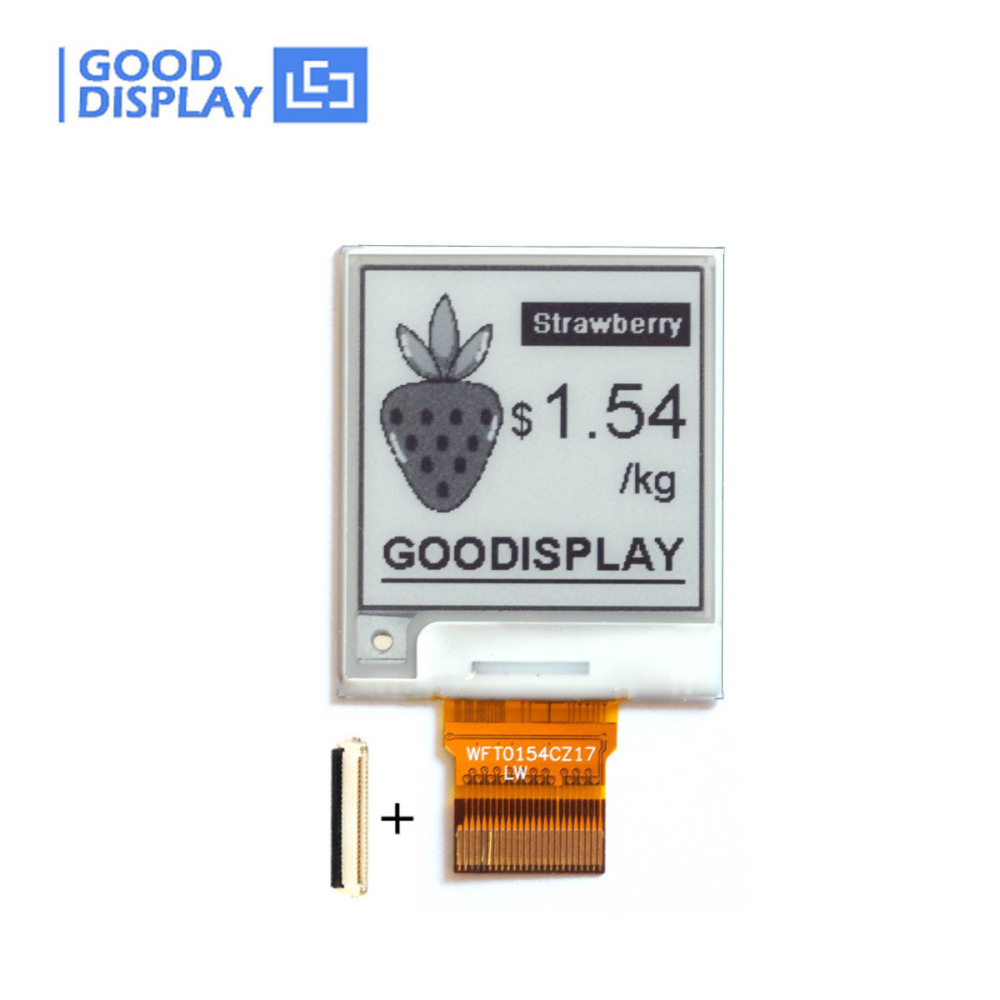

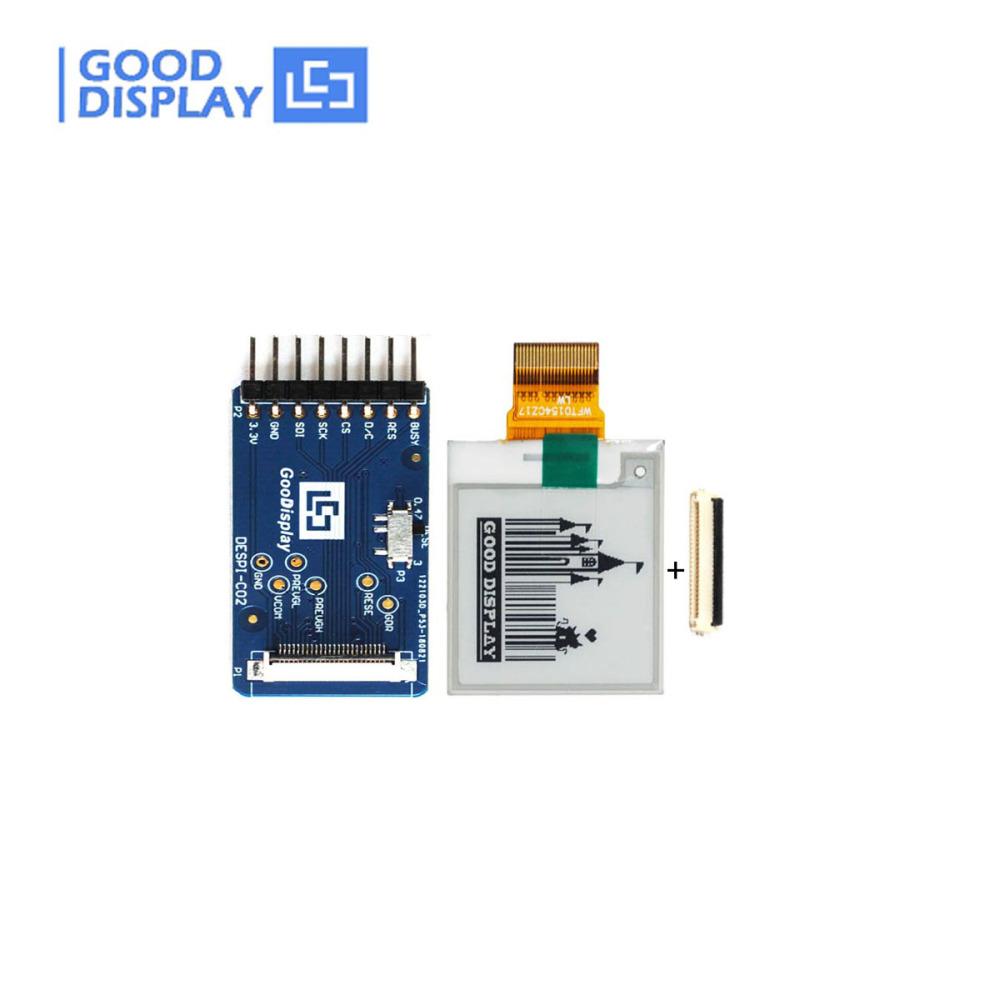

1) 1.54'' E-ink Partial Refresh 152x152 E-Paper Panel * 1pc
2) E ink Display NFC Board * 1pc
3) FPC Connector * 1pc
![]() |
+ | ![]() |
+ | ![]() |
PART NUMBER |
GDEW0154T8D |
TYPE |
Dot Matrix |
SIZE |
1.54 inch |
IC |
UC8151D |
RESOLUTION |
152x152 |
OUTLINE SIZE(mm) |
31.8x37.32x0.98 |
ACTIVE SIZE(mm) |
27.51x27.51 |
PIXEL PITCH(mm) |
0.181x0.181 |
OPERATING TEMP. |
0℃~50℃ |
STORAGE TEMP. |
-25℃~70℃ |
CONNECTOR |
24 Pin FPC |
MAX GRAYSCALE |
4 |
COLOR |
Black,White |
INTERFACE |
SPI |
FULL REFRESH(s) |
3 |
PARTIAL REFRESH TIME(s) |
0.3 |
TIME OF FAST REFRESH(s) |
0.82 |
POWER CONSUMPTION OF THE REFRESH(mW) |
26.4 |
STANDBY POWER CONSUMPTION (mW) |
0.0165 |
PART NUMBER | DENFC-M01 |
PLATFORM | Keil |
OUTSIDE DIMENSION | 105x45mm(DENFC-M01) |
POWER INTERFACE | Direct current power supply or NFC power for mobile phones |
SAMPLE CODE | Available (please contact sales) |
OPERATING TEMP. | -20~70℃ |
MAIN FUNCTION | Learn to drive e-paper display; Test and evaluate e-paper display; For secondary development. |
ADDITIONAL FUNCTION | NFC communication indication,data transmission indication. |
Part Number |
Color |
IC | Resolution |
Features |
Refresh Time |
GDEW0154I9FC | BW | UC8151D | 152x152 | Flexible, Partial Refresh | 3s |
BW |
SSD1681 |
200x200 |
Partial Refresh |
2s |
|
BW |
SSD1681 |
200x200 |
Partial Refresh, With Frontlight |
2s |
|
GDEY0154D67 | BW | SSD1681 | 200x200 | Partial Refresh | 2s |
GDEW0154M10 | BW | UC8151D | 152x152 | DES, High Contrast Ratio | 3s |
BW |
UC8151C |
152x152 |
Fast Refresh, Partial Refresh, With Frontlight |
0.82s |
|
BW |
UC8151D |
152x152 |
Fast Refresh, Partial Refresh |
0.82s |
|
BWR |
SSD1681 |
200x200 |
Colorful(Red) |
15s |
|
GDEM0154Z91 | BWR | SSD1680 | 152x152 | Colorful(Red) | 14s |
