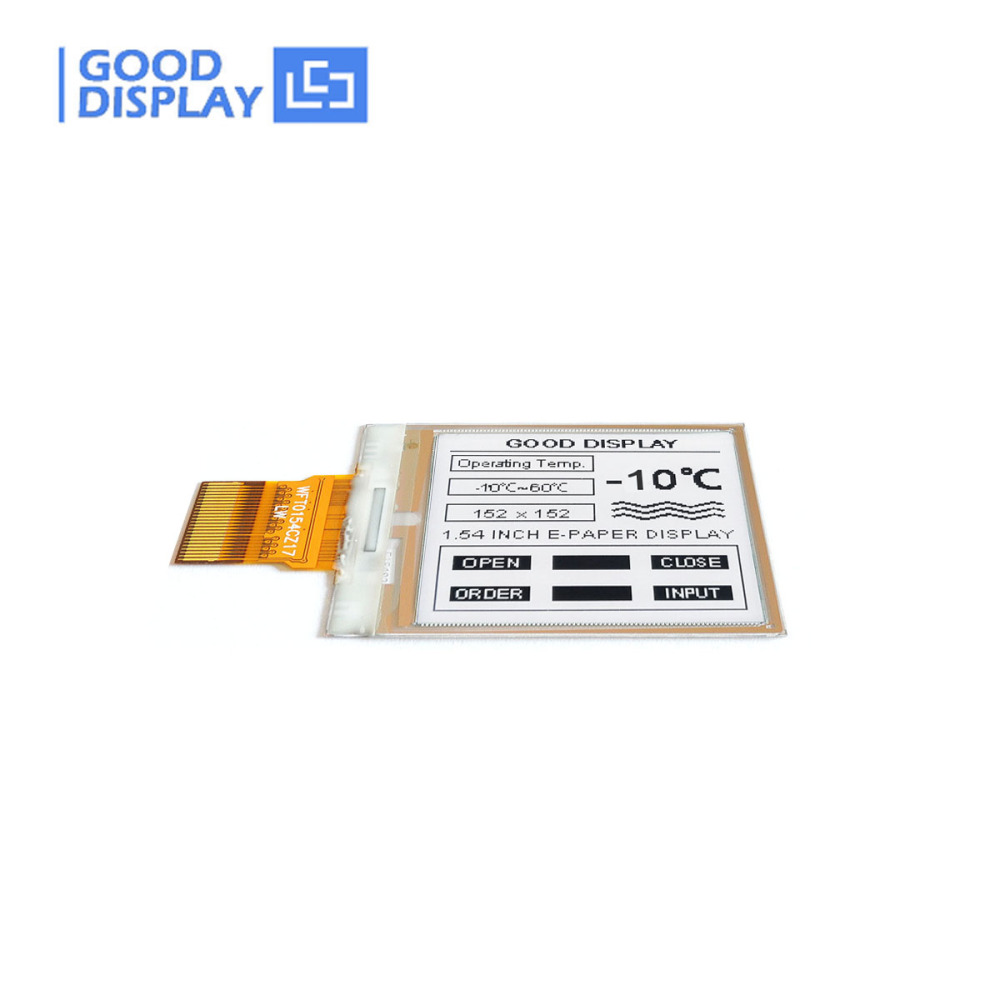

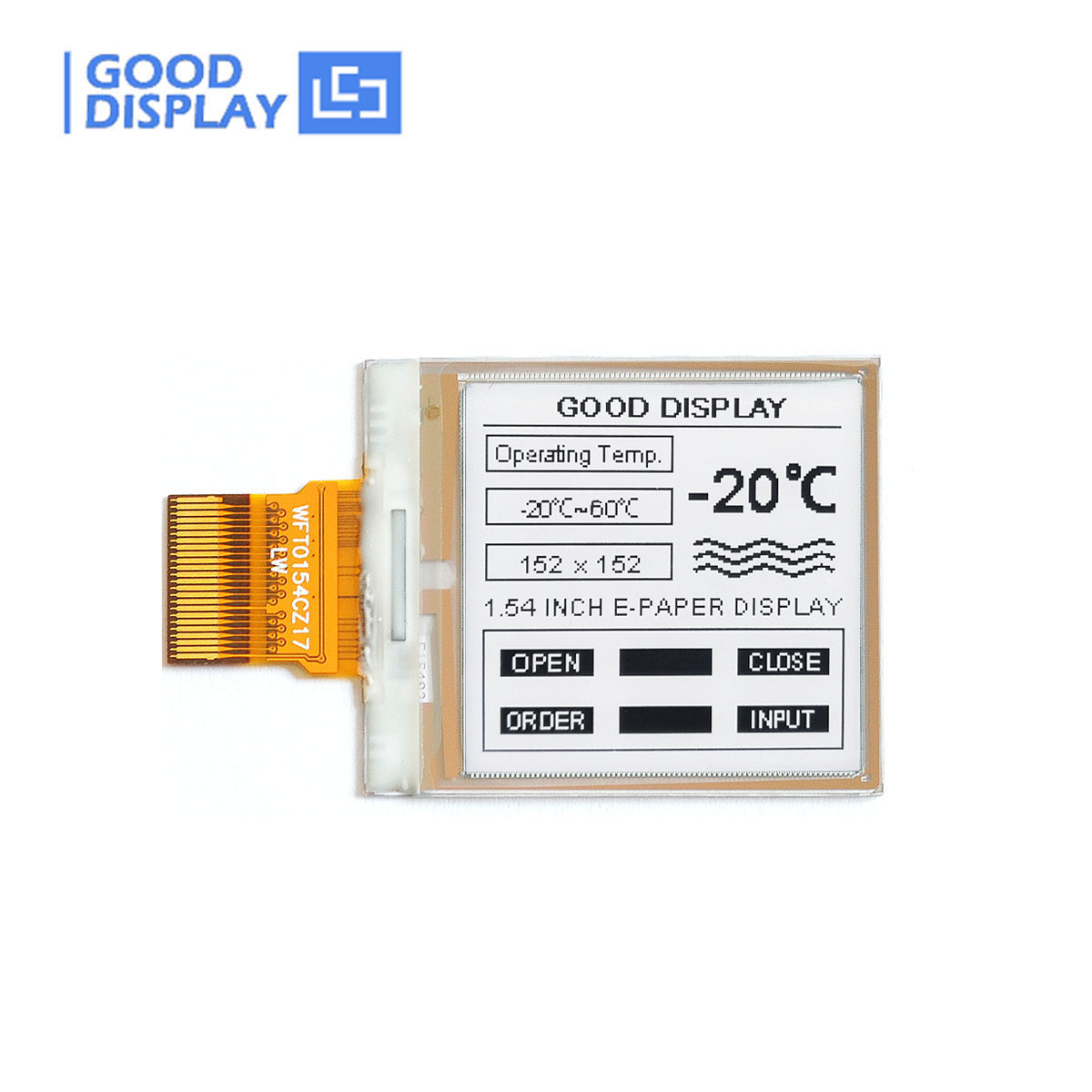

1.54 inch DES e-paper display wide working temperature 152X152 resolution EPD GDEW0154M10

GDEW0154M10
DES 1.54 inch e-paper display with 152X152 resolution, 24 pins FPC connection, SPI interface. It has wide working temperature range.
Price:
USD
$3.00
  • Product:
    EPD
    EPD with adapter board DESPI-C02
    EPD with demo kit DESPI-L(C02)
    EPD with demo kit ESP32-L(C02)
Quantity:
-
+
(2000 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Selection Guide (Above 4.2 inch)
  • Reviews(2)



☆ INTRODUCTION




This is a 1.54 inch DES e-paper display, 152X152 resolution, SPI interface, and the e-paper display is capable to display images with black and white content. Your image holds indefinitely without power – put up your image, then shut down the power. This e-paper is perfect for low power devices powered by solar or batteries. This 1.54 inch DES electronic paper display GDEW0154M10 breaks the limitations of traditional e-paper display on the working environment, apply to more projects.


We could provide front light, touch screen and other accessories for you.
Relevant manual about this product on Library or you could go to our official website (www.good-display.com), contact us please.


TIPS: Pressing the DES product may cause a black shadow on the display screen, which is considered a normal occurrence. The original display can be restored by update again. The product is currently undergoing research and improvement. For more information, please consult customer service.



☆ THE ABOVE PRICE INCLUDE


Package A +

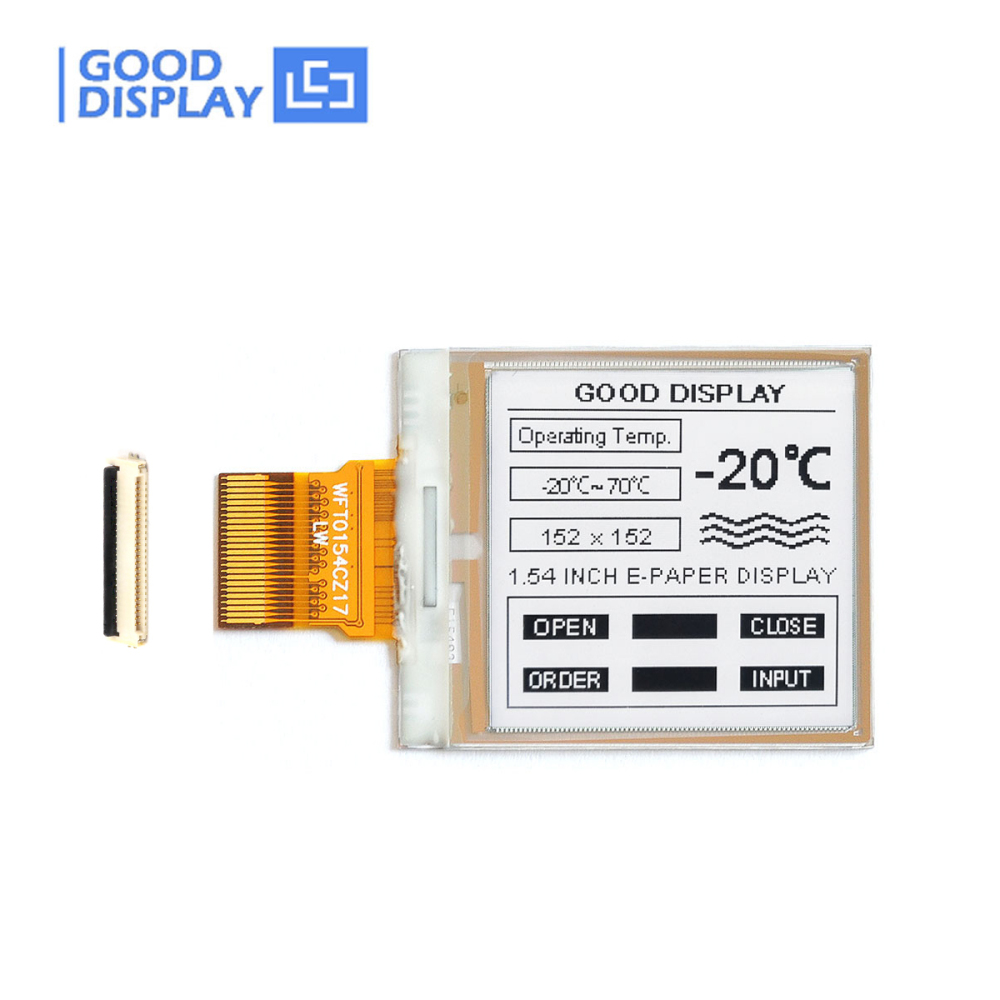

  a. 1.54 inch DES e-paper display wide working temperature 152X152, GDEW0154M10 * 1pc   b. FPC Connector * 1pc



Package B + +

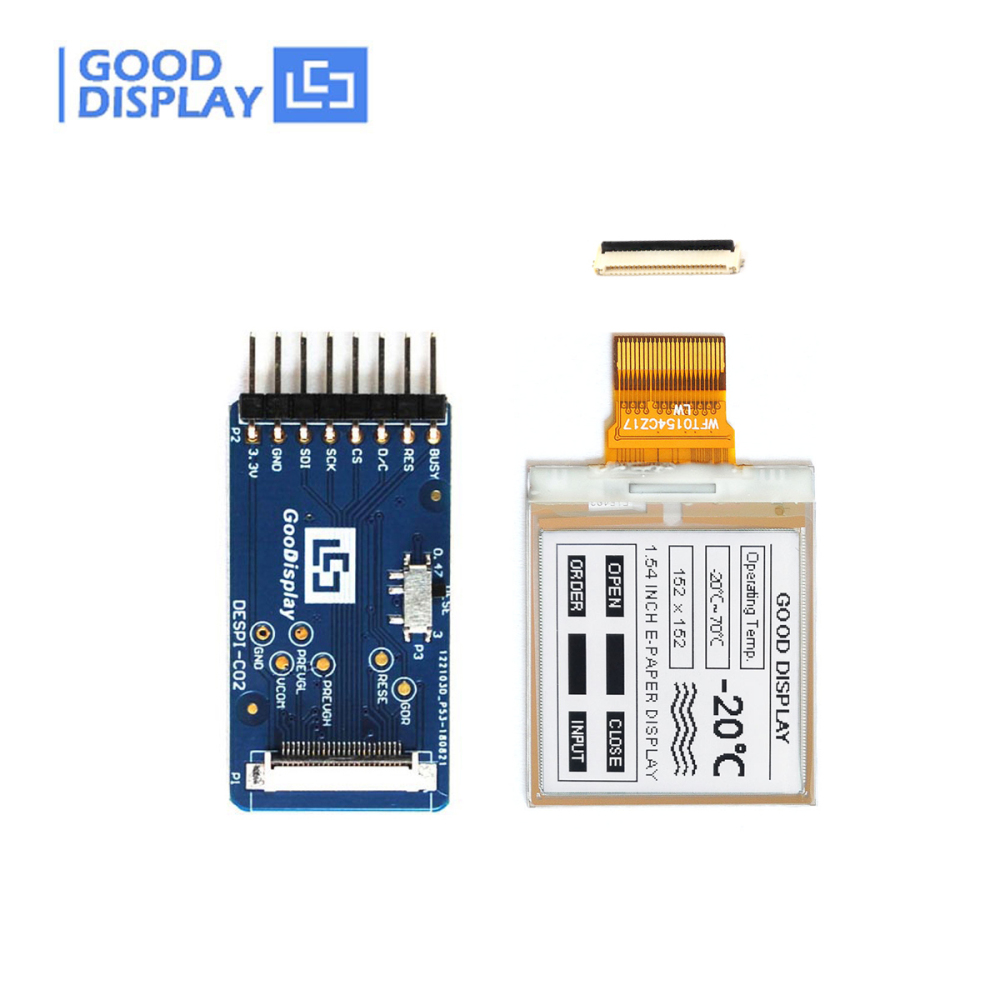

  a. 1.54 inch DES e-paper display wide working temperature 152X152, GDEW0154M10 * 1pc   b. FPC Connector * 1pc   c.Epaper HAT Connection Adapter Board for E Ink Display, DESPI-C02* 1pc

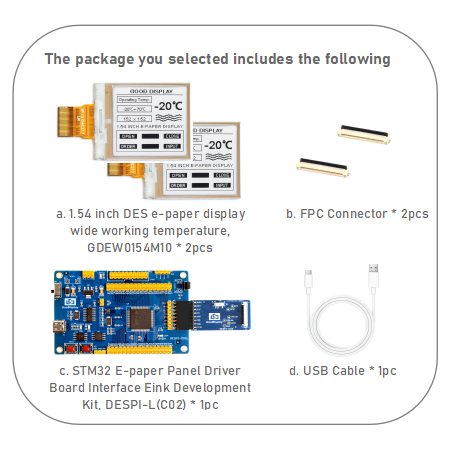

Package C + + +

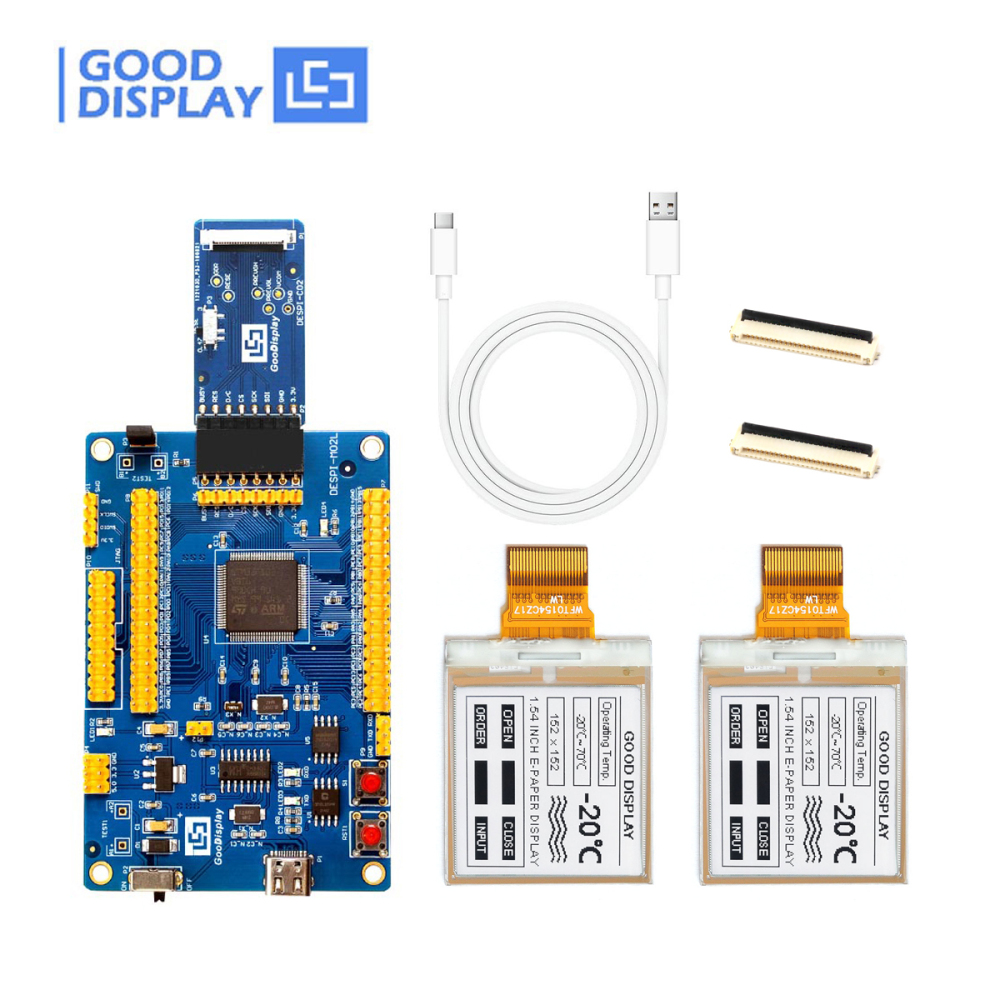

a. 1.54 inch DES e-paper display wide working temperature 152X152, GDEW0154M10 * 2pcs   b. FPC Connector * 2pcs   c.STM32 E-paper Panel Driver Board Type-C Interface Eink Development Kit, DESPI-L(C02)* 1pc   d. USB Cable* 1pc

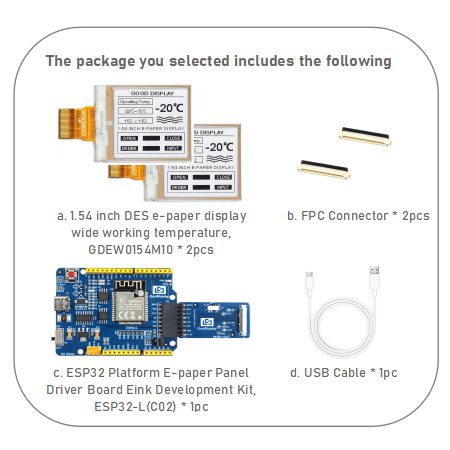

Package D + + +

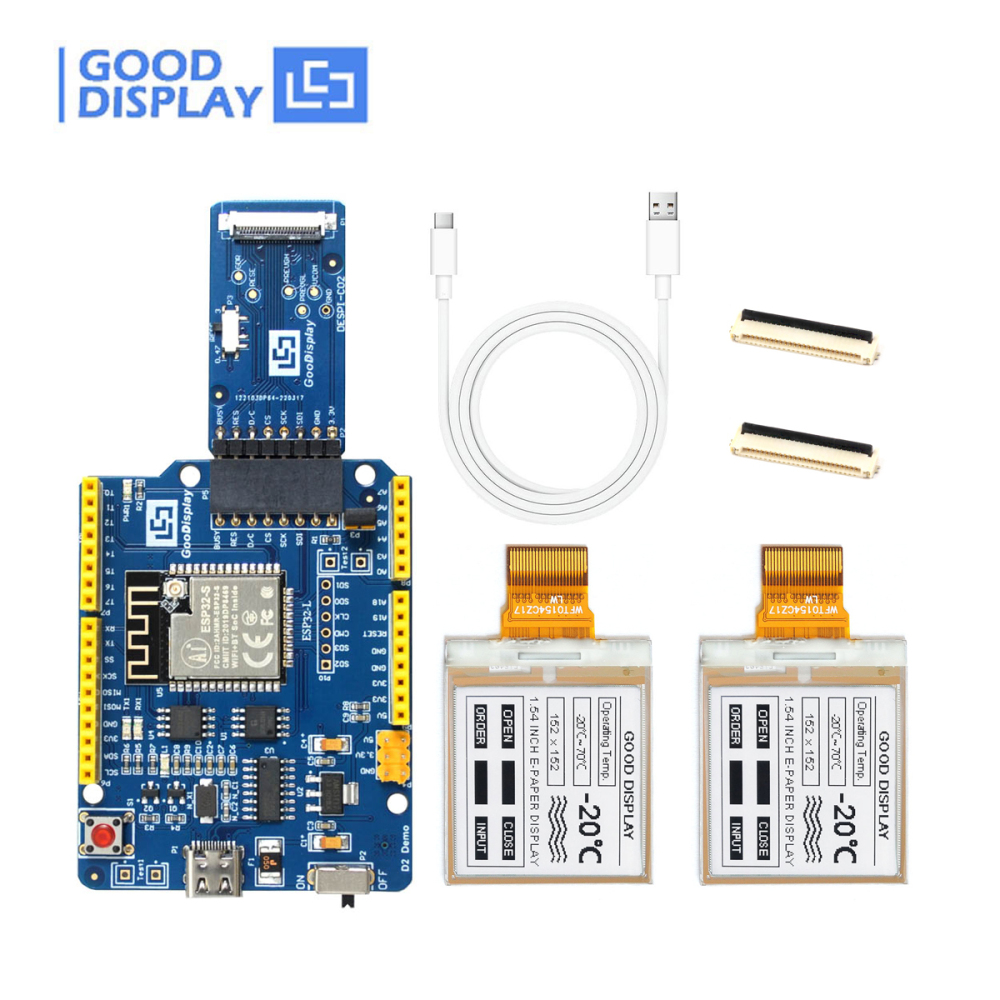

a. 1.54 inch DES e-paper display wide working temperature 152X152, GDEW0154M10 * 2pcs   b. FPC Connector * 2pcs   c. ESP32 Arduino Platform E-paper Panel Driver Board Type-C Interface Eink Development Kit, ESP32-L(C02)* 1pc   d. USB Cable* 1pc



☆ MAIN PARAMETERS




PART NUMBER

GDEW0154M10

TECHNOLOGY

DES

STORAGE TEMP. -25℃~70℃

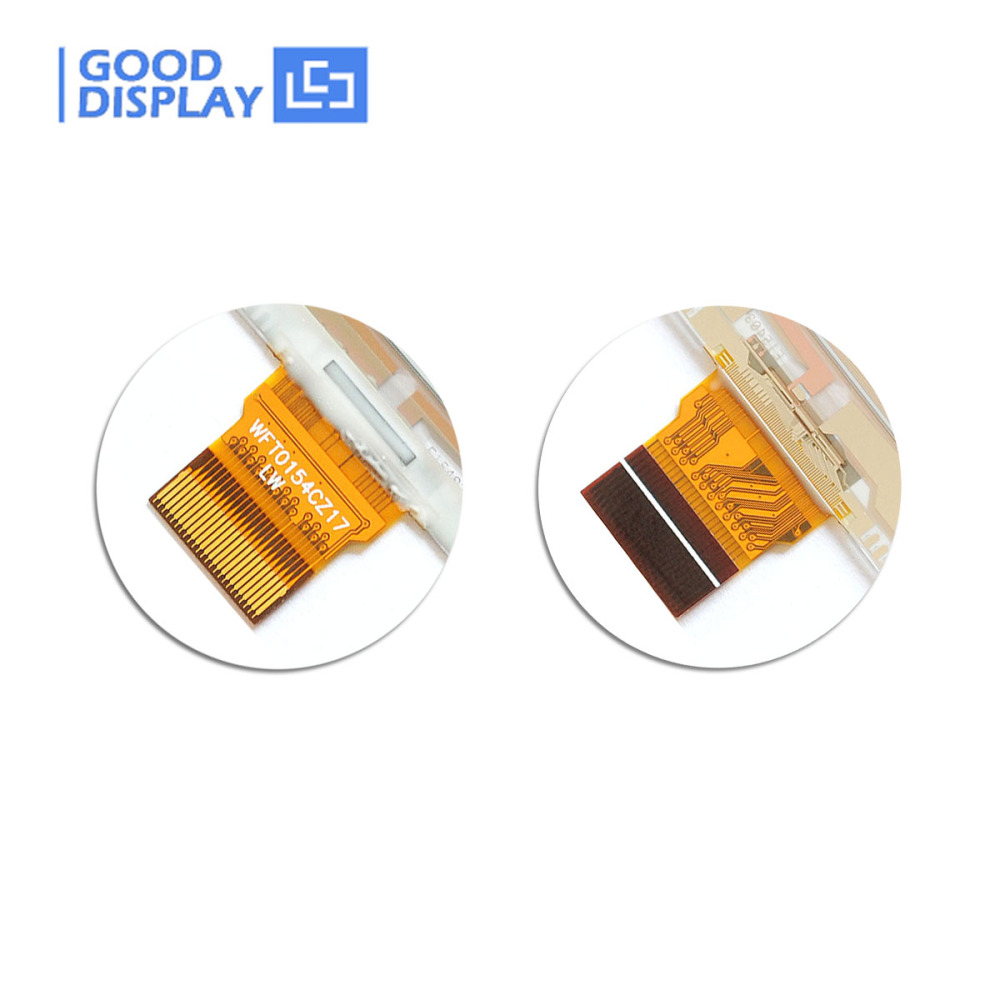

SIZE 1.54 inch CONNECTOR 24 Pin FPC

IC

UC8151D

MAX GRAYSCALE 2

RESOLUTION

152x152

COLOR Black,White

OUTLINE SIZE(mm)

31.8x37.32x1.02

INTERFACE SPI

ACTIVE SIZE(mm)

27.512x27.512

FULL REFRESH(s) 3

PIXEL PITCH(mm)

0.181x0.181

POWER CONSUMPTION OF THE REFRESH(mW) 18

OPERATING TEMP.

-10℃~60℃

STANDBY POWER CONSUMPTION (mW) 0.0165


☆ FEATURE




●  Black and white monochrome is easy to read
●  Versatile. Use in portrait or landscape format
● It supports partial refresh, the refresh rate is 0.26s/frame
●  Bistable. (Will continue to display with no power source)
●  I2C Signal Master Interface to read external temperature sensor

●  Development platform available STM32 / ArduinoRaspberry Pi / ESP8266 / ESP32

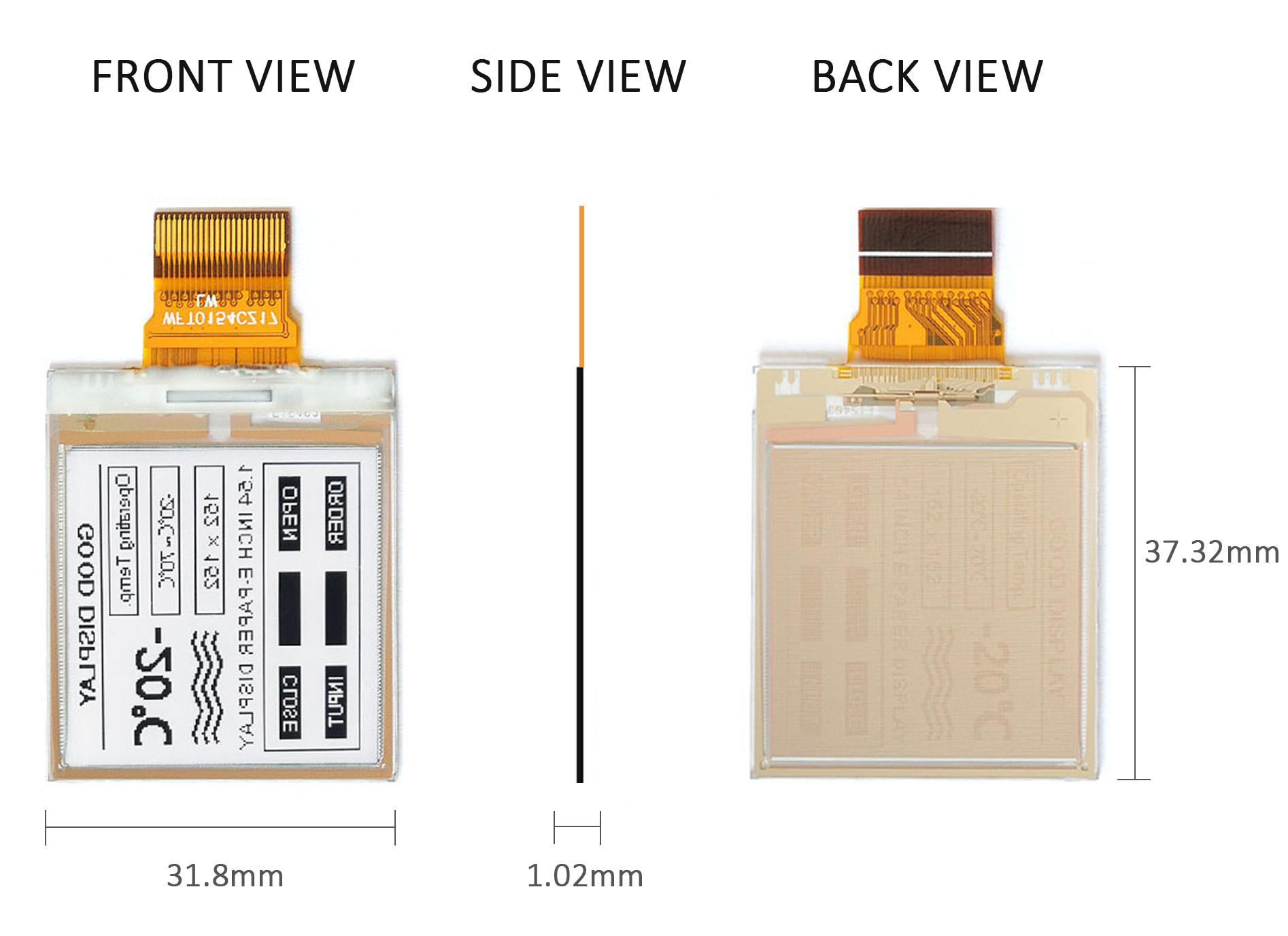

☆ DRAWING







☆ MATCHED DEVELOPMENT KIT




● DESPI-C02 (E-ink Display HAT)


● DESPI-L(C02) (STM32 Platform/Universal)


● DEArduino-L(C02) (Arduino Platform)


● ESP8266-L(C02) (WiFi)


● ESP32-L(C02) (WiFi / Bluetooth)


● DESPI-PICO (Rasberry Pi Epaper HAT)




☆ RELATED INFORMATION DOWNLOAD



● GDEW0154M10 Specification

● IC Driver UC8151D

● GDEW0154M10 STM32 Sample Code

● GDEW0154M10 Arduino Sample Code

● GDEW0154M10 ESP8266 Sample Code

● GDEW0154M10 ESP32 Sample Code

● GDEW0154M10 Raspberry Pi Pico Sample Code
