1.54 inch E Ink Display 200x200 Small ESL E Paper Screen ESP32 Module, 2pcs GDEY0154D67 with ESP32 Demo Kit ESP32-L(C02)

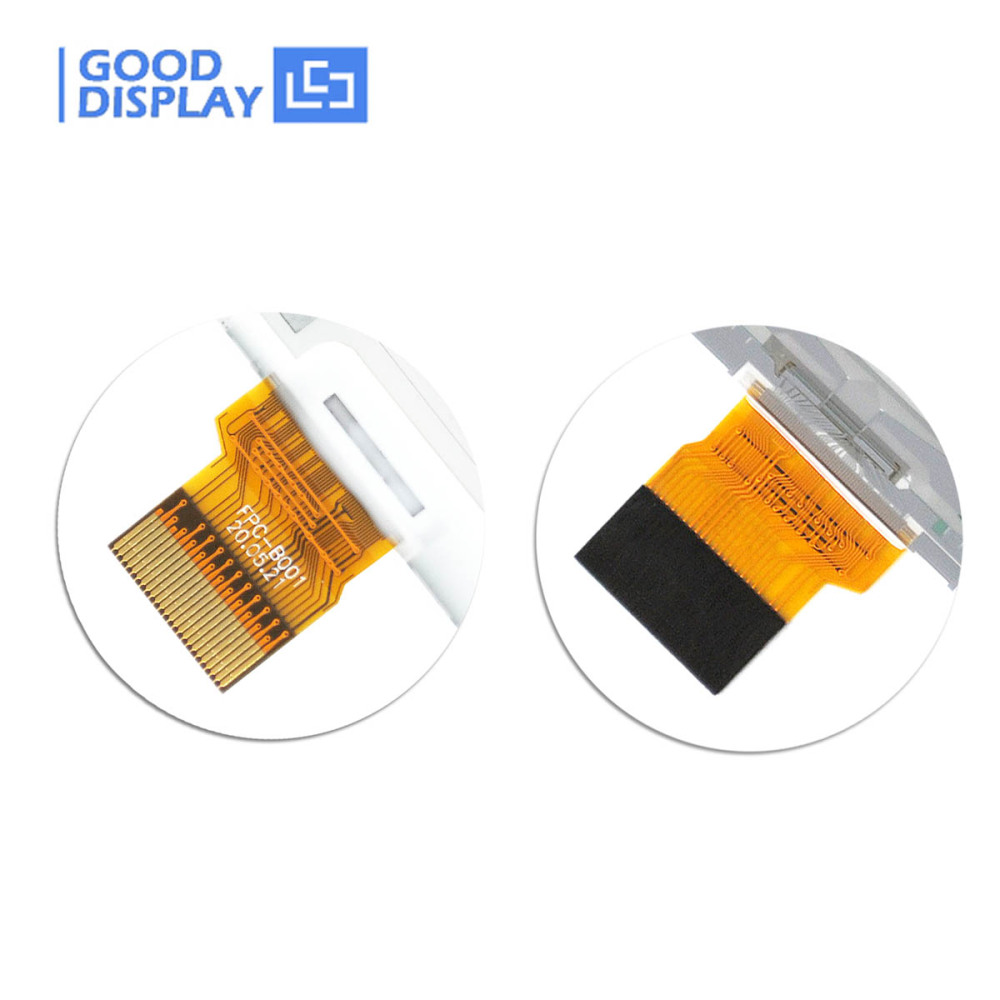

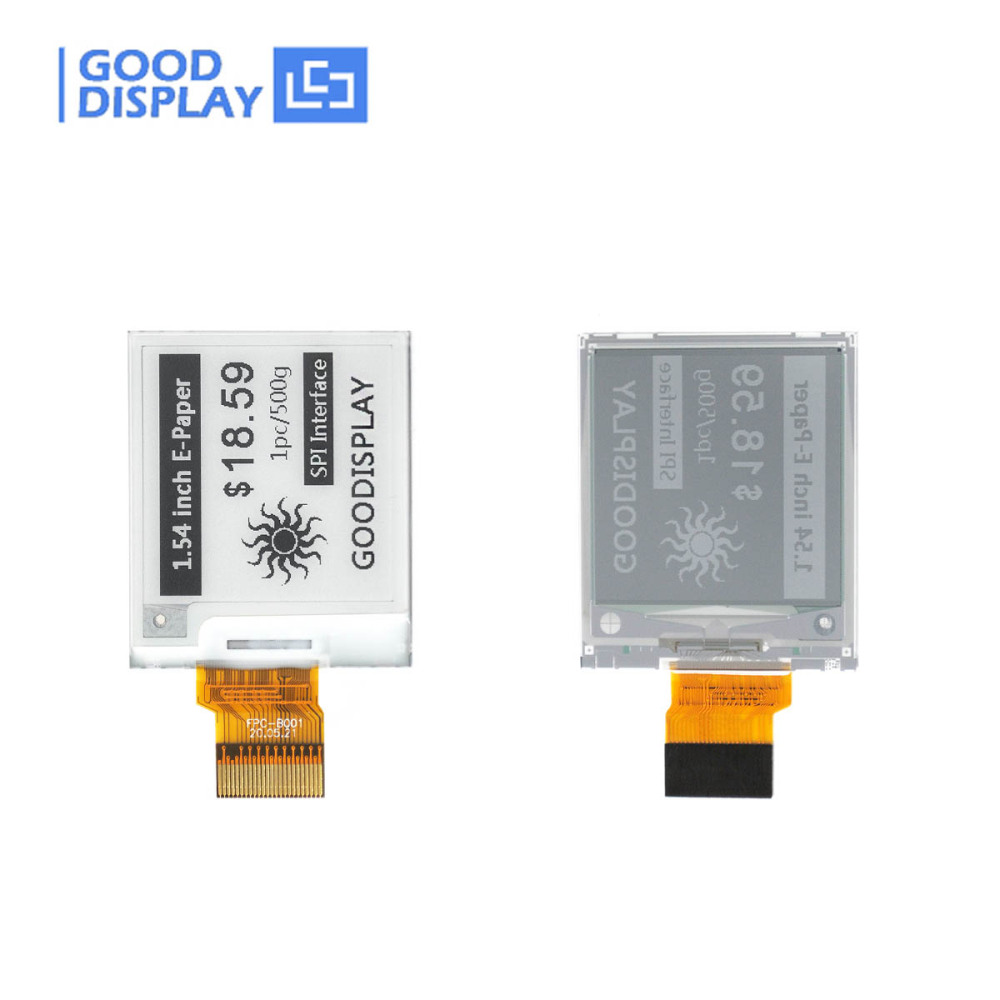

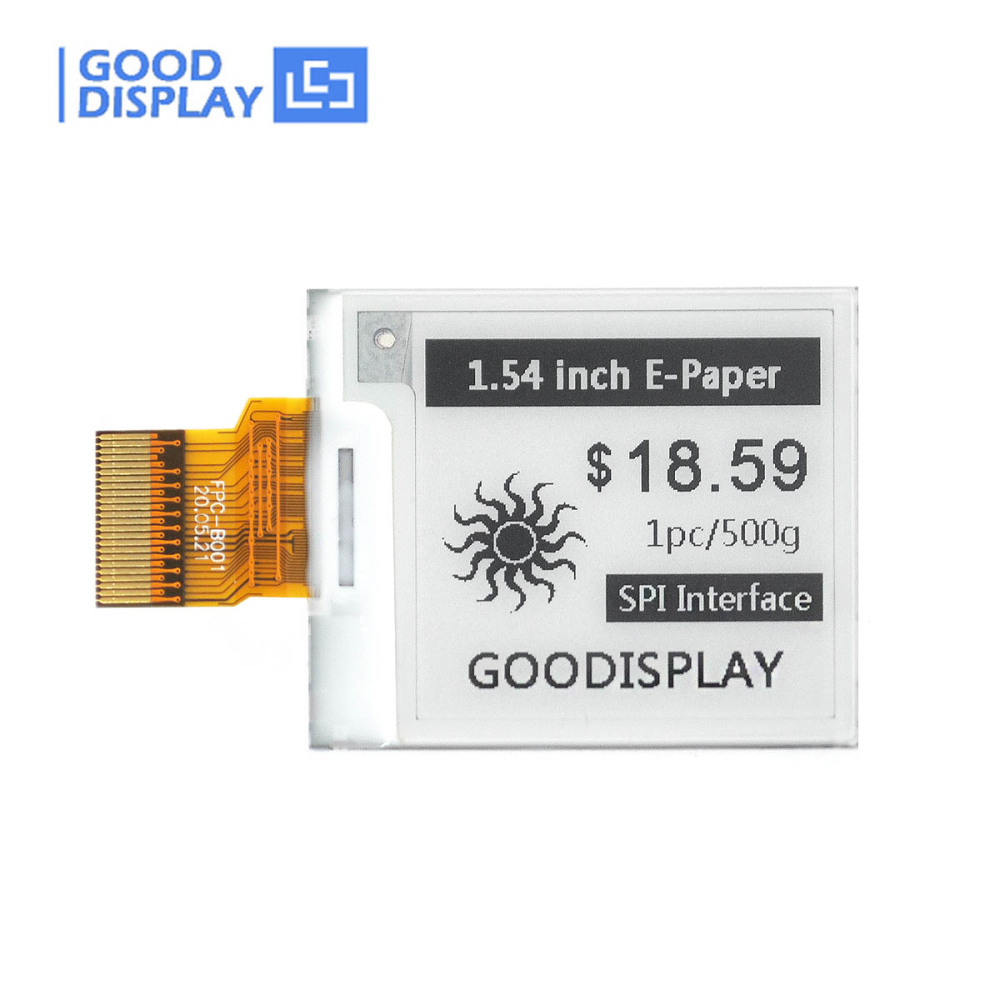

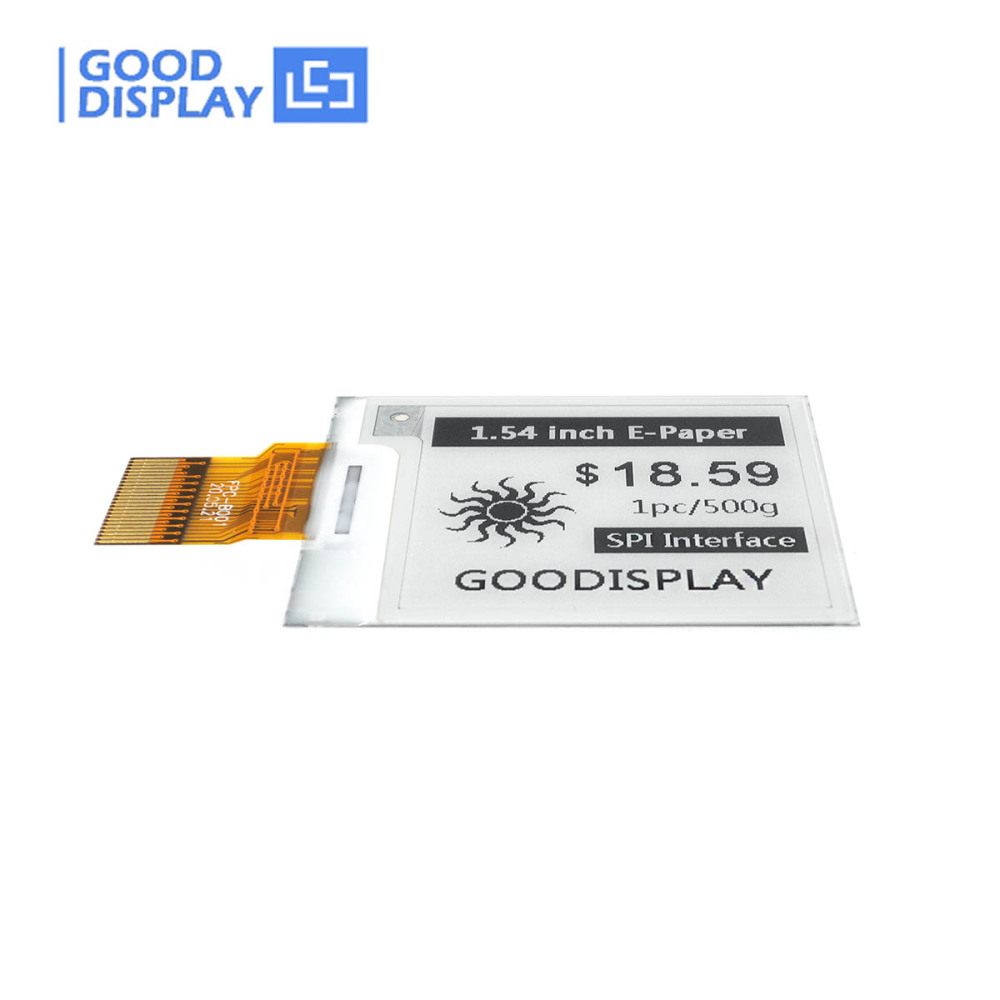

This is a 1.54 inch electronic paper display module, with 200x200 resolution, SSD1681, SPI interface, and the epaper screen supports partial refresh and 4 grayscale. It can be customized to achieve 1.5s fast refresh.
Price:
USD
$6.68
  • 规格:
    EPD with ESP32 Demo Kit
    EPD with STM32 Demo Kit
    EPD with Arduino Demo Kit
    EPD with ESP8266 Demo Kit
    EPD
    EPD with adapter board
Quantity:
-
+
(300 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Reviews



☆ INTRODUCTION




This is a 1.54 inch e-ink display ESP32 module,  200x200 resolution, SPI interface, and the display is capable to display images with black and white content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This electronic paper display GDEY0154D67 is perfect for low power devices powered by solar or batteries.


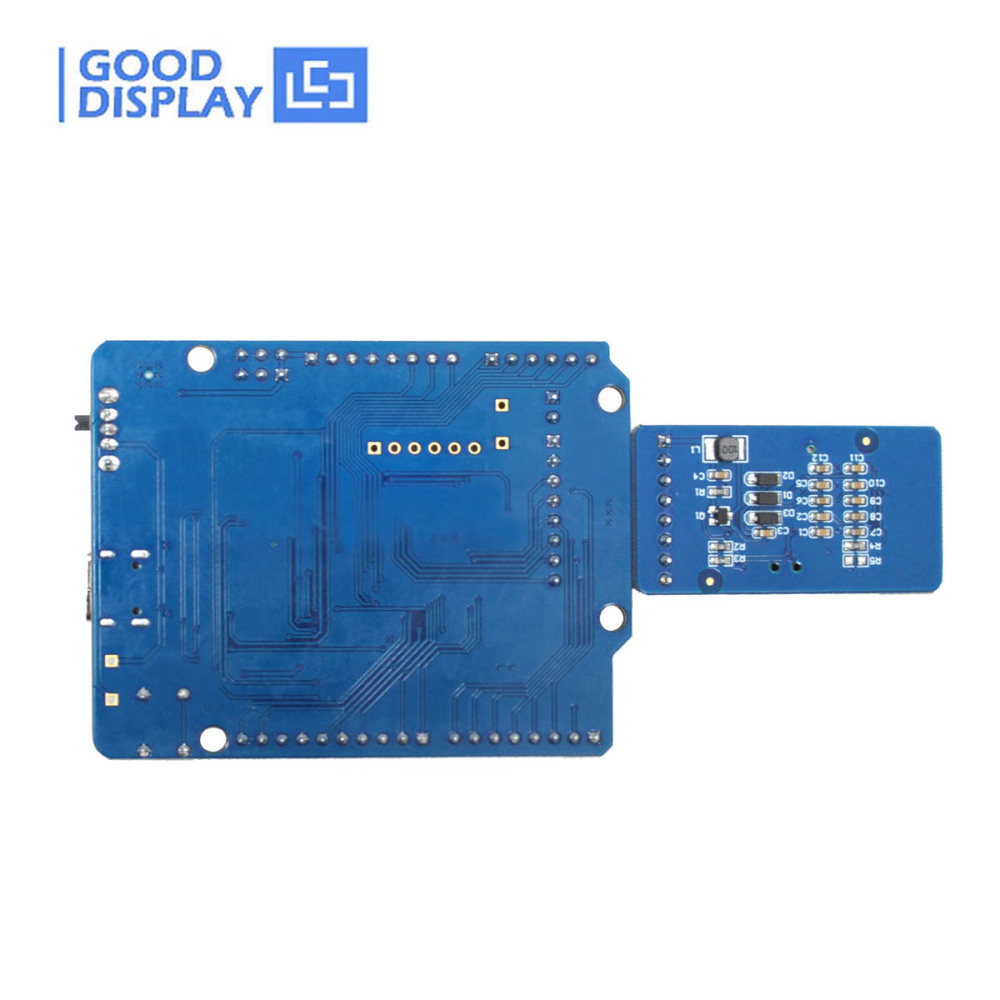

ESP32-L(C02) development kit is only for users to develop and drive electronic paper display. The application of WiFi, Bluetooth and other functions requires users to develop on their own according to the project.



We could provide front light, touch screen and other accessories for you.
Relevant manual about this product on Library or you could go to our official website (www.good-display.com), contact us please.

* Note: We can customize the OTP code to make the refresh time of this 1.54 inch e-paper display GDEY0154D67 reach to 1.5s, if you need, please contact us.



☆ THE ABOVE PRICE INCLUDE


Package A + + +

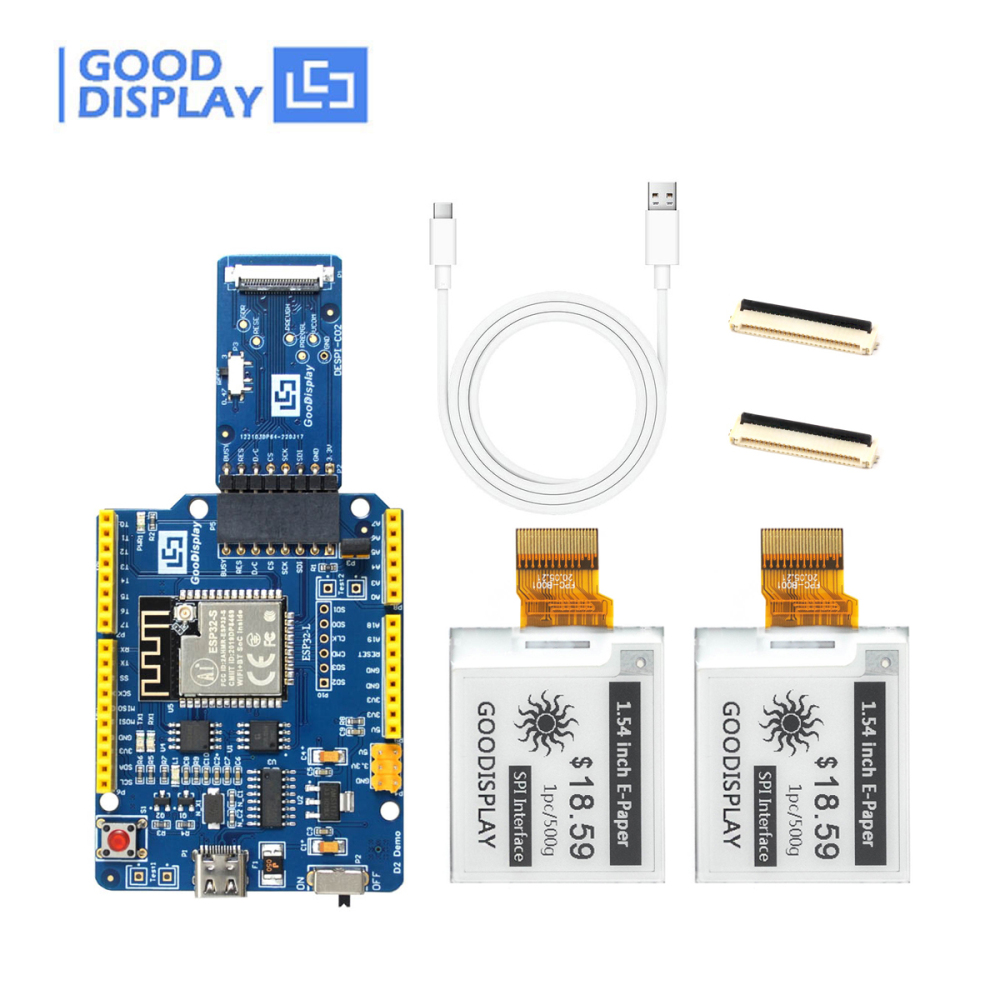

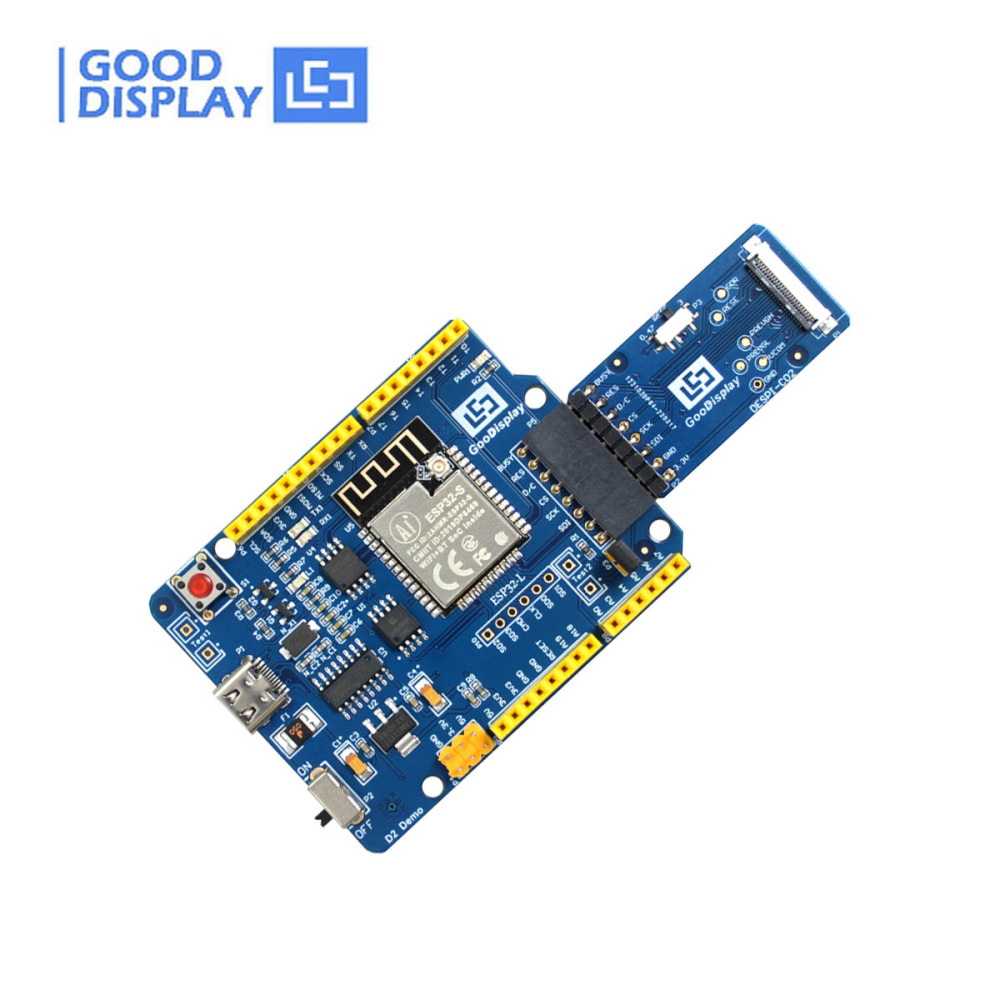

a. 1.54 inch electronic paper display 200x200 partial refresh digital price tags screen, GDEY0154D67 * 2pcs   b. FPC Connector * 2pcs   c. ESP32 Arduino Platform E-paper Panel Driver Board Type-C Interface Eink Development Kit, ESP32-L(C02) *1pc   d. USB Cable *1pc


Package B + + +
a. 1.54 inch electronic paper display 200x200 partial refresh digital price tags screen, GDEY0154D67 * 2pcs   b. FPC Connector * 2pcs   c.STM32 E-paper Panel Driver Board Type-C Interface Eink Development Kit, DESPI-L(C02) *1pc   d. USB Cable *1pc

Package C + + +

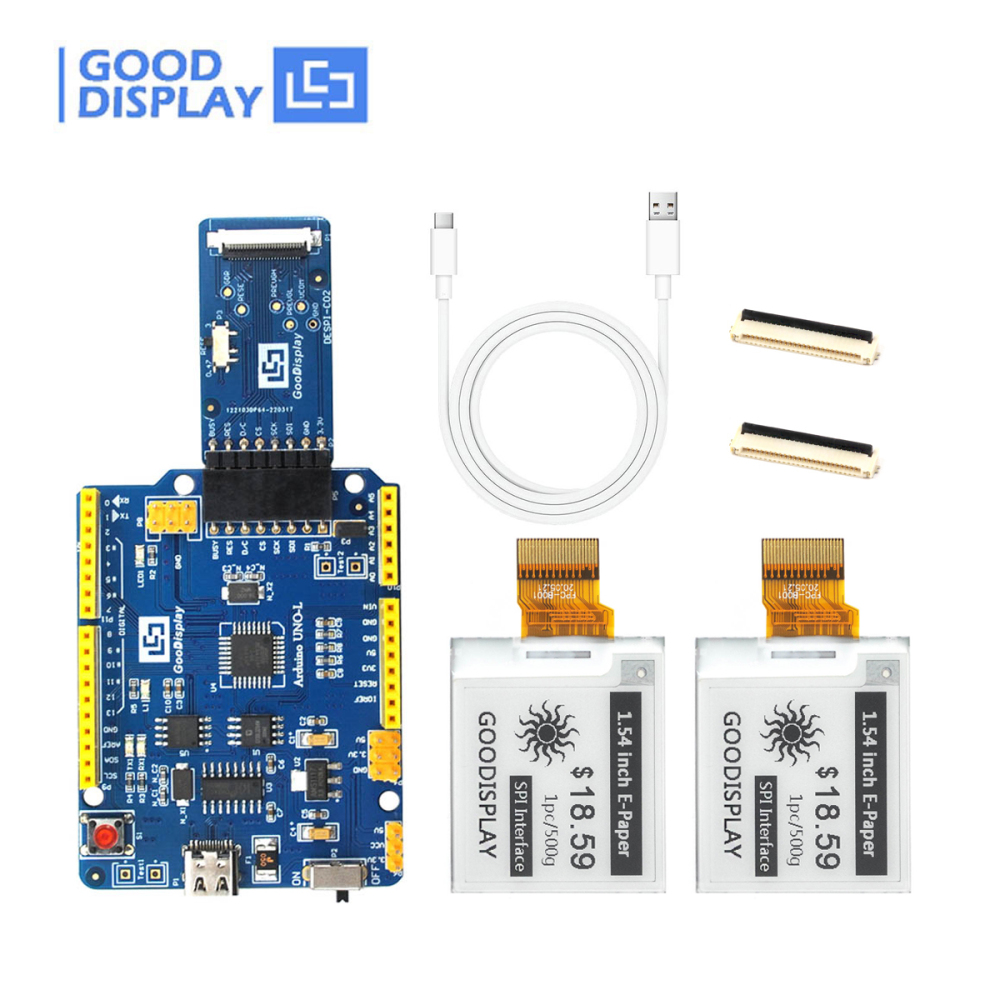

a. 1.54 inch electronic paper display 200x200 partial refresh digital price tags screen, GDEY0154D67 * 2pcs   b. FPC Connector * 2pcs   c.Arduino E-paper Driving Board Type-C Interface EPD development kit, DEArduino-L(C02) *1pc   d. USB Cable *1pc

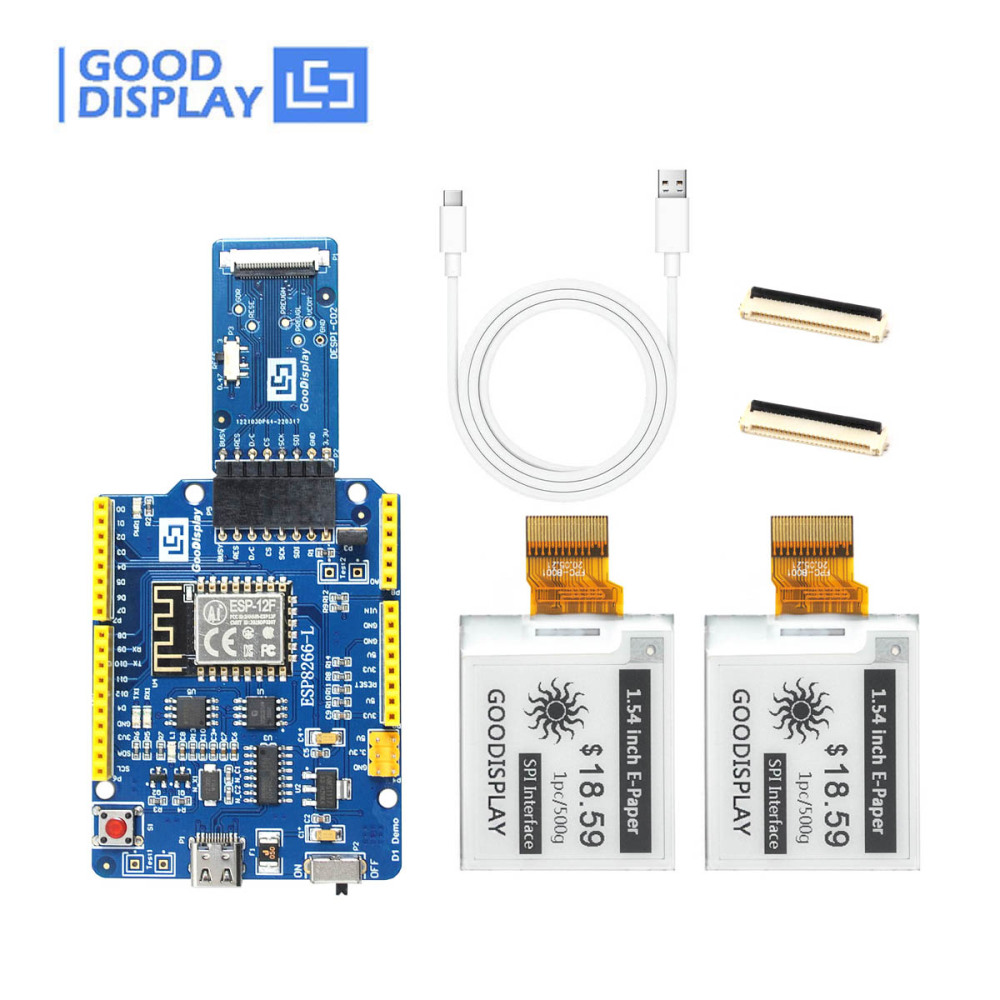

Package D + + +
a. 1.54 inch electronic paper display 200x200 partial refresh digital price tags screen, GDEY0154D67 * 2pcs   b. FPC Connector * 2pcs   c. ESP8266 Arduino Platform E-paper Panel Driver Board Type-C Interface Eink Development Kit, ESP8266-L(C02) *1pc   d. USB Cable *1pc

Package E + + +
a. 1.54 inch electronic paper display 200x200 partial refresh digital price tags screen, GDEY0154D67 * 2pcs   b. FPC Connector * 2pcs   c. ESP32 Arduino Platform E-paper Panel Driver Board Type-C Interface Eink Development Kit, ESP32-L(C02) *1pc   d. USB Cable *1pc

Package F +
a. 1.54 inch electronic paper display 200x200 partial refresh digital price tags screen, GDEY0154D67 * 1pc   b. FPC Connector * 1pc

Package G + +

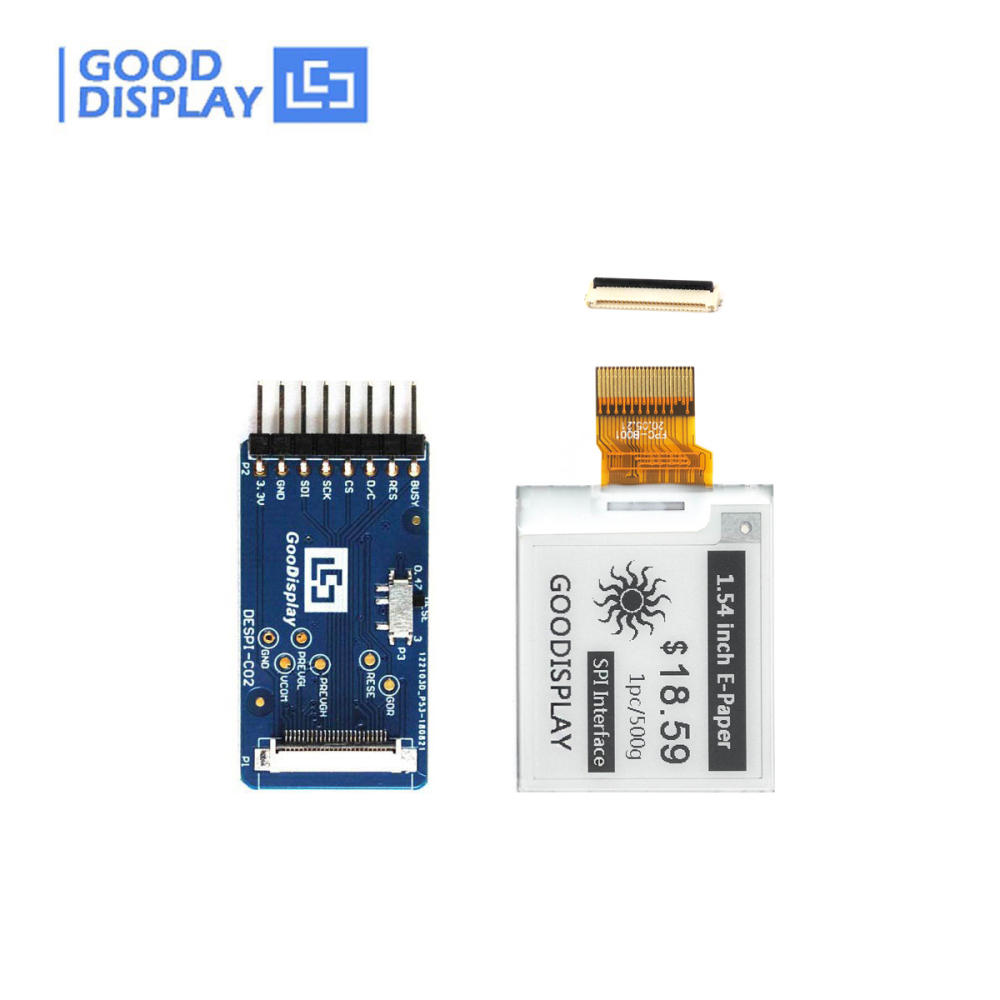

a. 1.54 inch electronic paper display 200x200 partial refresh digital price tags screen, GDEY0154D67 * 1pc   b. FPC Connector * 1pc   c.Epaper HAT Connection Adapter Board for E Ink Display, DESPI-C02 *1pc


☆ MAIN PARAMETERS




PART NUMBER

GDEY0154D67

SIZE 1.54 inch MAX GRAYSCALE 4

DISPLAY FORMAT

200x200

INTERFACE SPI
IC SSD1681 POWER CONSUMPTION OF THE REFRESH(mW) 4.5

OUTLINE DIMENSION(mm)

37.32x31.8x1

STANDBY POWER CONSUMPTION (mW) 0.003

ACTIVE AREA(mm)

27x27

FULL REFRESH(s) 2

OPERATING TEMP.

0℃~50℃

PARTIAL REFRESH TIME(s) 0.26

STORAGE TEMP.

-25℃~70℃

COLOR Black, White

PART NUMBER ESP32-L(C02)
PLATFORM Arduino OUTSIDE DIMENSION 70x54mm (ESP32-L)
41x22mm (DESPI-C02)
POWER INPUT DC3.3V OPERATING TEMP. -20~70℃
SAMPLE CODE Available (please contact sales)
MAIN FUNCTION Learn to drive E-paper display;
Test and evaluate e-paper display;
Support secondary development
OTHER FUNCTION Type-C,LED indicator, Reset button, Font chip, Flash chip, Current detection




☆ FEATURE



●  Black and white monochrome is easy to read.
●  Versatile. Use in portrait or landscape format.
●  It supports partial refresh, the refresh rate is 0.26s/frame.
●  Bistable. (Will continue to display with no power source)
●  I²C Signal Master Interface to read external temperature sensor




☆ DRAWING







☆ 1.54 INCH E-PAPER DISPLAY




Part Number

Color

IC Resolution

Features

Refresh Time
GDEW0154I9FC BW UC8151D 152x152 Flexible, Partial Refresh 3s

GDEH0154D67-FL

BW

SSD1681

200x200

Partial Refresh, With Frontlight

2s

GDEY0154D67 BW SSD1681 200x200 Partial Refresh 2s
GDEW0154T11 BW UC8154 200x200 SPI Interface 2s
GDEW0154M10 BW UC8151D 152x152 DES, High Contrast Ratio 3s

GDEW0154T8-FL

BW

UC8151C

152x152

Fast Refresh, Partial Refresh, With Frontlight

0.82s

GDEW0154T8D

BW

UC8151D

152x152

Fast Refresh, Partial Refresh

0.82s

GDEH0154Z90

BWR

SSD1681

200x200

Colorful(Red)

15s

GDEM0154Z91 BWR SSD1680 152x152 Colorful(Red) 14s




☆ RELATED INFORMATION DOWNLOAD



● GDEY0154D67 Specification

● IC Driver SSD1681

● GDEY0154D67 Picture Production and Bitmap Conversion

● GDEY0154D67 STM32 Sample Code

● GDEY0154D67 Arduino Sample Code

● GDEY0154D67 Raspberry Pi Pico Sample Code

● GDEY0154D67 ESP32 Sample Code


● ESP32-L(C02) Specification

● DESPI-C02 Specification

● ESP32-L_SCH

● DESPI-C02-SCH
