☆ INTRODUCTION
ESP8266-L(C02) evaluation kit is used to help users develop e-paper display projects with provided source code to create more differentiated solutions. It is designed for SPI e-paper display. It supports driving Good Display's black-white e-paper display and three-color (black, white and red/Yellow) e-paper display: 0.97'', 1.54'', 2.13'', 2.66'', 2.7'', 2.9'', 3.71'', 4.2'', 5.83'' and 7.5''. And it is added the functions of USB serial port and LED indicator light, Reset button, font chip, Flash chip and etc. It is only for users to develop and drive electronic paper display screens. The application of WiFi and other functions requires users to develop on their own according to the project. ESP8266-L(C02) development kit consists of motherboard ESP8266-L for EPD and connector board DESPI-C02.

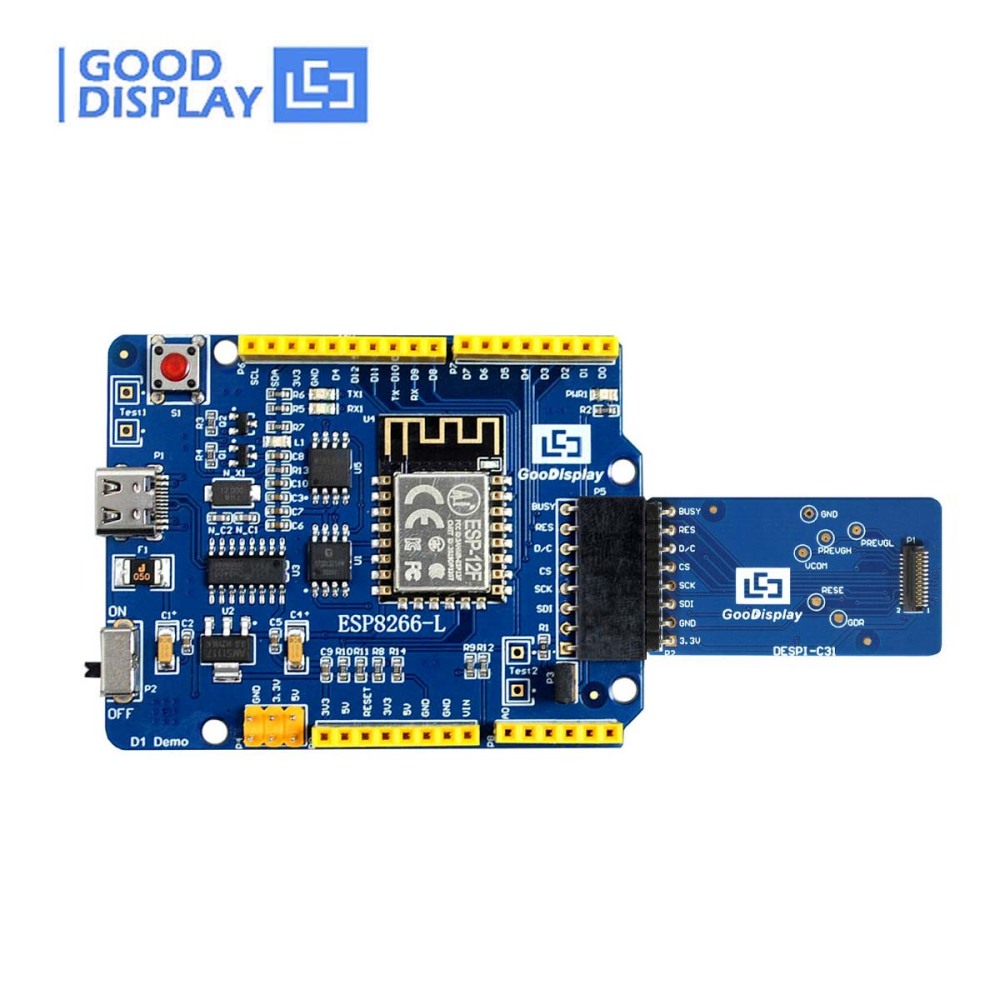

ESP8266-L(C31) development kit consists of motherboard ESP8266-L for EPD and connector board DESPI-C31.
The development kit is only for users to develop and drive 3.1 inch electronic paper display screens.
Relevant manual about this product on our official website (www.good-display.com), contact us please.
☆ THE ABOVE PRICE INCLUDE
1) Driving board ESP8266-L * 1pc
2) Connector board DESPI-C31 * 1pc
3) Type-C port cable * 1pc
☆ MAIN PARAMETERS
| PART NUMBER |
ESP8266-L(C31) |
| PLATFORM |
Arduino |
OUTSIDE DIMENSION |
70x54mm (ESP8266-L)
41x22mm (DESPI-C31) |
| SUITABLE SIZE |
3.1 inch |
SAMPLE CODE |
Available |
| POWER INTERFACE |
Type-C |
OPERATING TEMP. |
-20~70℃ |
| MAIN FUNCTION |
Learn to drive E-paper display;
Test and evaluate e-paper display;
Support secondary development |
| RESERVED FUNCTION |

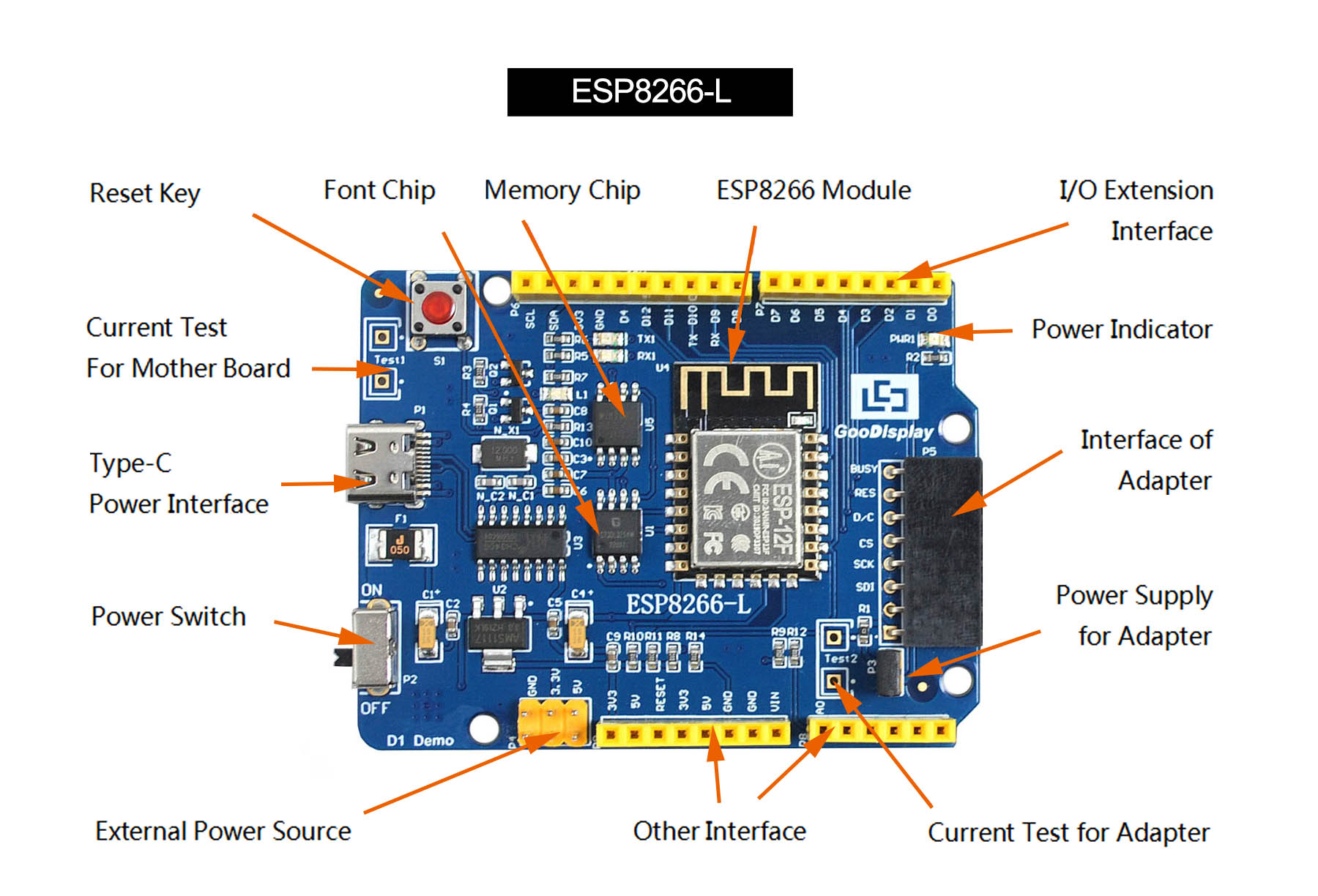

Type-C, LED indicator, Reset button, Font chip, Flash chip, Current detection |
☆ DETAILS
☆ RELATED INFORMATION DOWNLOAD
● DESPI-C31 Specification
● DESPI-C31-SCH
☆ SUITABLE E-PAPER DISPLAY
