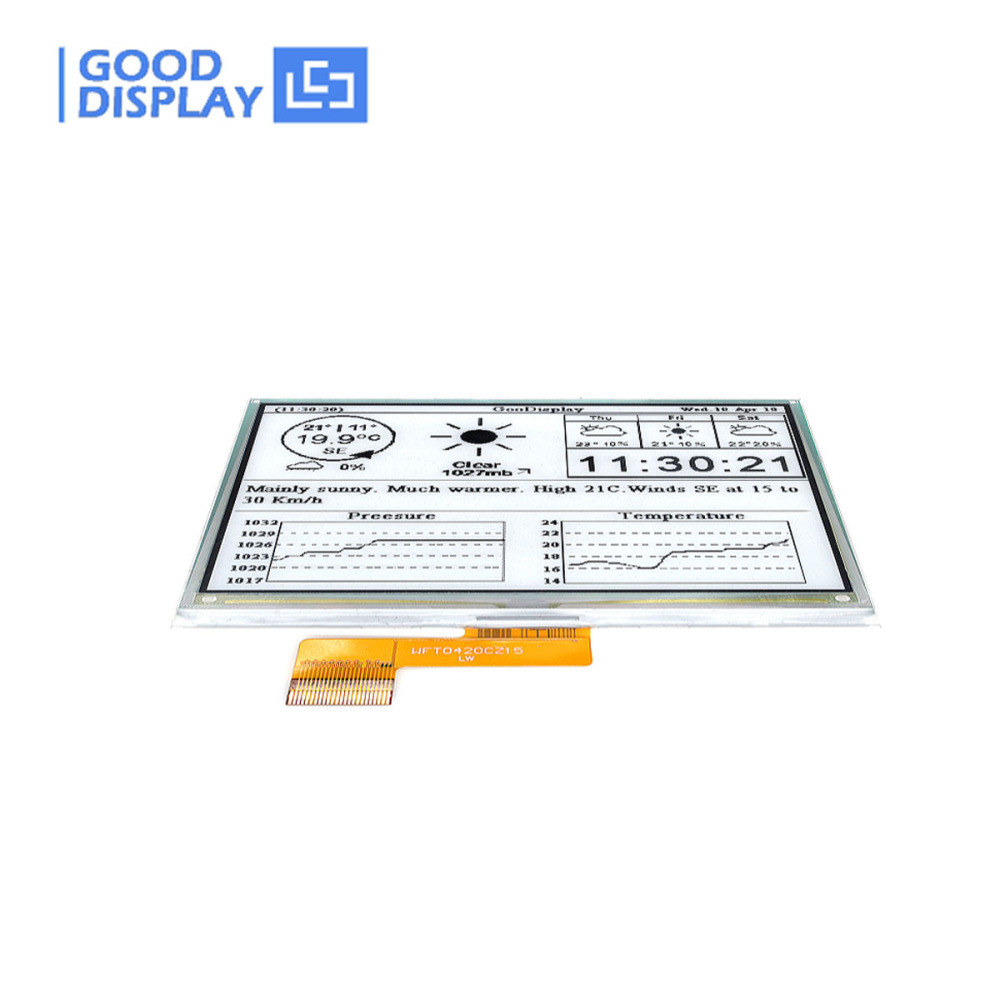

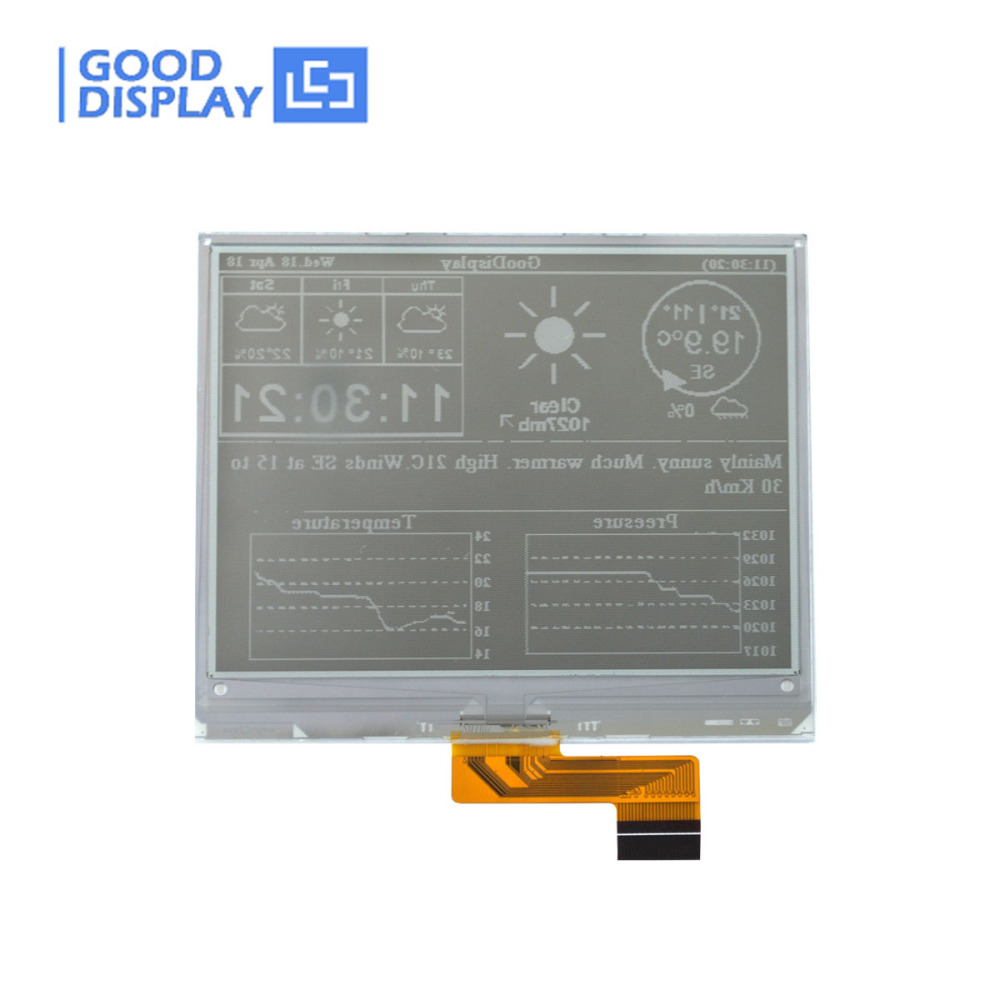

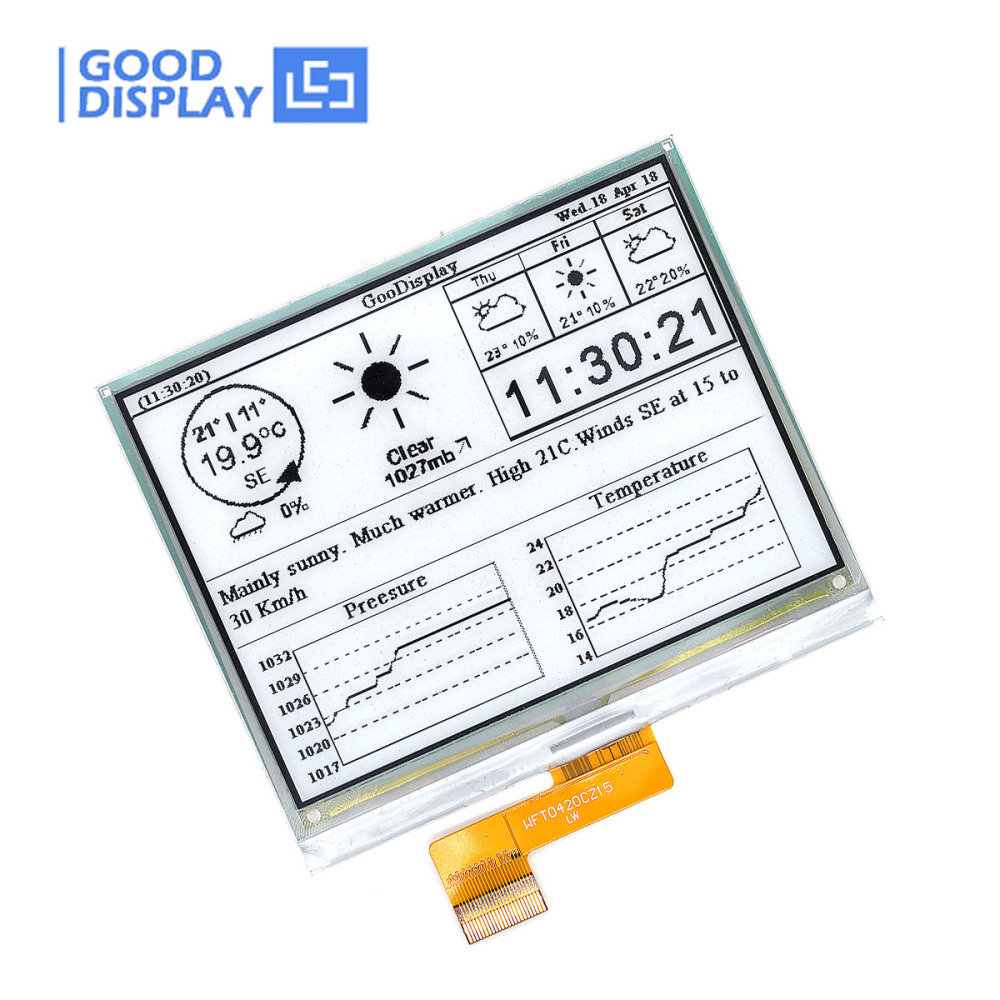

4.2 inch DES e-paper display module extended operating temperature, GDEW042M01

DES 4.2 inch e-paper display, 400X300 resolution, 24 pins, SPI interface, wide working temperature range. Its IC Driver is UC8176.
Price:
USD
$15.00
Quantity:
-
+
(0 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Selection Guide
  • Selection Guide (Above 4.2 inch)
  • Reviews

Any questions, just feel free to contact me, my email is: info@good-display.com




☆ INTRODUCTION




This is a DES (what is DES?)  4.2 inch e-ink display with 400x300 resolution, SPI interface, and the display is capable to display images with black and white content. Your image holds indefinitely without power – put up your image, then shut down the power. This e-paper is perfect for low power devices powered by solar or batteries. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This 4.2 inch DES e-ink display GDEW042M01 breaks the limitations of traditional e-paper display on the working environment, apply to more projects.


We could provide front light, touch screen and other accessories for you.


Relevant manual about this product on our official website (www.good-display.com), contact us please.


Use our free e-paper software to prepare your bitmap image for this display.



 FEATURE




●  Black and white monochrome is easy to read.

●  Versatile. Use in portrait or landscape format.

●  Contrast Ratio is higher than normal e-paper display.

●  Bistable. (Will continue to display with no power source)

●  I2C Signal Master Interface to read external temperature sensor.

●  Wide operating temperature range: -10℃~60℃ (Normal e-paper screen: 0~50℃, Normal color e-paper screen: 0℃~40℃, low temperature e-paper screen:-20℃~25℃).

●  Development platform available STM32 / ArduinoRaspberry Pi / ESP8266 / ESP32







 THE ABOVE PRICE INCLUDE



1) 4.2 inch DES e-paper display module extended operating temperature * 1pc

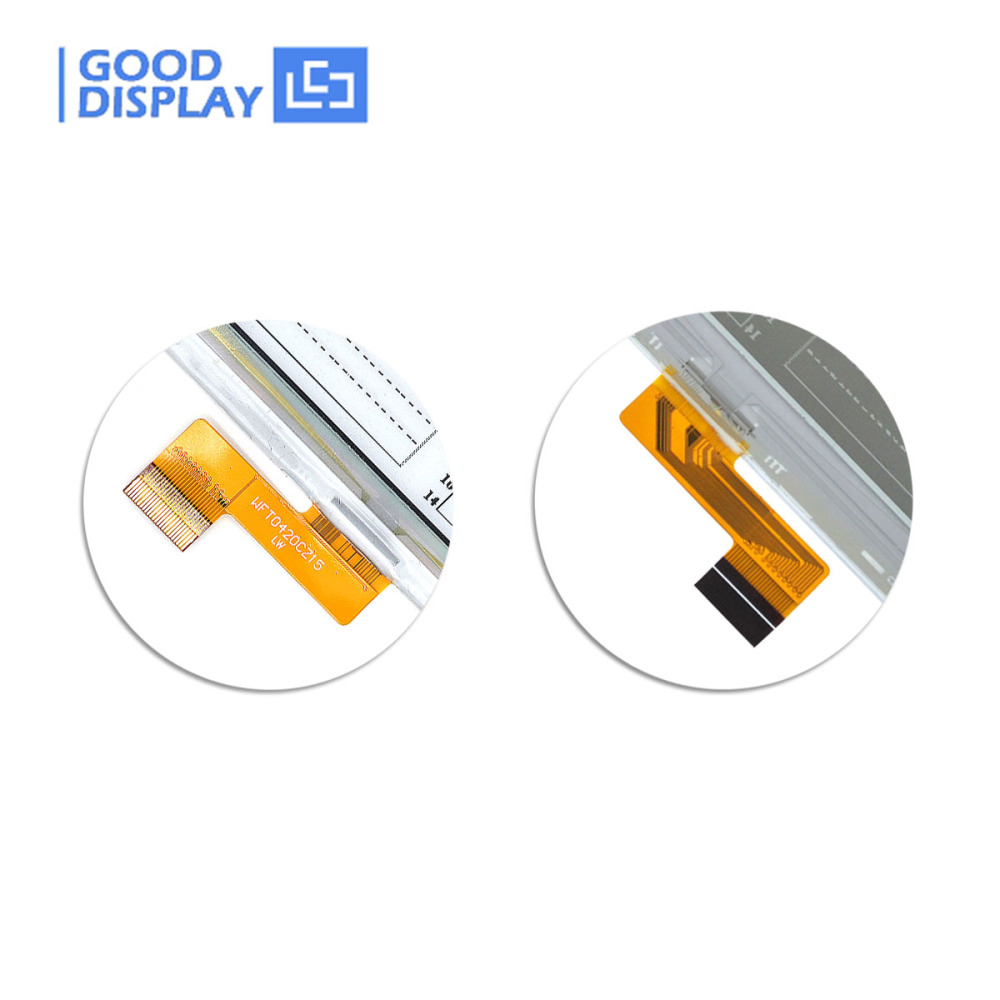

2) FPC Connector * 1pc
3) Example code and Manual * 1pc.(Please advise email ID along with order,so that we can send them.)





 MAIN PARAMETERS




PART NUMBER

GDEW042M01

SIZE

4.2 inch

TECHNOLOGY

DES

IC

UC8176

RESOLUTION

400x300

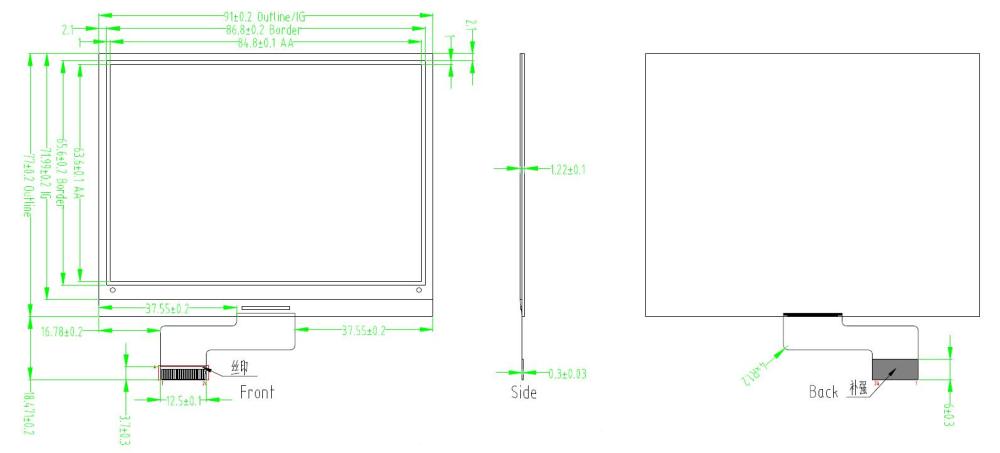

OUTLINE SIZE(mm)

91x77x1.22

ACTIVE SIZE(mm)

84.8x63.6

PIXEL PITCH(mm)

0.212x0.212

OPERATING TEMP.

-10℃~60℃

STORAGE TEMP.

-25℃~70℃

CONNECTOR

24 Pin FPC

MAX GRAYSCALE

2

COLOR

Black,White

INTERFACE

SPI

FULL REFRESH(s)

3

POWER CONSUMPTION OF THE REFRESH(mW)

26.4

STANDBY POWER CONSUMPTION (mW)

0.0165





 OTHER PRODUCTS




Part Number

Color

Resolution

Features

Refresh Time

GDEW042T2

B/W

400x300

Partial refresh, 4 Grayscale

 3S
GDEW042M01 B/W 400x300 DES,wide working temperature range  3S

GDEW042C37

B/W/Y

400x300

Three colors

28S
GDEH042Z96 B/W/R 400x300 Three colors 16S
GDEH042Z21 B/W/R 400x300 Three colors 15S










 ABOUT US



Please feel free to contact us for any questions, on trademanager, or send message to me. It's our pleasure to serve you! We appreciate your business!!
My email is: info@good-display.com







PART NUMBER SIZE COLOR GREY SCALE RESOLUTION ACTIVE SIZE(mm) FULL REFRESH TIME (S) OPERATING TEMP. PARTIAL REFRESH FLEXIBLE INTERFACE
GDEW0102T4 1.02'' BW 2 128x80 21.76x14 3 0℃~50℃   SPI
GDEW0102I3F 1.02'' BW 2 128x80 21.76x14 3 0℃~50℃ SPI
GDEW0154M10 1.54'' BW 2 152x152 27.512x27.512 3 -10℃~60℃     SPI
GDEH0154D67 1.54'' BW 4 200x200 27x27 2 0℃~50℃   SPI
GDEW0154M09 1.54'' BW 2 200x200 27.6x27.6 0.82 0℃~50℃   SPI
GDEW0154T8D 1.54'' BW 4 152x152 27.51x27.51 3 0℃~50℃   SPI
GDEH0154Z90 1.54'' BWR 2 200x200 27x27 15 0℃~40℃     SPI
GDEW0213M21 2.13'' BW 2 212x104 48.548x23.712 3 -10℃~60℃     SPI
GDEW0213I5FD 2.13'' BW 4 212x104 48.55x23.71 3 0℃~50℃ SPI
GDEM0213B74 2.13'' BW 4 250x122 48.55x23.7 3 0℃~50℃     SPI
GDEW0213V7LT 2.13'' BW 2 212x104 48.55x23.71 3 -25℃~10℃   SPI
GDEY0213Z98 2.13'' BWR 2 250x122 48.55x23.7046 14 0℃~40℃     SPI
GDEW0213T5D 2.13'' BW 4 212x104 48.55x23.71 3 0℃~50℃   SPI
GDEW0213T5D-FL01(With Frontlight) 2.13'' BW 4 212x104 48.55x23.71 3 0℃~50℃   SPI
GDEW026T0D 2.6'' BW 4 296x152 60.09x30.7 3 0℃~50℃   SPI
GDEY0266T90 2.66'' BW 4 296x152 60.088x30.704 3 0℃~50℃   SPI
GDEW027W3 2.7'' BW 4 264x176 57.288x38.192 3 0℃~50℃   SPI
GDEW027W3-T(With Touch Panel) 2.7'' BW 4 264x176 57.288x38.192 3 0℃~50℃   SPI
GDEM029E97 2.9'' BW 2 296x128 66.9x29.06 3 0℃~50℃     SPI
GDEH029Z13 2.9'' BWR 2 296x128 66.9x29.06 15 0℃~40℃     SPI
GDEM029T94 2.9'' BW 4 296x128 66.9x29.06 3 0℃~50℃   SPI
GDEY029T94 2.9'' BW 4 296x128 66.896x29.056 3 0℃~50℃   SPI
GDEW029M06 2.9'' BW 2 296x128 66.896x29.056 3 -10℃~60℃     SPI
GDEW029I6FD 2.9'' BW 4 296x128 66.9x29.06 3 0℃~50℃ SPI
GDEW029T5D 2.9'' BW 4 296x128 66.9x29.06 3 0℃~50℃   SPI
GDEW029T5D-FL02(With Frontlight) 2.9'' BW 4 296x128 66.9x29.06 3 0℃~50℃   SPI
GDEH037Z01 3.71'' BWR 2 416x240 81.54x47.04 16 0℃~40℃     SPI
GDEW0371W7 3.71'' BW 2 416x240 81.536x47.04 4 0℃~50℃     SPI
