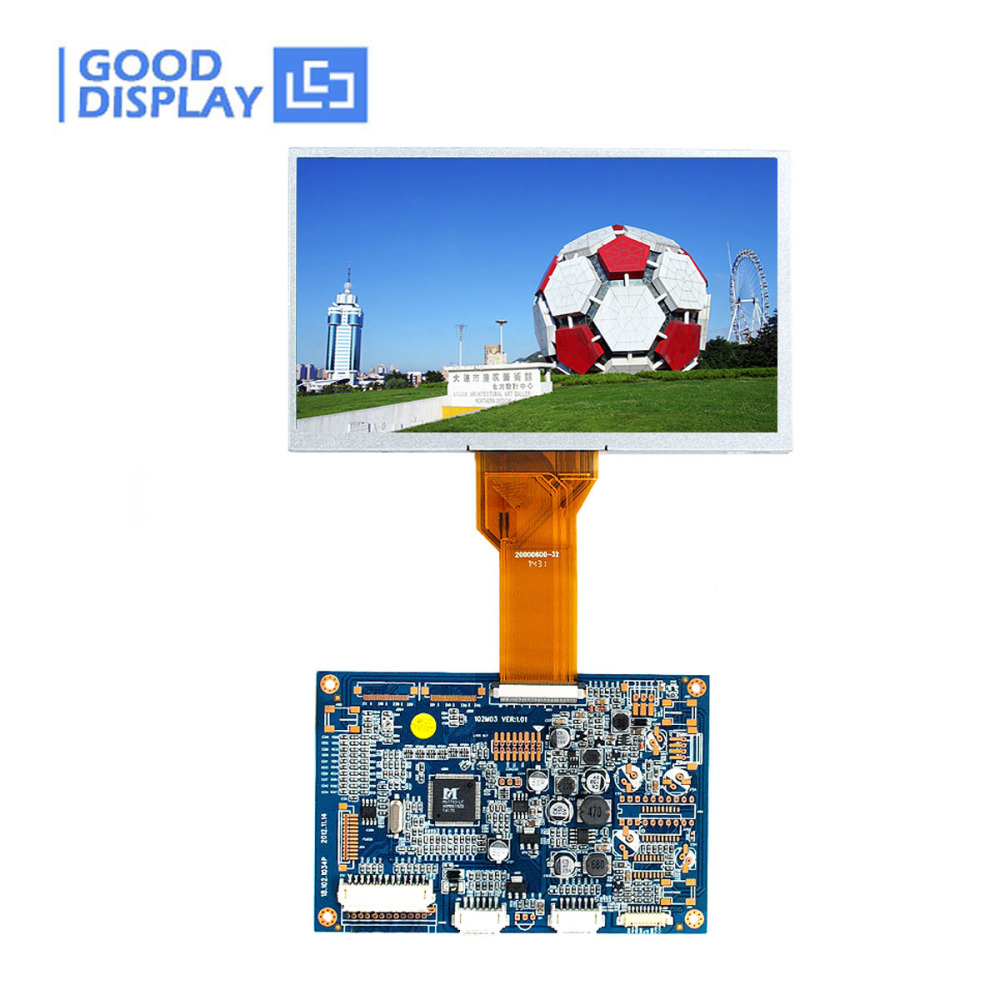

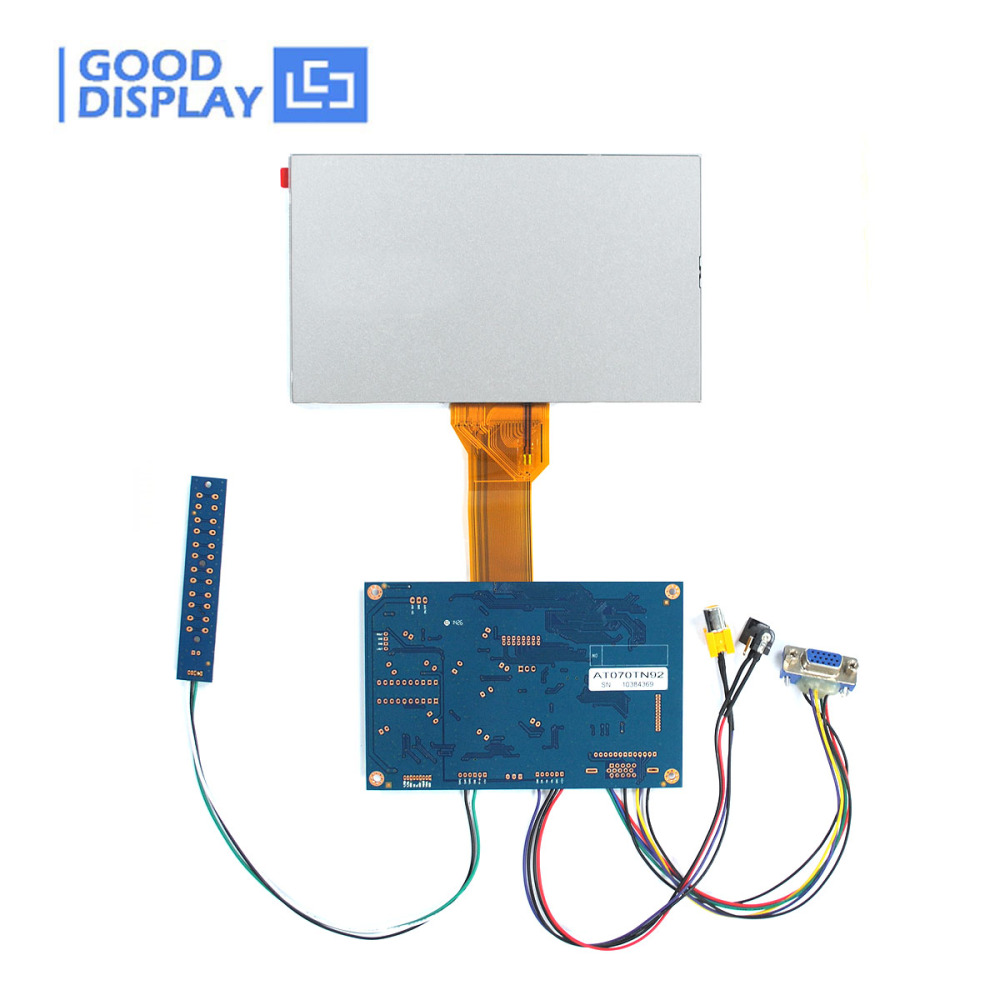

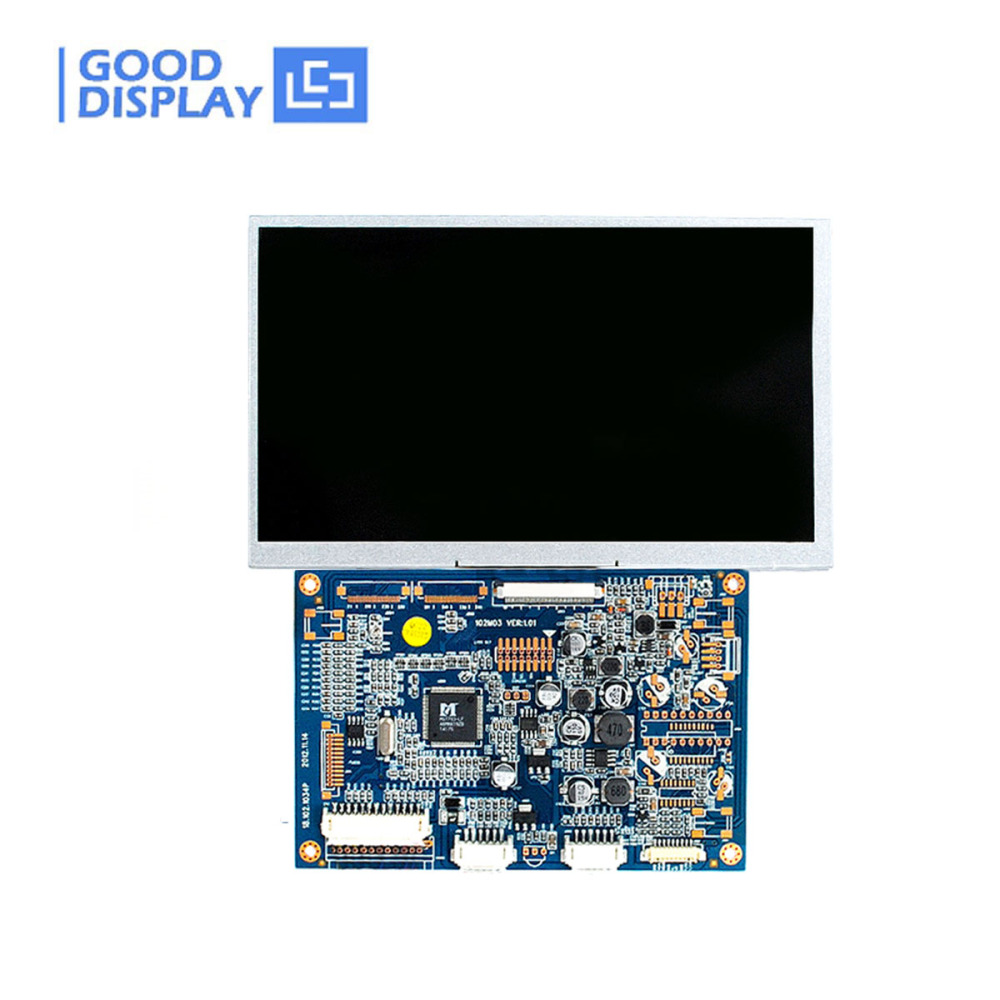

7.0 Inch TFT 800x480 VIDEO,VGA Input LCD Module, GD102M03-GTI070TN92

It provides users with Video, VGA signal input and automatic identifying and converting of NTSC/PAL systems, built-in OSD(on-screen display) and Infrared Remote Control function.
Price:
USD
$49.00
Quantity:
-
+
(6 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Library
  • Reviews

Any questions, just feel free to contact me, my email is: info@good-display.com




☆ INTRODUCTION




It provides users with Video, VGA signal input and automatic identifying and converting of NTSC/PAL systems, built-in OSD(on-screen display) and Infrared Remote Control function. And the OSD menu offers adjustment of brightness, contrast and color etc, and full functionscan be controlled by the Remote Control device included. The power control IC is designed for better reliability.


Relevant manual about this product on our official website (www.good-display.com), contact us please.







 THE ABOVE PRICE INCLUDE




1) 7.0 Inch TFT 800x480 VIDEO,VGA Input LCD Module *1pc








 MAIN PARAMETERS




PART NUMBER GD102M03-GTI070TN92
SIZE 7.0''
RESOLUTION 800x480
BRIGHTNESS 250cd/m2
WORKING VOLTAGE DC12V±25%
VIEWING ANGLE (U/D/L/R) 50/70/70/70
SIGNAL INPUT VGA,VIDEO

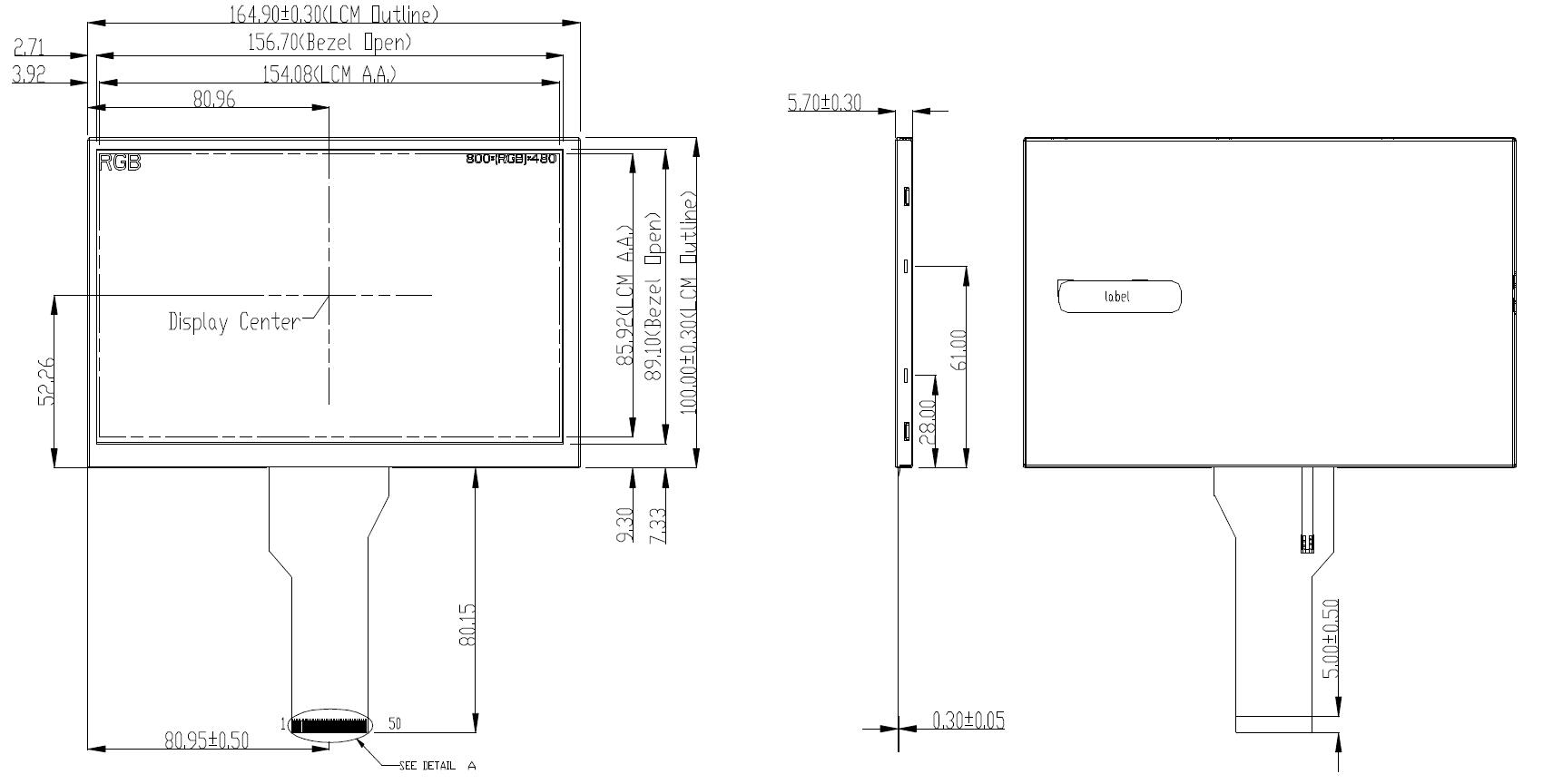

OUTSIDE DIMENSION OF LCD
PANEL (mm)
164.9(W)x100.0(H)x5.7(D)
ACTIVE AREA OF LCD PANEL (mm) 154.08(W)x85.92(H)
STRUCTURAL DIMENSION OF PCBA
(mm)
128.8(W)x85.4(H)x6.7 (D)
BACKLIGHT LED
OPERATING TEMP. -20~+70
STORAGE TEMP. -30~+80






 PRECAUTIONS



1. When the metal parts of the TFT-LCD module (shielding cover and back cover) are dirty (such as water or finger grease), please wipe it with a dry soft cloth. Long-term contact with water may cause discoloration or spots.

2. The TFT-LCD panel is also glass. If it is dropped or bumped, the glass is easy to break. Please handle it carefully.

3. The IC on the TFT-LCD panel and module is sensitive to electrostatic discharge; please ensure that the equipment and the operator are properly grounded before and during operation.
