☆ INTRODUCTION
This 3.5 inch 240x320 color TFT-LCD module display, video & VGA driver board, can be used in any embedded systems, industrial device, security and hand-held equipment which require display in high quality and colorful video.
Relevant manual about this product on our official website (www.einkpro.com), contact us please.

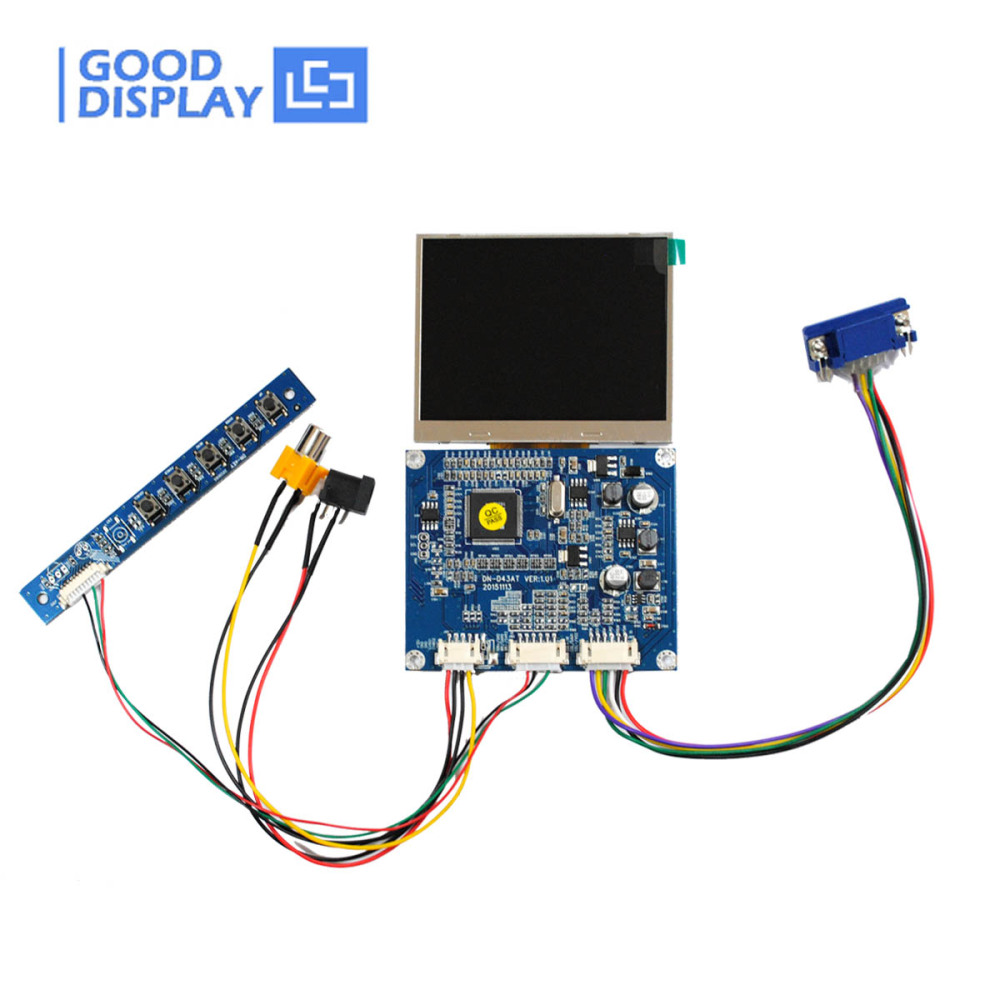

☆ THE ABOVE PRICE INCLUDE
1) 3.5'' 320x240 TFT LCD Panel *1pc
2) DV12V power input AD board support Video signal input *1pc
3) Cable with Keypad terminal *1pc
4) Cable with Power input & Video input terminal *1pc
☆ MAIN PARAMETERS
| PART NUMBER |
GDN-D43AT-GTT035KDH03 |
| SIZE |
3.5'' |
VIEWING ANGLE (U/D/L/R) |
40°/60°/60°/60° |
| RESOLUTION |
320x240 |
OPERATING TEMP. |
-10℃~60℃ |
| OUTSIDE DIMENSION OF LCD PANEL(mm) |
76.9x63.9x3.2 |
STORAGE TEMP. |
-20℃~70℃ |
| ACTIVE AREA OF LCD PANEL(mm) |
70.08x52.56 |
WORKING VOLTAGE |
DC12V(DC9~15V),DC110mA±20mA |
| STRUCTURAL DIMENSION OF PCBA(mm) |
62.0x55.2x9.0 |
BRIGHTNESS |
300cd/m2 |
| SIGNAL INPUT |
VIDEO |
BACKLIGHT |
LED |
☆ FEATURE
● 240x320 resolution
● Video&VGA driver board
● Viewing Angle 40°/60°/60°/60°（L/R/U/D）
● Operating temperature -10℃~60℃
● Optional touch screen
● Optional 3.5 inch 4-wire resistive touch panel with USB driver board and cable
● Optional capacitive touch panel with USB controller board and cable

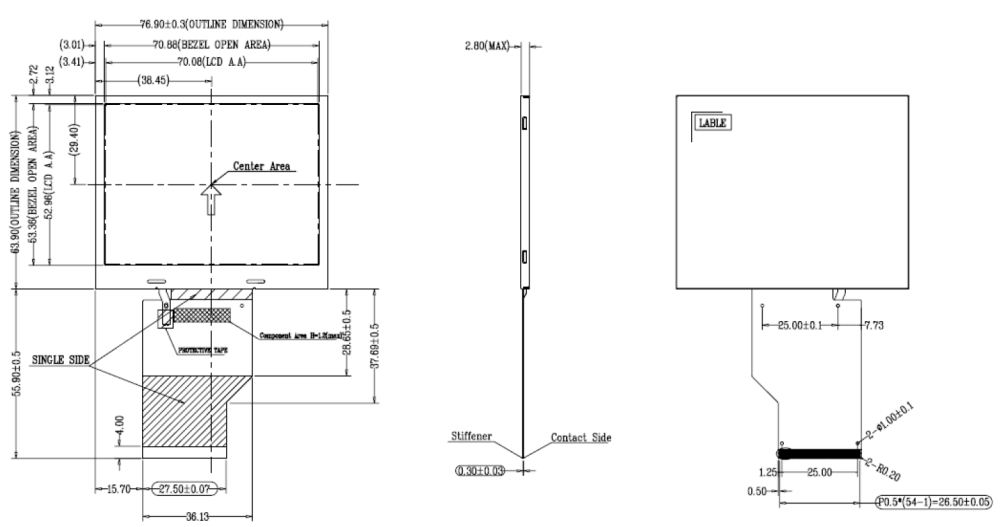

☆ DRAWING
☆ RELATED INFORMATION DOWNLOAD
● GDN-D43AT-GTT035KDH03 Specification
☆ PRECAUTIONS
● When the metal parts of the TFT-LCD module (shielding cover and back cover) are dirty (such as water or finger grease), please wipe it with a dry soft cloth. Long-term contact with water may cause discoloration or spots.
● The TFT-LCD panel is also glass. If it is dropped or bumped, the glass is easy to break. Please handle it carefully.
● The IC on the TFT-LCD panel and module is sensitive to electrostatic discharge; please ensure that the equipment and the operator are properly grounded before and during operation.
