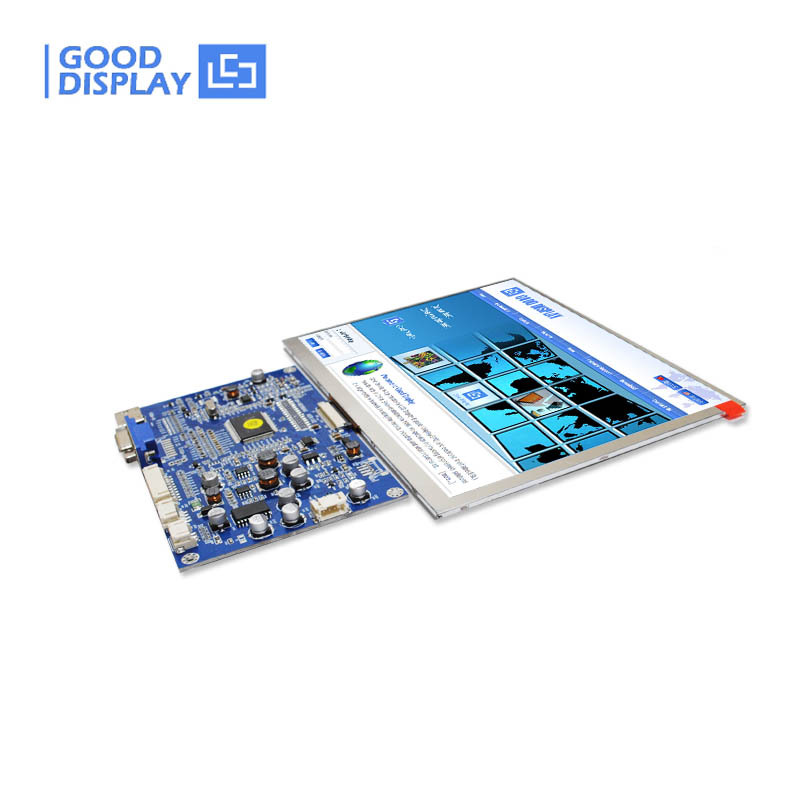

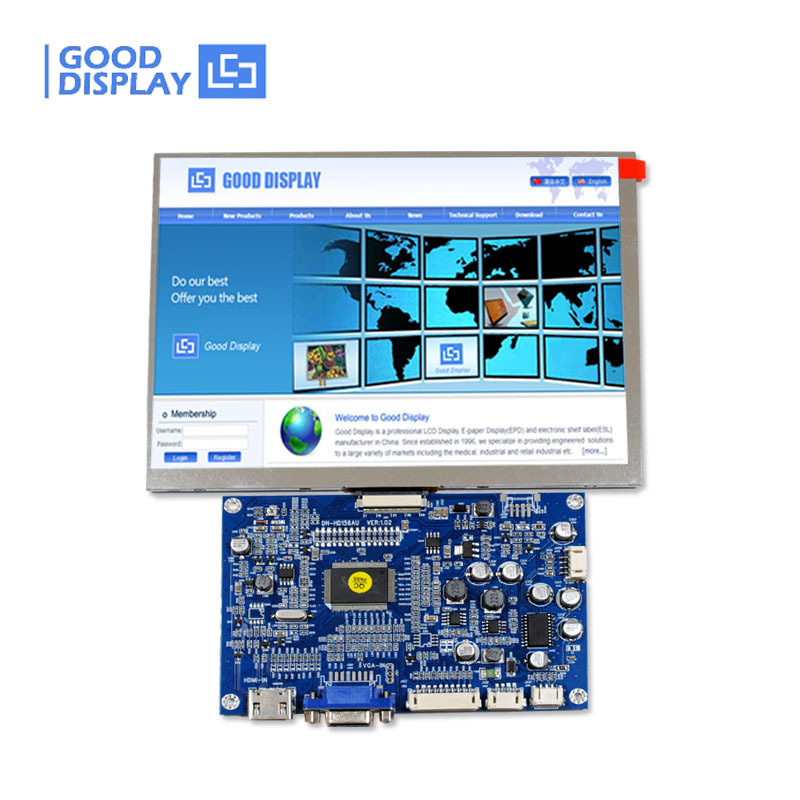

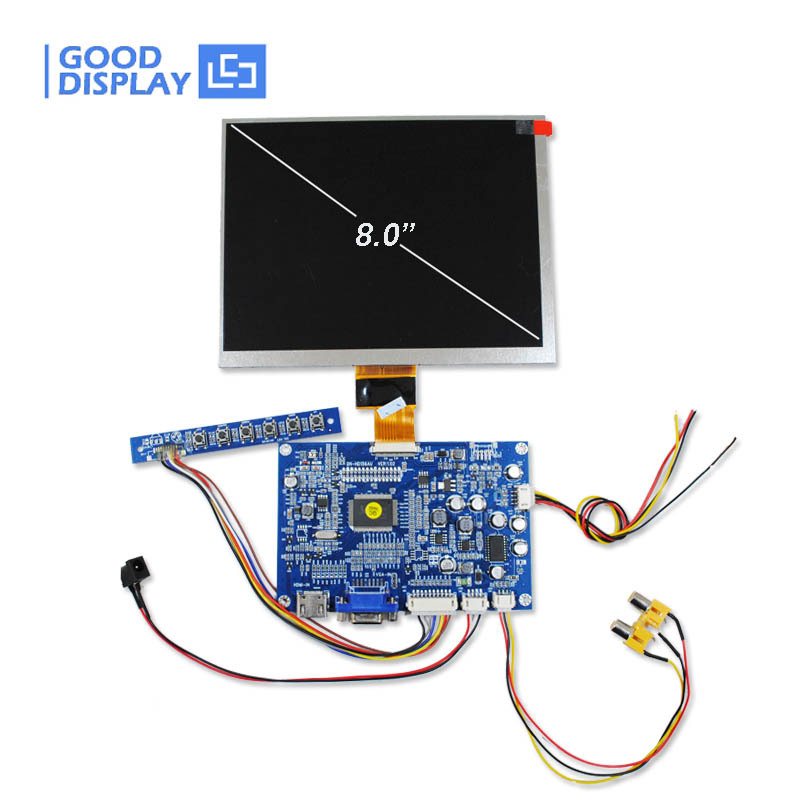

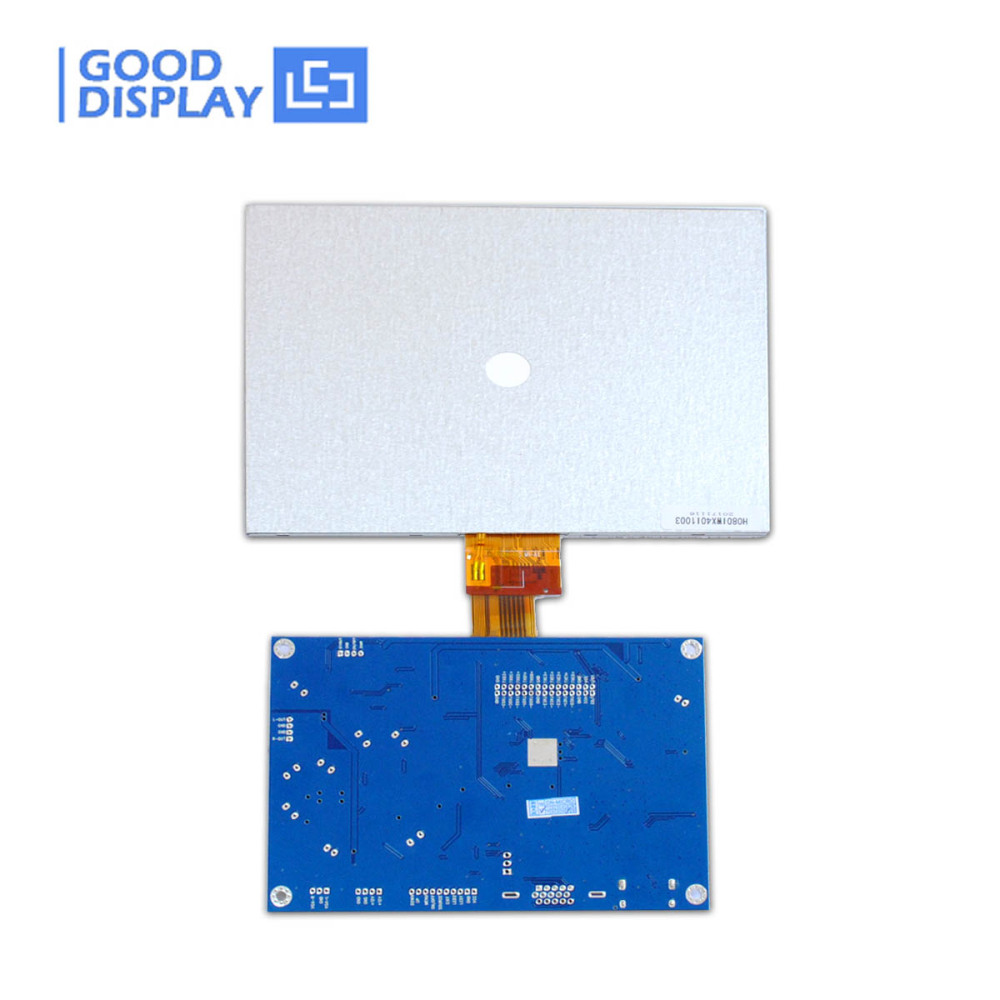

8 inch Wide view angle HDMI,VGA input Digital TFT display, GDN-HD156AU-GTIHJ080IA

1024x768 dots, 8.0 inch, color TFT-LCD module display with VGA,HDMI,Audio driver board, it can be used in any embedded systems, cars, industrial device, security and hand-held equipment which require display in high quality and colorful video.
Price:
USD
$78.75
Quantity:
-
+
(6 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Library
  • Reviews

Any questions, just feel free to contact me, my email is: info@good-display.com




☆ INTRODUCTION




8.0 inch, 1024x768 dots, color TFT-LCD module display with VGA,HDMI,Audio driver board, it can be used in any embedded systems, cars, industrial device, security and hand-held equipment which require display in high quality and colorful video.


Relevant manual about this product, contact us please.




☆ FEATURE




●  1024x768 resolutio

●  Viewing Angle 85°/85°/85°/85°(L/R/U/D)

●  Operating temperature -10℃~60℃






☆ THE ABOVE PRICE INCLUDE



1) 8 inch Wide view angle HDMI,VGA input Digital TFT display * 1pc






☆ MAIN PARAMETERS






Part Number

GDN-HD156AU-GTIHJ080IA

Size

8.0’’(4:3)

Resolution

1024*768

Brightness

350cd/m2

Working Voltage

DC12V(Typ.) (Min.9V, Max.15V)

Viewing Angle(U/D/L/R)

85°/85°/85°/85°

Contrast Ratio

800

Signal input

VGA,HDMI,Audio

Outside dimension of lcd panel(mm)

174.0(W)*136.0(H)*2.45(D)

Active Area of lcd panel(mm)

162.05(H)*121.54(V)

Structural dimension of PCBA(mm)

128.0(W)*85.0(H)*16.0(D)

Backlight

LED

Operating temperature

-10℃~+60C

Storage temperature

-20℃~+70℃





☆ PRECAUTIONS




1. TFT have used by special instrument to adjust precision and aging, test before leave factory, no need adjust again.


2. Please correctly connect power, video signal before you adjust, should be on/off power and video signal to check the image’s effect.


3. Due to this product is electronic product, please notice prevent static.


4. The TFT-LCD Panel is a glasswork, place carefully ,broken for fear.


5. Don’t touch pushbutton’s pin feet when you adjust potentiometers, due to person have resistance, you will effect pushbutton’s function when touch it.
