Name: 13.3" A4 E Ink Carta 1300 Displays with Front Light E-paper Wide Temperature Range -15℃~65℃, GDEP133UT3-FL
Brand: GOOD DISPLAY
Price: 329.8 USD
Availability: InStock

$329.80 ~~$388.00~~

15% OFF

This 13.3-inch E Ink Carta 1300 display, with built-in front light and 1s fast refresh rate, delivers exceptional readability in any lighting, offering a perfect balance of low power consumption and high resolution for seamless reading anywhere!

GET $3.00 OFF ON ORDERS OVER $59.00

Get it

ERP72QDC

Received successfully

Coupon Code

CONTINUE SHOPPING

Discount

3% OFF WITH PURCHASE OVER 2 UNITS
5% OFF WITH PURCHASE OVER 3 UNITS

Add to Favorites (0)

1/1

Description

Please note: The front light is not sold separately due to precise bonding requirements. Kindly purchase the complete bonded module. For temperature specifications, refer to the display screen datasheet.

13.3" Parallel E-Paper with Front Light

Read Anywhere.
Even in the Dark. Model: GDEP133UT3-FL

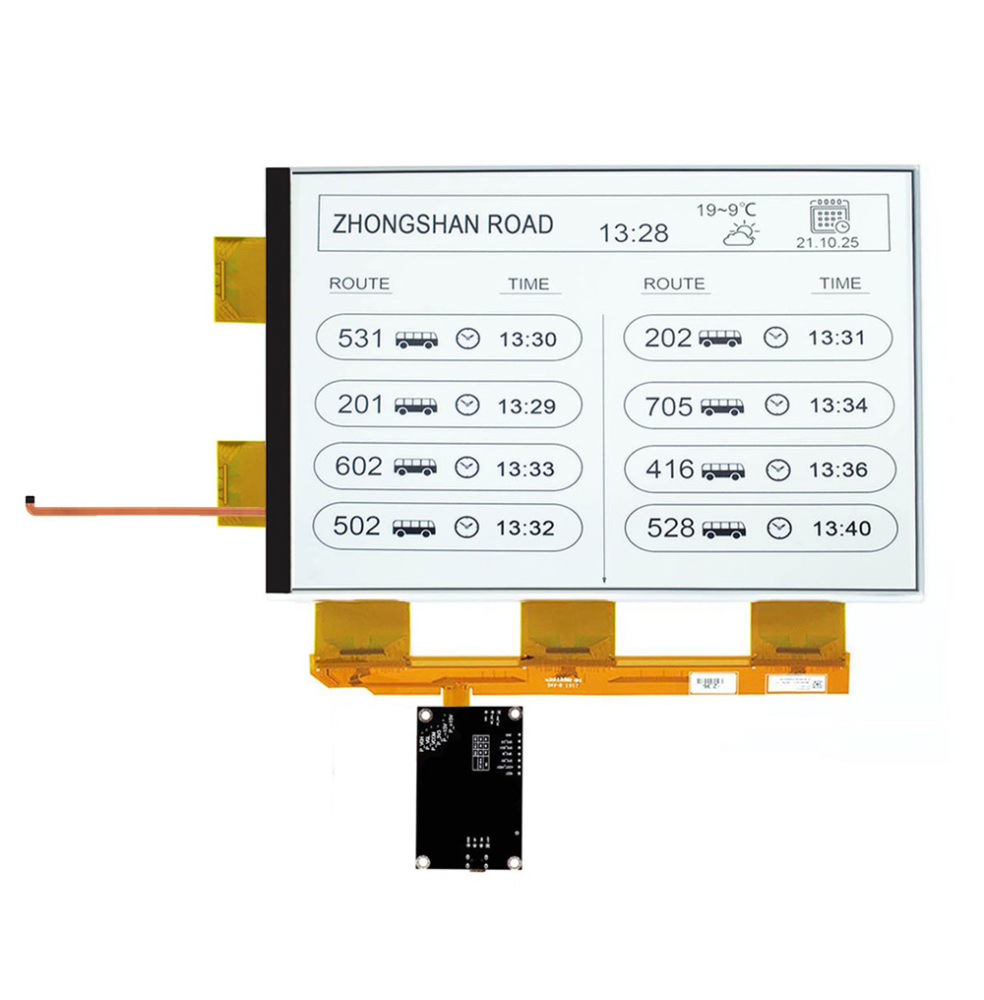

A 13.3-inch parallel-interface E-Paper display with an integrated front-light module. Delivers crisp 1600×1200 monochrome content in any lighting — with ultra-low power and a wide operating temperature range for demanding environments.

Request a Quote View Specifications

GDEP133UT3-FL 13.3 inch parallel E-Paper display with front light

1600×1200
Resolution

16
Grayscale Levels

−15 to 65 °C
Operating Range

0.003 mW
Standby Power

Front-lit e-paper display showing illumination

Front Light, Not Backlight

The GDEP133UT3-FL uses a precisely bonded front-light film that guides LED light evenly across the display surface — illuminating the e-paper without washing out its paper-like readability.

Choose between cool white or warm light modes
Adjustable brightness via LED count and drive current
Flexible circuit design — series or parallel LED configurations
18 LEDs in 2 channels, 9 in series per channel
Front-light operating voltage ≤ 27 V, current 8–10 mA

Parallel Interface, Built for Speed

The 39-pin parallel interface delivers fast, reliable data transfer to the E-Paper panel — ideal for industrial and embedded systems.

Pin Parallel Interface

8-bit parallel data bus (D0–D7) with source/gate driver controls, supporting a maximum refresh rate of 75 Hz and a full refresh time of 1 second.

Pin Front-Light FPC

Dedicated front-light connector keeps lighting control independent from display data — simplifying your driver design and power sequencing.

Technical Specifications

Model GDEP133UT3-FL — 13.3-inch monochrome E-Paper display module with front light.

Part Number	GDEP133UT3-FL	Connector	39-pin FPC
Type	Dot Matrix	Color	Black / White
Screen Size	13.3 inch	Max Grayscale	16 (4-bit)
Resolution	1600 × 1200	Full Refresh	1 s

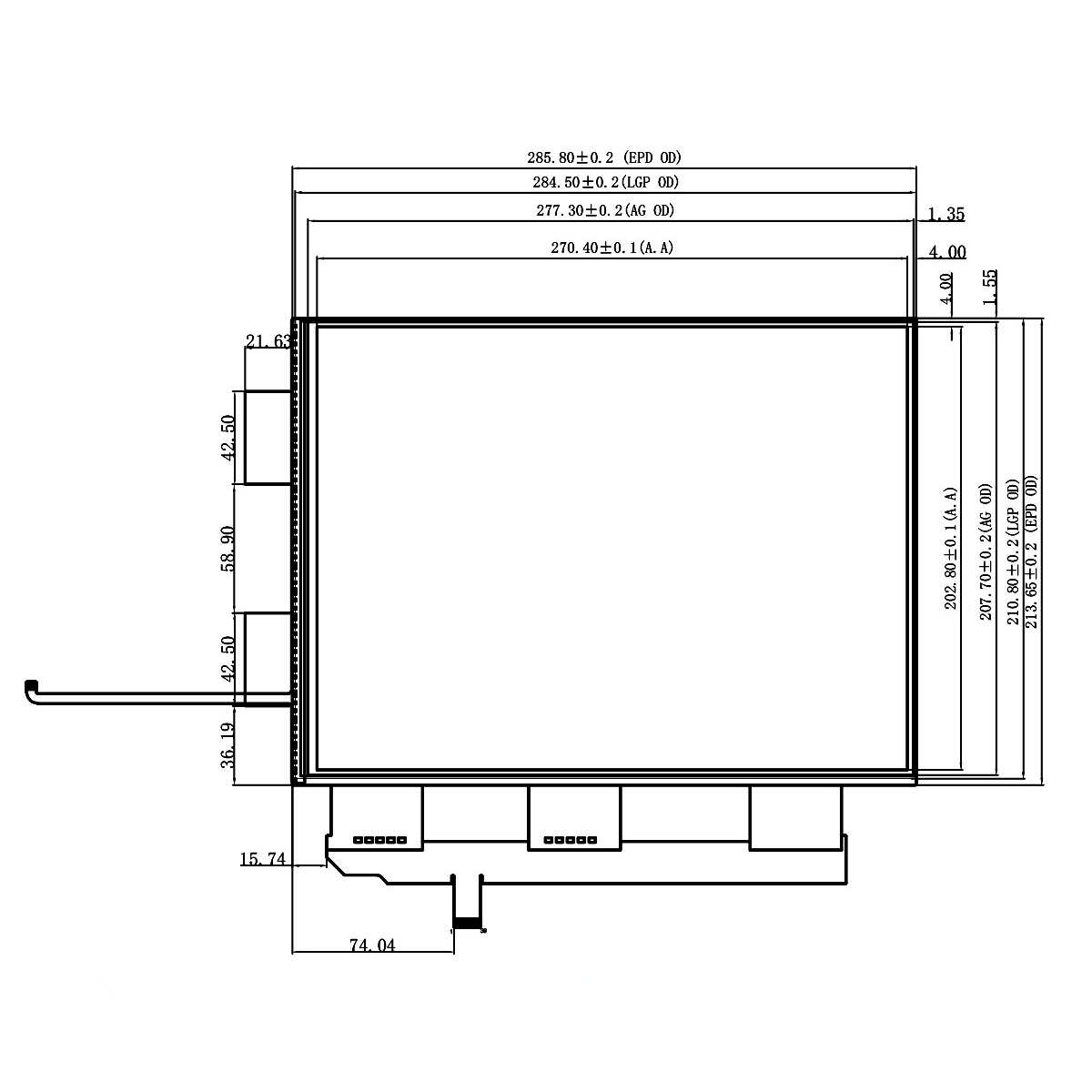

Active Area	270.4 × 202.8 mm	Pixel Pitch	0.169 × 0.169 mm
Outline Size	285.80 × 213.65 × 1.66 mm	Module Weight	150 g
Operating Temp.	−15 °C to 65 °C	Storage Temp.	−25 °C to 70 °C
Refresh Power	4.5 mW	Standby Power	0.003 mW
Front-Light Connector	8-pin FPC	Front-Light LEDs	18 (2 × 9 in series)
Front-Light Voltage	≤ 27 V	Front-Light Current	8–10 mA
Reflectance	35–45 %	Contrast Ratio	10:1 (typ.)
Max Refresh Rate	75 Hz	Surface Treatment	Hard Coating

Engineered for Extreme Temperatures

With a dedicated WDU waveform mode, the GDEP133UT3-FL operates reliably from −15 °C to +65 °C — making it suitable for outdoor signage, industrial HMI, and cold-chain logistics applications.

WDU mode — −15 °C to +65 °C, 1-bit black/white, no flashing
GC16 mode — 0 °C to +50 °C, 4-bit grayscale
INIT mode — 0 °C to +50 °C
Bi-stable operation — image retained without power

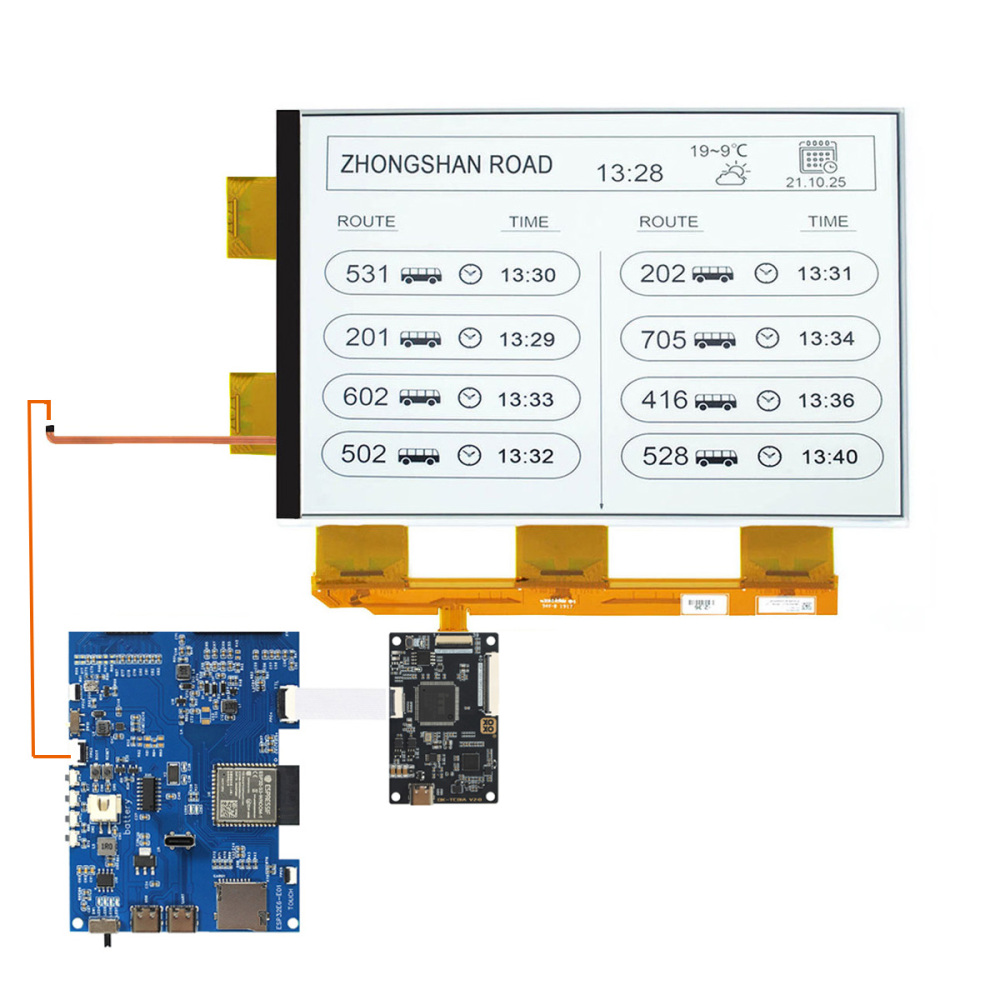

Matching Driver Boards

Pair the GDEP133UT3-FL with a compatible driver board for fast evaluation and integration.

A. DEXA Driver Board

Full-function driver board for the 13.3-inch parallel E-Paper display.

Front light driver board not included

B. ESP32E6-E01 Driver Board

ESP32-based development kit for lighting up and testing the front light.

Used solely for lighting up the front light

Files & Downloads

Datasheets, CAD drawings, and integration resources.

GDEP133UT3-FL Specification G133-H11 CAD GDEP133UT3-FL CAD GDEP133UT3-FT CAD FL133-H01 CAD Why can't I download the files?

Product Applications

Built for environments where power, readability, and durability matter.

Embedded Systems

Tablets / Portable Devices

Information Displays

Wearables / Backpack Displays

Eco-Friendly & Sustainable

E-Paper technology that reduces energy use and eliminates paper waste.

Eye-Friendly

No harmful blue light — comfortable for prolonged reading without eye strain.

Paperless

Eco-friendly and sustainable. Eliminate paper printing and waste entirely.

Read in the Dark

Bright, clear image even in dimly lit or completely dark environments.
