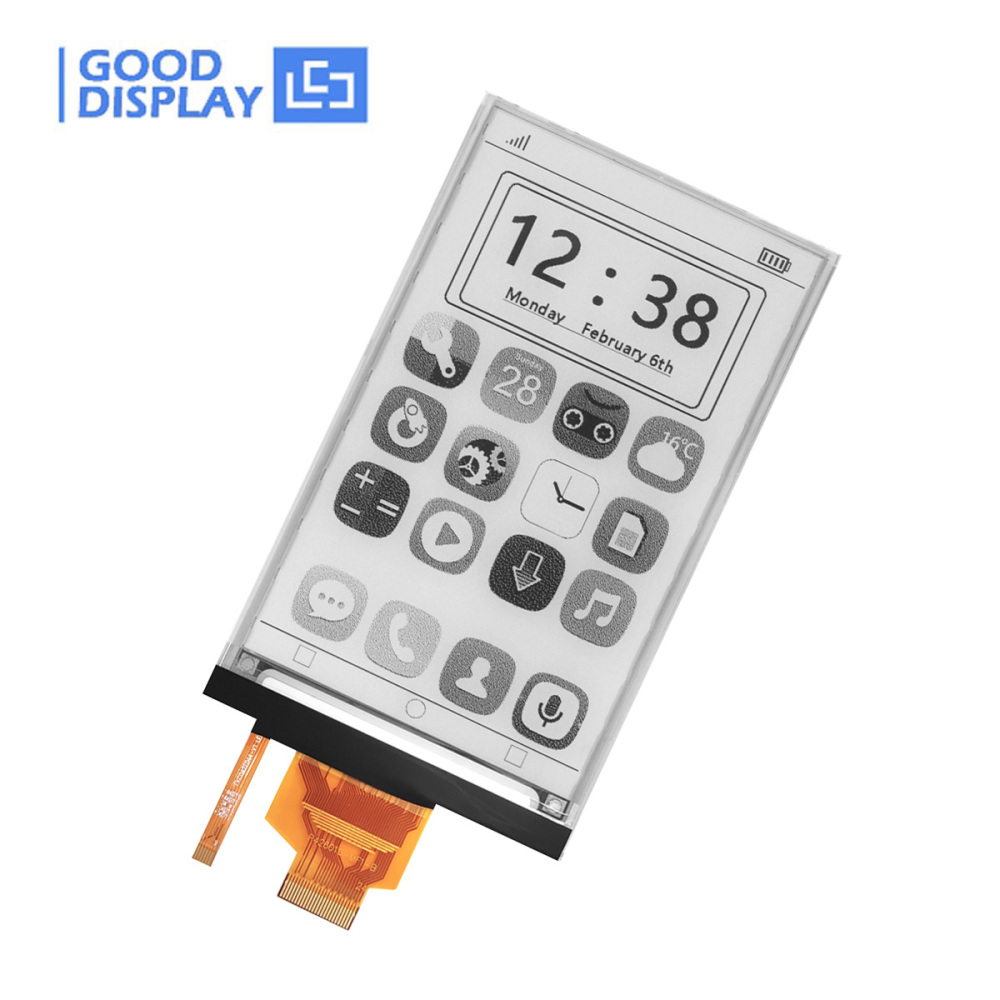

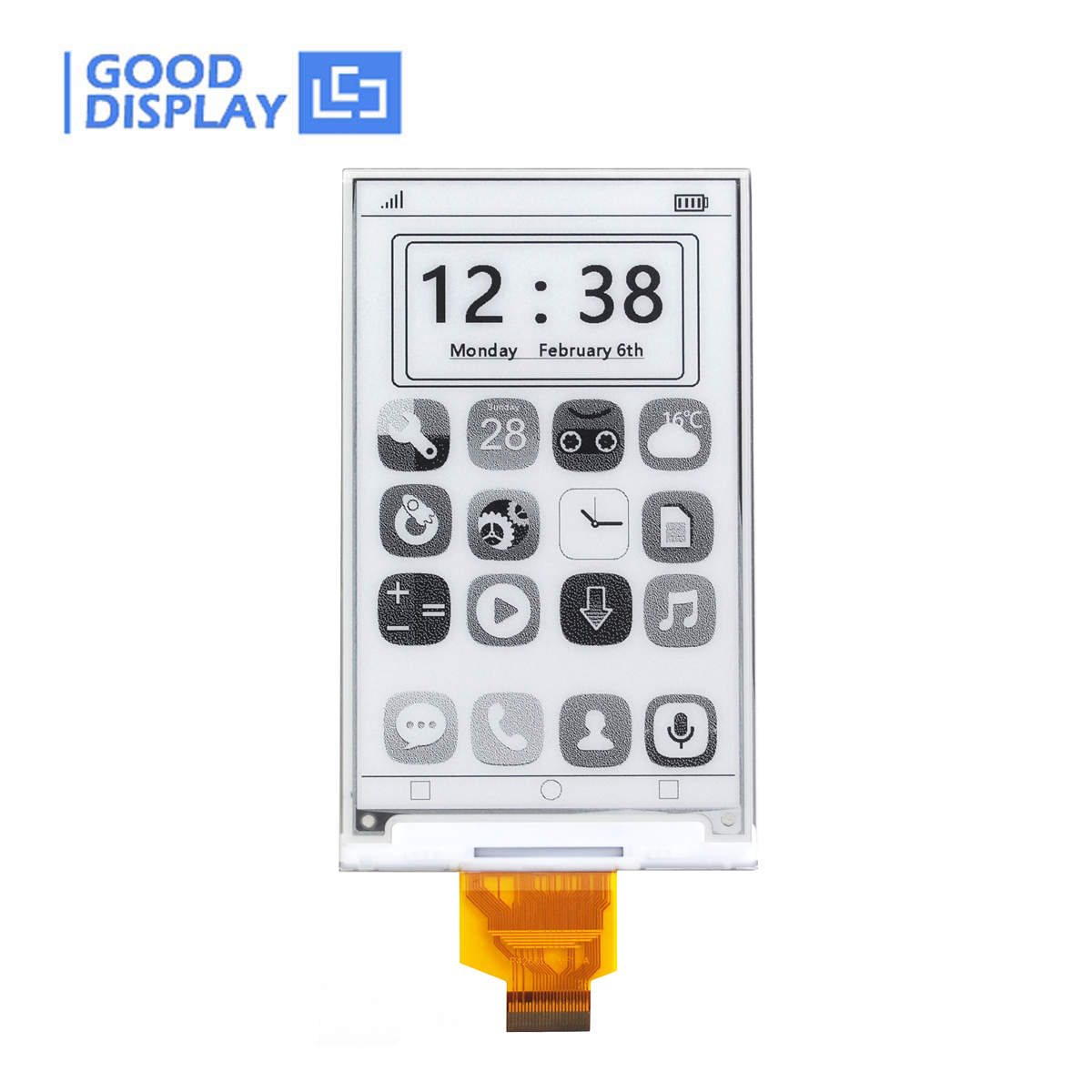

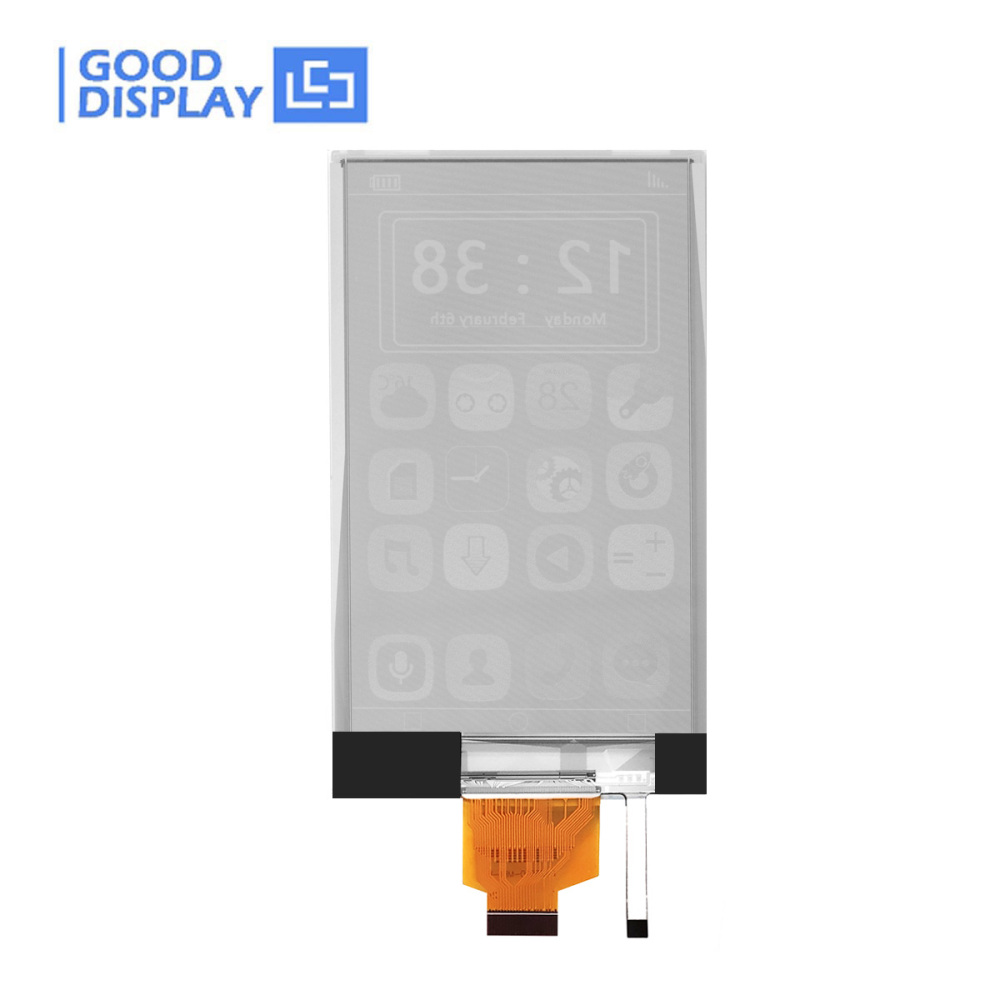

4.26" E Ink Display Front Light 800x480 Resolution Low Power SPI Interface GDEY0426T82-FL01C

$23.52 $28.68
18% OFF
Received successfully
Coupon Code
CONTINUE SHOPPING
Discount
  • 3% OFF WITH PURCHASE OVER 2 UNITS
  • 5% OFF WITH PURCHASE OVER 3 UNITS
    Please select the information you want X
  • Product:
    EPD Only
    EPD Only
    with FPC Socket
    with FPC Socket
    with Adapter Board
    with Adapter Board
    with ESP32 Demo Kit
    with ESP32 Demo Kit
    with ESP32-M1 Board
    with ESP32-M1 Board
    Please select the information you wantX
Quantity:
0 in stock
  • 4.26" E Ink Display Front Light 800x480 Resolution Low Power SPI Interface GDEY0426T82-FL01C
  • 4.26" E Ink Display Front Light 800x480 Resolution Low Power SPI Interface
  • 4.26" E Ink Display Front Light 800x480 Resolution Low Power SPI Interface
  • 4.26" E Ink Display Front Light 800x480 Resolution Low Power SPI Interface
  • 4.26" E Ink Display Front Light 800x480 Resolution Low Power SPI Interface
  • 4.26" E Ink Display Front Light 800x480 Resolution Low Power SPI Interface
  • 4.26" E Ink Display Front Light 800x480 Resolution Low Power SPI Interface
  • 4.26" E Ink Display Front Light 800x480 Resolution Low Power SPI Interface
  • 4.26" E Ink Display Front Light 800x480 Resolution Low Power SPI Interface GDEY0426T82-FL01C
  • 4.26" E Ink Display Front Light 800x480 Resolution Low Power SPI Interface GDEY0426T82-FL01C
  • 4.26" E Ink Display Front Light 800x480 Resolution Low Power SPI Interface GDEY0426T82-FL01C
  • 4.26" E Ink Display Front Light 800x480 Resolution Low Power SPI Interface GDEY0426T82-FL01C
  • 4.26" E Ink Display Front Light 800x480 Resolution Low Power SPI Interface GDEY0426T82-FL01C
  • 4.26" E Ink Display Front Light 800x480 Resolution Low Power SPI Interface GDEY0426T82-FL01C
  • 4.26" E Ink Display Front Light 800x480 Resolution Low Power SPI Interface
  • 4.26" E Ink Display Front Light 800x480 Resolution Low Power SPI Interface
  • 4.26" E Ink Display Front Light 800x480 Resolution Low Power SPI Interface
  • 4.26" E Ink Display Front Light 800x480 Resolution Low Power SPI Interface
  • 4.26" E Ink Display Front Light 800x480 Resolution Low Power SPI Interface
  • 4.26" E Ink Display Front Light 800x480 Resolution Low Power SPI Interface
  • 4.26" E Ink Display Front Light 800x480 Resolution Low Power SPI Interface
  • 4.26" E Ink Display Front Light 800x480 Resolution Low Power SPI Interface GDEY0426T82-FL01C
  • 4.26" E Ink Display Front Light 800x480 Resolution Low Power SPI Interface GDEY0426T82-FL01C
  • 4.26" E Ink Display Front Light 800x480 Resolution Low Power SPI Interface GDEY0426T82-FL01C
  • 4.26" E Ink Display Front Light 800x480 Resolution Low Power SPI Interface GDEY0426T82-FL01C
  • 4.26" E Ink Display Front Light 800x480 Resolution Low Power SPI Interface GDEY0426T82-FL01C
1/1
  • 4.26" E Ink Display Front Light 800x480 Resolution Low Power SPI Interface GDEY0426T82-FL01C
  • 4.26" E Ink Display Front Light 800x480 Resolution Low Power SPI Interface
  • 4.26" E Ink Display Front Light 800x480 Resolution Low Power SPI Interface
  • 4.26" E Ink Display Front Light 800x480 Resolution Low Power SPI Interface
  • 4.26" E Ink Display Front Light 800x480 Resolution Low Power SPI Interface
  • 4.26" E Ink Display Front Light 800x480 Resolution Low Power SPI Interface
  • 4.26" E Ink Display Front Light 800x480 Resolution Low Power SPI Interface
  • 4.26" E Ink Display Front Light 800x480 Resolution Low Power SPI Interface
  • 4.26" E Ink Display Front Light 800x480 Resolution Low Power SPI Interface GDEY0426T82-FL01C
  • 4.26" E Ink Display Front Light 800x480 Resolution Low Power SPI Interface GDEY0426T82-FL01C
  • 4.26" E Ink Display Front Light 800x480 Resolution Low Power SPI Interface GDEY0426T82-FL01C
  • 4.26" E Ink Display Front Light 800x480 Resolution Low Power SPI Interface GDEY0426T82-FL01C
  • 4.26" E Ink Display Front Light 800x480 Resolution Low Power SPI Interface GDEY0426T82-FL01C
Frequently Bought Together
more
Frequently Bought Together
  • Description
📌 Front Light Not Sold Separately — due to precise optical bonding requirements. Please purchase the complete bonded product. For temperature details, refer to the display screen specifications.
✦ New Generation Front-Light ePaper

GDEY0426T82-FL01C

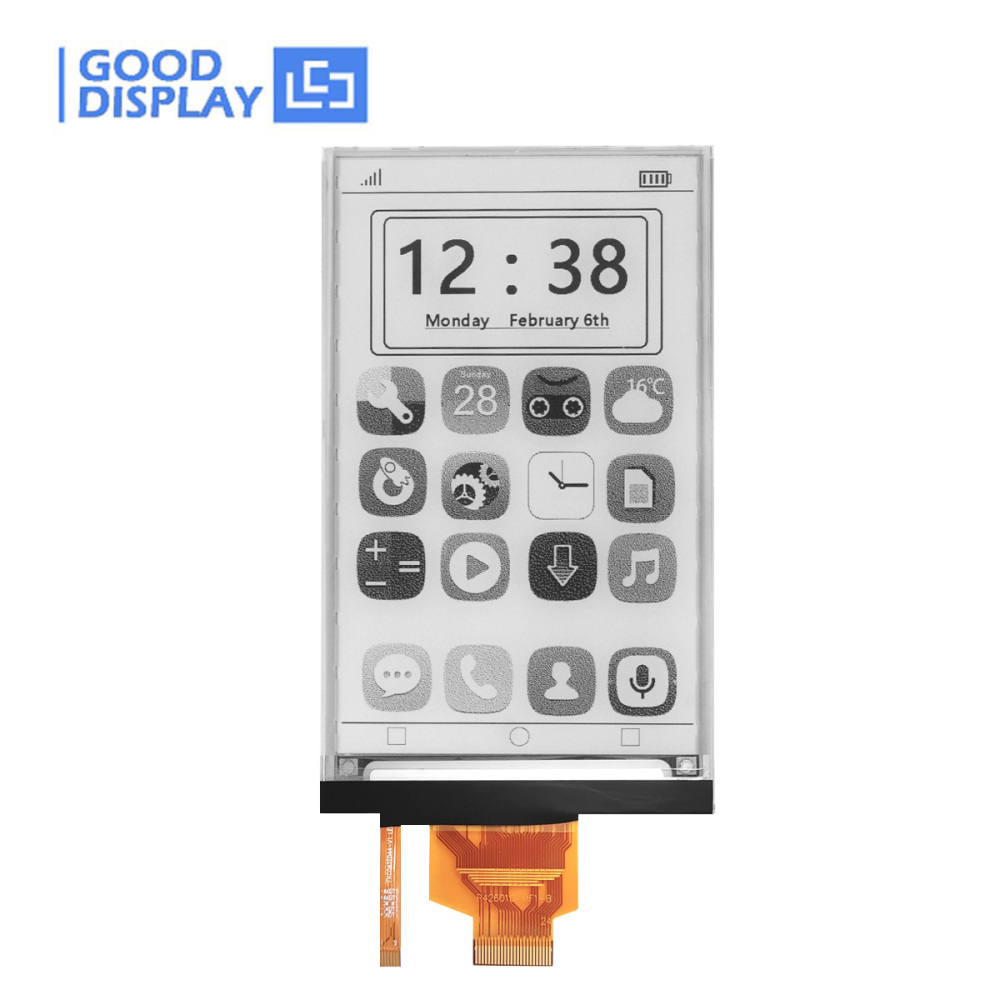

4.26″ Front-Lit E Ink® Display — Readable Anywhere, Anytime

Engineered for devices that must be readable day and night, this ultra-thin front-light module delivers uniform illumination without compromising the paper-like, eye-friendly experience. With cool white or warm light options, 5 adjustable brightness levels, and a fast 0.42″ partial refresh, it's the ideal display for medical, industrial, and smart-home applications.

800×480 Resolution
5 LEDs Front Light
≤15 mA Light Current
0.0066 mW Standby Power

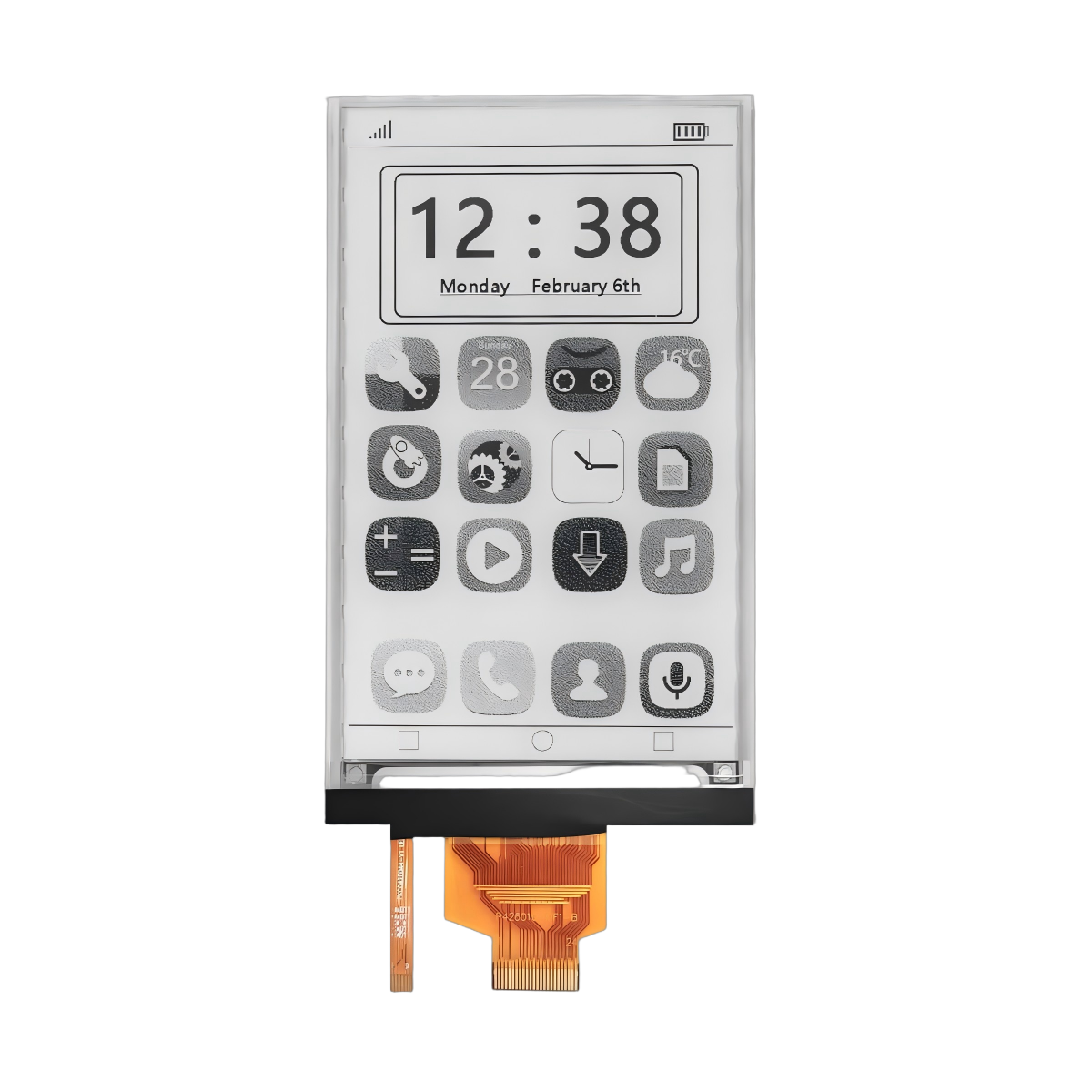

GDEQ0426T82-FL01C Front Light E-Paper Module
GDEQ0426T82-FL01C · integrated front-light panel

Performance at a Glance

📐
800×480
Resolution
🎨
4 Levels
Max Grayscale
💡
5 LEDs
Front Light Source
🔋
26.4 mW
Refresh Power
🚀
1.5 s
Fast Refresh
🔄
0.42 s
Partial Update

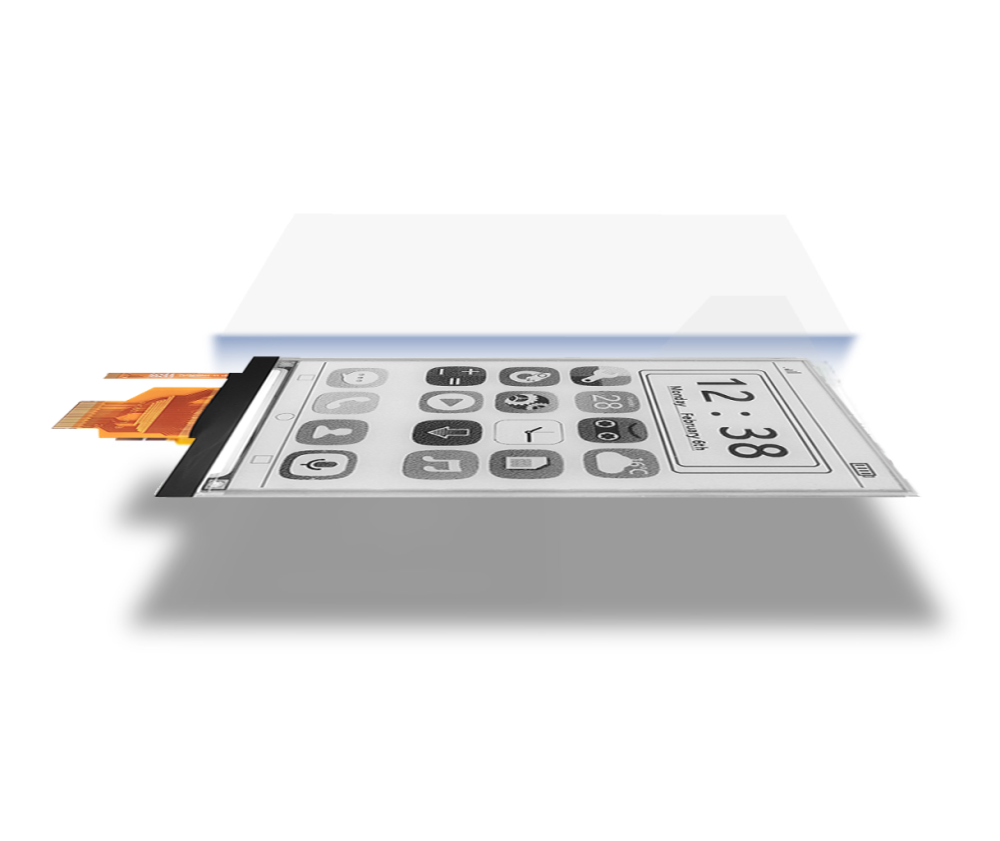

✦ Front-Light Engineering

Move Your LED Light to the Front — Without Compromise

The Goodisplay Front Light Panel is designed to deliver precise, uniform illumination for E Ink displays. Our ultra-thin optical film integrates seamlessly with the front surface of reflective displays, making the GDEQ0426T82-FL01C an ideal solution for around-the-clock readability.

  • Choice between cool white or warm light modes
  • 7 adjustable brightness levels for personalized comfort
  • Ultra-low power consumption: 0.0066 mW standby
  • 4.26″ frontlight module fits any 4.26″ E Ink display
  • Reduces power consumption & enables thinner devices (1.8 mm)
  • High reflectance (30–35%) and contrast ratio (8:1)
GDEQ0426T82-FL01C Front Light Panel

Choose Your Development Kit

SKU Option What's Included Best For

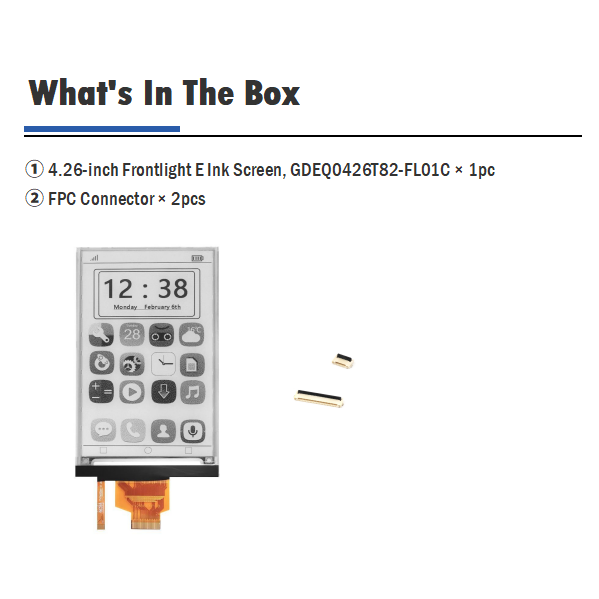

FL01C Only GDEQ0426T82-FL01C Front-Lit EPD Customers with existing driver hardware

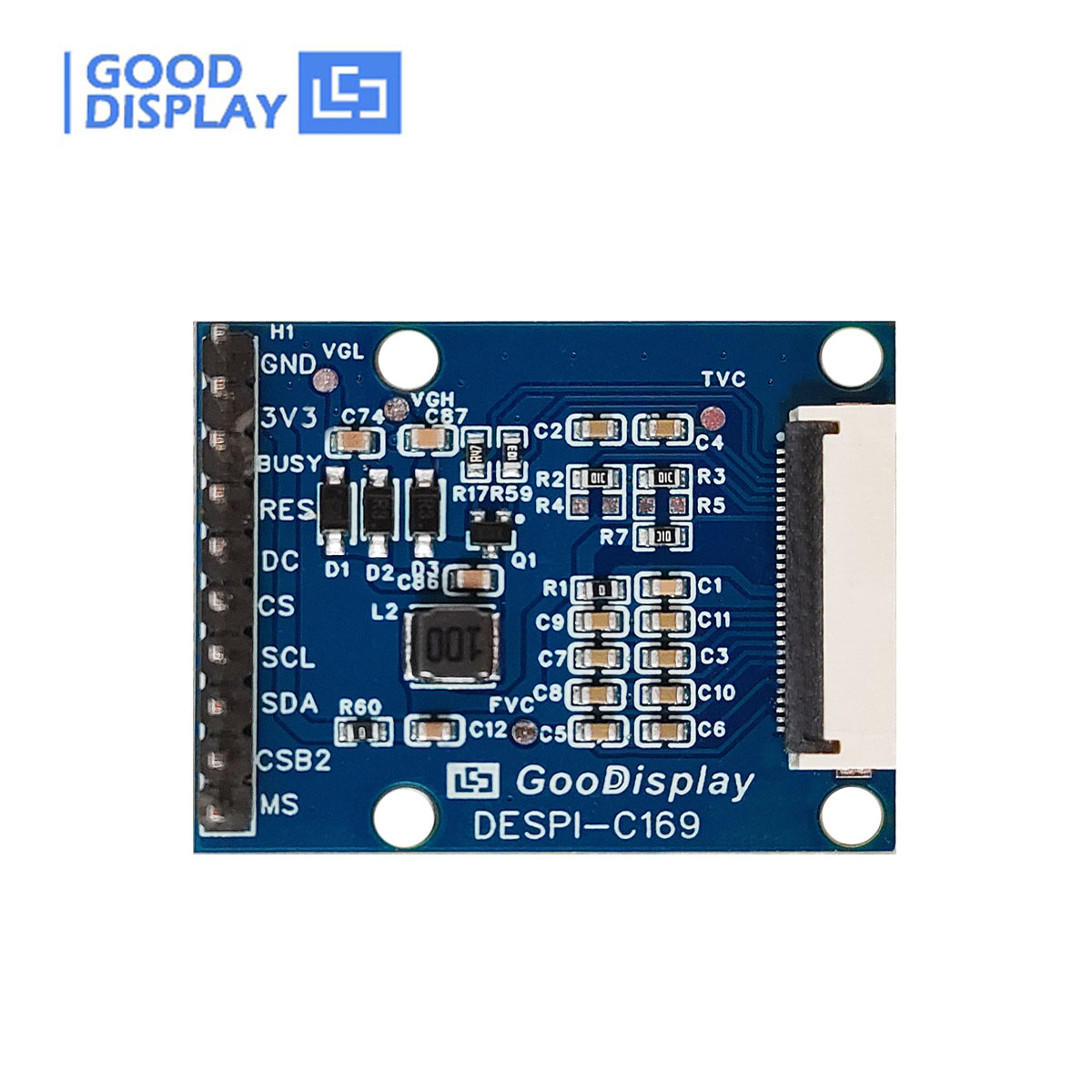

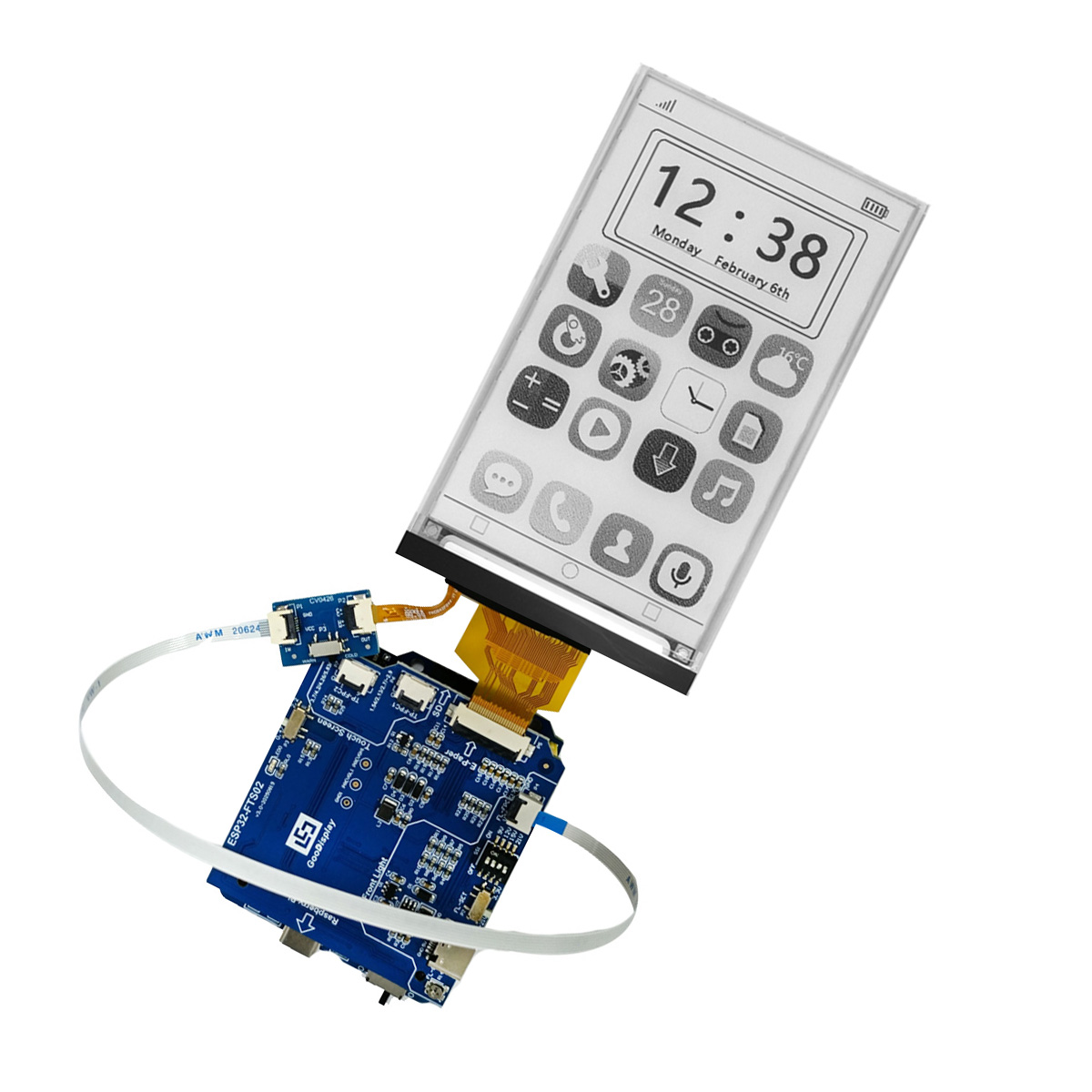

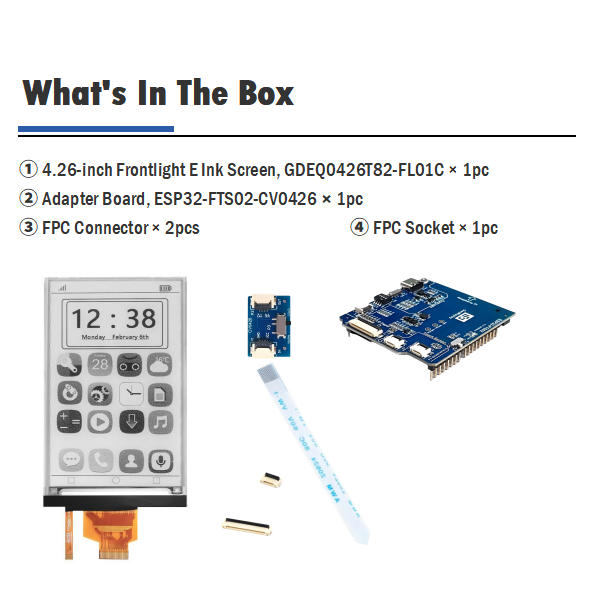

+ Adapter Board EPD + ESP32-FTS02 Adapter Board Own MCU / Raspberry Pi / ESP32

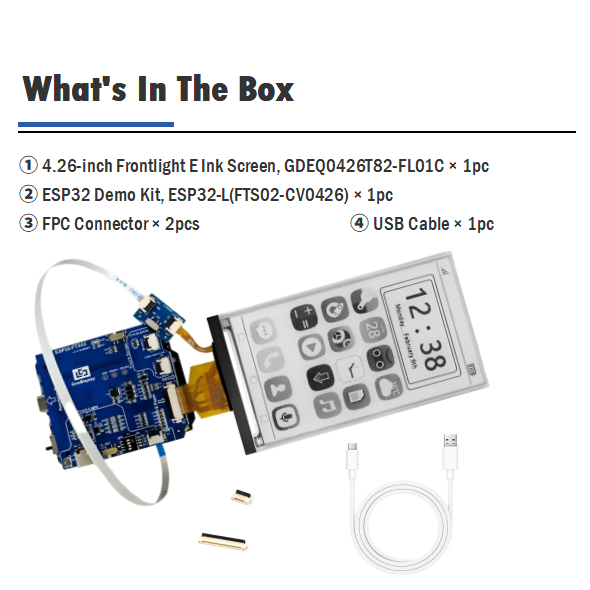

+ ESP32-L Starter EPD + ESP32-L(FTS02) Demo Kit Beginners & rapid prototyping
+ ESP32-M1 All-in-One New EPD + ESP32-M1 Driver Board ★ Best Advanced devs, commercial & portable projects (battery-ready)

Matching Driver Boards

ESP32-FTS02 Front Light & Touch ESP32-FTS02
Integrates front light & touch. Works with your own MCU, Raspberry Pi, or ESP32.
ESP32-L Starter Board Starter ESP32-L Starter
ESP32-WROOM-32D onboard · WiFi + Bluetooth · Type-C 5V — ideal for beginners.
ESP32-M1 All-in-One Advanced ESP32-M1 All-in-One
Professional SPI driver · supports up to 13.3″ ePaper · built-in touch, frontlight, microSD · Li-ion battery ready.

Technical Specifications

Part Number GDEY0426T82-FL01C EPD Connector 24-Pin FPC
Type Dot Matrix Max Grayscale 4
Size 4.26″ Color Black / White
Driver IC SSD1677 Full Refresh 3.5 s
Resolution 800 × 480 Fast Refresh 1.5 s
Outline (mm) 105.33 × 62.37 × 1.8 Partial Refresh 0.42 s
Active Area (mm) 92.8 × 55.68 Refresh Power 26.4 mW
Pixel Pitch (mm) 0.116 × 0.116 Standby Power 0.0066 mW

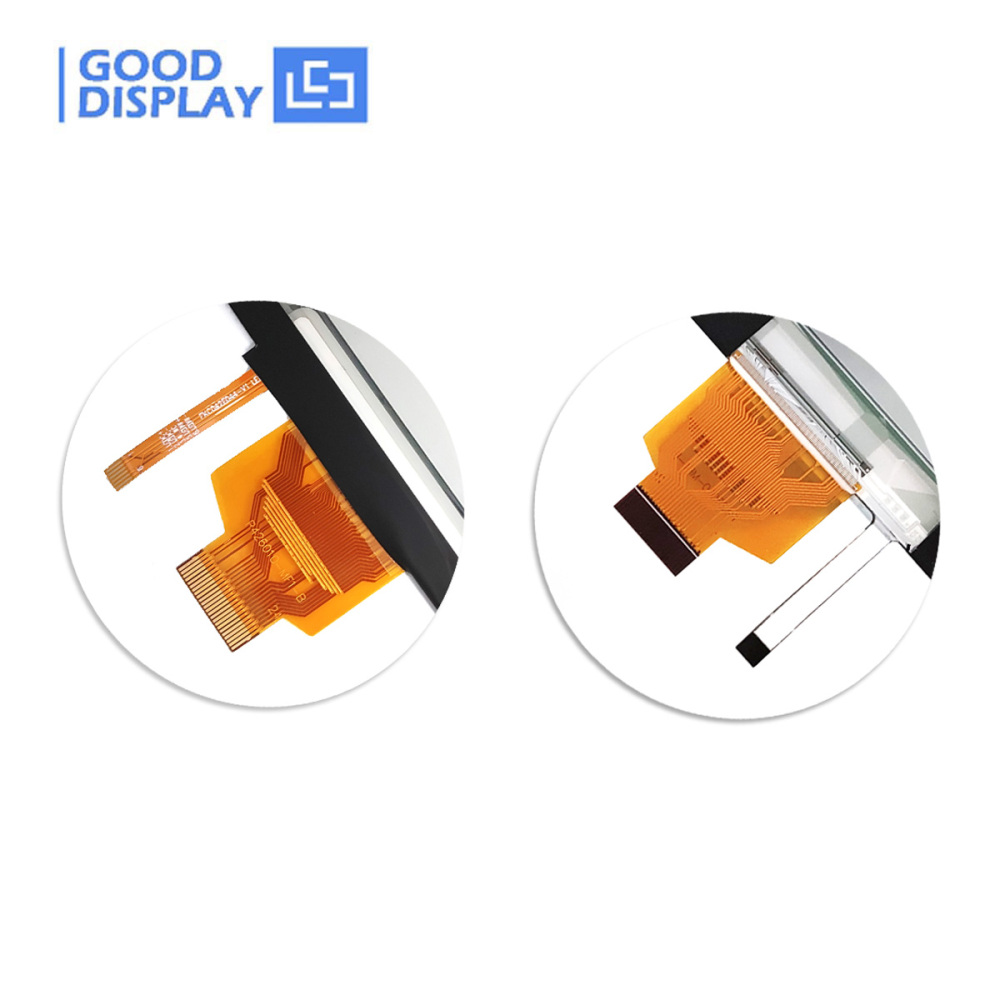

Operating Temp 0℃ ~ 50℃ Front-Light Connector 6-Pin FPC, 0.5 mm pitch
Storage Temp -25℃ ~ 70℃ Front-Light LEDs 5
Interface SPI (3-wire / 4-wire) Front-Light Circuit Series
Front-Light Voltage ≤15 V Front-Light Current ≤15 mA
Weight 20.7 ± 10% g Operating Current (White) 8.0 mA
White Reflectivity 30% ~ 35% Contrast Ratio 8:1 (indoor)
Life Time 1,000,000 times or 5 years Front-Light Mode Cool White / Warm White

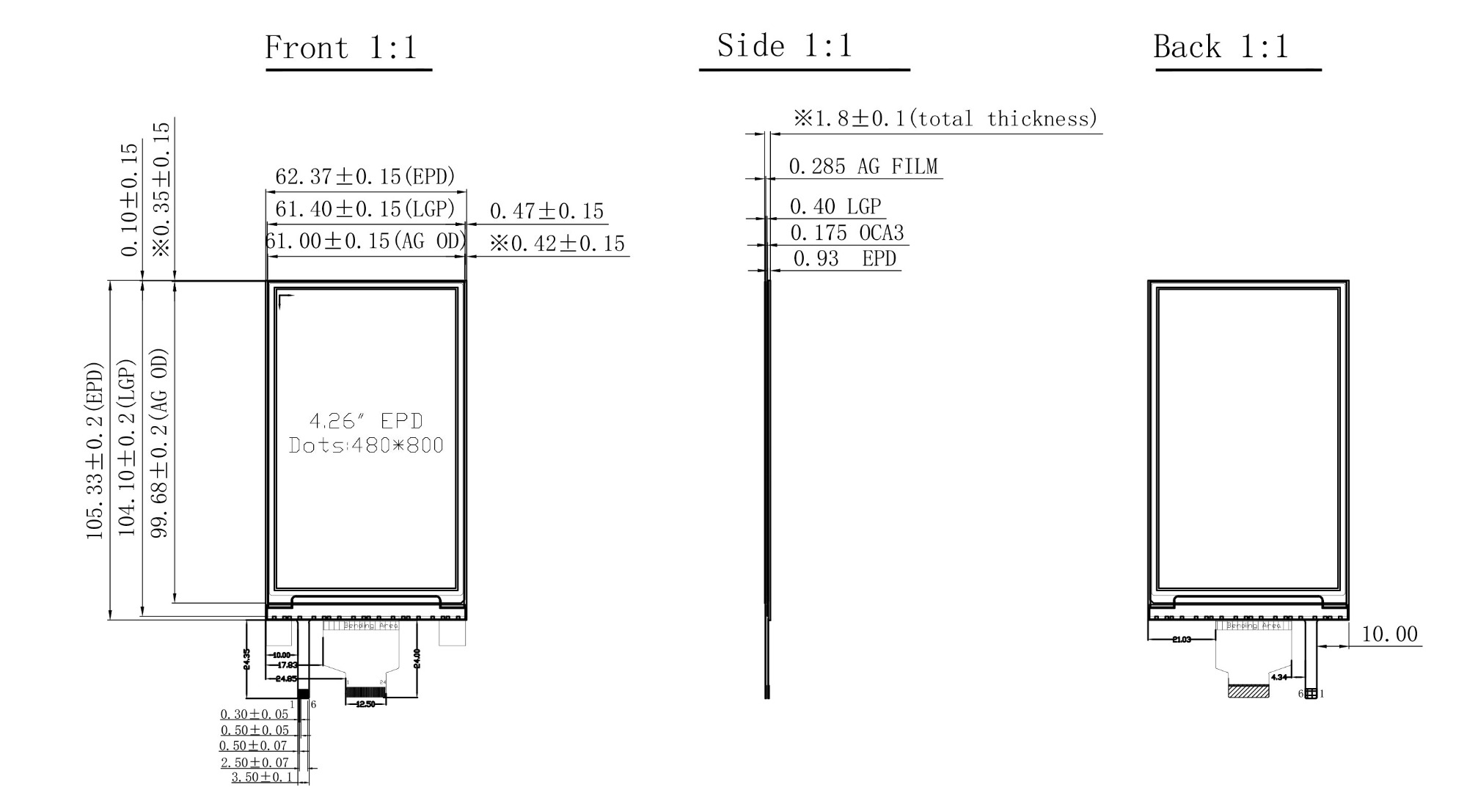

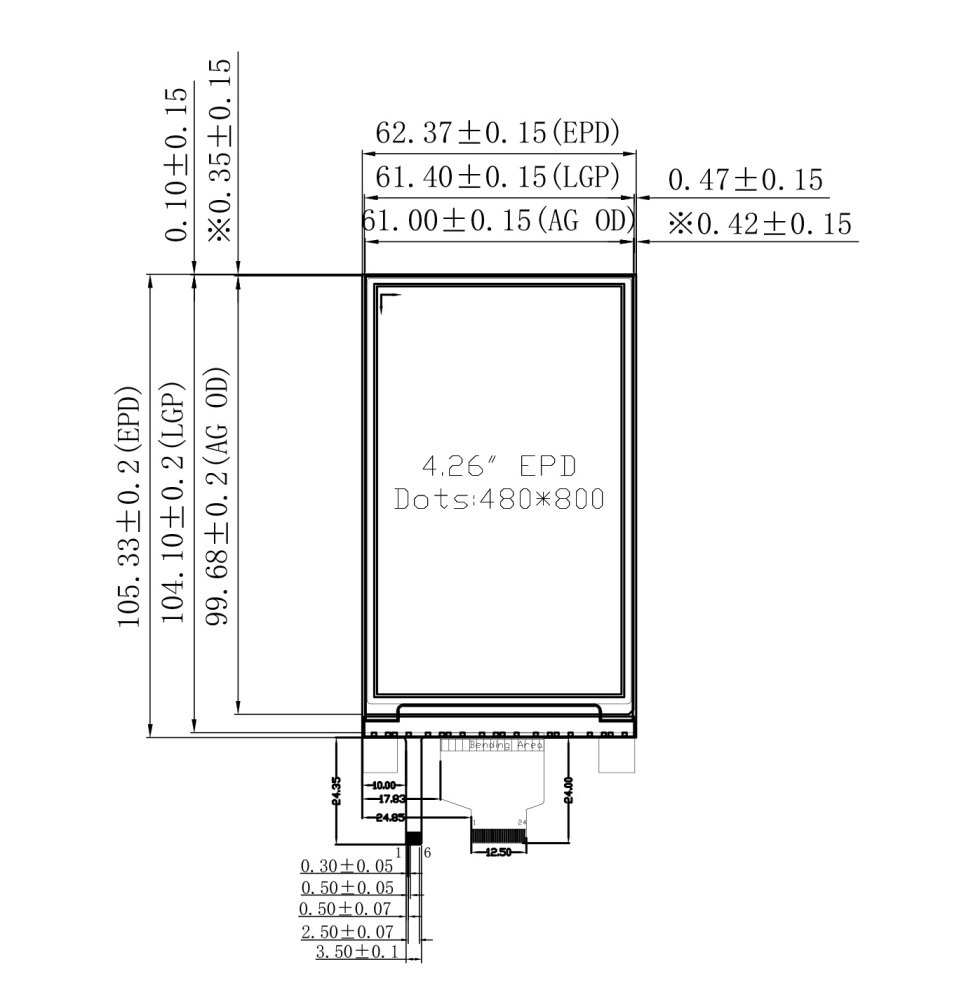

Mechanical Drawing

GDEQ0426T82-FL01C Technical Drawing
GDEQ0426T82-FL01C Module
GDEQ0426T82-FL01C DetailCV0426 Base

ESP32 Ready

  • ➊DO NOT fold or pull the flex cable forcefully.
  • ➋Frontlight voltage must match specifications.
  • ➌If touch is unresponsive, check connection seating.
  • ➍4.26″ Front‑Light E‑Paper Solution (CV0426 Module)
● Board-to-Board ● Cool / Warm CT ● Cable-Free

Why GooDisplay Refreshes Faster

⚡

Optimized Fast-Refresh FPL

We rigorously select fast-refresh FPL films at the raw material level, laying a solid hardware foundation for high-speed performance.

🌡️

Smart Temp-Controlled Drive

Our engineers optimize waveform files for different temperature ranges, ensuring excellent display quality even during rapid refresh cycles.

🧩

Chip-Level Integrated Solution

Optimized waveforms are built into the SSD1677 display driver chip — activate fast refresh mode with a simple code call.

Application Scenarios

Industrial Equipment
Industrial Equipment
Medical Devices
Medical Devices
Smart Home Control Panels
Smart Home Control Panels
Portable Information Tags
Portable Information Tags

Ready to Integrate Front-Lit ePaper?

We offer complete support — from component selection to custom bonding and driver design.
Bulk orders and OEM projects are welcome.

📧  ·  🌐

Get a Quote →
