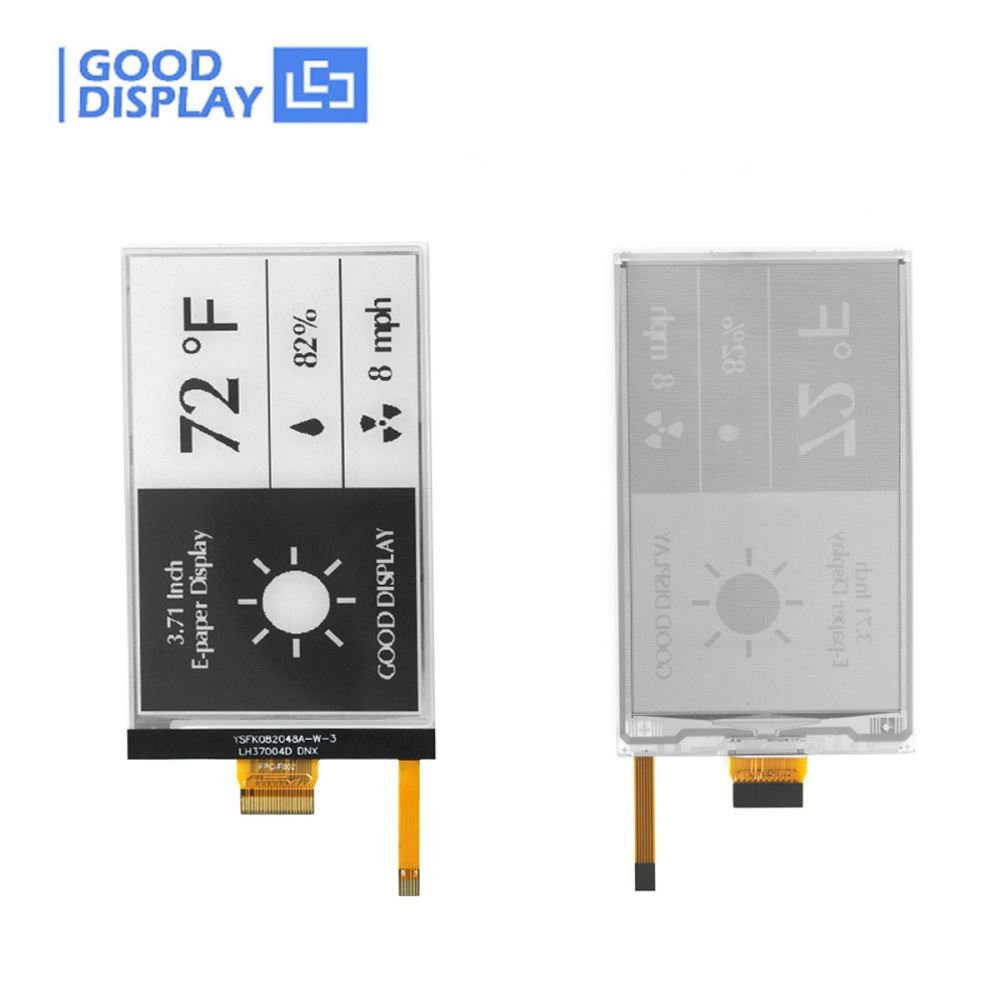

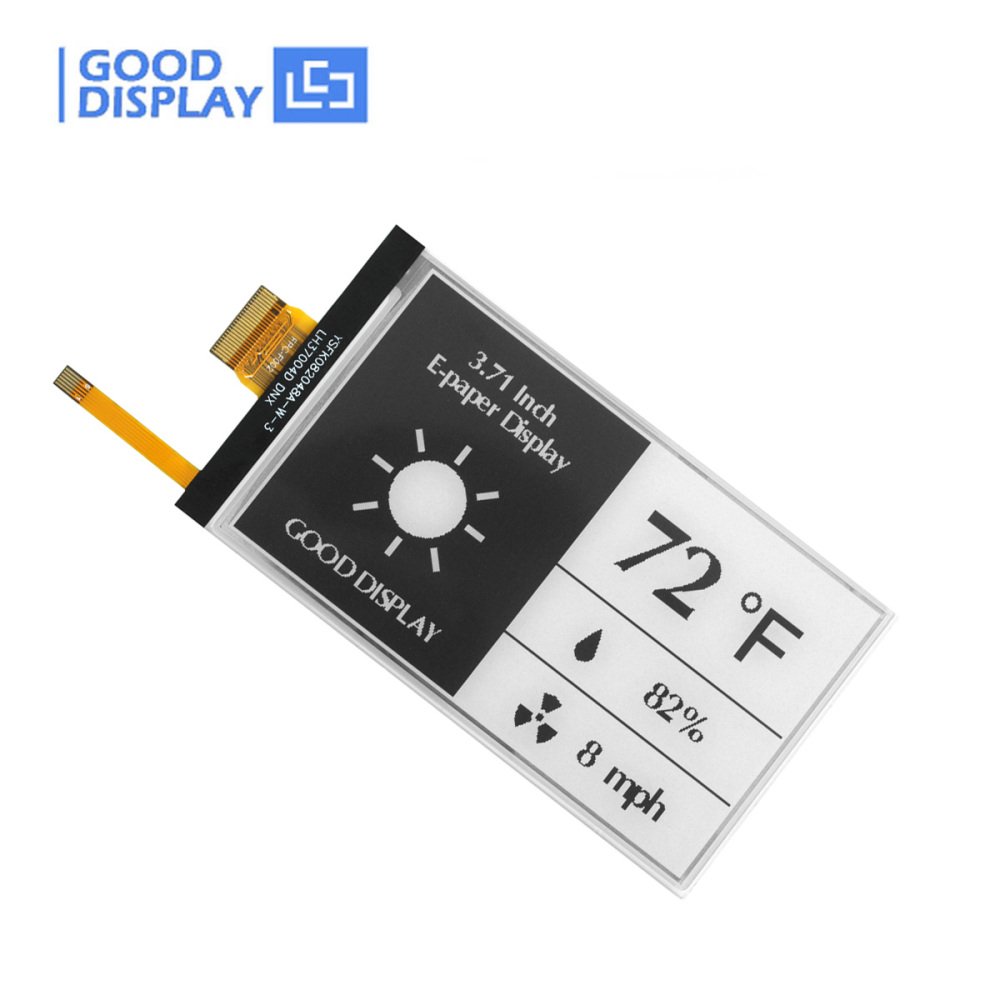

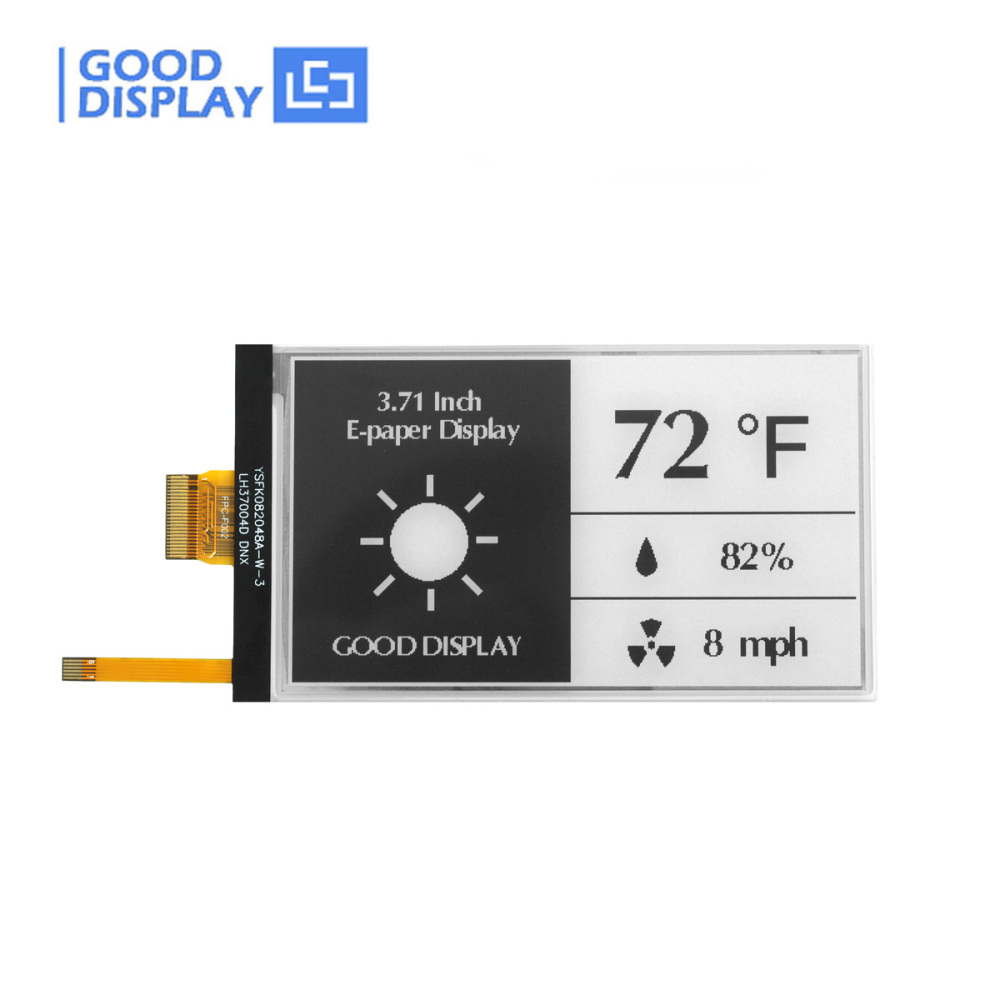

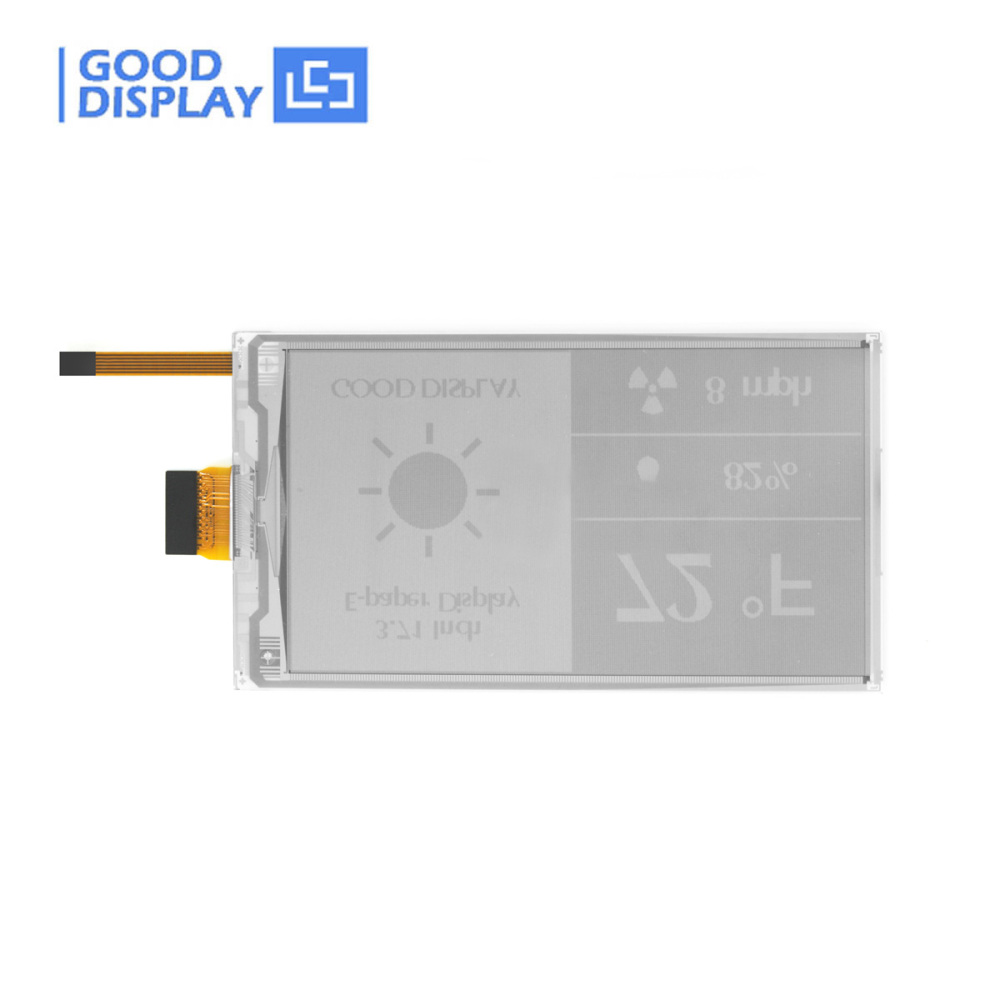

3.7 inch Frontlight E Ink display HAT For Raspberry Pi 416x240 E-paper screen

GDEY037T03-FL21
This 3.7-inch E-Paper Display with front light, delivering high resolution, energy efficiency, and seamless visibility for innovative e-readers, smart labels, and control panels.
Have a question?
Price:
USD
$15.57
  • Product:
    EPD
    EPD with Frontlight Driver
    EPD with STM32 Demo Kit
    EPD with ESP32 Demo Kit
Quantity:
-
+
(60 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
Inquiry Now
Add to Favorite Items
  • Description
  • Reviews

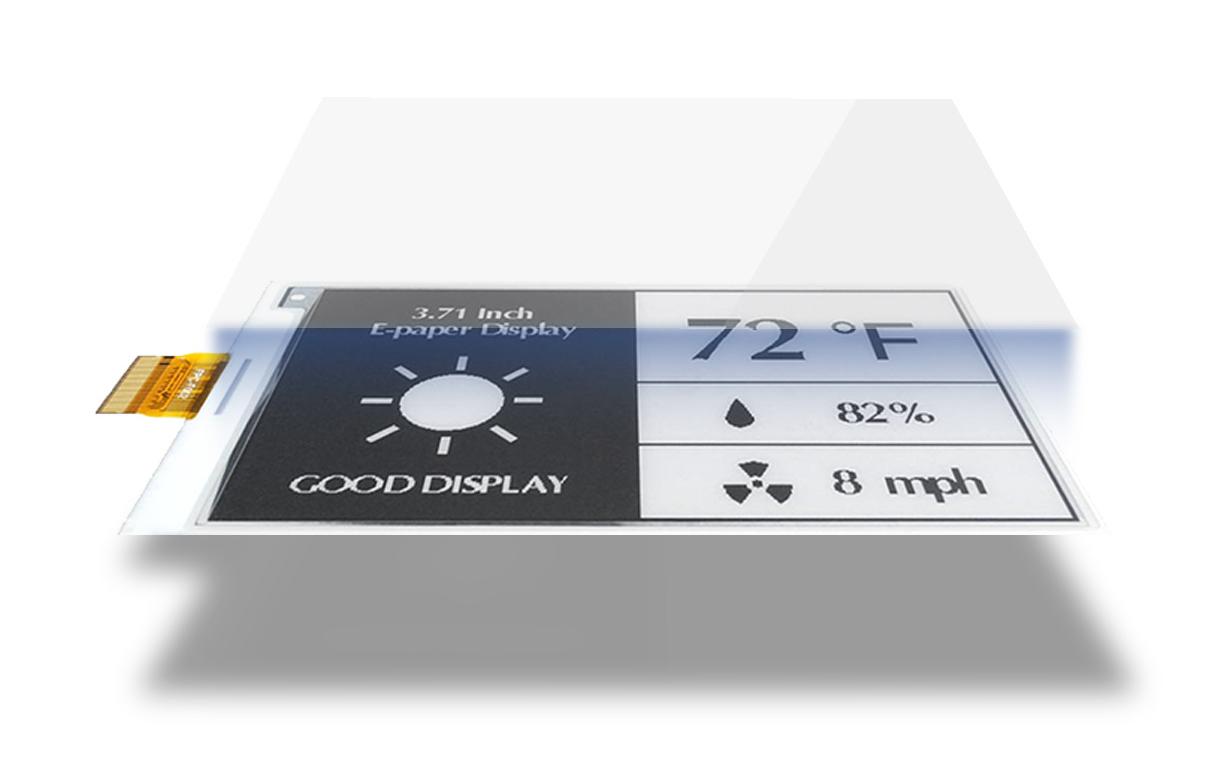

Goodisplay Front Light Panel



Move your LED light to the front

The Goodisplay Front Light Panel is designed to deliver precise lighting for E Ink displays. It reduces power consumption, improves aesthetics, and enables thinner devices. Our ultra-thin optical film integrates seamlessly with the front surface of reflective displays, providing the optimal display module for superior performance.












New Generation of Front-light ePaper




  Resolution: 800x480 Max Grayscale: 4 Low Power Consumption Fast Update: 1.5s Partial Update: 0.3s Full Update: 2s










Our front-lit e-paper display offers:


  • Choice between cool white or warm light modes.
  • Adjustable brightness by increasing the number of LEDs.
  • Flexible circuit design with options for series or parallel configurations.







Technical Detail












Product Specifications


  PART NUMBER GDEY037T03-FL21 CONNECTOR 24 Pin FPC
TYPE Dot Matrix COLOR Black,White
SIZE 3.7 inch MAX GRAYSCALE 4

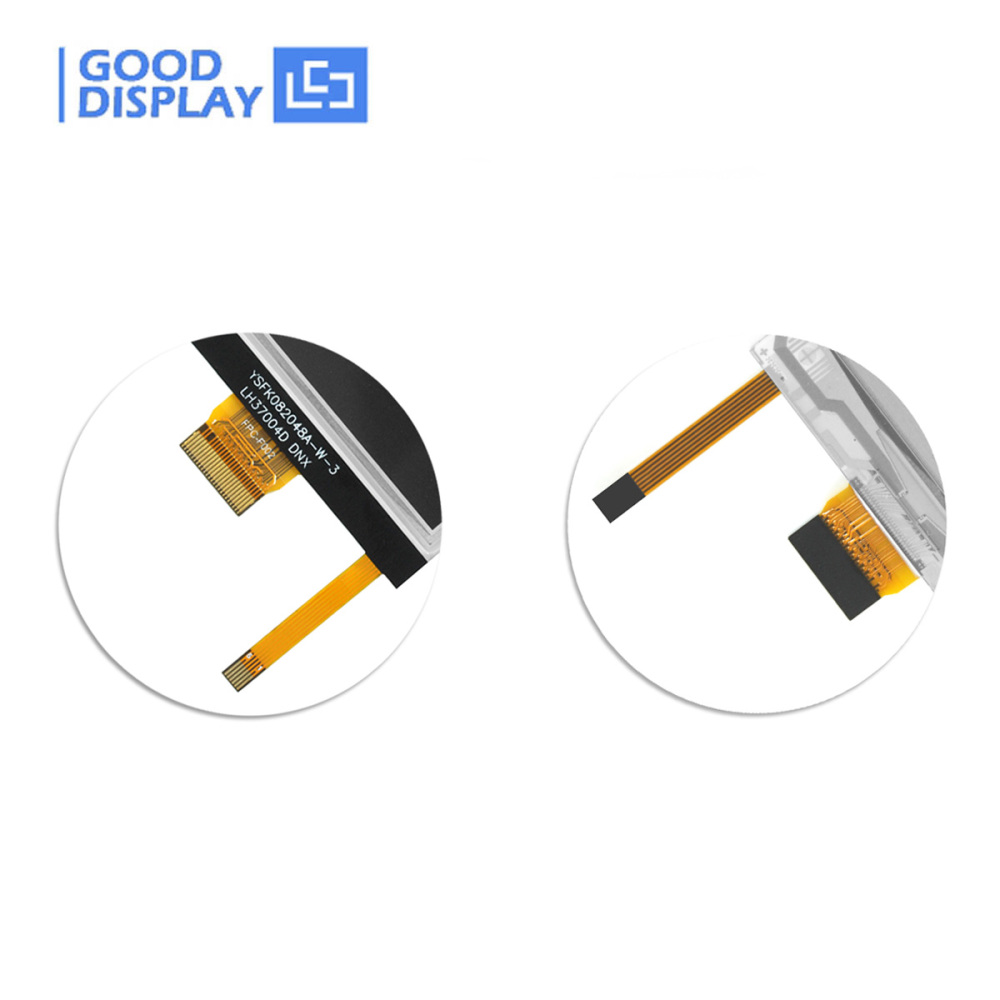

IC UC8253 FRONT-LIT CONNECTOR 6 pin FPC
RESOLUTION 416x240 NUMBER OF LED LIGHT 9

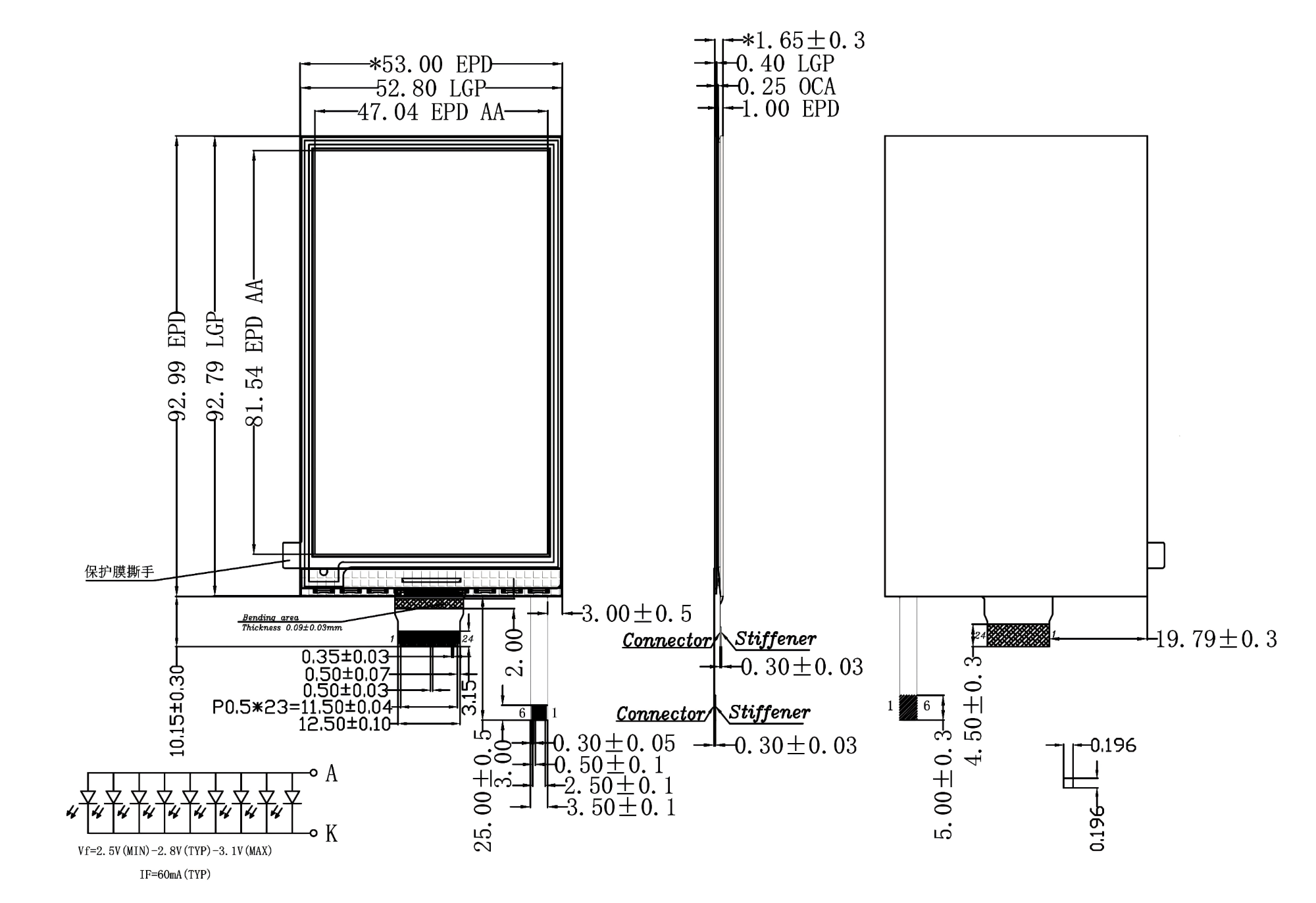

OUTLINE SIZE(mm) 92.99x53.00x1.65 FRONT-LIT CIRCUIT MODE Parallel connection
ACTIVE SIZE(mm) 81.54x47.04 OPERATING VOLTAGE 2.8V-3.3V
ACTIVE SIZE(mm) 0.196x0.196 OPERATING CURRENT ≤60mA
OPERATING TEMP. 0℃~50℃ FULL REFRESH(s) 2
STORAGE TEMP. -25℃~70℃ FAST REFRESH(s) 1.5
POWER CONSUMPTION OF THE REFRESH(mW) 18 INTERFACE SPI
STANDBY POWER CONSUMPTION (mW) 0.003










Matching Driver Boards





Ⅰ. DESPI-F01
(Front-light Driver Board)

Ⅱ. DESPI-L(C02)
(STM32 Demo Kit)

Ⅲ. ESP32-L(C02)
(ESP32 Demo Kit)

Ⅳ. DEArduino-L(C02)
(Arduino Demo Kit)

Ⅴ. ESP8266-L(C02)
(ESP8266 Demo Kit)











Files And Download



● The Lastest Catalog ● Why can't I download the files(updated)?









Eco-friendly & Sustainable




Eye-friendly



E-paper technology



No fear of the dark
No harmful blue light, so it won't cause any damage to your eyes even with prolonged use.   Eco-friendly and sustainable. Get rid of any paper or printing.   Bright, clear image even in  dimly lit spaces.











Product Application



Industrial equipment

Portable Information Tags

Medical Devices

Smart Home Control Panels

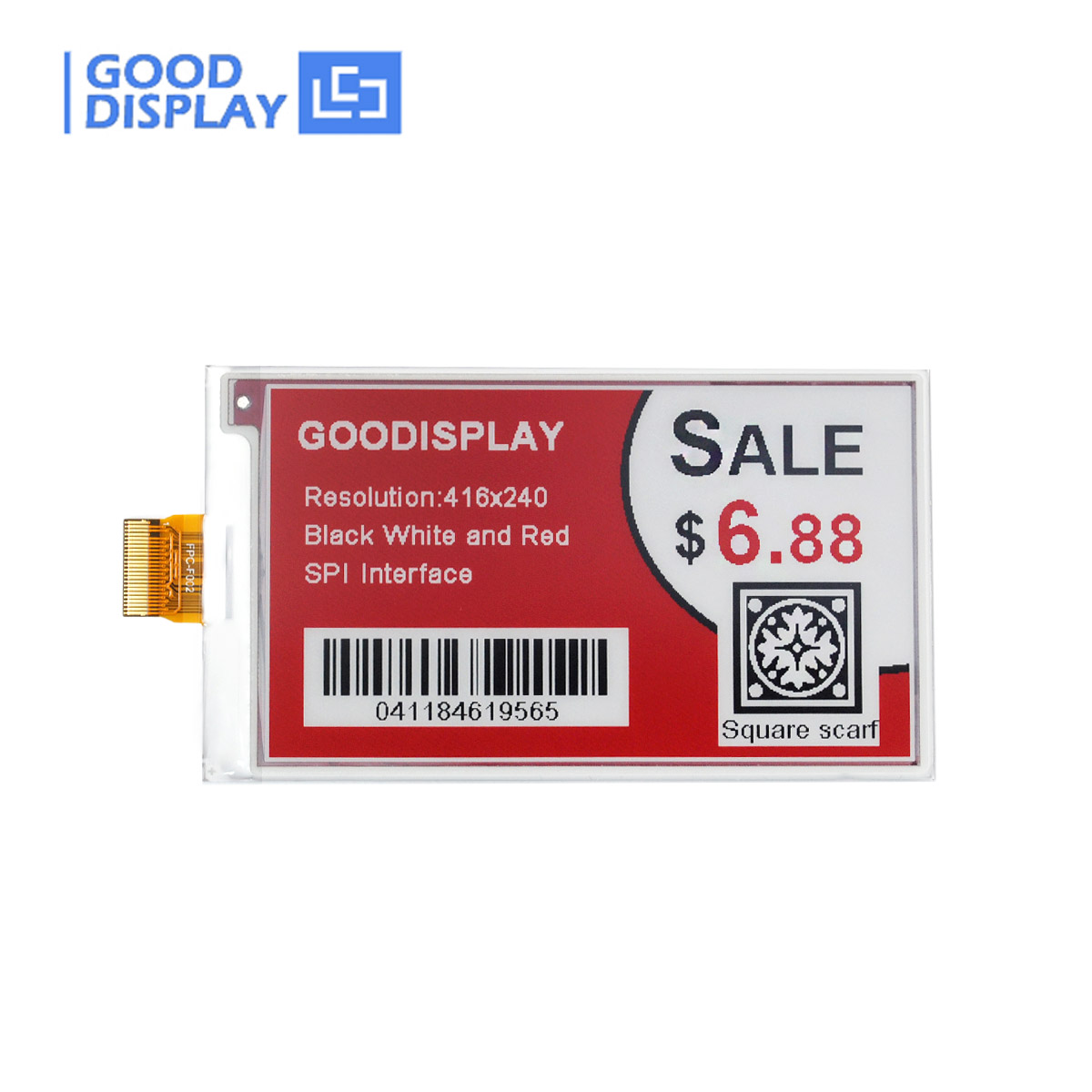

We Also Recommend









About Us


Thank you for your interest in our product. We could provide front light, touch screen, and other accessories for you. For more information, please refer to the relevant manual available in our Library or visit our official website at [www.good-display.com].
If you need any further assistance or have any other questions, please feel free to contact us. We sincerely invite you to send your inquiries to our email at [buyepaper@good-display.com].
