GooDisplay 1.54-inch Four Color NFC-Powered E-Ink Display Tag Real-Time Updates via Mobile App

DMPL0154FN1
Transform the way you display information with the GDNS0154AL e-ink display tag—where convenience meets innovation!
2 Review(s) Sold:22
Have a question?
Price:
USD
$27.89
Quantity:
-
+
(10 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
Inquiry Now
Add to Favorite Items
  • Description
  • Reviews(2)


Premium e-Ink Display Solution——1.54-inch NFC e-paper screen electronic tag

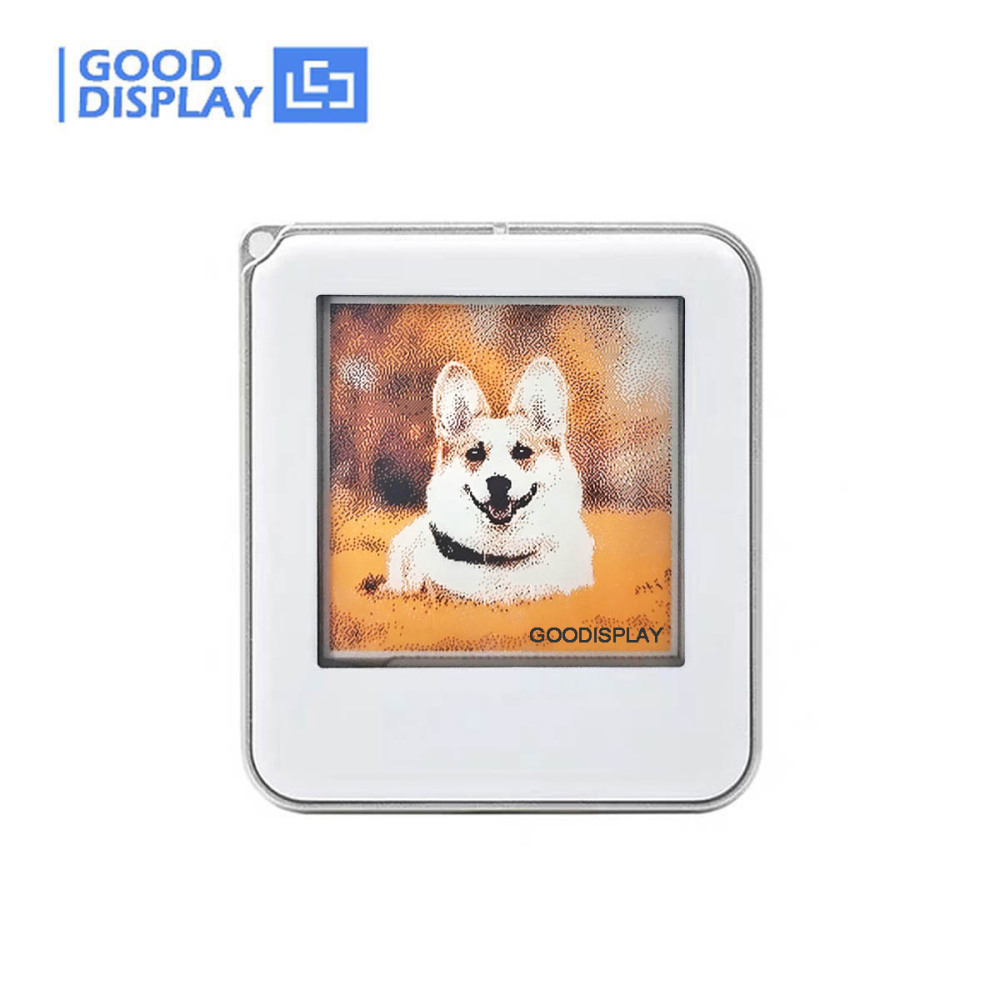

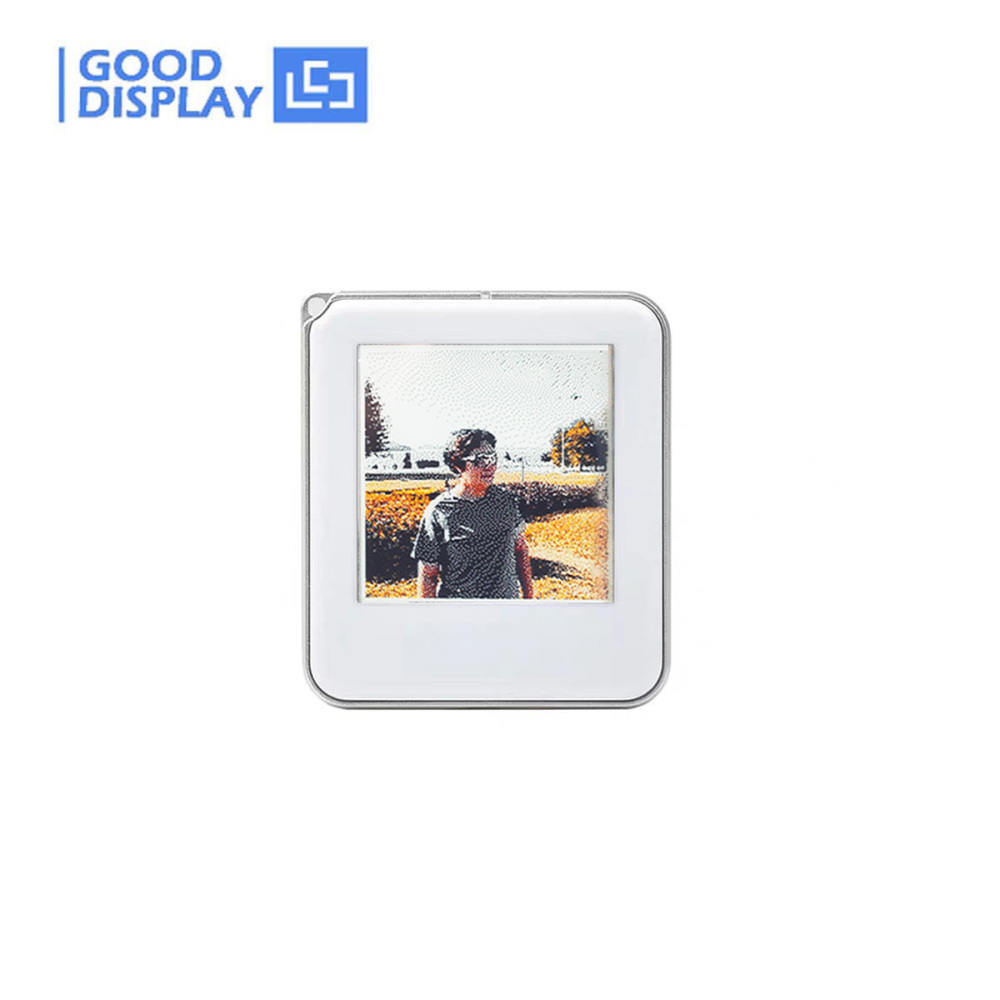

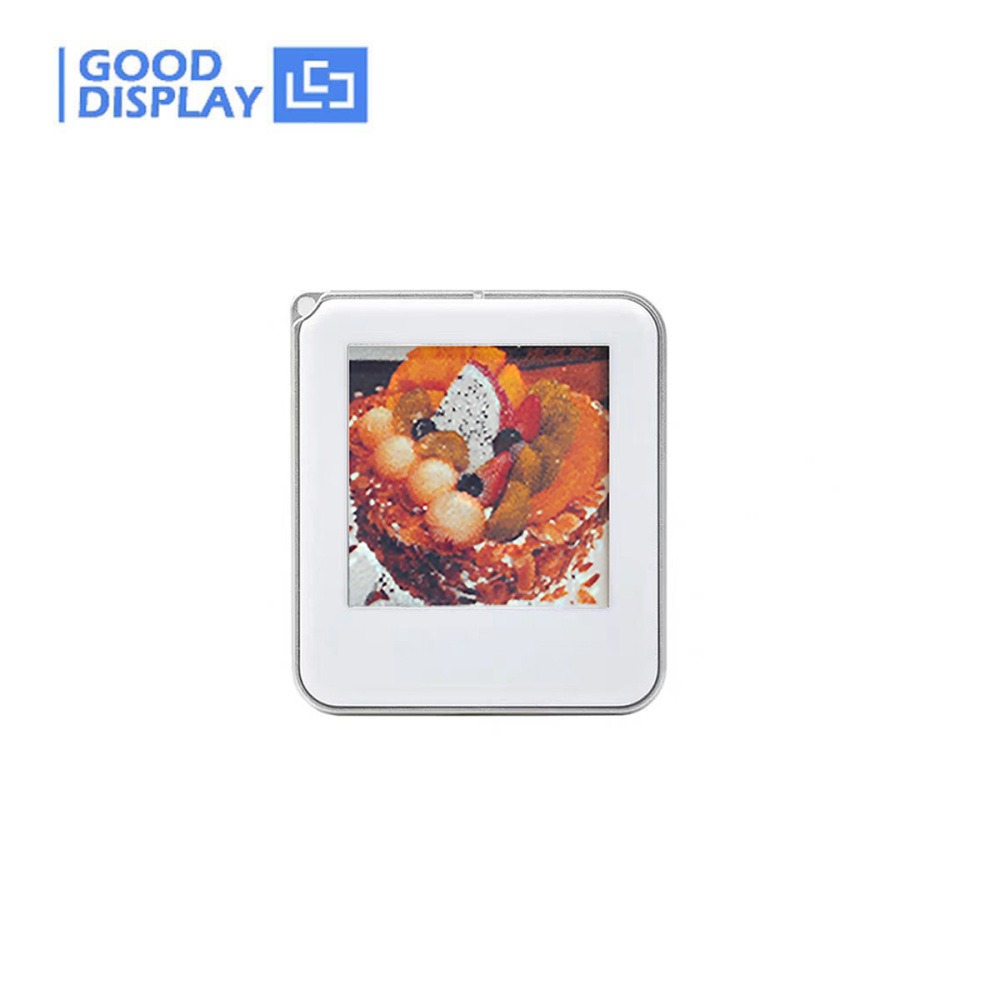

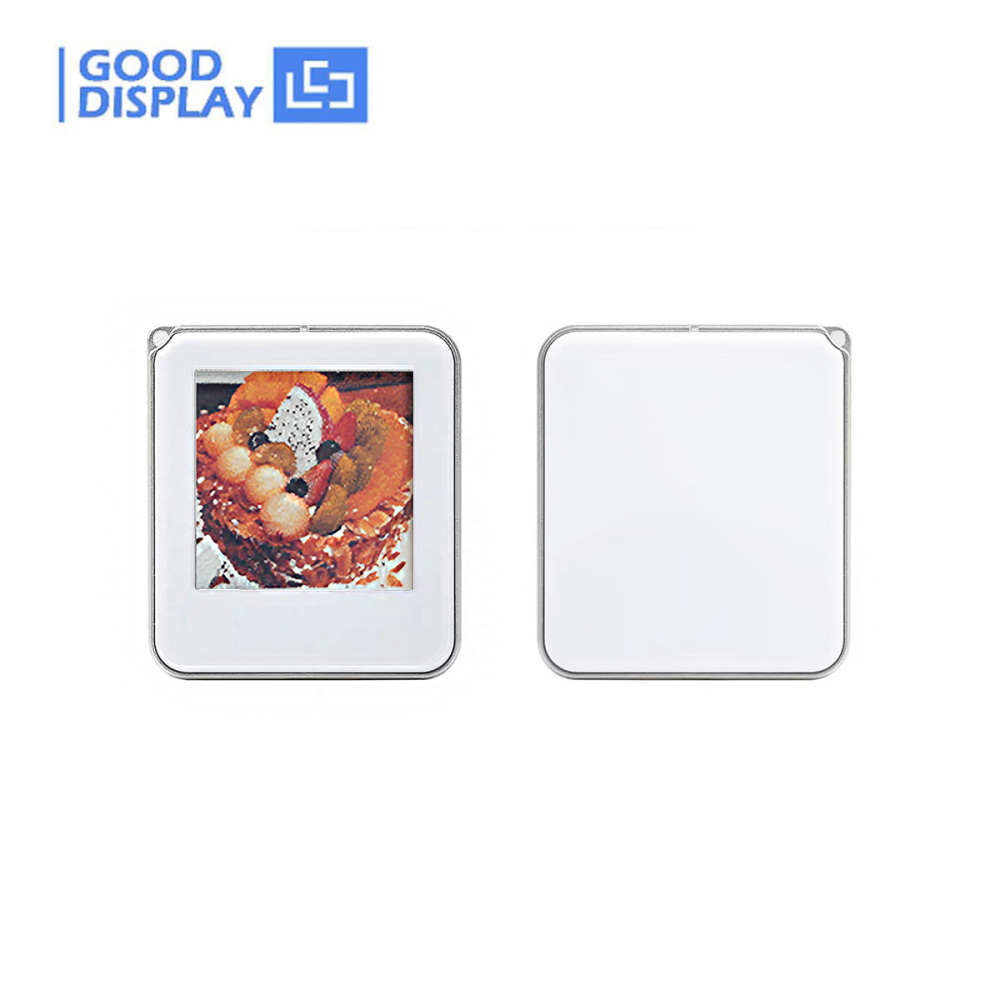

The DMPL0154FN1 is a 1.54-inch NFC-powered e-ink tag with corner holes, ideal for attaching to bags, keychains, and other accessories. The 1.54-inch e-paper display supports four colors—black, white, red, and yellow—at a resolution of 200x200. Encased in a protective, lightweight ABS shell, it’s both stylish and customizable. If you have your own ideas, feel free to reach out to us and let's bring them to life together!











Special Features


 ● No batteries needed for long-lasting, high-end performance, ideal for integration into diverse products with superior visuals and versatile applications.
 ● Easily customize and control display content via NFC-enabled Android smartphones, providing personalized, convenient operation anytime, anywhere.
 ● Built to withstand tough environments, with IP65 waterproof rating ensuring reliable performance in damp.
 ● Components like the e-ink screen, driver board, casing, and software are sold separately, allowing full customization to fit specific requirements.
 ● The dedicated application makes operation more convenient and efficient, while also offering personalized customization options for clients.
 ● With extensive development solutions, specialized after-sales support, and comprehensive user manuals, we ensure your success at every step.










Curved metal frame

Premium feel，elevates the look, enhances durability, and provides added drop resistance.






Operating Principle

Operating principle   Wirelessly powered and refreshed by bringing an NFC-enabled smartphone or card reader close to the device.










Product Specifications


PART NUMBER  DMPL0154FN1
DISPLAY PARAMETERS  Screen Size: 1.54 inch
 Screen Type: Black, White, Red and Yellow ePaper Display (E Ink)
 Screen Resolution: 200x200
 Screen Grayscale: 2
OPTIONAL OPERATING SYSTEMS   Android
POWER CONSUMPTION PARAMETERS  Power Supply: NFC Powering
 Built-in Battery: None
SPECIFICATION PARAMETERS  Image Update Time: 16 seconds
 Image Update Method: NFC Image Update
LANGUAGE  Default English
WATERPROOF LEVEL  IP65
SPECIFICATION  Weight: Approximately 13g
 Dimensions: 50x37x5.3mm
TEMPERATURE AND HUMIDITY PARAMETER  Operating Temperature: 0°C to 40°C
 Storage Temperature: -25°C to 60°C
 Operating Humidity: 40% to 70%



Components of Our NFC Price Tags


GDEM0154F51H
(1.54" 4 color Epaper Display)

+

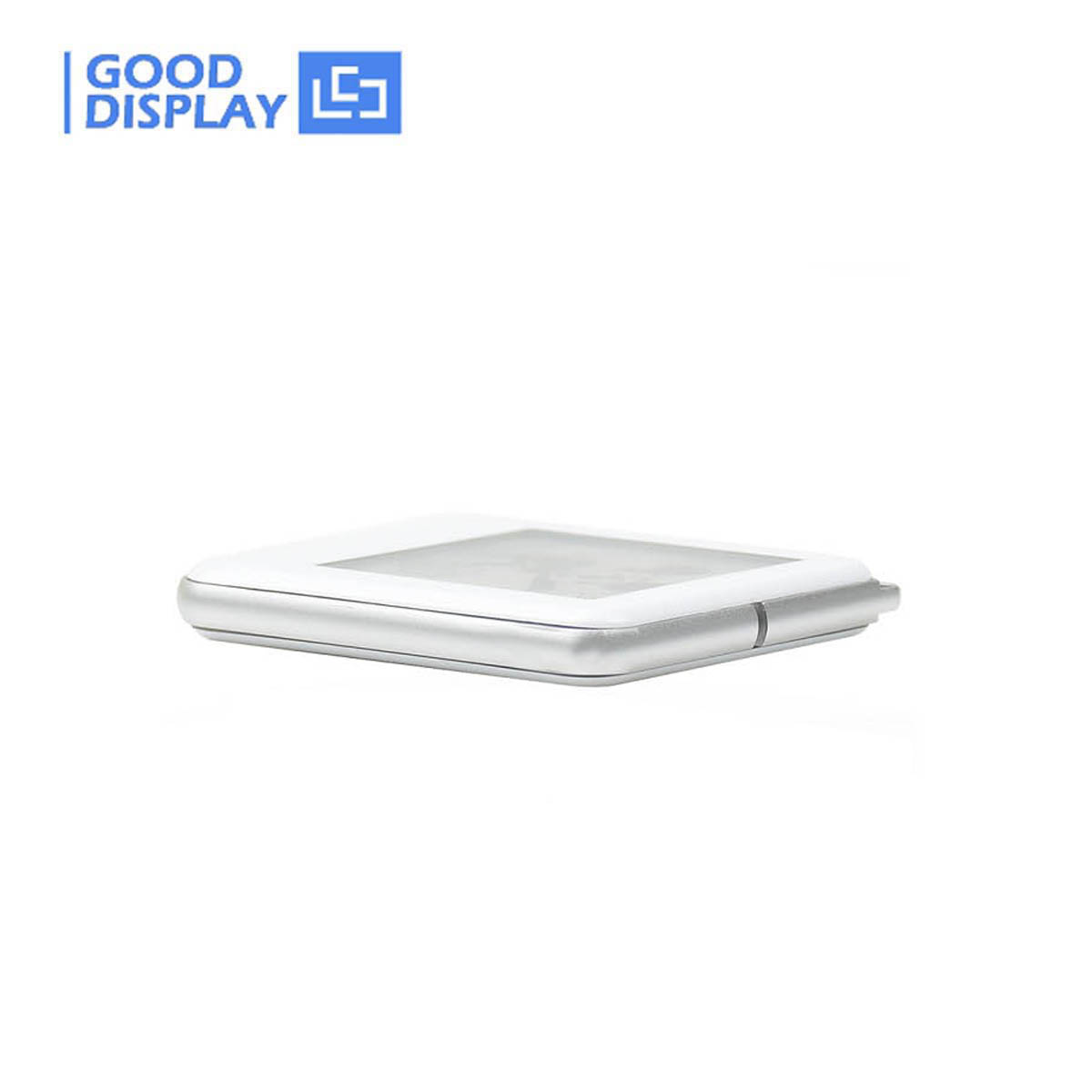

ABS Case


+

(DELM-0154S1)

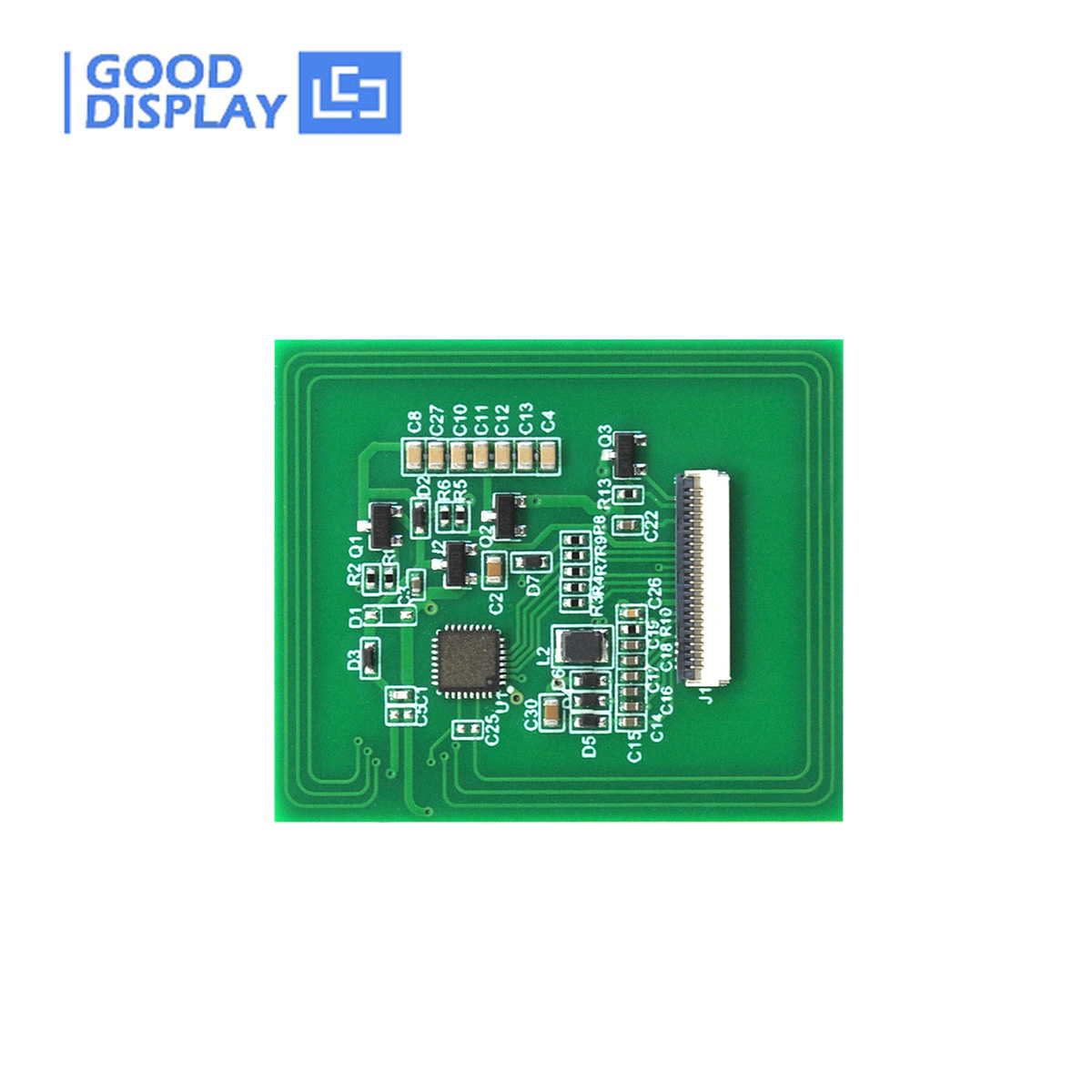

NFC Driver Board

=

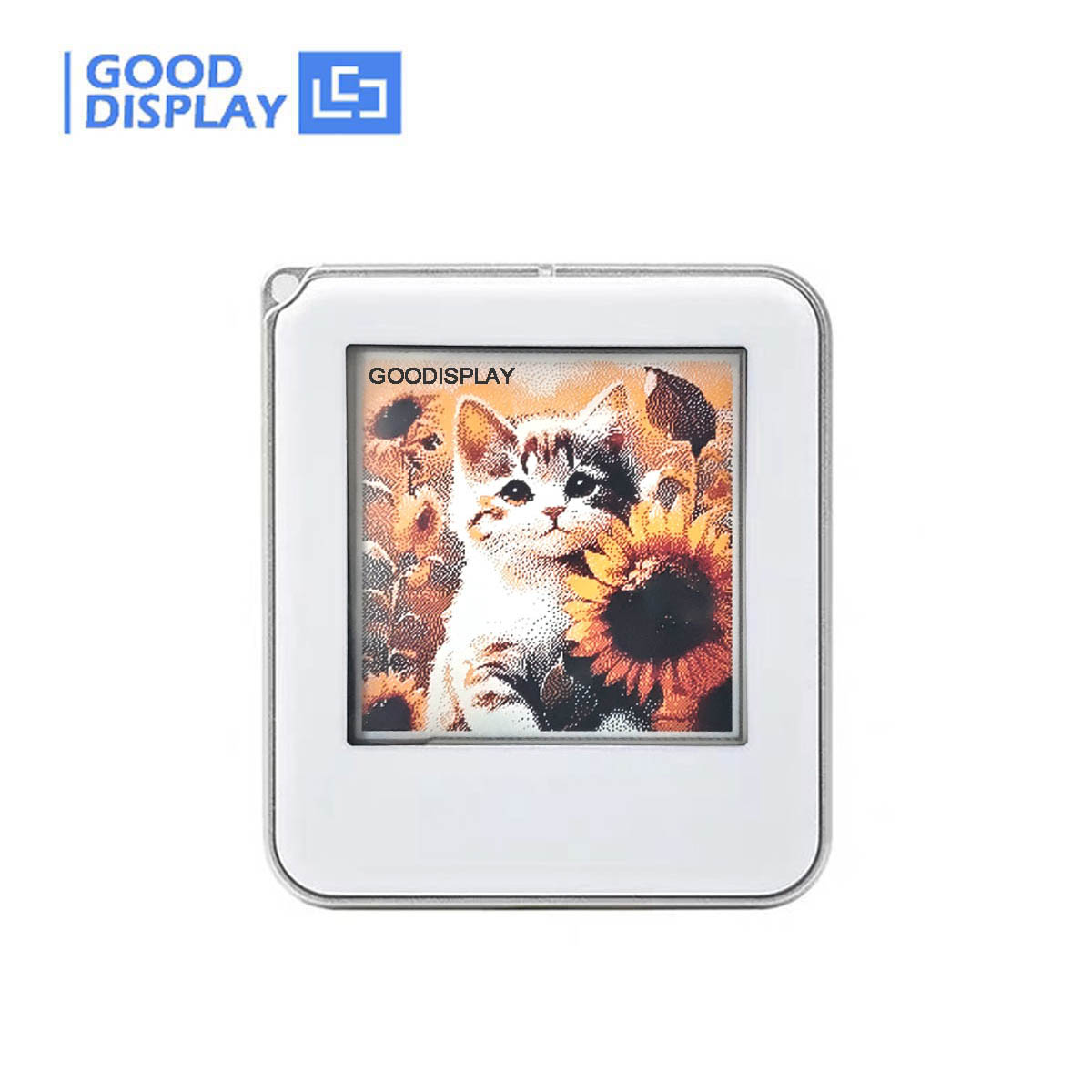

DMPL0154FN1
(1.54 inch NFC Tag)

The DELM-0154S1 driver board features a 24-pin serial interface with dimensions of 37.65 x 31.85 x 0.58 mm.
It uses NFC power and supports a screen resolution of 200x200, with the flexibility to adjust the size based on application needs.







APP Operation Steps

For Android users, scan the QR code to get the app.


Warm Reminder: Scan the QR code to directly access the download page.
1) The app will detect the e-paper display and automatically perform data transmission and refresh operations.
2) Please ensure that your phone's NFC is enabled before use. During data transmission and refreshing, do not move the phone.









Files And Download



● The Lastest Catalog

● Why can't I download the files(updated)?









Product Application










Every Day is Earth Day





You don't need to be an environmental scientist to make sustainable choices.
At GooDisplay, we passionately integrate sustainability into the production of e-paper.











Substitute for Paper Usage

Epaper provide a paper-like touch and reading experience, serving as a sustainable alternative to traditional paper and reducing environmental impact from deforestation and paper manufacturing.

Device Packaging
95% of this device's packaging is crafted from wood fiber-based materials sourced responsibly from managed forests or recycled sources.

Energy Efficiency
Epaper consumes minimal energy compared to conventional displays, reducing electricity bills and easing the demand on power plants, thereby lowering greenhouse gas emissions—a perfect choice for eco-conscious consumers.







ABOUT US

Thank you for your interest in our product. We could provide front light, touch screen, and other accessories for you. For more information, please refer to the relevant manual available in our Library or visit our official website at [www.good-display.com].
If you need any further assistance or have any other questions, please feel free to contact us. We sincerely invite you to send your inquiries to our email at [buyepaper@good-display.com].
