Arduino UNO R4-L Development Board
|
|
|
| |
|
The Arduino UNO R4-L is a powerful E-Paper display driver board designed for SPI-based E-Paper screens. Equipped with an ARM Cortex-M4 processor, it offers 14 digital I/O pins (6 with PWM support) and 6 analog inputs, providing exceptional flexibility for various applications.
|
|
|
Key Features
● ARM Cortex-M4 Processor
● 14 Digital I/O Pins (6 PWM)
● 6 Analog Inputs
● 32KB RAM & 256KB ROM
● Supports E-Paper Displays from 1.54” to 13.3”
● Ideal for Prototyping and Advanced Projects
| |
Technical Details
|
|
The UNO R4-L (C02) Development Kit accelerates the development of E-Paper display projects. It enables anyone with basic electronics knowledge to quickly create functional and innovative circuits.
|
| |
Product Specifications
|
|
| PART NUMBER |
Arduino UNO R4-L(C02) |
| PLATFORM |
Arduino |
| FUNCTION |
Drive E-paper Display |
| OUTSIDE DIMENSION (mm) |
70x54mm( Arduino UNO R4-L),41x22mm (DESPI-C02) |
| SUITABLE SIZE |
1.54/2.13/2.66/2.7/2.9/3.7/4.2/4.26/5.83/7.5/10.2/11.6/13.3'' |
| POWER INTERFACE |
Type Interface |
| POWER INPUT |
DC5V |
| FEATURE |
Fully 、Fast、Partial update |
| OPERATING TEMP |
-20℃~70℃ |
| EXAMPLE CODE |
Available |
| RESERVED FUNCTION |

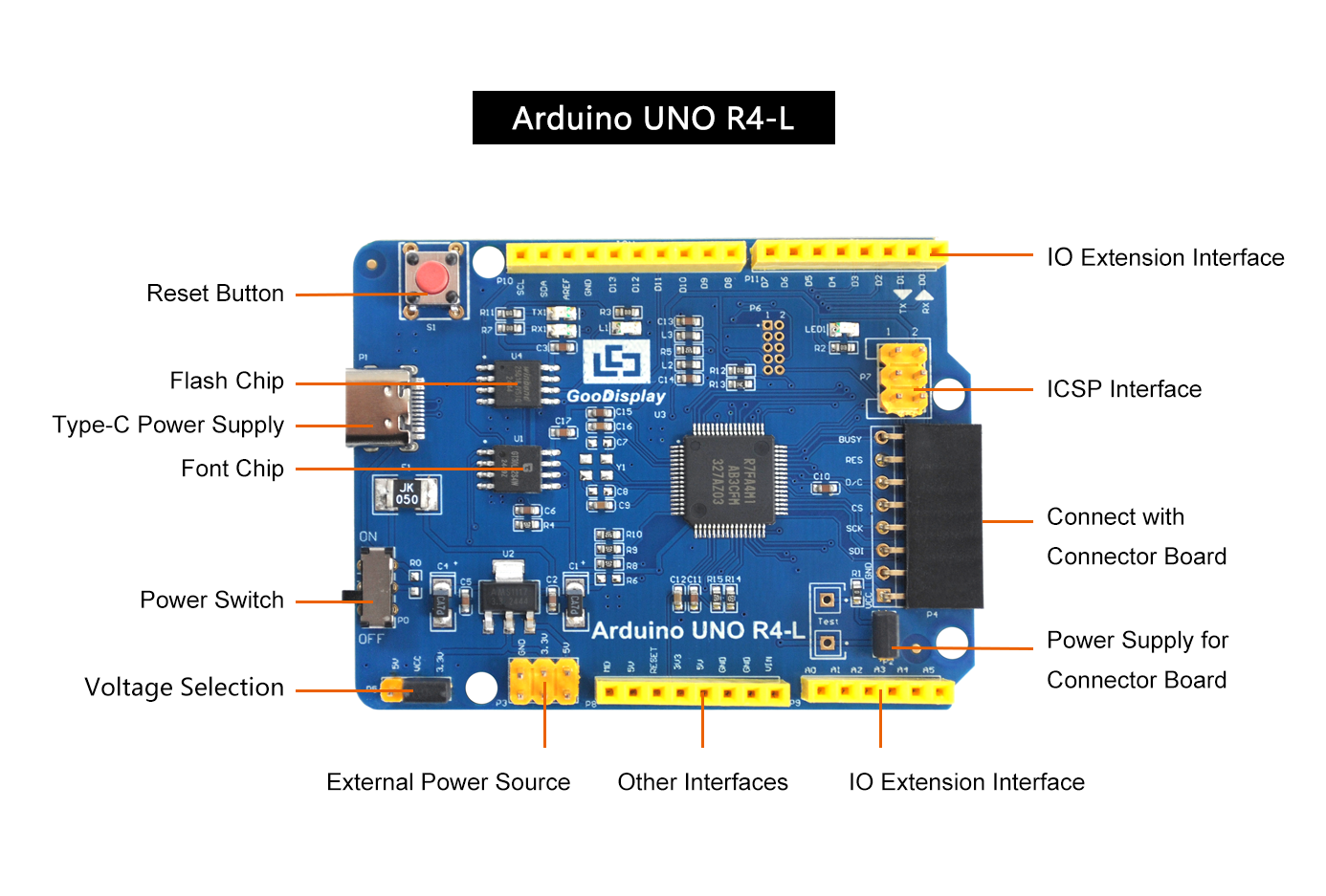

Type-C interface、 pilot light 、 recall button 、 word library chip、 flash chip、current detection |
| |
|
Arduino Development Kits List
Compatible with Serial E Ink Displays (24PIN Interface) Below 13.3 Inches

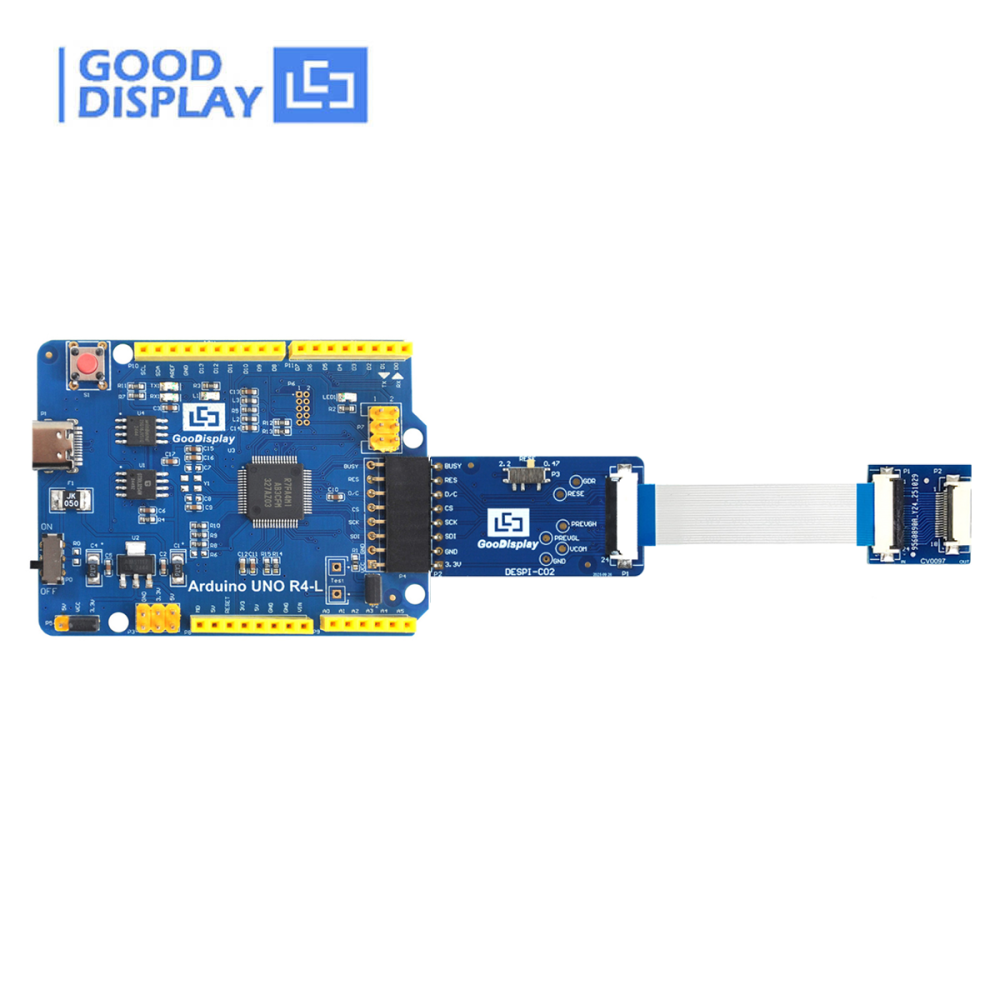

Development Boards + DESPI-C02 = DEArduino UNO R4-L (C02)
Supports Only 0.97-inch E Ink Display
Development Boards + DESPI-C02-CV0097 = DEArduino UNO R4-L (C02-CV0097)
Supports Only 1.02-inch E Ink Display

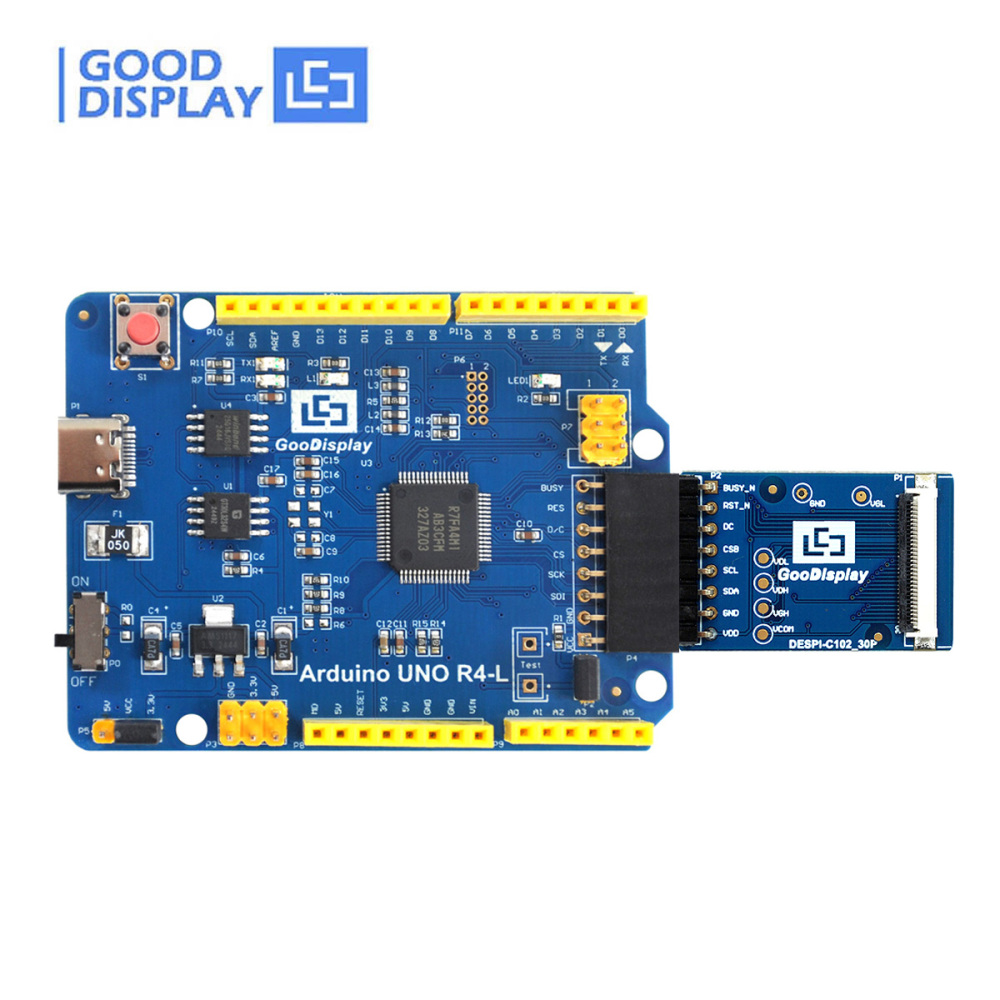

Development Boards + DESPI-C102 = DEArduino UNO R4-L (C102)
Supports Only 3.1-inch E Ink Display

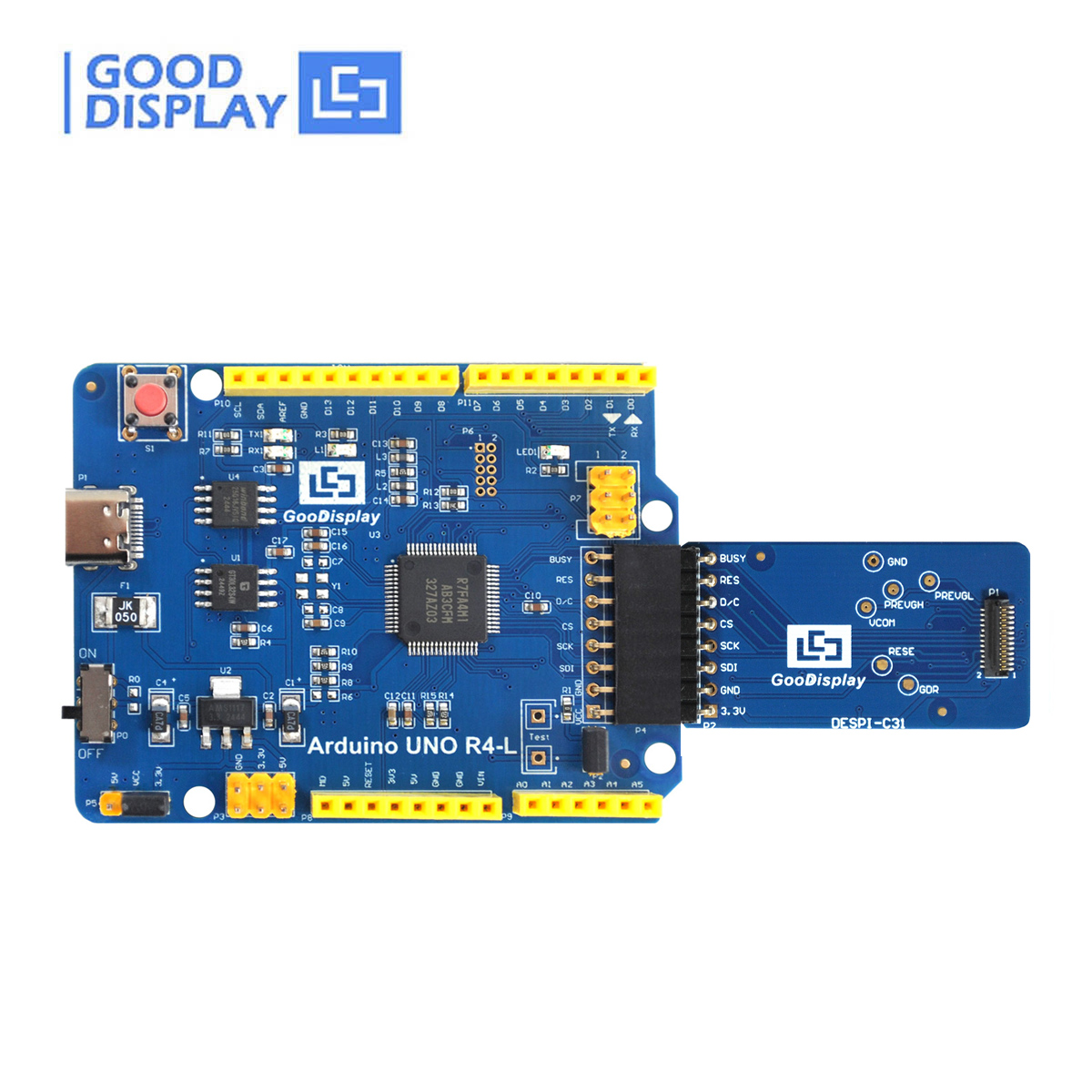

Development Boards + DESPI-C31 = DEArduino UNO R4-L (C31)
Supports Only 5.79-inch E Ink Display

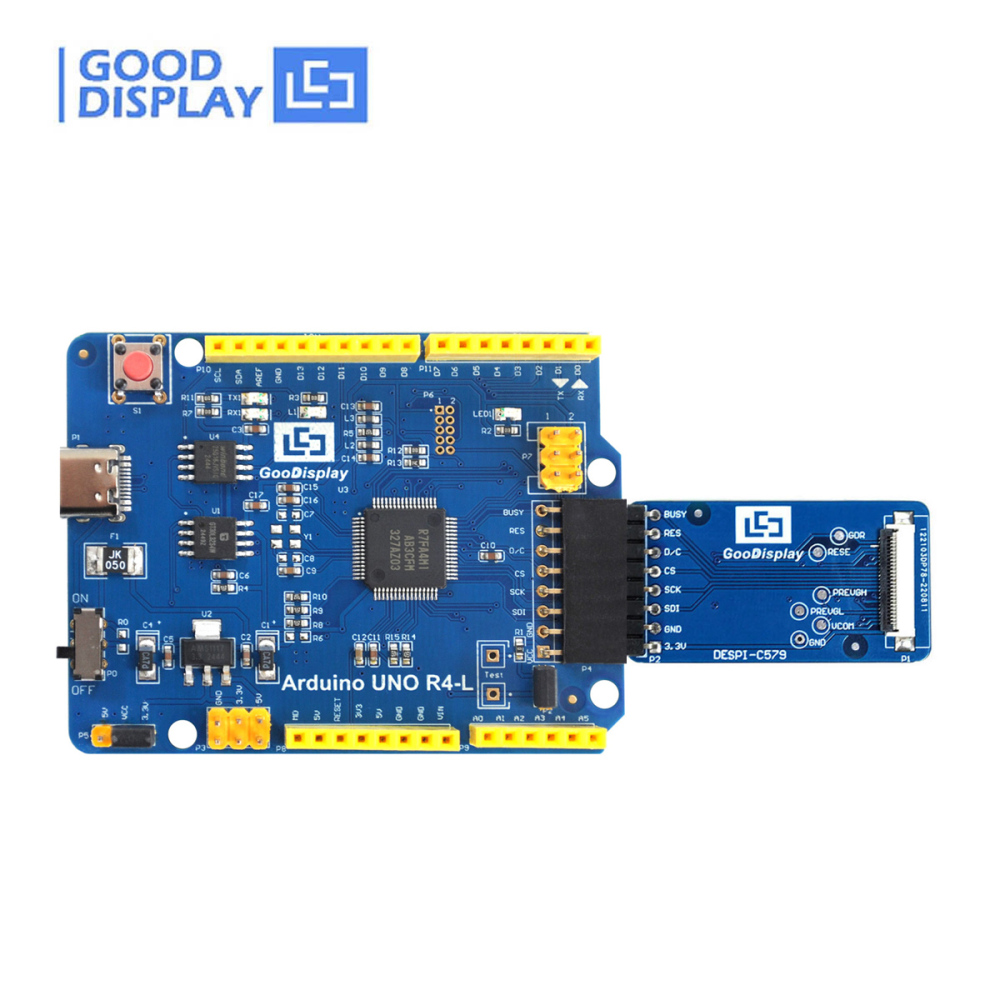

Development Boards + DESPI-C579 = DEArduino UNO R4-L (C579)
Supports Only 10.85-inch E Ink Display

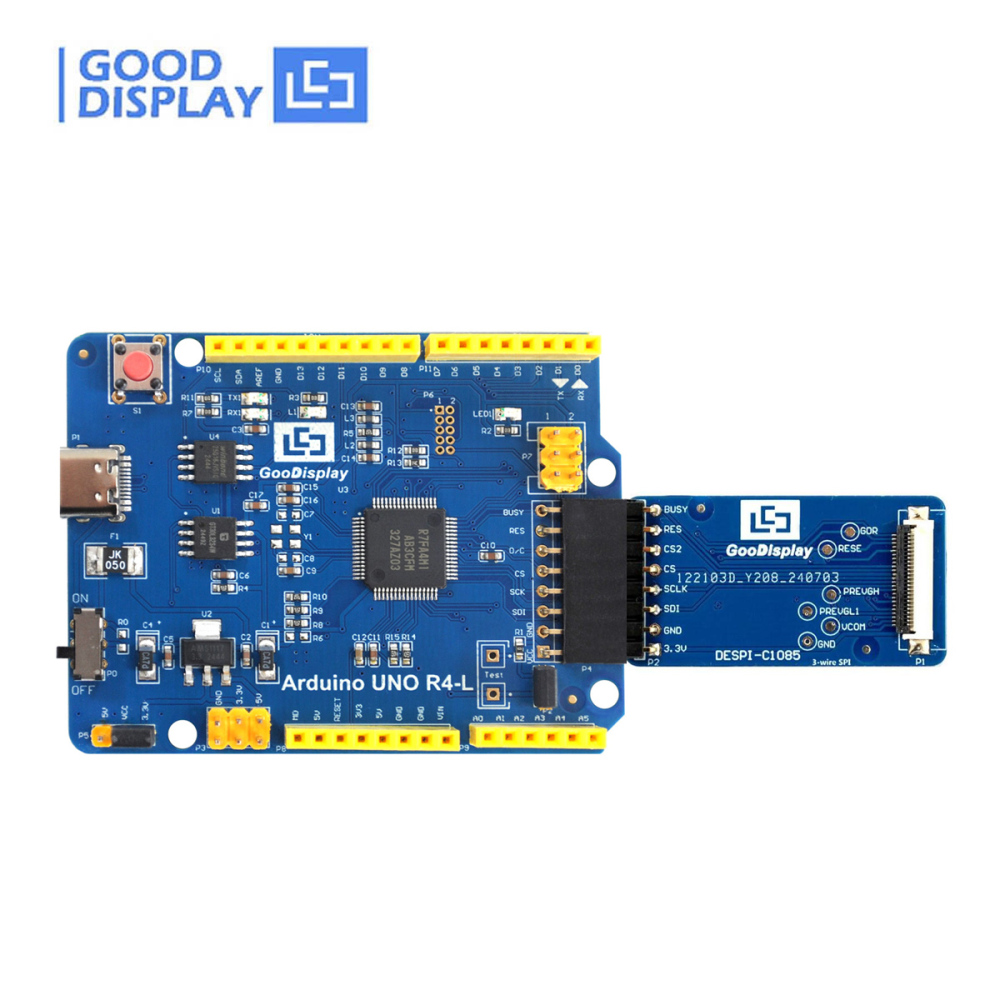

Development Boards + DESPI-C1085 = DEArduino UNO R4-L (C1085)
