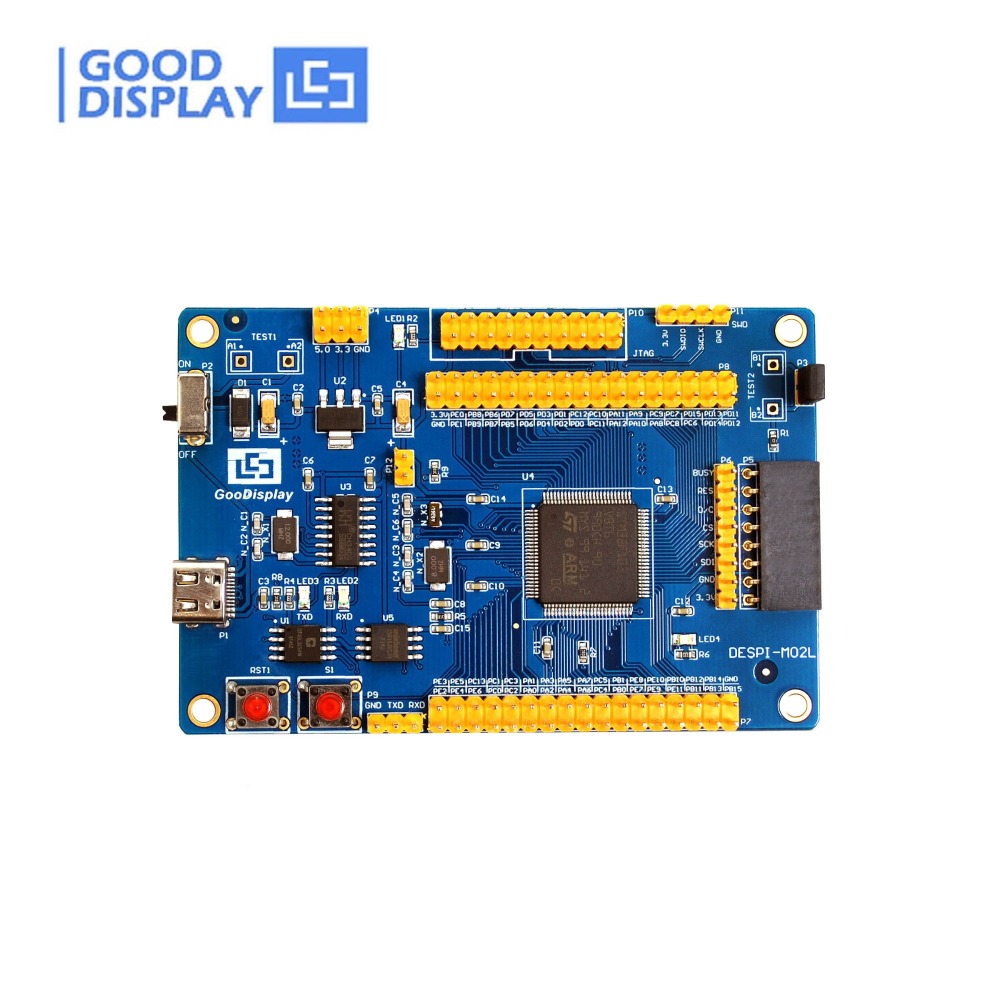

STM32 Development Board
|
|
|
| |
|
GooDisplay's STM32 (DESPI)-Based E-Paper Driver Development Kit integrates touchscreen control and full driving circuits, offering a one-stop low-power display solution. Designed for smart labels, IoT devices, and industrial applications, it accelerates E-Paper driver development and product prototyping.
|
Key Features
● Industrial-Grade Core Built on STM32 Cortex-M (DESPI), enabling real-time processing and ultra-low power consumption (μA-level).
● All-in-One Integration Preloaded with E-Paper driving circuits and touchscreen modules, compatible with monochrome/color E-Paper of multiple sizes.
● Streamlined Development Open-source code libraries, hardware schematics, and compatibility with STM32CubeMX/Keil tools minimize learning curves.
● Cost-Effective Design Optimized power management and compact integration reduce BOM costs and extend battery life.
| |
Technical Details
|
|
|
| |
Product Specifications
|
|
| PART NUMBER |
DESPI-M02L |
| PLATFORM |
STM32 |
| FUNCTION |
Drive E-paper Display |
| OUTSIDE DIMENSION (mm) |
90x60 |
| MCU |
STM32F103VET6 |
| POWER INTERFACE |
Type C Interface |
| MAIN FUNCTION |
Learn to drive E-paper display;
Test and evaluate e-paper display;
Support secondary development |
| RESERVED FUNCTION |
Type-C, LED indicator, Reset button, Font chip, Flash chip, Current detection |
| OPERATING TEMP |
-20℃~70℃ |
| RECOMMENDED TOOL |
Available |
| |
|
STM32 Development Kits List

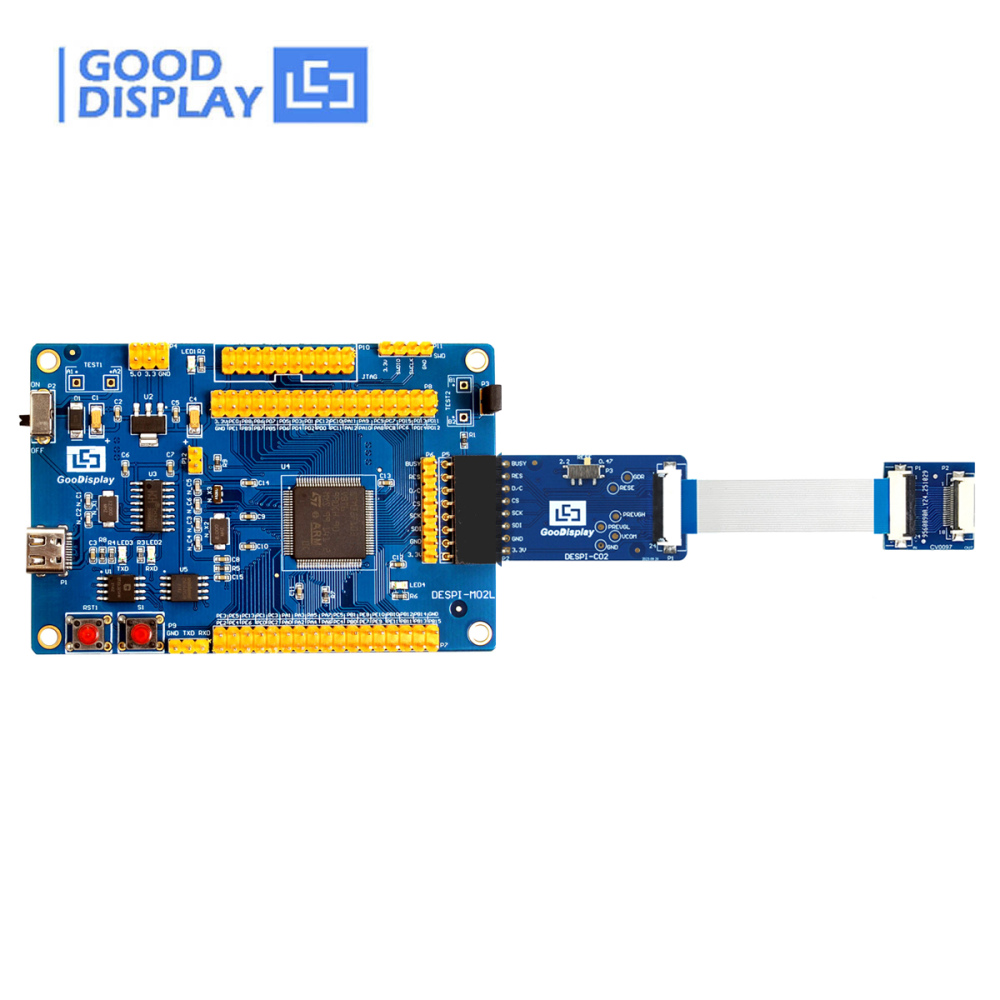

Compatible with Serial E Ink Displays (24PIN Interface) Below 13.3 Inches
Development Boards + DESPI-C02 = DESPI-L(C02)
Supports Only 0.97-inch E Ink Display
Development Boards + DESPI-C02-CV0097 = DESPI-L(C02-CV0097)

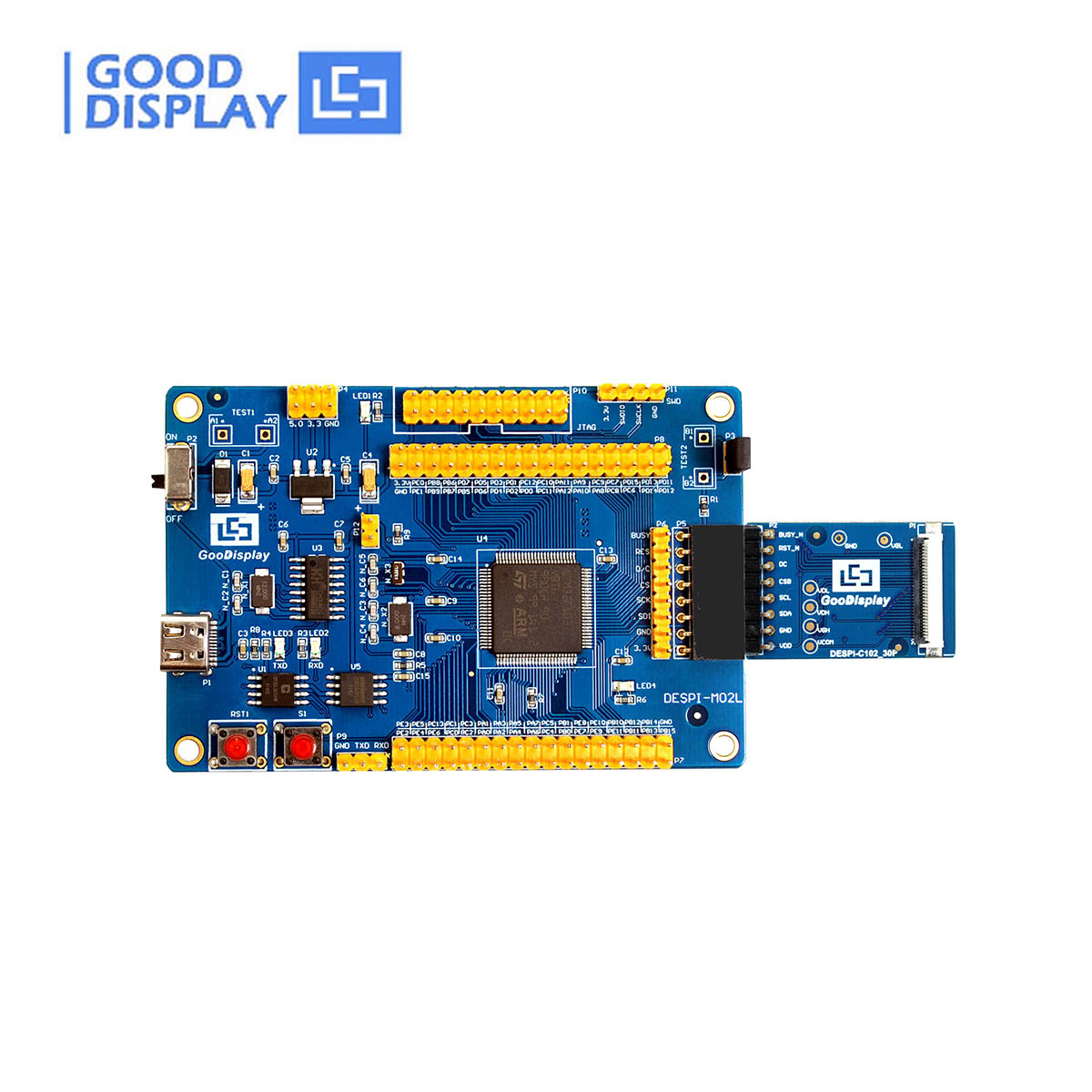

Supports Only 1.02-inch E Ink Display
Development Boards + DESPI-C102 = DESPI-L(C102)

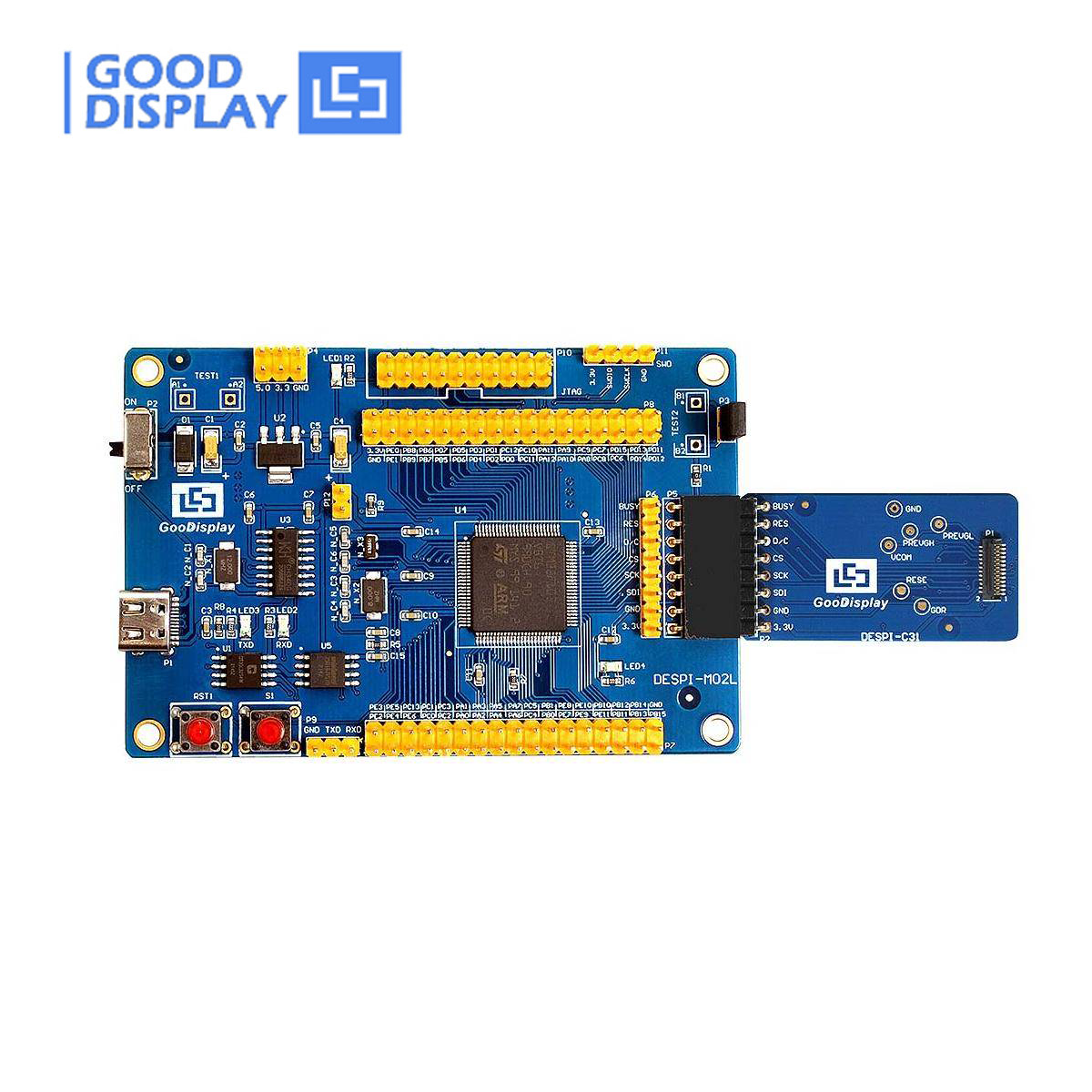

Supports Only 3.1-inch E Ink Display
Development Boards + DESPI-C31 = DESPI-L(C31)

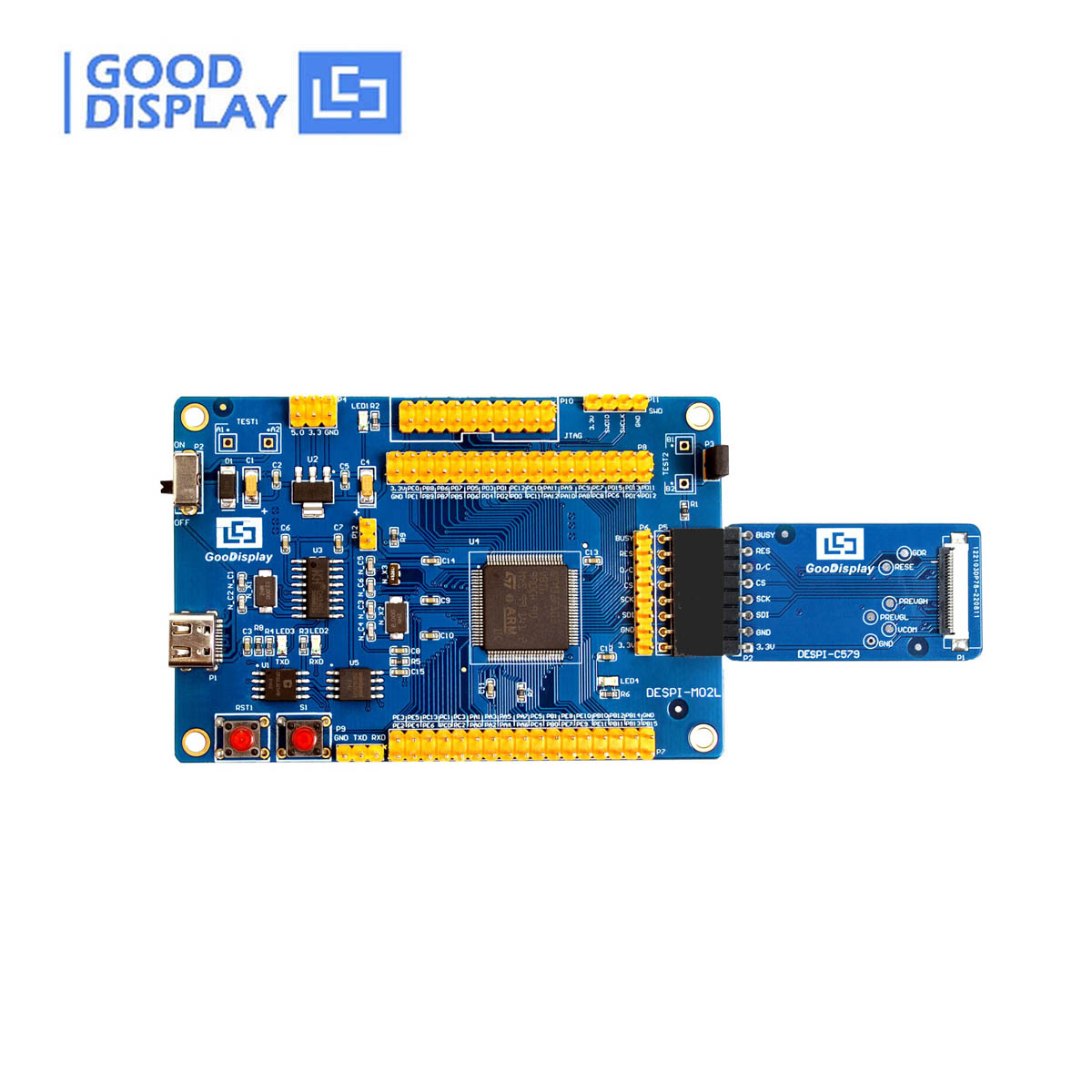

Supports Only 5.79-inch E Ink Display
Development Boards + DESPI-C579 = DESPI-L(C579)
Supports Only 1.02-inch E Ink Display
Development Boards + DESPI-C73 = DESPI-L(C73)

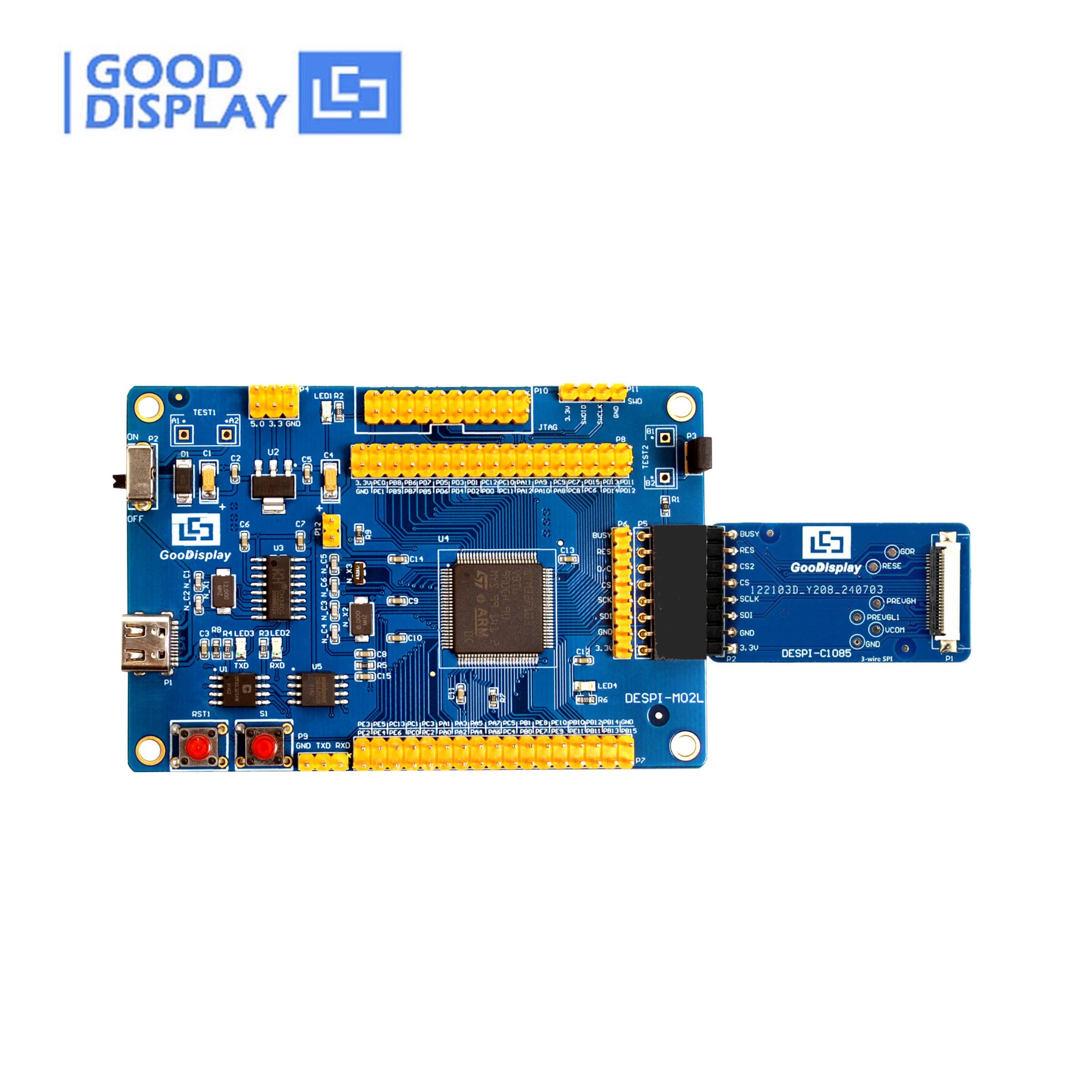

Supports Only 10.85-inch E Ink Display
Development Boards + DESPI-C1085 = DESPI-L(C1085)

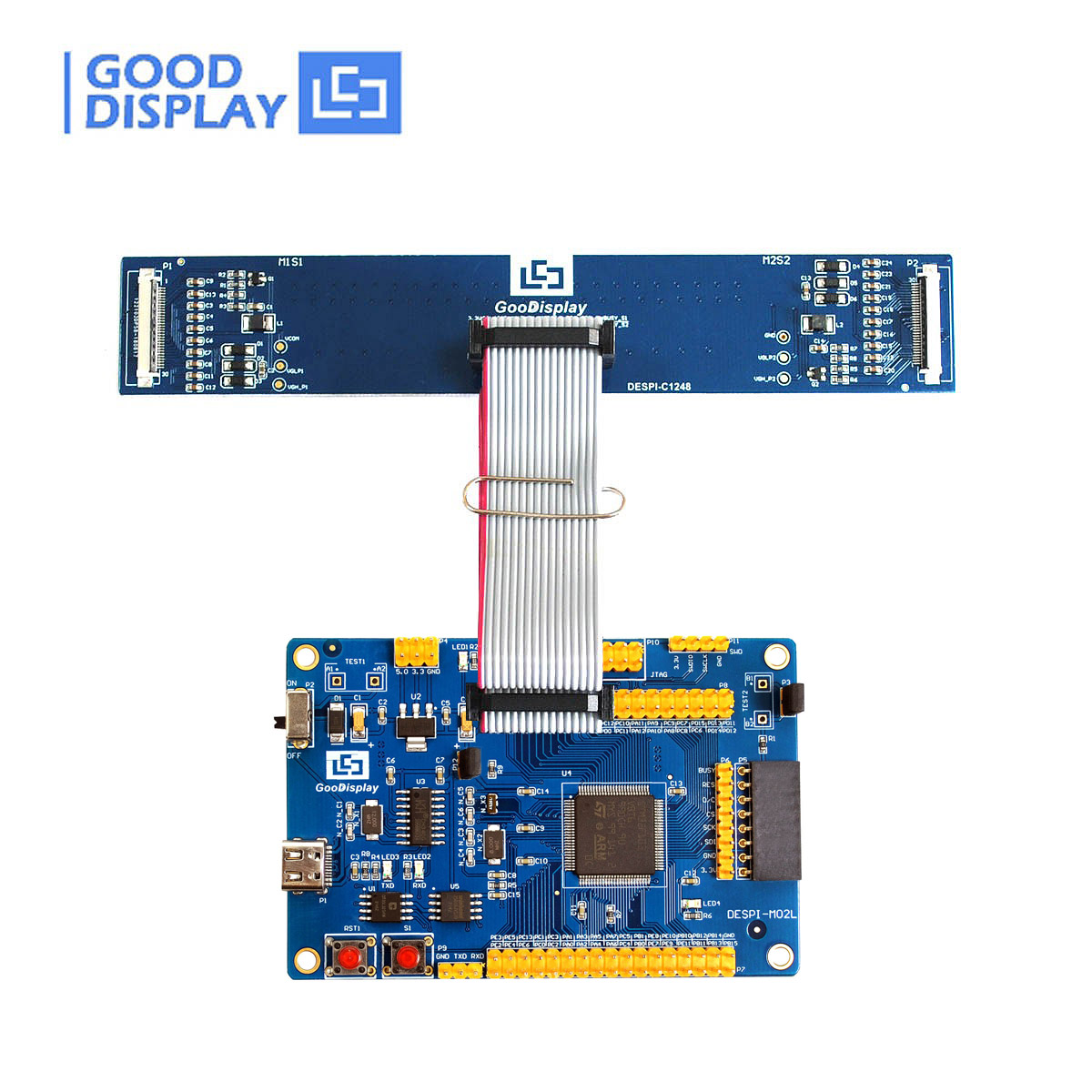

Supports Only 12.48-inch E Ink Display
Development Boards + DESPI-C1248 = DESPI-L(C1248)

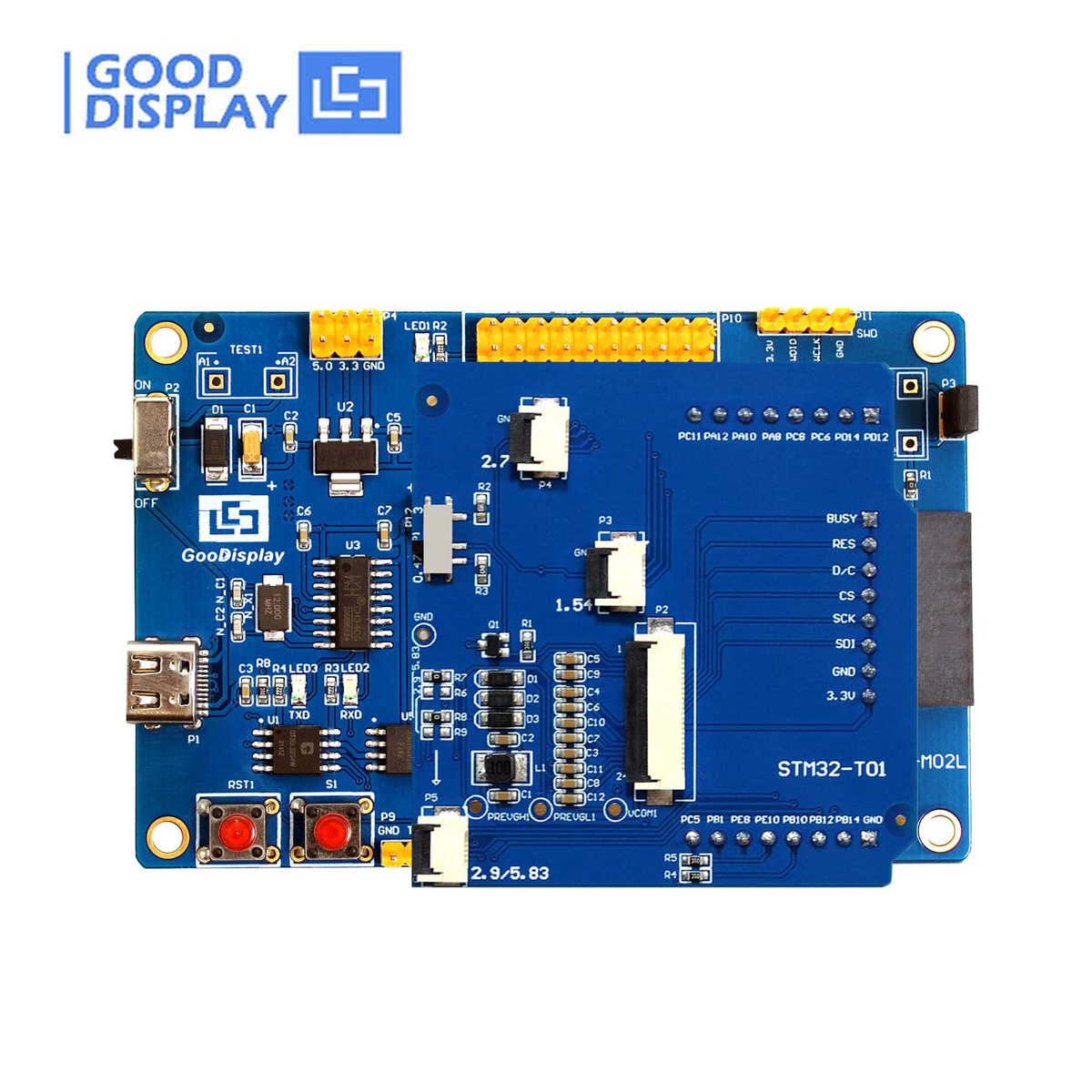

Supports Only Touchscreen E Ink Display
Development Boards + STM32-T01 = STM32-L(T01)
