New 1.54 inch e-paper display frontlight partial refresh E-ink GDEH0154D67-FL

GDEH0154D67-FL
1.54 inch e-paper display with frontlight, 200x200 resolution,  24 pins FPC connection, SPI interface, with embedded controller(COG package) and on-chip stored waveform,  supports black and white.
Sold:2
Price:
USD
$11.54
    Please select the information you wantX
Quantity:
-
+
(18 available)
  • Description
  • Reviews

Any questions, just feel free to contact me, my email is: clara@good-display.com



General Description
This is a 1.54 inch e-paper display with frontlight, 200x200 resolution,  24 pins FPC connection, optional FPC connector, communicating via SPI interface, with embedded controller(COG package) and on-chip stored waveform,  supports black and white.

In view of so many advantages: ultra low power consumption, near 180 degree view angle, GDEH0154D67-FL is a very good choice for applications like shelf label, smart tags, wearable devices, smart home application, industrial instrument, smart cards and other related products, and it can be used in dark surrounding.

The above price inclundes
1)1.5''e ink with frontlight GDEH0154D67-FL *1pc
2)FPC Connector *1pc
After order our sales will contact you soon and send the documentation & source code.


If you want to buy this display with demo kit together, click here:
http://upaj177.myueeshop.com/154-inch-200x200-e-paper-display-with-frontlight-with-demo-kit-drive-board-gdeh0154d67-fldespi-v30-p0305.html
If you want to buy this display with connect board, click here:
http://upaj177.myueeshop.com/154-inch-200x200-partial-refresh-e-paper-display-with-frontlight-with-multifunction-connection-adapter-board-gdeh0154d67-fldespi-c03-p0309.html
Feature
With frontlight

SPI interface

Support partial refresh

Higher resolution, 200x200
Development platform available STM32 / Arduino Raspberry Pi

Main Parameters

Part Number

GDEH0154D67-FL

Type

Dot Matrix

Resolution

200*200

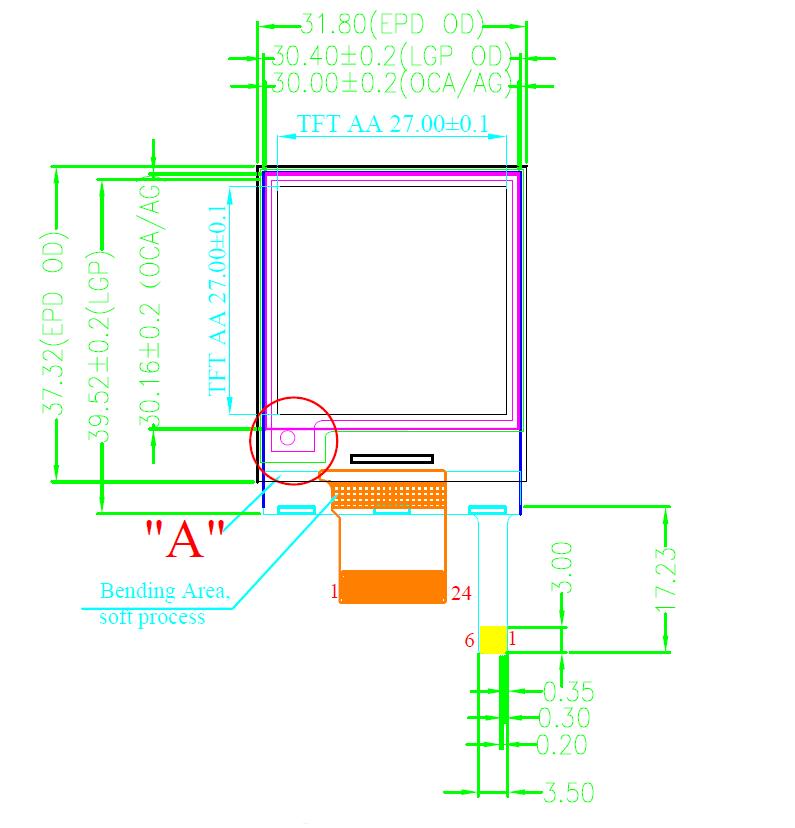

Outline Size(mm)

31.8*37.32*1.8

Actve Size(mm)

27.00*27.00

Pixel Pitch(mm)

0.135*0.135

Operating Temp.

0~50C

Storage Temp.

—25~60C

Connector

24 Pin FPC, Pitch:0.5mm

Max Grayscale

2

Color

Black,White

Time of refresh(s) 4
Time of partial refresh(s) 0.26
Interface  SPI
Driving voltage 2.8V-3V

Specification download
http://www.e-paper-display.com/products_detail/productId=474.html

Related Products

Part Number

Color

Resolution

T/P and Front-

light(Optional)

Features

Refresh Time

GDEH0154D67

B/W

200*200

Partial refresh

4S/2S

GDEW0154C39

B/W/Y

152*152

Three colors

26S

GDEW0154Z17

B/W/R

152*152

Three colors

16S

GDEM0154E97LT

B/W

152*152

Ultra-low temperature

3S

GDEW0154Z04

B/W/R

200*200

Three colors

8S

GDEW0154T8FL

B/W

152*152

Partial refresh, with front light, 4 Grayscale

3S

GDEW0154T8

B/W

152*152

Partial refresh, 4 Grayscale

3S

GDEW0154Z04FL

B/W/R

200*200

Three colors,with front light

8S

GDEW0154Z17FL

B/W/R 152*152 Three colors,with front light 16S

GDEH0154D67-FL

B/W 200*200 Partial refresh,with front light 4S/2S

GDEW0154T8-FL

B/W 152*152 Partial refresh, 4 Grayscale,with front light 3S

GDEW0154Z04-FL

B/W/R 200*200 Three colors,with front light 8S

GDEW0154C39FL

B/W/Y

152*152

Three colors,with front light

26S
