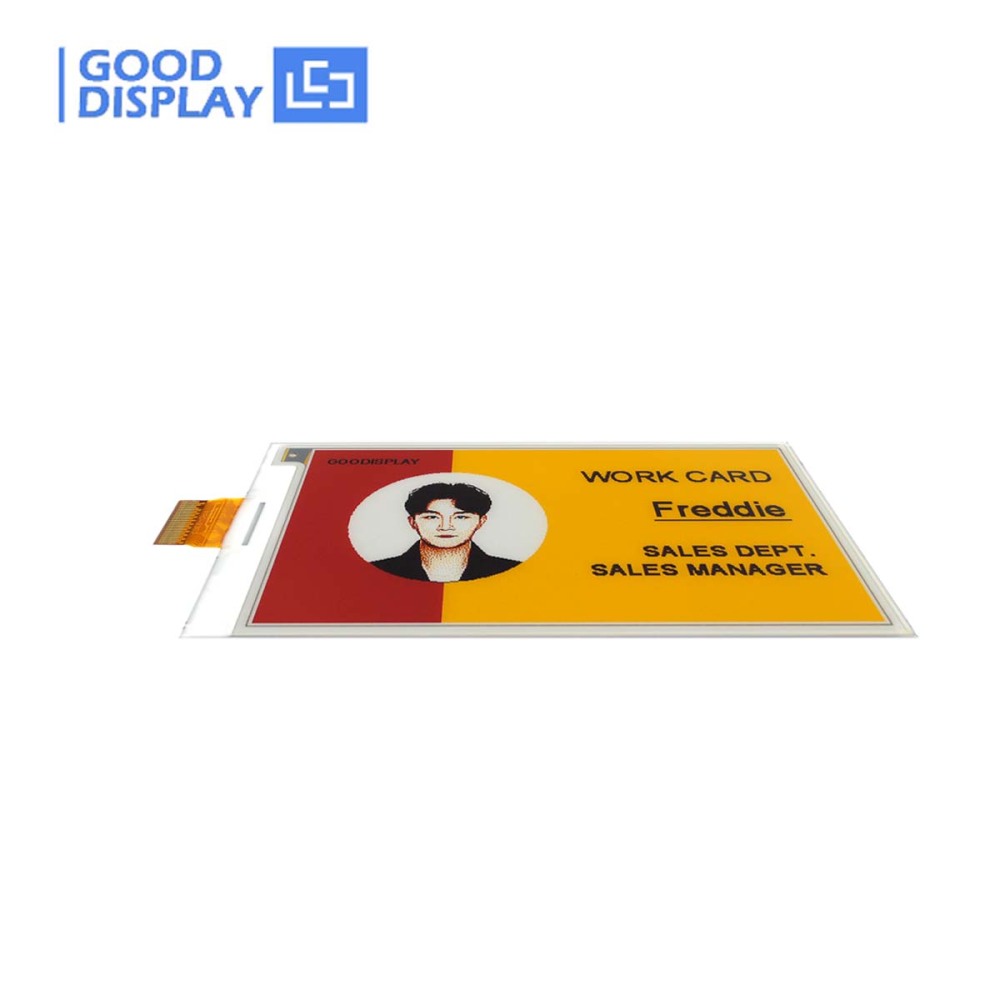

3.7 Inch Black, White, Yellow, and Red 4-colors E-ink Screen Resolution 416x240

GDEM037F51

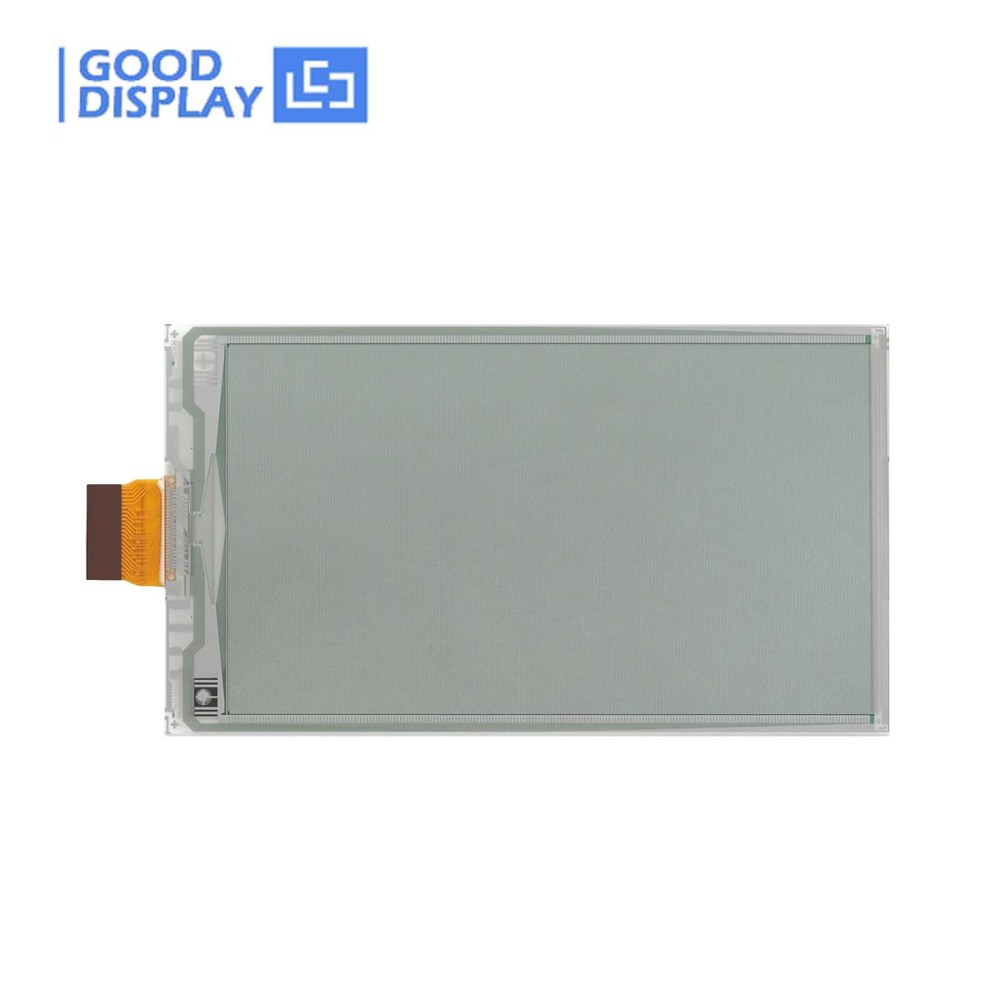

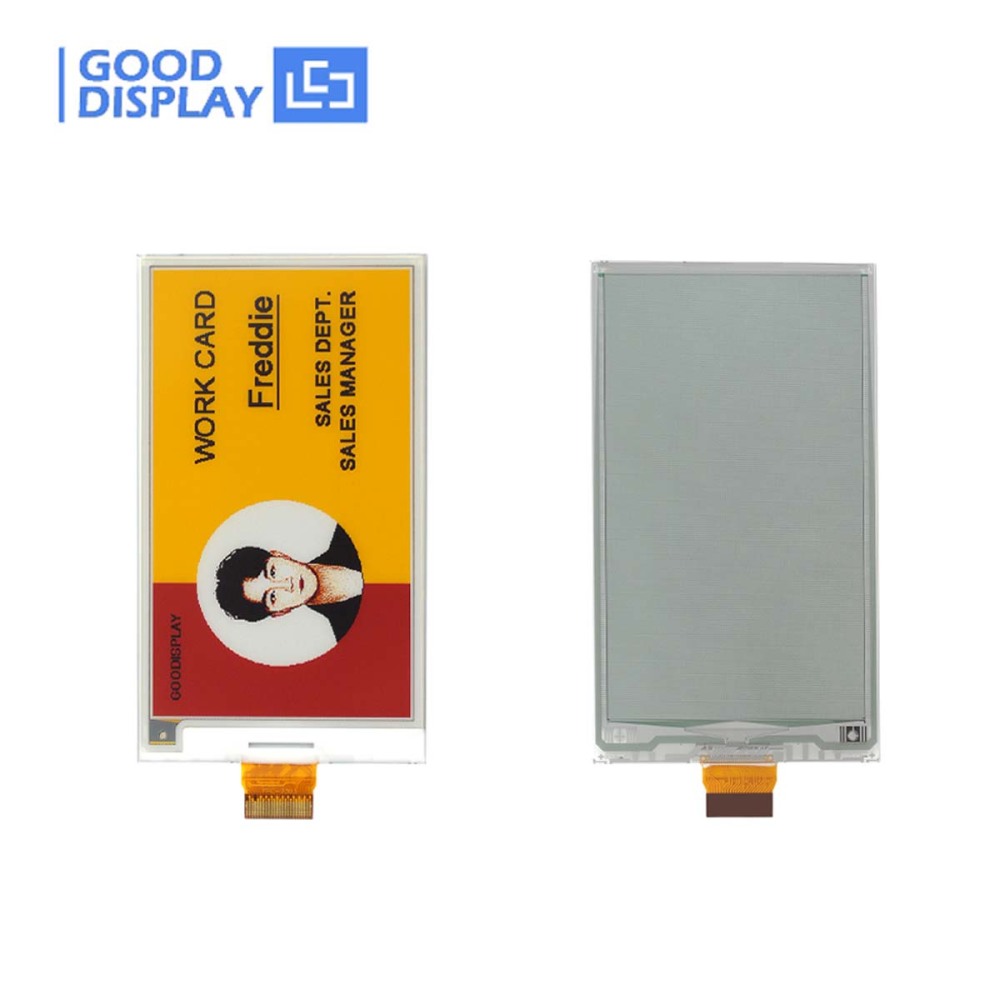

This is a 3.7 inch e-ink screen with 416x240 resolution, SPI interface, and the display is capable to display images with 4 colors content.
Price:
USD
$16.70
  • product:

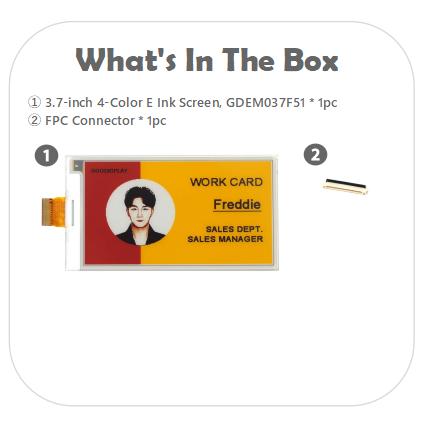

    EPD

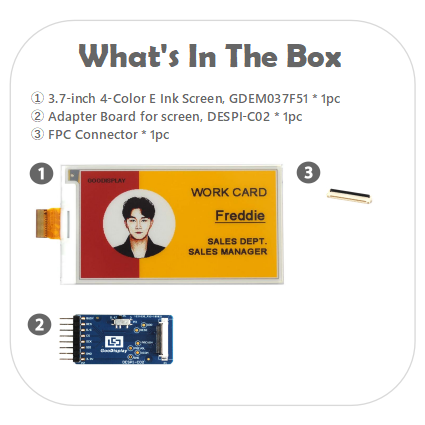

    EPD with adapter board

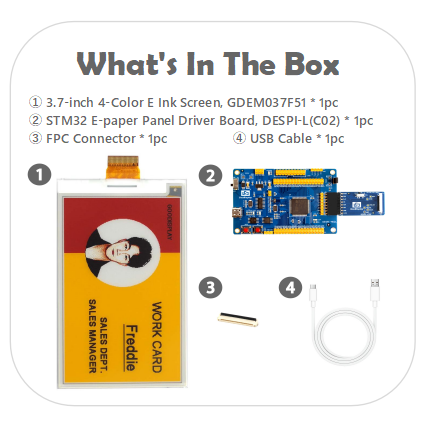

    EPD with STM32 Demo Kit
    EPD with ESP32 Demo Kit
    adapter board
Quantity:
-
+
(266 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Reviews


3.7-Inch Color E Ink Display Innovative, Energy-Efficient Tech Gadget with Black, White, Yellow, and Red




Introducing the 3.7-Inch E Ink Display (GDEM037F51), which features a resolution of 416x240 and supports black, white, yellow, and red colors. This display is ideal for low-power applications, as it holds images indefinitely without power once updated. Perfect for smart home devices, retail signage, wearables, and solar-powered gadgets, this display combines vibrant color with ultra-low power consumption and easy integration via SPI interface. Upgrade your tech with this energy-efficient and versatile display solution.








Special Features


    Our product boasts distinctive features that set it apart from the competition
      ●  Explore the latest trends and embrace a world of vibrant possibilities! Our e-paper display stands out with its unique four-color feature, showcasing hues of black, white, yellow, and red to make your information pop with life.
  ●  Get practical and efficient, while saving on costs! Our product emphasizes value for money, delivering an exceptional experience without breaking the bank. Multi-color display is no longer a luxury, suitable for applications of all scales, opening up endless business opportunities.
  ●  Indulge in a visual feast like never before! With a wide viewing angle design, exceeding 170 degrees, you can enjoy crystal-clear visuals from wherever you are, capturing every detail effortlessly.
  ●  No more compromise in bright environments! We employ anti-glare technology to ensure clear visibility even in harsh lighting conditions, allowing you to maintain impeccable display performance without any hindrance.
  ●  Experience an everlasting companion! With its zero-power retention feature, even in the event of a power outage, your content remains intact, making it perfect for smart tags, shelf labels, and beyond. Choose us and embark on a new era of intelligent living!









Technical Details

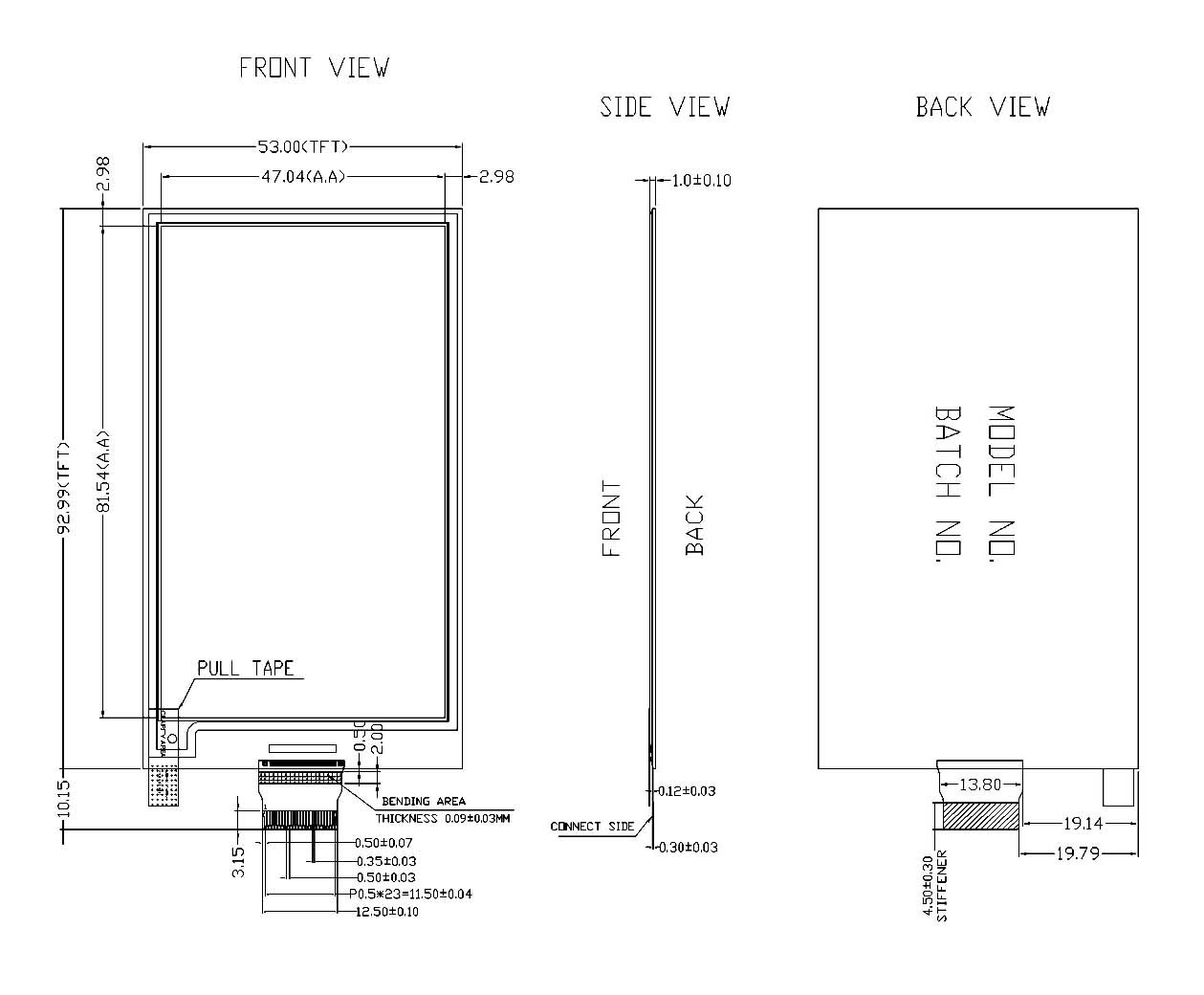

    Please refer to the product drawings for detailed dimensions









Product Specifications


    Please refer to the product specifications for more details

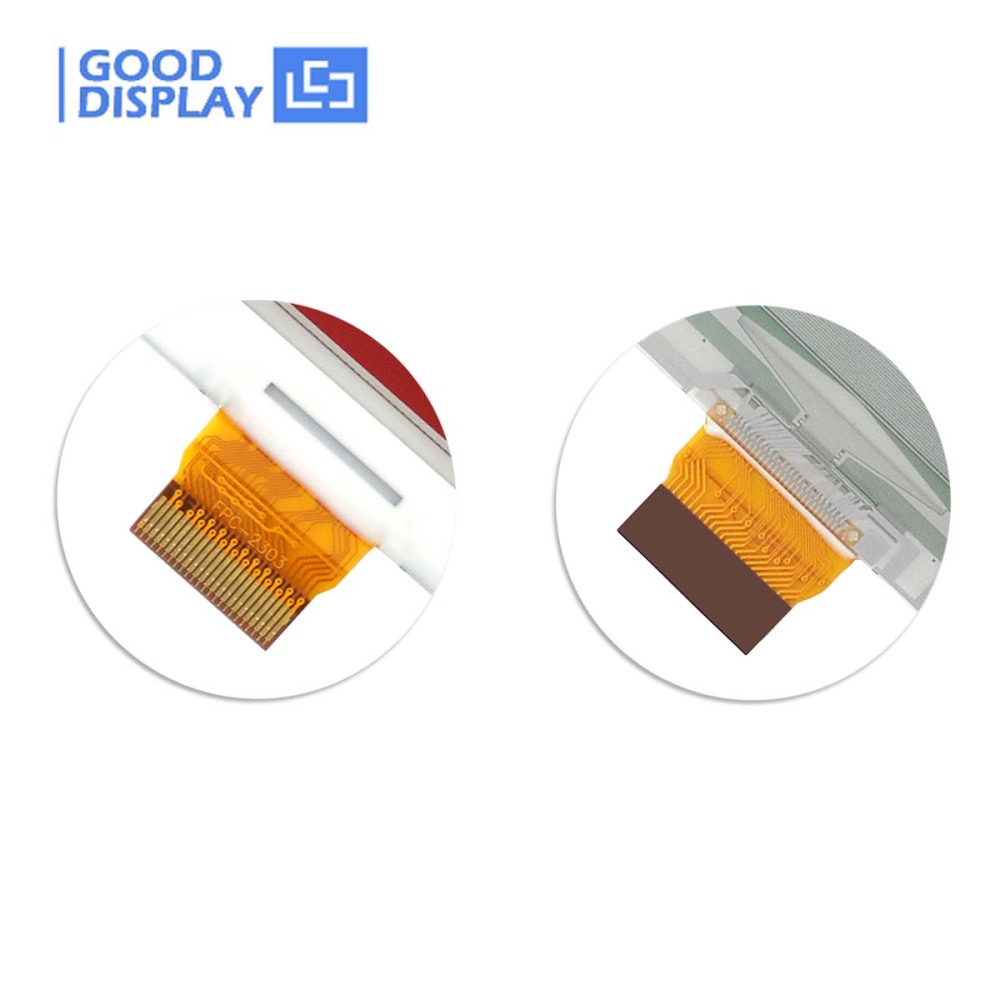

PART NUMBER GDEM037F51 CONNECTOR 24 Pin FPC
SIZE 3.7 inch TYPE Dot Matrix
IC IST7163 MAX GRAYSCALE 2
RESOLUTION 416x240 COLOR Black, White, Red, Yellow
OUTLINE SIZE(mm) 92.99x53.00x1.0 INTERFACE SPI
ACTIVE SIZE(mm) 81.54x47.04 FULL UPDATE TIME(s) 20
PIXEL PITCH(mm) 0.196x0.196 TYPICAL POWER(mW) 13.5
OPERATING TEMP. 0℃~40℃ DEEP SLEEP POWER(mW) 0.012
STORAGE TEMP. -25℃~70℃

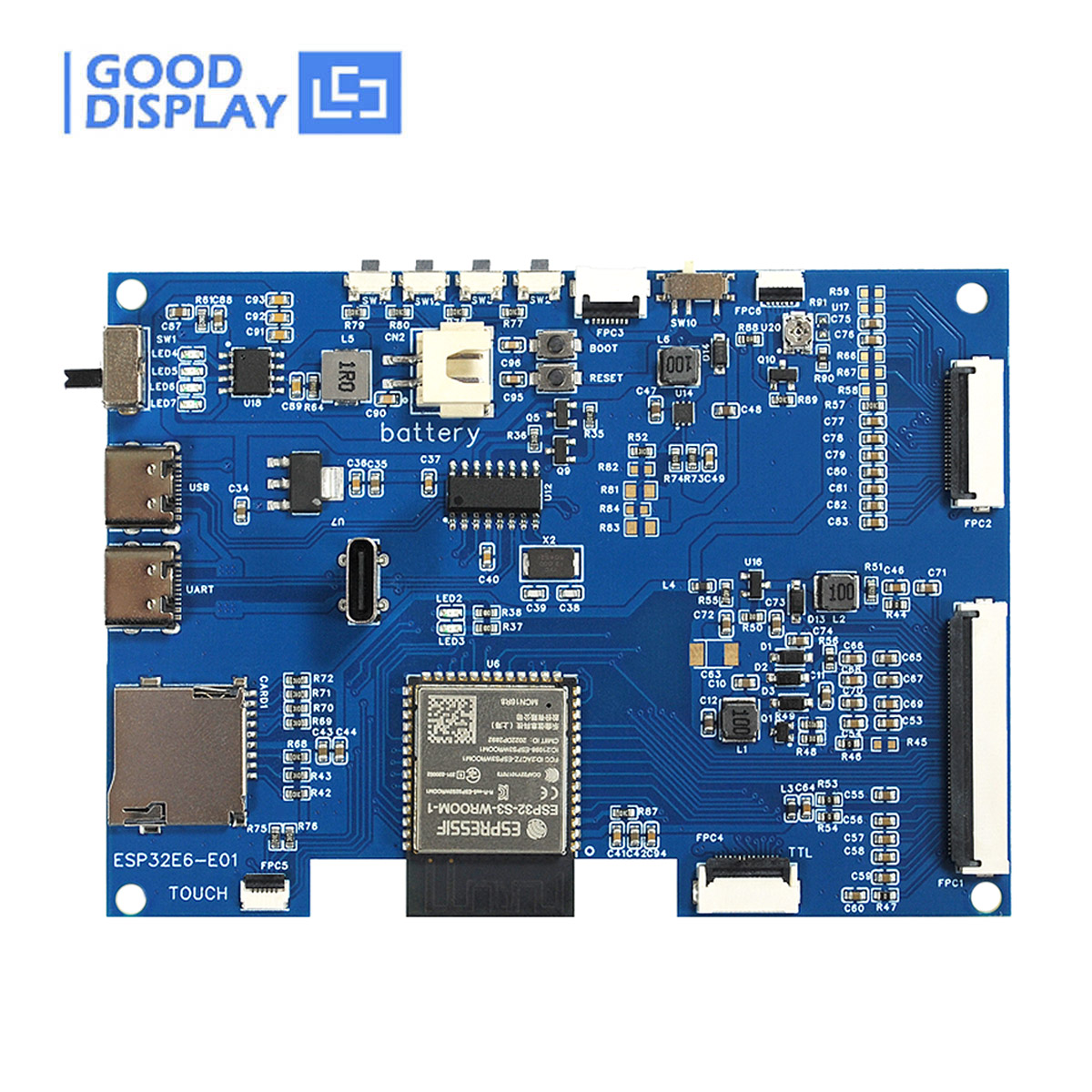

Matching Driver Board
To facilitate the testing and comparison of e-paper, we recommend the following driver boards for you.

a.DESPI-C02 (E-ink Display adapter Board) b.DESPI-L(C02) (STM32 Demo Kit) c.ESP8266-L(C02) (ESP8266 Demo Kit) d.ESP32-L(C02) (ESP32 Demo Kit)








Related Information Download

Click on the subheadings below to download

  ● GDEM037F51 Specification ● GDEM037F51 STM32 Sample Code
  ● IST7163 Driver IC Datasheet ● GDEM037F51 ESP32 Sample Code
  ● Image2LCD Software Bitmap Conversion Instructions V1.0 ● GDEM037F51 ESP8266 Sample Code
  ● The latest Catalog of ePaper display ● Why can't I download the files(updated)?
