☆ INTRODUCTION

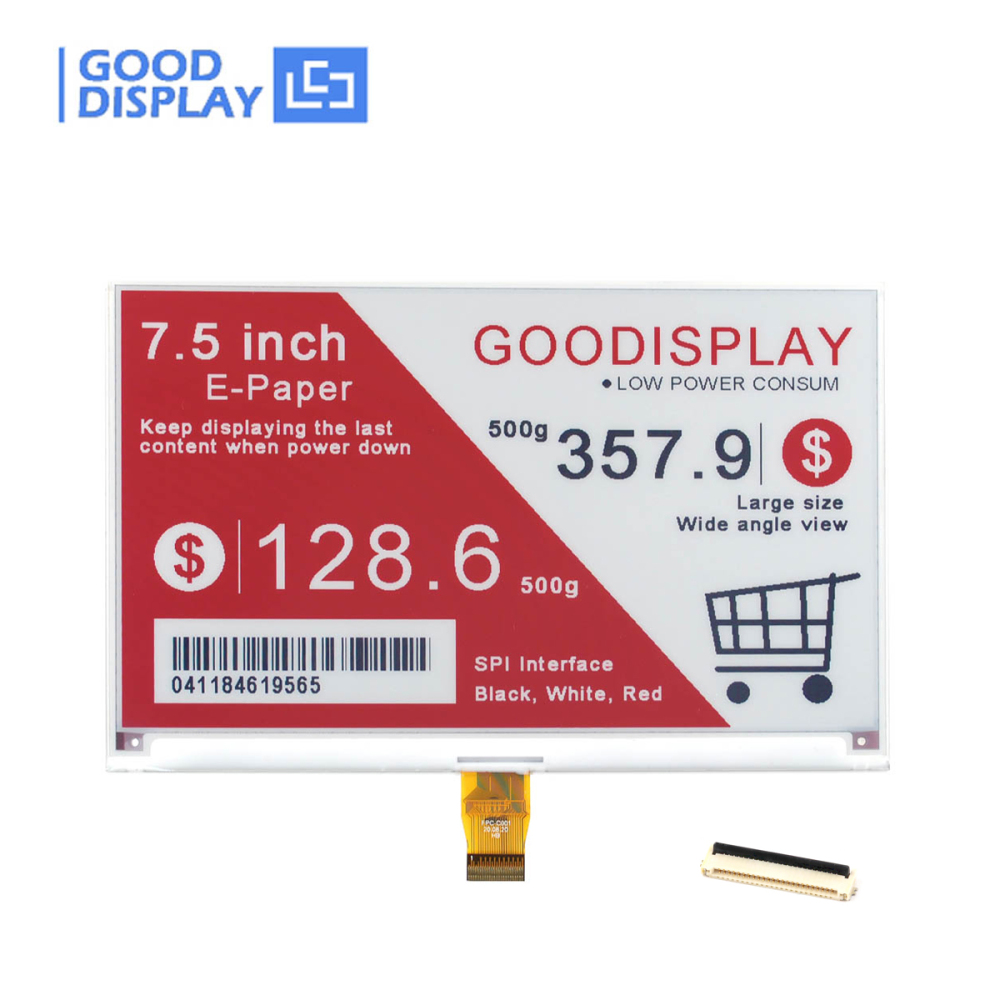

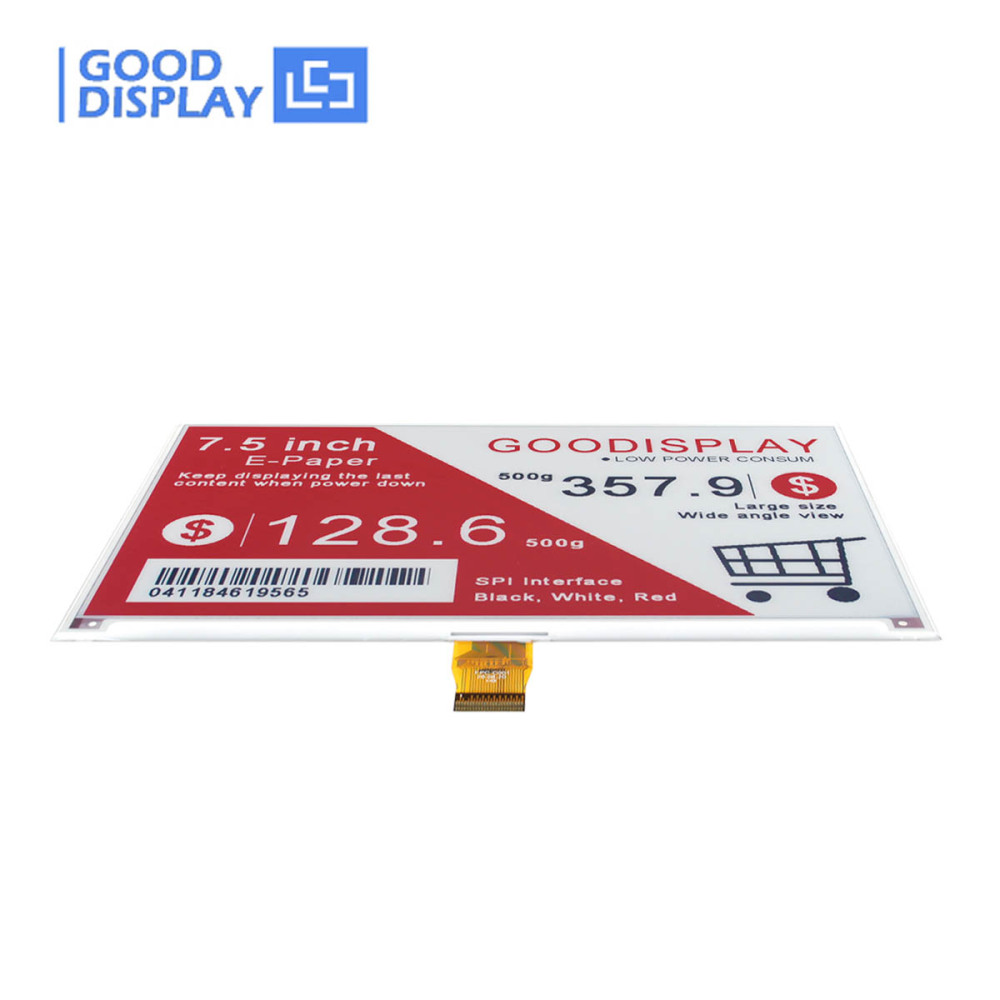

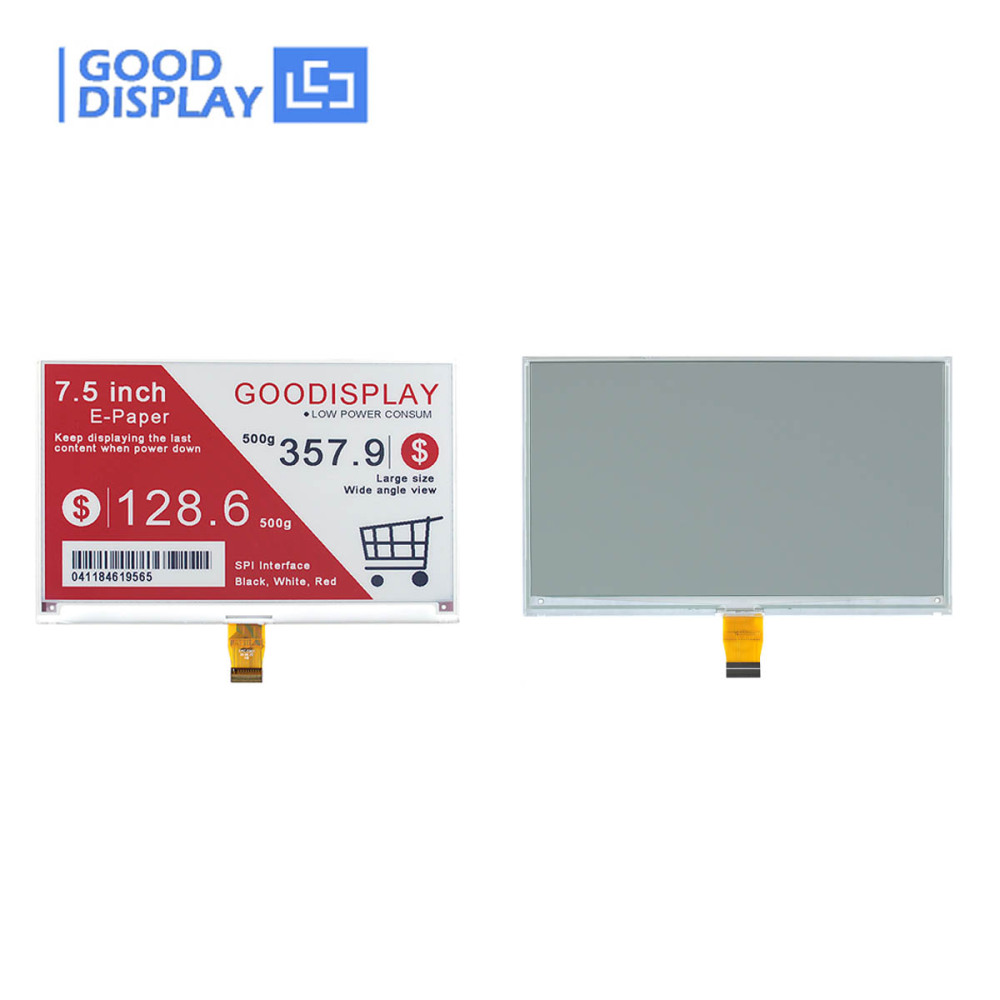

Name: 7.5'' E-Paper Display SPI Color Electronic Paper Screen With EPD HAT, GDEY075Z08 with adapter board DESPI-C02
Brand: GOOD DISPLAY
Price: 38.80 USD
Availability: InStock

This is a 7.5 inch color electronic paper screen with 800x480 resolution, SPI interface, and the display is capable to display images with black, white and red content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely.

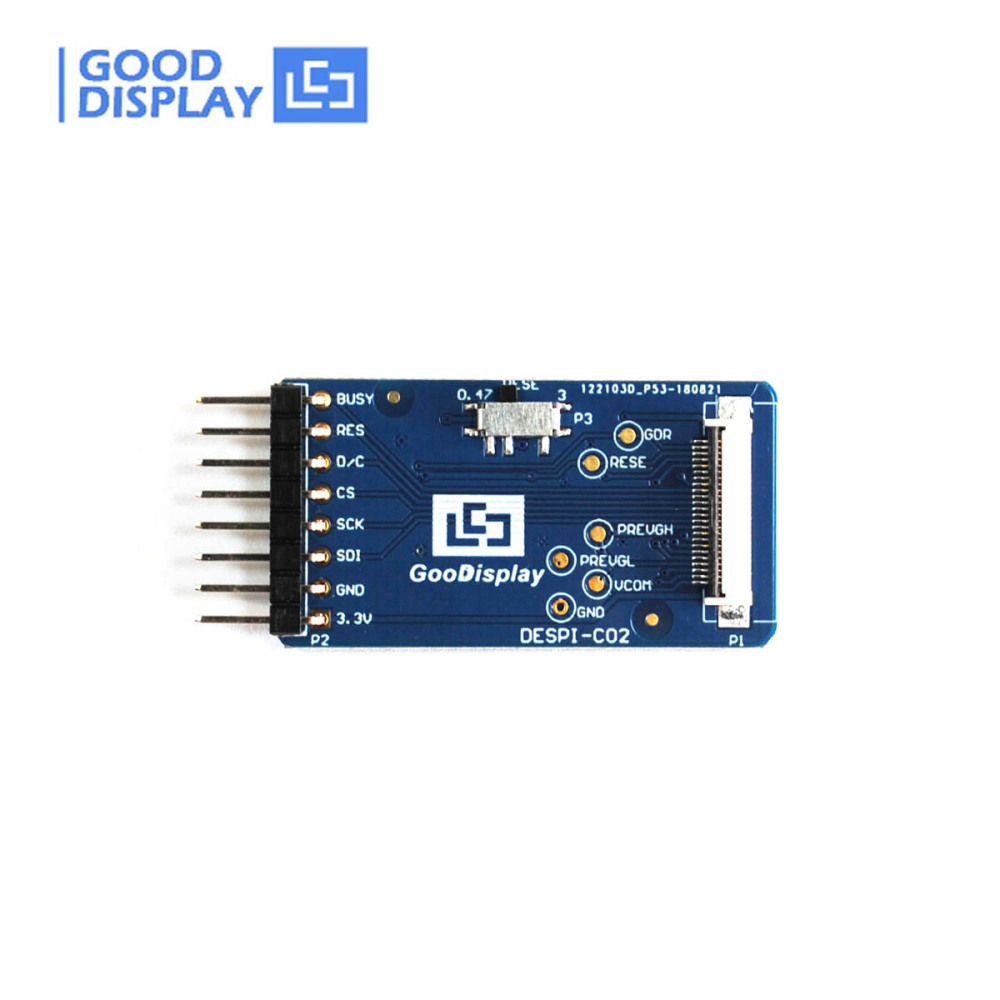

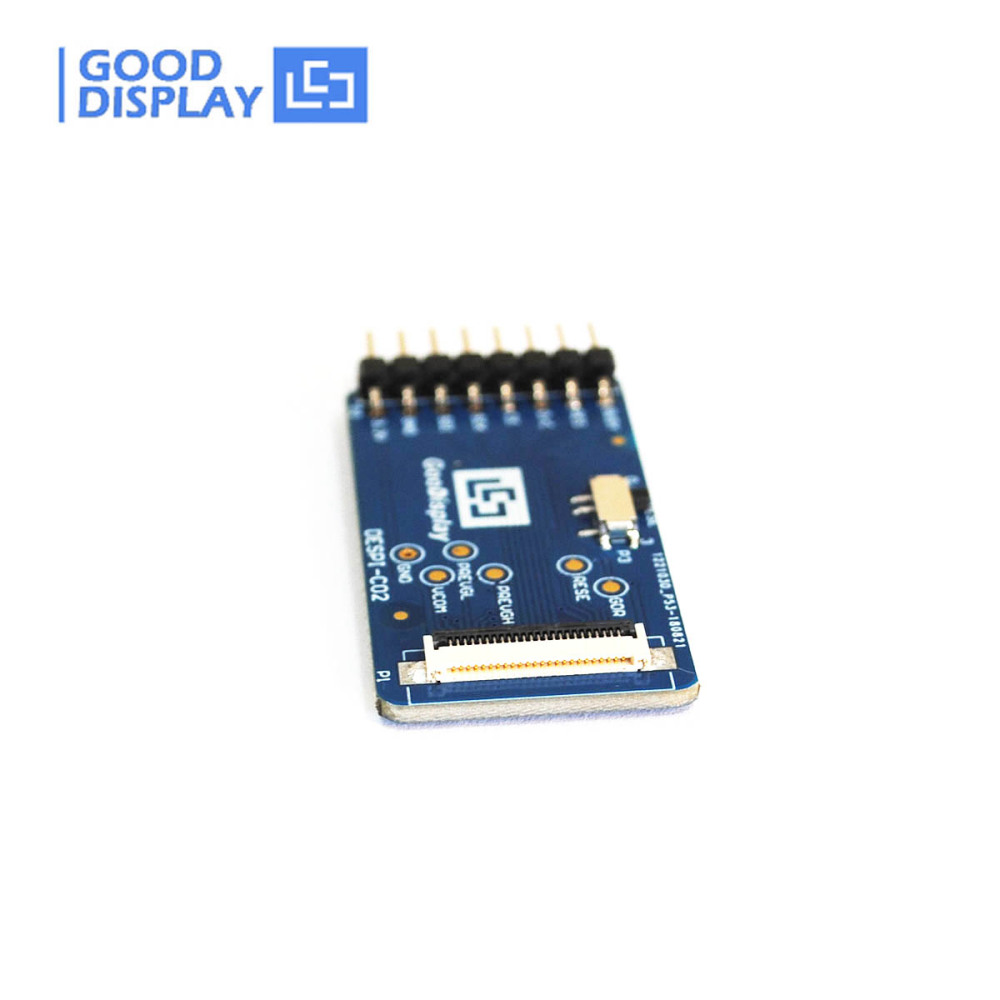

This connection board DESPI-C02 used for Good Display's black-white E-paper Display and three-color (black, white and red/Yellow)

We could provide front light, touch screen and other accessories for you.
Relevant manual about this product on Library or you could go to our official website (www.good-display.com), contact us please.

* Partial update only be used on black and white color instead of red color.

☆ THE ABOVE PRICE INCLUDE

Package A		+

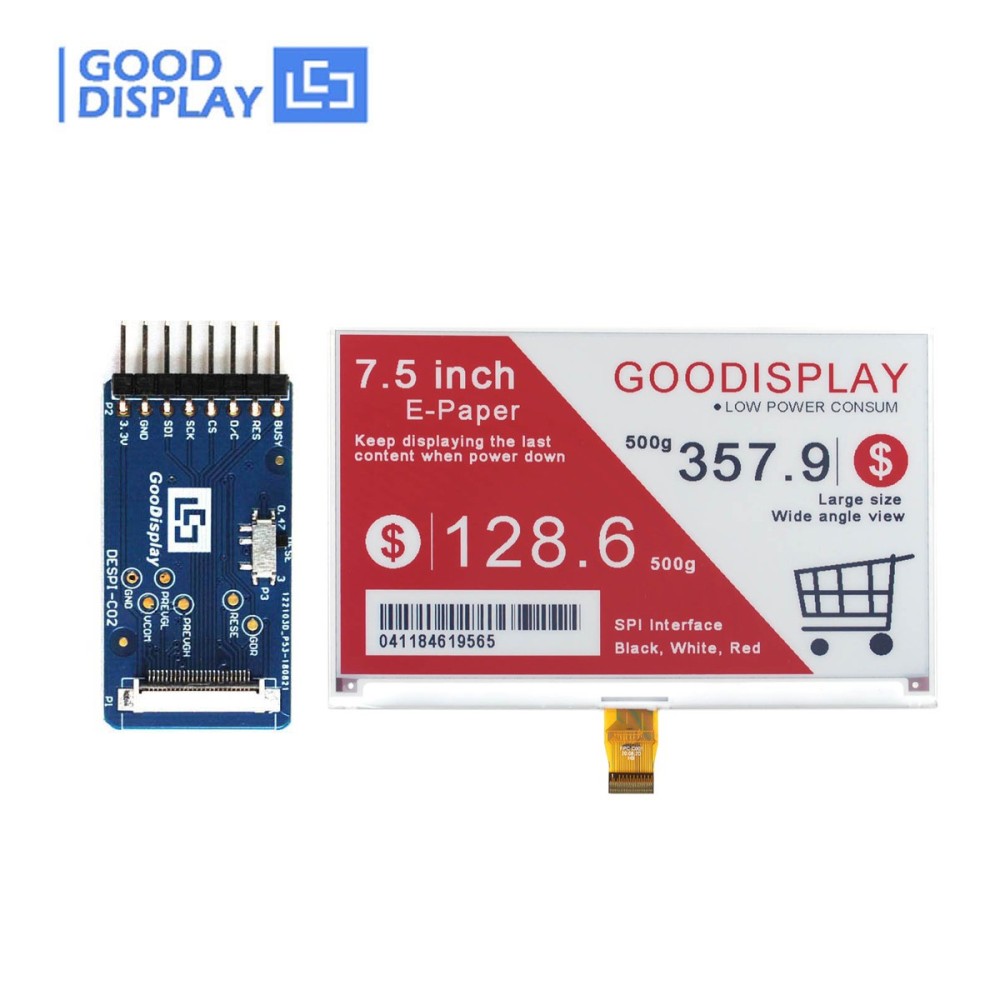

Package A	*a. 7.5 inch red tri-color electronic paper display partial update of black and white parts, GDEY075Z08 1pc**		*b. FPC Connector 1pc**		c.Epaper HAT Connection Adapter Board for E Ink Display, DESPI-C02* 1pc

Package B		+		+		+

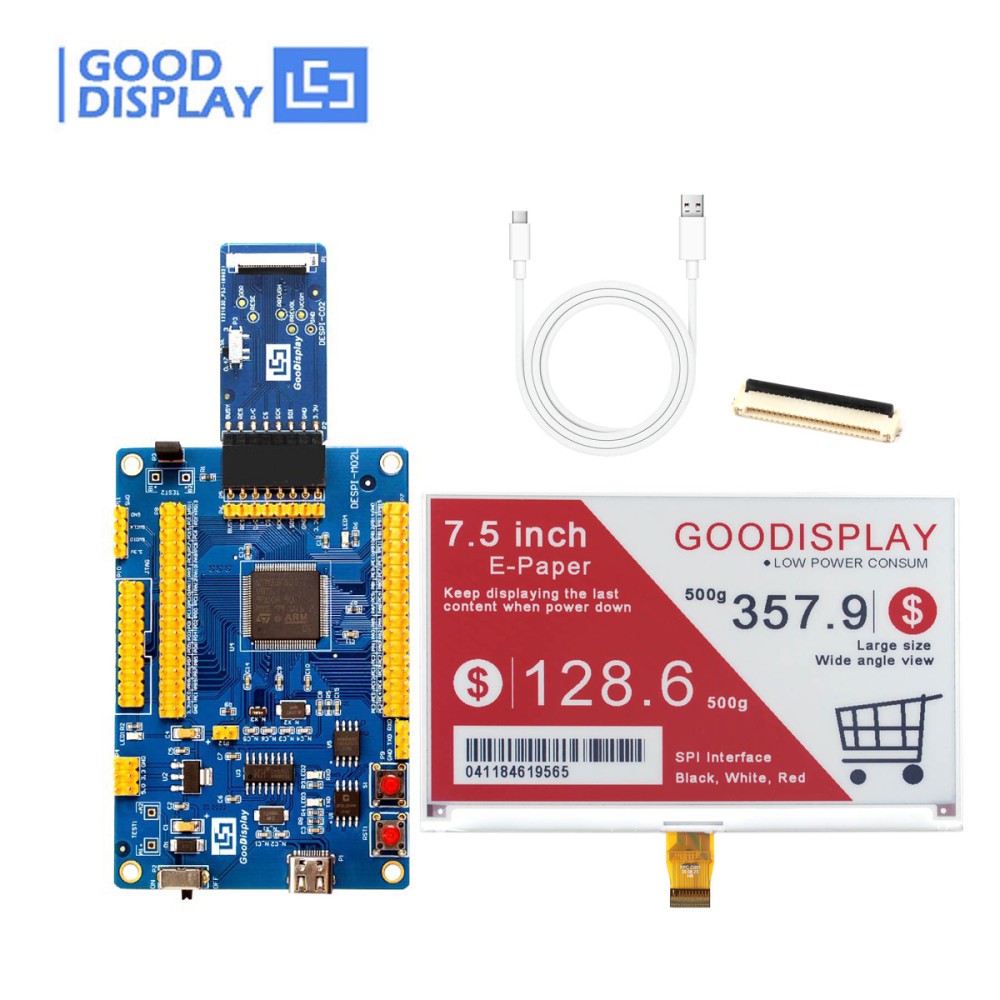

Package B	*a. 7.5 inch red tri-color electronic paper display partial update of black and white parts, GDEY075Z08 1pc**		*b. FPC Connector 1pc**		c.STM32 E-paper Panel Driver Board Type-C Interface Eink Development Kit, DESPI-L(C02)* 1pc		d. USB Cable* 1pc

Package C		+		+		+

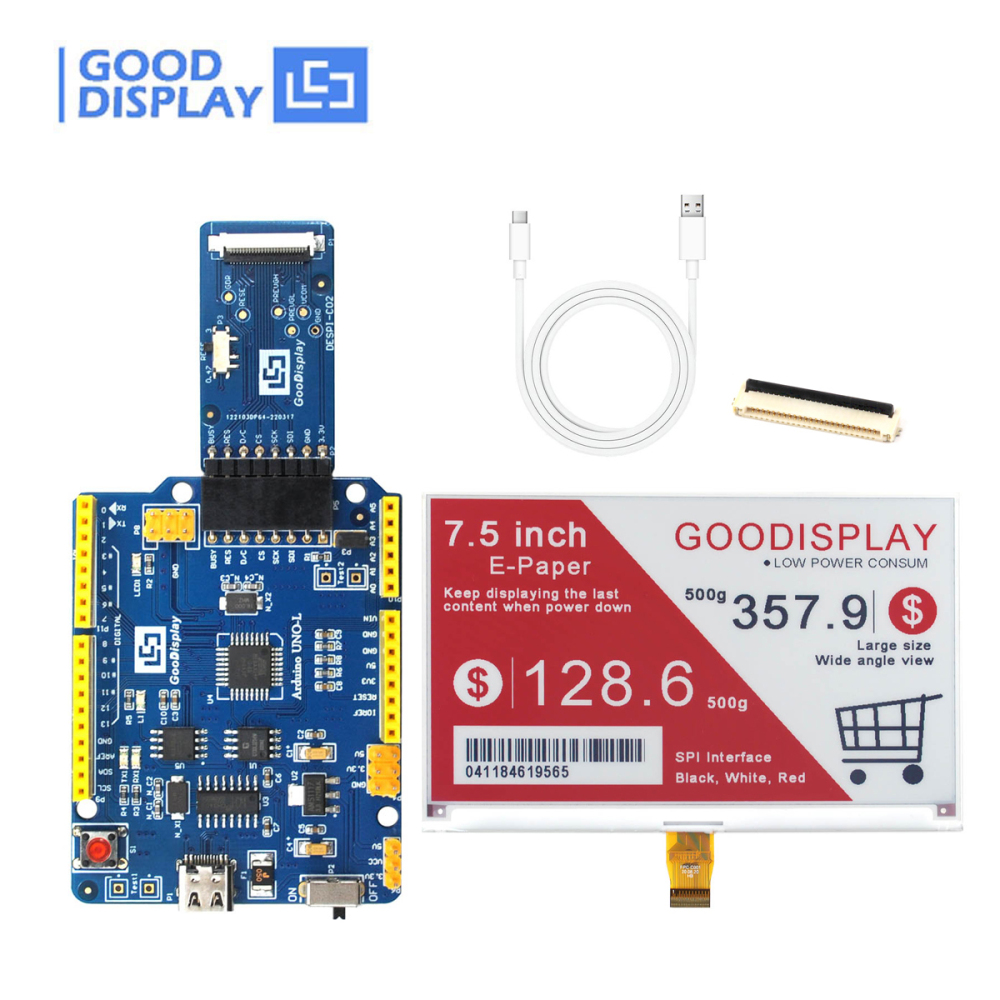

Package C	*a. 7.5 inch red tri-color electronic paper display partial update of black and white parts, GDEY075Z08 1pc**		*b. FPC Connector 1pc**		c. Arduino E-paper Driving Board Type-C Interface EPD development kit, DEArduino-L(C02) * 1pc		d. USB Cable* 1pc

Package D		+		+		+

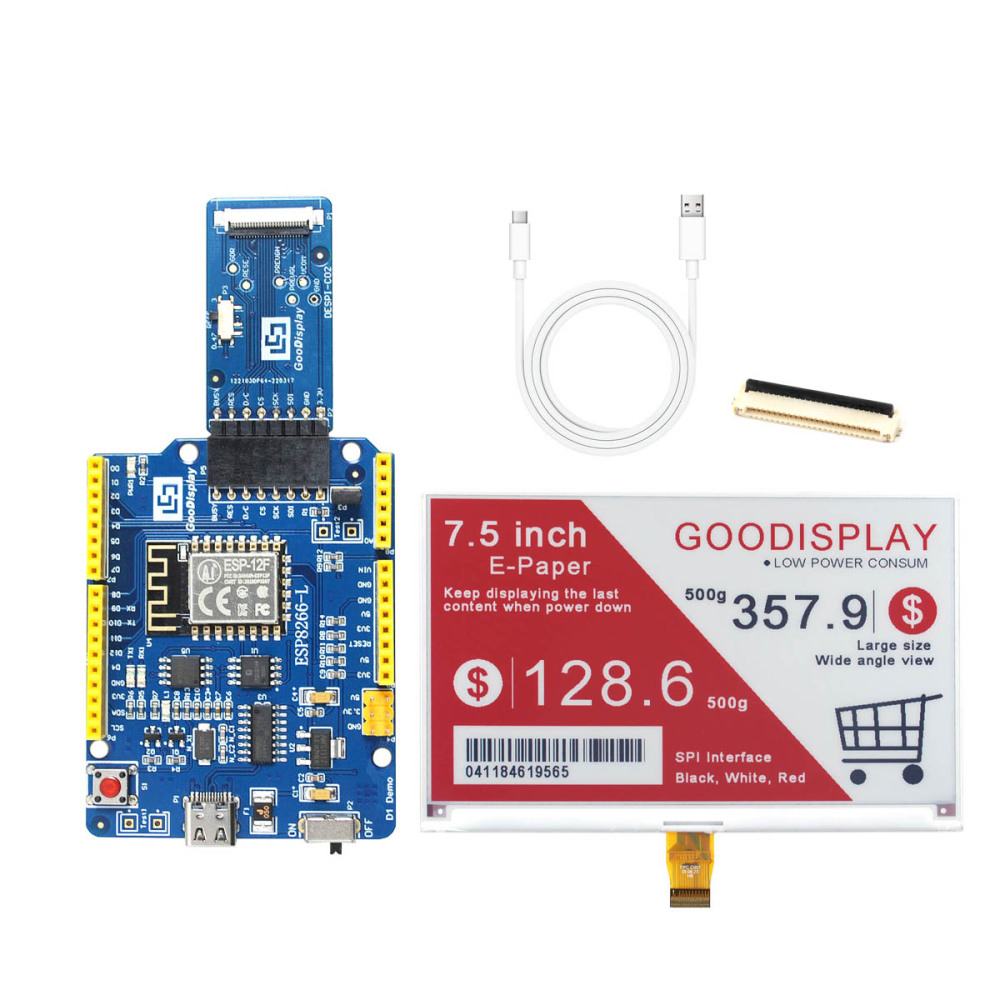

Package D	*a. 7.5 inch red tri-color electronic paper display partial update of black and white parts, GDEY075Z08 1pc**		*b. FPC Connector 1pc**		c. ESP8266 Arduino Platform E-paper Panel Driver Board Type-C Interface Eink Development Kit, ESP8266-L(C02) * 1pc		d. USB Cable* 1pc

Package E		+		+		+

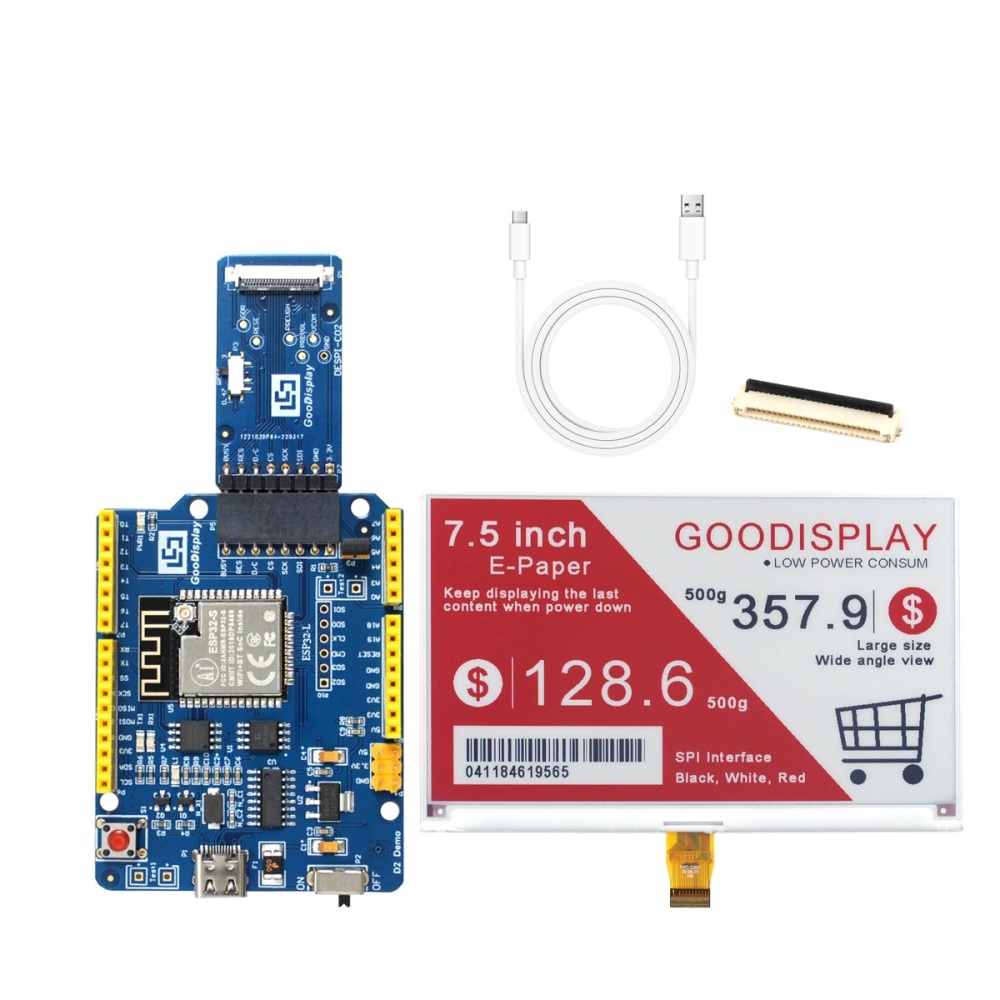

Package E	*a. 7.5 inch red tri-color electronic paper display partial update of black and white parts, GDEY075Z08 1pc**		*b. FPC Connector 1pc**		c. ESP32 Arduino Platform E-paper Panel Driver Board Type-C Interface Eink Development Kit, ESP32-L(C02)* 1pc		d. USB Cable* 1pc

Package F		+
Package F	*a. 7.5 inch red tri-color electronic paper display partial update of black and white parts, GDEY075Z08 1pc**		*b. FPC Connector 1pc**

☆ MAIN PARAMETERS

PART NUMBER	GDEY075Z08
SIZE	7.5 inch	STORAGE TEMP.	-25℃~70℃
TYPE	Dot Matrix	CONNECTOR	24 Pin FPC
IC	UC8179	MAX GRAYSCALE	2
RESOLUTION	800x480	COLOR	Black, White, Red
OUTLINE SIZE(mm)	170.2x111.2x1.25	INTERFACE	SPI
ACTIVE SIZE(mm)	163.2x97.72	FULL REFRESH(s)	26
PIXEL PITCH(mm)	0.204x0.204	POWER CONSUMPTION OF THE REFRESH(mW)	33.3
OPERATING TEMP.	0℃~40℃	STANDBY POWER CONSUMPTION(mW)	0.0165

PART NUMBER	DESPI-C02
PLATFORM	STM32	OUTSIDE DIMENSION	41x22mm
POWER INPUT	DC3.3V	OPERATING TEMP.	-20~70℃
FEATURE	Fully and Partial Refresh

☆ FEATURE

● Versatile. Use in portrait or landscape format
● Bistable. (Will continue to display with no power source)
● I2C Signal Master Interface to read external temperature sensor
● Black, white and red. Compared with monochrome electronic paper display, it is more beautiful
● Development platform available STM32 / Arduino/ Raspberry Pi / ESP8266 / ESP32

☆ DRAWING

☆ 7.5 INCH E-PAPER DISPLAY

Part Number	Color	IC	Resolution	Features	Refresh Time
GDEY075T7	BW	UC8179	800x480	4 Grayscale	3s
GDEY075Z08	BWR	UC8179	800x480	Red	12s

☆ RELATED INFORMATION DOWNLOAD

● GDEY075Z08 Specification

● IC Driver UC8179

● GDEY075Z08 Picture Production and Bitmap Conversion

● GDEY075Z08 Arduino Sample Code

● GDEY075Z08 STM32 Sample Code

● GDEY075Z08_ESP32 Sample code

● GDEY075Z08 ESP8266 Sample Code

● GDEY075Z08 Raspberry Pi Sample Code
