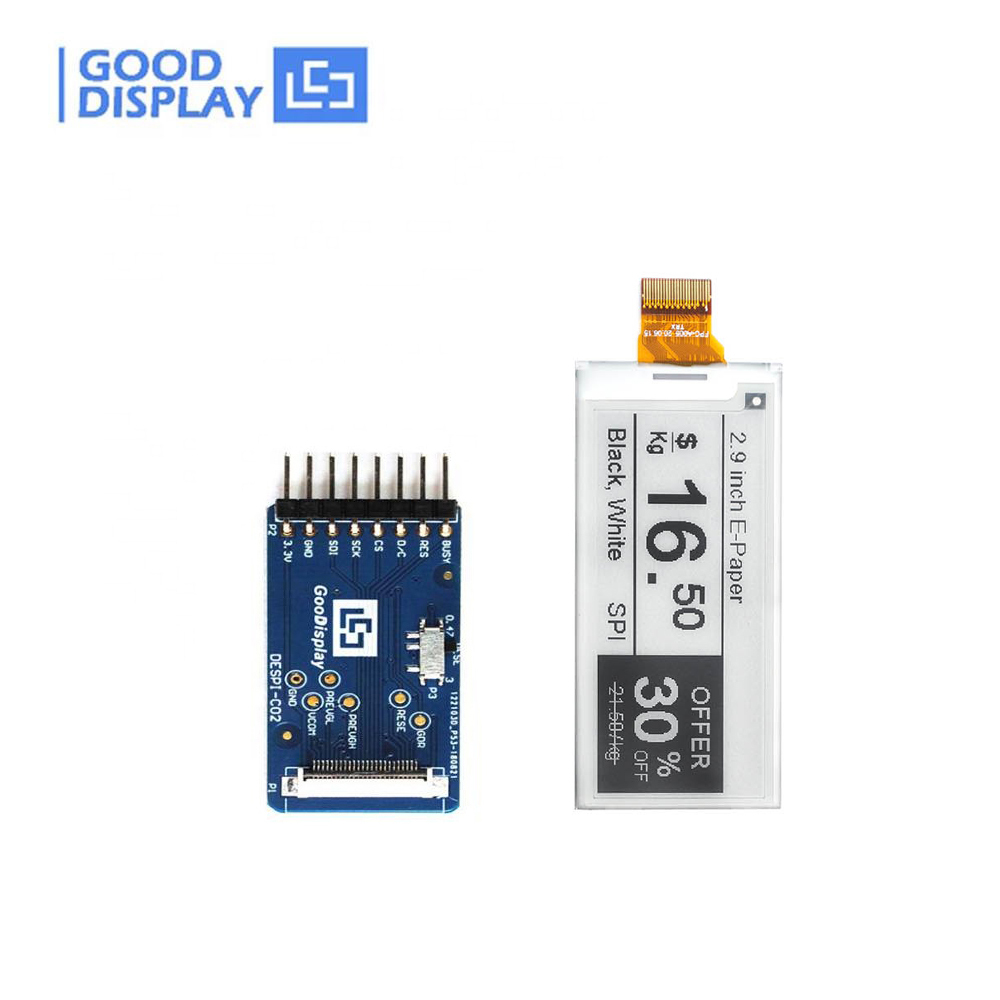

EPD 4 Grayscale 2.9 Inch E-Ink Display Cheap E-Paper HAT, GDEY029T94 with adapter board

GDEY029T94 & DESPI-C02
This is EPD HAT with 2.9 inch e-ink screen Raspberry pi display with 296x128 resolution, SPI interface, and the display is capable to display images with black and white content.
Sold:1
Have a question?
Price:
USD
$8.70
  • Product:
    EPD with adapter board
    EPD with STM32 Demo Kit
    EPD with Arduino Demo Kit
    EPD with ESP8266 Demo Kit
    EPD with ESP32 Demo Kit
    EPD
Quantity:
-
+
(398 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
Inquiry Now
Add to Favorite Items
  • Description
  • Reviews

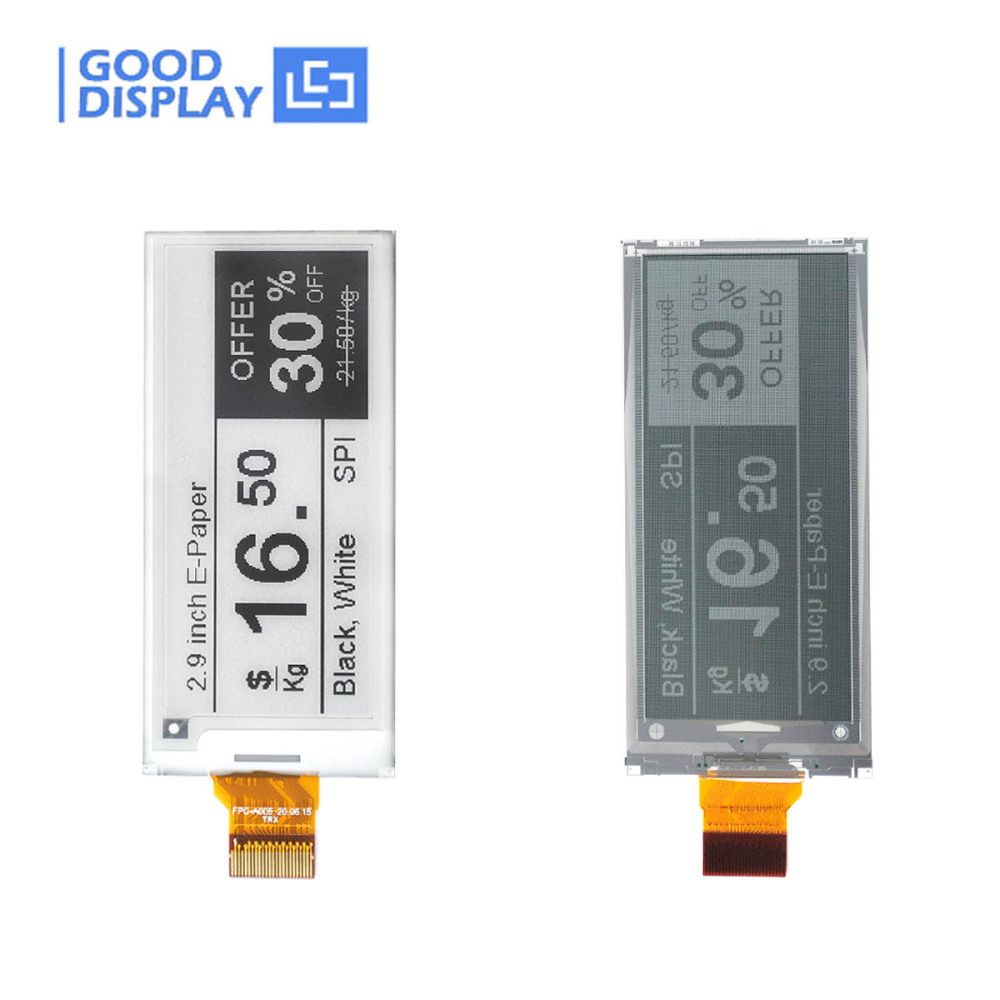

High-Speed 2.9'' E Ink Display with Adapter Board




Introducing our 2.9-inch E Ink Display, a versatile and high-performance screen designed for a range of applications. With a resolution of 296x128, it supports 4 grayscales and offers fast refresh options—1.5s for quick updates and 0.3s for partial refresh. The display features a bistable design, retaining content even after power loss, and offers a wide viewing angle of over 170 degrees. It's perfect for shelf tags, smart tags, smart home applications, and industrial instruments. The screen is customizable with touch capabilities, front light, and plastic enclosure, ensuring it meets your specific needs while conserving energy and protecting your eyes with its zero radiation, no blue light emission technology.

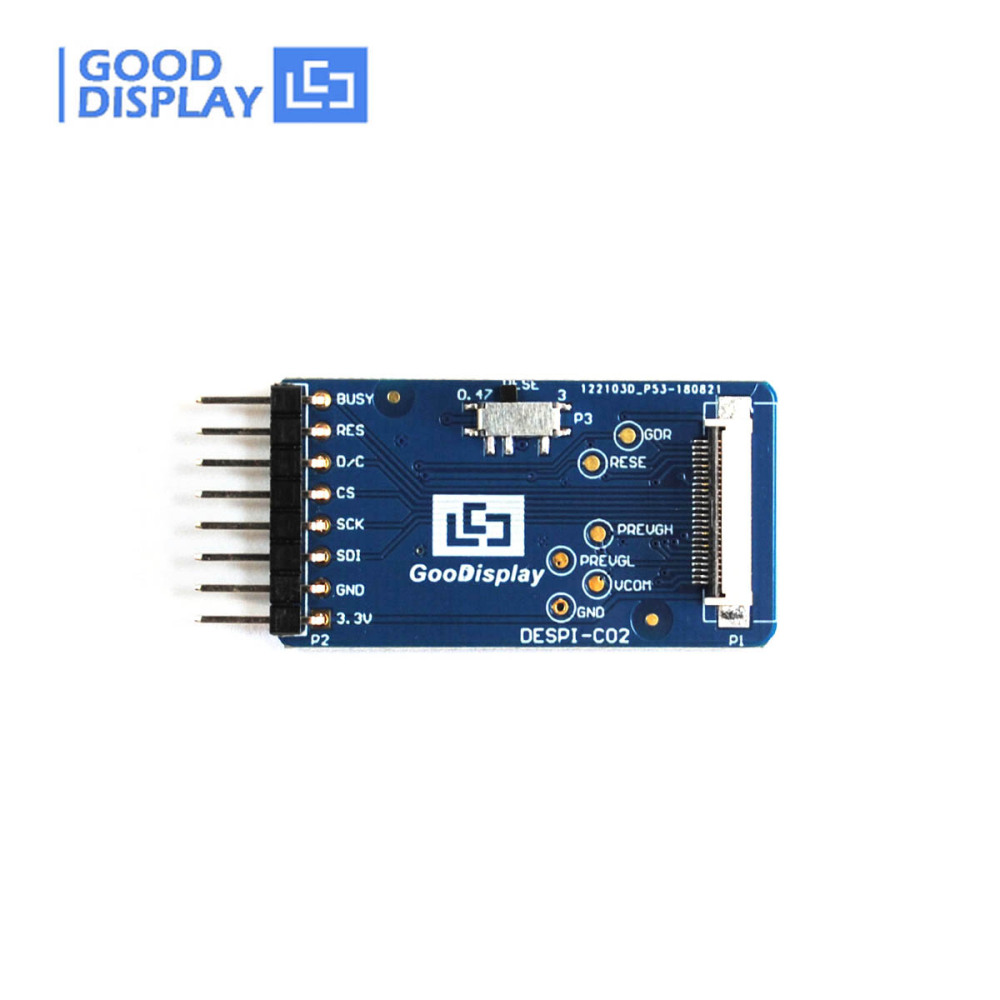

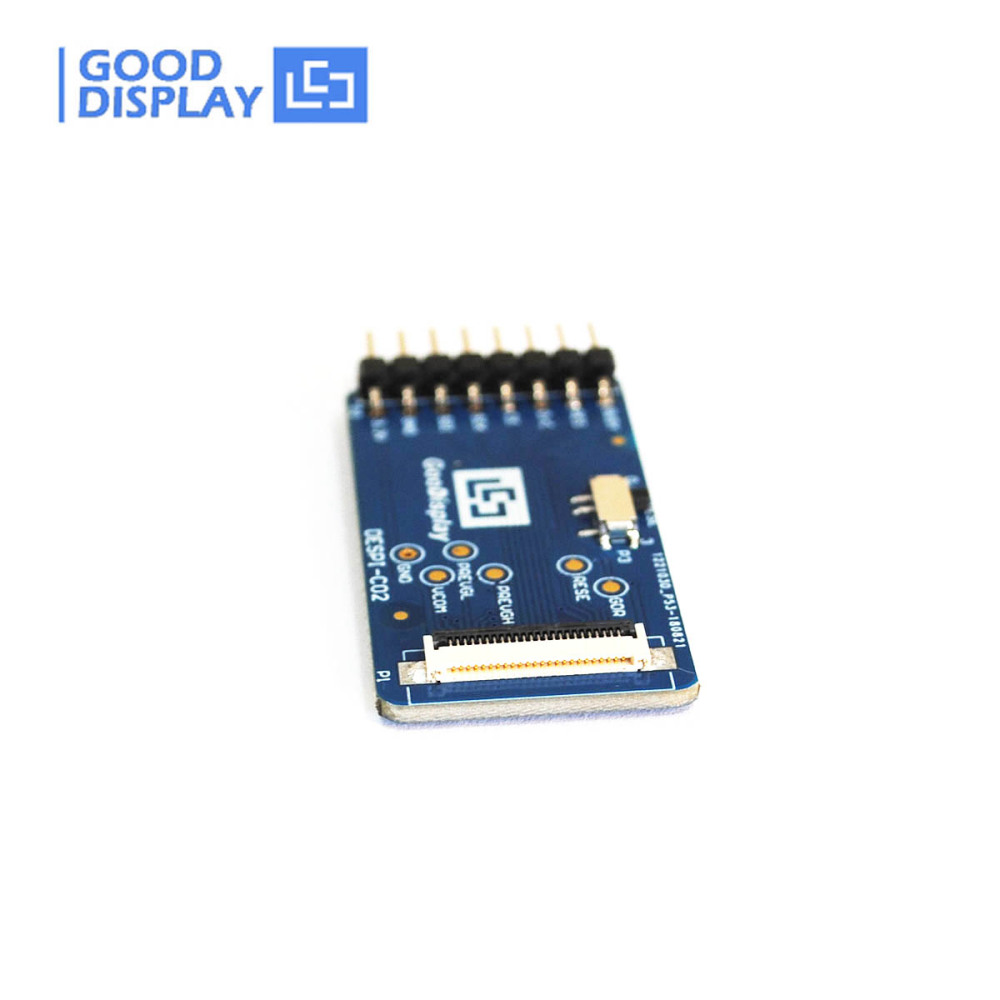

This connection board DESPI-C02 used for Good Display's black-white E-paper Display and three-color (black, white and red/Yellow)








Special Features


    Our product boasts distinctive features that set it apart from the competition
      ●  Lightning-Fast Refresh: Experience swift updates with our 2.9-inch E Ink display—full refresh in 3 seconds, fast refresh in 1.5 seconds, and partial refresh in just 0.3 seconds!
  ●  Always-On Visibility: Thanks to our bistable technology, the display retains content even after power loss. Say goodbye to constant power consumption!
  ●  Eco-Friendly Efficiency: Designed for sustainability, our display consumes zero power when not refreshing, making it perfect for energy-saving applications.
  ●  Wide-Angle Wonder: Enjoy crystal-clear readability from any angle with our 170-degree wide viewing angle. Perfect for all environments.
  ●  Eye Comfort Guaranteed: Protect your eyes with our no blue light, zero radiation display. Ideal for extended viewing without eye strain.
  ●  Customizable Versatility: Tailor your display with optional touch screen, front light, and durable plastic enclosure. Perfect for smart home applications, shelf tags, and more!






Technical Details

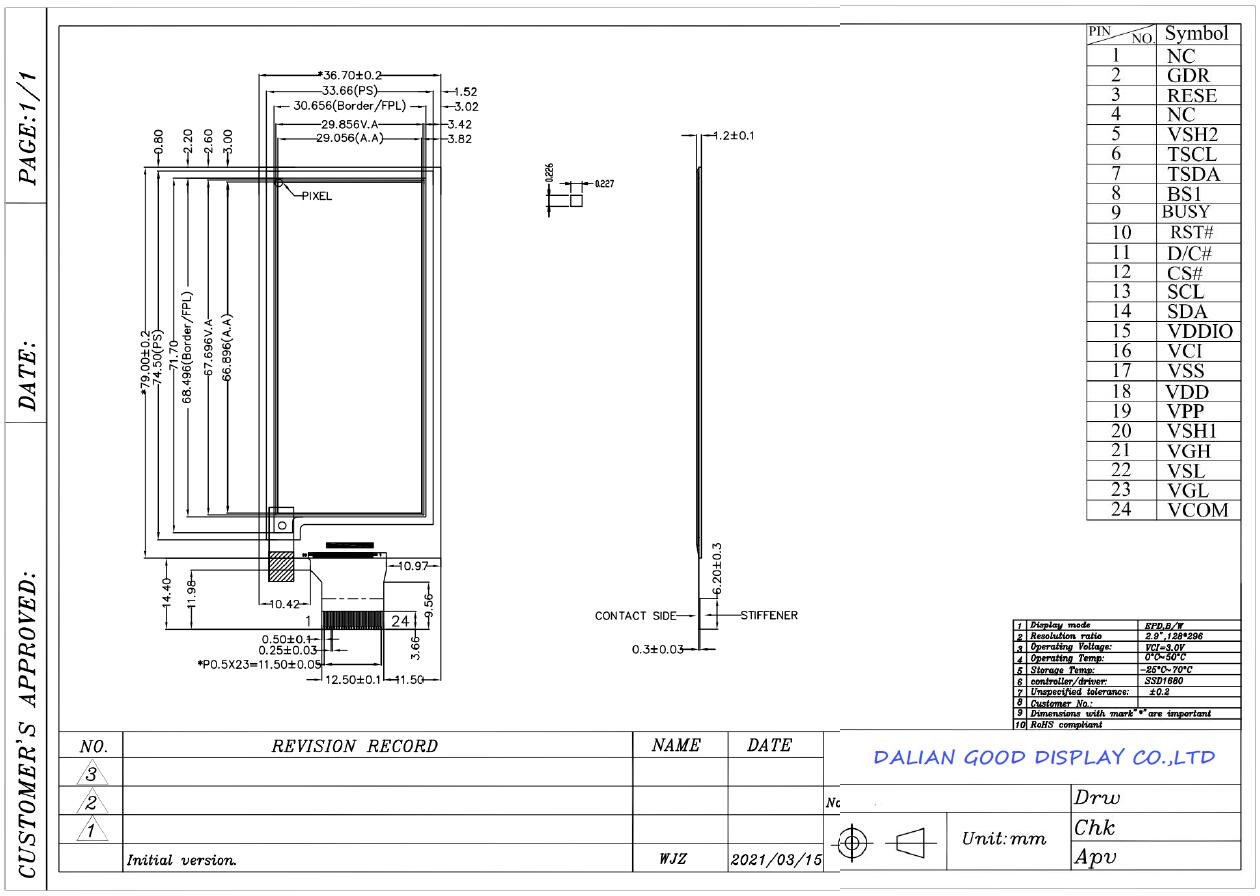

    Please refer to the product drawings for detailed dimensions









Product Specifications


    Please refer to the product specifications for more details

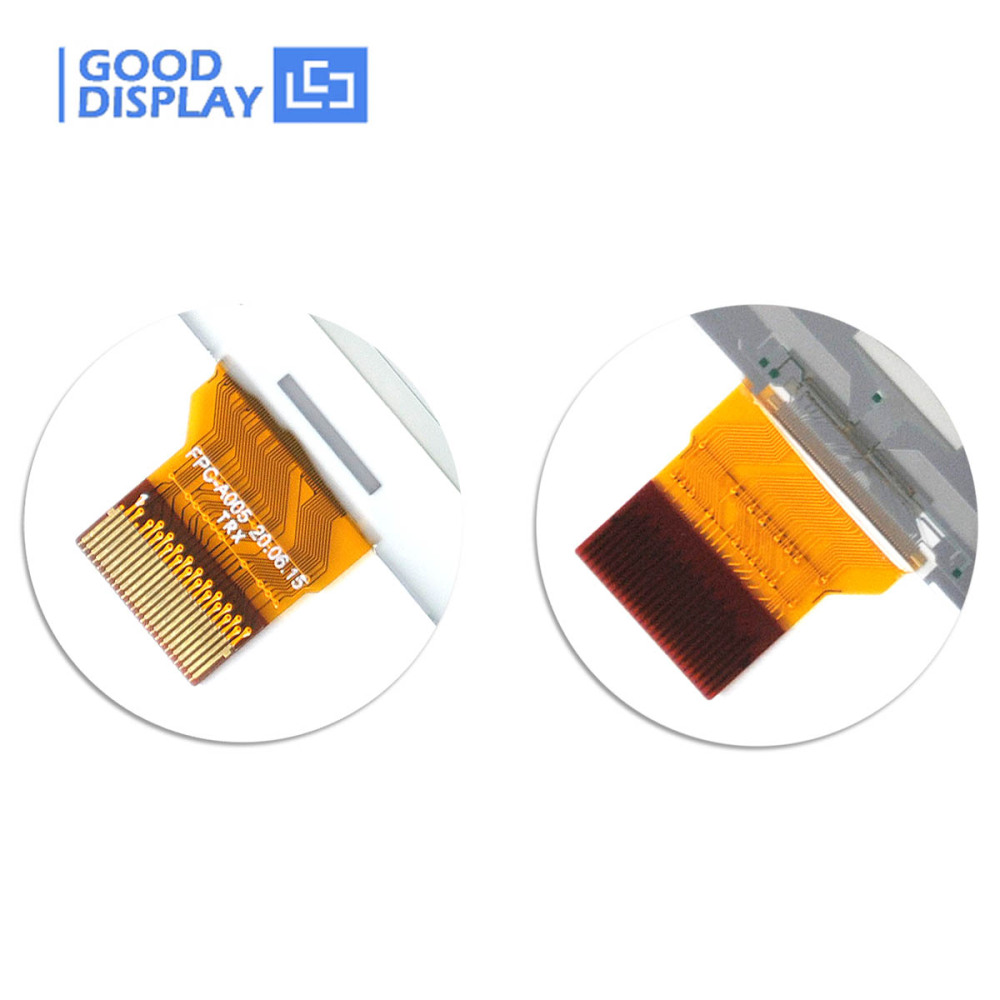

PART NUMBER GDEY029T94 CONNECTOR 24 Pin FPC
SIZE 2.9 inch MAX GRAYSCALE 4
TYPE Dot Matrix COLOR Black,White
IC SSD1680 INTERFACE SPI
RESOLUTION 296x128 FULL REFRESH(s) 3
OUTLINE SIZE(mm) 79x36.7x1.2 PARTIAL REFRESH RATE(s) 0.3
ACTIVE SIZE(mm) 66.896x29.056 FAST REFRESH RATE(s) 1.5
PIXEL PITCH(mm) 0.227x0.226 POWER CONSUMPTION OF THE REFRESH(mW) 9
OPERATING TEMP. 0℃~50℃ STANDBY POWER CONSUMPTION (mW) 0.003
STORAGE TEMP. -25℃~70℃

PART NUMBER DESPI-C02 OUTSIDE DIMENSION 41 x 22mm
PLATFORM STM32 OPERATING TEMP. -20~70℃
FEATURE Fully and Partial Refresh POWER INPUT DC3.3V







Matching Driver Board
To facilitate the testing and comparison of e-paper, we recommend the following driver boards for you.

a. DESPI-C02 (E-ink Display adapter Board) b. DESPI-L(C02) (STM32 Demo Kit) c. DEArduino-L(C02) (Arduino Platform Demo Kit)
d.ESP8266-L(C02) (ESP8266 Demo Kit) e.ESP32-L(C02) (ESP32 Demo Kit) f. DESPI-PICO (Raspberry Pi E-paper HAT )








Related Information Download

Click on the subheadings below to download

  ● GDEY029T94 Specification ● GDEY029T94 ESP8266 Sample Code
  ● SSD1680 Driver IC Datasheet ● GDEY029T94 Arduino Sample Code
  ● GDEY029T94 Picture Production and Bitmap Conversion ● GDEY029T94 Raspberry Pi Pico Sample Code
  ● GDEY029T94 STM32 Sample Code ● The latest Catalog of ePaper display
  ● GDEY029T94 ESP32 Sample Code ● Why can't I download the files?
