☆ INTRODUCTION

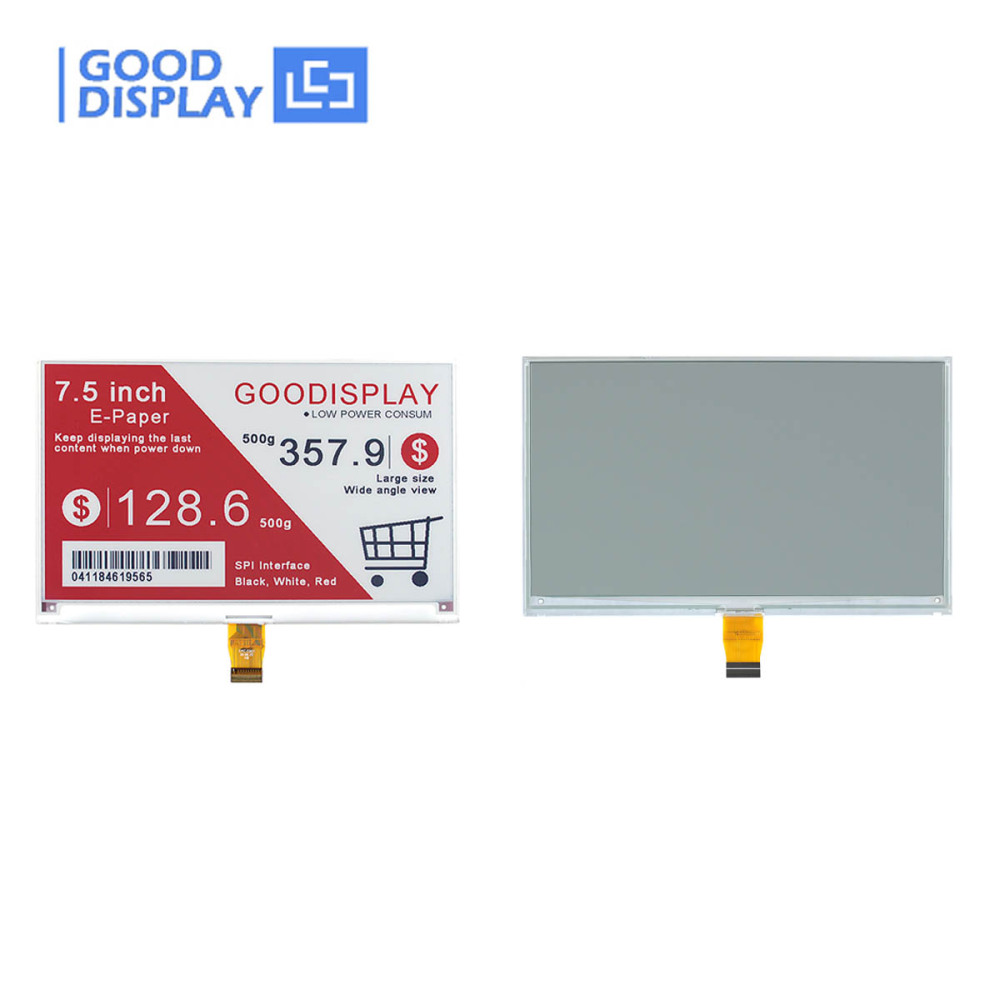

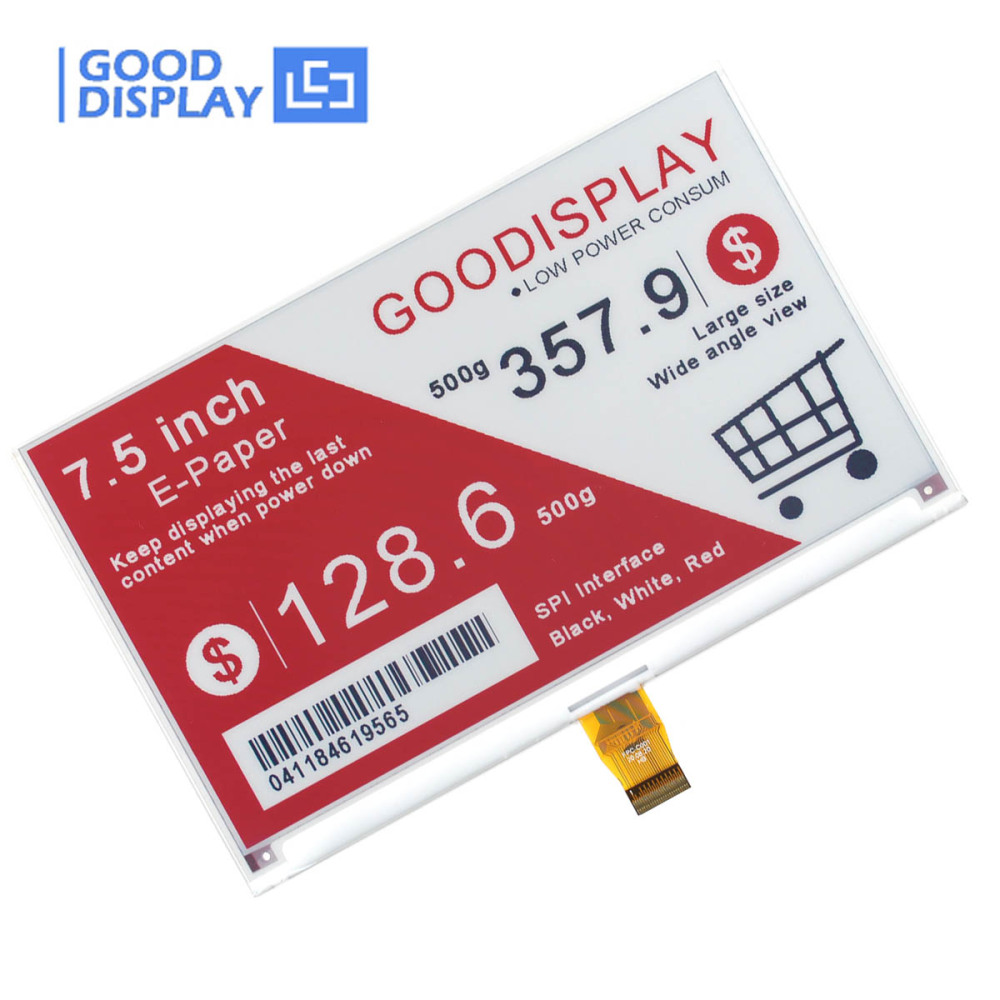

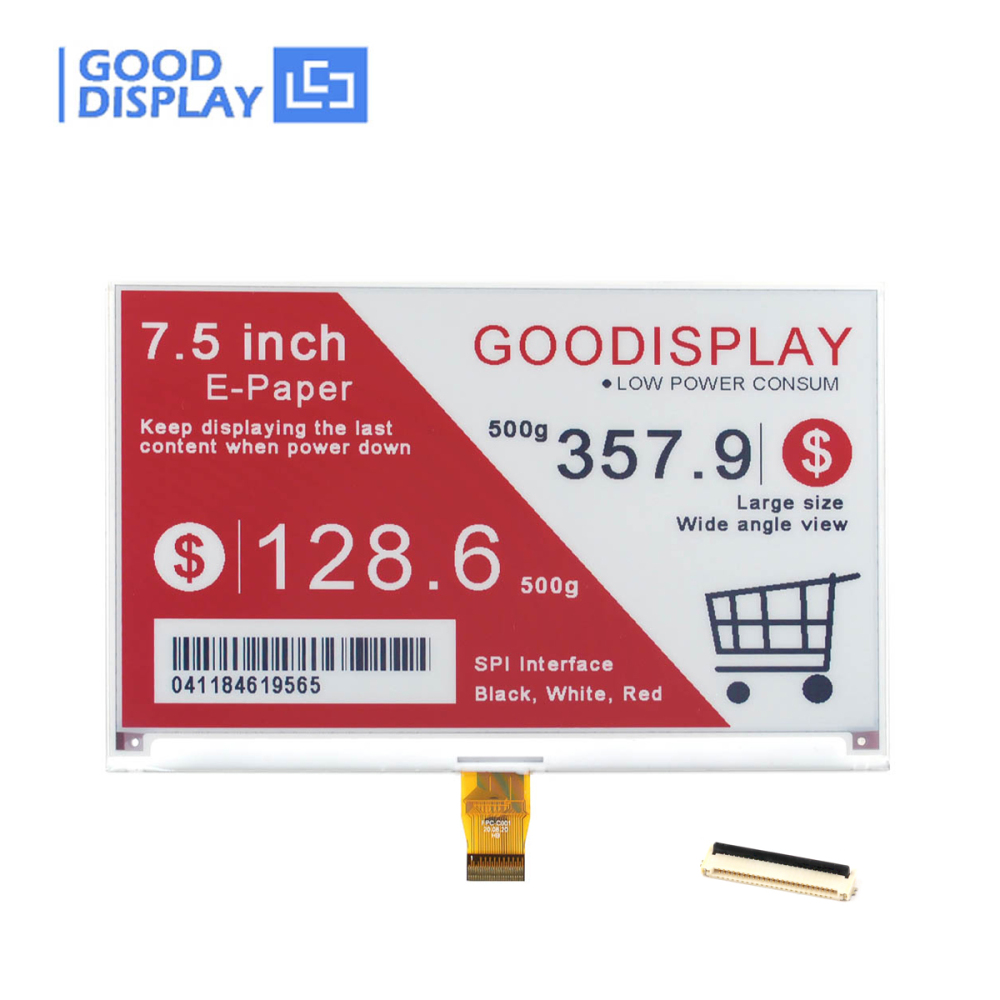

This is a 7.5 inch color electronic paper screen with 800x480 resolution, SPI interface, and the display is capable to display images with black, white and red content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely.

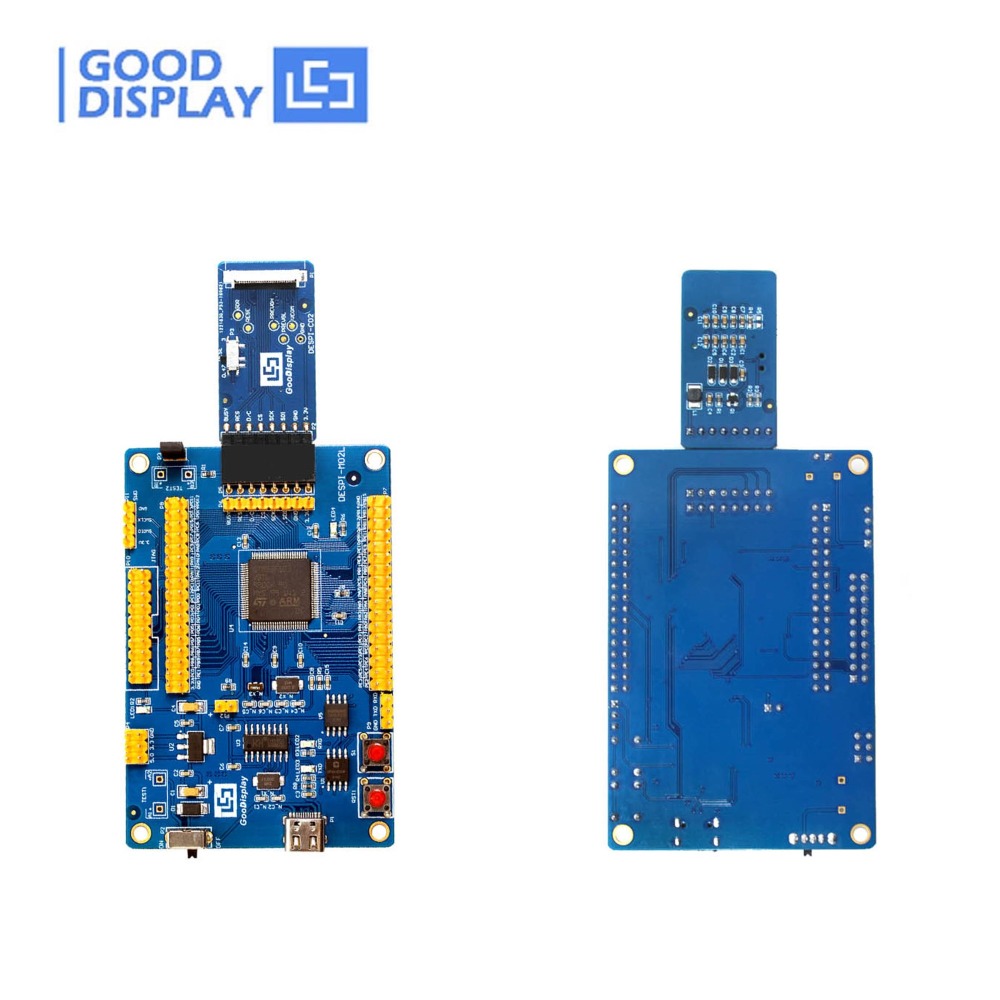

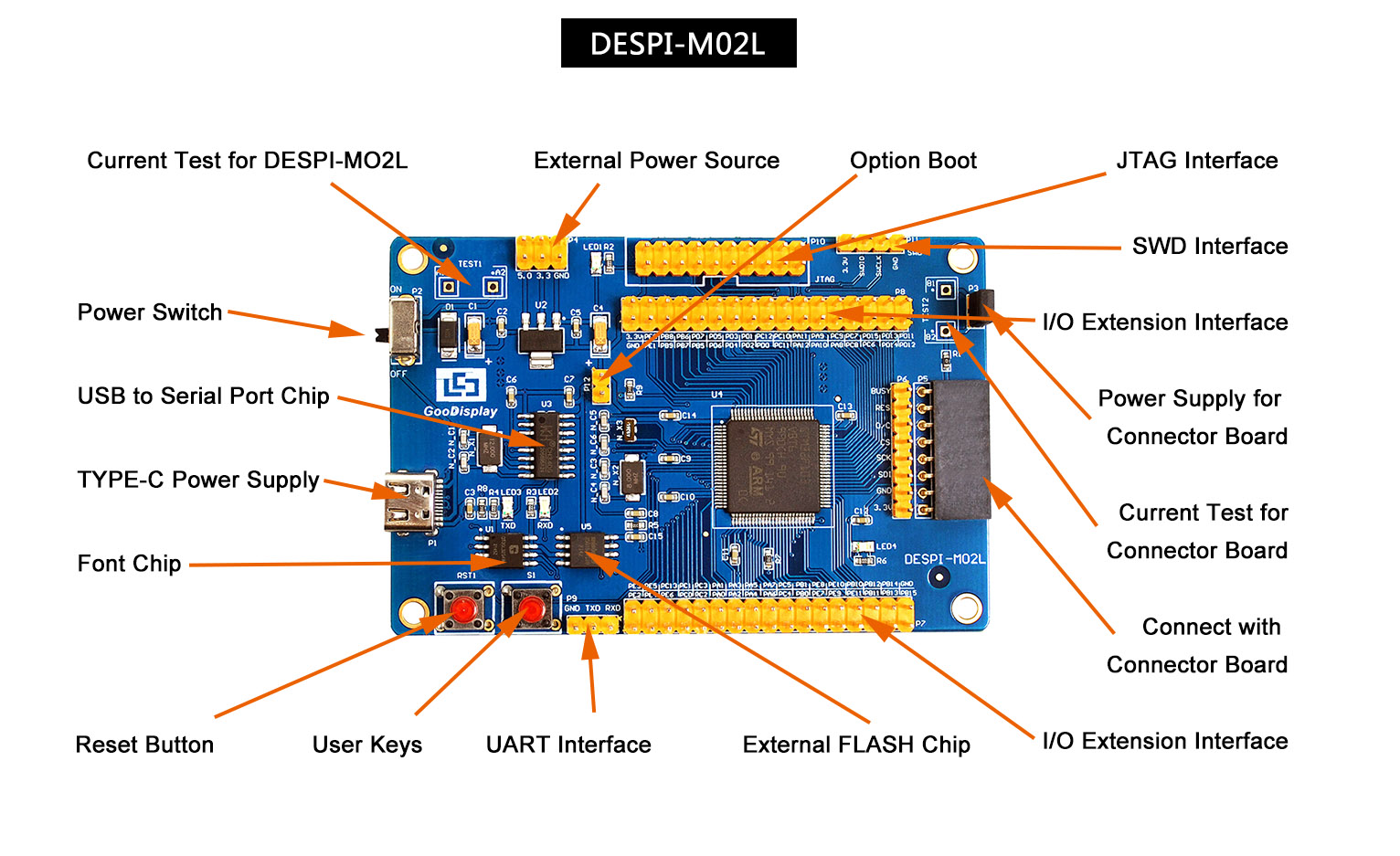

DESPI-L(C02) evaluation kit is used to help users develop e-paper display projects with provided source code to create more differentialted solution. It is designed for SPI e-paper display. it supports driving Good Displayl's SPI interface e-paper display. And it is added the functions of USB serial port and LED indicator light, Reset button, user-defined button, font chip, Flash chip and etc. It also supports being updated iva computer software directly.
We could provide front light, touch screen and other accessories for you.
Relevant manual about this product on Library or you could go to our official website (www.good-display.com), contact us please.
You can refer to the following link for the procedures and instructions of automatic e-paper display bitmap conversion: ImageToEpd. Also you could use our free e-paper software to prepare your bitmap image for this display, or make the picture on our bitmap conversion website: Image to Array

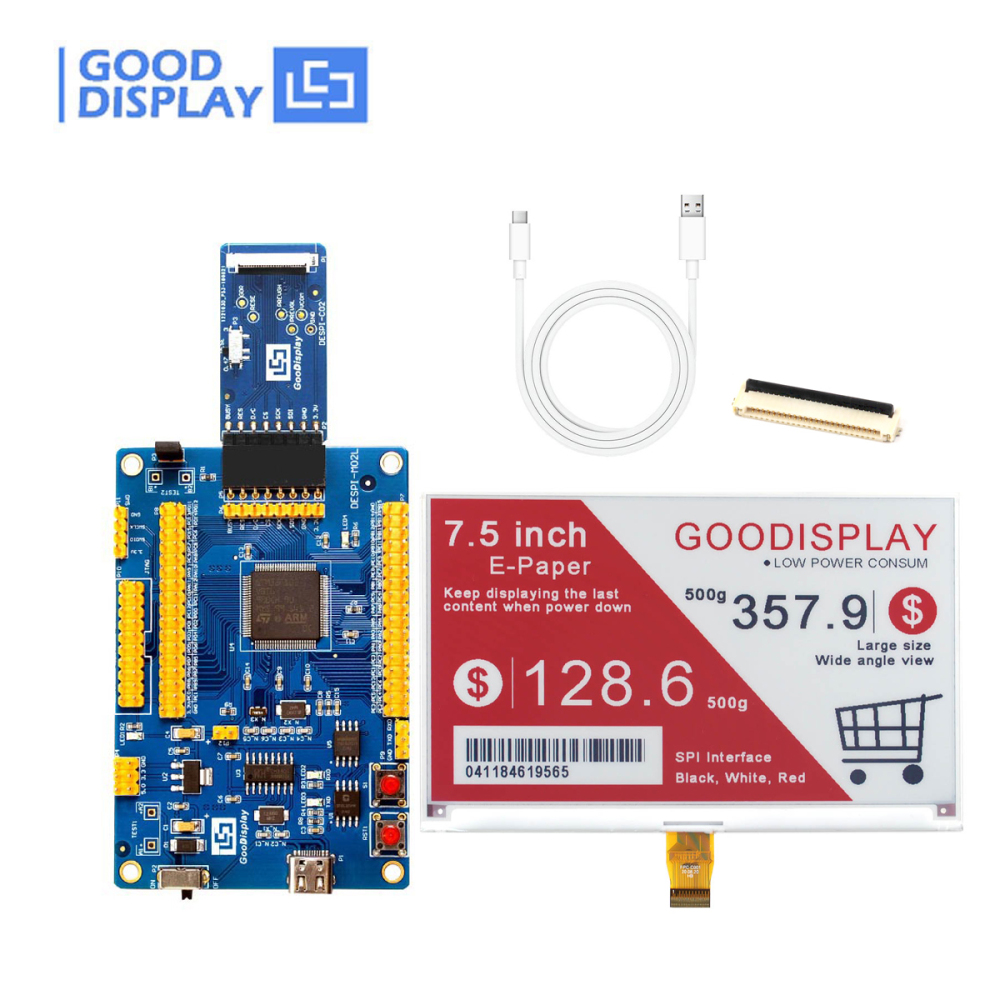

☆ THE ABOVE PRICE INCLUDE
1) E-ink module 800x480 7.5 inch red tri-color electronic paper display * 1pc

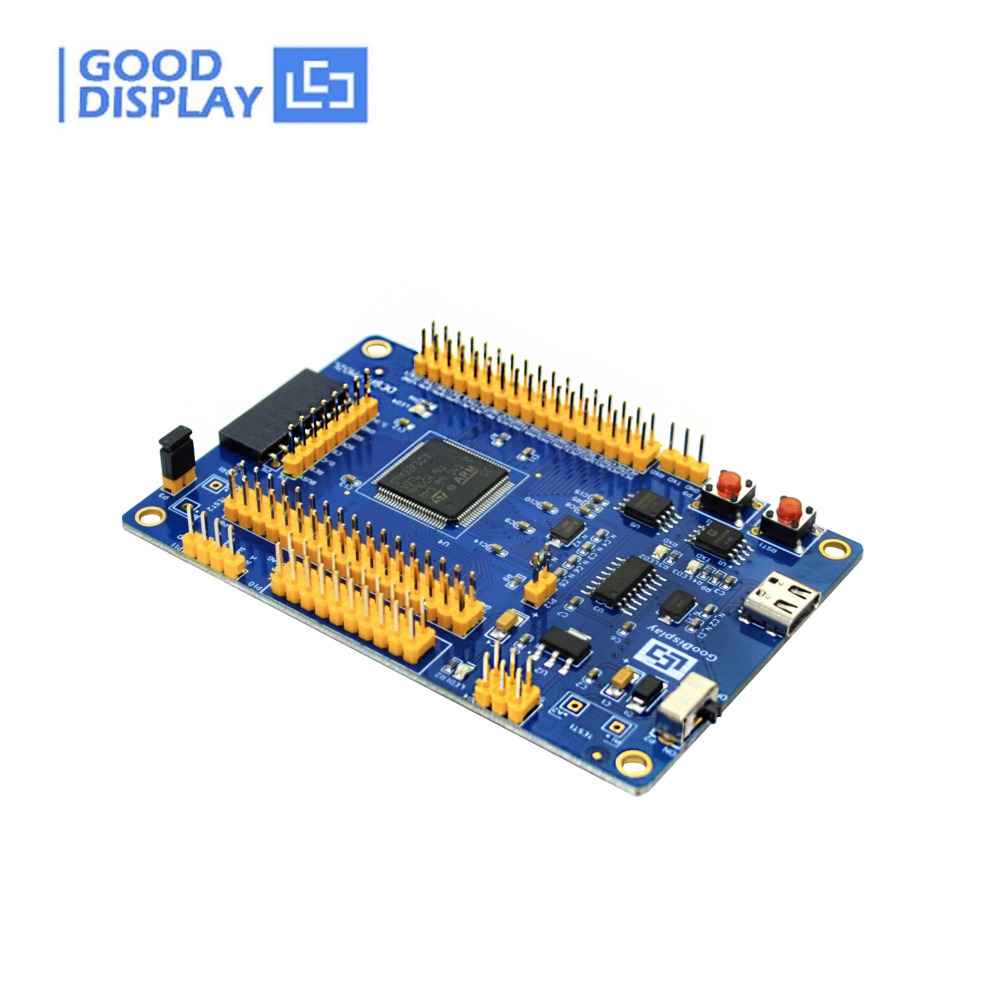

2) Driving board DESPI-M02L * 1pc

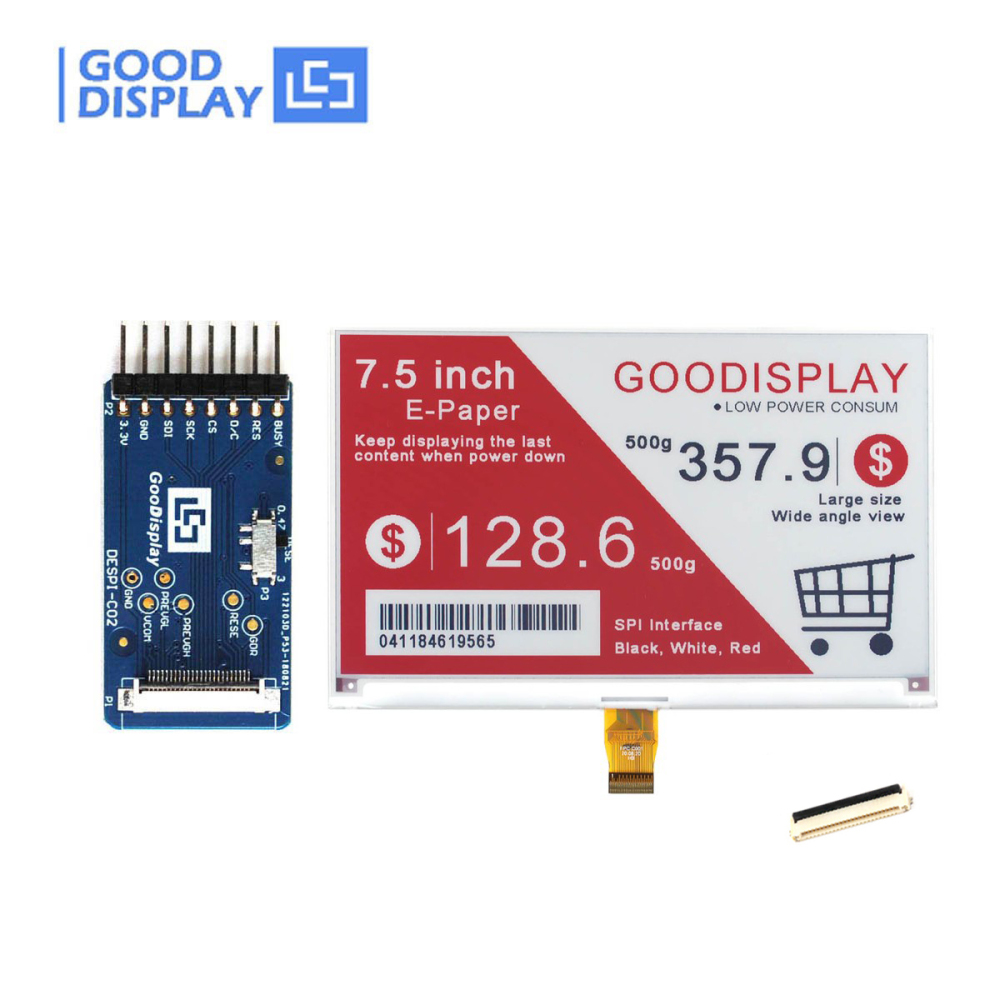

3) Connector board DESPI-C02 * 1pc
4) USB port cable * 1pc
5) FPC Connector * 1pc
☆ MAIN PARAMETERS
|
PART NUMBER
|
GDEY075Z08
|
|
|
SIZE
|
7.5 inch
|
STORAGE TEMP. |
-25℃~70℃ |
|
TYPE
|
Dot Matrix
|
CONNECTOR |

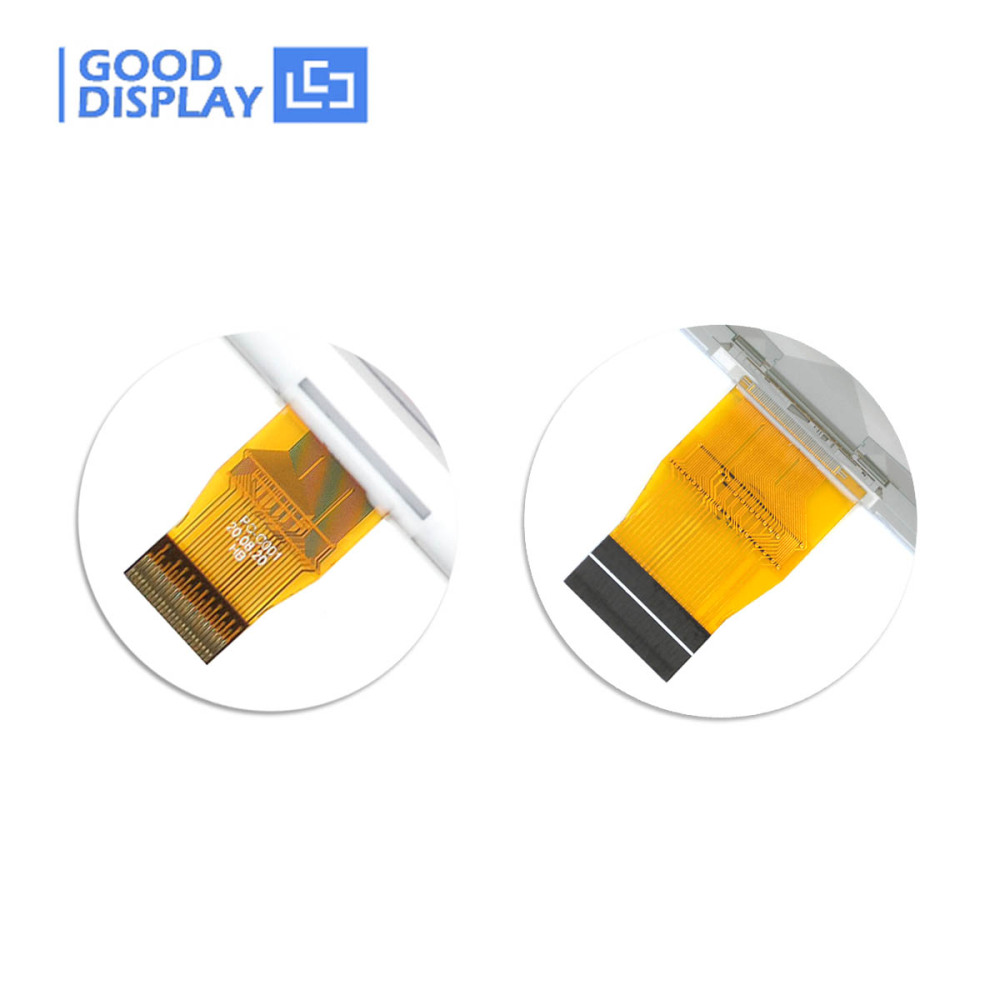

24 Pin FPC |
|
IC
|
UC8179
|
MAX GRAYSCALE |
2 |
|
RESOLUTION
|
800x480
|
COLOR |
Black, White, Red |
|
OUTLINE SIZE(mm)
|
170.2x111.2x1.25
|
INTERFACE |
SPI |
|
ACTIVE SIZE(mm)
|
163.2x97.72
|
FULL REFRESH(s) |
12 |
|
PIXEL PITCH(mm)
|
0.204x0.204
|
POWER CONSUMPTION OF THE REFRESH(mW) |
33.3 |
|
OPERATING TEMP.
|
0℃~40℃
|
STANDBY POWER CONSUMPTION(mW) |
0.0165 |
| PART NUMBER |
DESPI-L(C02) |
| PLATFORM |
STM32 |
| FUNCTION |
Drive E-paper Display |
| OUTSIDE DIMENSION |
90x60mm (DESPI-M02L)
41x22mm (DESPI-C02) |
| POWER INTERFACE |
Type-C |
| POWER INPUT |
DC5V |
| FEATURE |
Support fully refresh, fast refresh and partial refresh |
| GRAY SCALE LEVEL |
Max 16 Grayscale |
| OPERATING TEMP. |
-20~70℃ |
| EXAMPLE CODE |
Available |
| RESERVED FUNCTION |
Type-C, LED indicator, User-defined button, Reset button, Font chip, Flash chip, Current detection |
| MAIN FUNCTION |
Learn to drive E-paper display;
Test and evaluate e-paper display;
Support secondary development |
☆ FEATURE
● Versatile. Use in portrait or landscape format
● Bistable. (Will continue to display with no power source)
● I2C Signal Master Interface to read external temperature sensor
● Black, white and red. Compared with monochrome electronic paper display, it is more beautiful
● Development platform available STM32 / Arduino/ Raspberry Pi / ESP8266 / ESP32
☆ DETAILS
☆ 7.5 INCH E-PAPER DISPLAY
|
Part Number
|
Color
|
IC |
Resolution |
Features
|
Refresh Time |
|
GDEY075T7
|
BW
|
UC8179 |
800x480
|
4 Grayscale
|
3s
|
|
GDEY075Z08
|
BWR
|
UC8179 |
800x480
|
Red
|
12s
|
