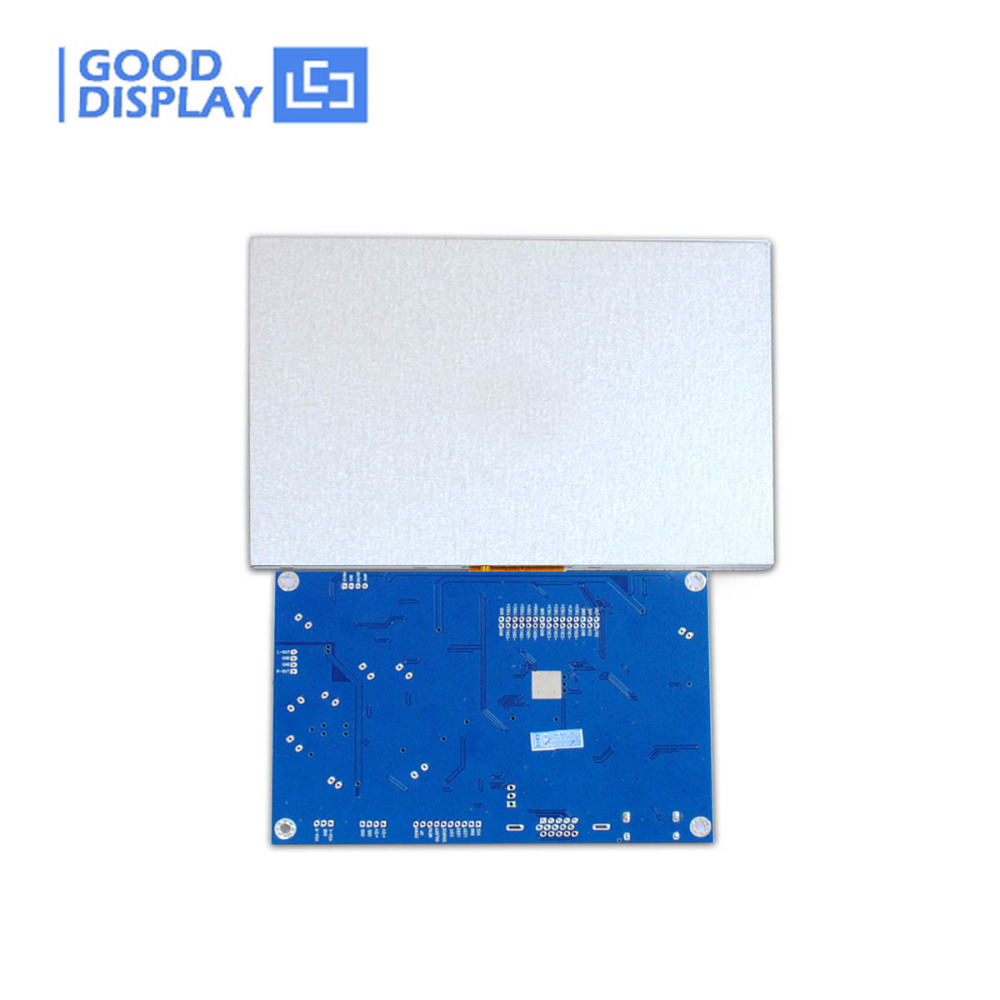

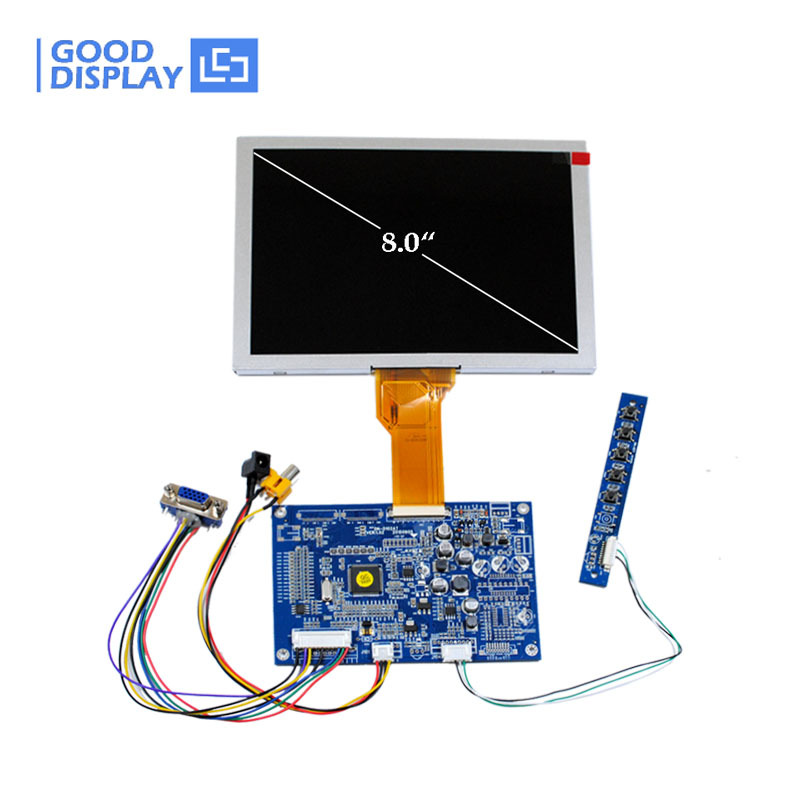

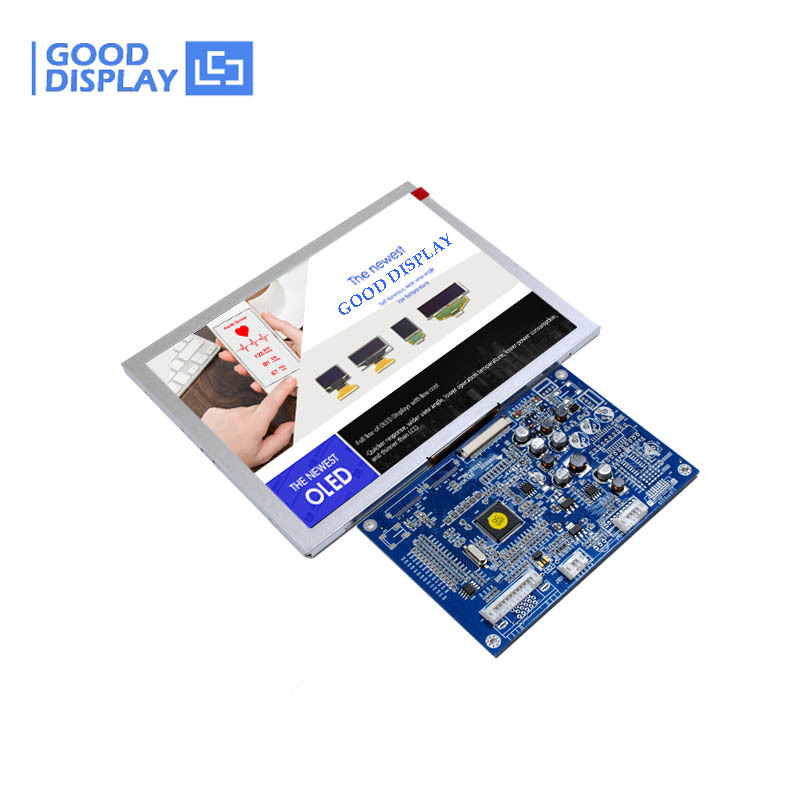

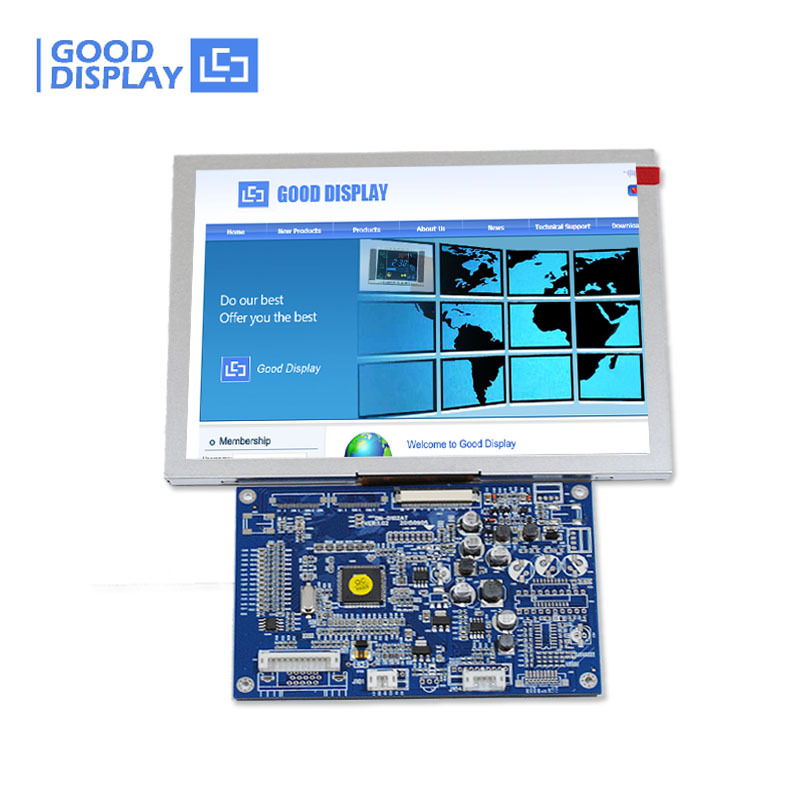

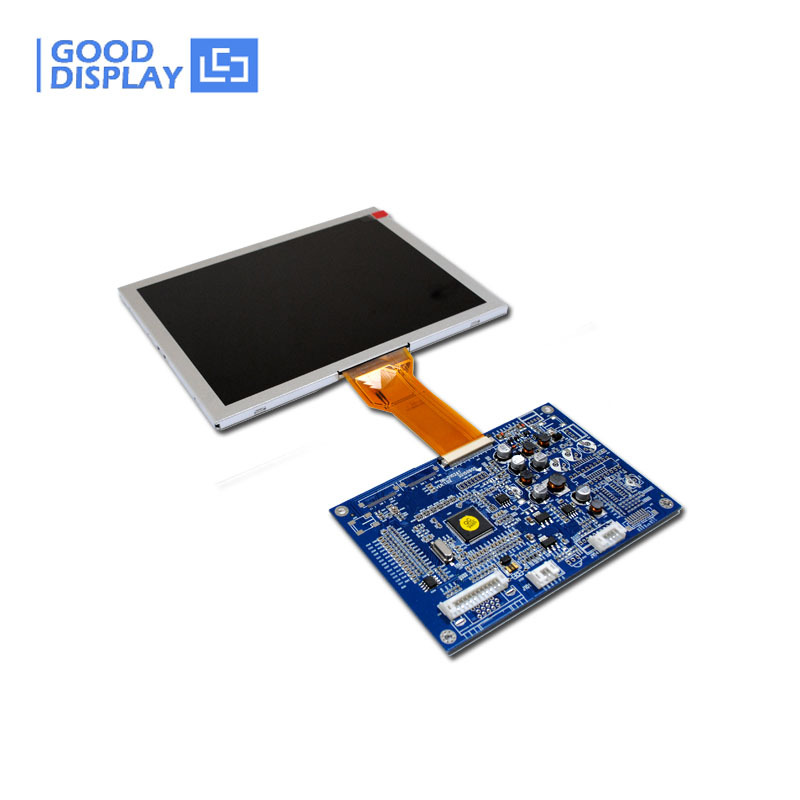

8 inch VGA, VIDEO LCD Module 800x600 Resolution 12V TFT Display, GD102M03-GTIEJ080NA-05B

800x600 dots, 8.0 inch, color TFT-LCD module display with video & VGA driver board, it can be used in any embedded systems, cars, industrial device, security and hand-held equipment which require display in high quality and colorful video.
Price:
USD
$63.21
Quantity:
-
+
(6 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Library
  • Reviews

Any questions, just feel free to contact me, my email is: info@good-display.com




☆ INTRODUCTION




8.0 inch, 800x600 dots, color TFT-LCD module display with video & VGA driver board, it can be used in any embedded systems, cars, industrial device, security and hand-held equipment which require display in high quality and colorful video.


Relevant manual about this product on our official website (www.good-display.com), contact us please.




☆ FEATURE




●  DC/ DC Converter, LED Backlight Driver, Video and VGA Decoder All In One
●  NTSC / PAL System automatic identifying and converting
●  Single Operation Voltage +12.0V (Min9.0V, Max15.0V)

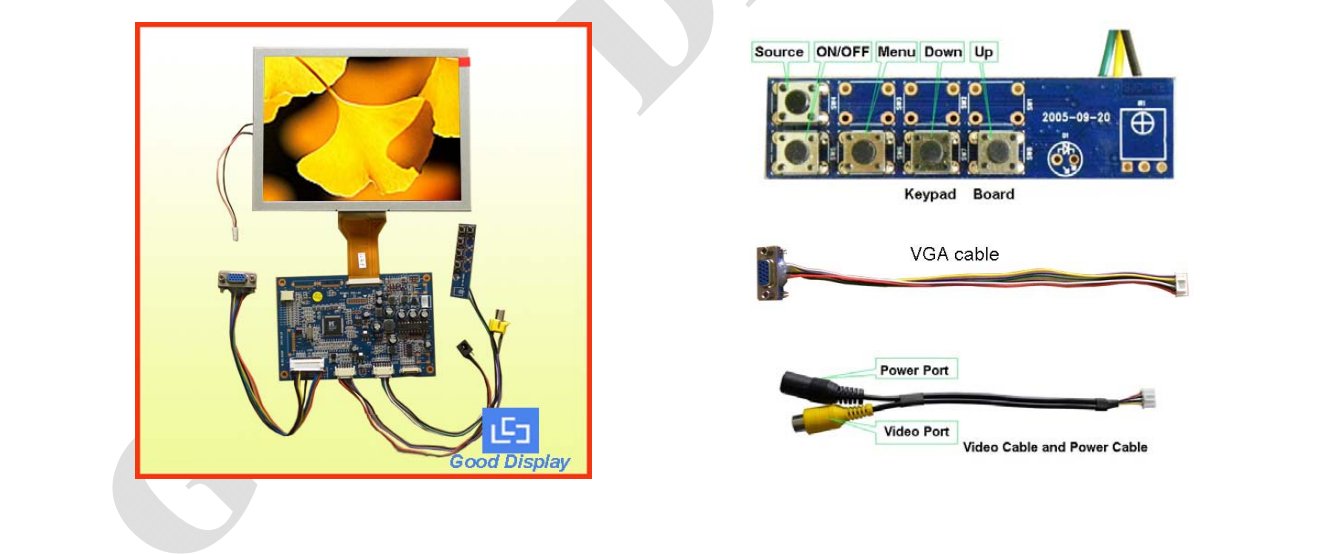

●  Supports Video(CVBS) & VGA Signal Input
●  OSD controls: Allow on-screen adjustments of Brightness, Contrast, RGB Auto Color Balance, HPosition, V-position






☆ THE ABOVE PRICE INCLUDE



1) 8 inch VGA, VIDEO LCD Module 800x600 Resolution 12V TFT *1pc




☆ MAIN PARAMETERS




PART NUMBER

GD102M03-GTIEJ080NA-05B

SIZE

8.0''

RESOLUTION

800x600

BRIGHTNESS

250cd/m2

WORKING VOLTAGE

DC12V(Typ.) (Min.9V, Max.18V)

VIEWING ANGLE

50/70/70/70°

SIGNAL INPUT

VIDEO, VGA, Y/C, AUDIO

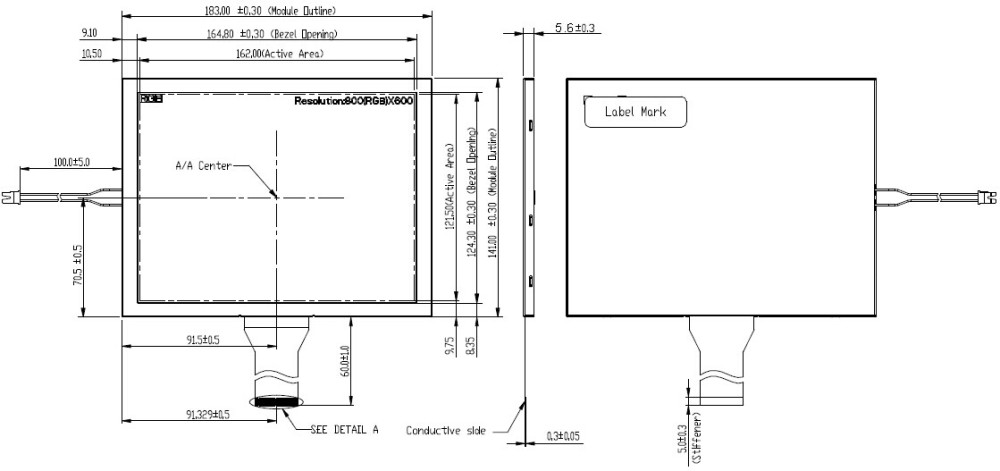

OUTSIDE DIMENSION OF LCD PANEL(mm)

183.0(W)x141.0(H)x5.6(D)

ACTIVE AREA OF LCD PANEL(mm)

162.0(H)x121.5(V)

STRUCTURAL DIMENSION OF PCBA(mm)

128.8 (W)×85.4 (H) ×7.8(D)

BACKLIGHT

LED

OPERATING TEMP.

-20℃~+70℃

STORAGE TEMP.

-30℃~+80℃







☆ PRECAUTIONS




1. TFT have used by special instrument to adjust precision and aging, test before leave factory, no need adjust again.


2. Please correctly connect power, video signal before you adjust, should be on/off power and video signal to check the image’s effect.


3. Due to this product is electronic product, please notice prevent static.


4. The TFT-LCD Panel is a glasswork, place carefully ,broken for fear.


5. Don’t touch pushbutton’s pin feet when you adjust potentiometers, due to person have resistance, you will effect pushbutton’s function when touch it.
