☆ INTRODUCTION
GDT250T2080 is a 2.5 inch color TFT-LCD display panel, 320x240 resolution, wide operating temp. -30℃~85℃, suitable for outdoor or cold environment, 4:3 contrast, 6 o'clock viewing angle, surface anti-glare treatment, 18-bit RGB (with T-CON) + 4-wire SPI interface, superior display quality, wide range of applications, it can be used in any embedded systems,industrial device,security and hand-held equipment which requires display in high quality and colorful image.
Relevant manual about this product on our official website (www.einkpro.com), contact us please.
☆ THE ABOVE PRICE INCLUDE

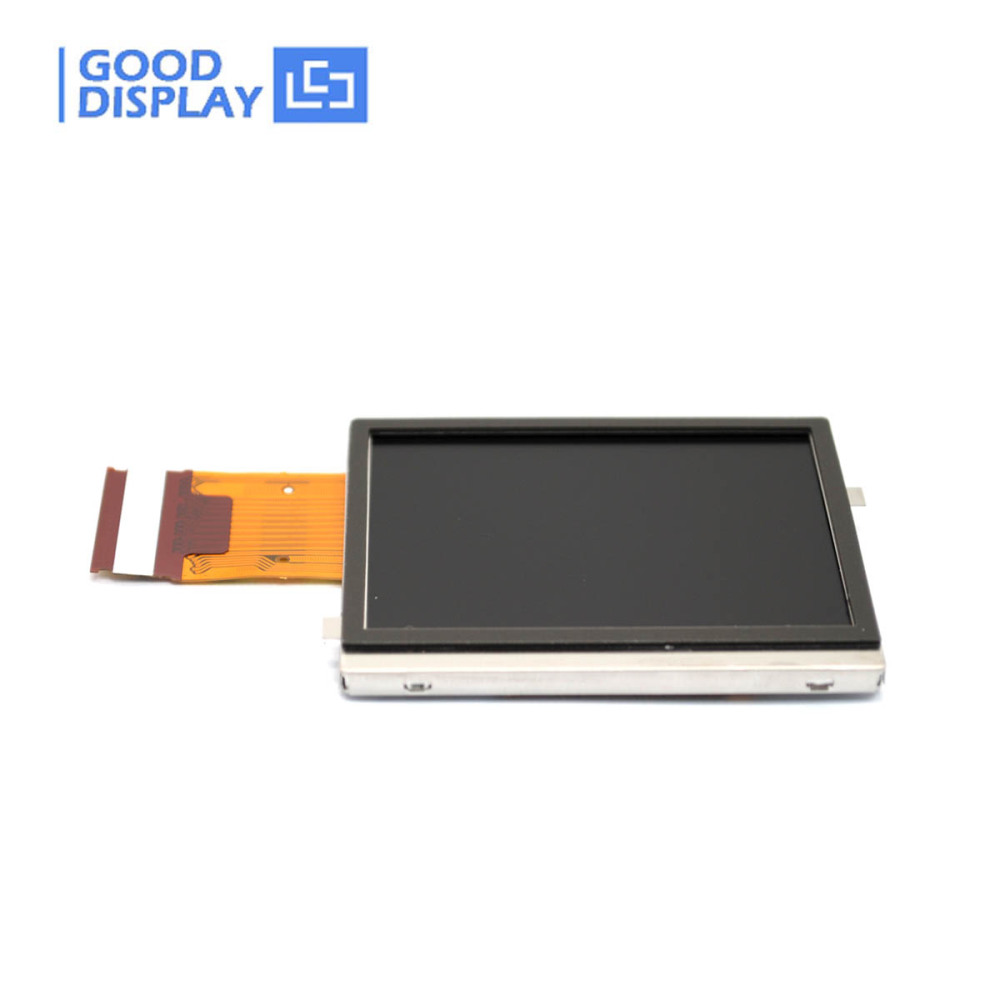

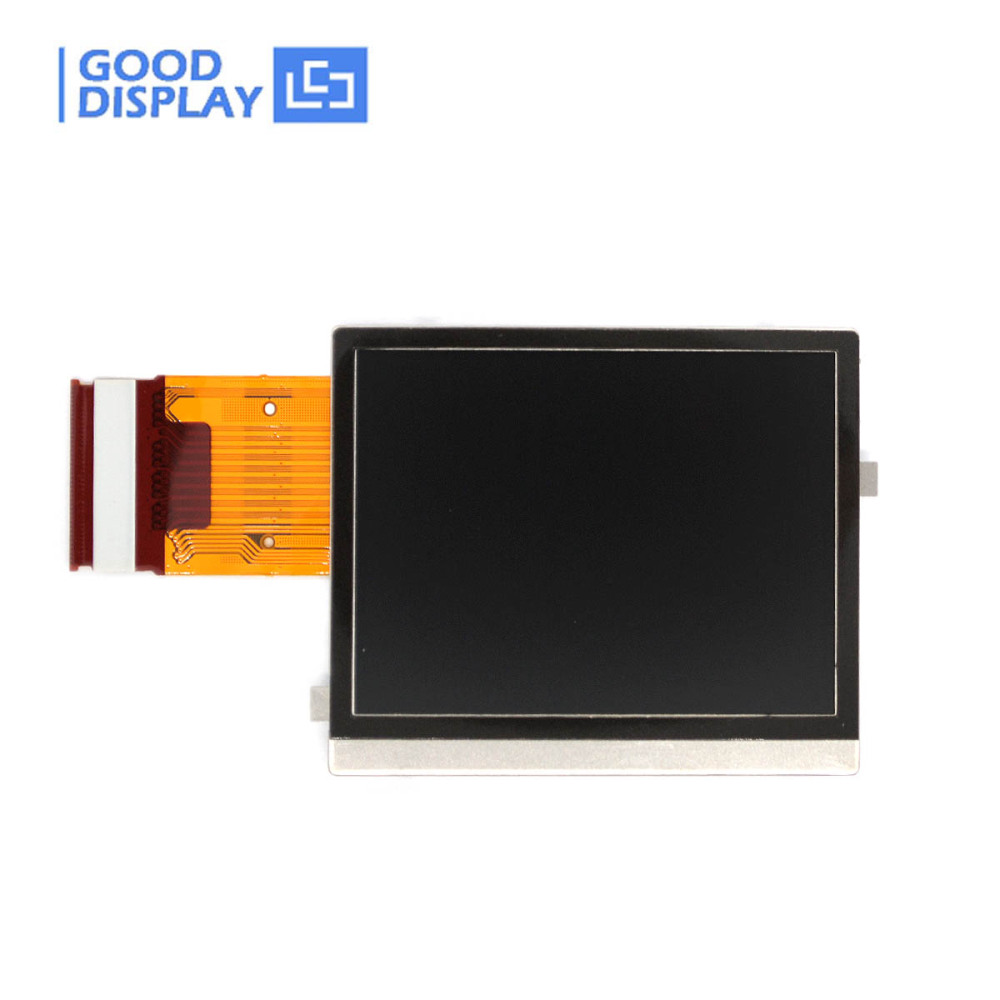

1) 2.5 inch TFT LCD Display Panel, Wide Operating Temperature, GDT250T2080 * 1pc
☆ MAIN PARAMETERS
| PART NUMBER |
GDT250T2080 |
| SIZE |
2.5'' |
VIEWING ANGLE |
50°/70°/75°/75°(U/D/L/R) |
| DISPLAY MODE |
262K |
OPERATING TEMP. |
-30℃~85℃ |
| CONTRAST RATIO |
500 |
STORAGE TEMP. |
-40℃~90℃ |
| LCD DISPLAY RATIO |
4:03 |
INPUT VOLTAGE |
3.0V |
| RESOLUTION |
320xRGBx240 |
TYPE |
TN |

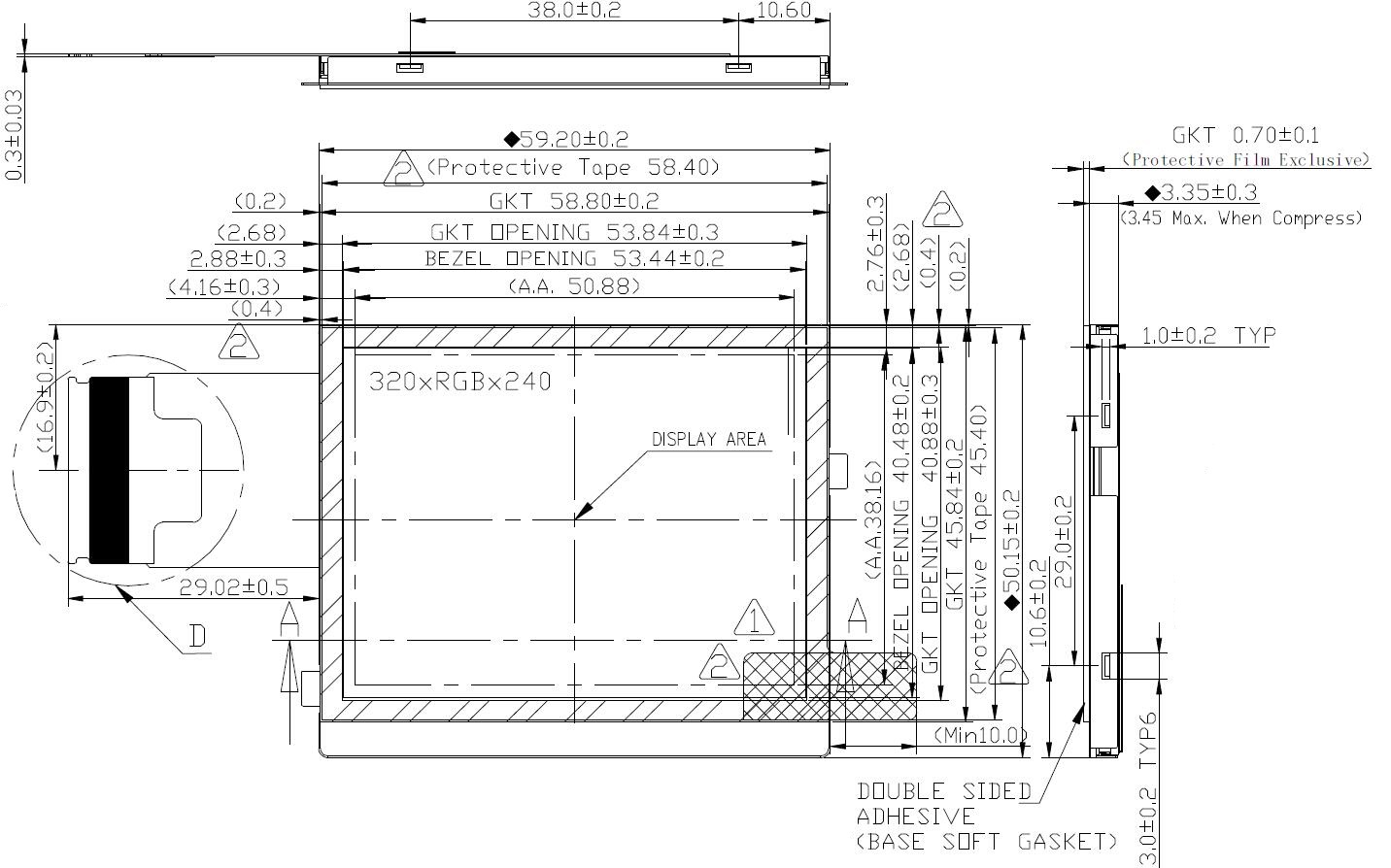

| OUTSIDE DIMENSION OF LCD PANEL |
59.2(W)x50.15(H)x3.35(D)(mm) |
INTERFACE |
18-bits RGB +4-wire SPI |
| ACTIVE AREA OF LCD PANEL |
50.88(H)x38.16(V)(mm) |
DOT PITCH |
0.053 (*3) (W) x 0.159 (H)(mm) |

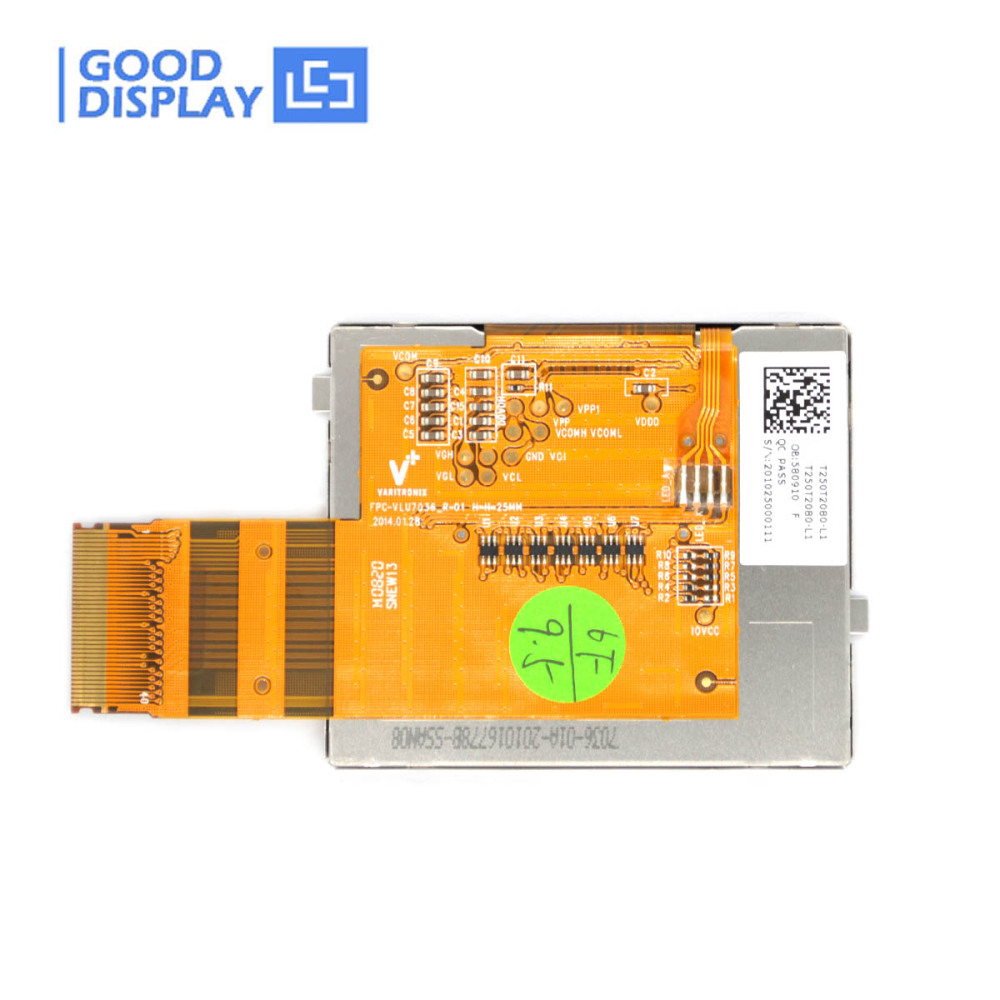

| STRUCTURAL DIMENSION OF PCBA |
50.0(W)x50.0(H)x5.2(D)(mm) |
BRIGHTNESS |
500cd/m2 |
| START TIME |
30ms |
BACKLIGHT |
LED |
☆ FEATURE
● 320xRGBx240 resolution
● Wide operating temp.: -30℃~85℃
● Viewing Angle: 50/70/75/75(U/D/L/R)
● Color: 262K
☆ DETAILS
☆ RELATED INFORMATION DOWNLOAD
● GDT250T2080 Specification
☆ PRECAUTIONS
● When the metal parts of the TFT-LCD module (shielding cover and back cover) are dirty (such as water or finger grease), please wipe it with a dry soft cloth. Long-term contact with water may cause discoloration or spots.
● The TFT-LCD panel is also glass. If it is dropped or bumped, the glass is easy to break. Please handle it carefully.
● The IC on the TFT-LCD panel and module is sensitive to electrostatic discharge; please ensure that the equipment and the operator are properly grounded before and during operation.
