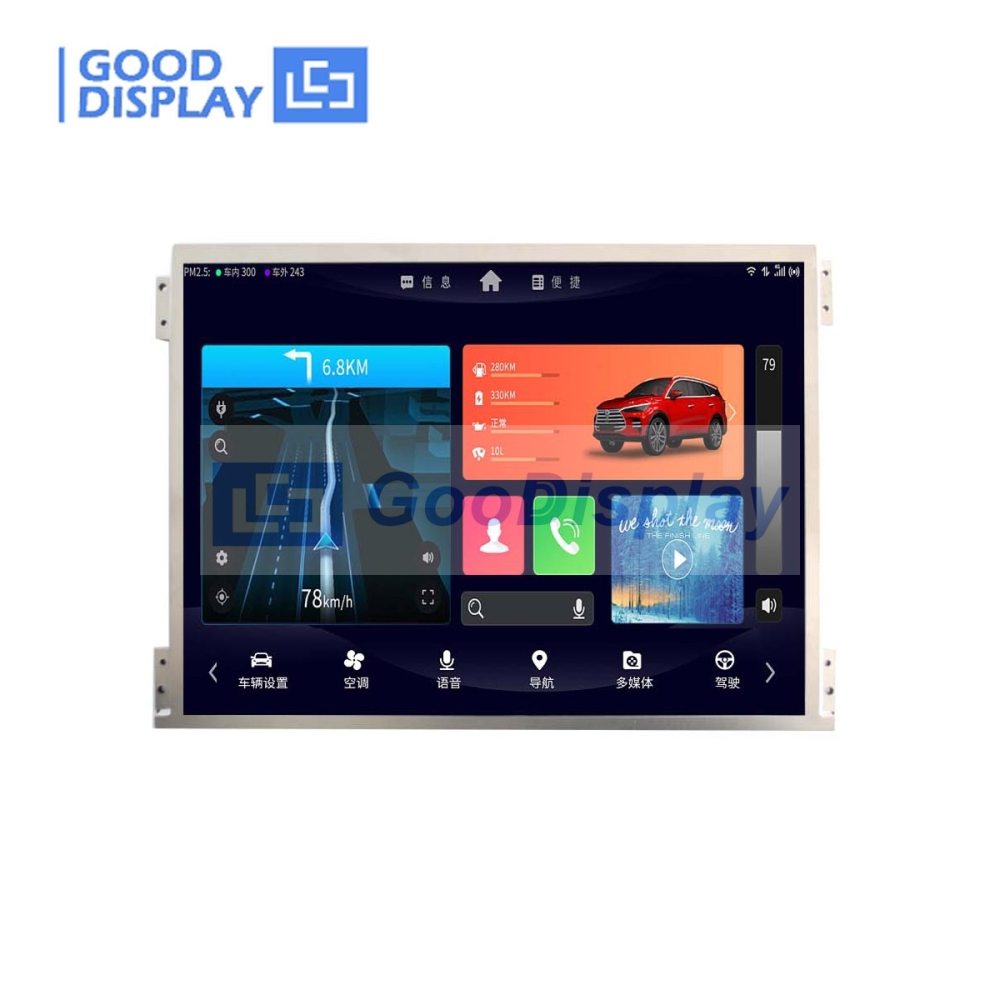

GDTL104XL-S03 is a 10.4" TFT Liquid Crystal Display module with LED backlight unit and 30-pin-and LVDS interface. This product supports 1024 x 768 XGA format and can display true 16.7M colors (6-bits colors with FRC). The converter module for LED backlight is built-in.
Relevant manual about this product on our official website (www.einkpro.com),contact us please.

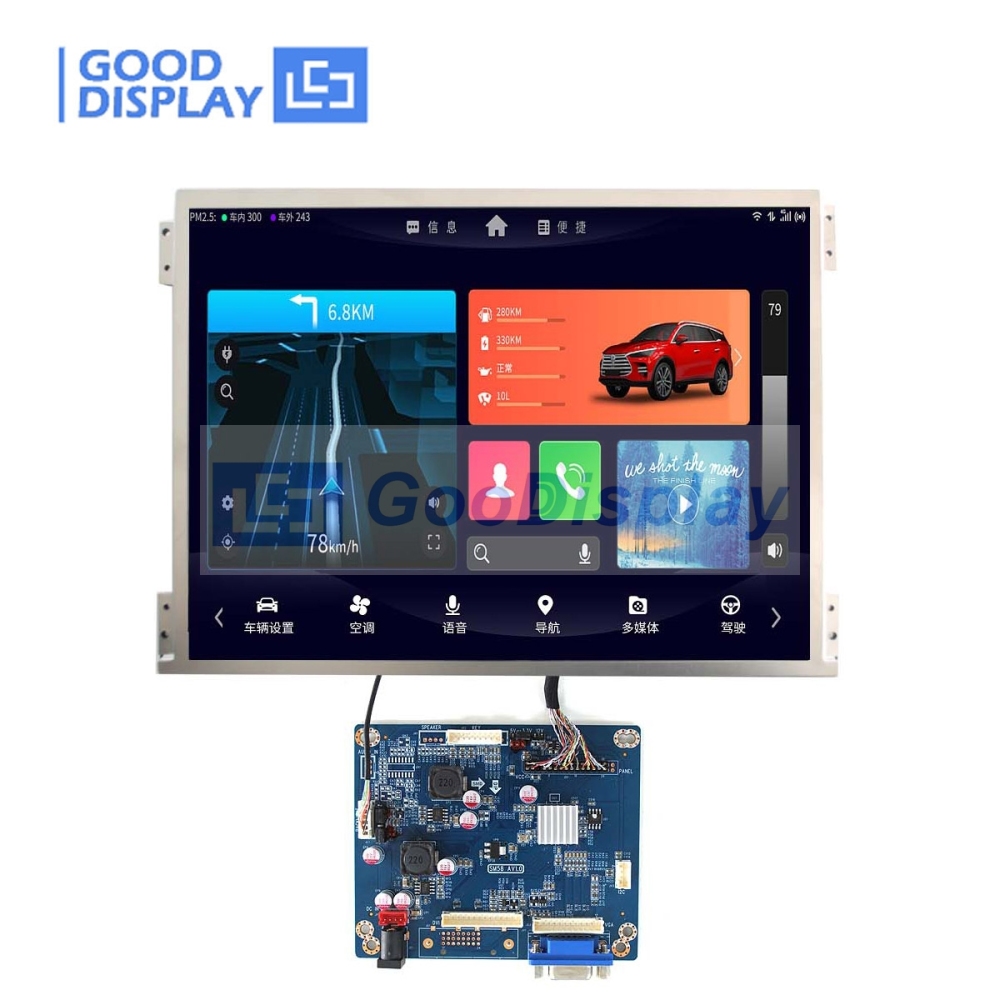

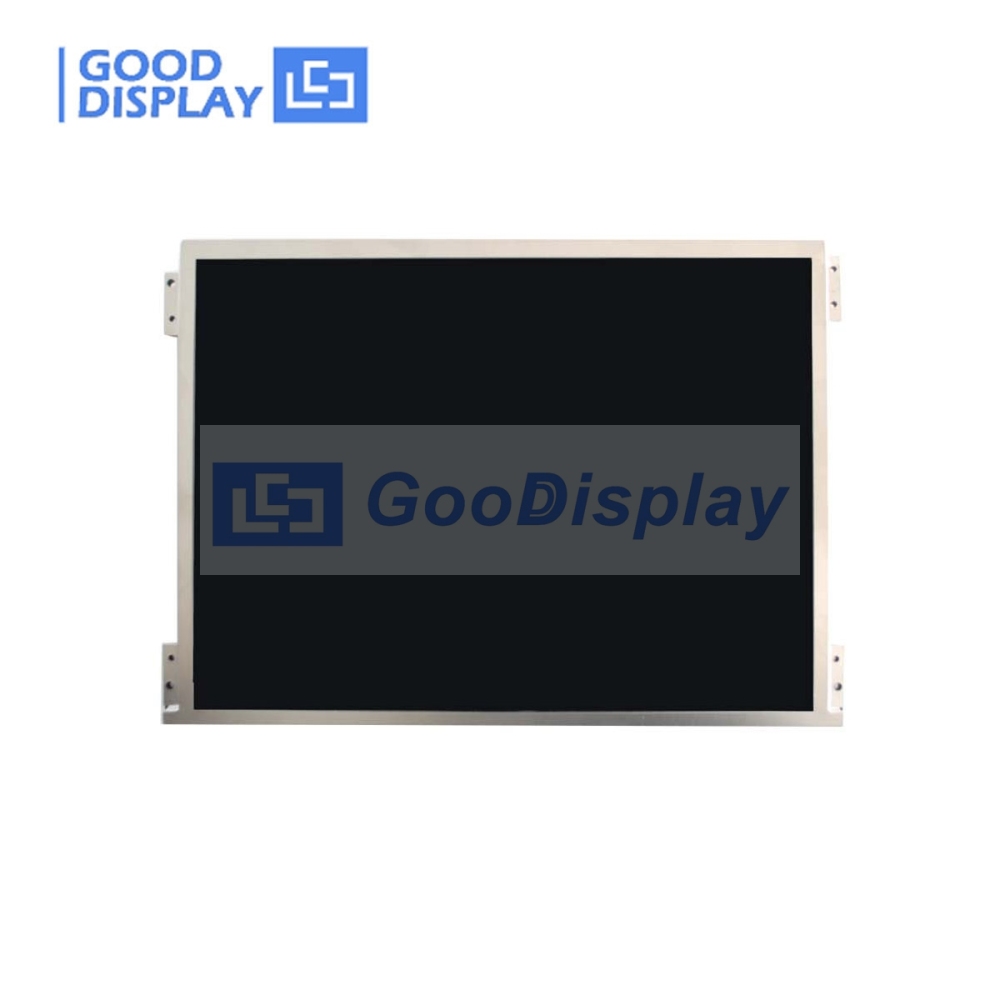

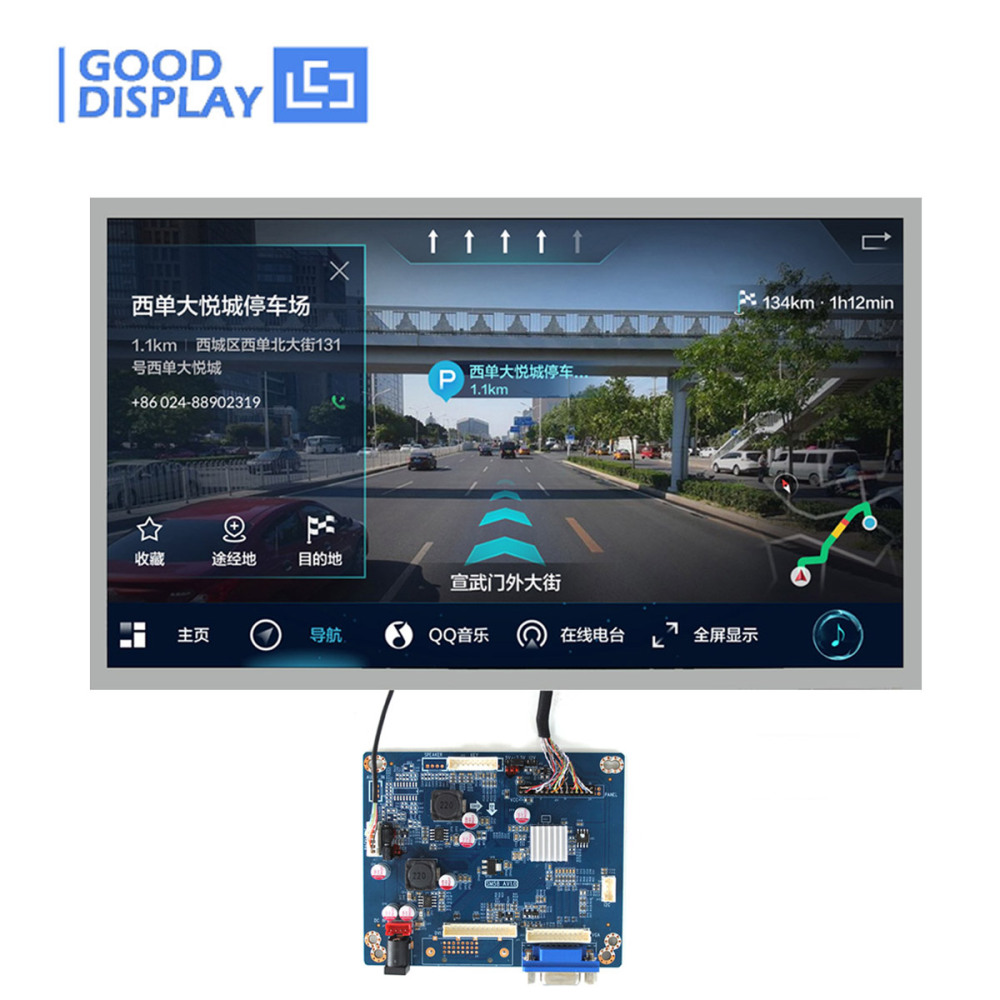

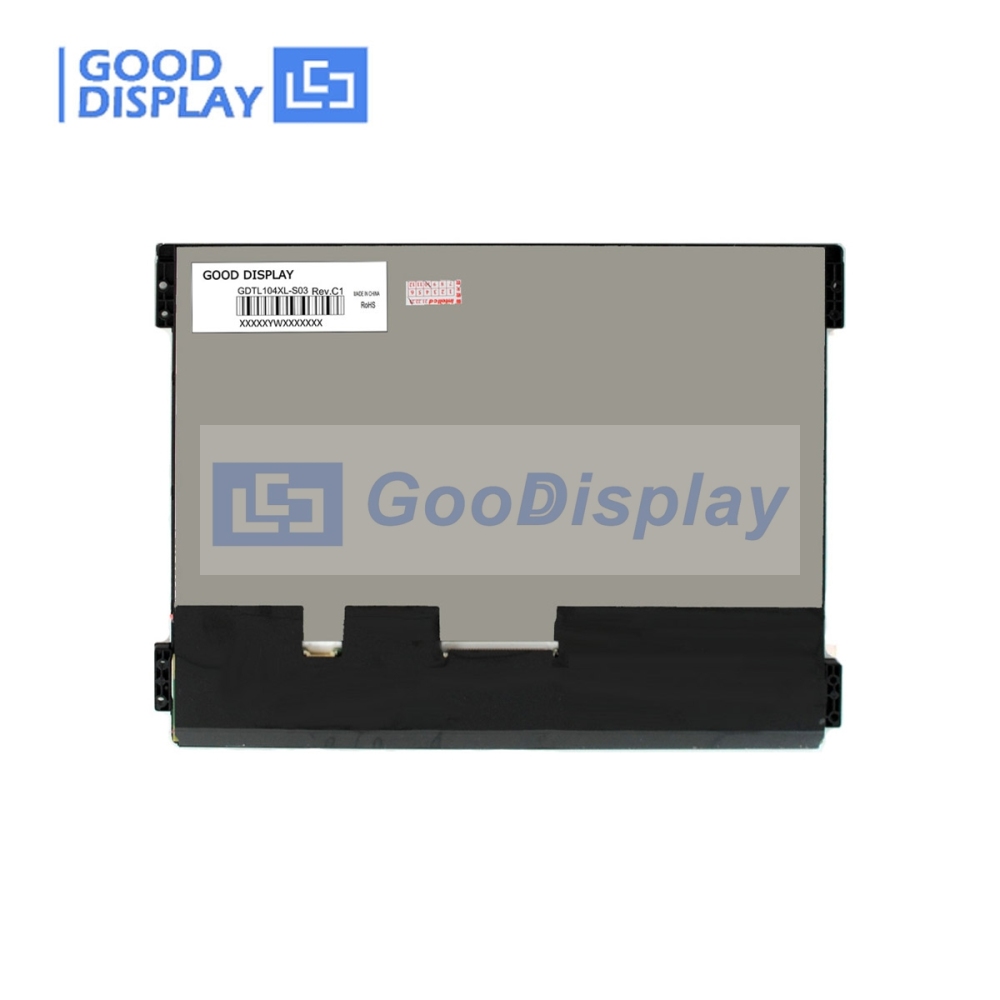

1) 10.4 inch TFT LCD Display Panel, Wide Operating Temperature, GDTL104XL-S03 * 1pc

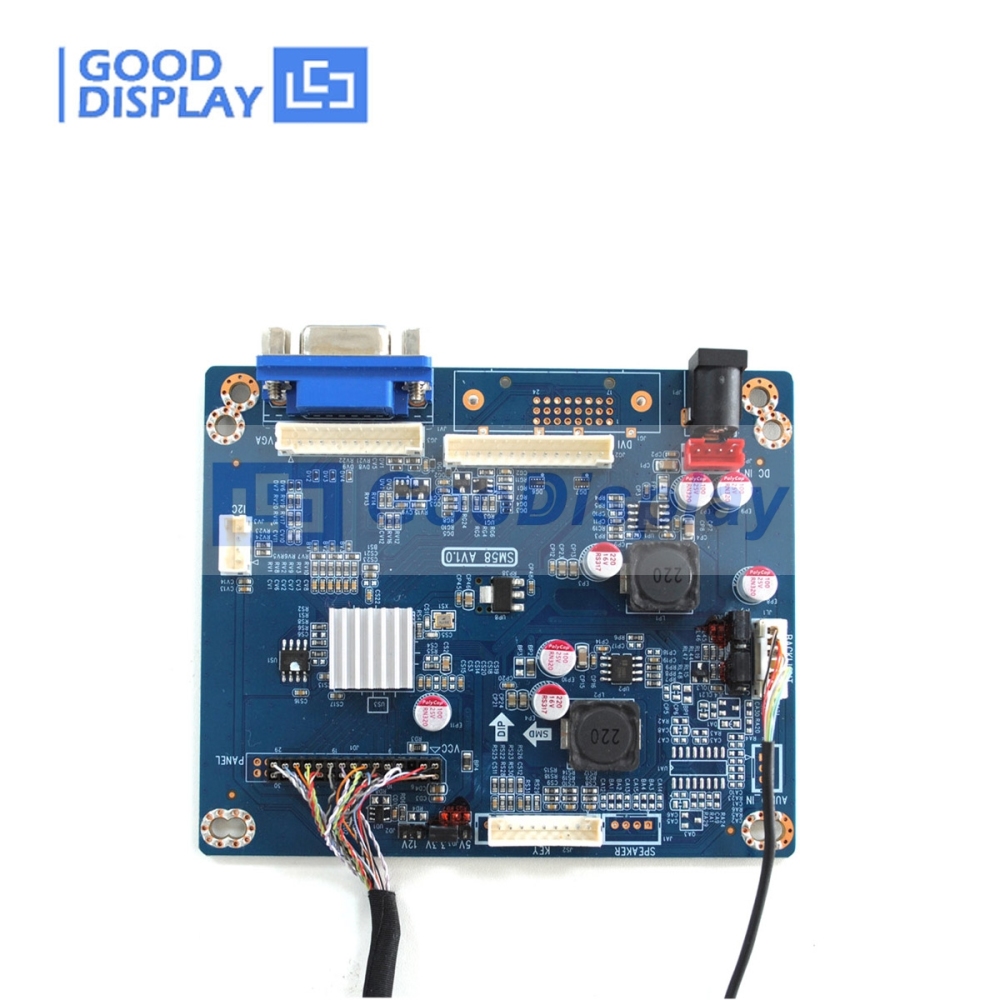

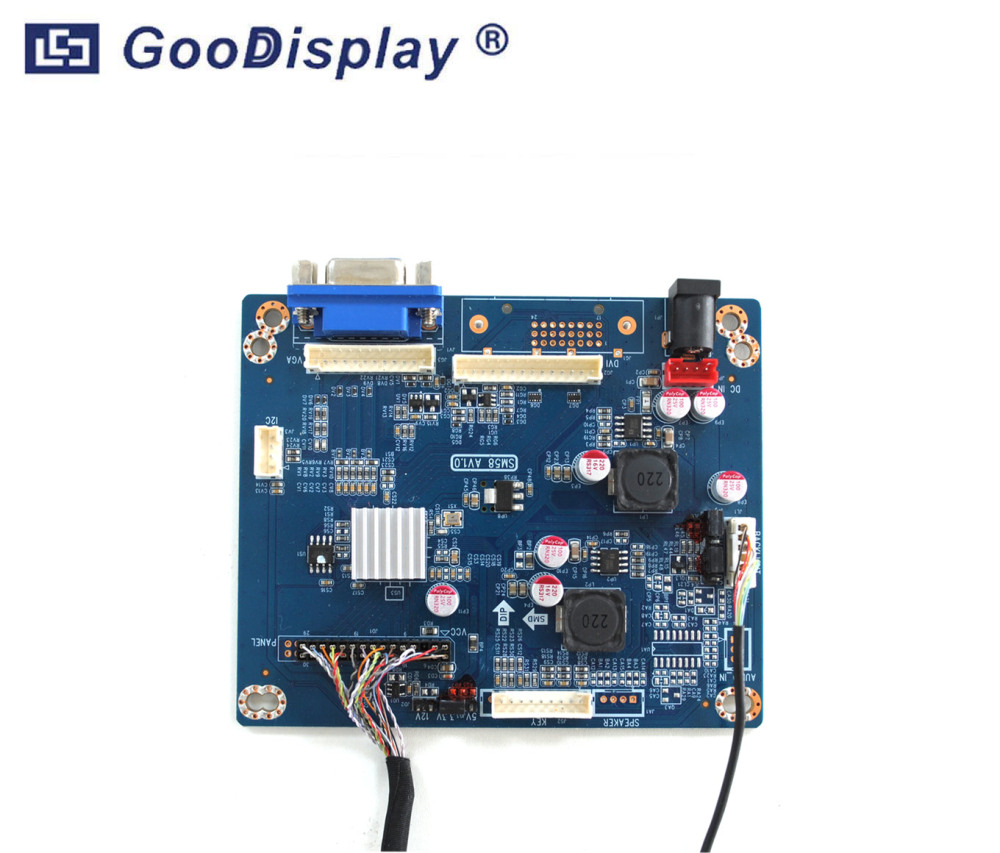

2) Development board GDTZ-SW1665VTTV-3V0 * 1pc

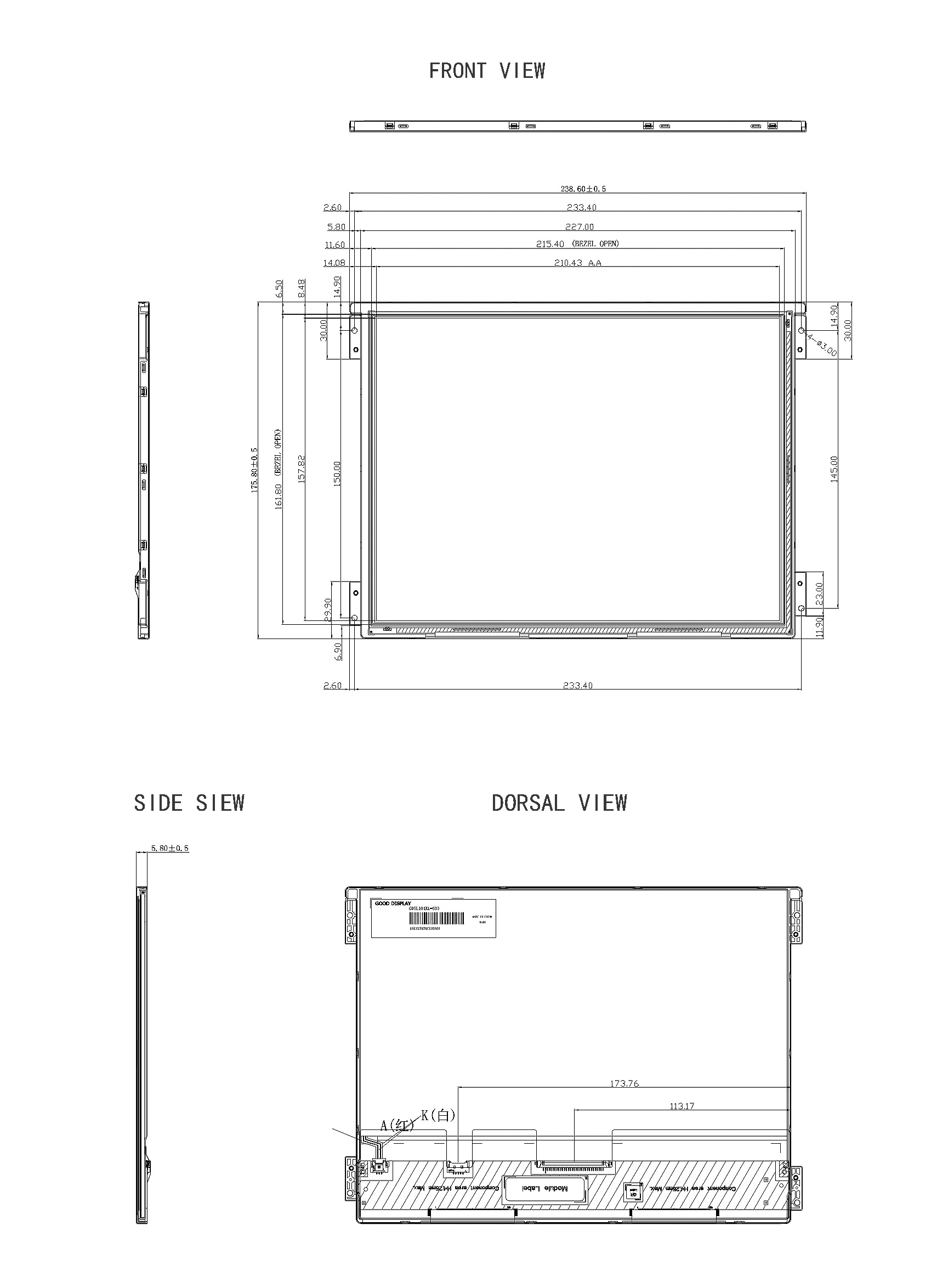

| PART NUMBER | GDTL104XL-S03 | ||
| SIZE | 10.4'' | OPERATING TEMP. | -30℃~80℃ |
| TYPE | IPS | STORAGE TEMP. | -30℃~80℃ |
| CONTRAST RATIO | 1000 | DISPLAY MODE | Normally Black |
| NUMBER OF DOTS | 1024×768 pixels | DISPLAY FORMAT | RGB vertical stripe |
| LUMINANCE | 600cd/m2 | VIEWING DIRECTION | 12 O'clock |
| OUTLINE DIMENSION(mm) | 238.60×175.80×5.80 | SURFACE TREATMENT | Anti-Glare,3H |
| ACTIVE AREA(mm) | 210.43×157.82 | INTERFACE TYPE | LVDS |
| PIXEL PITCH(mm) | 0.2055×0.2055 | ||
● Excellent brightness (1000 nits)
● Ultra high contrast ratio (1000:1)
● Fast response time (Ton+Toff average 25 ms)
● XGA (1024 x 768 pixels) resolution
● DE (Data Enable) only mode
● LVDS (Low Voltage Differential Signaling) interface.
● Ultra wide viewing angle: 176(H)/ 176(V) (CR>10) Super MVAtechnology
● 180 degree rotation display option
● Color reproduction (Nature color)
● Wide operation and storage temperature range
● The startup voltage of a Backlight is approximately 1000 Volts. It may cause an electrical shock while assembling with the inverter. Do not disassemble the module or insert anything into the Backlight unit.
● If the liquid crystal material leaks from the panel, it should be kept away from the eyes or mouth. In case of contact with hands, skin or clothes, it has to be washed away thoroughly with soap.
● After the module's end of life, it is not harmful in case of normal operation and storage.
