The GDTL121XL-S05 model is a 12.1" TFT-LCD IAV module with a white LED Backlight Unit and a 20-pin 1ch-LVDS interface. This module supports 1024 x 768 XGA mode and displays 262k/16.7M colors. The converter for the Backlight Unit is built in.
Relevant manual about this product on our official website (www.einkpro.com), contact us please.

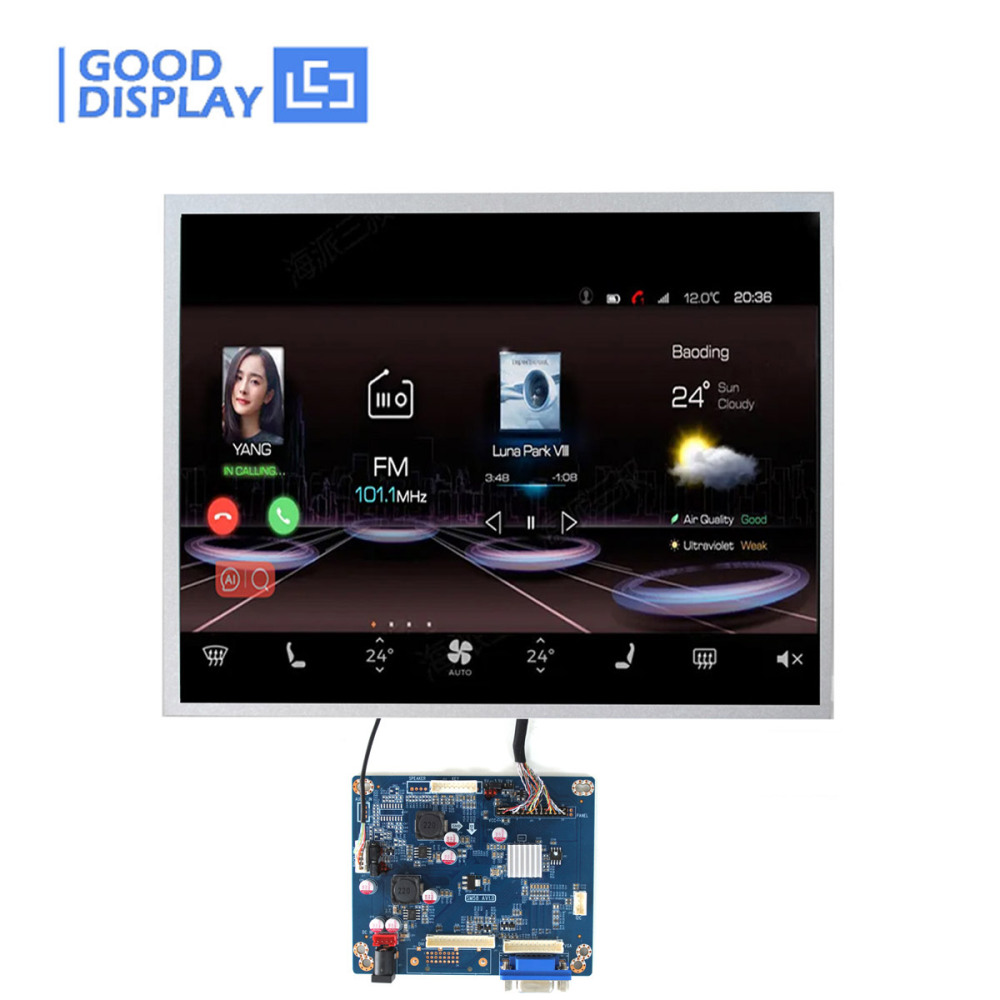

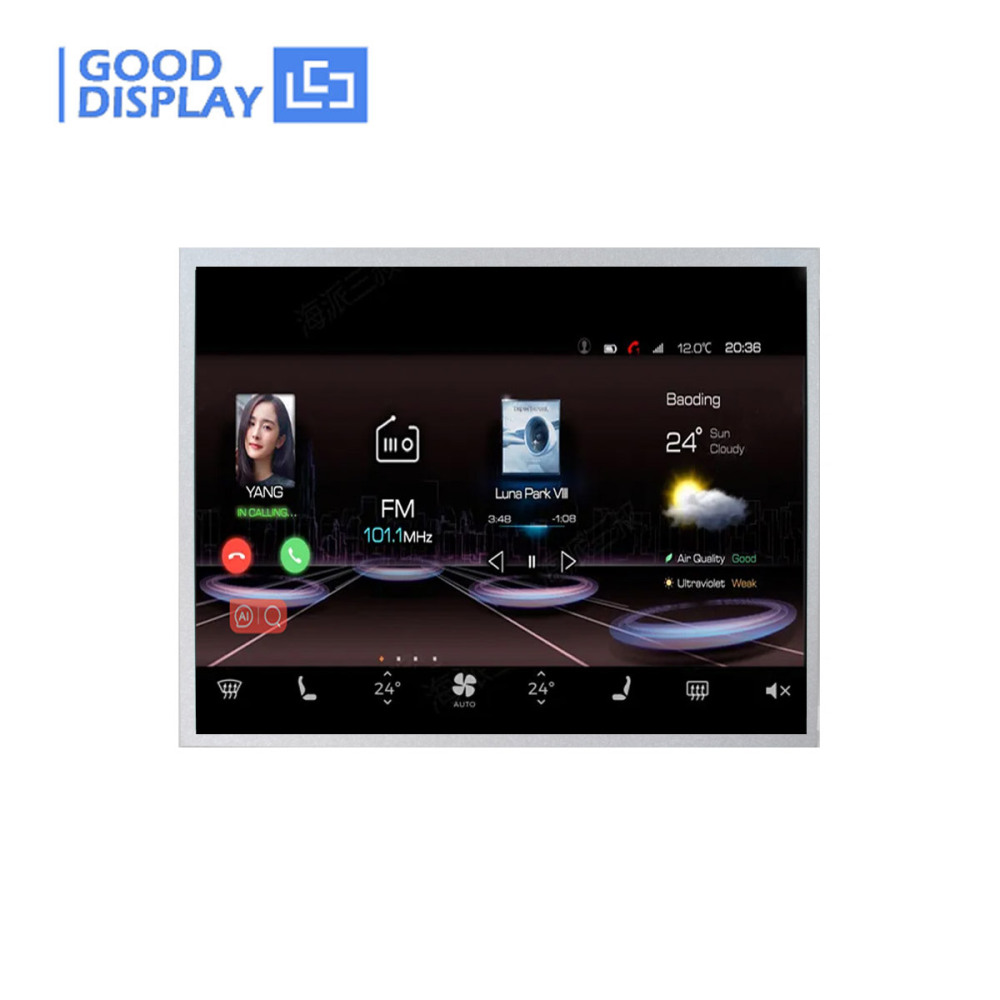

1) 12.1 inch TFT LCD Display Panel, GDTL121XL-S05 * 1pc

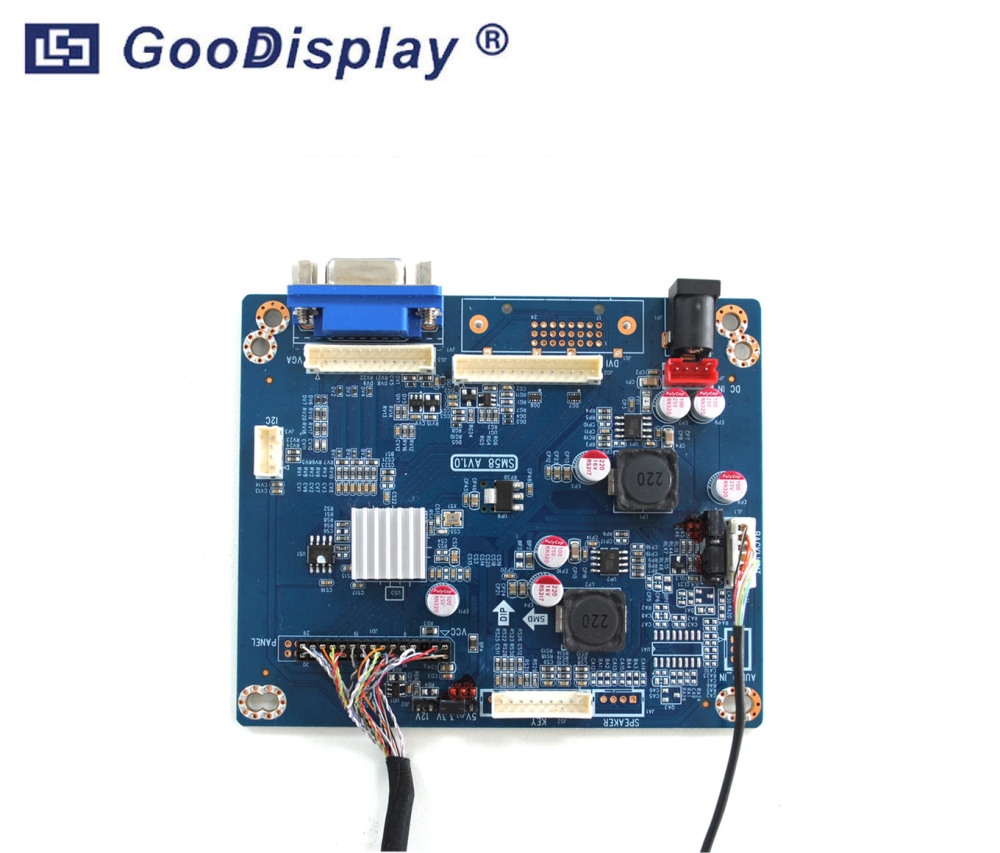

2) Development board GDTZ-SW1665VTTV-3V0 * 1pc
| PART NUMBER | GDTL121XL-S05 | ||
| SIZE | 12.1'' | TYPE | IPS |
| CONTRAST RATIO | 1000 | OPERATING TEMP. | -30℃~70℃ |
| BACKLIGHT | White LED | STORAGE TEMP. | -40℃~80℃ |
| NUMBER OF DOTS | 1024×768 pixels | DISPLAY MODE | Normally Black |
| LUMINANCE | 600cd/m2 | DISPLAY FORMAT | RGB vertical stripe |
| NUMBER OF COLORS | 262K/16.7M | VIEWING DIRECTION | 12 O'clock |

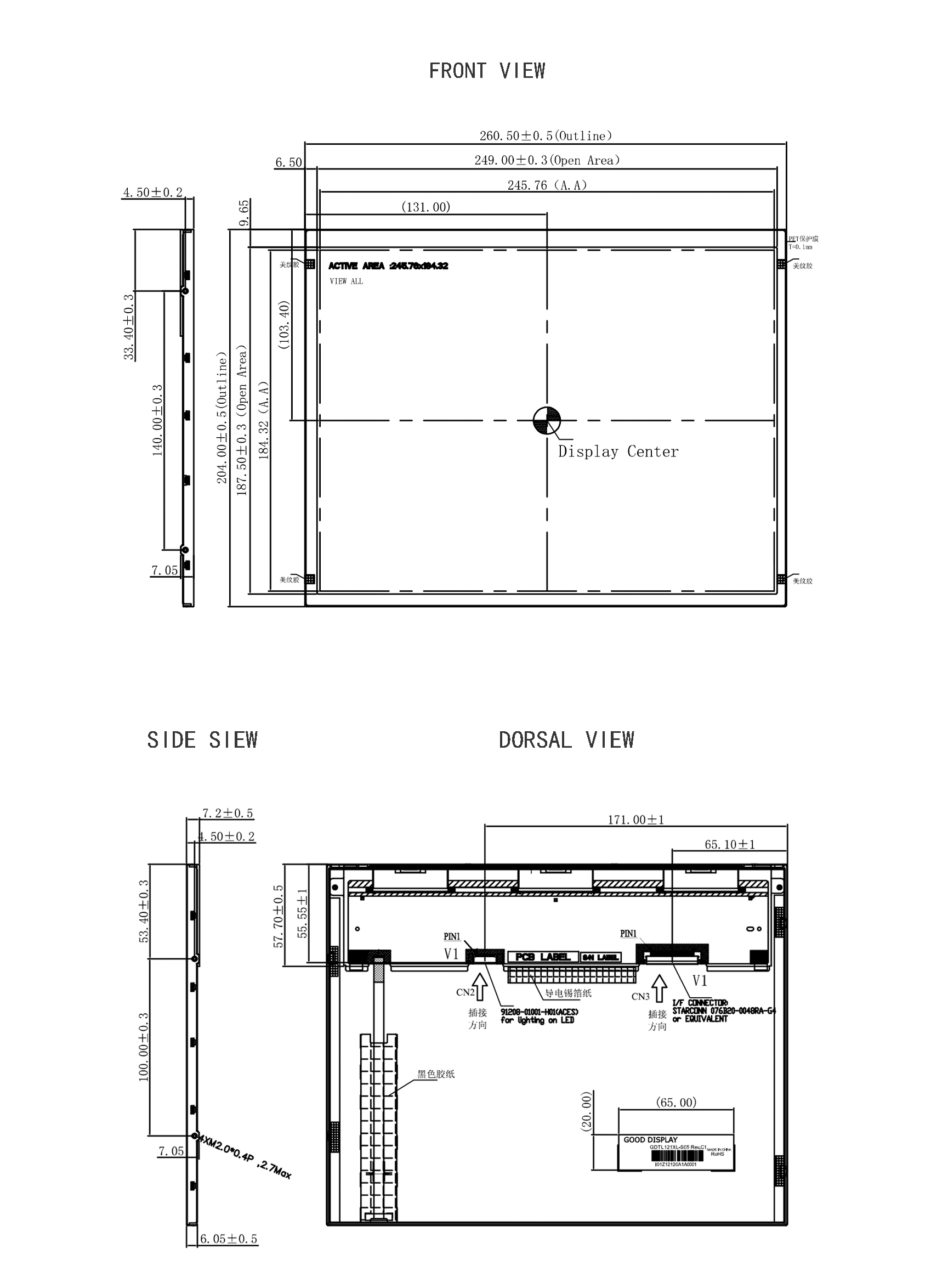

| OUTLINE DIMENSION(mm) | 260.5×204×7.2 | SURFACE TREATMENT | Anti-Glare,3H |
| ACTIVE AREA(mm) | 245.76×184.32 | INTERFACE TYPE | LVDS |
| PIXEL PITCH(mm) | 0.240×0.240 | ||
● Wide viewing angle
● High contrast ratio
● XGA (1024 x 768 pixels) resolution
● Wide operating temperature
● DE (Data Enable) mode
● LVDS (Low Voltage Differential Signaling) interface
● Reversible-scan direction
● RoHS Compliance
● Do not disassemble the module or insert anything into the Backlight unit.
● If the liquid crystal material leaks from the panel, it should be kept away from the eyes or mouth. In case of contact with hands, skin or clothes, it has to be washed away thoroughly with soap.
● After the module’s end of life, it is not harmful in case of normal operation and storage.
