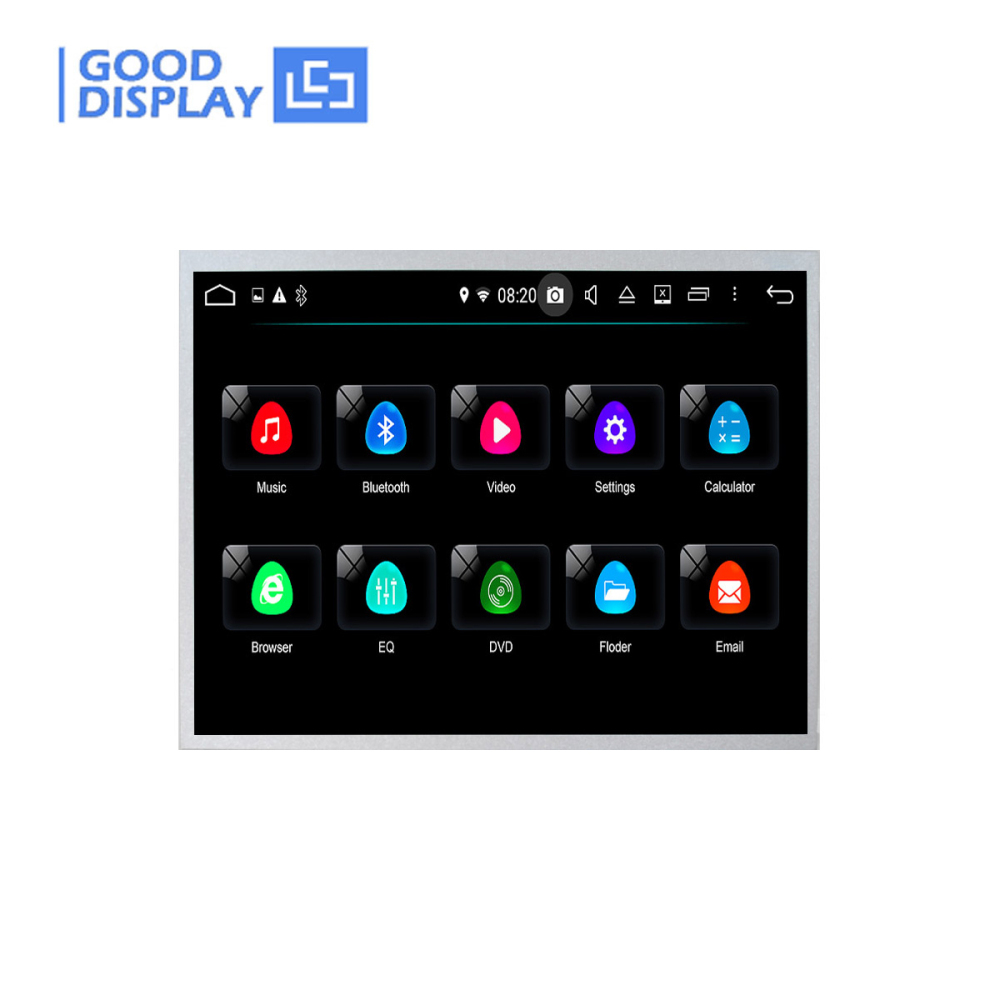

12.1 inch TFT LCD Display Panel with Development Board, High-brightness 1000Nit, GDTL121XL-S04 + GDTZ-SW1665VTTV-3V0

The GDTL121XL-S04 model is a 12.1" TFT-LCD IAV module with a white LED Backlight Unit and a 20-pin 1ch-LVDS interface. This module supports 1024 x 768 XGA mode and displays 262k/16.7M colors. The converter for the Backlight Unit is built in.
Price:
USD
$101.52
  • ITEM:
    TFT LCD Display
    Development board

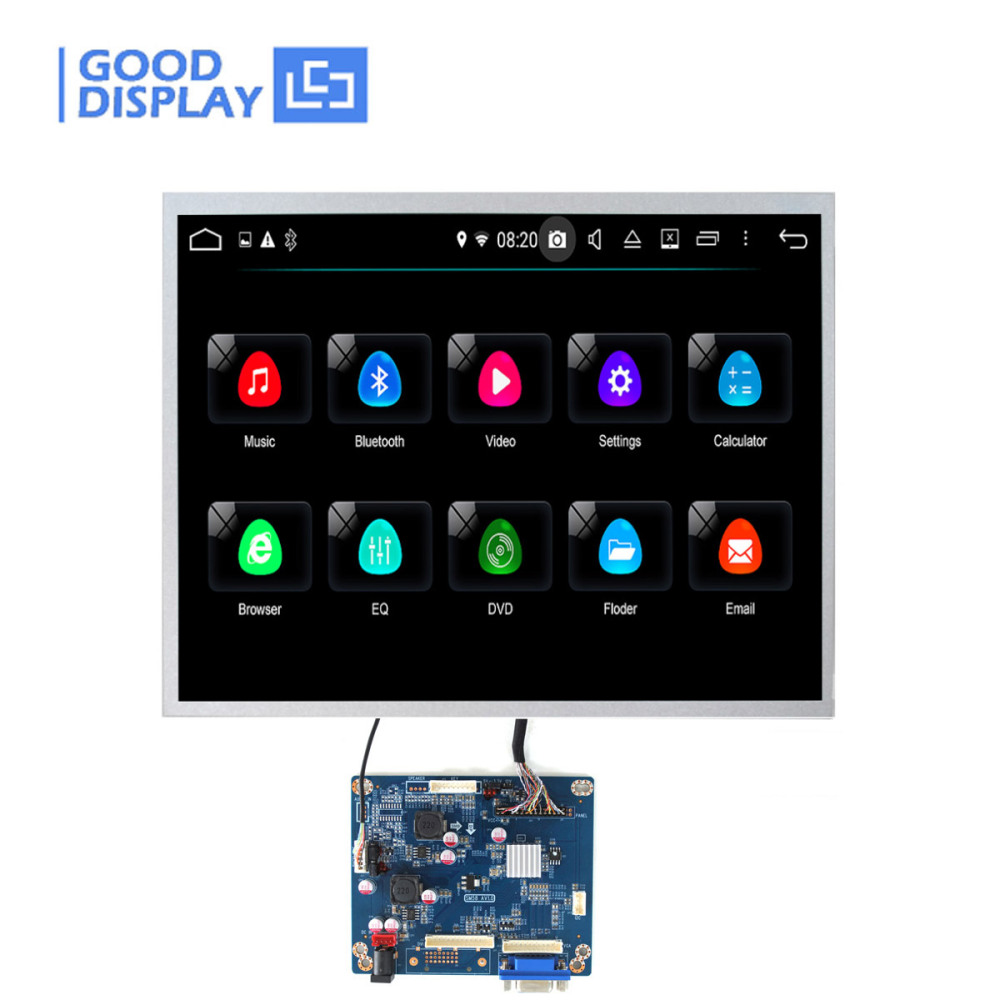

    TFT LCD Display with Development board
Quantity:
-
+
(6 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Reviews



☆ INTRODUCTION




The GDTL121XL-S04 model is a 12.1" TFT-LCD IAV module with a white LED Backlight Unit and a 20-pin 1ch-LVDS interface. This module supports 1024 x 768 XGA mode and displays 262k/16.7M colors. The converter for the Backlight Unit is built in.



Relevant manual about this product on our official website (www.einkpro.com), contact us please.




☆ THE ABOVE PRICE INCLUDE




1) 12.1 inch TFT LCD Display Panel, High-brightness, GDTL121XL-S04 * 1pc

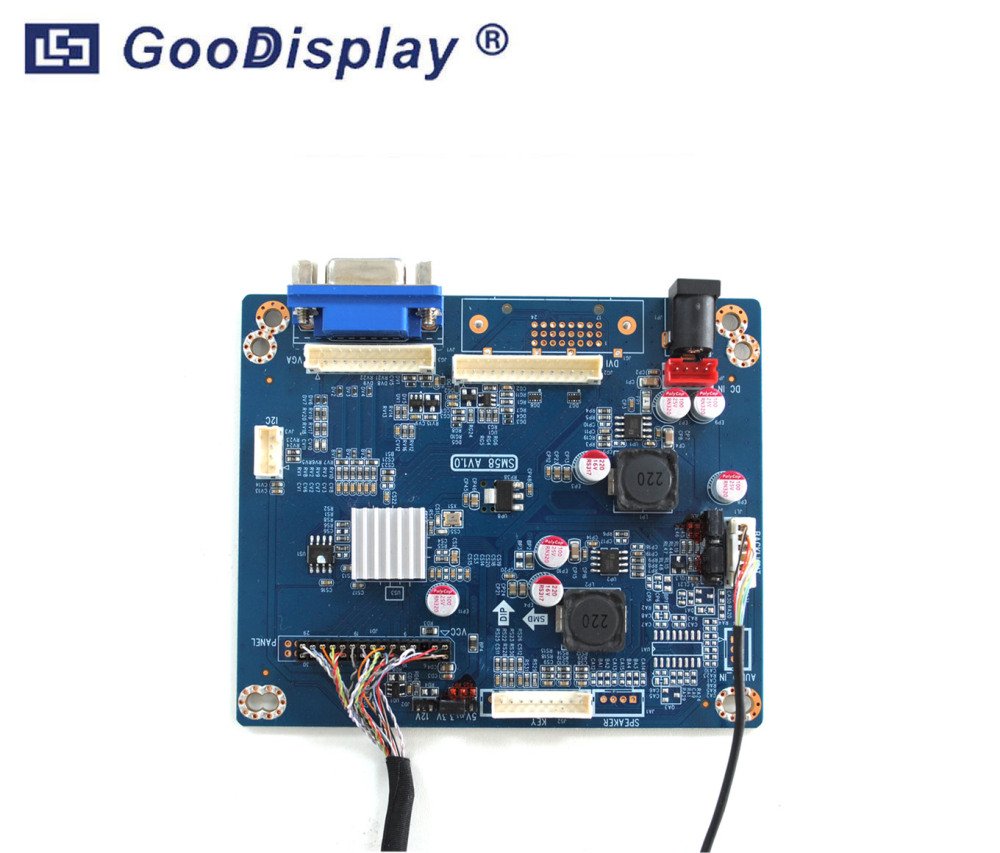

2) Development board GDTZ-SW1665VTTV-3V0 * 1pc




☆ MAIN PARAMETERS



PART NUMBER GDTL121XL-S04
SIZE 12.1'' TYPE IPS
CONTRAST RATIO 1000 OPERATING TEMP. -30℃~70℃
BACKLIGHT White LED STORAGE TEMP. -40℃~80℃
NUMBER OF DOTS 1024×768 pixels DISPLAY MODE Normally Black
LUMINANCE 1000cd/m2 DISPLAY FORMAT RGB vertical stripe
NUMBER OF COLORS 262K/16.7M VIEWING DIRECTION 12 O'clock

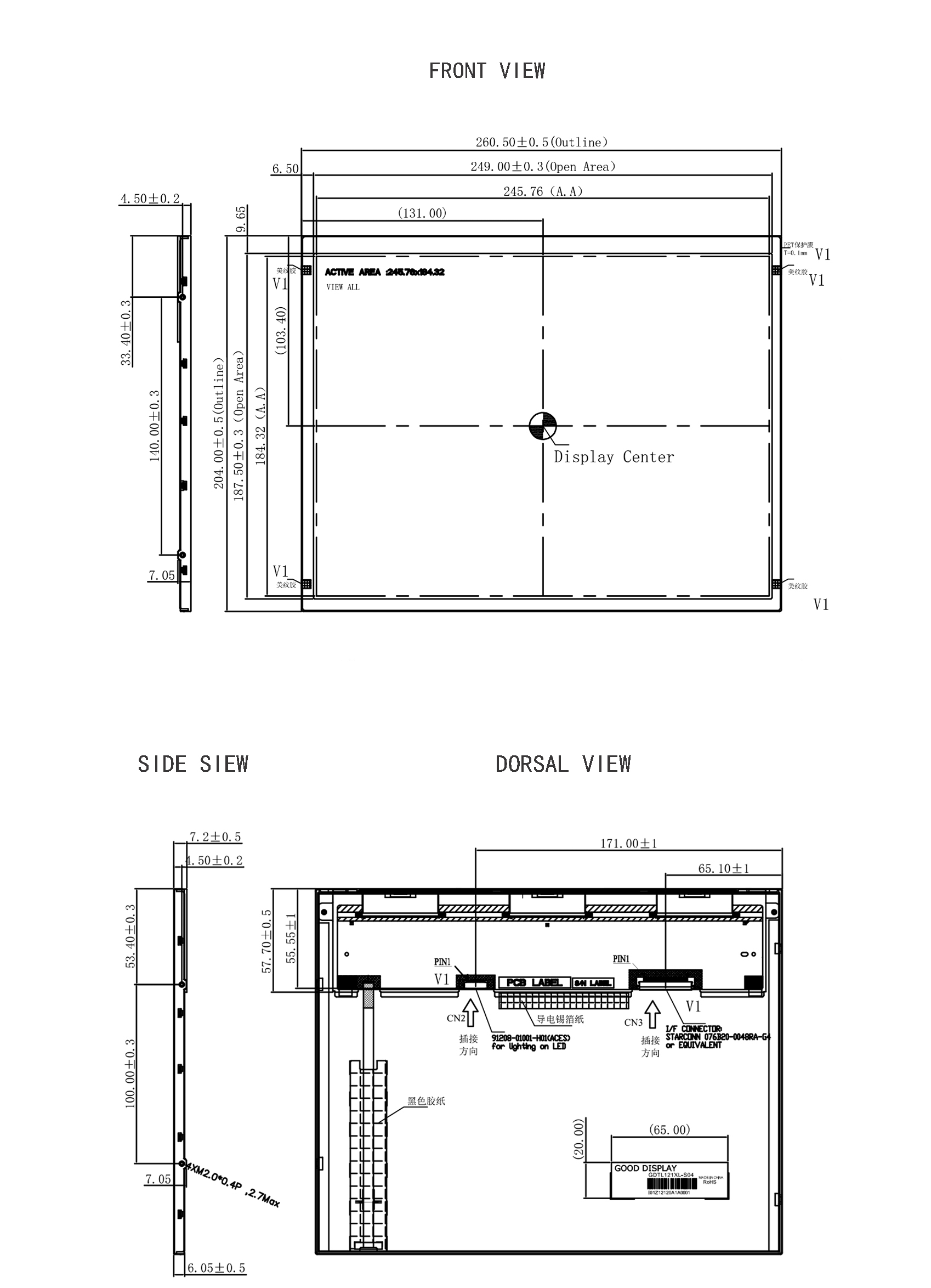

OUTLINE DIMENSION(mm) 260.5×204×7.2 SURFACE TREATMENT Anti-Glare,3H
ACTIVE AREA(mm) 245.76×184.32 INTERFACE TYPE LVDS
PIXEL PITCH(mm) 0.240×0.240




☆ FEATURE




● Wide viewing angle
● High contrast ratio
● XGA (1024 x 768 pixels) resolution
● Wide operating temperature
● DE (Data Enable) mode
● LVDS (Low Voltage Differential Signaling) interface
● Reversible-scan direction
● RoHS Compliance




☆ DETAILS






☆ RELATED INFORMATION DOWNLOAD



●  GDTL121XL-S04 Specification



☆ PRECAUTIONS



●  Do not disassemble the module or insert anything into the Backlight unit.

●  If the liquid crystal material leaks from the panel, it should be kept away from the eyes or mouth. In case of contact with hands, skin or clothes, it has to be washed away thoroughly with soap.

●  After the module’s end of life, it is not harmful in case of normal operation and storage.
