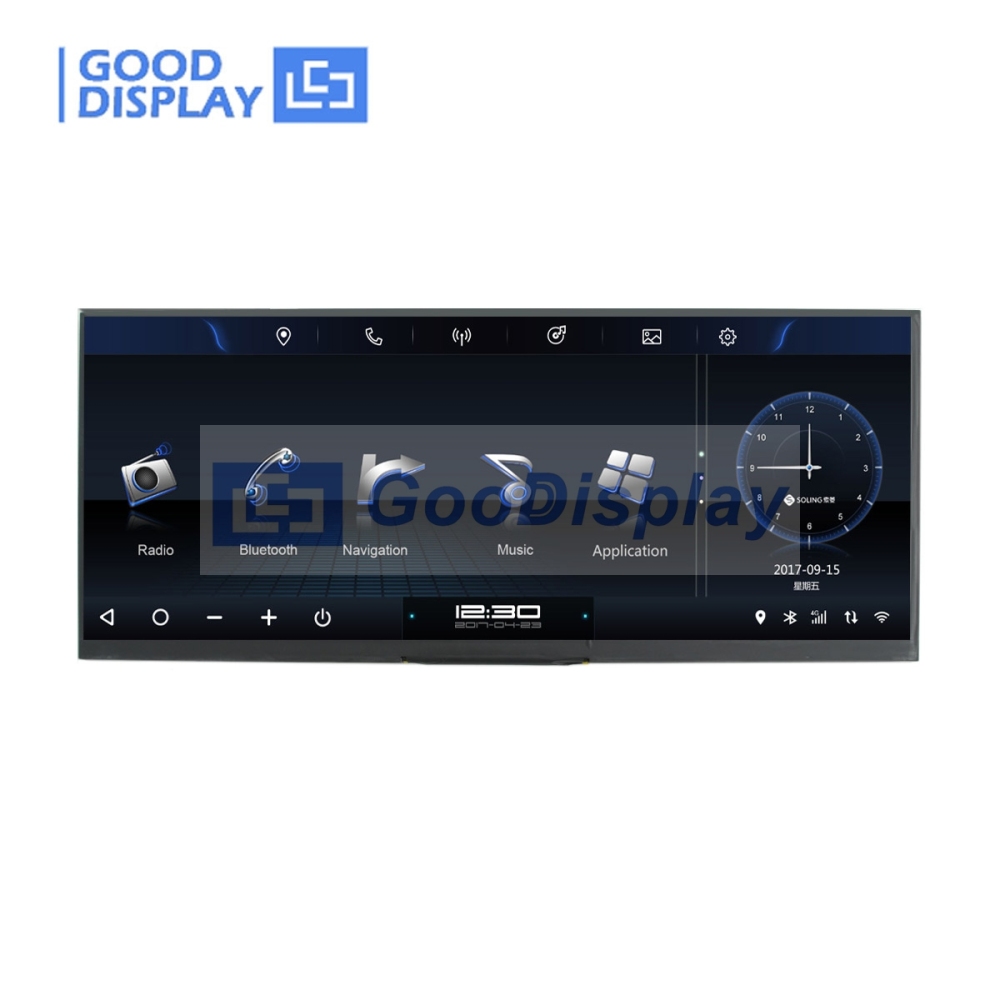

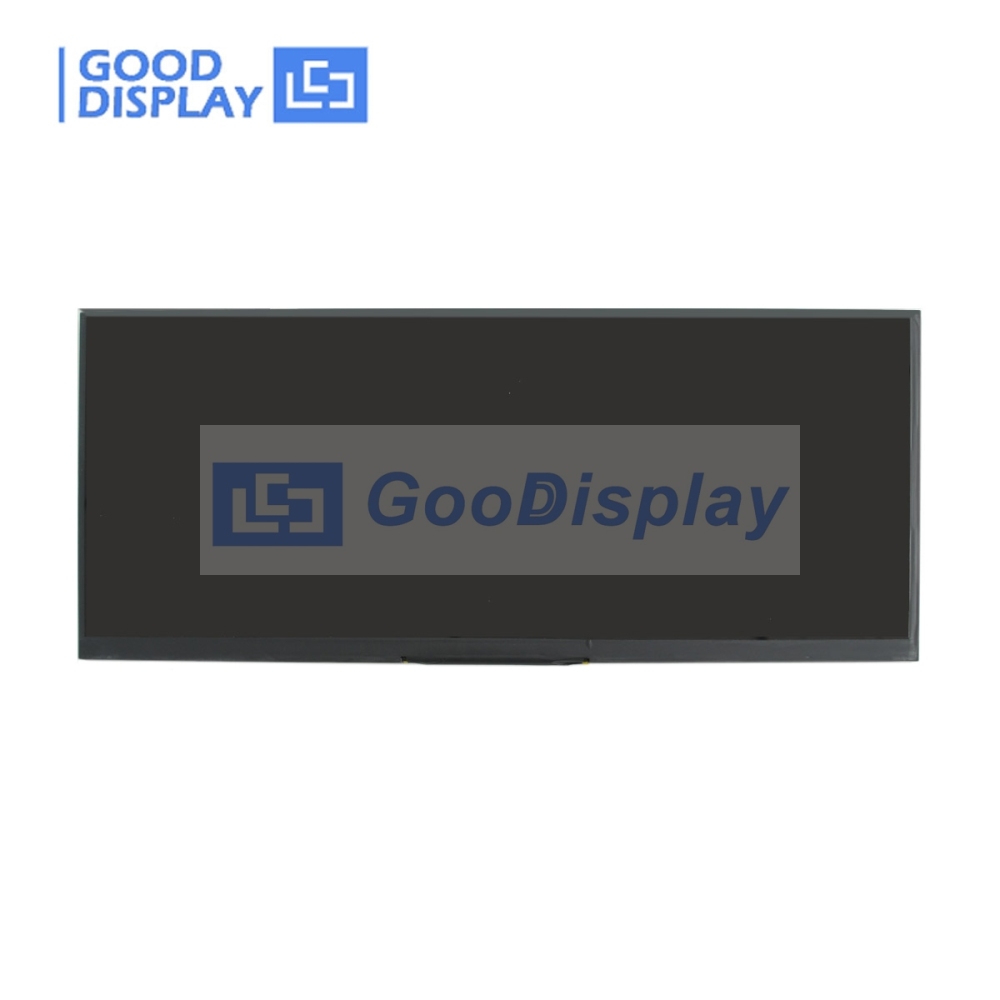

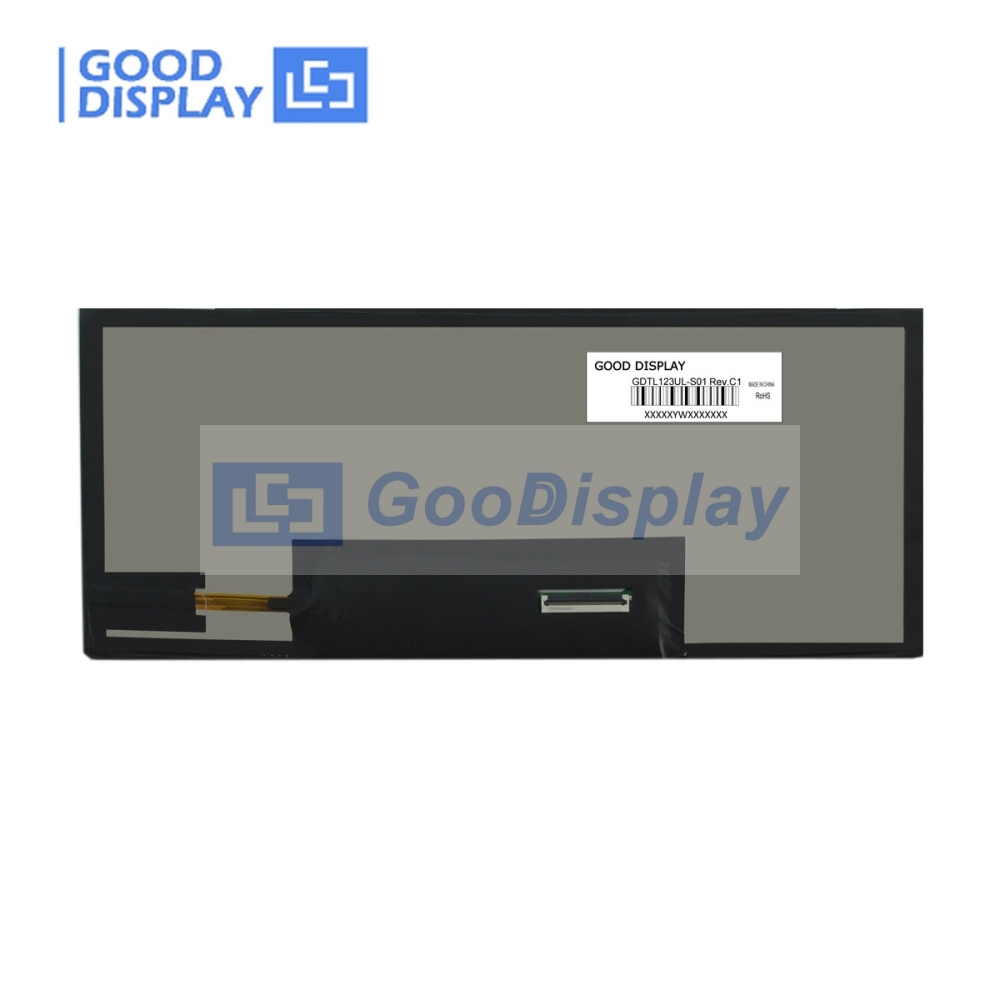

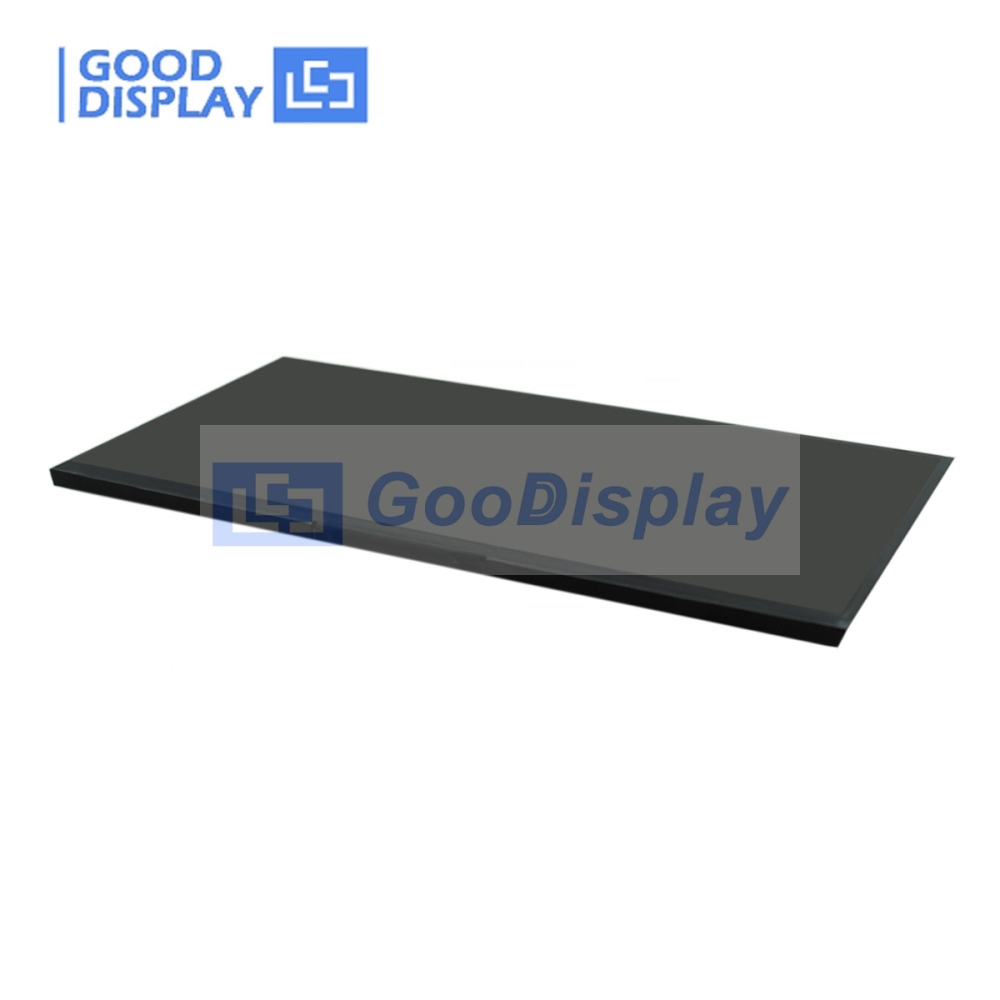

12.3 inch TFT LCD Display Panel, Wide-temperature, Operating Temp: -30℃~85℃, High-brightness 1000Nit, GDTL123UL-S01

SKU: GDTL123UL-S01

(0)

1 Sold

$82.79 ~~$103.48~~

20% OFF

12.3 inch model (GDTL123UL-S01) TFT Liquid Crystal Display. The matrix uses a-Si Thin Film Transistor as a switching device. This TFT LCD has a 12.3 inch diagonally measured active display area with FHD resolution (1920 horizontal by 720 vertical pixels a

GET $3.00 OFF ON ORDERS OVER $59.00

Get it

ERP72QDC

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

☆ INTRODUCTION

Relevant manual about this product on our official website (www.e-paper-display.com),contact us please.

☆ MAIN PARAMETERS

PART NUMBER	GDTL123UL-S01
PANEL SIZE	12.3 inch	TYPE	IPS
BACKLIGHT	White LED	OPERATION TEMPERATURE	-30℃~85℃
CONTRAST RATIO	1000	STORAGE TEMPERATURE	-40℃~90℃
NUMBER OF DOTS	1920×720 pixels	DISPLAY MODE	Normally Black
LUMINANCE	1000cd/m2	DISPLAY FORMAT	RGB vertical stripe
NUMBER OF COLORS	262K/16.7M	SURFACE TREATMENT	Hard coating (3H), Anti-Glare
OUTLINE DIMENSION(mm)	302.63×123.61×6.65	VIEWING DIRECTION	12 O'clock
ACTIVE AREA(mm)	292.032×109.512	INTERFACE TYPE	LVDS
PIXEL PITCH(mm)	0.1521×0.1521

☆ PRECAUTIONS

●  When storing the LCD modules, avoid exposure to direct sunlight or to the light of fluorescent lamps.

●  The LCD modules should be stored under the storage temperature range. If the LCD modules will be stored for a long time, the recommend condition is: Temperature : 0℃ ～ 40 Relatively humidity: ≤80% ℃

●  The LCD modules should be stored in the room without acid, alkali and harmful gas.
