☆ INTRODUCTION

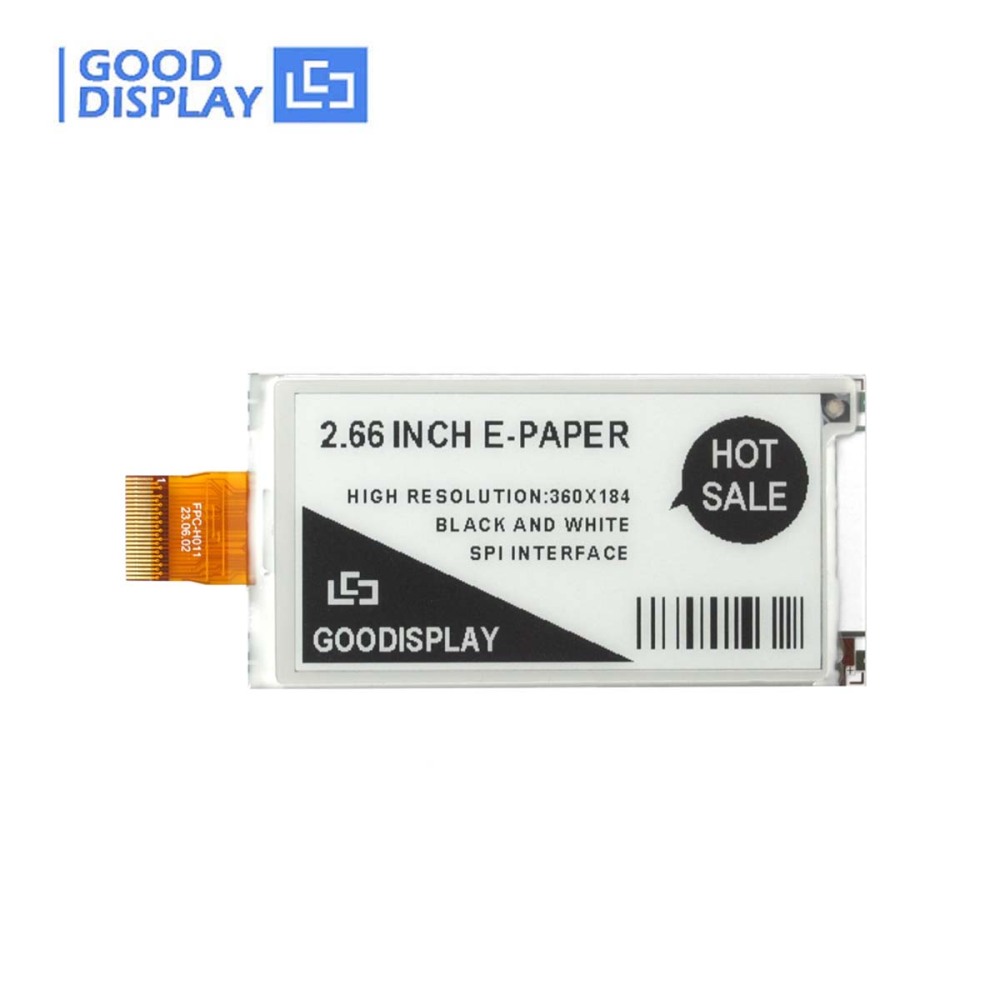

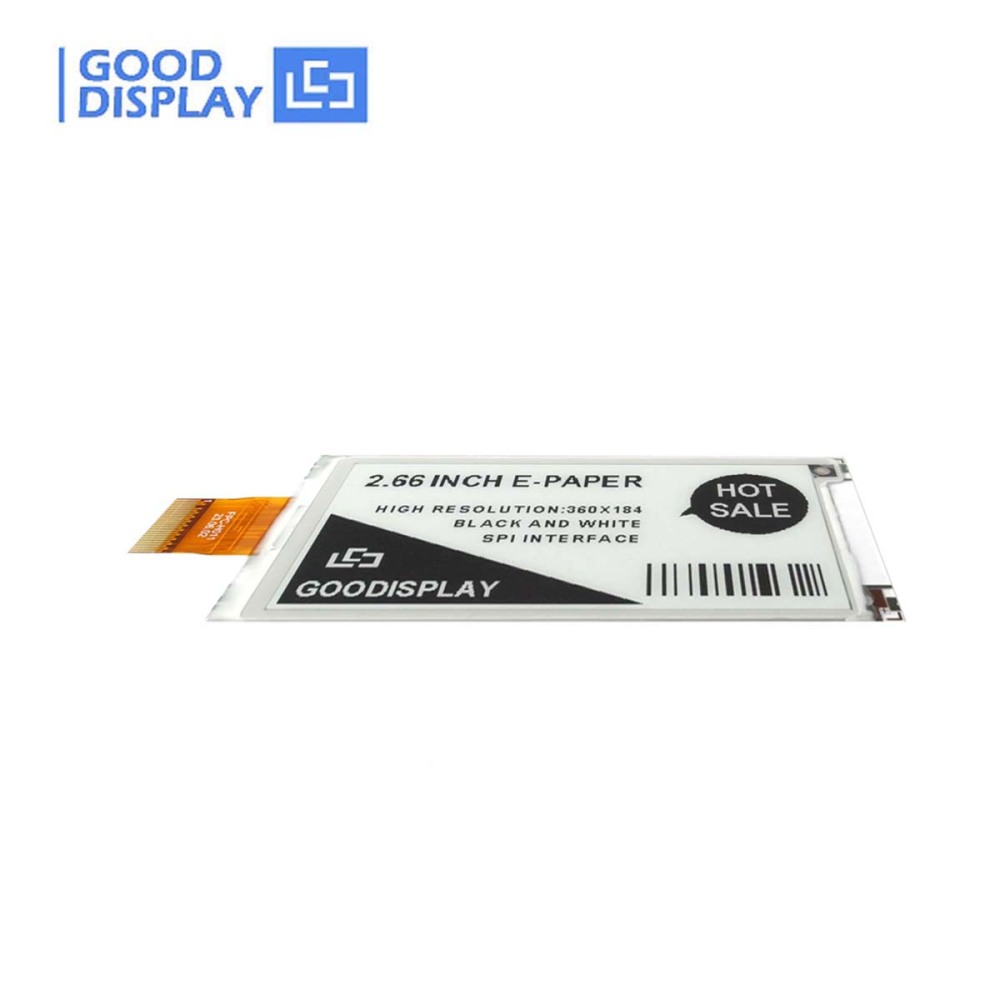

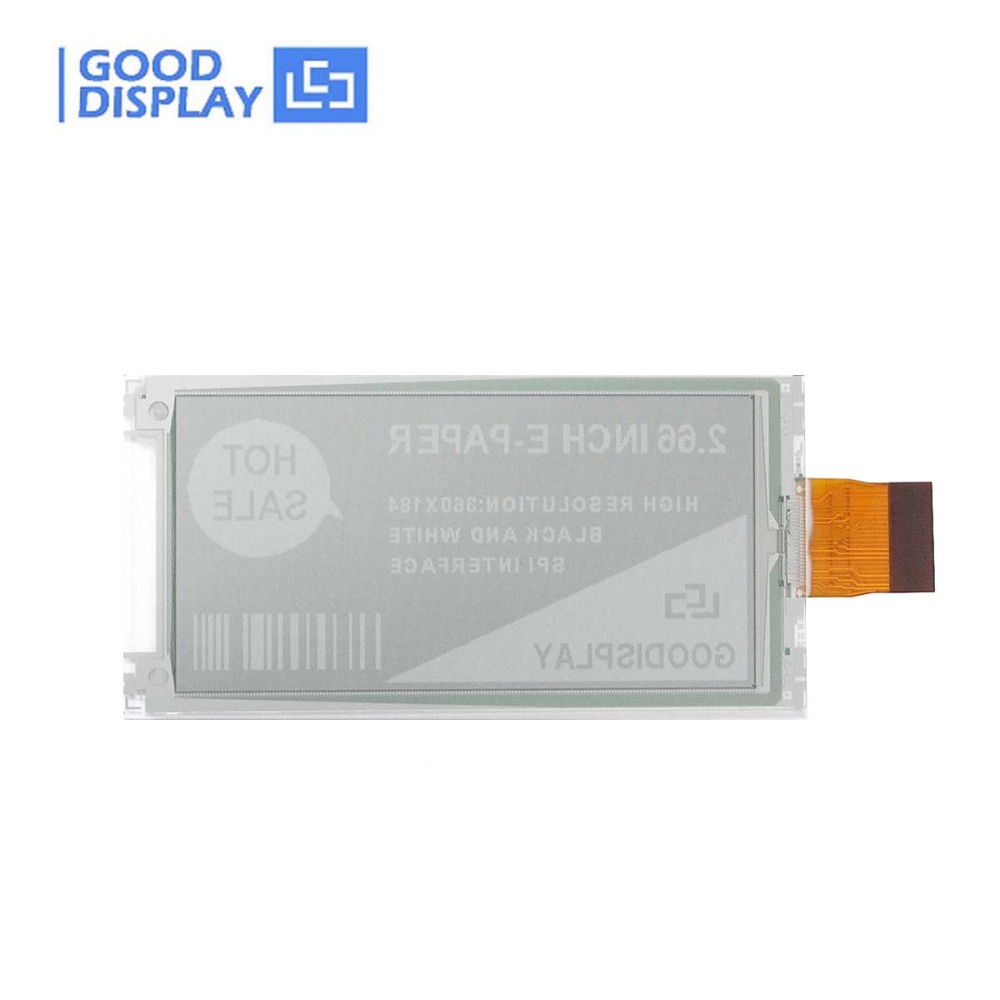

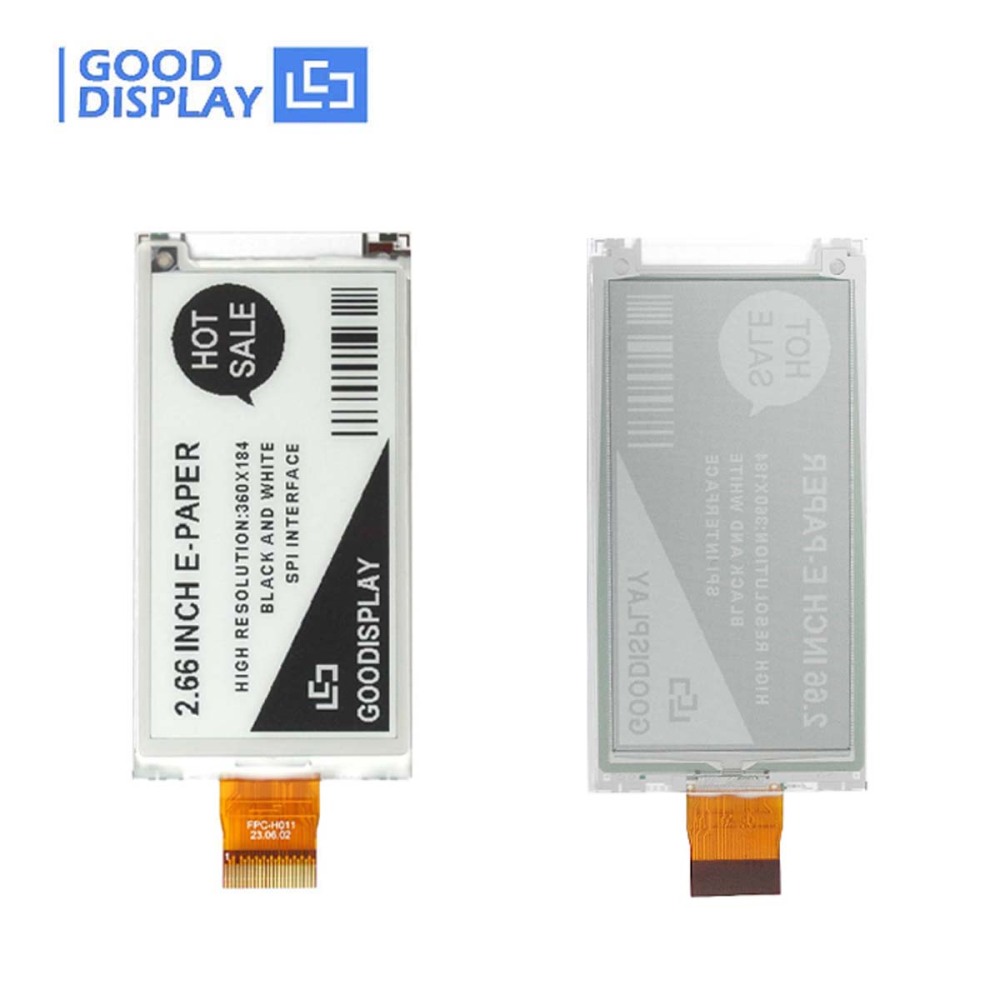

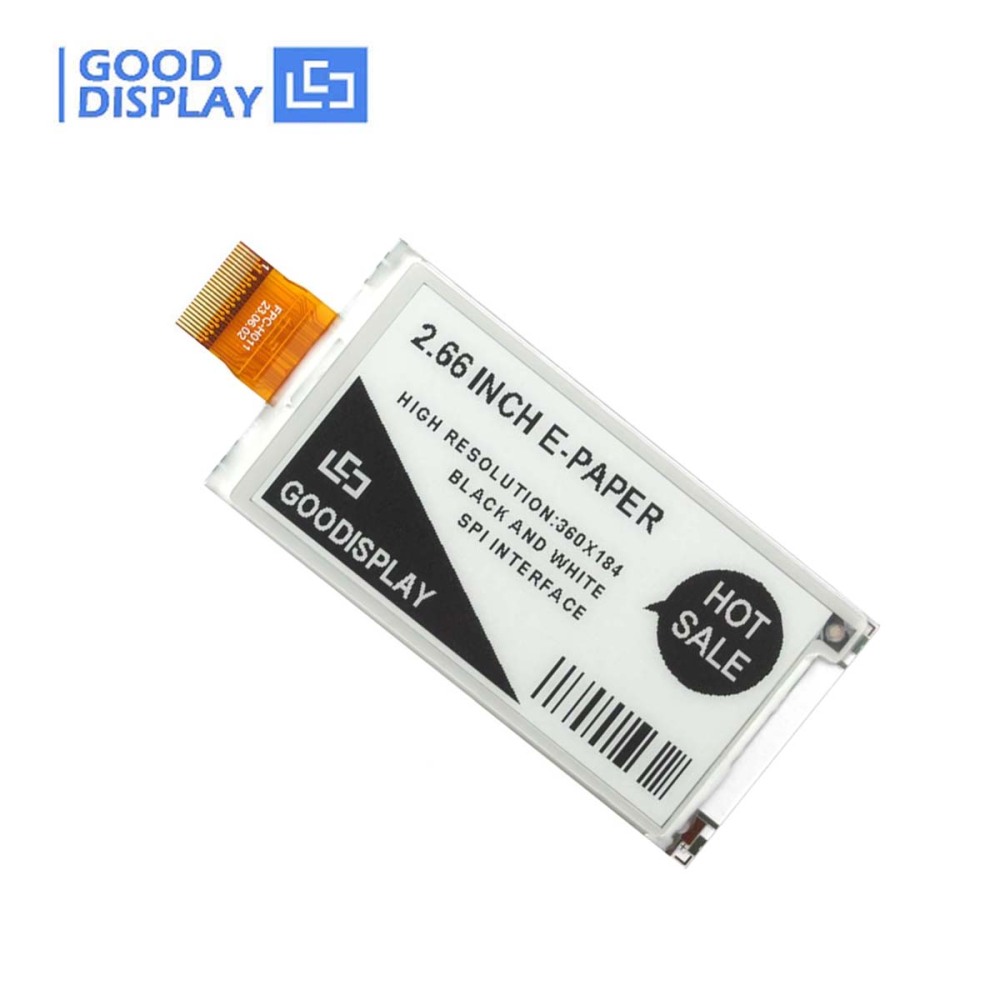

This is a 2.66 inch e-ink display, 360x184 resolution, SPI interface, and the display is capable to display images with black and white content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This e-paper display GDEY0266T90H is perfect for low power devices powered by solar or batteries.
We could provide front light, touch screen and other accessories for you.
Relevant manual about this product on Library or you could go to our official website (www.good-display.com), contact us please.
*TIPS: High resolution, excellent display performance, fast delivery,long-term stable supply, strongly recommended.

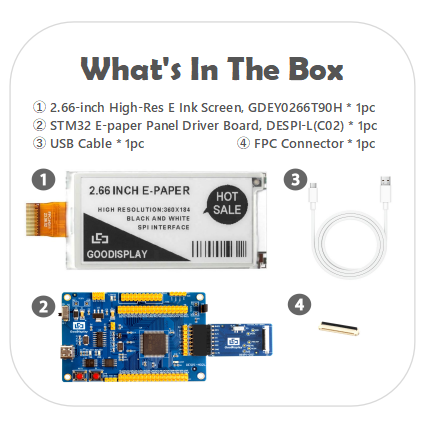

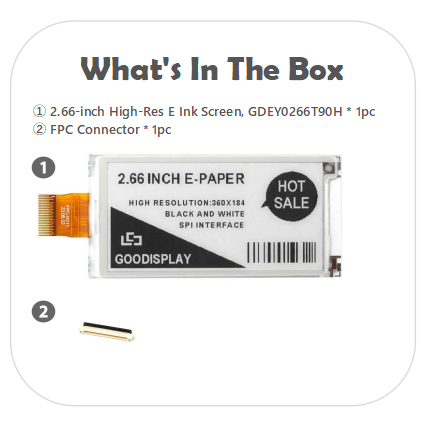

☆ THE ABOVE PRICE INCLUDE
1) 2.66 inch E ink Epaper Screen Monochrome E-paper Display, GDEY0266T90H * 1pc
2) FPC Connector * 1pc
☆ MAIN PARAMETERS
PART NUMBER |
GDEY0266T90H |
SIZE |
2.66 inch |
CONNECTOR |
24 Pin FPC |
TYPE |
Dot Matrix |
MAX GRAYSCALE |
2 |
IC |
SSD1685 |
COLOR |
Black, White |
RESOLUTION |
184x360 |
INTERFACE |
SPI |

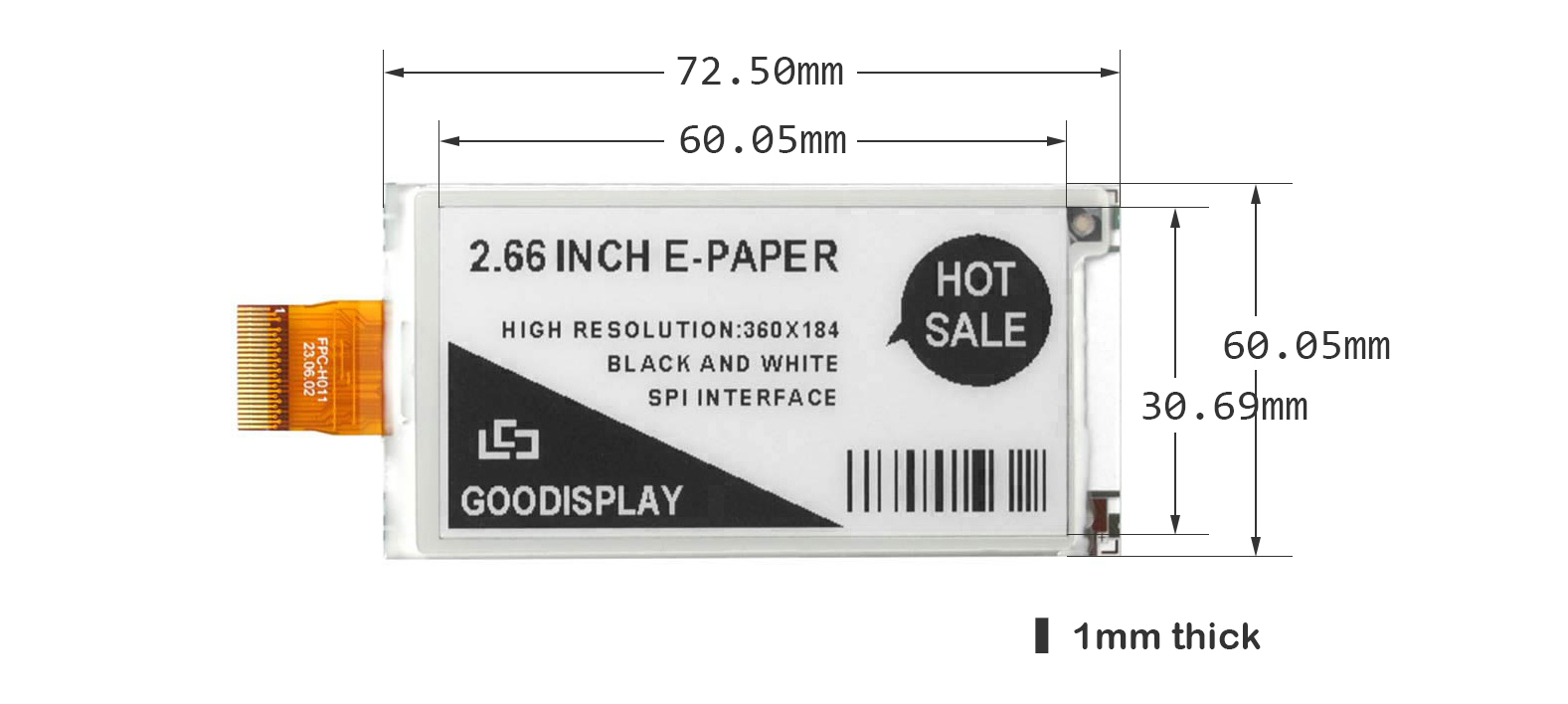

OUTLINE SIZE(mm) |
72.50x37.11x1.0 |
FULL UPDATE TIME(s) |
3 |
ACTIVE SIZE(mm) |
60.05x30.69 |
FAST UPDATE TIME(s) |
1.5 |
PIXEL PITCH(mm) |
0.1668x0.1668 |
PARTIAL UPDATE TIME(s) |
0.3 |
OPERATING TEMP. |
0℃~50℃ |
TYPICAL POWER(mW) |
9 |
STORAGE TEMP. |
-25℃~70℃ |
DEEP SLEEP POWER(mW) |
0.003 |
☆ FEATURE
● Versatile. Use in portrait or landscape format
● Bistable. (Will continue to display with no power source)
● I2C Signal Master Interface to read external temperature sensor
● It enable a greater contrast ratio and wider viewing angle with high reflectance compared to liquid crystal displays
● Development platform available STM32 / Arduino / ESP8266 / ESP32

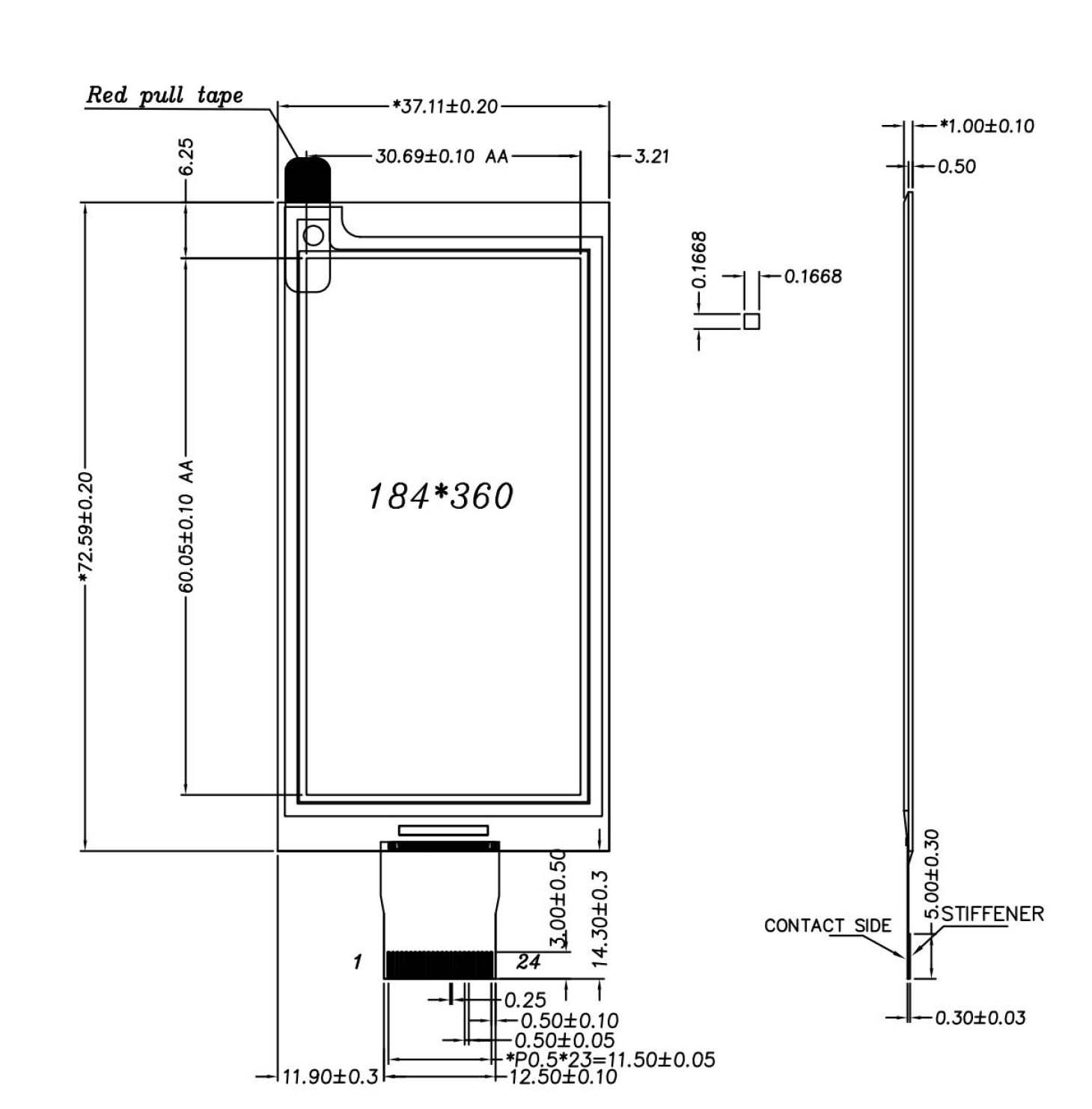

☆ DRAWING
☆ MATCHED DEVELOPMENT KIT
● DESPI-C02 (E-ink Display HAT)
● DESPI-L(C02) (STM32 Platform/Universal)
● DEArduino-L(C02) (Arduino Platform)
● ESP8266-L(C02) (WiFi)
● ESP32-L(C02) (WiFi / Bluetooth)
☆ RELATED INFORMATION DOWNLOAD
● GDEY0266T90H_Specification
● Picture Production and Bitmap Convert for GDEY0266T90H
● GDEY0266T90H Arduino Sample Code
● GDEY0266T90H STM32 Sample Code
● GDEY0266T90H_ESP8266 Sample Code
● GDEY0266T90H ESP32 Sample Code
