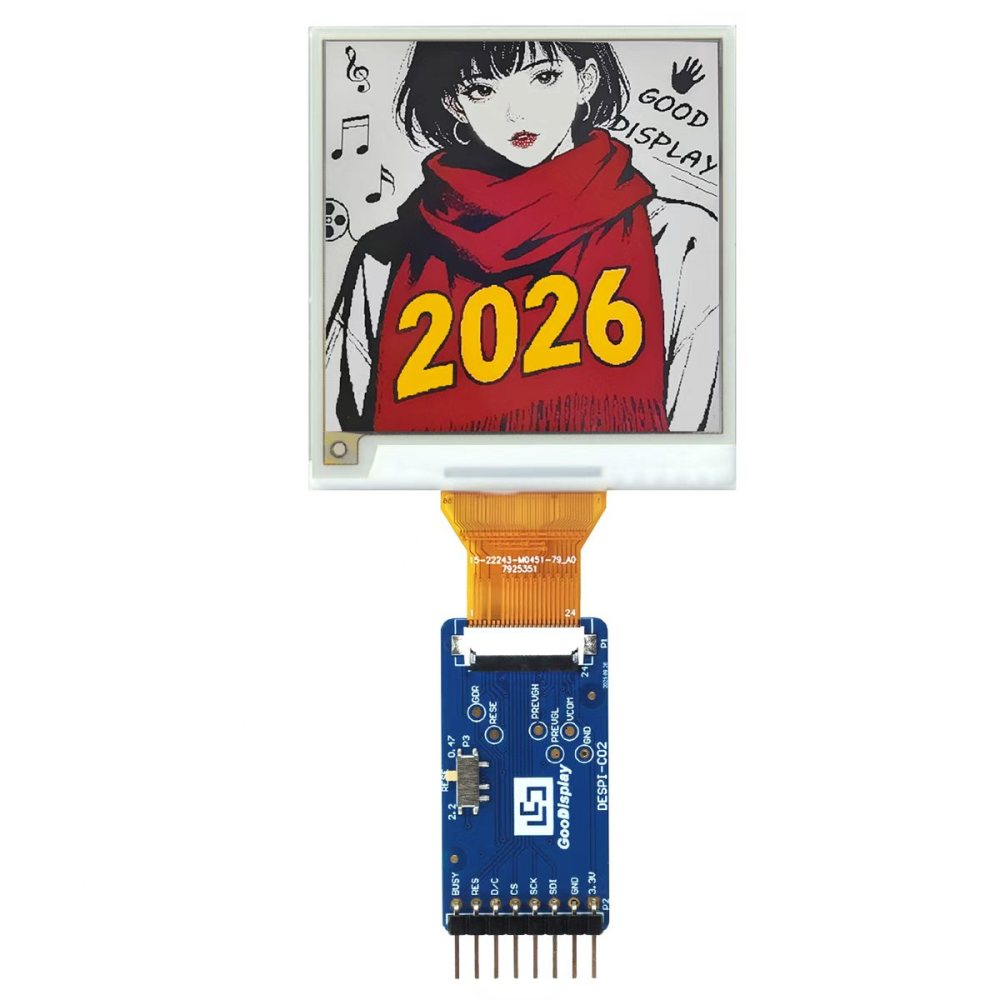

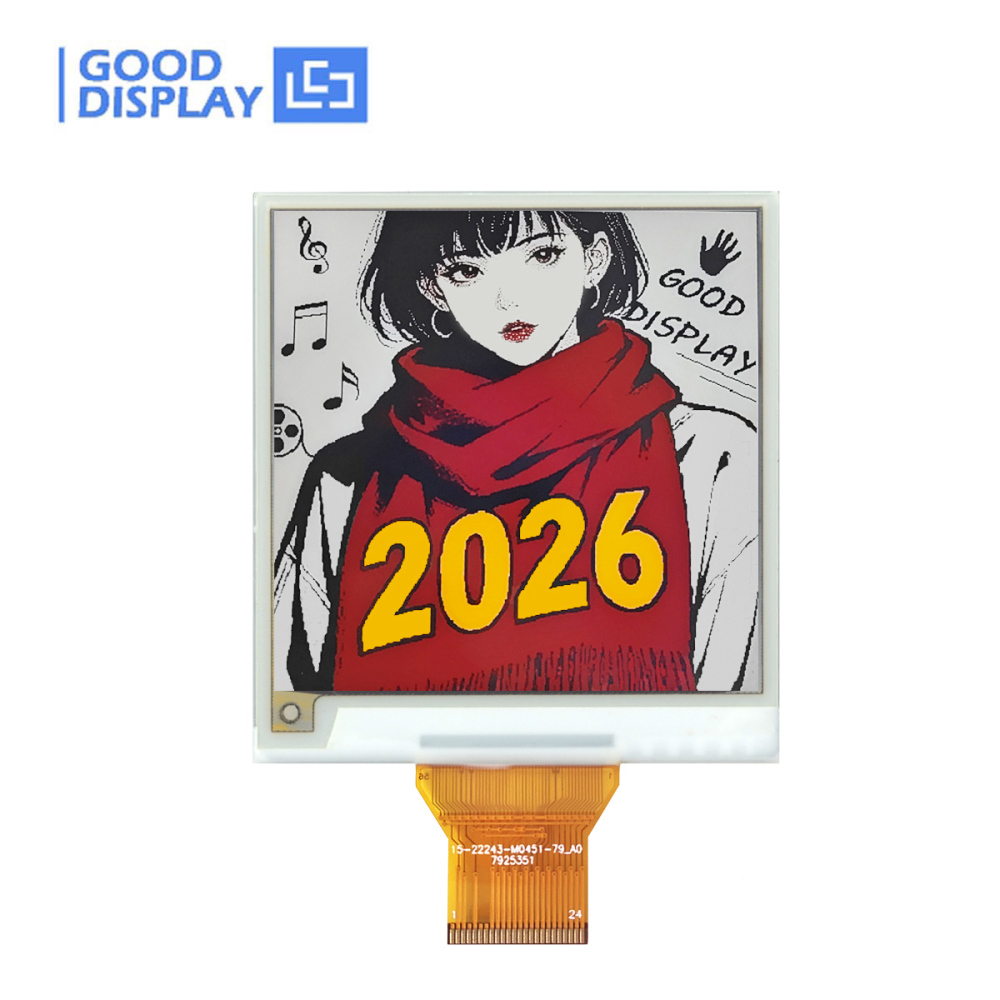

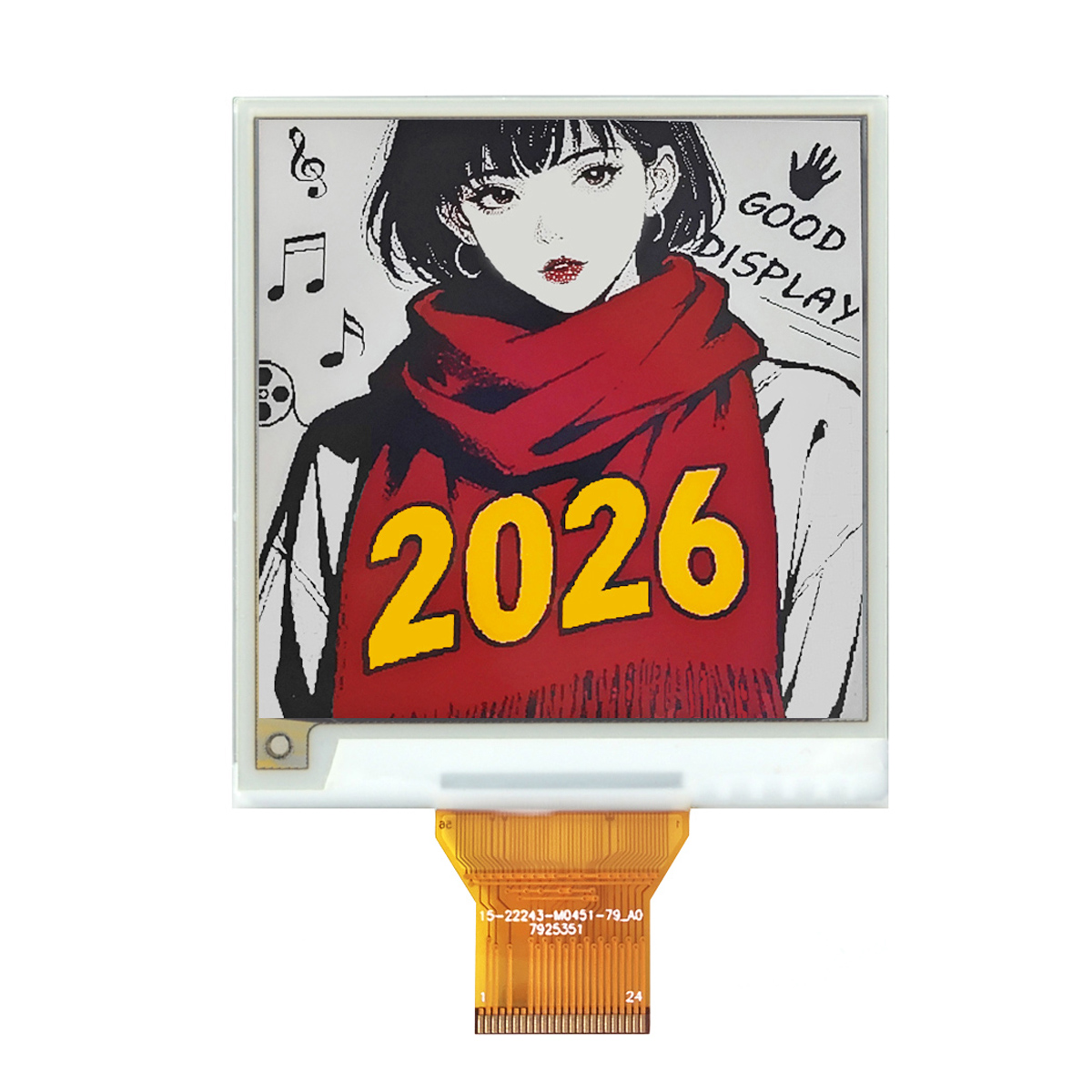

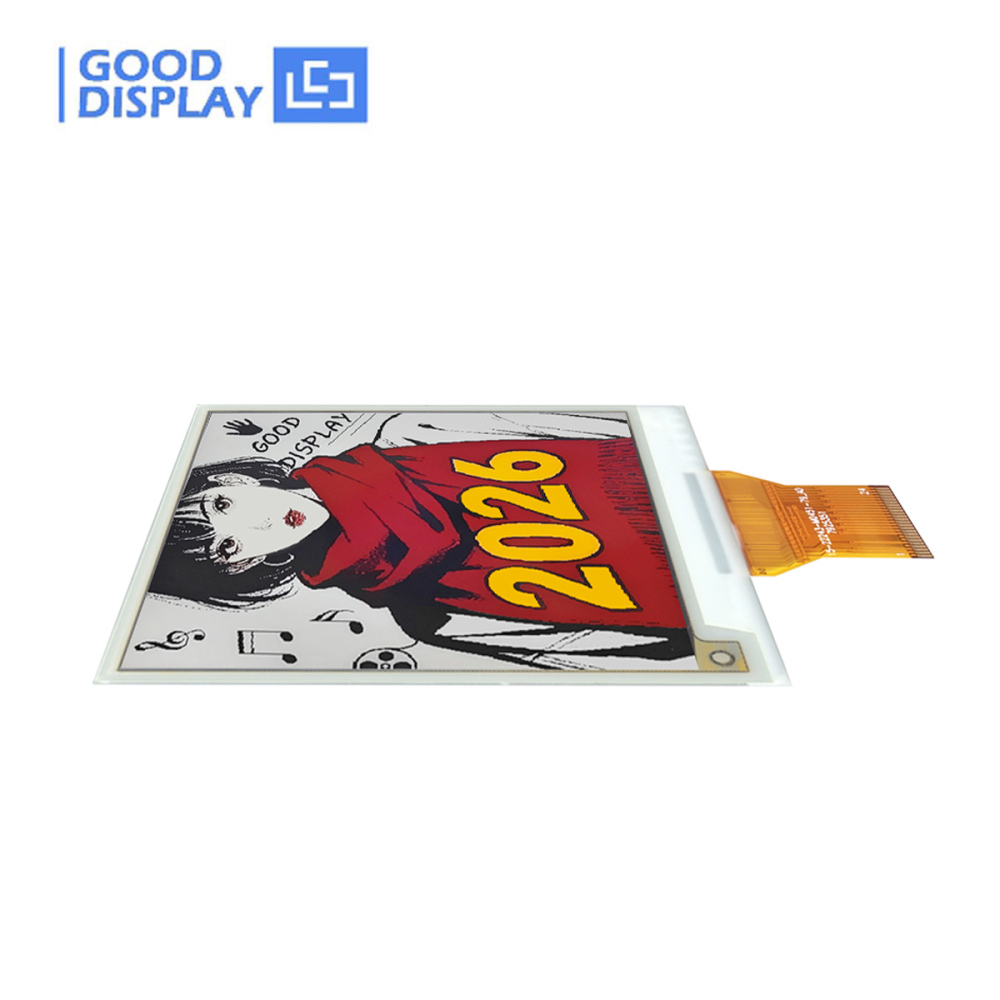

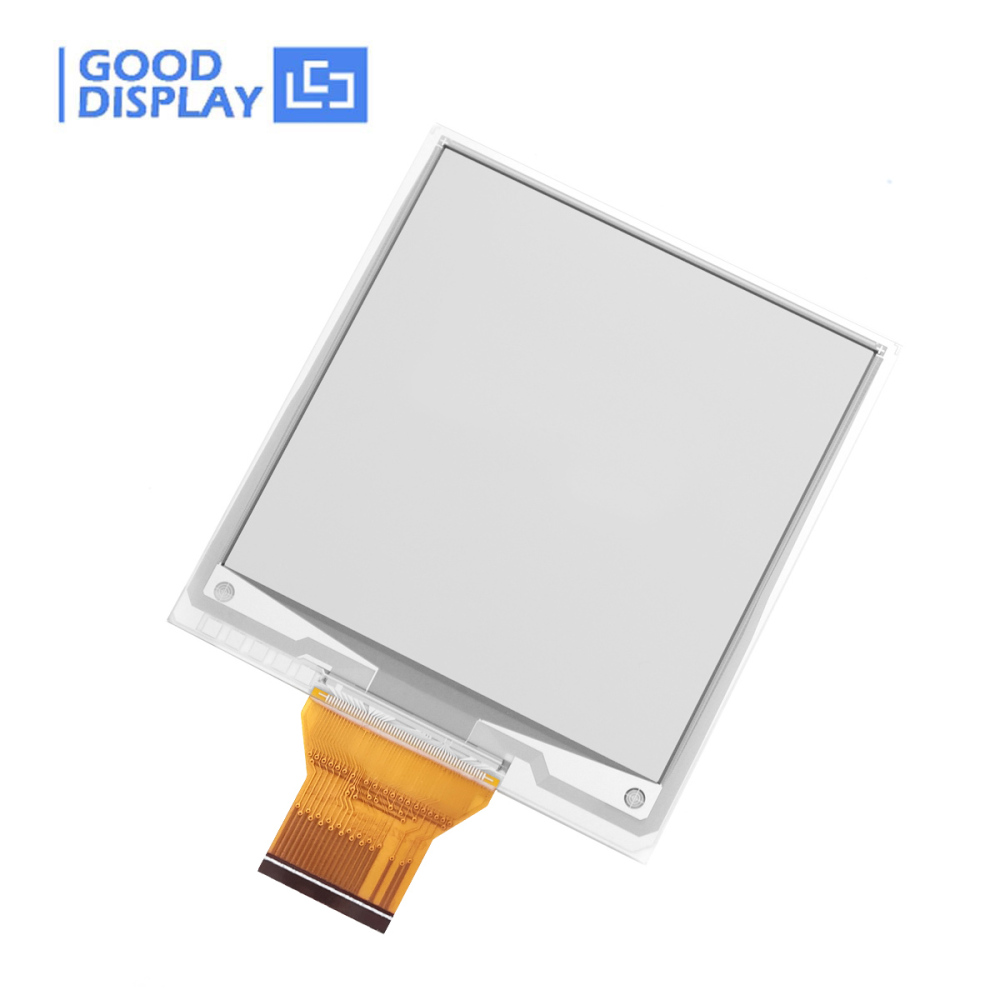

Name: 2.53inch 425x425 Pixels Quadruple Color E-Paper Display 237 PPI Square Electronic Ink Module，GDEF0253F17
Brand: GOOD DISPLAY
Price: 10.93 USD
Availability: InStock

(0)

0 Sold

$10.93 ~~$11.88~~

8% OFF

High resolution 2.53 inch square 4-color e-paper display 425x425 pixels, 237PPI high clarity, 0.93mm ultra-thin, SPI interface, bistable low power.

GET $3.00 OFF ON ORDERS OVER $59.00

Get it

ERP72QDC

Received successfully

Coupon Code

CONTINUE SHOPPING

Discount

5% OFF WITH PURCHASE OVER 2 UNITS
8% OFF WITH PURCHASE OVER 3 UNITS

Add to Favorites (0)

1/1

Description

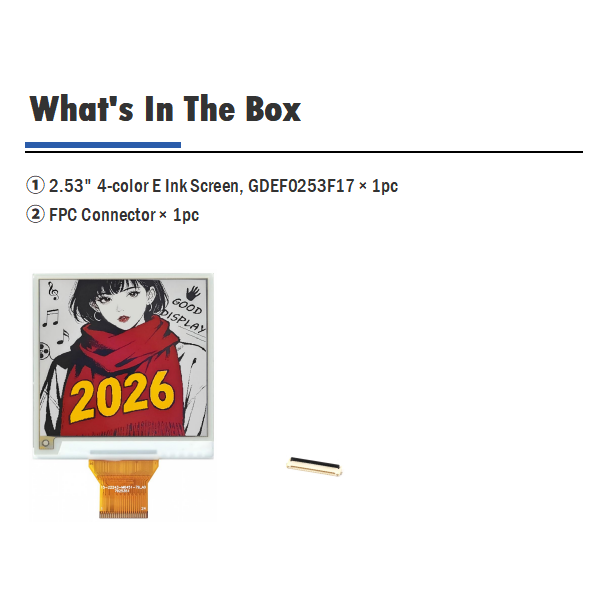

2.53" 4-color E-Ink Display

Break free from low-end parameter-list competition. Harness the unique trifecta of compact square form factor, crisp 4-color clarity and industrial-grade reliability to solve a pervasive industry pain point: the lack of fit-for-purpose color e-paper for compact square device designs.

Core advantages · native 4‑color

2.53″ square EPD · black, white, red, yellow · industrial grade · zero‑power bistable

cost‑effective

4‑tier status coding

Black · white · red · yellow — four native pigments enable 4‑level alerts (normal → prompt → warning → critical). Improves legibility by 60%+ in industrial meters and IoT, reducing field errors.

zero‑power hold

bistable persistence

Image holds indefinitely without power. Refresh consumes only 16.5 mW; deep‑sleep is 0.003 mW. Costs 30‑50% of full‑color panels, ideal for battery‑powered devices.

BOM‑optimized

integrated driver

JD79665 integrates source/gate driver, timing controller and DC‑DC on one chip. Cuts BOM by 20‑30%, shortens R&D by 4‑6 weeks, improves yield.

square · slim

true‑square form

50.88 × 55.38 mm near‑perfect square, 0.93 mm slim. Fits square industrial enclosures, wearables, smart panels — no cutting, no re‑tooling.

crisp

237 PPI sharpness

E‑reader grade resolution in a compact square. Fine text, icons, QR codes render razor‑sharp — ideal for precision instruments and premium labels.

plug‑and‑play

SPI developer ready

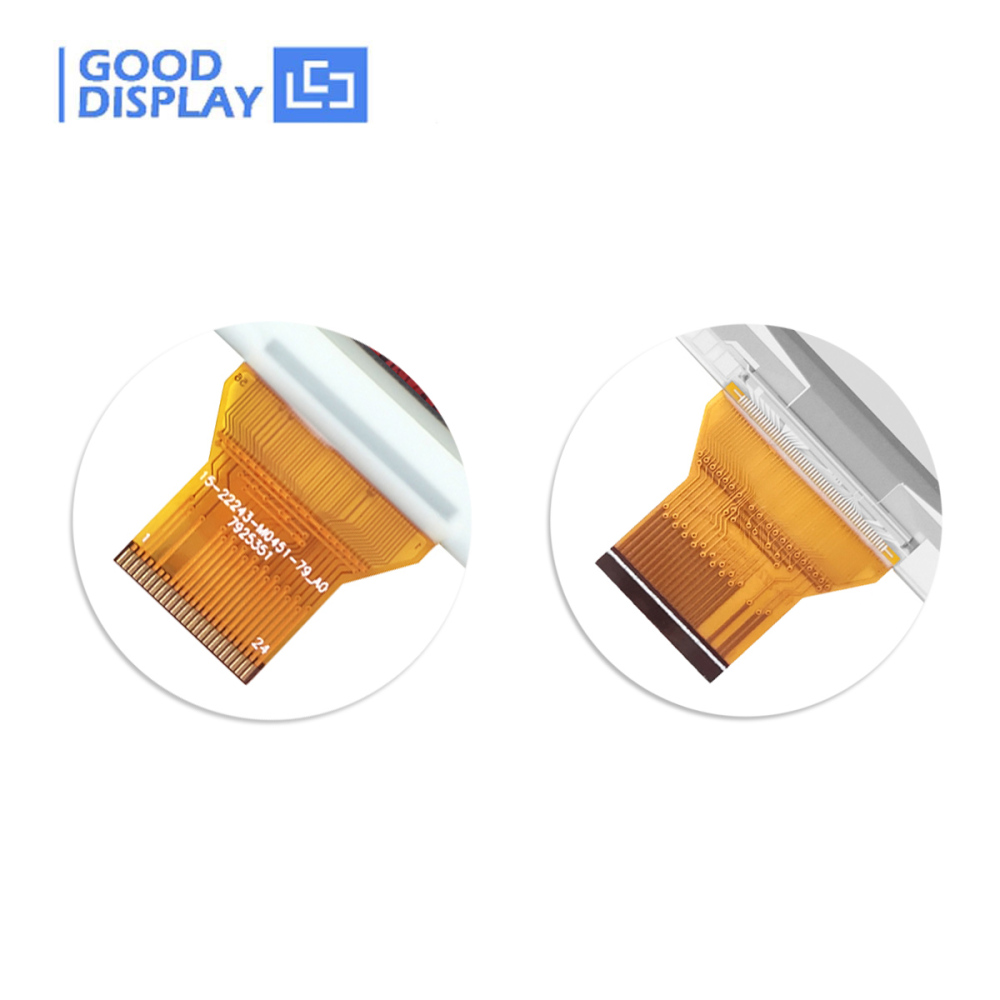

Standard SPI + 24‑pin 0.5 mm FPC. Complete code, waveforms & tutorials for Raspberry Pi, Arduino, STM32, ESP32 — reduces engineering effort.

Technical Specifications

Part Number GDEF0253F17

Type Dot Matrix

Connector 24 Pin 0.5mm

Size 2.53"

IC JD79665

Interface SPI

Resolution 425x425

Color Black, White, Red, Yellow

Operating Temp. 20℃~40℃

PPI 237

Full Refresh Time 16s

Storage Temp. -25℃~70℃

Outline Size 50.88x55.38x0.8mm

Weight 5±0.5g

Typical Power(mW) 16.5

Active Size 45.48x45.48mm

Pixel Pitch 0.107x0.107mm

Deep Sleep Power(mW) 0.003

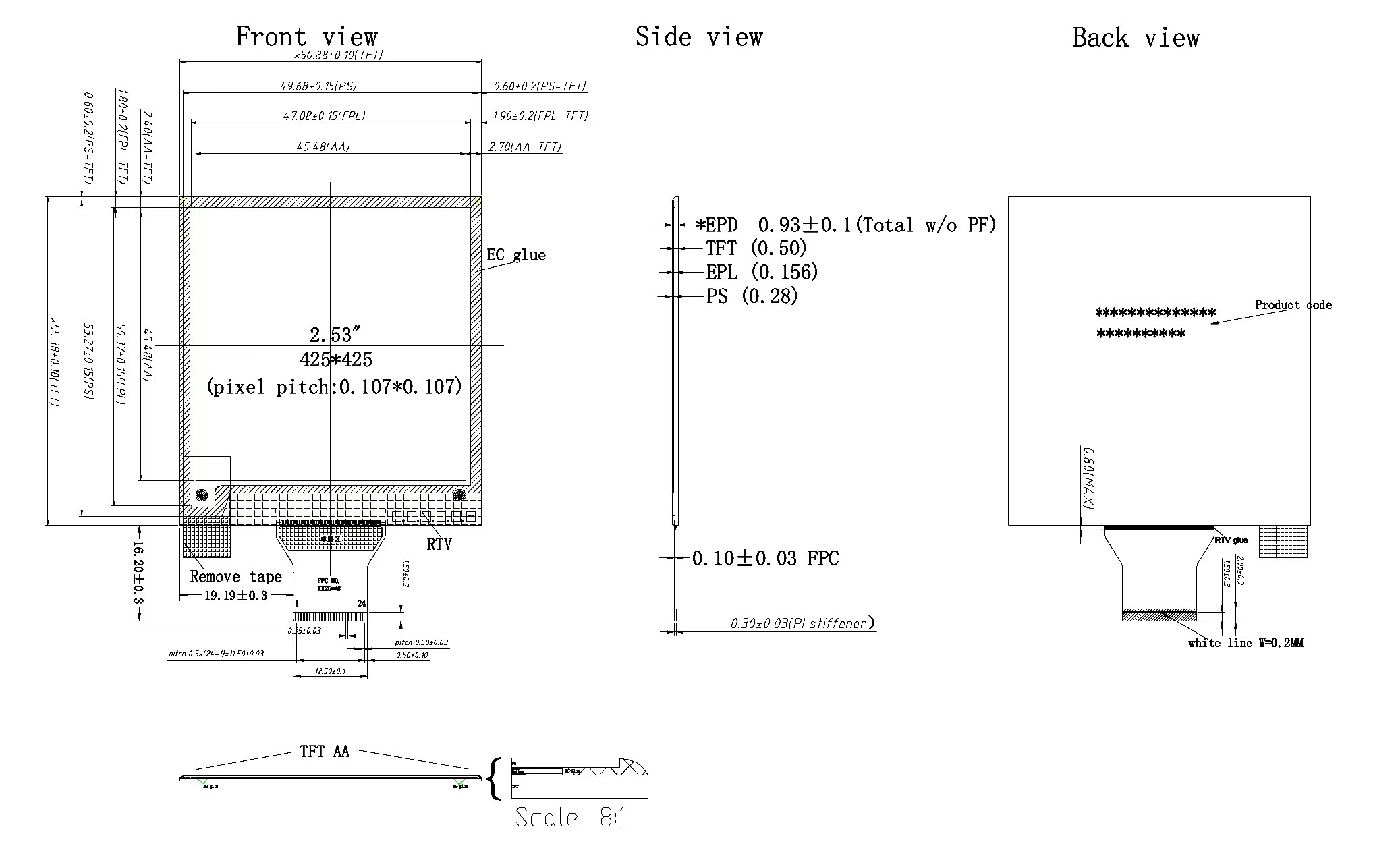

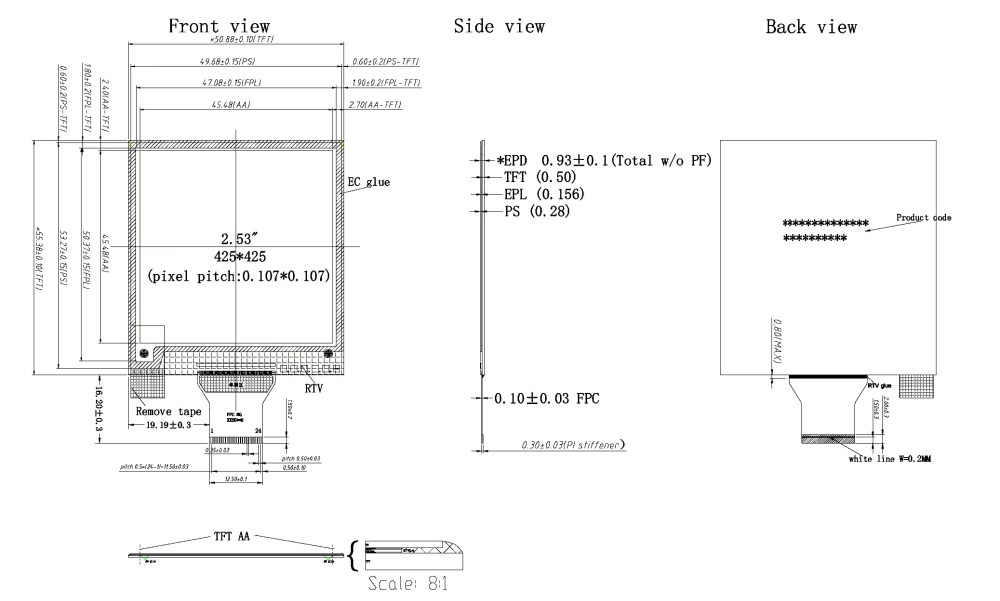

Drawing Details

Matching Driver Boards

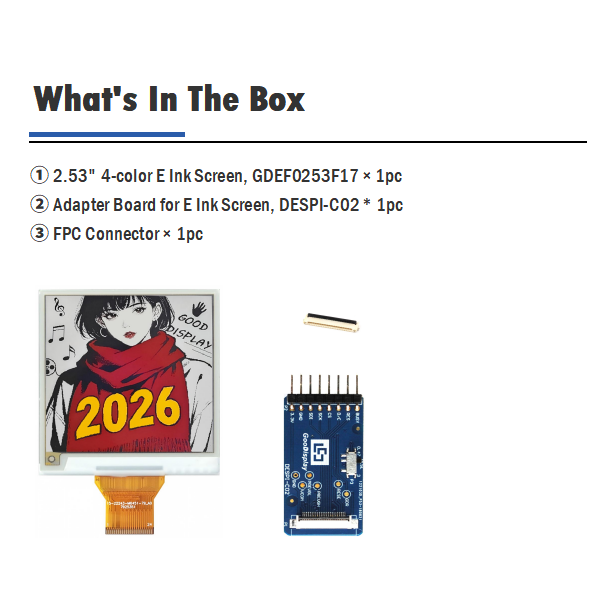

DESPI-C02

Pure hardware interface adapter, no MCU, provides only physical conversion from SPI to 24-pin EPD.

View Details

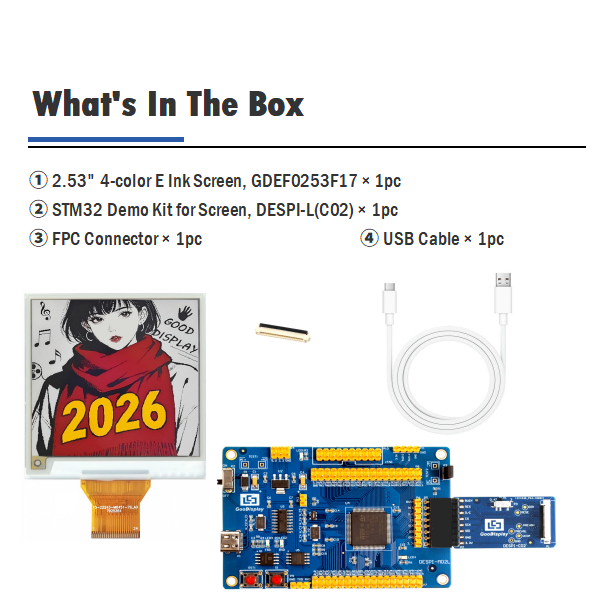

DESPI-L(C02)

STM32F103VET6 MCU, provides rich GPIO and Type-C interface.

View Details

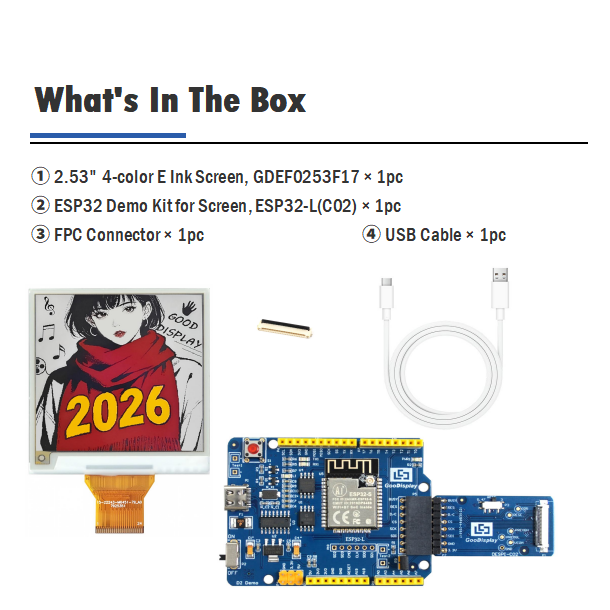

ESP32-L(C02)

ESP32-WROOM-32D MCU, integrated WiFi and Bluetooth.

View Details

ESP8266-L(C02)

Cost-optimized solution, ESP8266 core, supports WiFi connectivity.

View Details

Arduino UNO R4-L(C02)

Arduino ecosystem compatible, extensive library support.

View Details

Files & Download

[PDF] GDEF0253F17_Specification

[PDF] IC Driver JD79665

[PDF] Image2LCD Software Bitmap Conversion Instructions V1.0

[ZIP] GDEF0253F17 STM32 Sample Code

[ZIP] GDEF0253F17 ESP32 Sample Code

[ZIP] GDEF0253F17 ESP8266 Sample Code

[ZIP] GDEF0253F17 Arduino Sample Code

[PDF] ePaper Display Usage Guidelines

[FAQ] Why can't I download the files?

Typical Applications

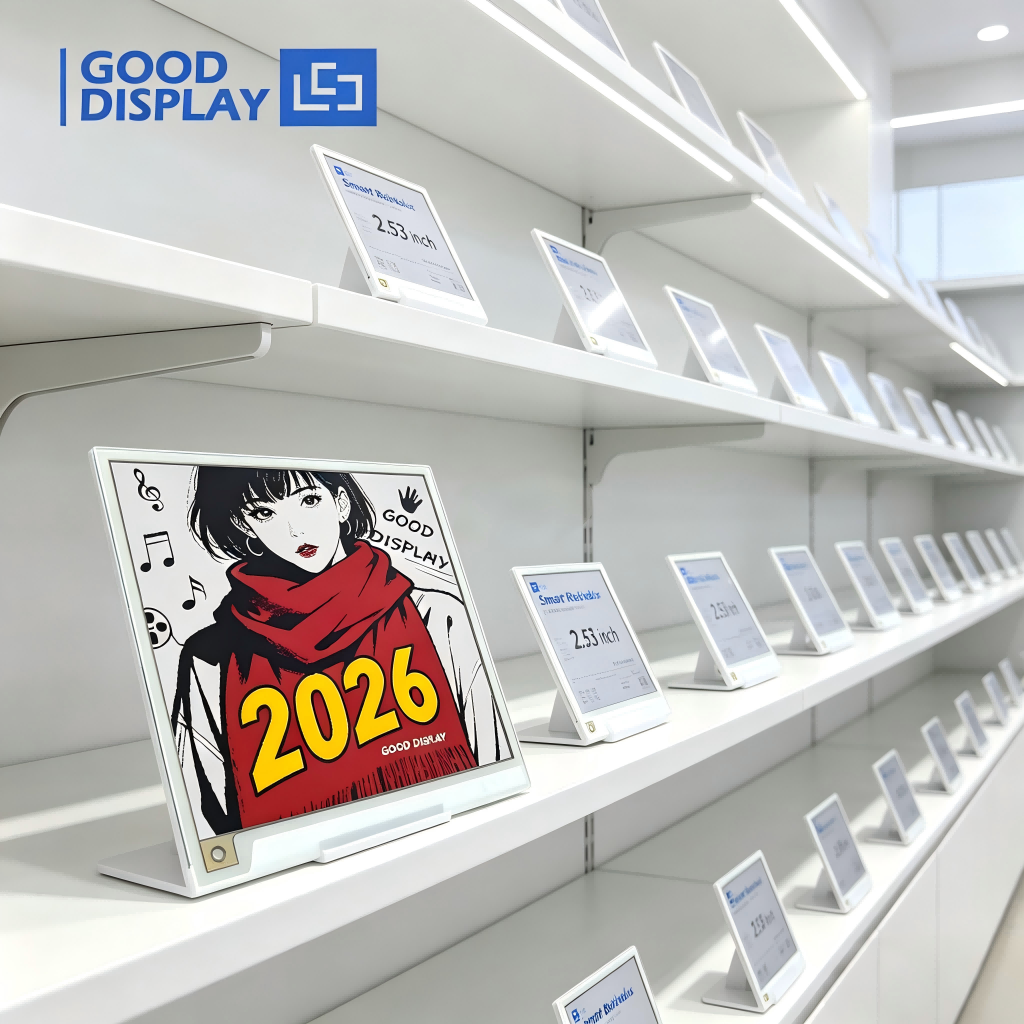

Retailing

Smart Pricing

DIY

Smart Life DIY

Lifestyle

Portable Devices

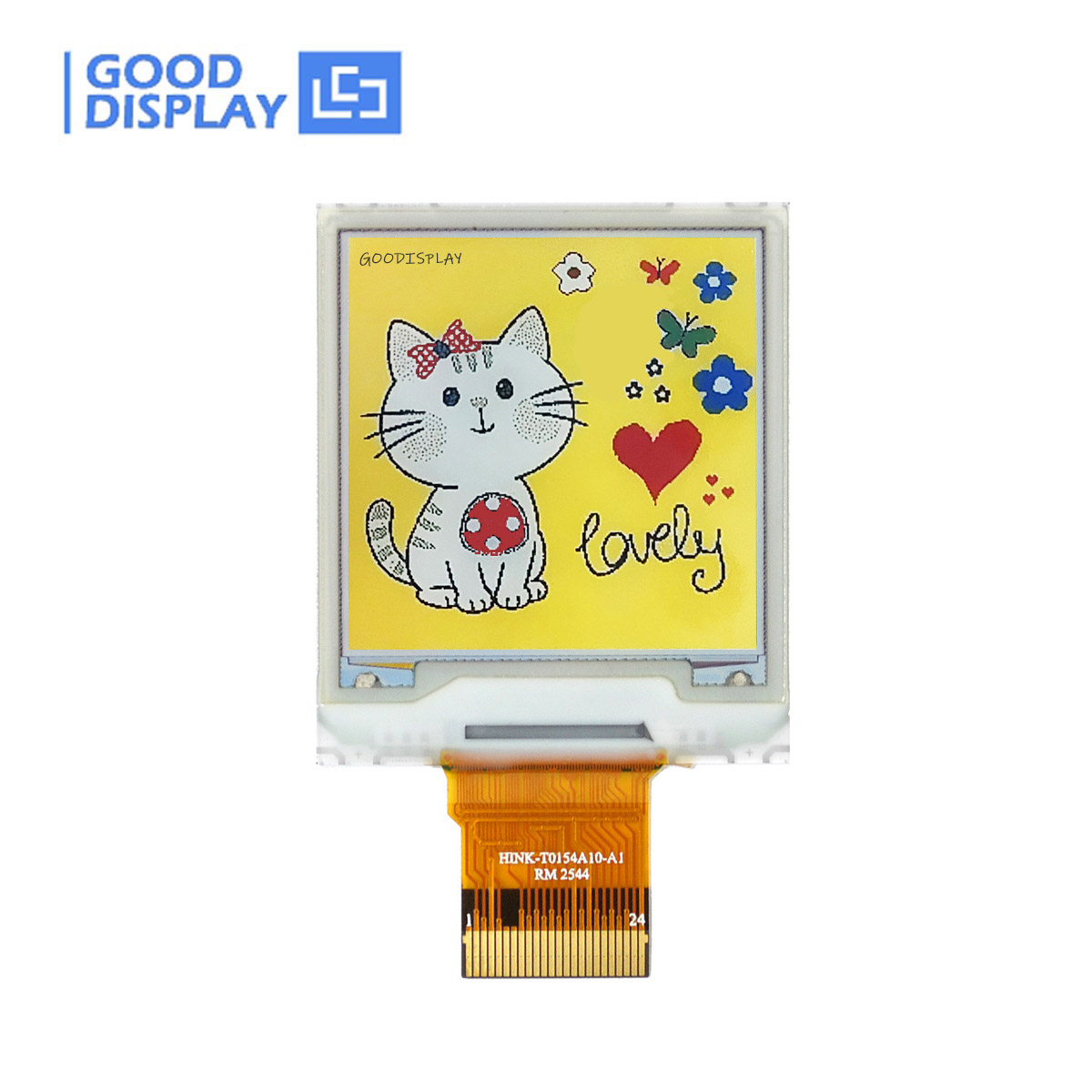

More Square Series Recommend

Sustainable Technology

Paperless Future

Each display saves ≈3,000 sheets annually. Join 15,000+ businesses reducing paper waste with ePaper solutions.

Sustainable Packaging

95% recycled materials with FSC-certified packaging. 100% plastic-free protective materials.

Energy Leadership

90% less energy than LCDs. Annual CO₂ reduction equivalent to 50 mature trees.

Why GooDisplay E-Paper Refreshes Faster

Optimized Fast-Refresh FPL

We rigorously select fast-refresh FPL films at the raw material level, laying a solid hardware foundation for high-speed performance.

Smart Temp-Controlled Drive

Our engineers optimize waveform files for different temperature ranges, ensuring excellent display quality even during rapid refresh cycles.

Chip-Level Integrated Solution

Optimized waveforms are built into the display driver chip—activate fast refresh mode with a simple code call!

Display Type	Refresh Capability	Available Sizes
Black & White (B/W) Displays	Supports fast refresh, partial refresh, and 4-level grayscale	0.97" to 10.3"
Black, White & Red (BWR) Displays	Supports fast refresh and partial B/W refresh	2.13" to 11.6"
Black, White, Red & Yellow (BWRY) Displays	Supports fast refresh with multi-color layered updating	0.97" to 11.6"
