☆ INTRODUCTION

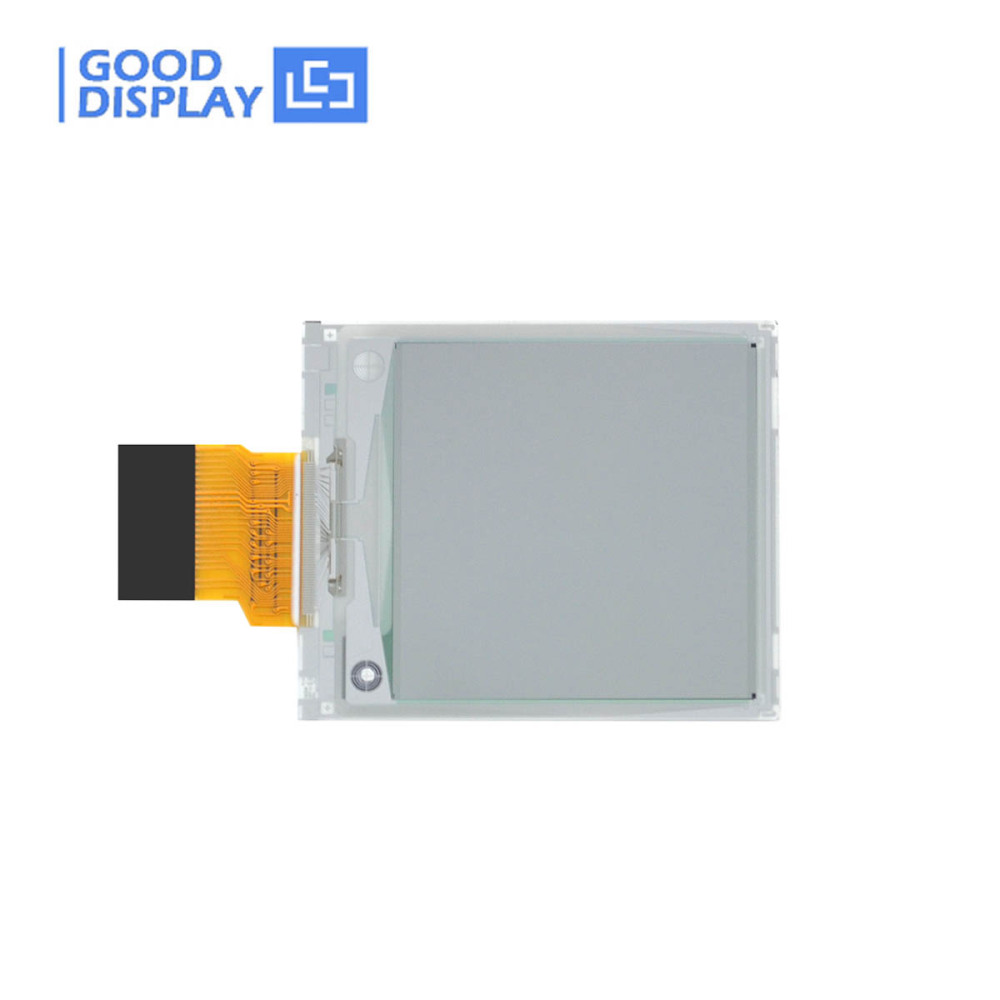

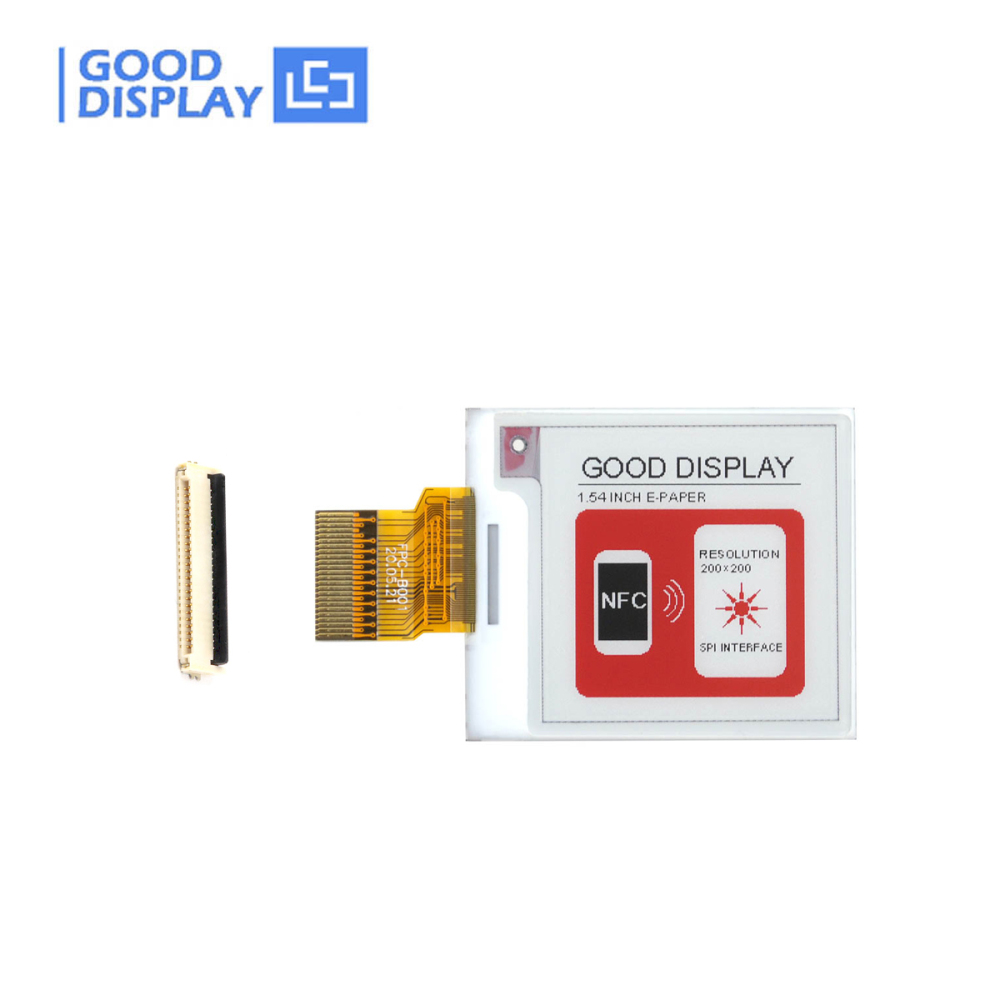

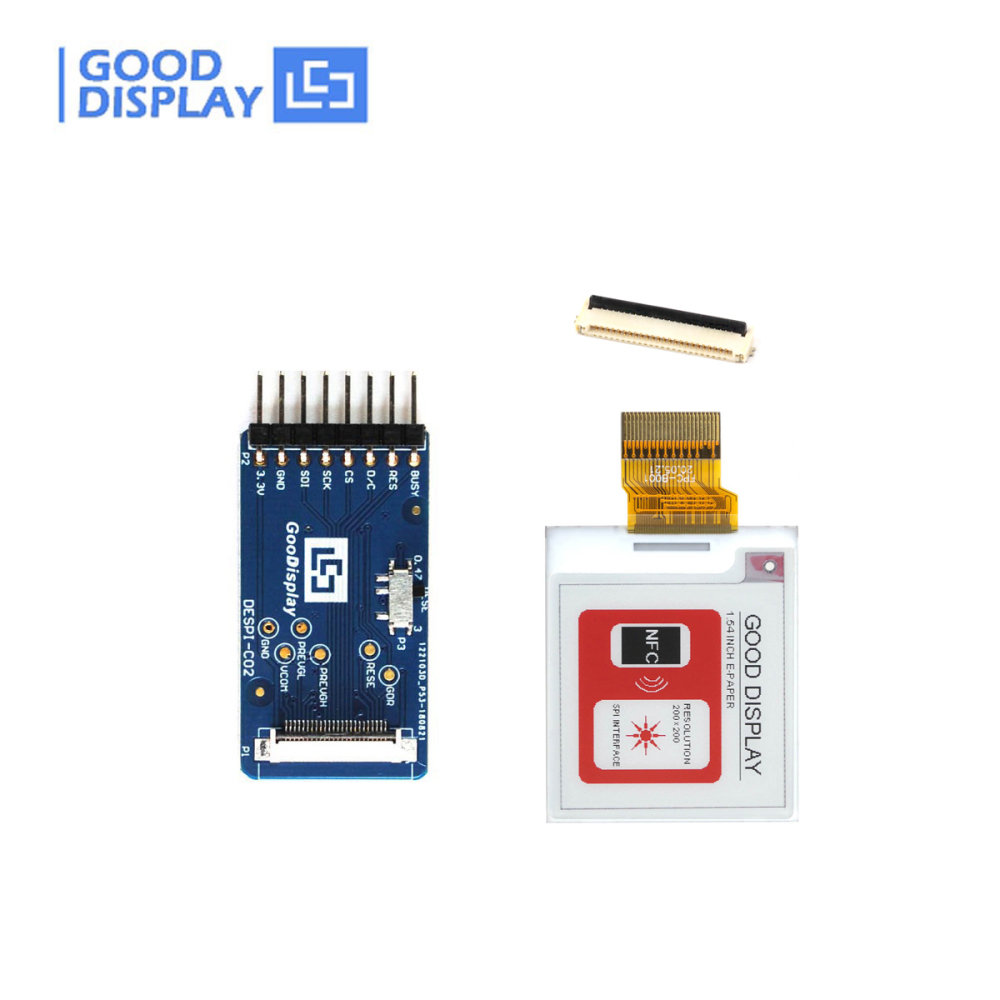

This is a set of EPAPER HAT with 1.54 inch color e-ink screen with 200x200 resolution, SPI interface, and the display is capable to display images with black, white and red content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This color e-ink display GDEY0154Z90 is perfect for low power devices powered by solar or batteries.

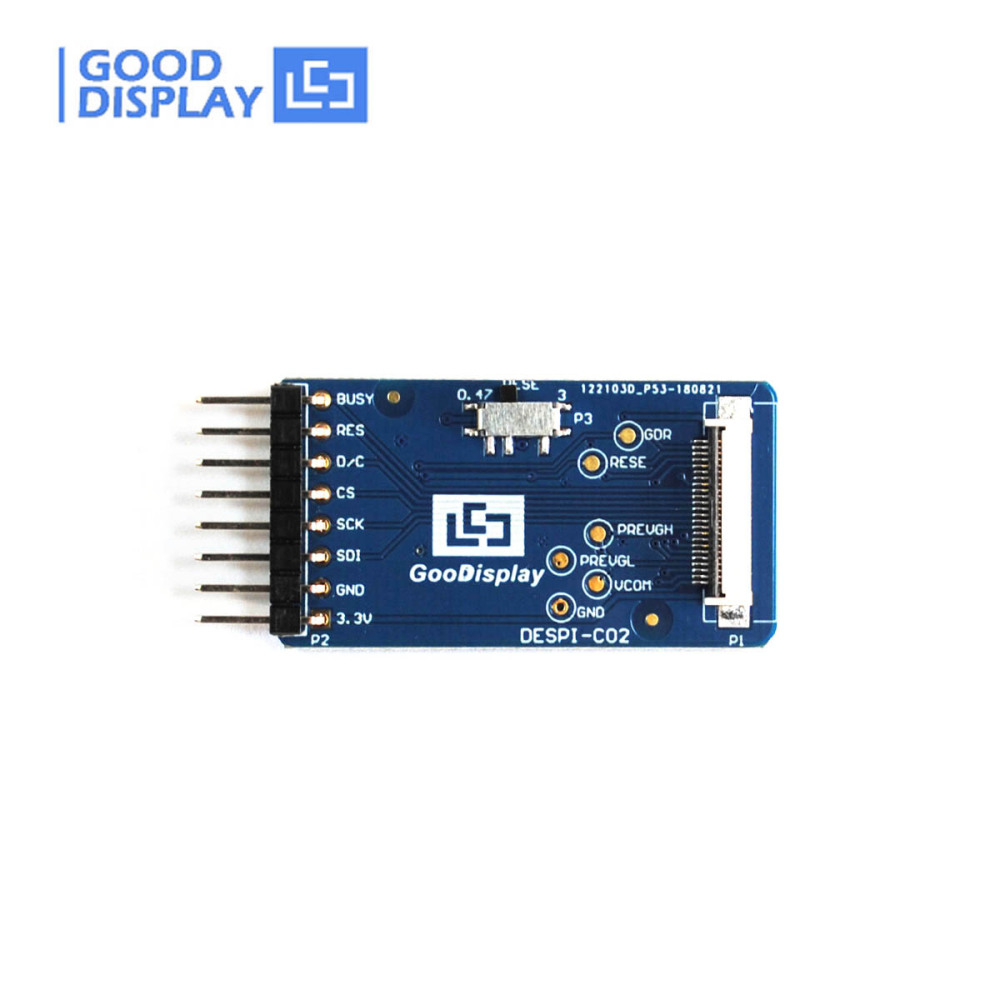

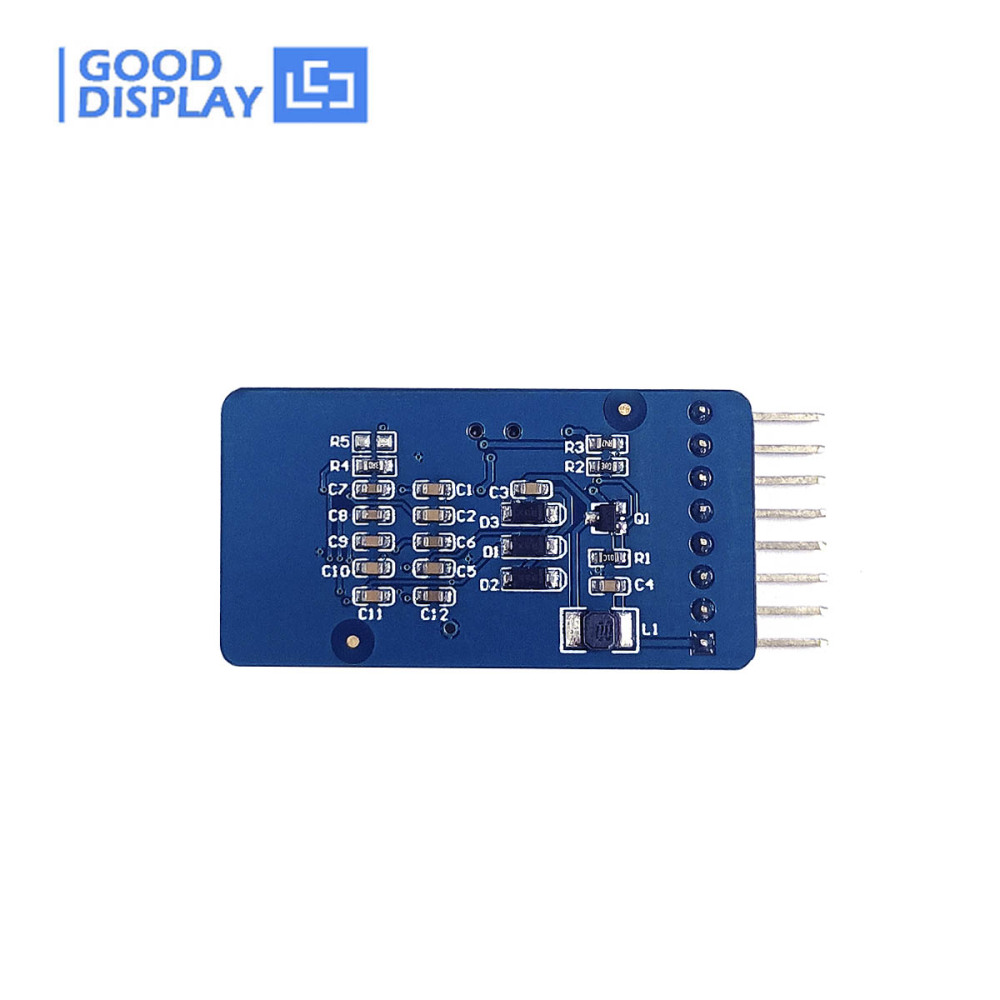

This connection board DESPI-C02 used for Good Display's black-white E-paper Display and three-color (black, white and red/Yellow)


We could provide front light, touch screen and other accessories for you.
Relevant manual about this product on Library or you could go to our official website (www.good-display.com), contact us please.


You can refer to the following link for the procedures and instructions of automatic e-paper display bitmap conversion: ImageToEpd. Also you could use our free e-paper software to prepare your bitmap image for this display, or make the picture on our bitmap conversion website: Image to Array

* This e-ink display module DOES NOT support partial updates.



☆ THE ABOVE PRICE INCLUDE

☆ MAIN PARAMETERS

☆ FEATURE

●  Versatile. Use in portrait or landscape format
●  Bistable. (Will continue to display with no power source)
●  I2C Signal Master Interface to read external temperature sensor
●  Black, white and red. Compared with monochrome electronic paper display, it is more beautiful
●  It enable a greater contrast ratio and wider viewing angle with high reflectance compared to liquid crystal displays

●  Development platform available STM32 / Arduino / ESP8266 / ESP32



☆ DETAILS

☆ MATCHED DEVELOPMENT KIT

● DESPI-C02 (E-ink Display HAT)

● DESPI-L(C02) (STM32 Platform/Universal)


● DEArduino-L(C02) (Arduino Platform)


● ESP8266-L(C02) (WiFi)


● ESP32-L(C02) (WiFi / Bluetooth)

☆ RELATED INFORMATION DOWNLOAD

● GDEY0154Z90 Specification

● IC Driver SSD1681

● GDEY0154Z90 STM32 Sample Code

● GDEY0154Z90 Arduino Sample Code

● GDEY0154Z90 ESP8266 Sample Code

● GDEY0154Z90 ESP32 Sample Code

● DESPI-C02 Specification

● DESPI-C02-SCH
