☆ INTRODUCTION

Name: Electronic Paper Screen 1.54 Inch 152x152 EPD 4 Grayscale Panel with Epaper Hat, GDEW0154T8D with adapter board DESPI-C02
Brand: GOOD DISPLAY
SKU: GDEW0154T8D+DESPI-C02
Price: 11.86 USD
Availability: OutOfStock

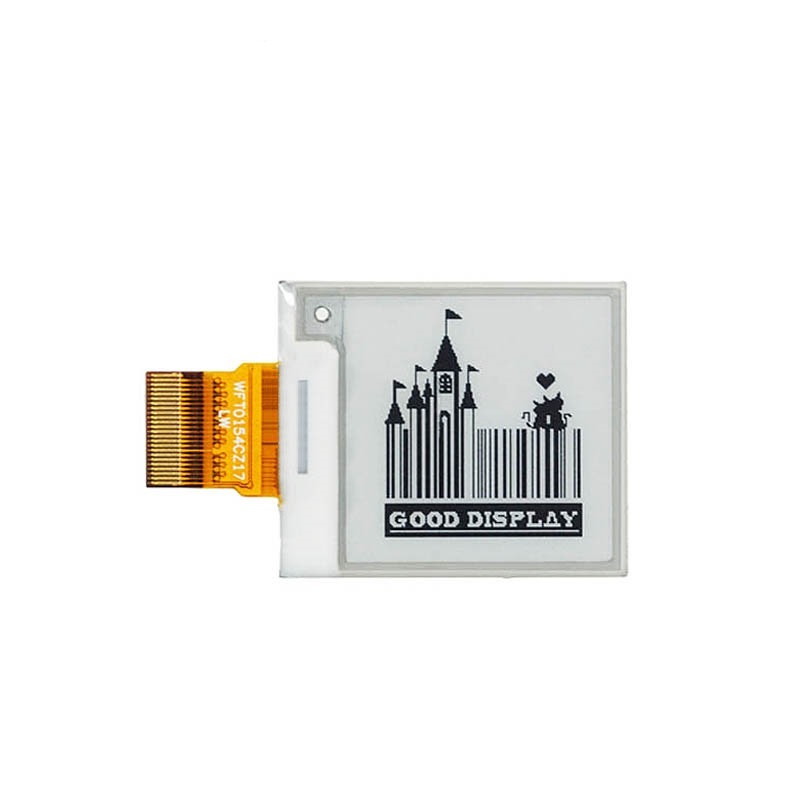

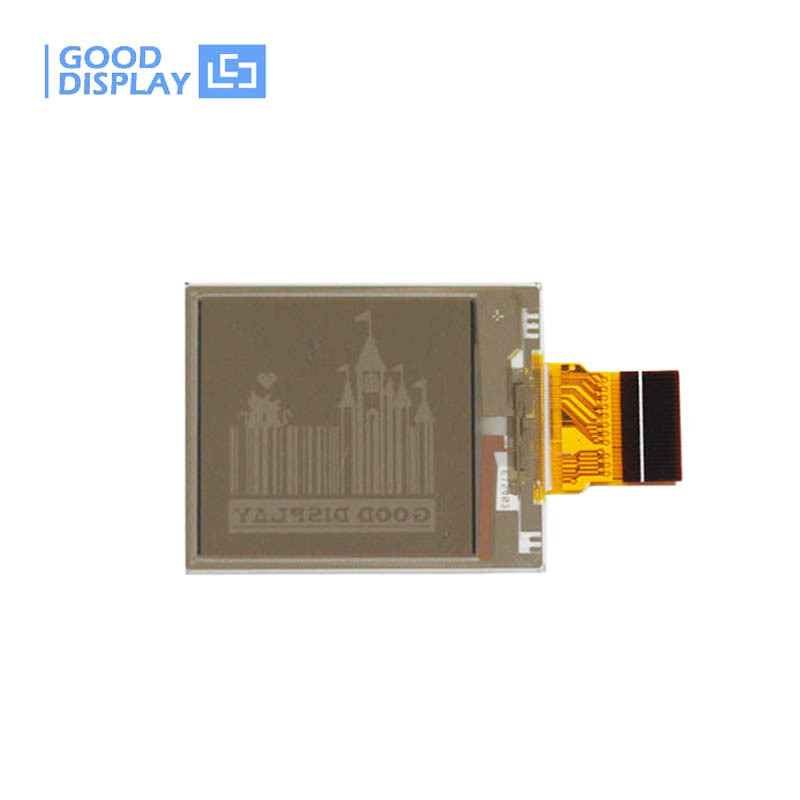

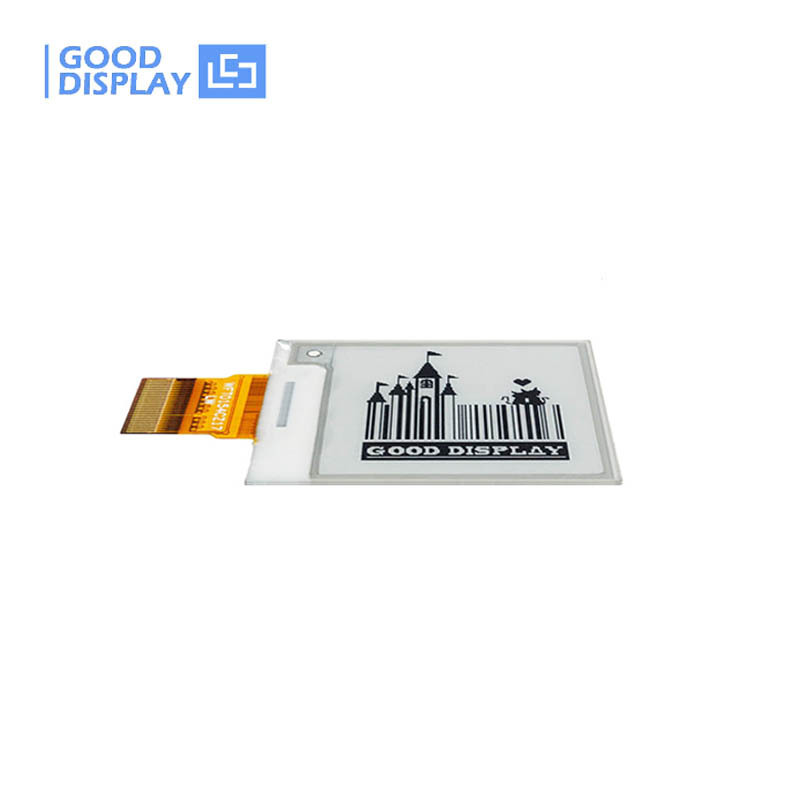

This is a set of E-PAPER HAT with1.54 inch e-paper screen with 152x152 resolution, SPI interface, and the display is capable to display images with black and white content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This e-paper display GDEW0154T8D is perfect for low power devices powered by solar or batteries.

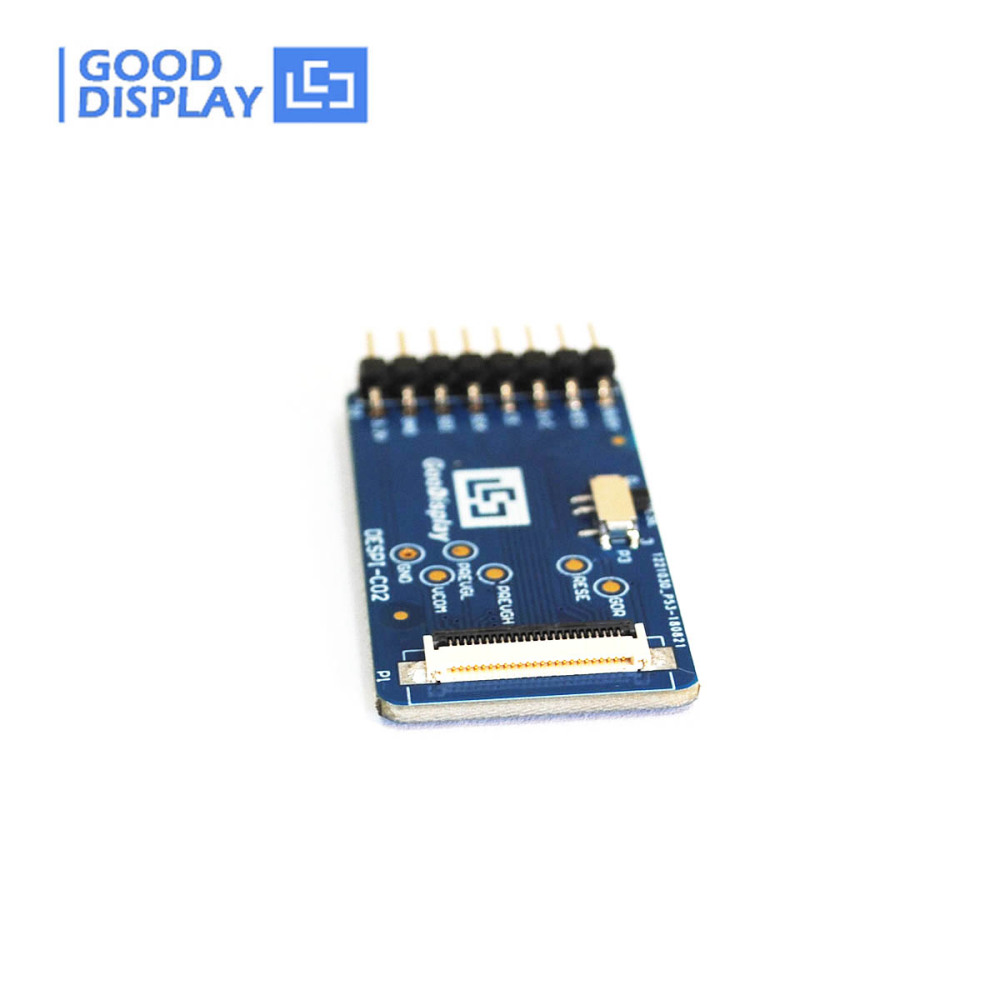

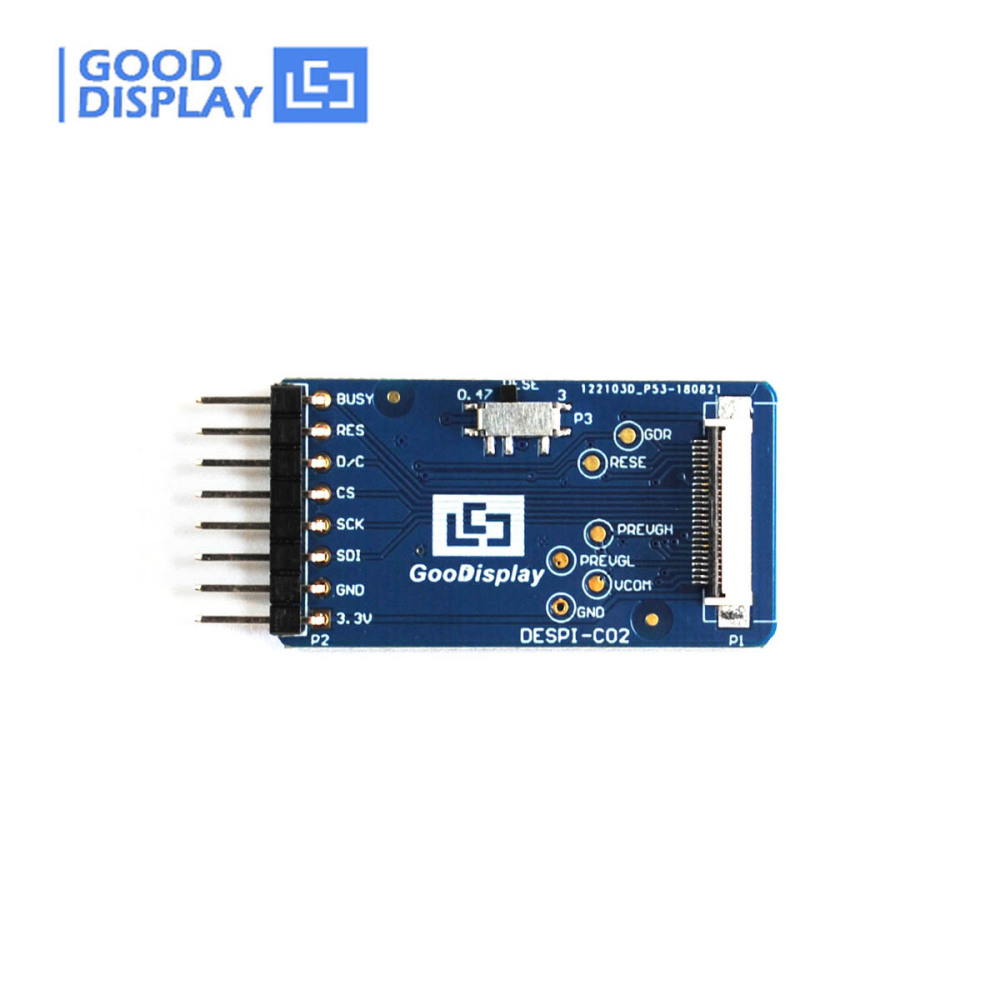

This connection board DESPI-C02 used for Good Display's black-white E-paper Display and three-color (black, white and red/Yellow)

We could provide front light, touch screen and other accessories for you.

Relevant manual about this product on Library or you could go to our official website (www.good-display.com), contact us please.

☆ THE ABOVE PRICE INCLUDE

Package A		+		+

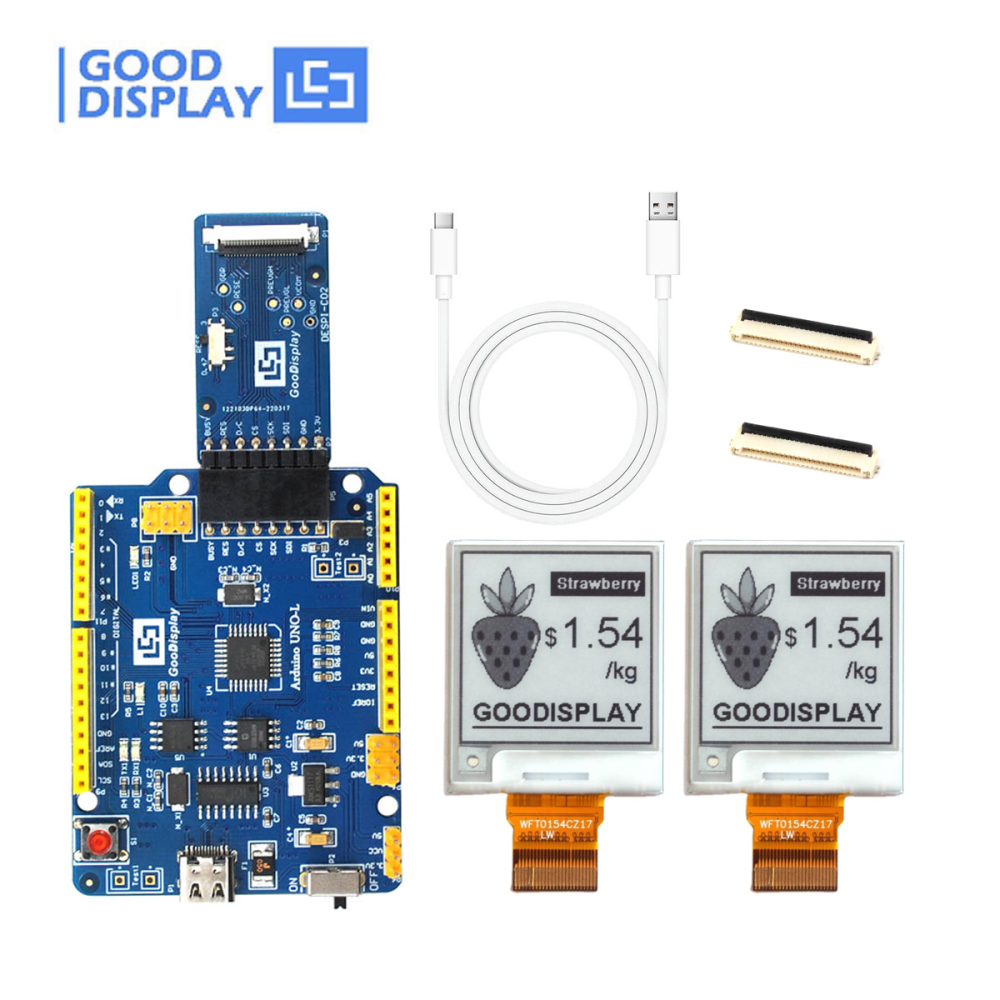

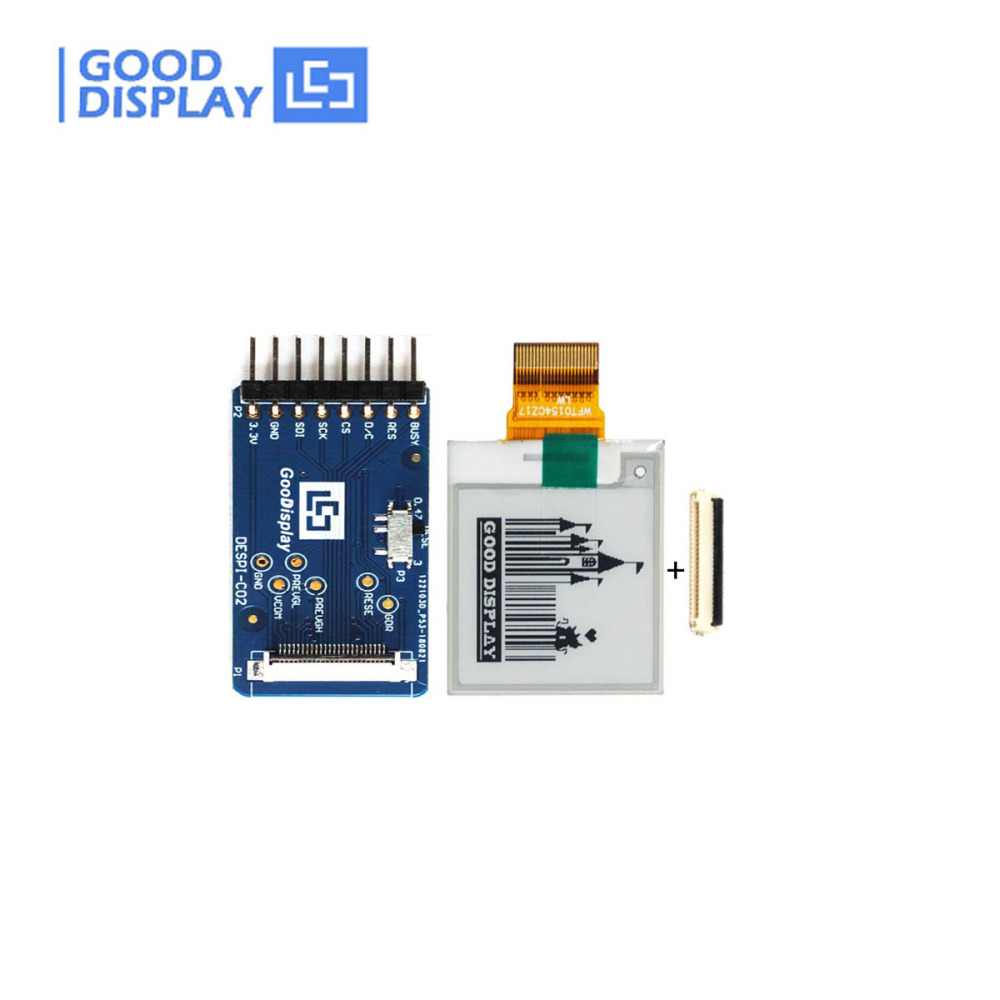

	*a. 1.54 inch 152x152 SPI interface 4 Grayscale eink display partial refresh, GDEW0154T8D 1pc**		*b. FPC Connector 1pc**		c.Epaper HAT Connection Adapter Board for E Ink Display, DESPI-C02* 1pc

Package B		+		+		+

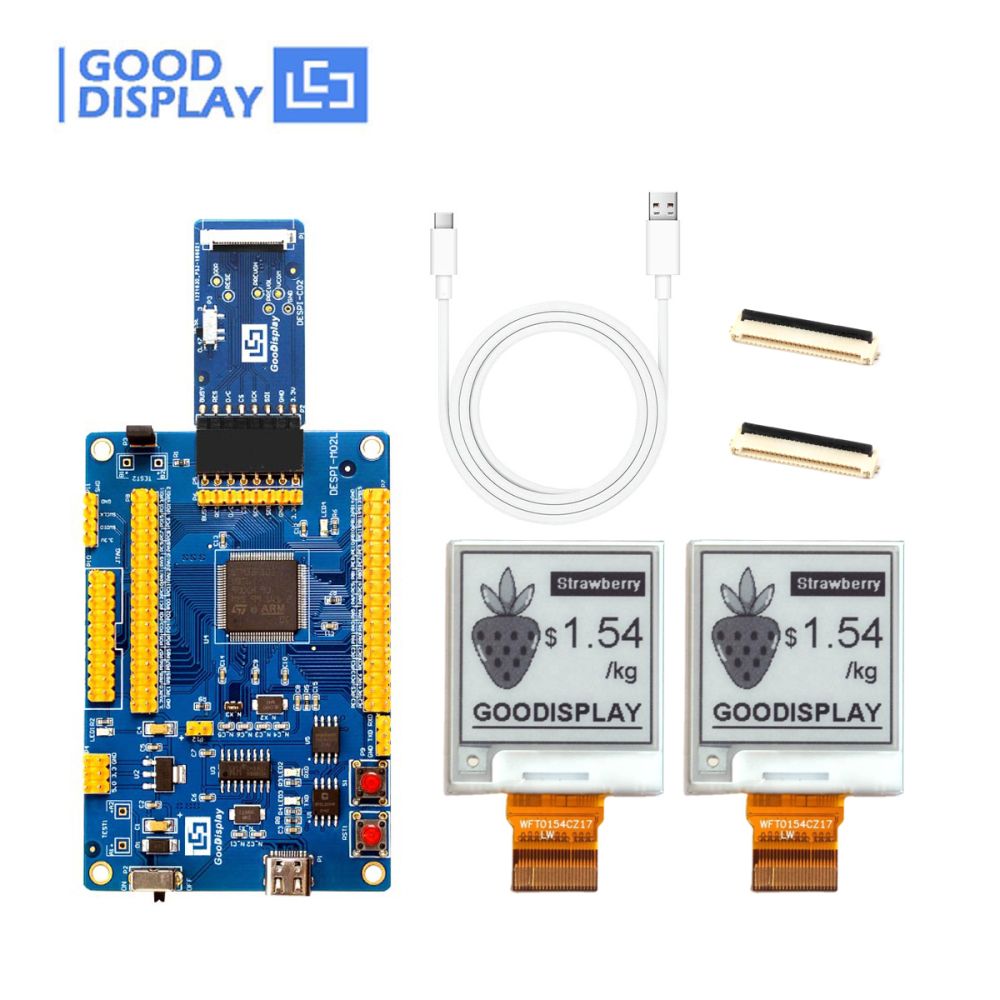

Package B	*a. 1.54 inch 152x152 SPI interface 4 Grayscale eink display partial refresh, GDEW0154T8D 2pcs**		b. FPC Connector* 2pcs		c.STM32 E-paper Panel Driver Board Type-C Interface Eink Development Kit, DESPI-L(C02)* 1pc		d. USB Cable* 1pc

Package C
Package C	*a. 1.54 inch 152x152 SPI interface 4 Grayscale eink display partial refresh, GDEW0154T8D 2pcs**		b. FPC Connector* 2pcs		C.Arduino E-paper Driving Board Type-C Interface EPD development kit, DEArduino-L(C02)* 1pc		d. USB Cable* 1pc

Package D
Package D	*a. 1.54 inch 152x152 SPI interface 4 Grayscale eink display partial refresh, GDEW0154T8D 2pcs**		b. FPC Connector * 2pcs		C.ESP8266 Arduino Platform E-paper Panel Driver Board Type-C Interface Eink Development Kit, ESP8266-L(C02)* 1pc		d. USB Cable* 1pc

Package E		+		+		+

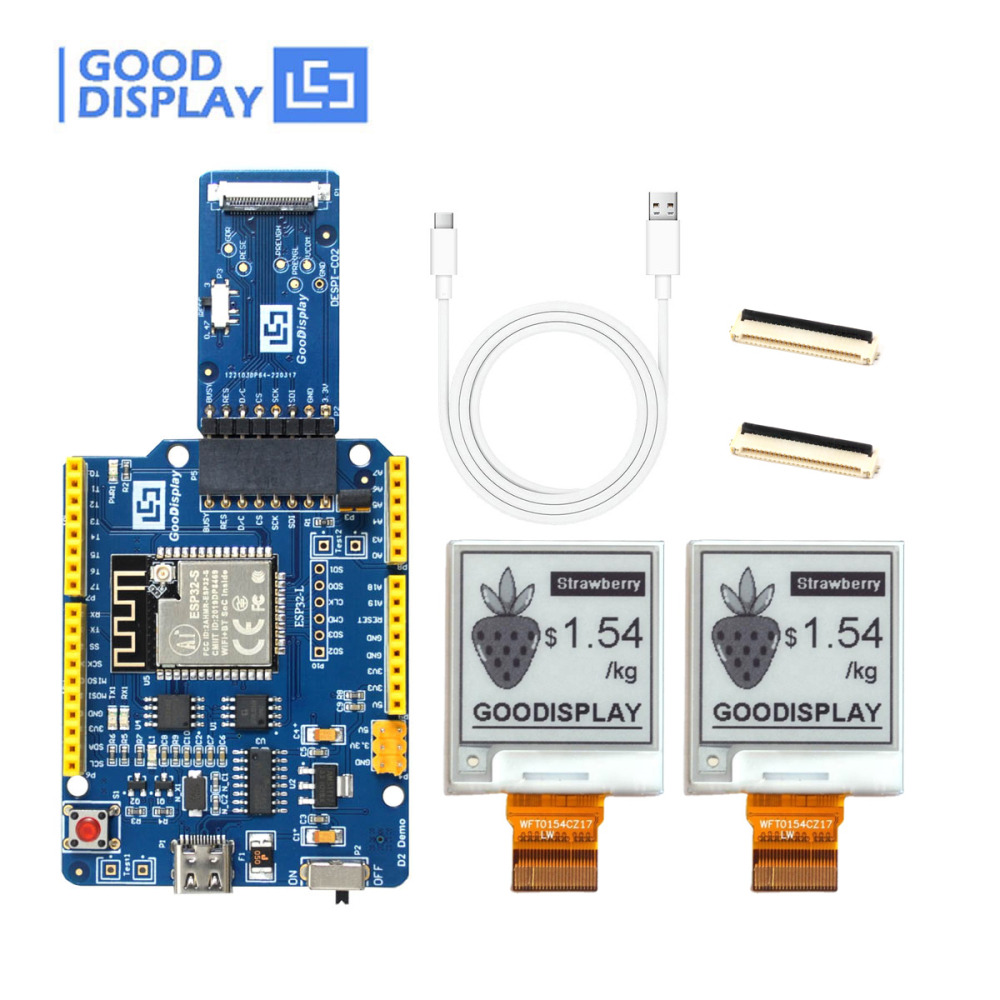

Package E	*a. 1.54 inch 152x152 SPI interface 4 Grayscale eink display partial refresh, GDEW0154T8D 2pcs**		b. FPC Connector * 2pcs		c. ESP32 Arduino Platform E-paper Panel Driver Board Type-C Interface Eink Development Kit, ESP32-L(C02)* 1pc		d. USB Cable* 1pc

Package F

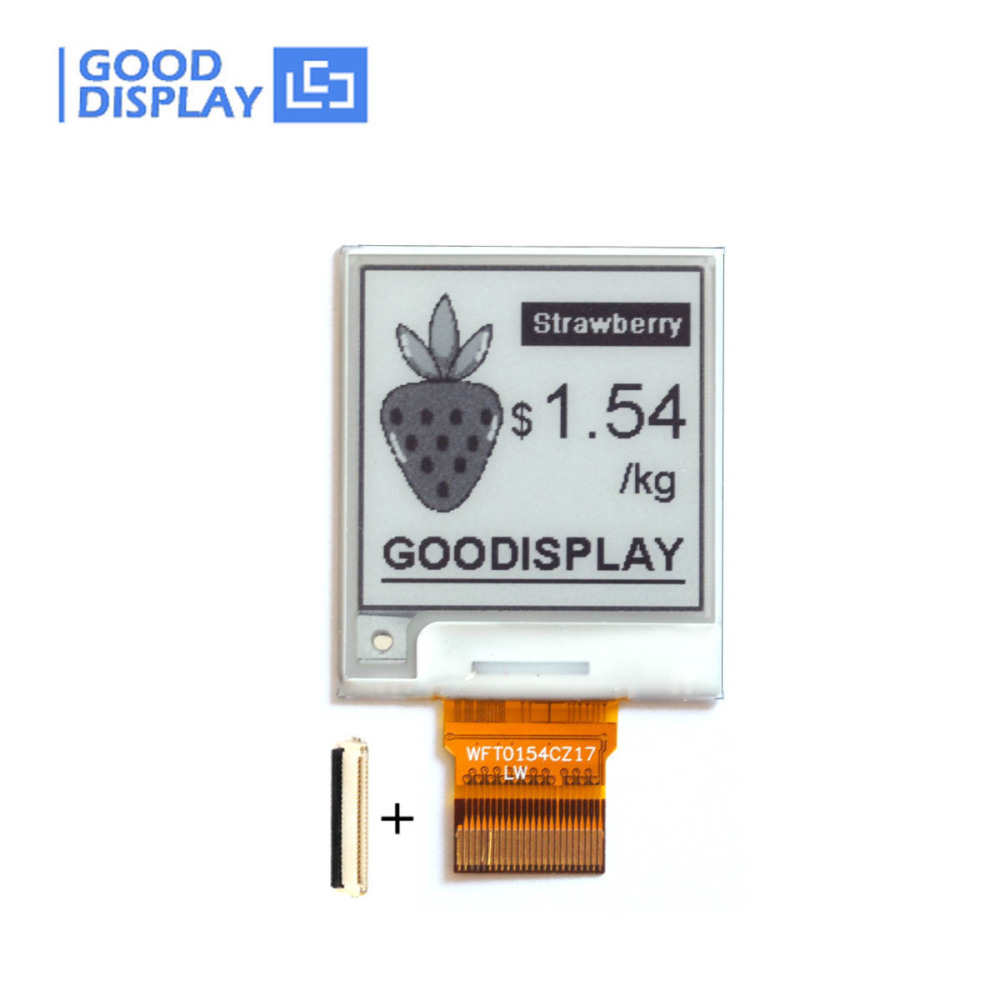

Package F	*a. 1.54 inch 152x152 SPI interface 4 Grayscale eink display partial refresh, GDEW0154T8D 1pc**		*b. FPC Connector 1pc**

☆ MAIN PARAMETERS

PART NUMBER	GDEW0154T8D
TYPE	Dot Matrix	CONNECTOR	24 Pin FPC
SIZE	1.54 inch	MAX GRAYSCALE	4
IC	UC8151D	COLOR	Black,White
RESOLUTION	152x152	INTERFACE	SPI
OUTLINE SIZE(mm)	31.8x37.32x0.98	FULL REFRESH(s)	3
ACTIVE SIZE(mm)	27.51x27.51	PARTIAL REFRESH TIME(s)	0.3
PIXEL PITCH(mm)	0.181x0.181	TIME OF FAST REFRESH(s)	0.82
OPERATING TEMP.	0℃~50℃	POWER CONSUMPTION OF THE REFRESH(mW)	26.4
STORAGE TEMP.	-25℃~70℃	STANDBY POWER CONSUMPTION (mW)	0.0165

PART NUMBER	DESPI-C02
PLATFORM	STM32	OUTSIDE DIMENSION	41x22mm
POWER INPUT	DC3.3V	OPERATING TEMP.	-20~70℃
FEATURE	Fully and Partial Refresh

☆ FEATURE

● Support 4 Grayscale

● Fast refresh (0.82s/frame)

● Black and white monochrome is easy to read

● Versatile. Use in portrait or landscape format

● It supports partial refresh, the refresh rate is 0.3s/frame

● Bistable. (Will continue to display with no power source)

● I2C Signal Master Interface to read external temperature sensor

● Development platform available STM32 / Arduino/ Raspberry Pi / ESP8266 / ESP32

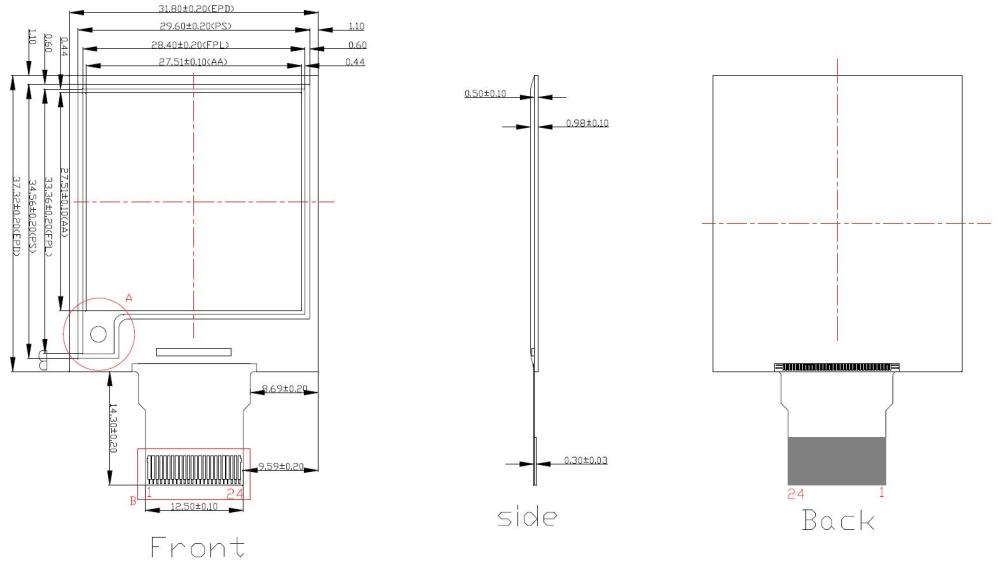

☆ DRAWING

☆ OTHER PRODUCTS

Part Number	Color	IC	Resolution	Features	Refresh Time
GDEW0154I9FC	BW	UC8151D	152x152	Flexible, Partial Refresh	3s
GDEH0154D67	BW	SSD1681	200x200	Partial Refresh	2s
GDEH0154D67-FL	BW	SSD1681	200x200	Partial Refresh, With Frontlight	2s
GDEY0154D67	BW	SSD1681	200x200	Partial Refresh	2s
GDEW0154M10	BW	UC8151D	152x152	DES, High Contrast Ratio	3s
GDEW0154T8-FL	BW	UC8151C	152x152	Fast Refresh, Partial Refresh, With Frontlight	0.82s
GDEW0154T8D	BW	UC8151D	152x152	Fast Refresh, Partial Refresh	0.82s
GDEH0154Z90	BWR	SSD1681	200x200	Colorful(Red)	15s
GDEM0154Z91	BWR	SSD1680	152x152	Colorful(Red)	14s

☆ MATCHED DEVELOPMENT KIT

● DESPI-C02 (E-ink Display HAT )

● DESPI-L(C02) (STM32 Platform/Universal)

● DEArduino-L(C02) (Arduino Platform)

● ESP8266-L(C02) (WiFi)

● ESP32-L(C02) (WiFi / Bluetooth)

● DESPI-PICO (Rasberry Pi Epaper HAT)

☆ RELATED INFORMATION DOWNLOAD

● GDEW0154T8D Specification

● IC Driver UC8151D

● IC UC8151C to IC UC8151D Instructions

● Picture Production and Bitmap Convert for GDEW0154T8D

● GDEW0154T8D STM32 Sample Code

● GDEW0154T8D ESP32 Sample Code

● GDEW0154T8D ESP8266 Sample Code

● GDEW0154T8D Arduino Sample Code

● GDEW0154T8D Raspberry Pi Pico Sample Code

● DESPI-M02L

● ESP32-L

● ESP8266-L

● Arduino UNO-L
