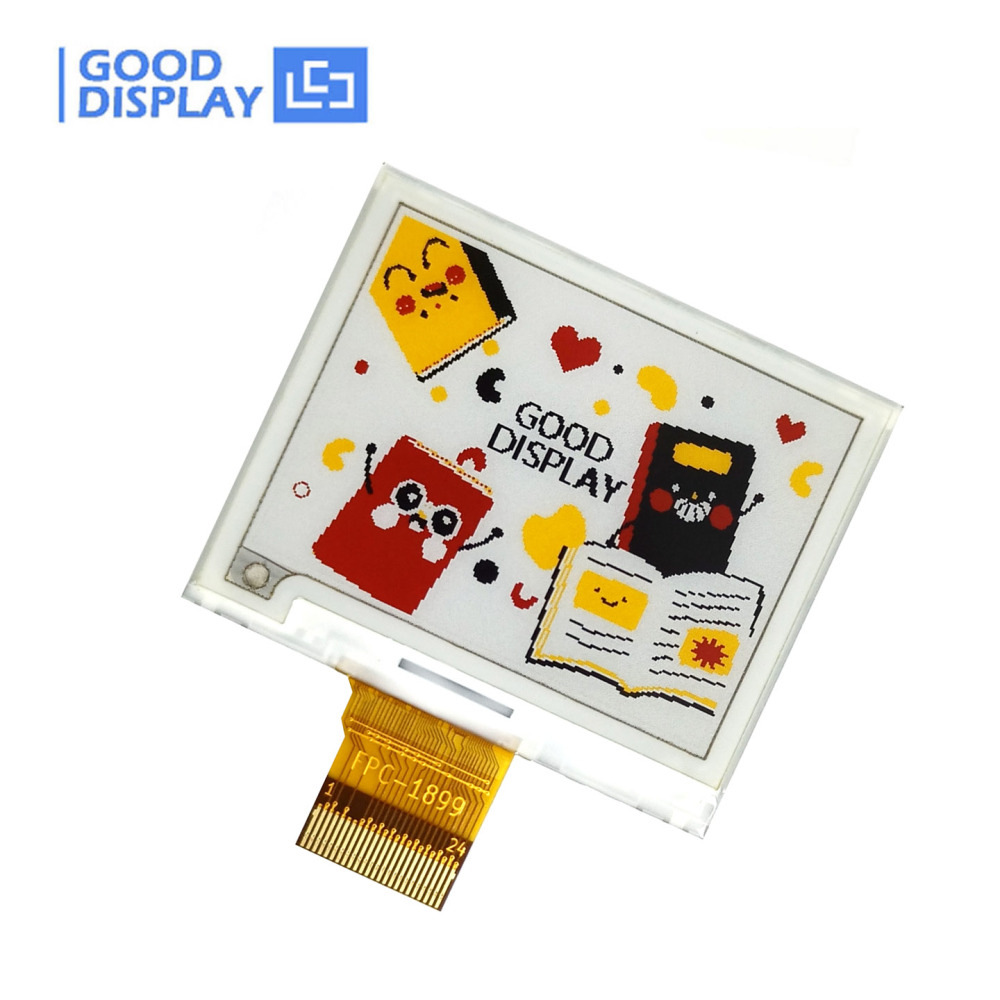

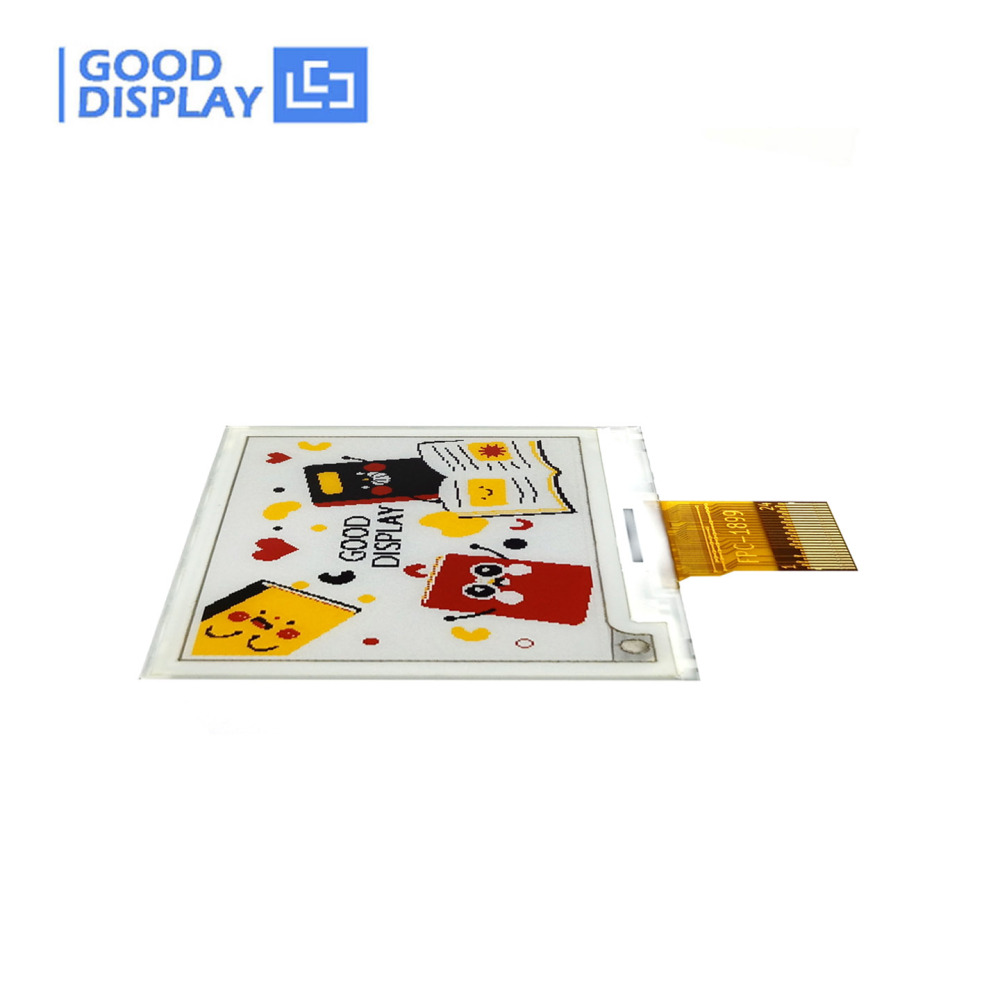

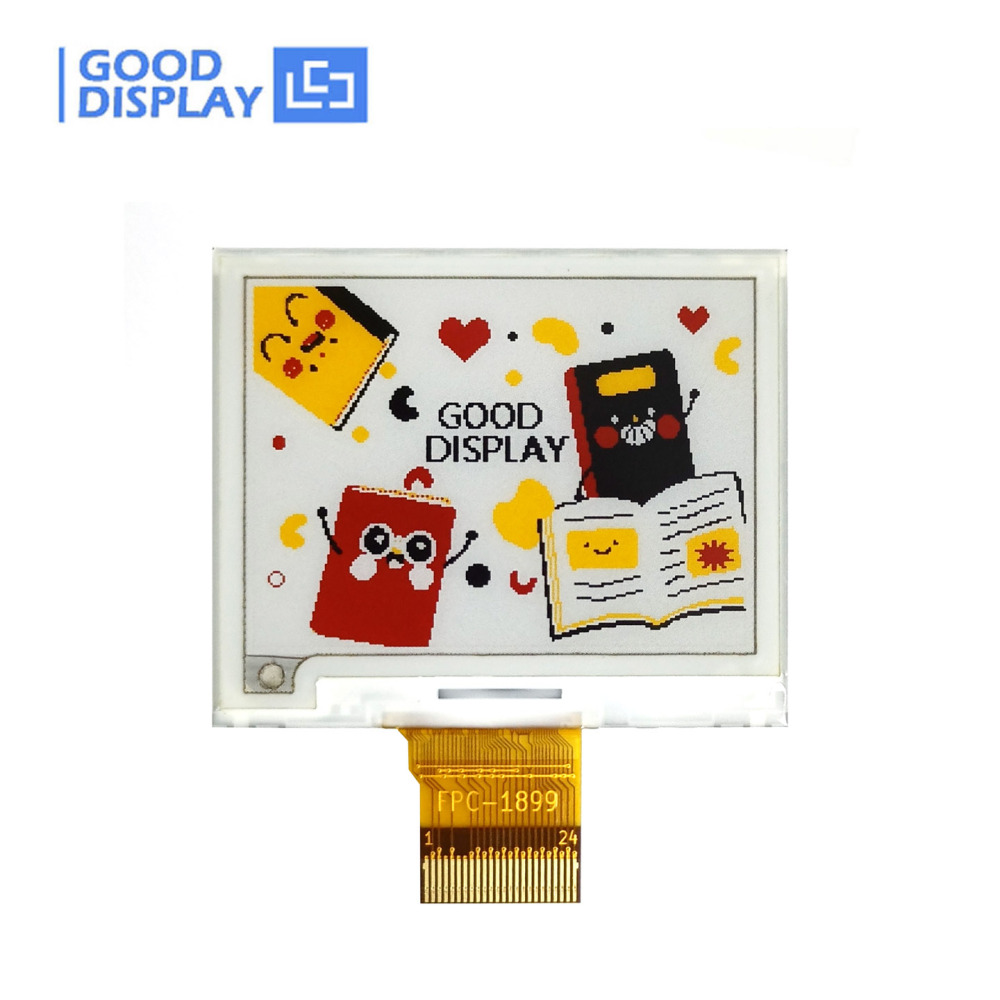

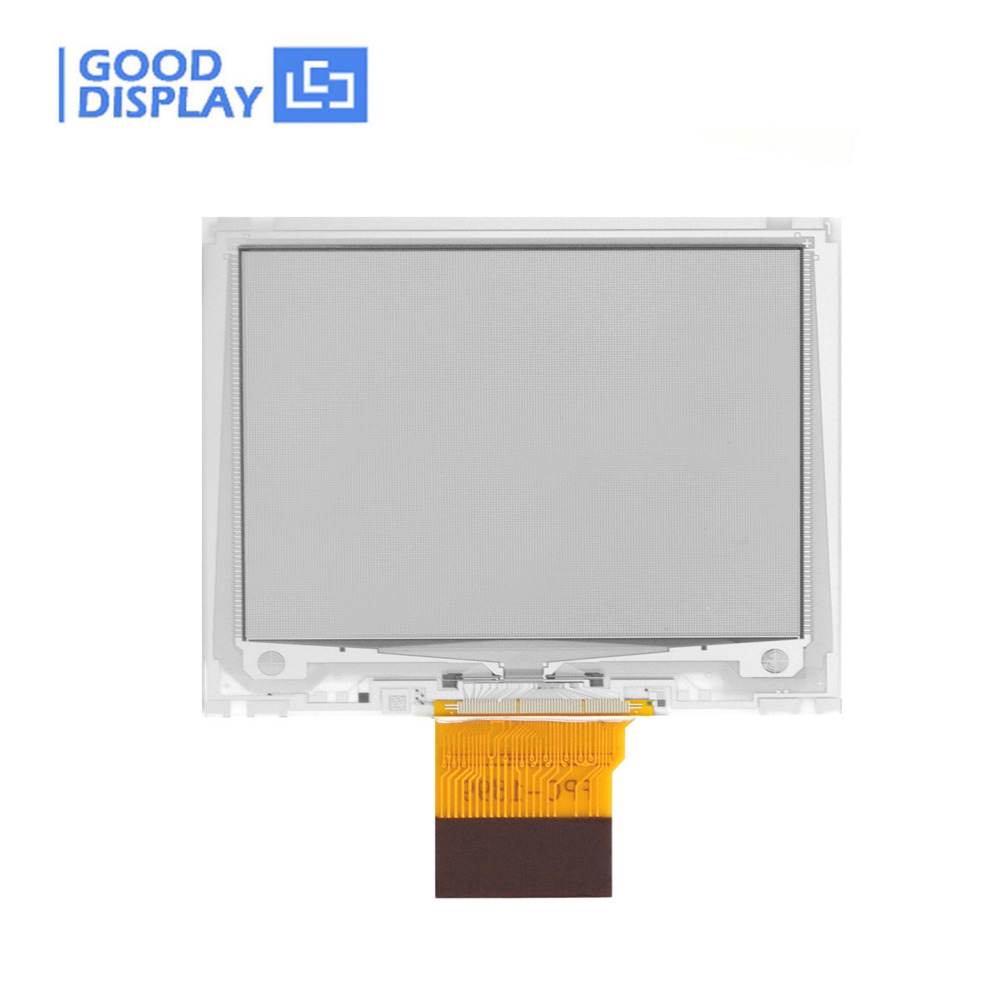

4-Color E-Paper Display 1.89 Inch 200×152 E-Ink Driver IC SSD2681 12s Fast Refresh GDEM0189F66

$6.56 $7.99
18% OFF
GET $3.00 OFF ON ORDERS OVER $59.00
Get it
ERP72QDC
Received successfully
Coupon Code
CONTINUE SHOPPING
Discount
  • 3% OFF WITH PURCHASE OVER 2 UNITS
  • 5% OFF WITH PURCHASE OVER 3 UNITS
    Please select the information you want X
  • product:
    ePaper Only
    ePaper Only
    with Adapter Board
    with Adapter Board
    with STM32 Demo Kit
    with STM32 Demo Kit
    with ESP32 Demo Kit
    with ESP32 Demo Kit
    Please select the information you wantX
Quantity:
0 in stock
  • 1.89" 4-Color E-Paper Display Driver IC SSD2681 200×152 12s Fast Refresh GDEM0189F66
  • 1.89" 4-Color E-Paper Display Driver IC SSD2681 200×152 12s Fast Refresh GDEM0189F66
  • 1.89" 4-Color E-Paper Display Driver IC SSD2681 200×152 12s Fast Refresh GDEM0189F66
  • 1.89" 4-Color E-Paper Display Driver IC SSD2681 200×152 12s Fast Refresh GDEM0189F66
  • 1.89" 4-Color E-Paper Display Driver IC SSD2681 200×152 12s Fast Refresh GDEM0189F66
  • 1.89" 4-Color E-Paper Display Driver IC SSD2681 200×152 12s Fast Refresh GDEM0189F66
  • 1.89" 4-Color E-Paper Display Driver IC SSD2681 200×152 12s Fast Refresh GDEM0189F66
  • 4-Color E-Paper Display 1.89 Inch 200×152 E-Ink Driver IC SSD2681 12s Fast Refresh GDEM0189F66
  • 4-Color E-Paper Display 1.89 Inch 200×152 E-Ink Driver IC SSD2681 12s Fast Refresh GDEM0189F66
  • 4-Color E-Paper Display 1.89 Inch 200×152 E-Ink Driver IC SSD2681 12s Fast Refresh GDEM0189F66
  • 4-Color E-Paper Display 1.89 Inch 200×152 E-Ink Driver IC SSD2681 12s Fast Refresh GDEM0189F66
  • 1.89" 4-Color E-Paper Display Driver IC SSD2681 200×152 12s Fast Refresh GDEM0189F66
  • 1.89" 4-Color E-Paper Display Driver IC SSD2681 200×152 12s Fast Refresh GDEM0189F66
  • 1.89" 4-Color E-Paper Display Driver IC SSD2681 200×152 12s Fast Refresh GDEM0189F66
  • 1.89" 4-Color E-Paper Display Driver IC SSD2681 200×152 12s Fast Refresh GDEM0189F66
  • 1.89" 4-Color E-Paper Display Driver IC SSD2681 200×152 12s Fast Refresh GDEM0189F66
  • 1.89" 4-Color E-Paper Display Driver IC SSD2681 200×152 12s Fast Refresh GDEM0189F66
  • 1.89" 4-Color E-Paper Display Driver IC SSD2681 200×152 12s Fast Refresh GDEM0189F66
  • 4-Color E-Paper Display 1.89 Inch 200×152 E-Ink Driver IC SSD2681 12s Fast Refresh GDEM0189F66
  • 4-Color E-Paper Display 1.89 Inch 200×152 E-Ink Driver IC SSD2681 12s Fast Refresh GDEM0189F66
  • 4-Color E-Paper Display 1.89 Inch 200×152 E-Ink Driver IC SSD2681 12s Fast Refresh GDEM0189F66
  • 4-Color E-Paper Display 1.89 Inch 200×152 E-Ink Driver IC SSD2681 12s Fast Refresh GDEM0189F66
1/1
  • 1.89" 4-Color E-Paper Display Driver IC SSD2681 200×152 12s Fast Refresh GDEM0189F66
  • 1.89" 4-Color E-Paper Display Driver IC SSD2681 200×152 12s Fast Refresh GDEM0189F66
  • 1.89" 4-Color E-Paper Display Driver IC SSD2681 200×152 12s Fast Refresh GDEM0189F66
  • 1.89" 4-Color E-Paper Display Driver IC SSD2681 200×152 12s Fast Refresh GDEM0189F66
  • 1.89" 4-Color E-Paper Display Driver IC SSD2681 200×152 12s Fast Refresh GDEM0189F66
  • 1.89" 4-Color E-Paper Display Driver IC SSD2681 200×152 12s Fast Refresh GDEM0189F66
  • 1.89" 4-Color E-Paper Display Driver IC SSD2681 200×152 12s Fast Refresh GDEM0189F66
  • 4-Color E-Paper Display 1.89 Inch 200×152 E-Ink Driver IC SSD2681 12s Fast Refresh GDEM0189F66
  • 4-Color E-Paper Display 1.89 Inch 200×152 E-Ink Driver IC SSD2681 12s Fast Refresh GDEM0189F66
  • 4-Color E-Paper Display 1.89 Inch 200×152 E-Ink Driver IC SSD2681 12s Fast Refresh GDEM0189F66
  • 4-Color E-Paper Display 1.89 Inch 200×152 E-Ink Driver IC SSD2681 12s Fast Refresh GDEM0189F66
Frequently Bought Together
more
Frequently Bought Together
  • Description
4-Color BWRY · ESL-Optimized · 12s Fast Refresh

GDEM0189F66 1.89"
4-Color E-Paper Display

200×152 resolution · 133 PPI · 0.191mm pixel pitch · Black / White / Red / Yellow. All-in-one SSD2681 driver with on-chip OTP, DC-DC, SRAM, LUT, VCOM and temperature sensor. 12s fast / 21s full refresh · 5.4mW typical · 0.0012mW deep sleep · 0.4µA sleep current. Purpose-built for Electronic Shelf Labels, industrial IoT & portable smart devices.

View Specifications Download Datasheet

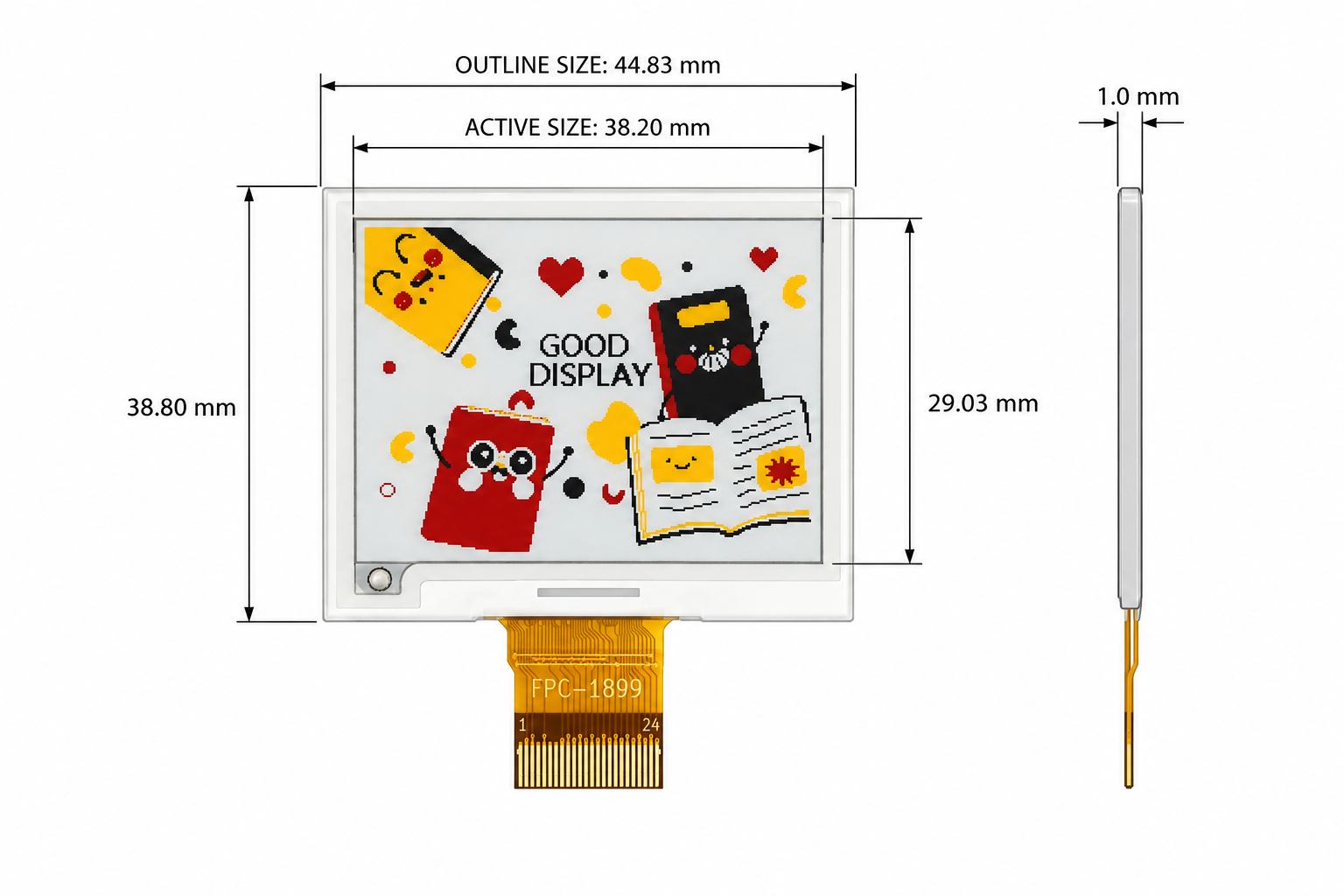

GDEM0189F66 1.89 inch 4-color e-paper display

Core Advantages

True 4-Color High Contrast

Black, white, red and yellow with 2-bit output per pixel. Highly reflective, ultra-wide viewing angle and bi-stable image retention — ideal for retail electronic shelf labels and multi-color signage.

BWRY 4 Colors    200×152 Pixels    133 PPI

All-in-One SSD2681 Driver

Gate driver, source driver, timing controller, oscillator, DC-DC, SRAM, LUT and VCOM integrated in a single chip. On-chip OTP waveform and built-in temperature sensor cut external components and speed up design-in.

SSD2681 Driver IC    OTP Waveform    SPI 4-wire/3-wire

Microwatt-Class Power

5.4mW typical operating power, 0.0012mW deep sleep and 0.4µA sleep current — years of battery life on a single coin cell. The bi-stable image stays readable with power removed.

5.4 mW typ.    0.0012 mW deep sleep    0.4 µA sleep

Technical Specifications

Part Number GDEM0189F66
Size 1.89 inch
Type Dot Matrix, 4-Color EPD
IC SSD2681
Resolution 200×152
PPI 133
Color Black, White, Red, Yellow
Interface SPI (4-wire / 3-wire)

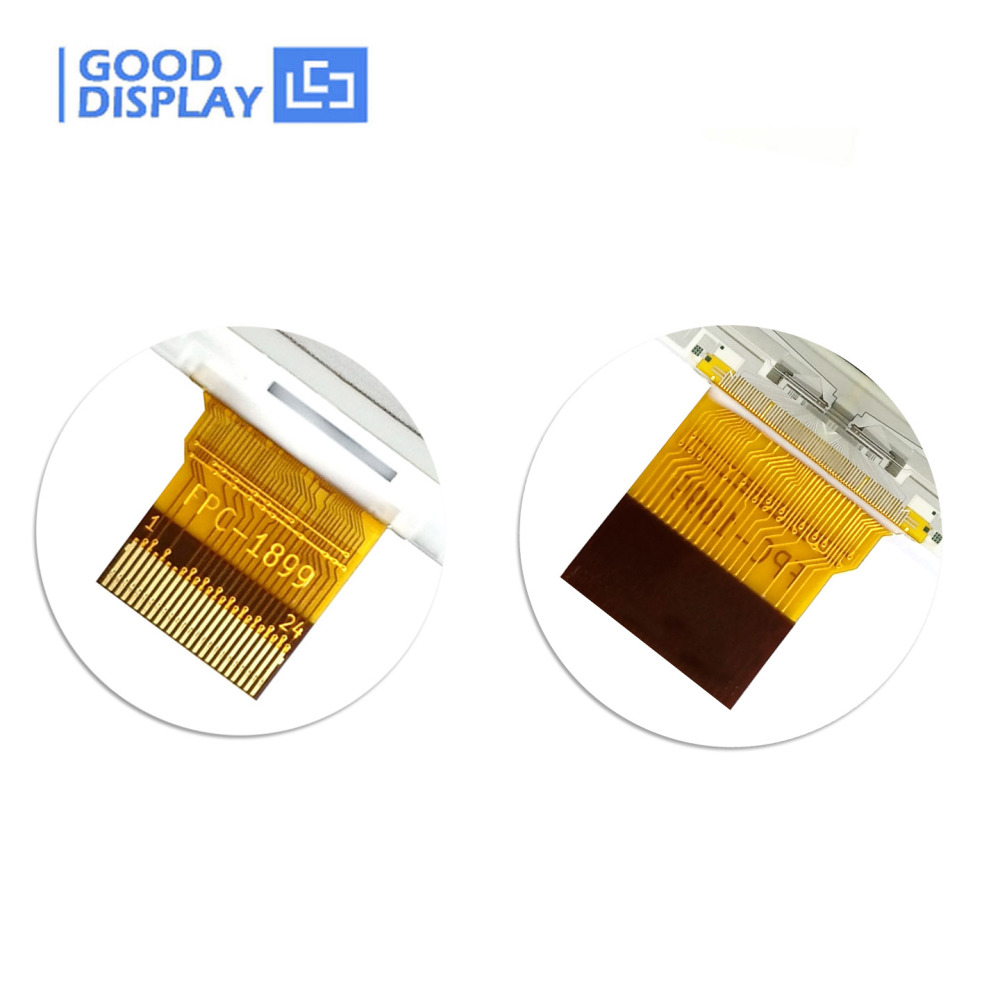

Connector 24-pin FPC, pitch 0.5 mm
Outline Size 44.83 × 38.80 × 1.00 mm
Active Size 38.20 × 29.03 mm
Pixel Pitch 0.191 × 0.191 mm
Operating Temp. 0℃ ~ 40℃
Storage Temp. -25℃ ~ +70℃
Fast Refresh Time 12 s
Full Refresh Time 21 s
Typical Power 5.4 mW (VDD=3.0V)
Deep Sleep Power 0.0012 mW
Sleep Current 0.4 µA
VCOM (Typ.) -3.0 V
Weight 3.16 ± 0.5 g
Packaging 500 units/carton

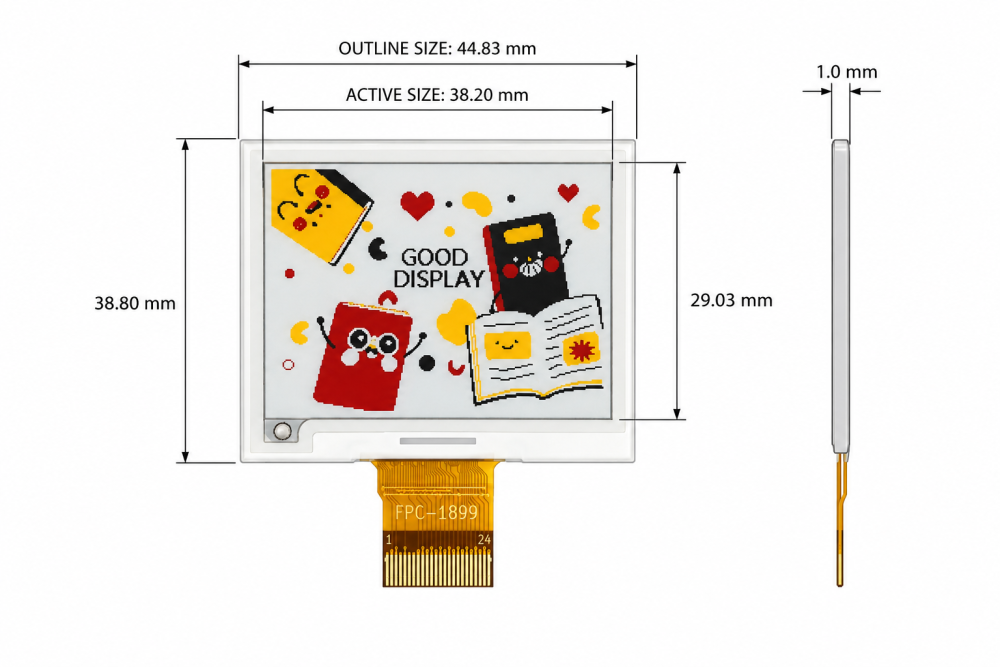

Drawing Details

GDEM0189F66 mechanical drawing

Matching Driver Boards

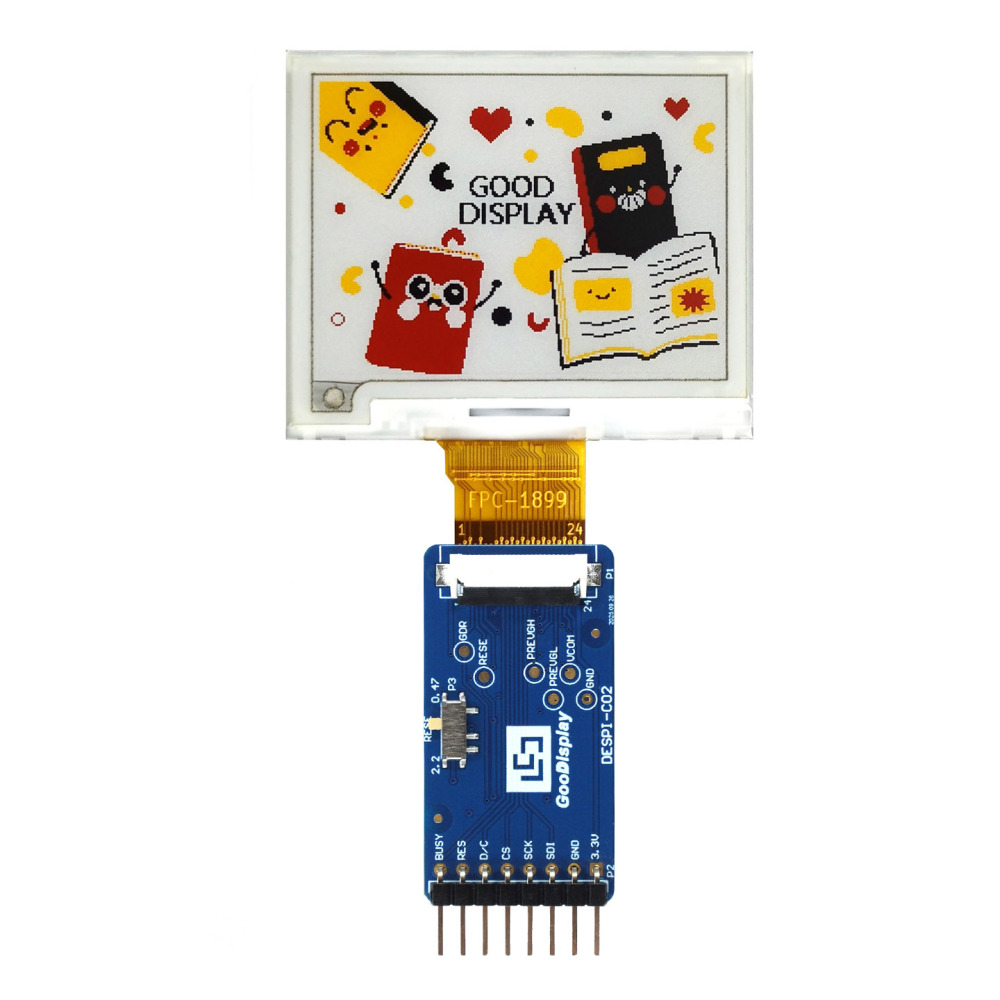

DESPI-C02

DESPI-C02

Pure hardware interface adapter, no MCU. SPI to 24-pin EPD conversion.

View Details →
DESPI-L(C02)

DESPI-L(C02)

STM32F103VET6 MCU, rich GPIO and Type-C interface.

View Details →
ESP32-L(C02)

ESP32-L(C02)

ESP32-WROOM-32D MCU, integrated Wi-Fi and Bluetooth.

View Details →
ESP8266-L(C02)

ESP8266-L(C02)

Cost-optimized Wi-Fi solution, ESP8266 core.

View Details →
Arduino UNO R4-L(C02)

Arduino UNO R4-L(C02)

Arduino ecosystem compatible, extensive library support.

View Details →

Typical Applications

Electronic Shelf Label

Electronic Shelf Labels

Black / white / red / yellow price, promotion and inventory tags with high reflectance. 12s fast refresh and 0.0012mW deep sleep keep retail shelves accurate for years on one battery.

Smart Signage

Smart Signage

Four-color layered update delivers eye-catching retail signage, meeting-room nameplates and shelf-edge promotion boards without backlight or cabling.

Industrial IoT

Industrial IoT

SPI-ready all-in-one SSD2681 driver with on-chip OTP waveform, built-in temperature sensor and external I2C support simplify integration into industrial control panels and HMIs.

Work Card and Information Display

Work Card & Info Display

Bi-stable 4-color image with no power needed to stay readable — perfect for electronic work cards, asset tags, patient boards and portable status panels.

We Also Recommend

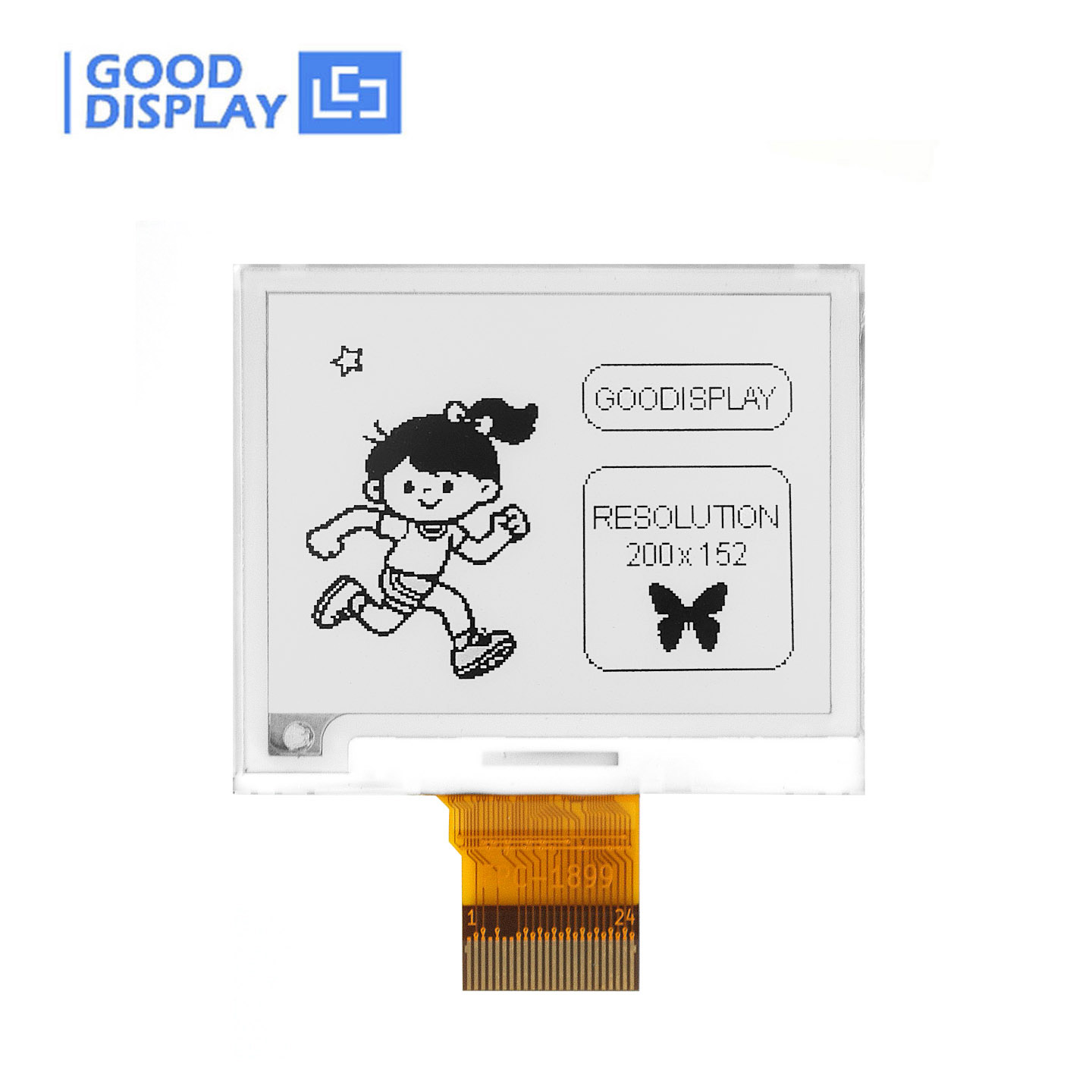

1.89 inch 4-color e-paper display

1.89" 4-Color EPD

View Details
2.13 inch monochrome e-paper display

1.54" Monochrome EPD

View Details
1.54 inch full-color e-paper display

1.54"  Full-Color EPD

View Details
1.69 inch 4-color e-paper display

1.69" Full-Color EPD

View Details

Sustainable Technology

Paperless Future

Each GDEM0189F66 label can replace thousands of paper price tags annually. Join 15,000+ businesses reducing paper waste with bi-stable 4-color e-paper.

Sustainable Packaging

95% recycled materials with FSC-certified packaging. 100% plastic-free protective materials for EU and North American compliance. RoHS certified.

Energy Leadership

5.4mW operating and 0.0012mW deep sleep slash energy use. A single coin cell can power years of 4-color updates in wireless ESL deployments.

Why GooDisplay 4-Color E-Paper is Faster

Optimized Fast-Refresh FPL

Rigorous material selection and an optimized fast-refresh FPL film deliver high-speed 4-color performance without optical trade-offs.

Smart Temp-Controlled Drive

Built-in temperature sensor plus custom waveform files per temperature range, with external LM75 support, ensure excellent image quality in any environment.

Chip-Level Integration

All-in-one SSD2681 driver IC with integrated DC-DC, SRAM, LUT and VCOM plus on-chip OTP waveform — plug and play with simple SPI command sequences.

Feature Conventional 4-Color EPD GDEM0189F66
Image Update Time ~25 s 12 s (fast) / 21 s (full)
Active Power (VDD=3.0V) ~7.0 mW 5.4 mW
Deep Sleep Power ~0.005 mW 0.0012 mW
Temperature Compensation External sensor required On-chip + external I2C
Driver Integration External components required All-in-one IC (DC-DC, SRAM, LUT, VCOM)
Waveform Storage MCU must supply LUT On-chip OTP or MCU writable
