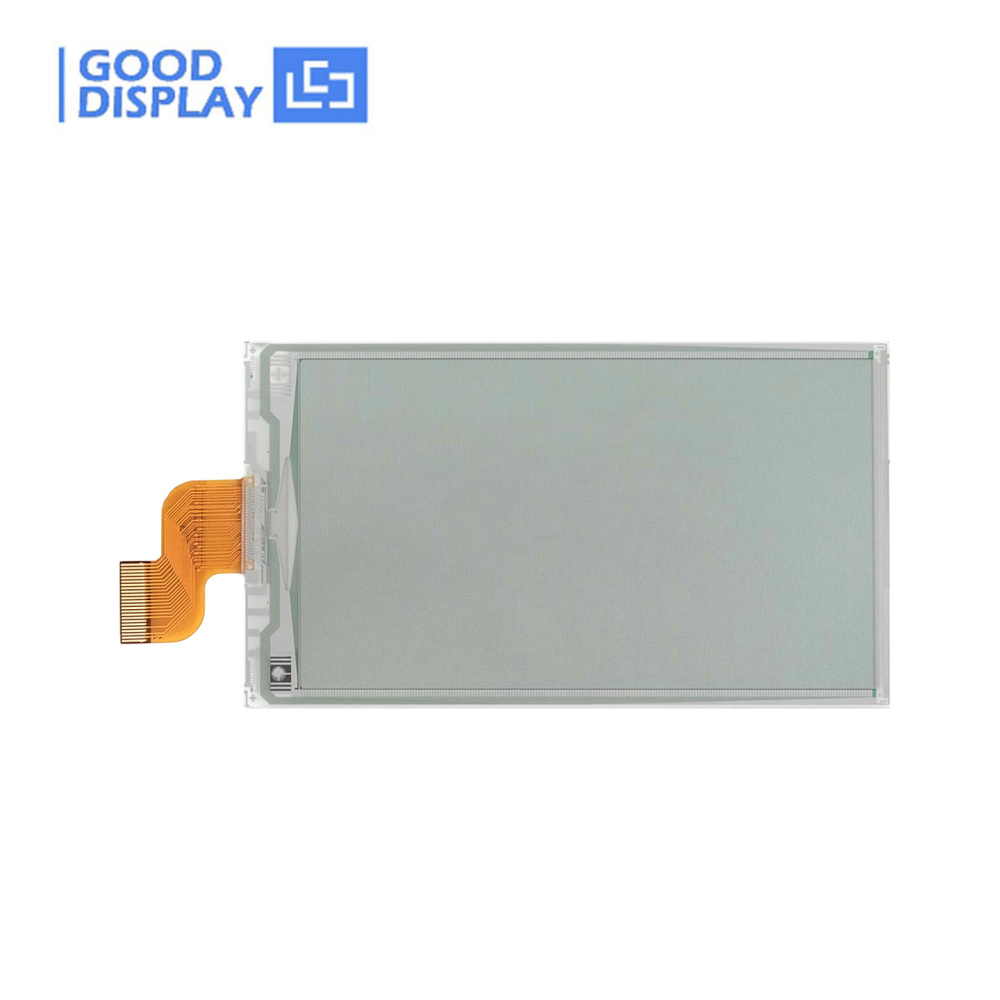

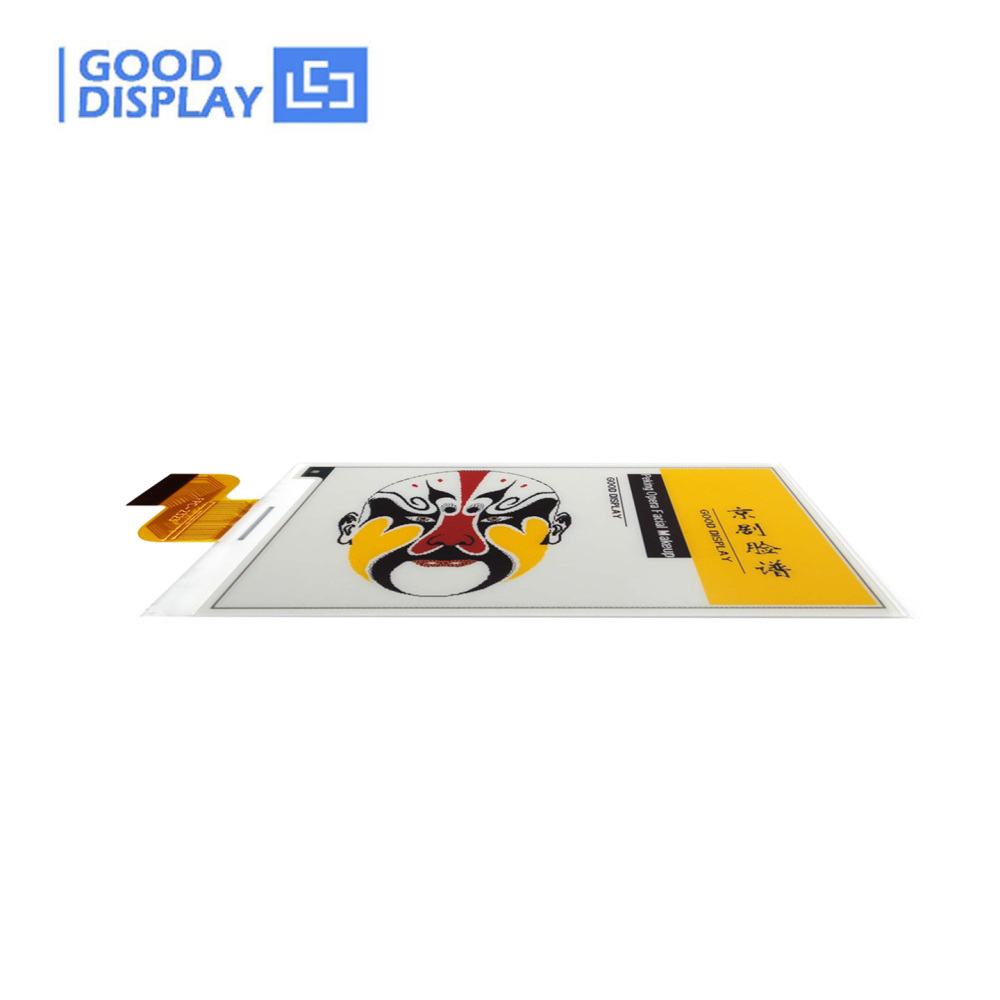

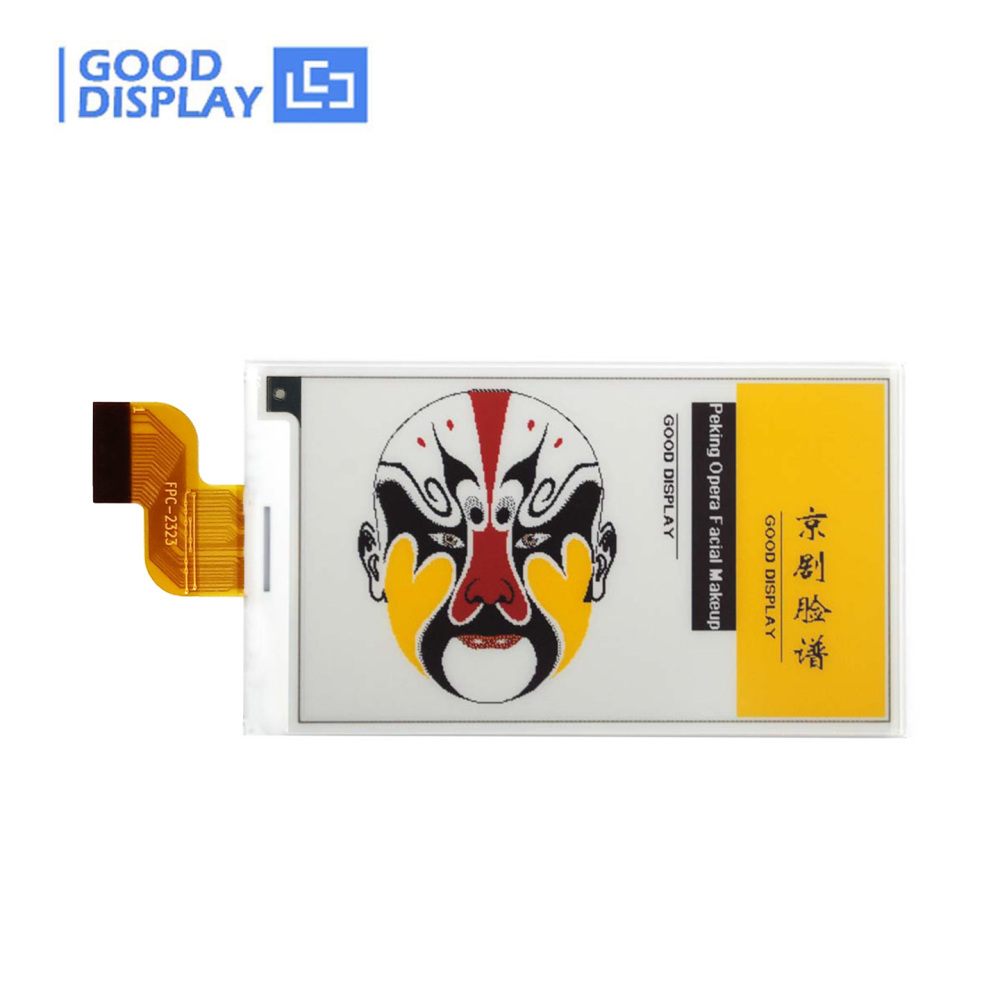

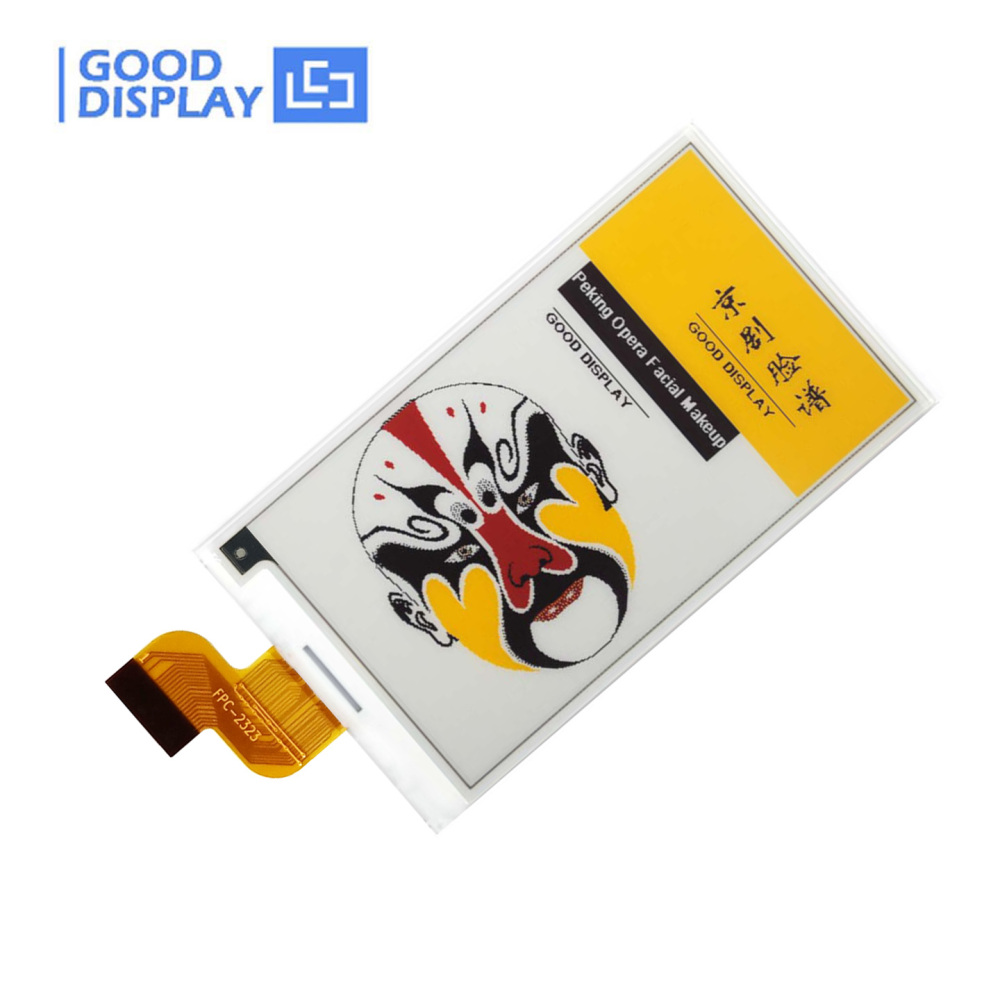

3.7" 4-Color E-Paper 130 PPI E-Ink Display 416×240 JD79663CA 12s Fast Refresh, GDEM037F36

$8.93 $10.88
18% OFF
ESL-optimized 3.7" BWRY e-paper with 416×240, 130 PPI, JD79663CA all-in-one driver, 20s/12s refresh, 15mW typical, 0.0012mW deep sleep. SPI interface.
Received successfully
Coupon Code
CONTINUE SHOPPING
Discount
  • 3% OFF WITH PURCHASE OVER 2 UNITS
  • 5% OFF WITH PURCHASE OVER 3 UNITS
    Please select the information you want X
  • product:

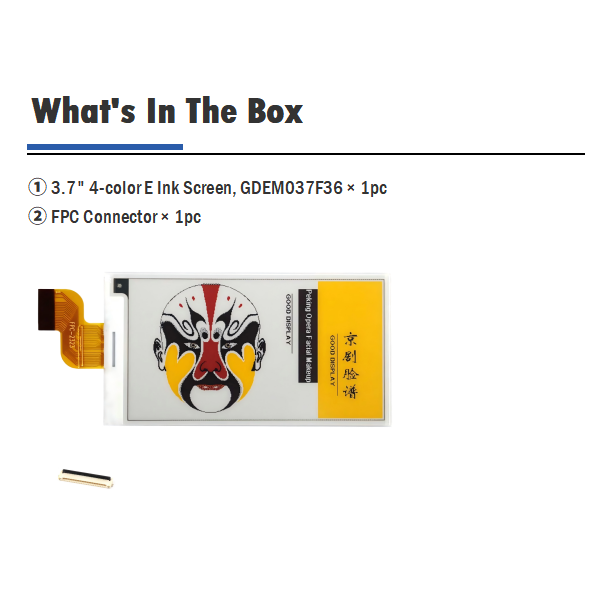

    ePaper Only

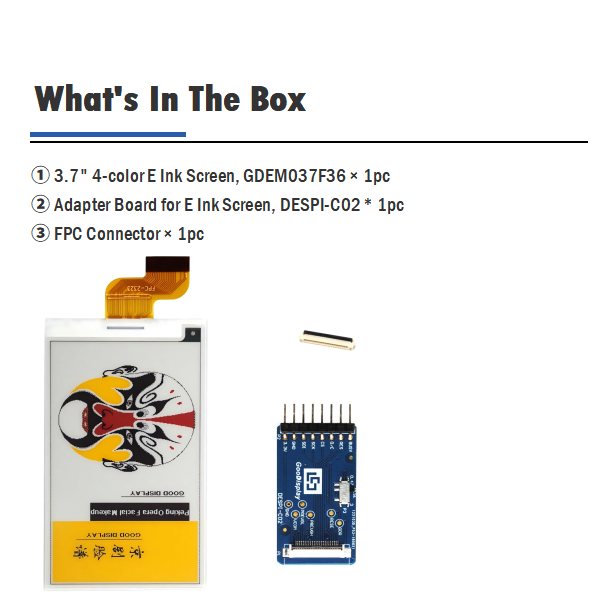

    with Adapter Board

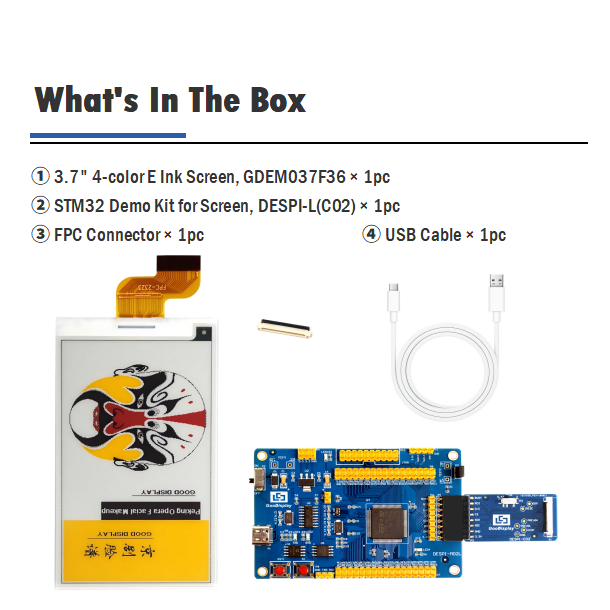

    with STM32 Demo Kit

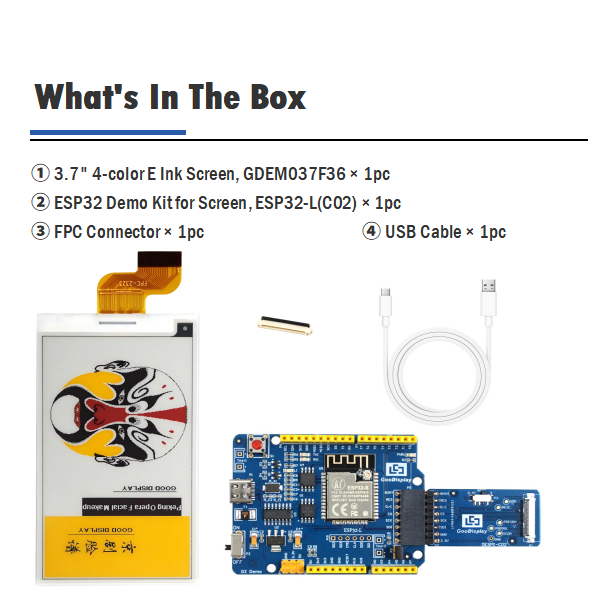

    with ESP32 Demo Kit
    with NFC Board
    Please select the information you wantX
Quantity:
0 in stock
  • 3.7" 4-Color E-Paper 130 E-Ink Display 416×240 130 PPI JD79663CA, GDEM037F36
  • 3.7" 4-Color E-Paper 130 E-Ink Display 416×240 130 PPI JD79663CA, GDEM037F36
  • 3.7" 4-Color E-Paper 130 E-Ink Display 416×240 130 PPI JD79663CA, GDEM037F36
  • 3.7" 4-Color E-Paper 130 E-Ink Display 416×240 130 PPI JD79663CA, GDEM037F36
  • 3.7" 4-Color E-Paper 130 E-Ink Display 416×240 130 PPI JD79663CA, GDEM037F36
  • 3.7" 4-Color E-Paper 130 E-Ink Display 416×240 130 PPI JD79663CA, GDEM037F36
  • 3.7" 4-Color E-Paper 130 PPI E-Ink Display 416×240 JD79663CA 12s Fast Refresh, GDEM037F36
  • 3.7" 4-Color E-Paper 130 PPI E-Ink Display 416×240 JD79663CA 12s Fast Refresh, GDEM037F36
  • 3.7" 4-Color E-Paper 130 PPI E-Ink Display 416×240 JD79663CA 12s Fast Refresh, GDEM037F36
  • 3.7" 4-Color E-Paper 130 PPI E-Ink Display 416×240 JD79663CA 12s Fast Refresh, GDEM037F36
  • 3.7" 4-Color E-Paper 130 E-Ink Display 416×240 130 PPI JD79663CA, GDEM037F36
  • 3.7" 4-Color E-Paper 130 E-Ink Display 416×240 130 PPI JD79663CA, GDEM037F36
  • 3.7" 4-Color E-Paper 130 E-Ink Display 416×240 130 PPI JD79663CA, GDEM037F36
  • 3.7" 4-Color E-Paper 130 E-Ink Display 416×240 130 PPI JD79663CA, GDEM037F36
  • 3.7" 4-Color E-Paper 130 E-Ink Display 416×240 130 PPI JD79663CA, GDEM037F36
  • 3.7" 4-Color E-Paper 130 E-Ink Display 416×240 130 PPI JD79663CA, GDEM037F36
  • 3.7" 4-Color E-Paper 130 PPI E-Ink Display 416×240 JD79663CA 12s Fast Refresh, GDEM037F36
  • 3.7" 4-Color E-Paper 130 PPI E-Ink Display 416×240 JD79663CA 12s Fast Refresh, GDEM037F36
  • 3.7" 4-Color E-Paper 130 PPI E-Ink Display 416×240 JD79663CA 12s Fast Refresh, GDEM037F36
  • 3.7" 4-Color E-Paper 130 PPI E-Ink Display 416×240 JD79663CA 12s Fast Refresh, GDEM037F36
1/1
  • 3.7" 4-Color E-Paper 130 E-Ink Display 416×240 130 PPI JD79663CA, GDEM037F36
  • 3.7" 4-Color E-Paper 130 E-Ink Display 416×240 130 PPI JD79663CA, GDEM037F36
  • 3.7" 4-Color E-Paper 130 E-Ink Display 416×240 130 PPI JD79663CA, GDEM037F36
  • 3.7" 4-Color E-Paper 130 E-Ink Display 416×240 130 PPI JD79663CA, GDEM037F36
  • 3.7" 4-Color E-Paper 130 E-Ink Display 416×240 130 PPI JD79663CA, GDEM037F36
  • 3.7" 4-Color E-Paper 130 E-Ink Display 416×240 130 PPI JD79663CA, GDEM037F36
  • 3.7" 4-Color E-Paper 130 PPI E-Ink Display 416×240 JD79663CA 12s Fast Refresh, GDEM037F36
  • 3.7" 4-Color E-Paper 130 PPI E-Ink Display 416×240 JD79663CA 12s Fast Refresh, GDEM037F36
  • 3.7" 4-Color E-Paper 130 PPI E-Ink Display 416×240 JD79663CA 12s Fast Refresh, GDEM037F36
  • 3.7" 4-Color E-Paper 130 PPI E-Ink Display 416×240 JD79663CA 12s Fast Refresh, GDEM037F36
Frequently Bought Together
more
Frequently Bought Together
  • Description
ESL-Optimized 4-Color ePaper

GDEM037F36 3.7" 4-Color
E-Paper Display

416×240 resolution · 130 PPI · Black / White / Red / Yellow · JD79665CA all-in-one driver. 20s full refresh / 12s fast refresh · 15mW typical power · 0.0012mW deep sleep · only 8.88g.

View Specifications Download Datasheet

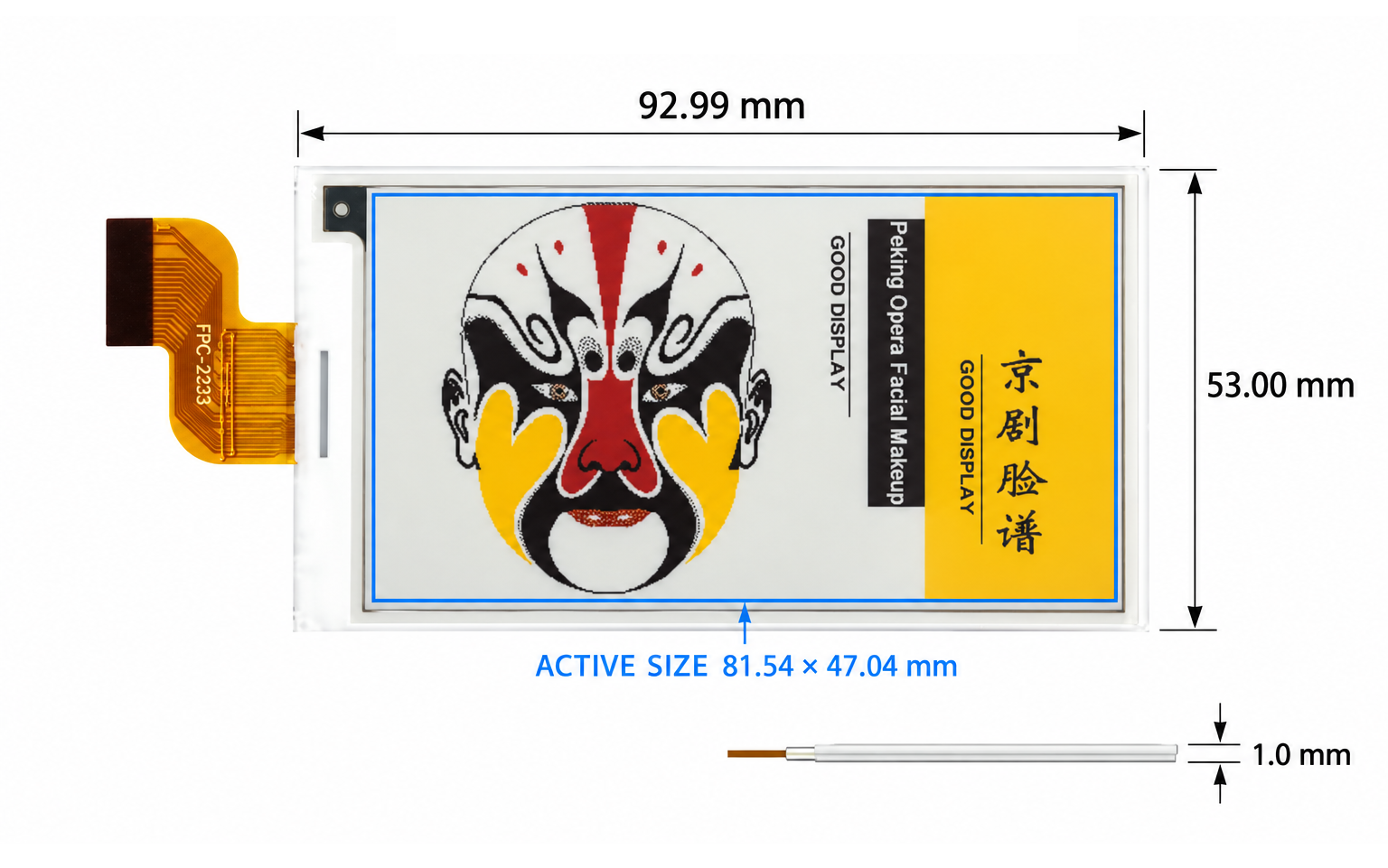

GDEM037F36 3.7 inch 4-color e-paper display

Core Advantages

3.7" BWRY High-Contrast

416×240 @ 130 PPI, true Black / White / Red / Yellow. Larger active area and higher resolution than conventional 3.5" 4-color EPD — ideal for ESL price tags, work cards and dashboards.

416×240 Resolution    130 PPI    4 Colors

Ultra-Low Power & Retention

15mW typical operation, 0.0012mW deep sleep and 0.41µA sleep current. Bi-stable image remains readable after power removal — years of battery life for wireless ESL deployments.

15 mW typ.    0.0012 mW deep sleep    0.41 µA sleep

JD79665CA All-in-One Driver

Integrates gate driver, source driver, MCU interface, timing controller, oscillator, DC-DC, SRAM, LUT and VCOM. On-chip OTP waveform and built-in temperature sensor reduce BOM and calibration effort.

1 Chip    0 External LUT    SPI Interface

Technical Specifications

Part Number GDEM037F36
Size 3.7 inch
Type Dot Matrix, 4-Color EPD
IC JD79665CA
Resolution 416×240
PPI 130
Color Black, White, Red, Yellow
Interface SPI (3-wire / 4-wire)

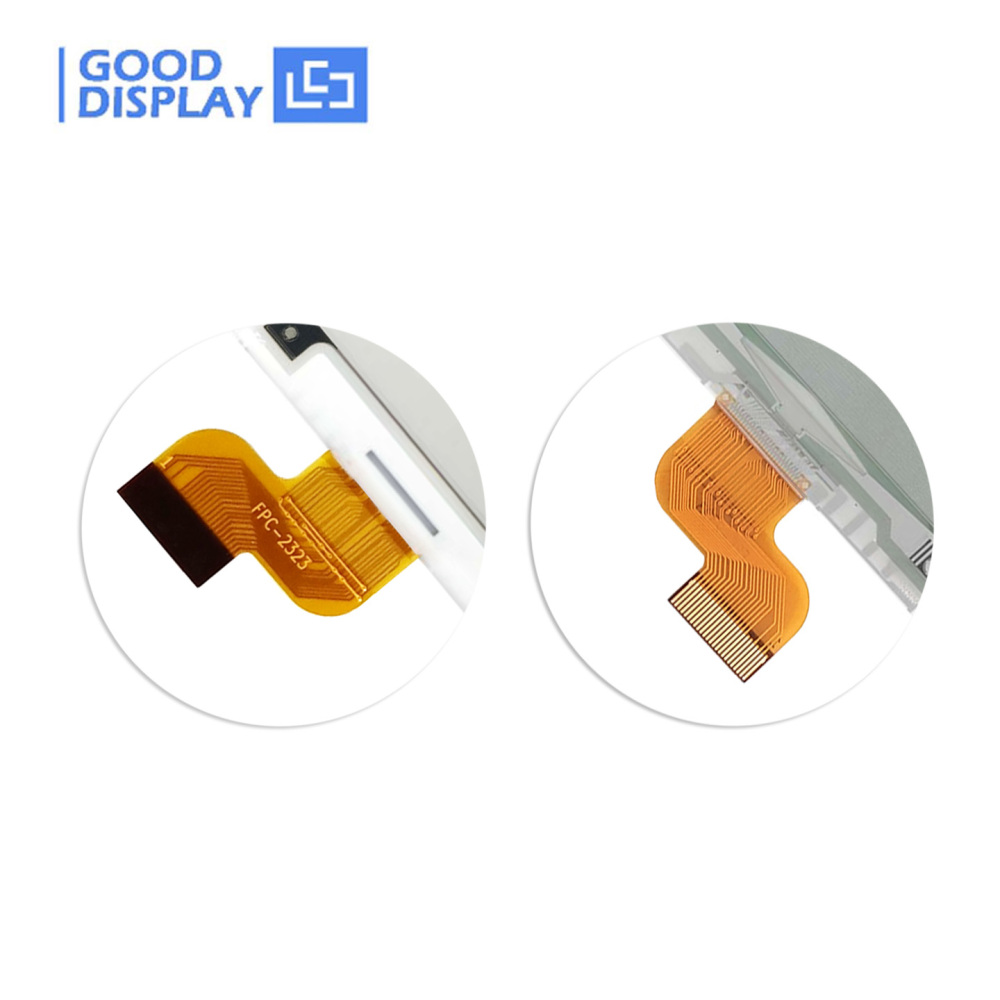

Connector 24-pin FPC, pitch 0.5 mm
Outline Size 92.99 × 53.00 × 1.00 mm
Active Size 81.54 × 47.04 mm
Pixel Pitch 0.196 × 0.196 mm
Operating Temp. 0℃ ~ 40℃
Storage Temp. -25℃ ~ +70℃
Full Refresh Time 20 s
Fast Refresh Time 12 s
Typical Power 15 mW (VDD=3.0V)
Deep Sleep Power 0.0012 mW
Sleep Current 0.41 µA
VCOM -2.0V common electrode voltage
Weight 8.88 ± 0.5 g
Packaging 200 pcs/carton

Product Details

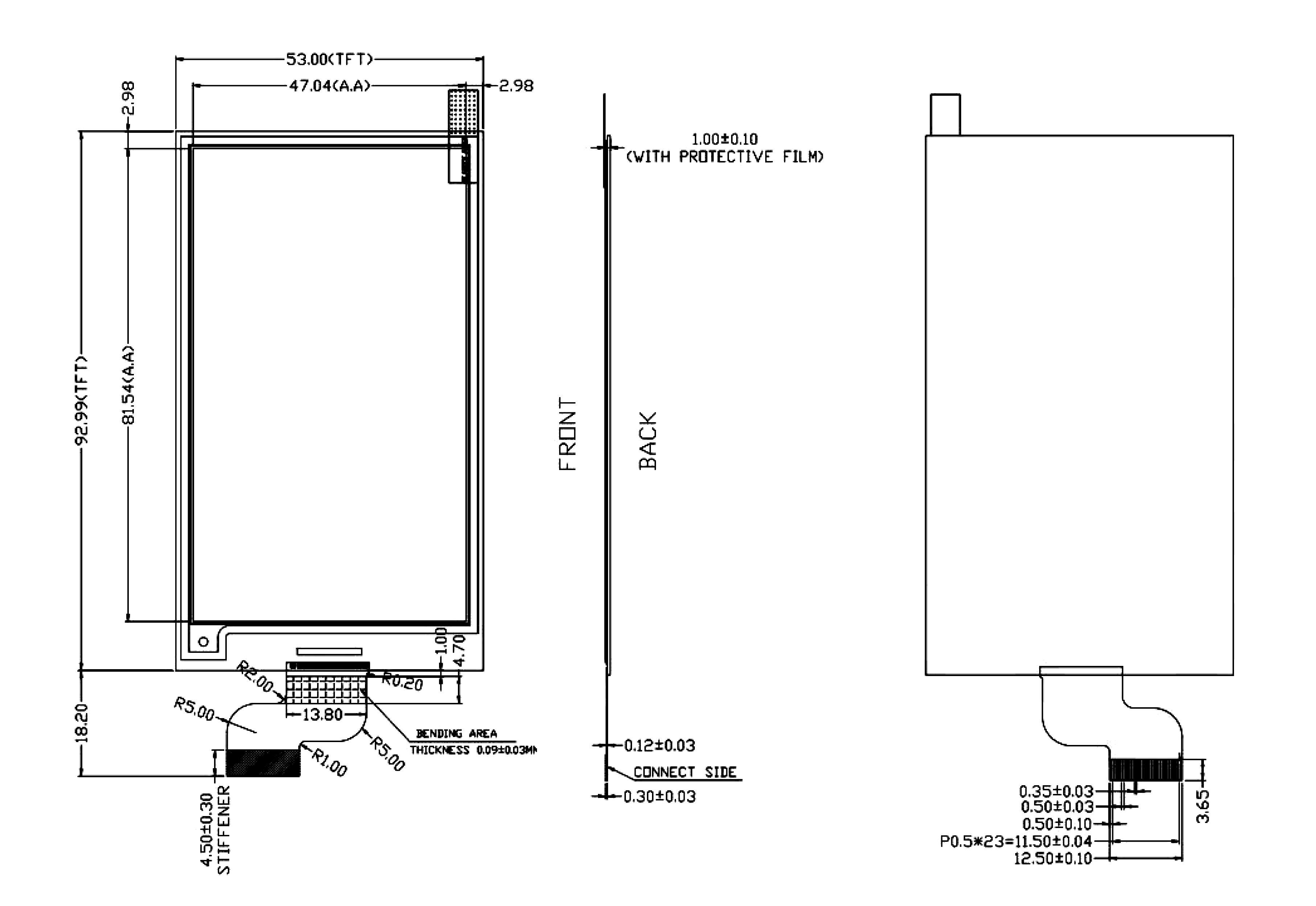

GDEM037F36 technical drawing and pin assignment

Matching Driver Boards

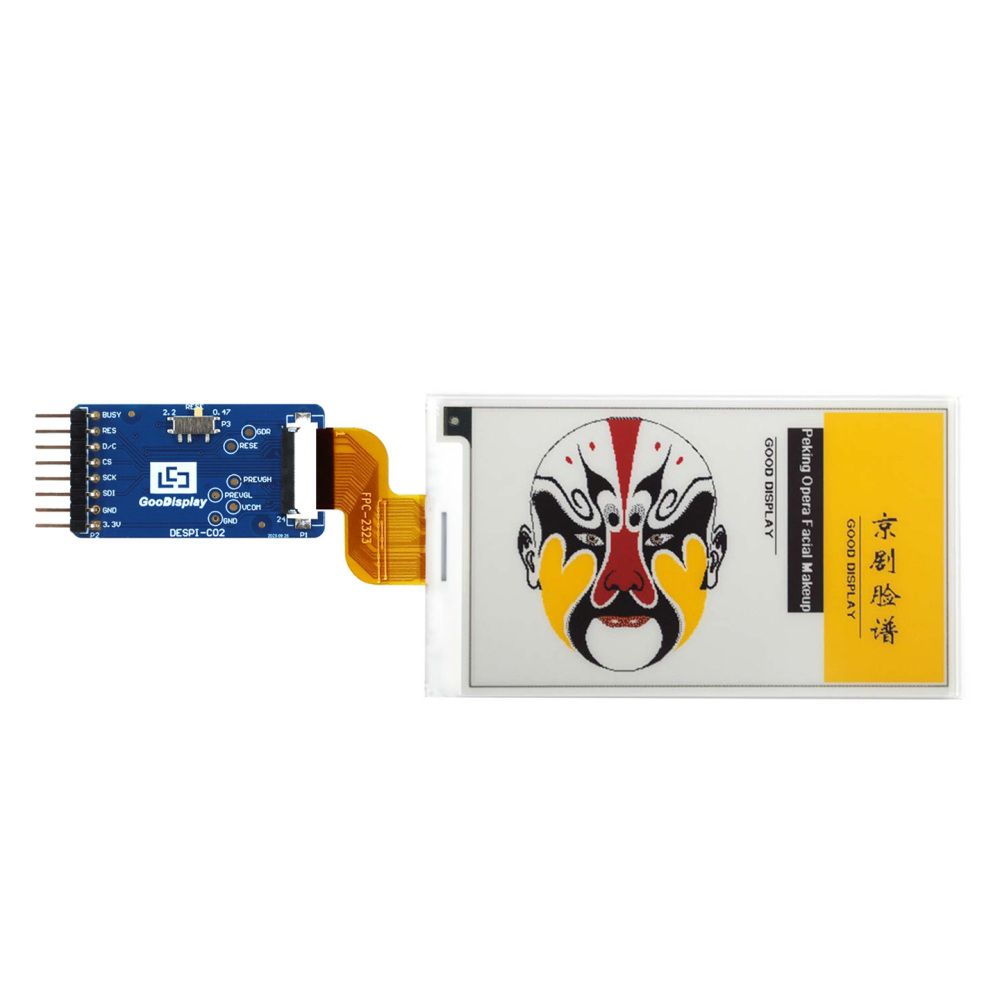

DESPI-C02

DESPI-C02

Pure hardware interface adapter, no MCU. SPI to 24-pin EPD conversion.

View Details →
DESPI-L(C02)

DESPI-L(C02)

STM32F103VET6 MCU, rich GPIO and Type-C interface.

View Details →
ESP32-L(C02)

ESP32-L(C02)

ESP32-WROOM-32D MCU, integrated Wi-Fi and Bluetooth.

View Details →
ESP8266-L(C02)

ESP8266-L(C02)

Cost-optimized Wi-Fi solution, ESP8266 core.

View Details →
Arduino UNO R4-L(C02)

Arduino UNO R4-L(C02)

Arduino ecosystem compatible, extensive library support.

View Details →
NFC-C9-037

NFC-C9-037

NFC driver board — power & refresh the display without a battery.

View Details →

Typical Applications

Electronic Shelf Label

Electronic Shelf Labels

High-contrast BWRY price, promotion and inventory labels. 130 PPI and 20s full refresh keep retail shelves clear and up to date.

Industrial IoT

Industrial IoT Dashboards

SPI-ready, all-in-one driver and on-chip temperature sensor make integration into industrial control panels easy.

Smart Signage

Smart Signage

Reflective, glare-free and bistable. Ideal for meeting room signs, warehouse labels and public information boards.

Work Card Display

Work Card / Information Display

4-color BWRY makes ID cards, work badges and access cards more readable. Slim 1.0mm outline and lightweight 8.88g design.

We Also Recommend

3.7" Monochrome EPD

View Details →

3.7" Full Color EPD

View Details →

3.7" Touchscreen EPD

View Details →

3.7" Frontlight EPD

View Details →

Sustainable Technology

Paperless Future

Each GDEM037F36 can replace thousands of paper labels annually. Join 15,000+ businesses reducing paper waste with bi-stable e-paper.

Sustainable Packaging

95% recycled materials with FSC-certified packaging. 100% plastic-free protective materials for EU and North American compliance.

Energy Leadership

15mW operating and 0.0012mW deep sleep. 90% less energy than LCDs — a single coin cell can power months of updates in wireless IoT and NFC deployments.

Why GooDisplay E-Paper Refreshes Faster

Optimized Fast-Refresh FPL

Rigorously selected fast-refresh FPL film delivers a solid hardware foundation for high-speed updates at 12s fast refresh / 20s full refresh.

Smart Temp-Controlled Drive

Built-in temperature sensor and optimized waveform files per temperature range ensure stable image quality for 4-color rendering.

JD79665CA Chip-Level Integration

JD79665CA integrates DC-DC, SRAM, LUT, VCOM, timing controller and OTP waveform — reducing BOM and enabling 3-wire/4-wire SPI.

Feature Conventional 4-Color EPD GDEM037F36
Image Update Time ~25 sec ~20 sec (fast: 12s)
Active Power (VDD=3.0V) ~16.6 mW 15 mW
Deep Sleep Power ~0.005 mW 0.0012 mW
Temperature Compensation External sensor required On-chip + external I2C
Driver Integration External components required All-in-one IC (DC-DC, SRAM, LUT, VCOM)
