Home > Black & white ePaper > High-quality 10.85Inch Electronic Ink Screen Best Price for Large 1360×480 E-Paper Display 133 PPI, GDEM1085T41

1/1

Limited Offer!

5 sold

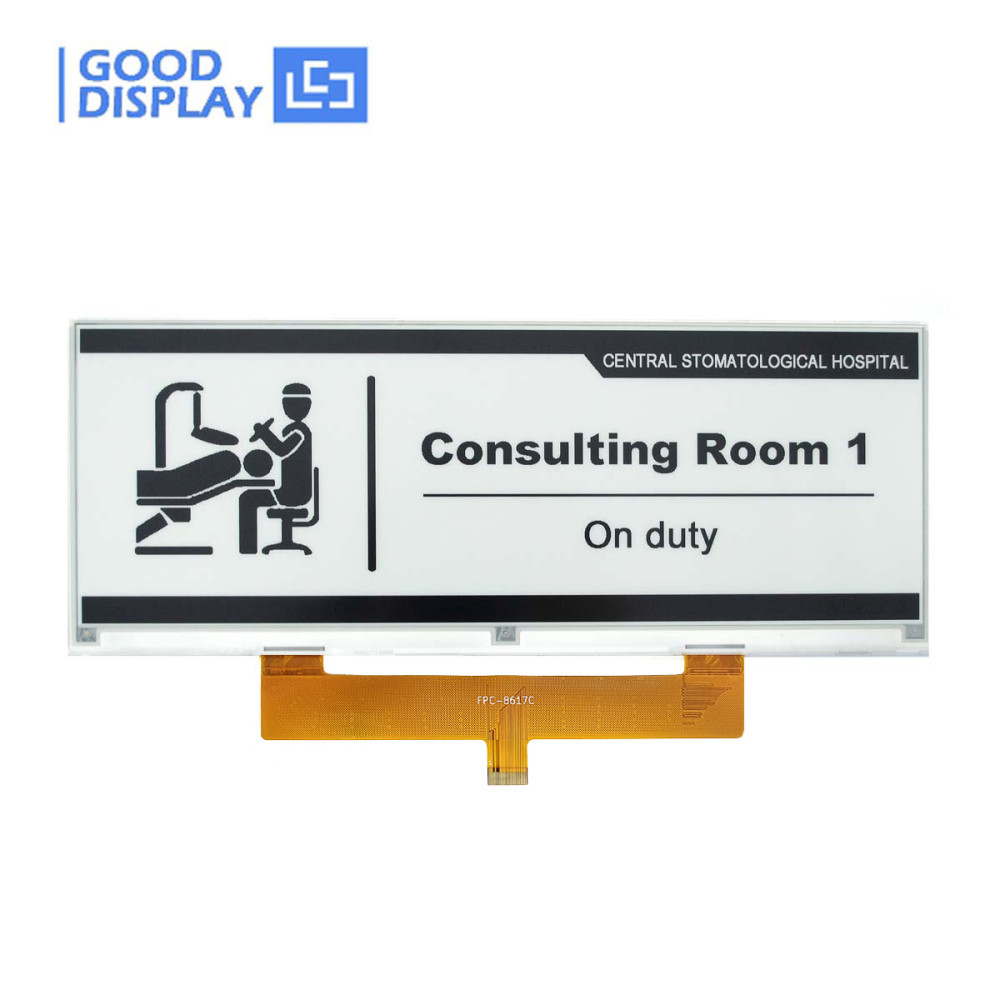

High-quality 10.85Inch Electronic Ink Screen Best Price for Large 1360×480 E-Paper Display 133 PPI, GDEM1085T41

Name: High-quality 10.85Inch Electronic Ink Screen Best Price for Large 1360×480 E-Paper Display 133 PPI, GDEM1085T41
Brand: GOOD DISPLAY
Price: 62.4 USD
Availability: InStock

(0)

4 Sold

$62.40 ~~$78.00~~

20% OFF

10.85-Inch Large-Format E-Paper Display, 1360×480 Resolution, 133 PPI. Engineered for ultra-low power consumption, featuring fast partial refresh and wide-temperature operation. The perfect energy-saving solution for digital signage, electronic shelf labels (ESL), and smart information displays.

GET $3.00 OFF ON ORDERS OVER $59.00

Get it

ERP72QDC

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

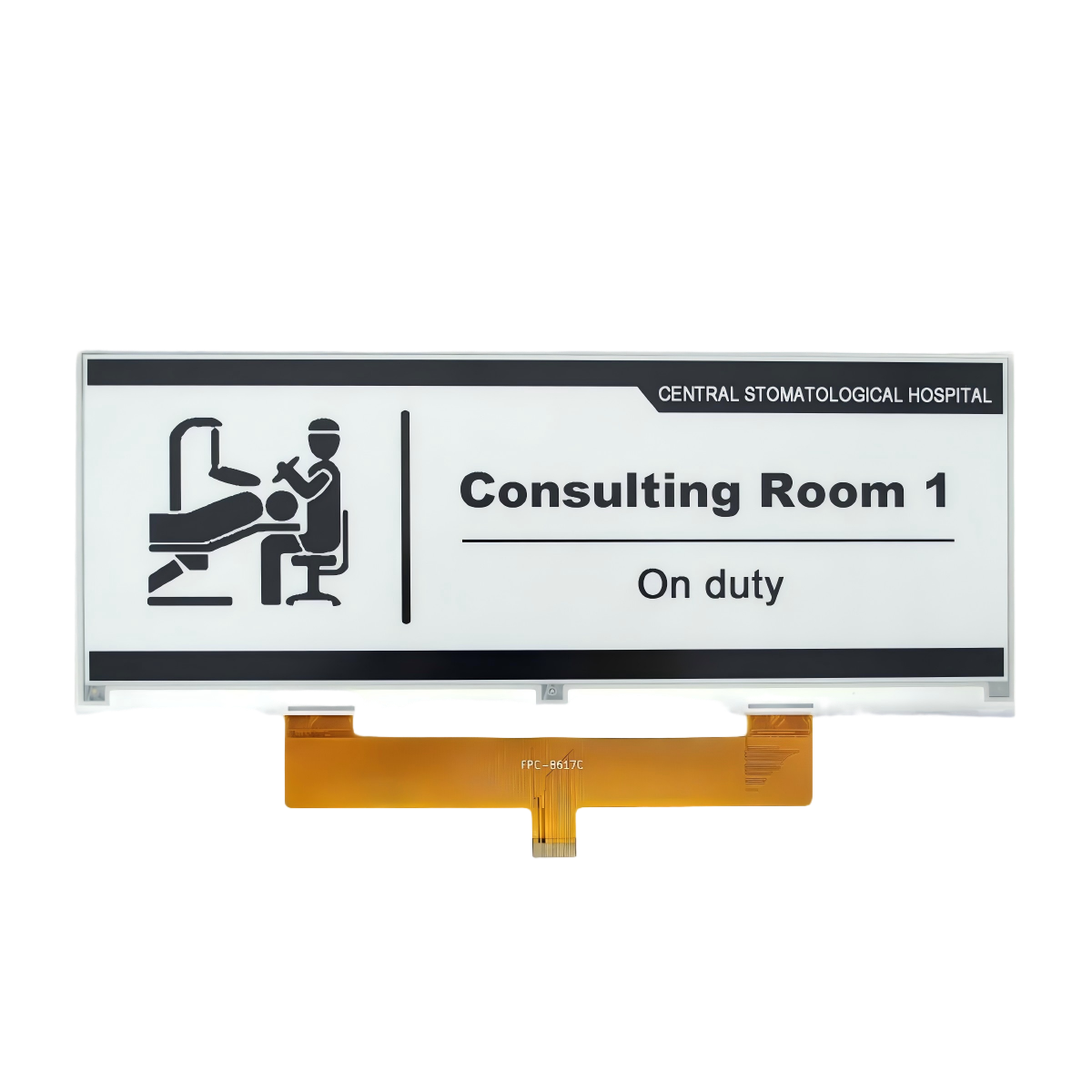

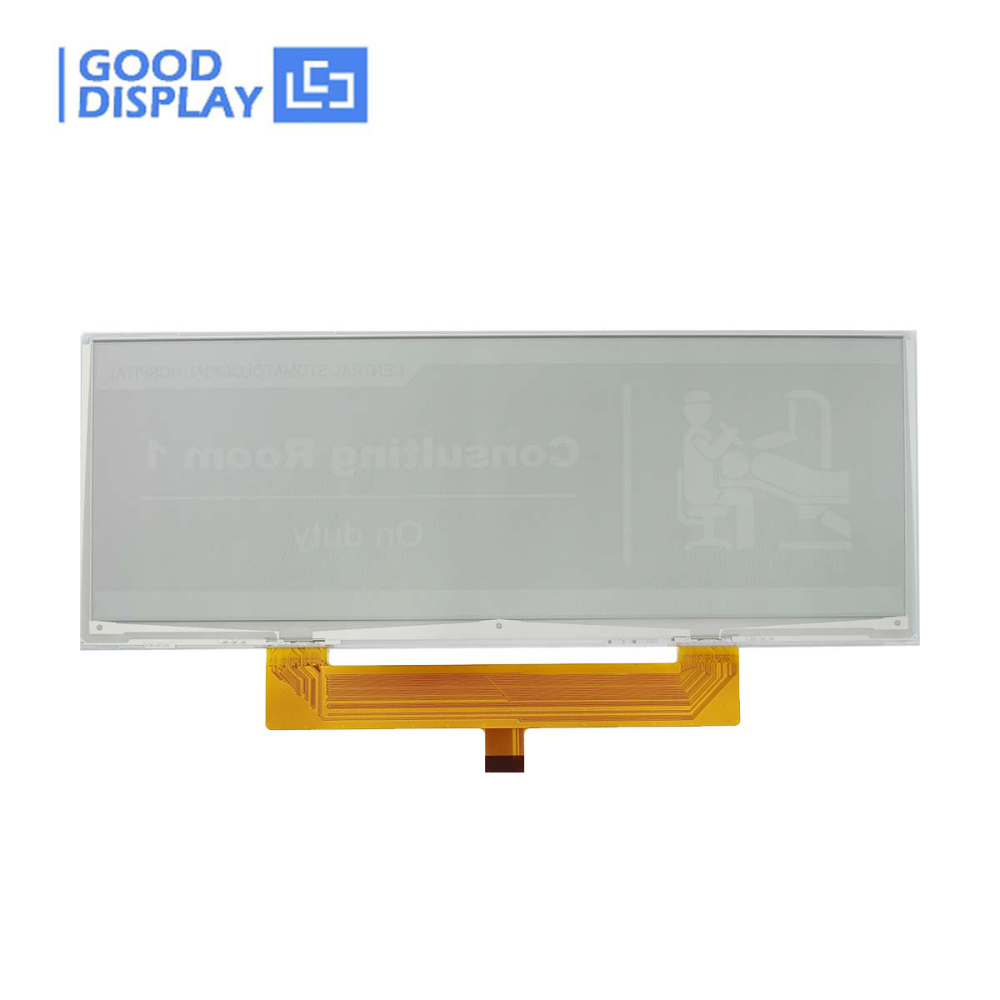

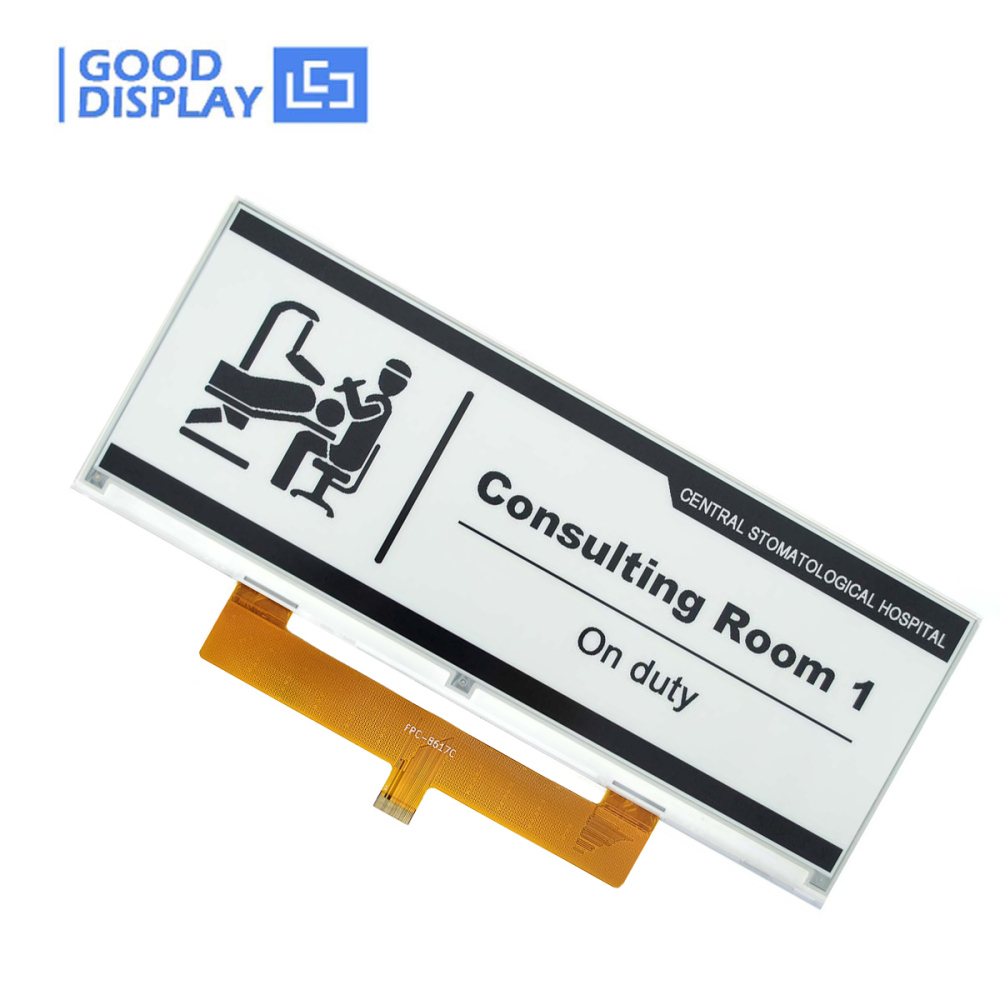

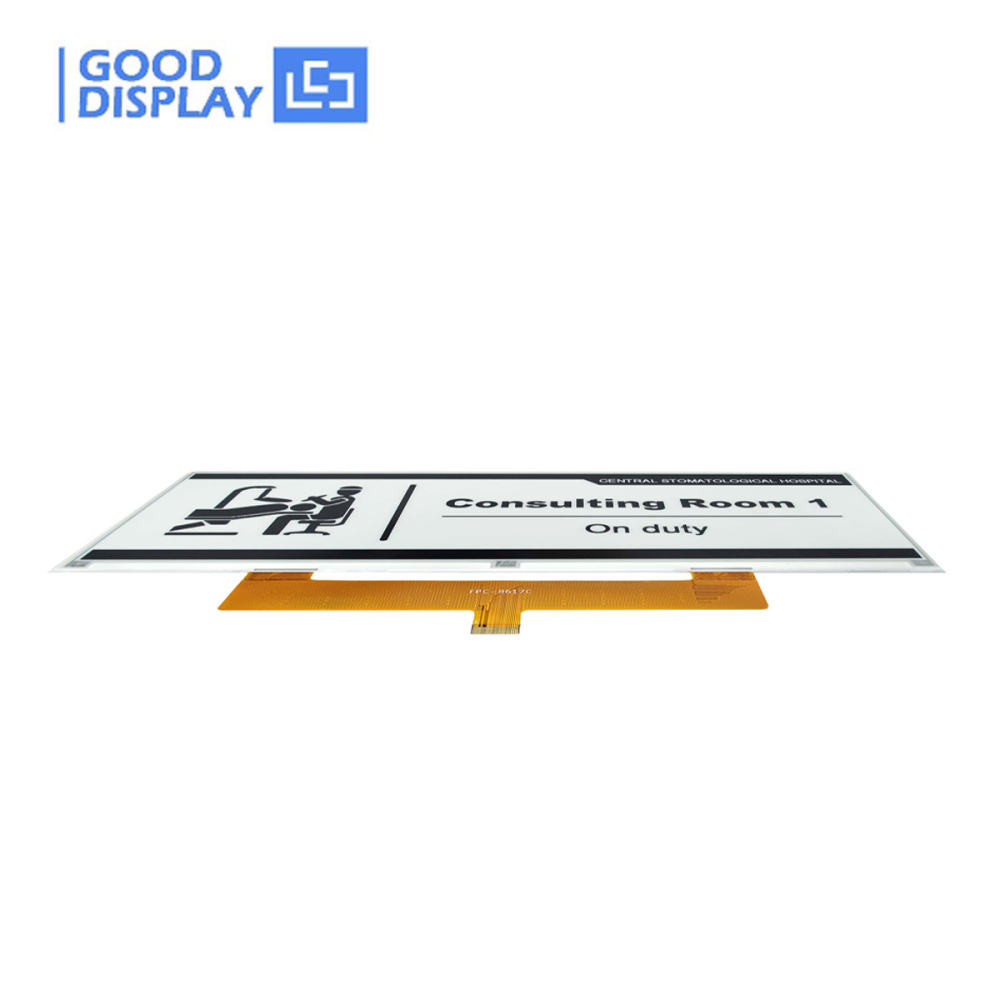

10.85" Monochrome E-Ink Display

A Giant View, A Tiny Soul. The 10.85-Inch Future is Now in Focus.

Welcome a future of always-on clarity and near-zero power consumption. This display is more than a 10.85-inch E-Paper screen – it's your "Digital Canvas" for sustainable messaging.

Choosing it means choosing a calm, reliable, and relentless way to display. It's the "calm" core for your smart retail, green office, and intelligent transportation systems – a display that only thinks about content, never worries about power.

Core Advantages

Lightning-Fast Refresh

Full Refresh

Partial Refresh

0.4s

• faster than conventional e-paper

•Real-time content updates for dynamic applications•Supports rapid content switching

Superior Visual Clarity

133 PPI

Resolution

170°

Viewing Angle

•Anti-glare hard coating surface

•Paper-like reading experience•Zero backlight - eye comfort•Clear visibility from any angle

Zero-Power Operation

Active: 30W

Static: 0.003W

• 99% less power than LCD

• Bistable display technology• 5-10 year life• Zero power when displaying static content

Technical Specifications

Part Number GDEM1085T41

Type Dot Matrix

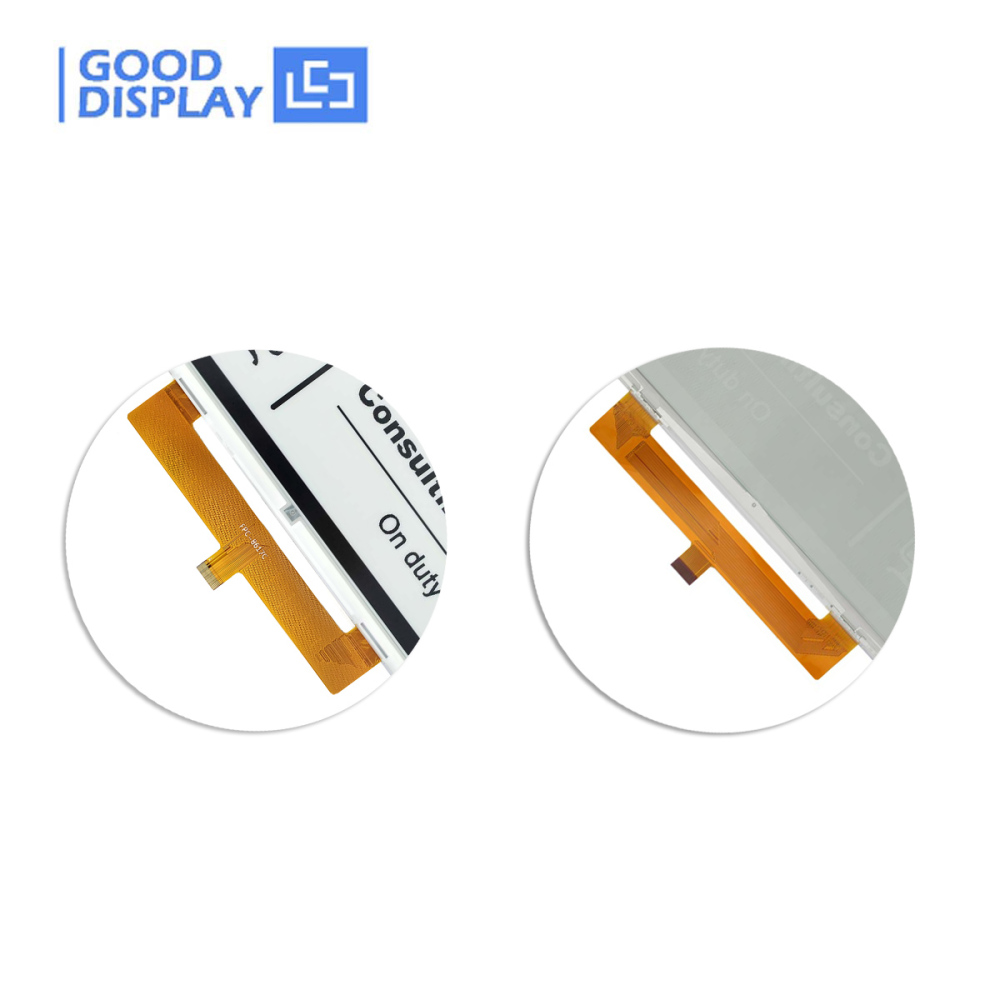

Connector 24 Pin 0.5mm

Size 10.85"

IC UC8179C*2

Interface SPI

Resolution 1360x480

Color Black, White

Operating Temp. 0℃~50℃

PPI 133

Full Refresh Time 4s

Storage Temp. -25℃~70℃

Outline Size 270.56×105.92×1.20mm

Partial Refresh Time 0.4s

Typical Power(mW) 30

Active Size 259.76×91.68mm

Weight 66.8±0.5

Deep Sleep Power(mW) 0.003

Pixel Pitch 0.191x0.191mm

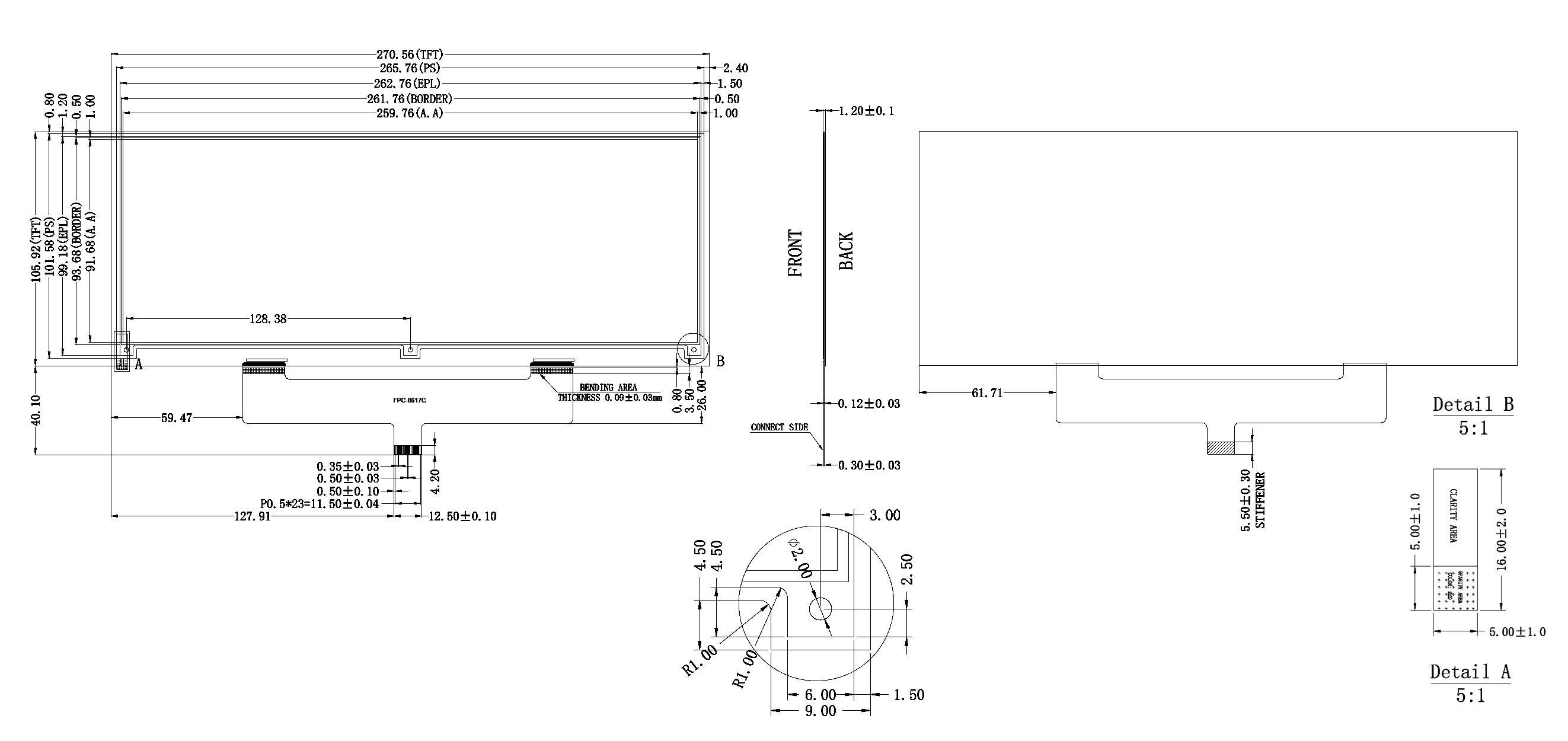

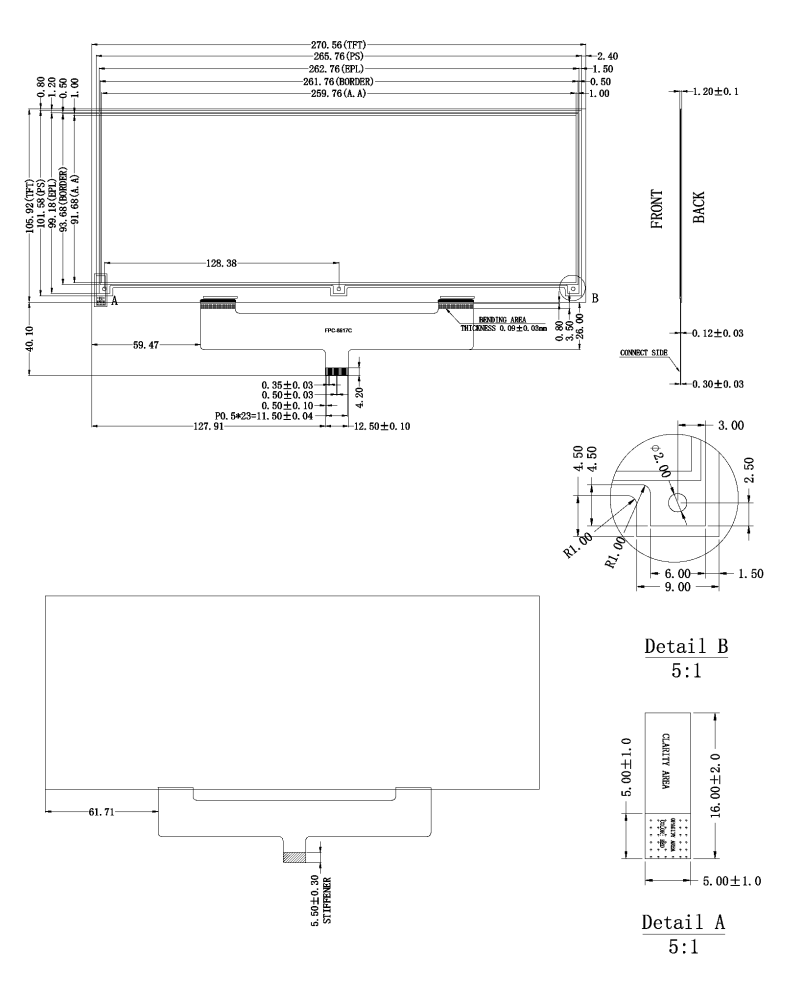

Drawing Details

Matching Driver Boards

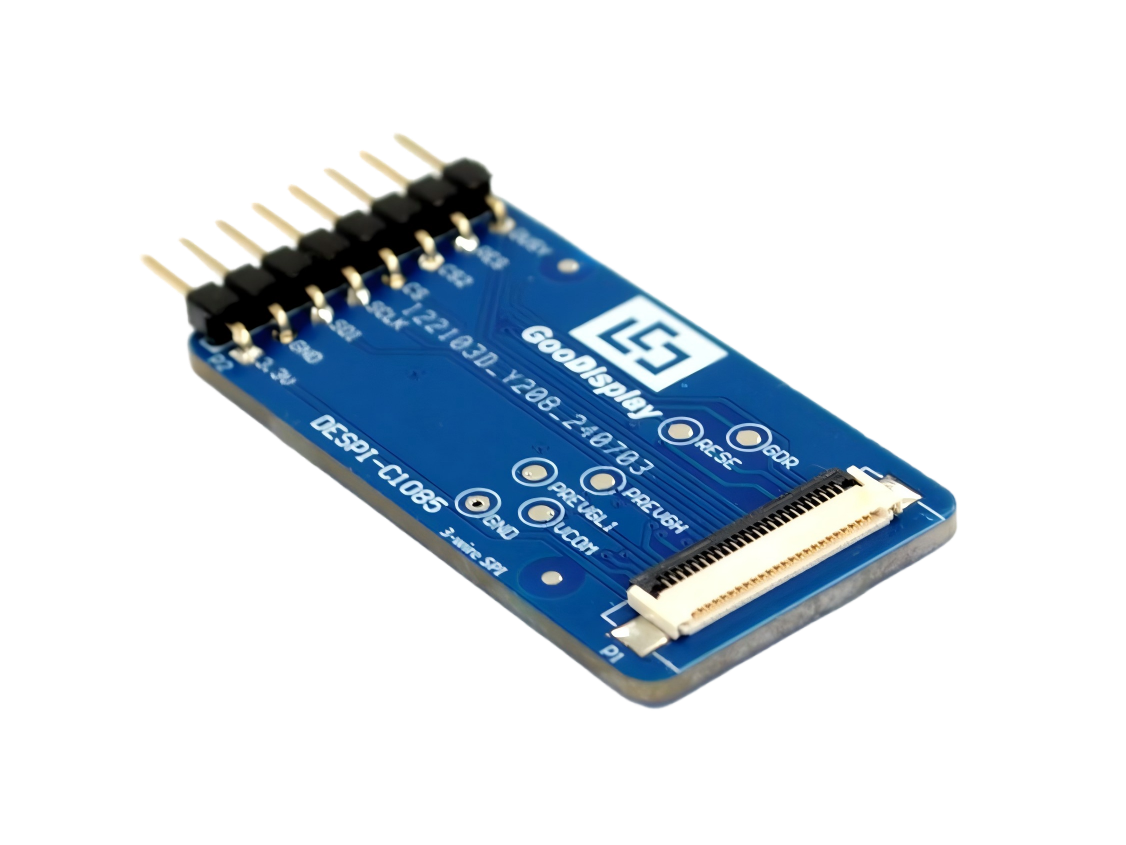

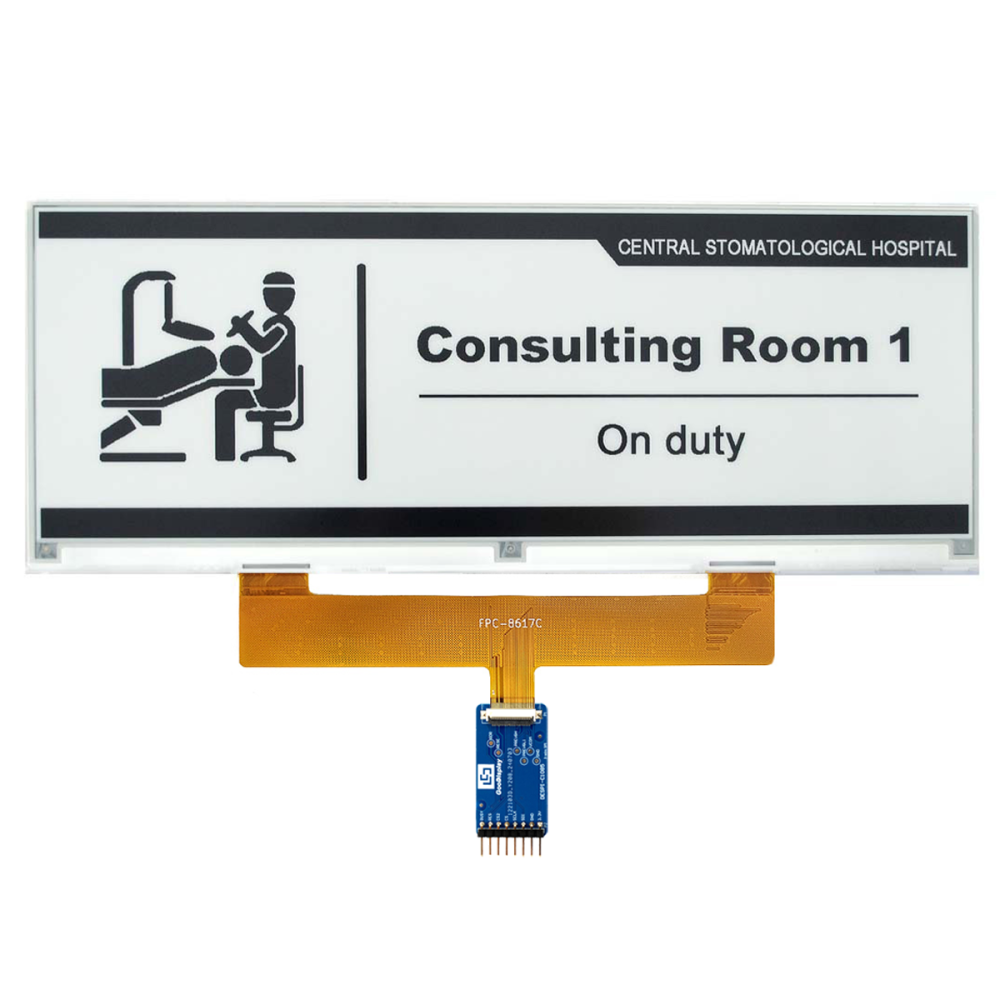

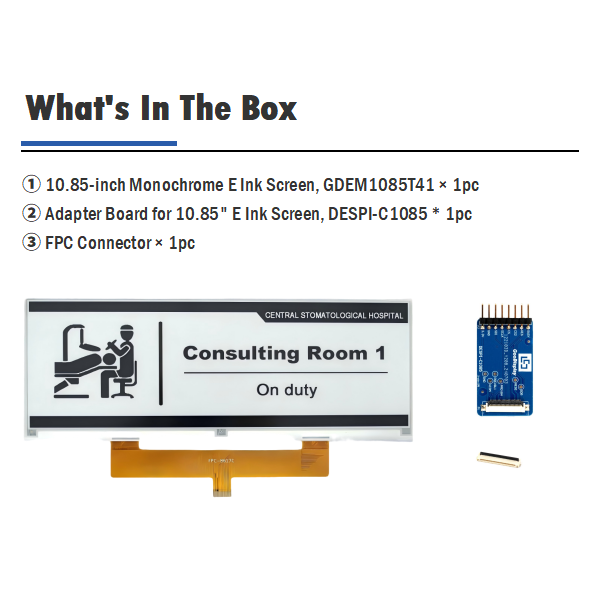

DESPI-C1085

Pure hardware interface adapter, no MCU, provides only physical conversion from SPI to 24-pin EPD.

View Details

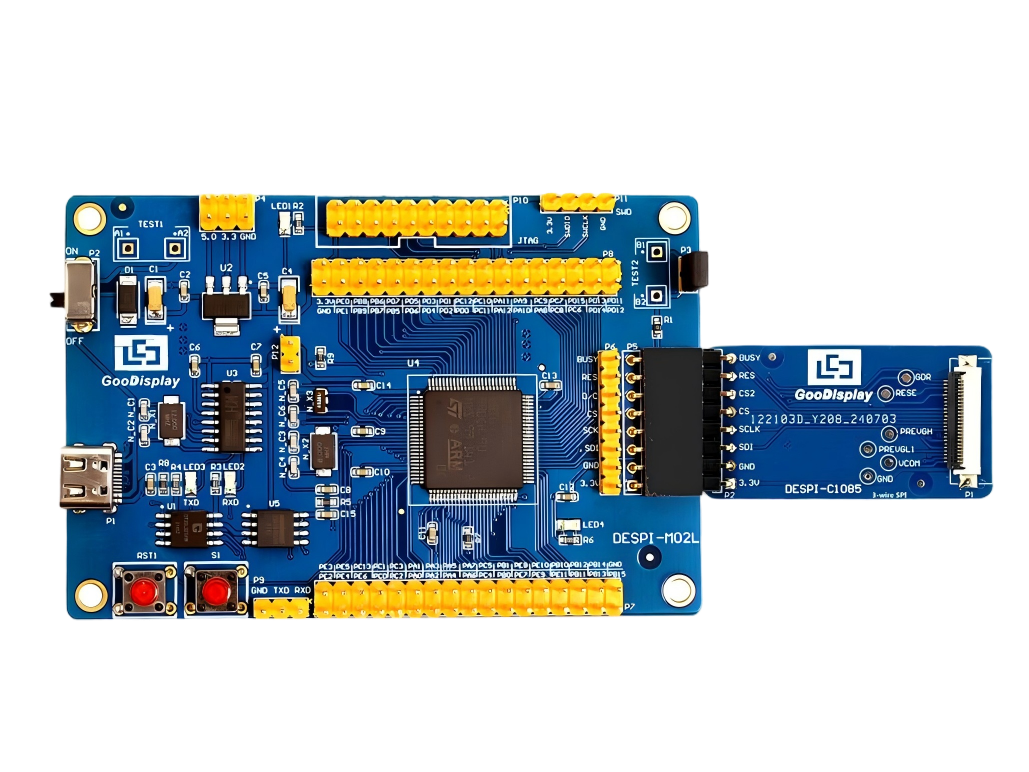

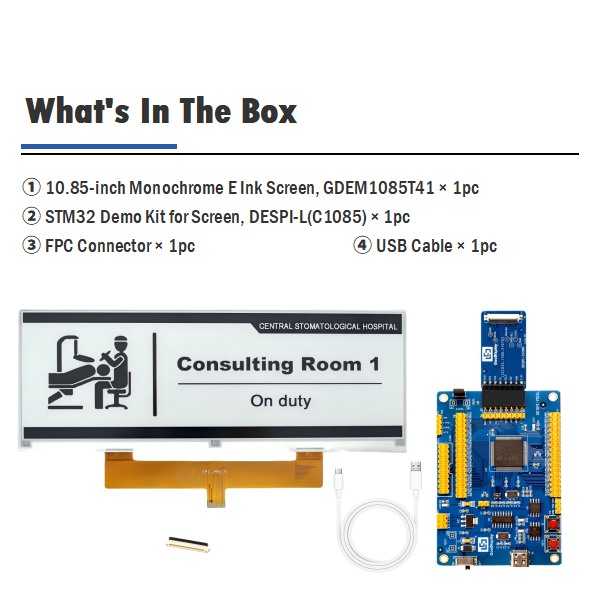

DESPI-L(C1085)

STM32F103VET6 MCU, provides rich GPIO and Type-C interface.

View Details

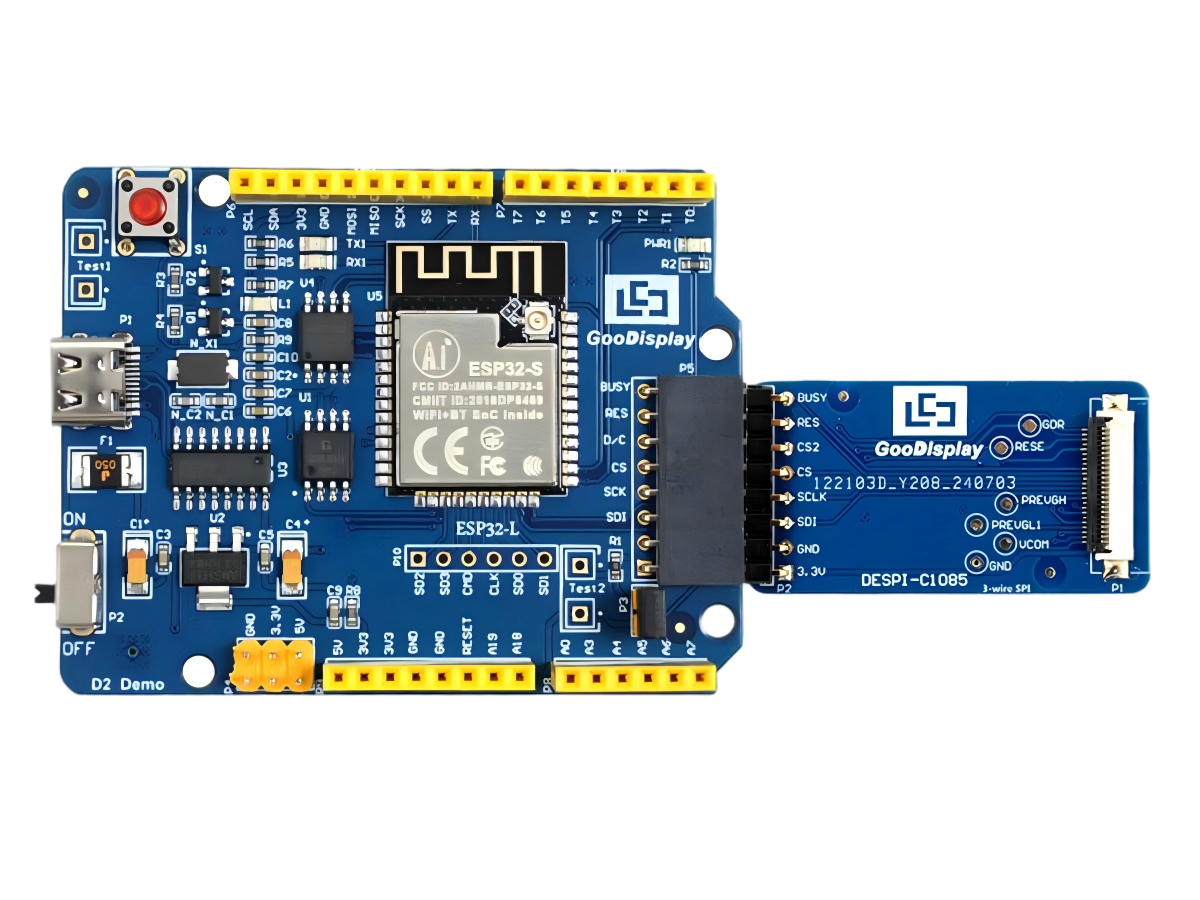

ESP32-L(C1085)

ESP32-WROOM-32D MCU, integrated WiFi and Bluetooth.

View Details

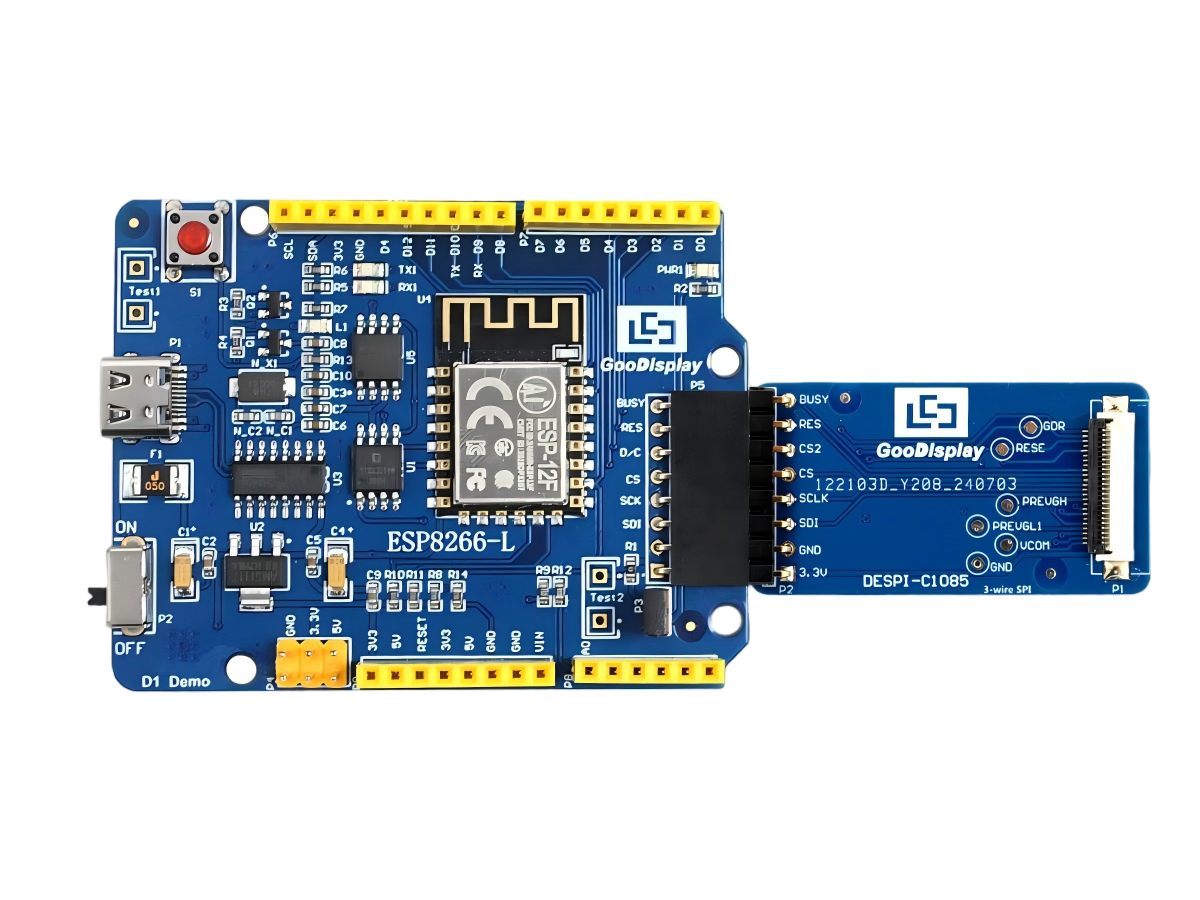

ESP8266-L(C1085)

Cost-optimized solution, ESP8266 core, supports WiFi connectivity.

View Details

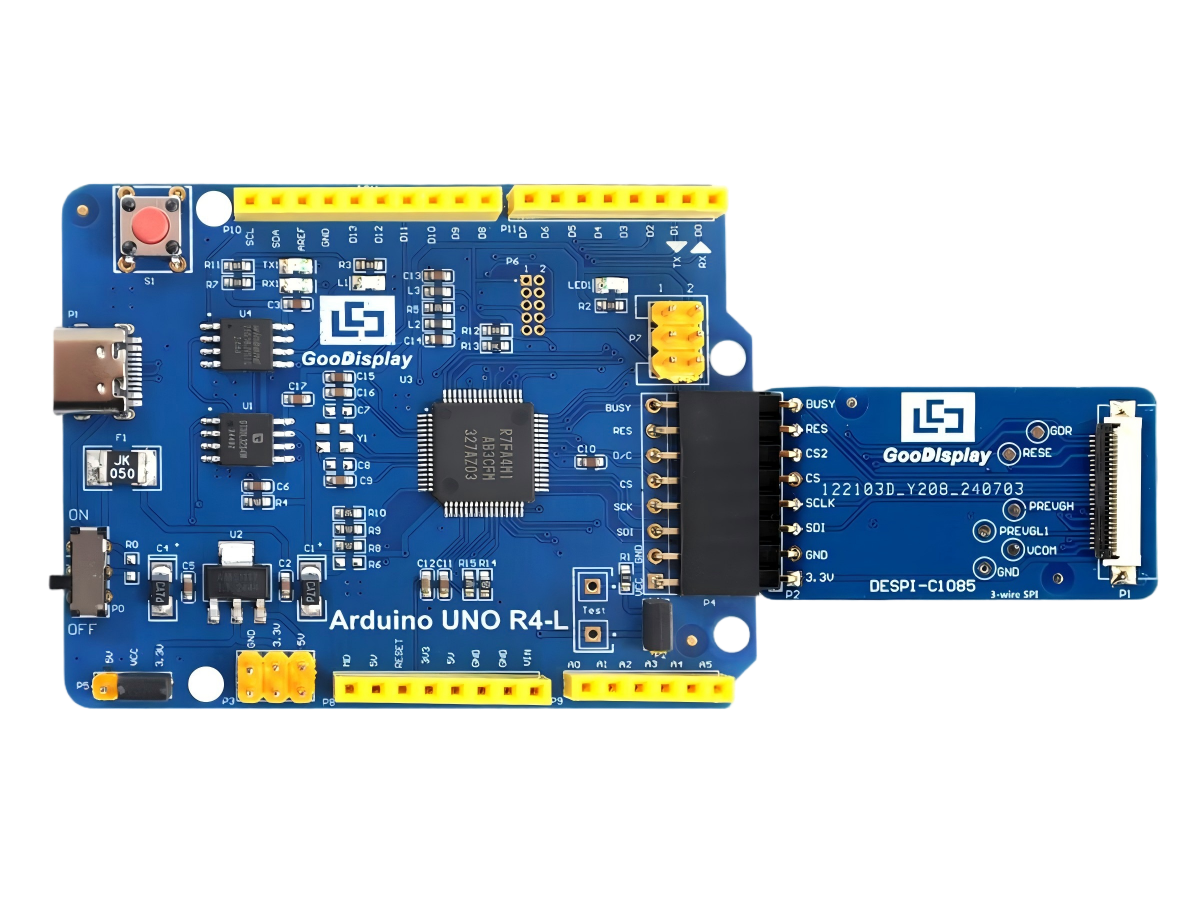

Arduino UNO R4-L(C1085)

Arduino ecosystem compatible, extensive library support.

View Details

Files & Download

[PDF] GDEM1085T41_Specification

[ZIP] GDEM1085T41 STM32 Sample Code

[ZIP] GDEM1085T41 ESP32 Sample Code

[ZIP] GDEM1085T41 ESP8266 Sample Code

[ZIP] GDEM1085T41 Arduino Sample Code

[PDF] ePaper Display Usage Guidelines

[FAQ] Why can't I download the files?

Typical Applications

Public Services

Hospital/Government Service Hall Call Display Screens

Horizontally display the current number and waiting count for multiple queues.

Smart Home

Smart Home Central Control Panels

Used as an extended display area, dedicated to showing long-term static charts or information such as thermostat readings and energy consumption data.

Industry-Specific

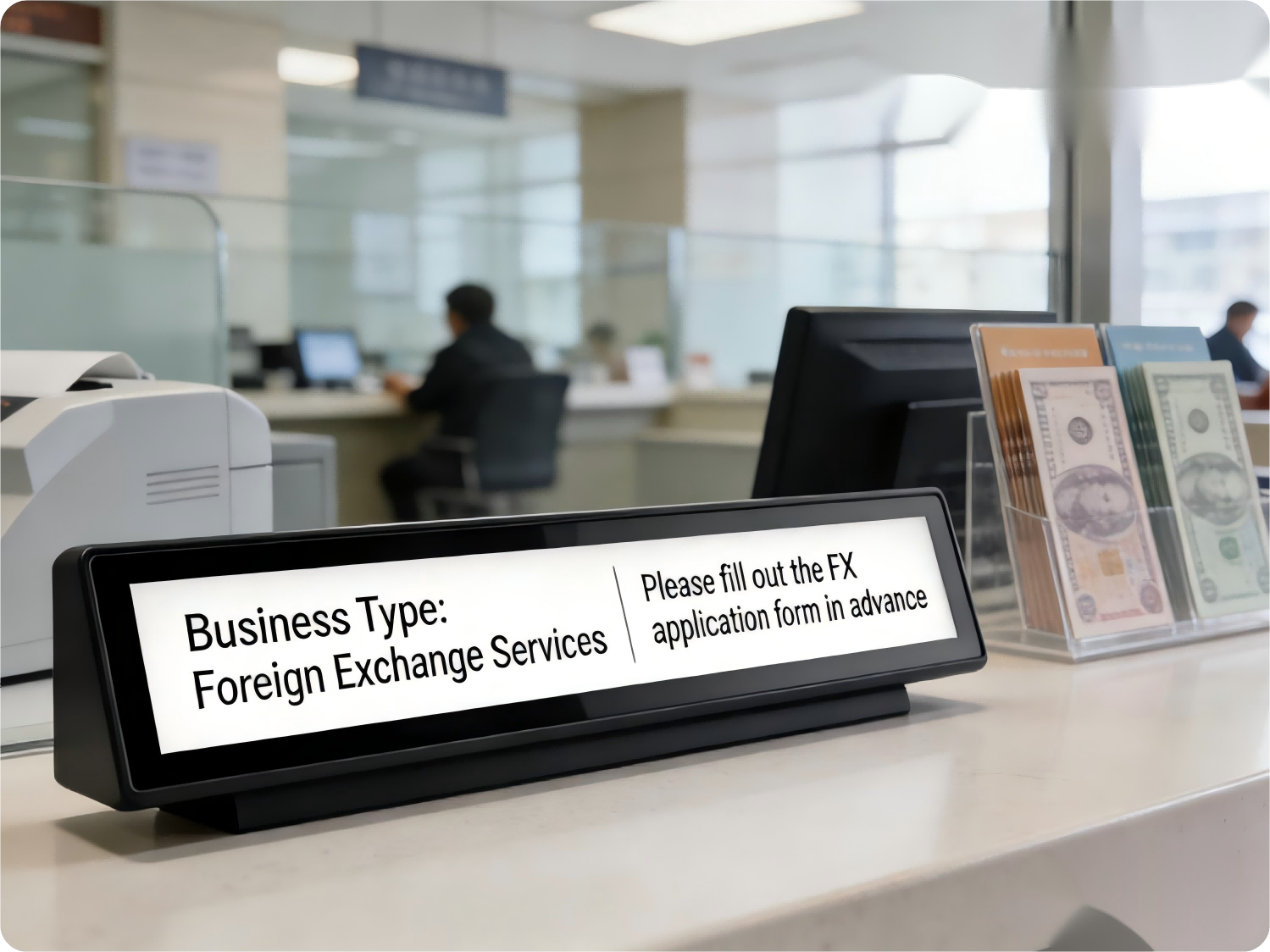

Finance & Counter Services

Static information prompt screens at bank teller windows or service counters, displaying the type of service available at the current window and warm reminder messages.

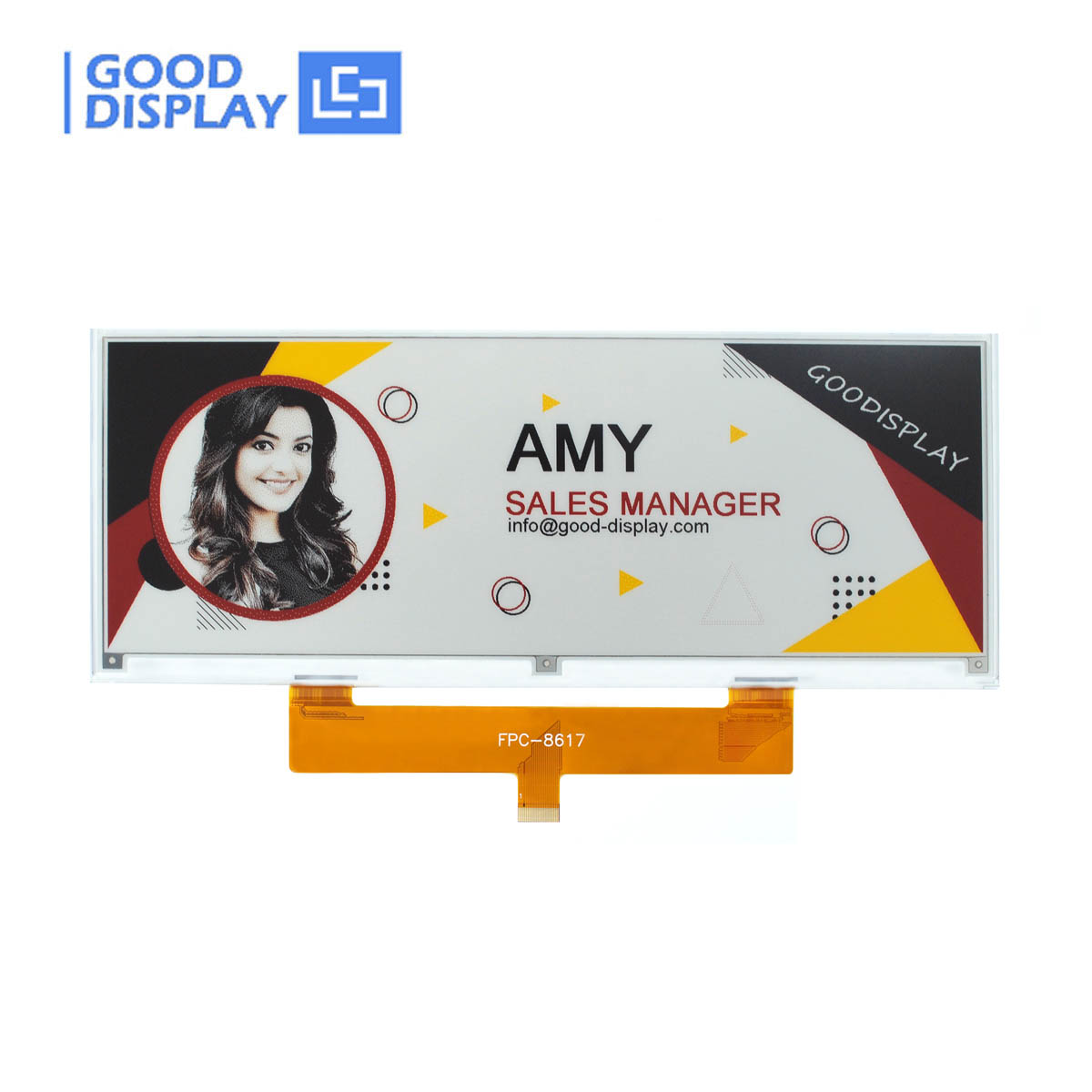

We Also Recommend

Sustainable Technology

Paperless Future

Each display saves ≈3,000 sheets annually. Join 15,000+ businesses reducing paper waste with ePaper solutions.

Sustainable Packaging

95% recycled materials with FSC-certified packaging. 100% plastic-free protective materials.

Energy Leadership

90% less energy than LCDs. Annual CO₂ reduction equivalent to 50 mature trees.

Why GooDisplay E-Paper Refreshes Faster

Optimized Fast-Refresh FPL

We rigorously select fast-refresh FPL films at the raw material level, laying a solid hardware foundation for high-speed performance.

Smart Temp-Controlled Drive

Our engineers optimize waveform files for different temperature ranges, ensuring excellent display quality even during rapid refresh cycles.

Chip-Level Integrated Solution

Optimized waveforms are built into the display driver chip—activate fast refresh mode with a simple code call!

Display Type	Refresh Capability	Available Sizes
Black & White (B/W) Displays	Supports fast refresh, partial refresh, and 4-level grayscale	0.97" to 10.3"
Black, White & Red (BWR) Displays	Supports fast refresh and partial B/W refresh	2.13" to 11.6"
Black, White, Red & Yellow (BWRY) Displays	Supports fast refresh with multi-color layered updating	0.97" to 11.6"
