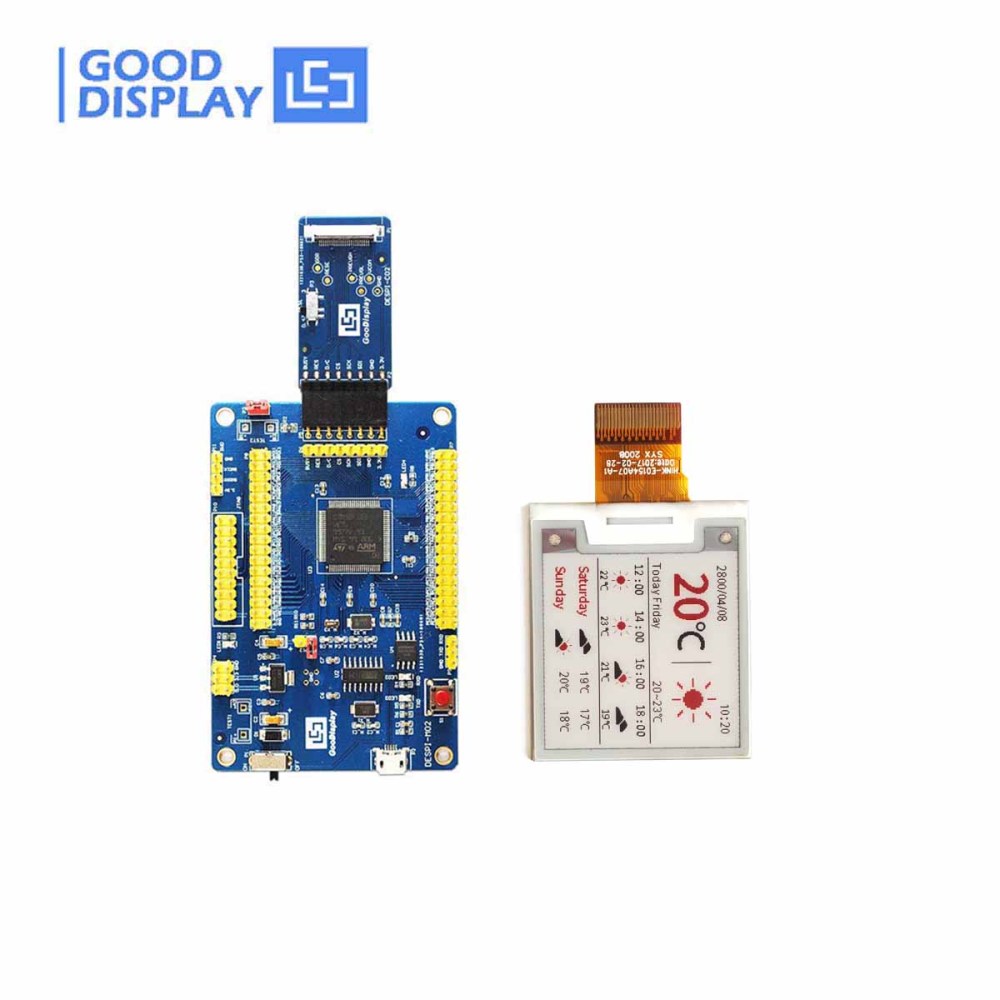

1.54 inch colorful red e-paper display panel with demo kit development driver board, GDEH0154Z90+DESPI

1.54 inch color e-ink display with 200x200 resolution, 24 pins FPC connection, optional FPC connector, communicating via SPI interface. Its IC is SSD1681. The I2C signal master interface to read built-in temperature sensor. With demo kit development drive
Price:
USD
$38.75
Quantity:
-
+
(59 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Library
  • Selection Guide
  • Reviews(1)

Any questions, just feel free to contact me, my email is: info@good-display.com




☆ INTRODUCTION




This is a set of development kit with 1.54 inch color e-ink screen with 200x200 resolution, SPI interface, and the display is capable to display images with black, white and red content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This color e-ink display GDEH0154Z90 is perfect for low power devices powered by solar or batteries.


This Development Kit designed for SPI E-paper Display aims to help users to begin constructing our e-paper display with provided source code to create more differentiated solutions. And it is added the functions of USB serial port and LED indicator light ect. It also supports being updated by computer directly.



We could provide front light, touch screen and other accessories for you.

Relevant manual about this product on our official website (www.good-display.com), contact us please.
* This e-ink display module DOES NOT support partial updates








 FEATURE




●  Versatile. Use in portrait or landscape format

●  Bistable. (Will continue to display with no power source)

●  I2C Signal Master Interface to read external temperature sensor

●  Black, white and red. Compared with monochrome electronic paper display, it is more beautiful
●  Development platform available STM32 ArduinoRaspberry Pi ESP8266 / ESP32









 THE ABOVE PRICE INCLUDE

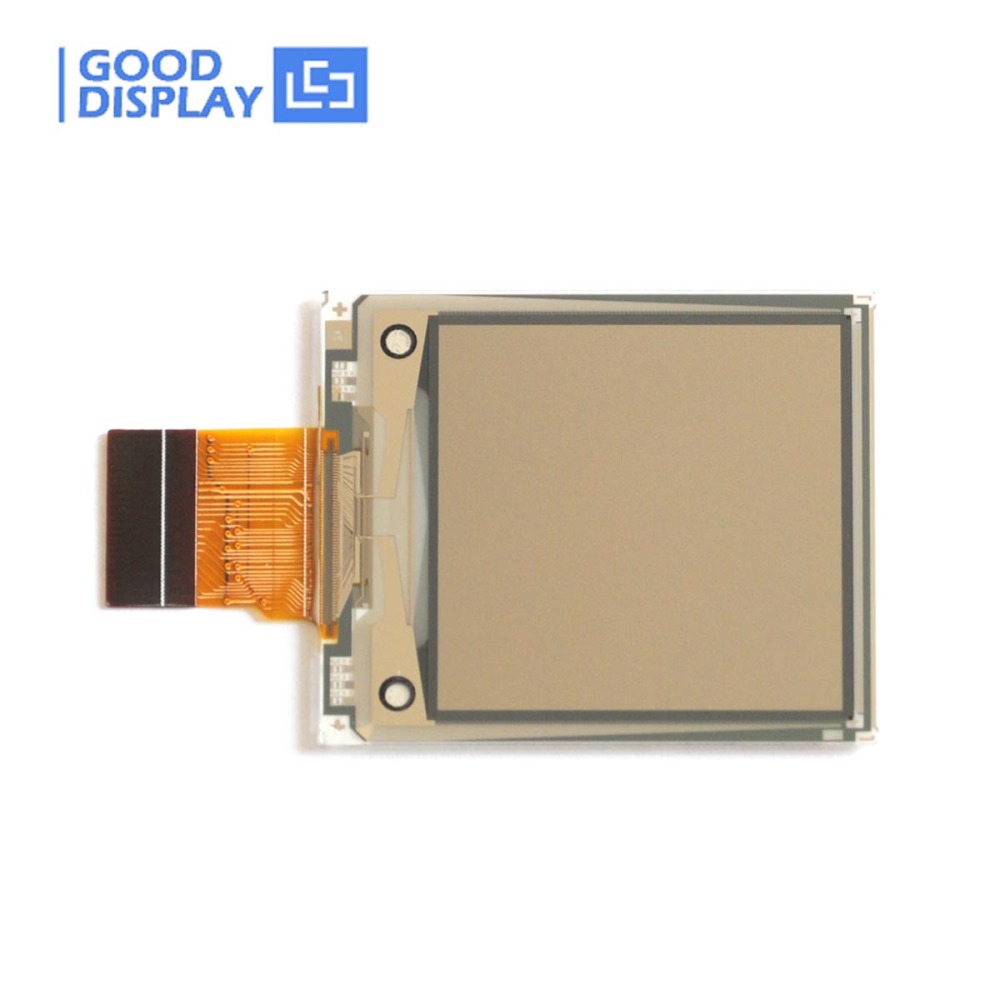

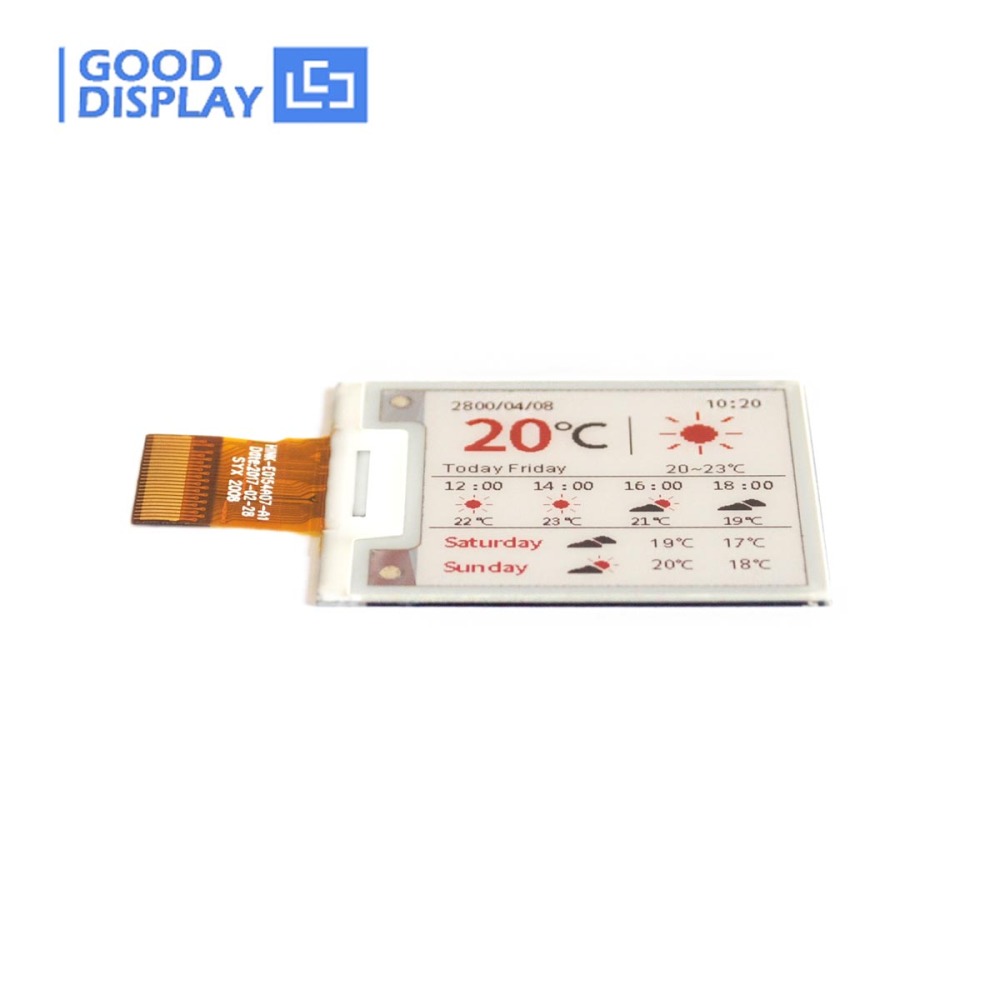

1) 1.54 inch colorful red e-paper display panel * 2pcs

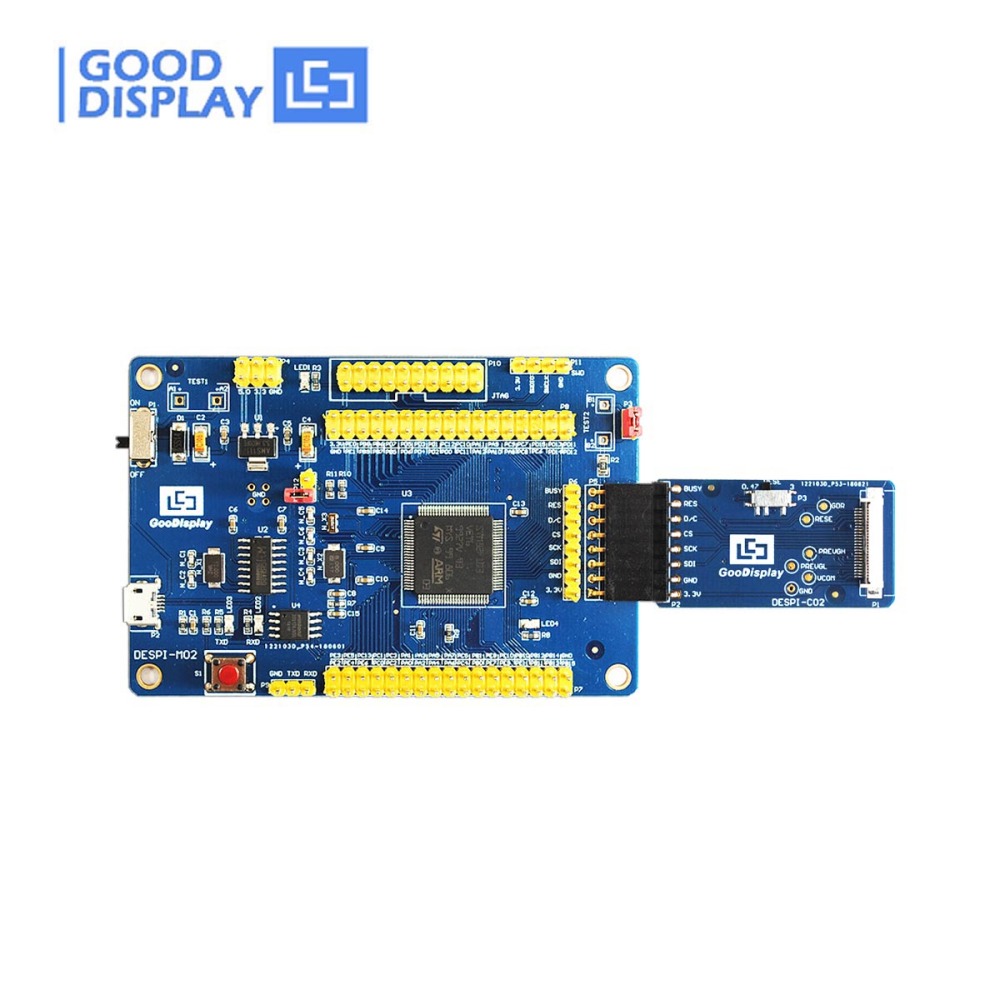

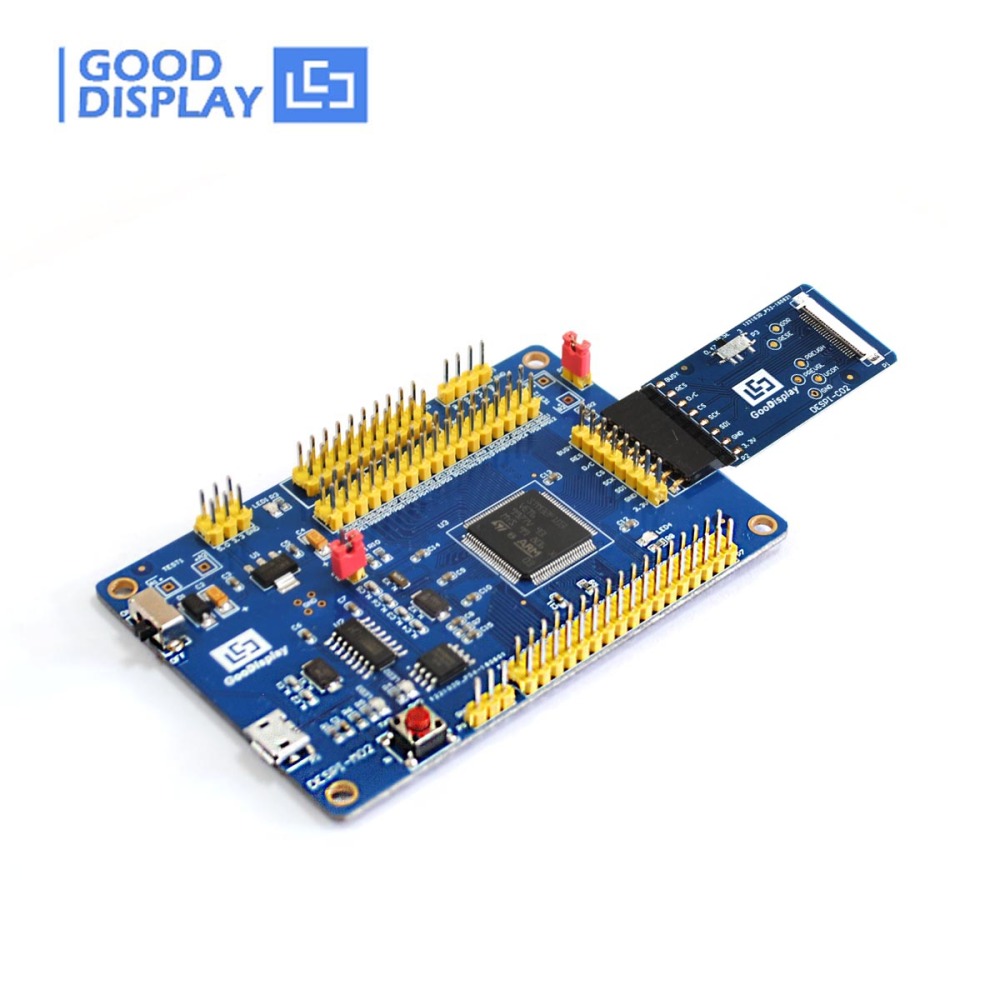

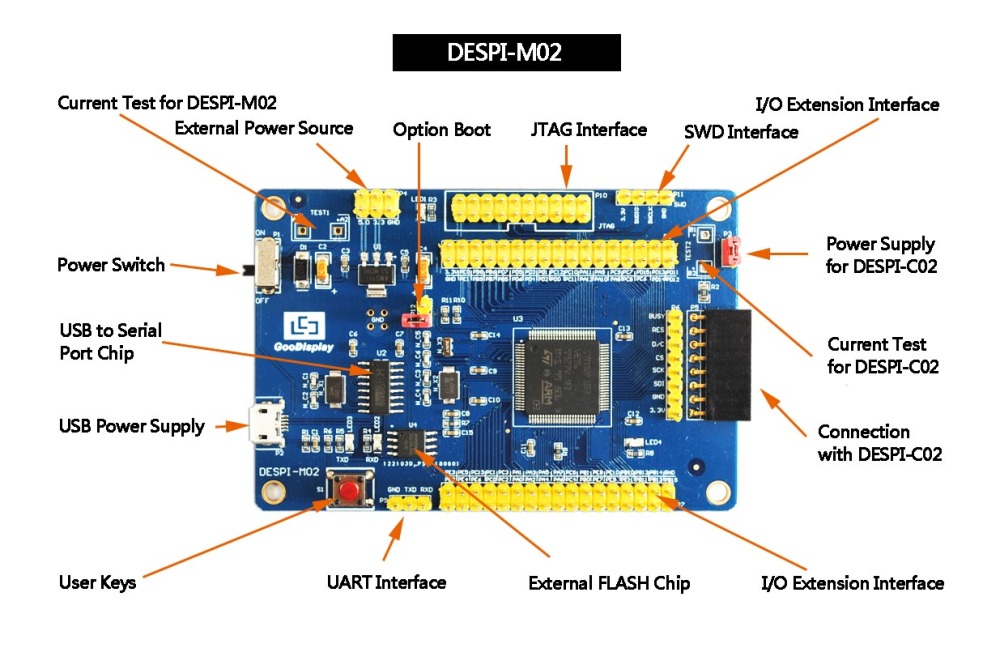

2) Driving board DESPI-M02 *1pc

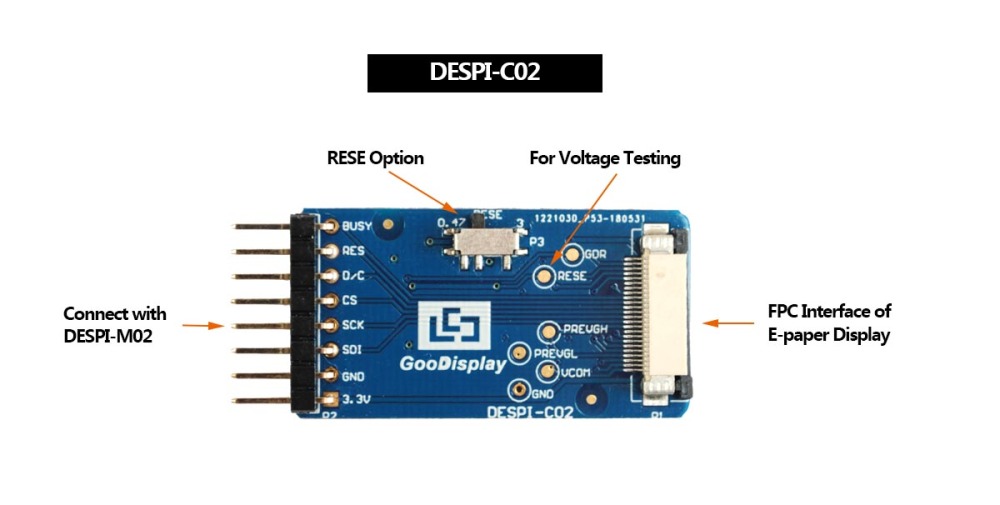

3) Connector board DESPI-C02 *1pc

4) USB port cable *1pc

5) FPC Connector * 2pcs







 MAIN PARAMETERS




PART NUMBER

GDEH0154Z90

TYPE

Dot Matrix

SIZE

1.54 inch

IC

SSD1681

RESOLUTION

200x200

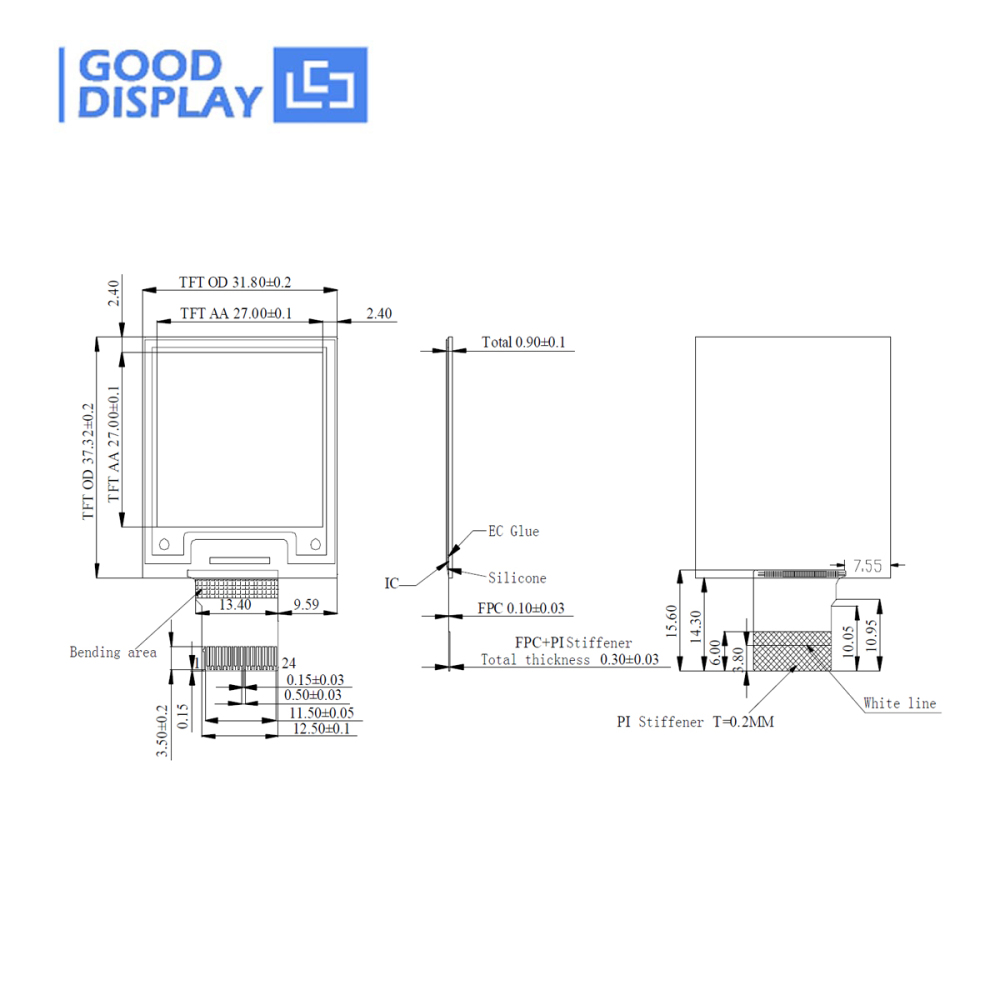

OUTLINE SIZE(mm)

37.32x31.80x0.9

ACTIVE SIZE(mm)

27x27

PIXEL PITCH(mm)

0.135x0.135

OPERATING TEMP.

0℃~40℃

STORAGE TEMP.

-25℃~60℃

CONNECTOR

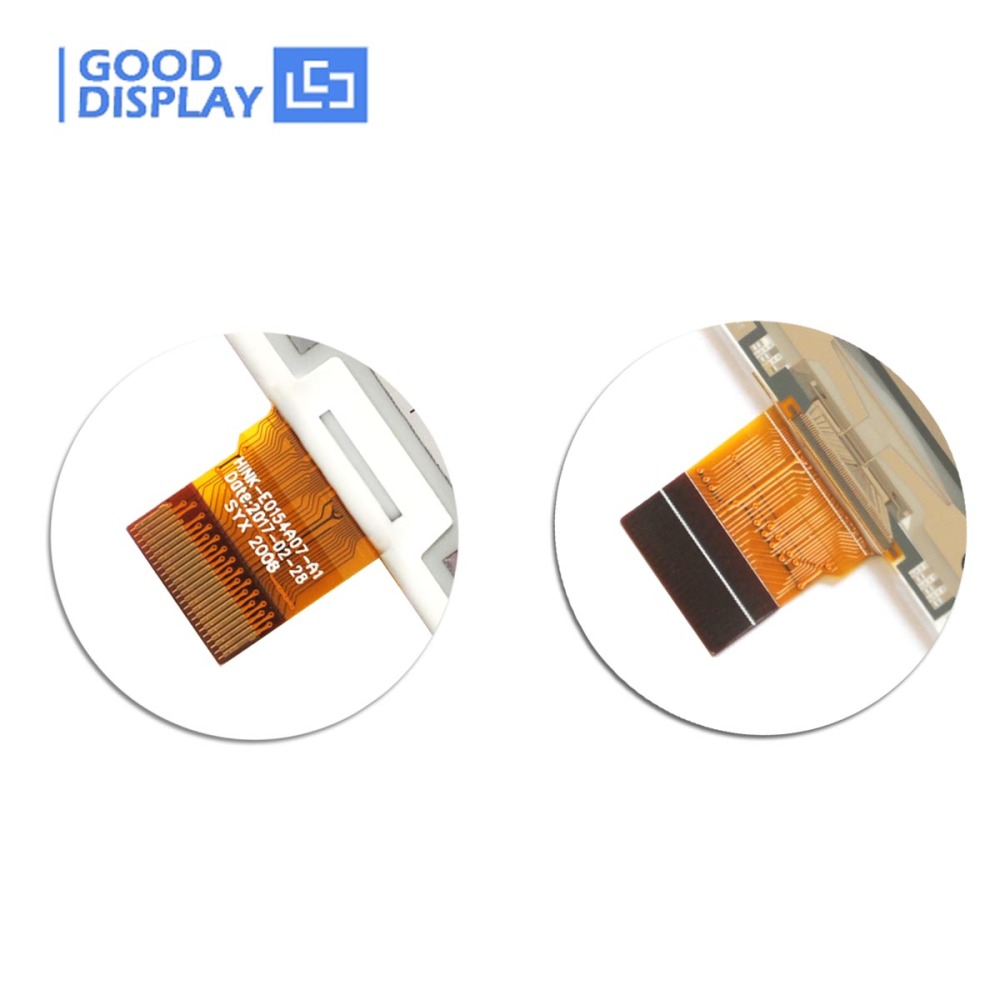

24 Pin FPC

MAX GRAYSCALE

2

COLOR

Black, White, Red

INTERFACE

SPI

FULL REFRESH(s)

15

POWER CONSUMPTION OF THE REFRESH(mW)

6.6

STANDBY POWER CONSUMPTION (mW)

0.0099








PART NUMBER

DESPI

PLATFORM

STM32

FUNCTION

Drive E-paper Display

OUTSIDE DIMENSION

90x60mm(DESPI-M02)

41x22mm(DESPI-C02)

INTERFACE

USB

POWER INPUT

DC5V

FEATURE

Fully and Partial Refresh

OPERATING TEMP.

-20℃~70℃

RECOMMENDED

Keil 4
