☆ INTRODUCTION

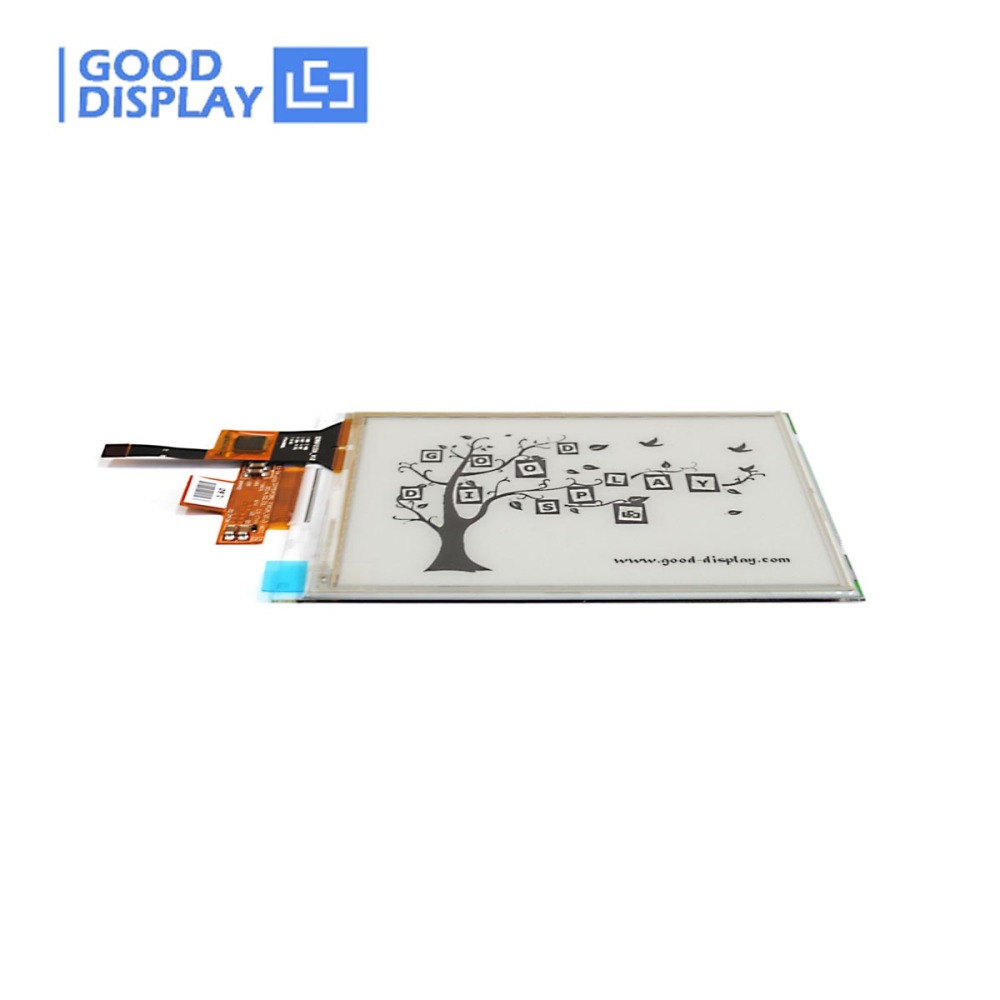

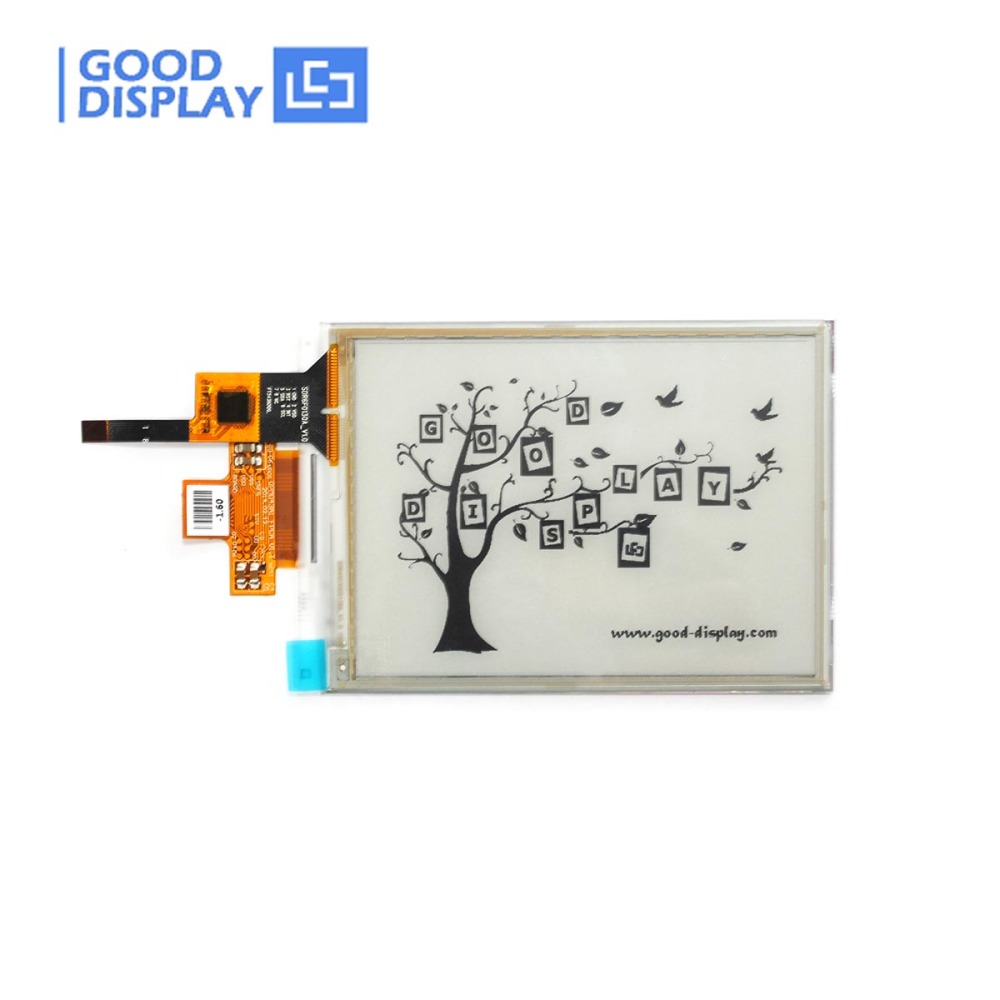

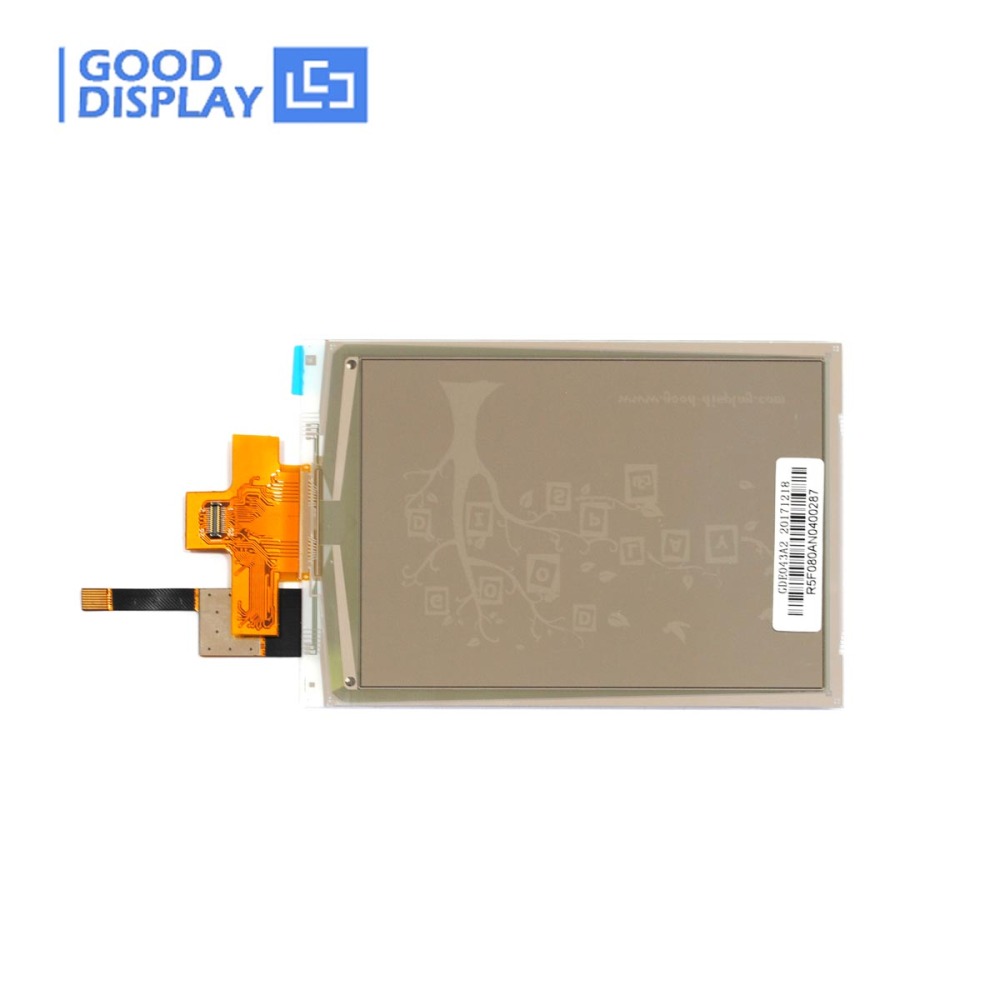

This is a 4.3 inch e-paper display with touch panel, 800x600 resolution, Parallel interface, and the display is capable to display images with black and white content. Your image holds indefinitely without power – put up your image, then shut down the power. This e-paper is perfect for low power devices powered by solar or batteries. Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, this 4.3 inch e-paper display GDE043A2 is an ideal choice for applications such as shelf label, industrial instrument and so on.
We could provide front light, touch screen and other accessories for you.
Relevant manual about this product on our official website (www.good-display.com), contact us please.
Use our free e-paper software to prepare your bitmap image for this display.
☆ FEATURE
● Black and white monochrome is easy to read
● Versatile. Use in portrait or landscape format
● Bistable. (Will continue to display with no power source)
● Low power consumption, basically power is only required for refreshing
● Development platform available STM32
☆ THE ABOVE PRICE INCLUDE
1) 4.3 inch e-ink display touchscreen e paper with touchscreen partial refresh * 1pc
2) Example code and Manual * 1pc.(Please advise email ID along with order,so that we can send them.)
☆ MAIN PARAMETERS
|
PART NUMBER
|
GDE043A2-T
|
|
TYPE
|
Dot Matrix
|
|
RESOLUTION
|
800x600
|
|
OUTLINE SIZE(mm)
|
104x74.6x1.65
|
|
ACTIVE SIZE(mm)
|
88x66
|
|
PIXEL PITCH(mm)
|
0.11x0.11
|
|
OPERATING TEMP.
|
0℃~+50℃
|
|
STORAGE TEMP.
|
-25℃~+70℃
|
|
POWER SUPPLY
|
2.8-3.6V
|
|
COLOR
|
Black, White
|
|
MAX GRAYSCALE
|
16
|
| POWER CONSUMPTION OF THE E-PAPER(mW) |
260 |
| POWER CONSUMPTION OF THE TOUCH SCREEN(mW) |
36.3 |
| TIME OF REFRESH(s) |
1 |
| TIME OF PARTIAL REFRESH(s) |
1 |
☆ OTHER PRODUCTS
|
Part Number
|
Color
|
Resolution |
Features
|
Refresh Time |
|
GDE043A2
|
B/W
|
800x600 |
Partial refresh, 16 Grayscale
|
1s |
| GDE043A2-T |
B/W |
800x600 |
Partial refresh, 16 Grayscale, With Touch Panel |
1s |
|
GDE043A3
|
B/W
|
800x600 |
Partial refresh, 16 Grayscale
|
1s |
