☆ INTRODUCTION

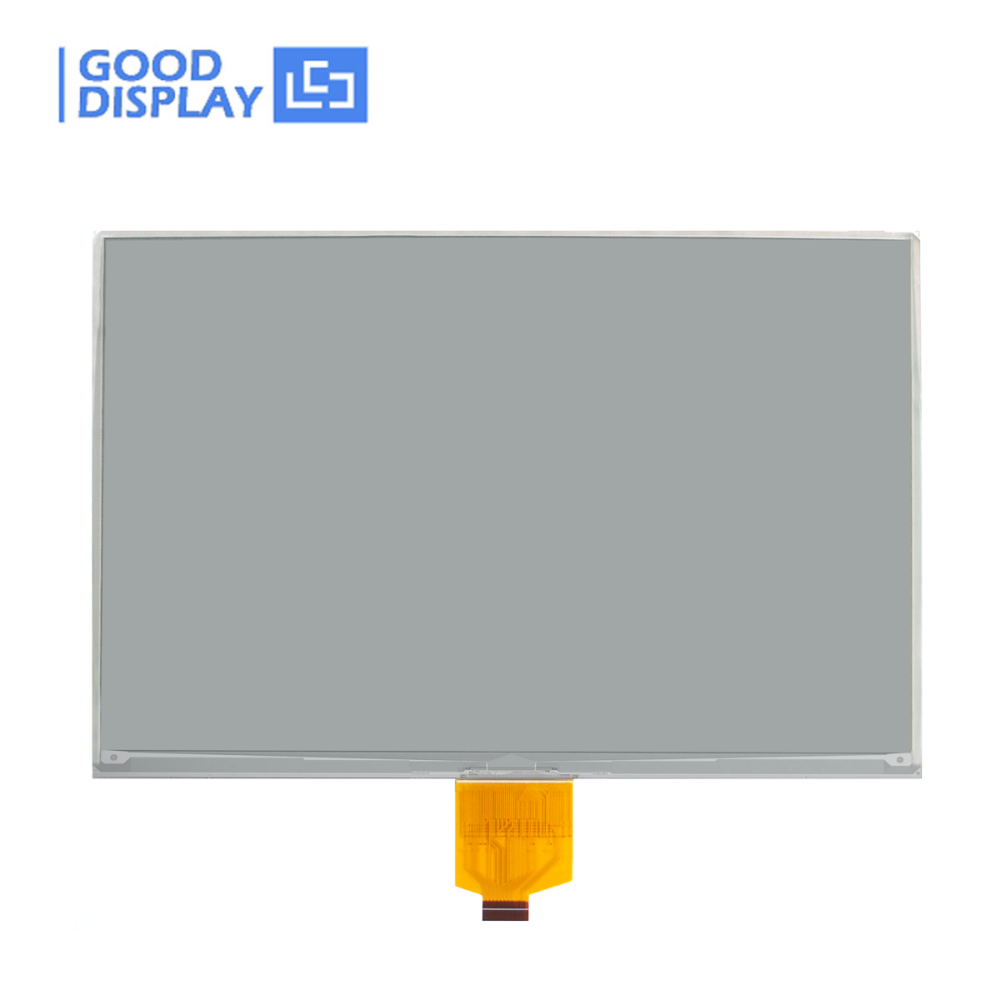

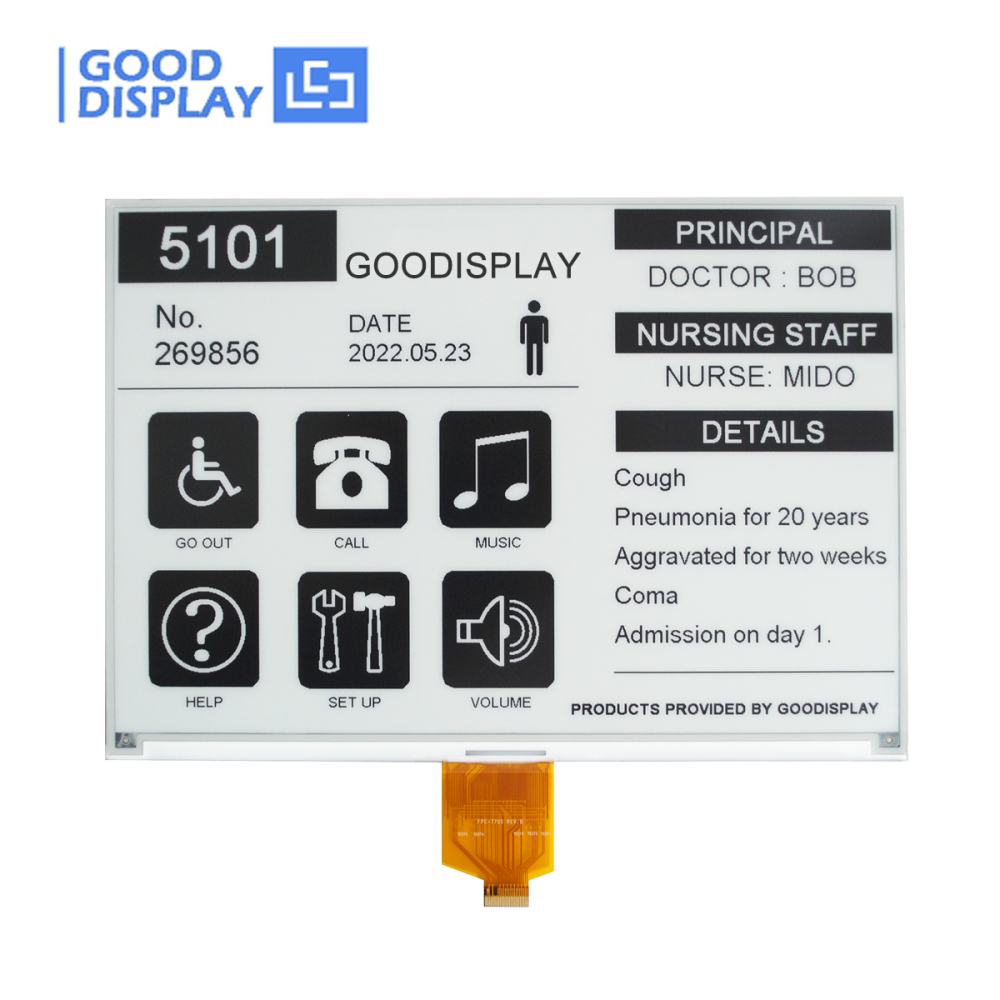

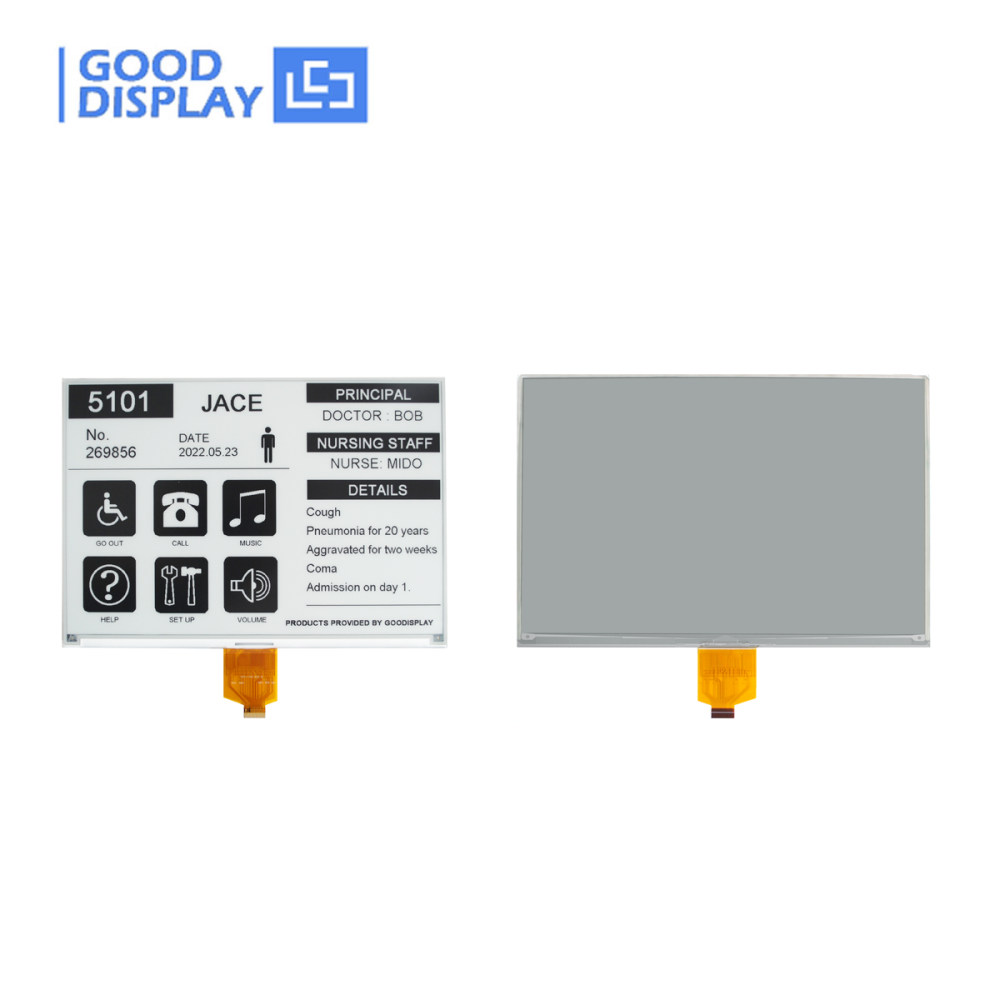

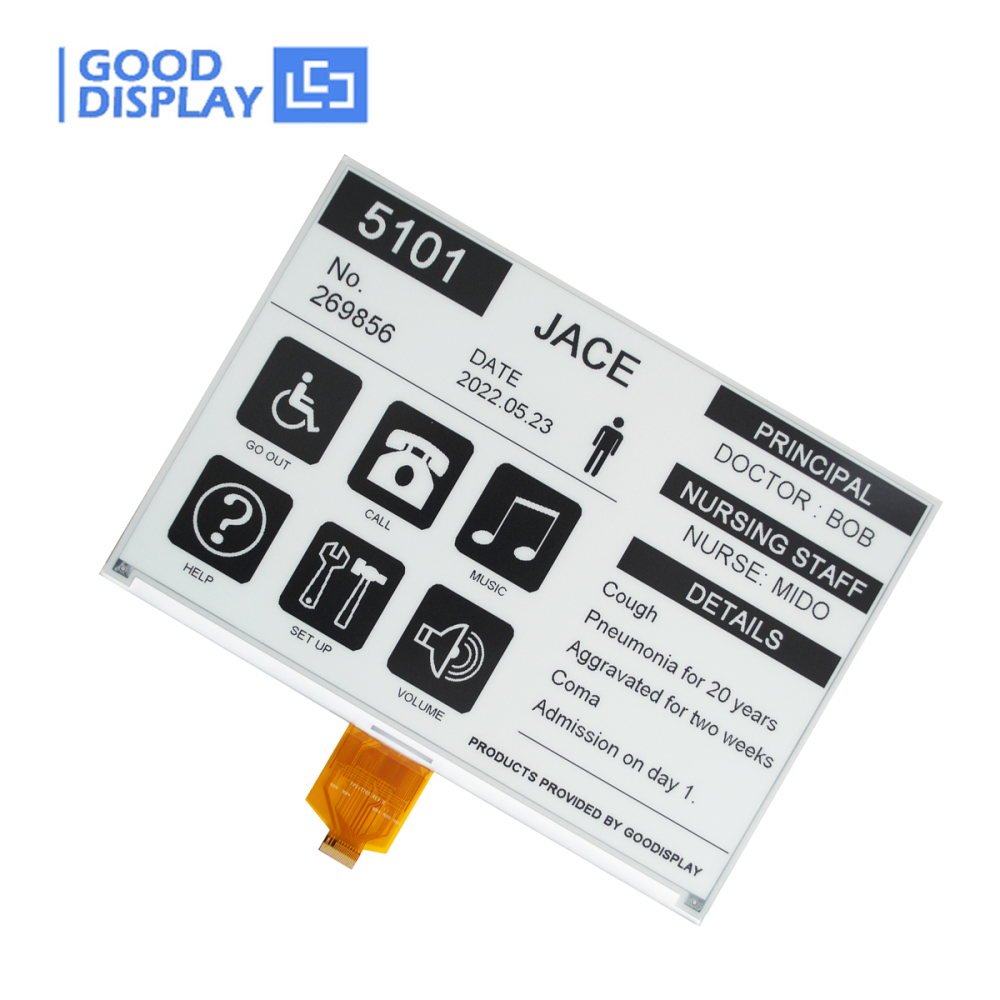

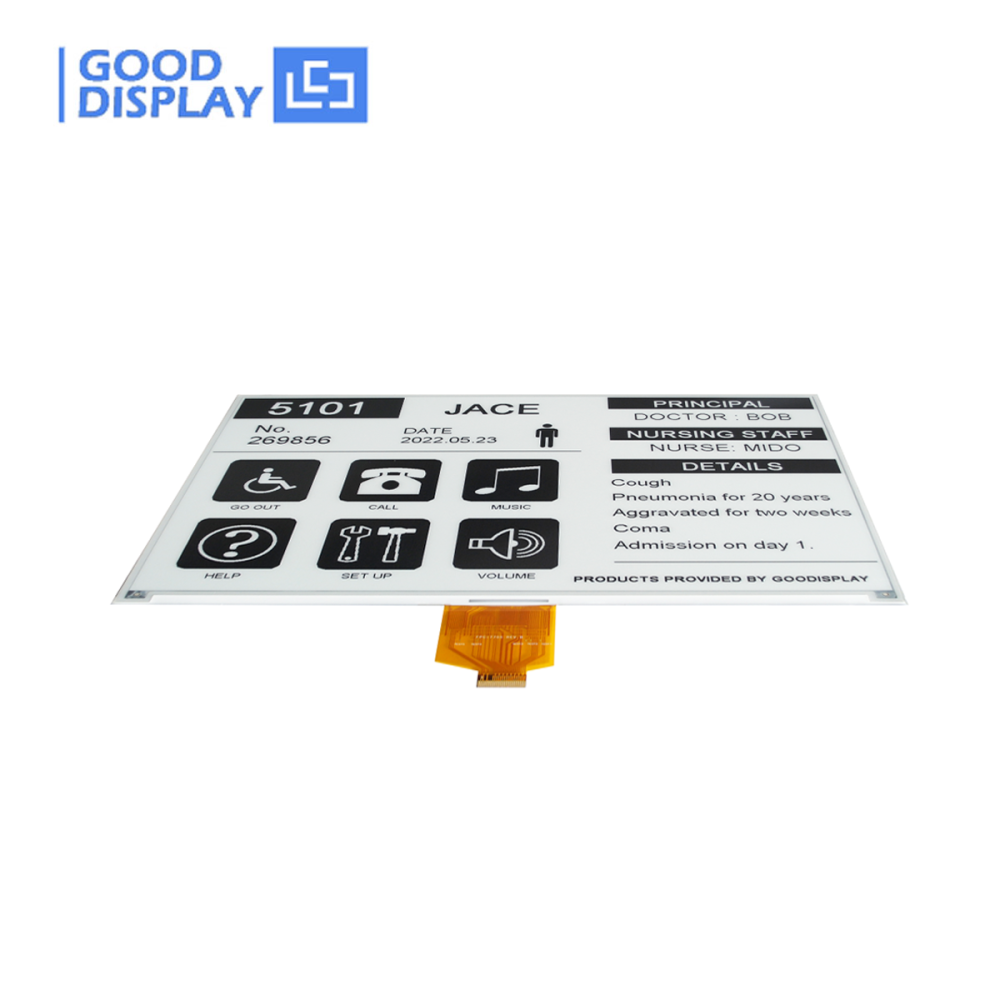

Name: 10.2 e-ink paper display panel HD e ink display 10 inch big electronic paper, GDEM102T91
Brand: GOOD DISPLAY
SKU: GDEM102T91
Price: 88.00 USD
Availability: InStock

This is a large e-paper display, 10.2 inch, with 960x640 resolution, SPI interface, and the display is capable to display images with black and white content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e paper display modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This epaper display GDEM102T91 is perfect for low power devices powered by solar or batteries.

We could provide front light, touch screen and other accessories for you.
Relevant manual about this product on Library or you could go to our official website (www.good-display.com), contact us please.

☆ THE ABOVE PRICE INCLUDE

Package A		+
	*a. 10.2 e-ink paper display panel HD e ink display 10 inch big electronic paper, GDEM102T91 1pc**		*b. FPC Connector 1pc**

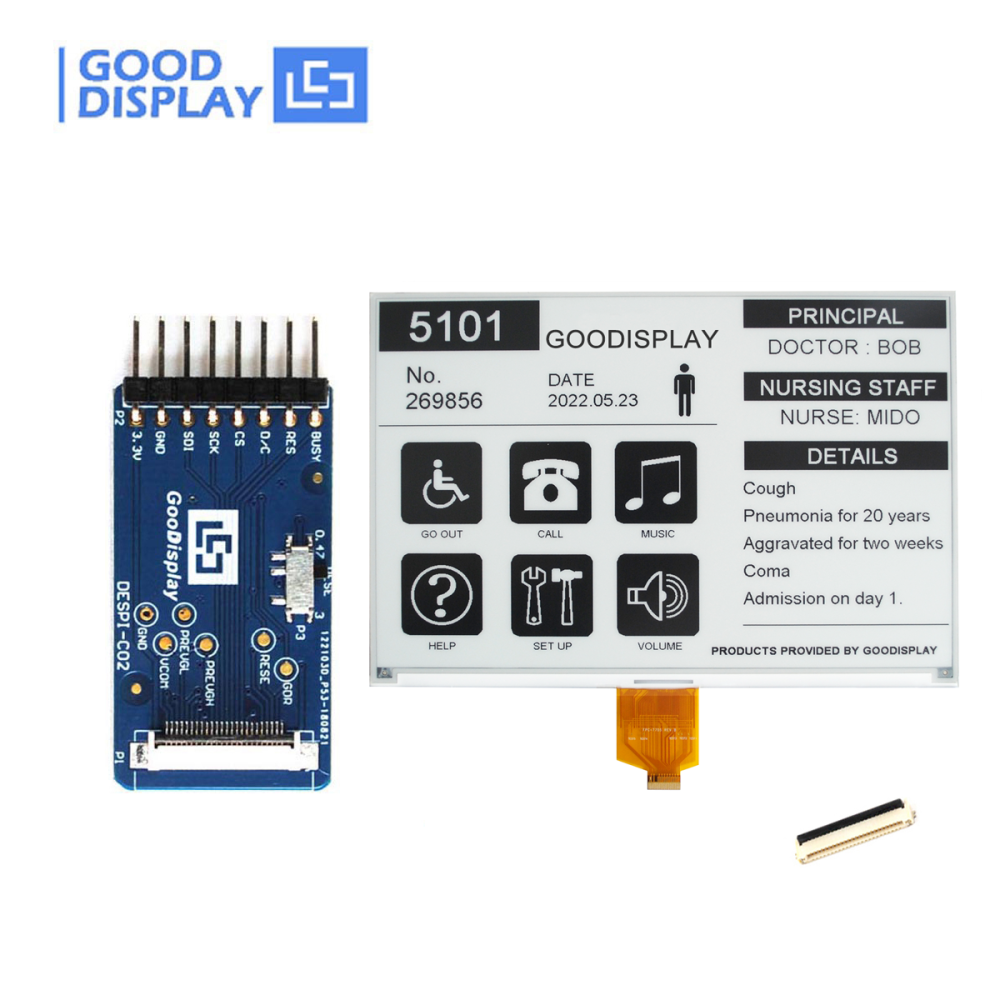

Package B		+		+
	*a. 10.2 e-ink paper display panel HD e ink display 10 inch big electronic paper, GDEM102T91 1pc**		*b. FPC Connector 1pc**		c.Epaper HAT Connection Adapter Board for E Ink Display, DESPI-C02* 1pc

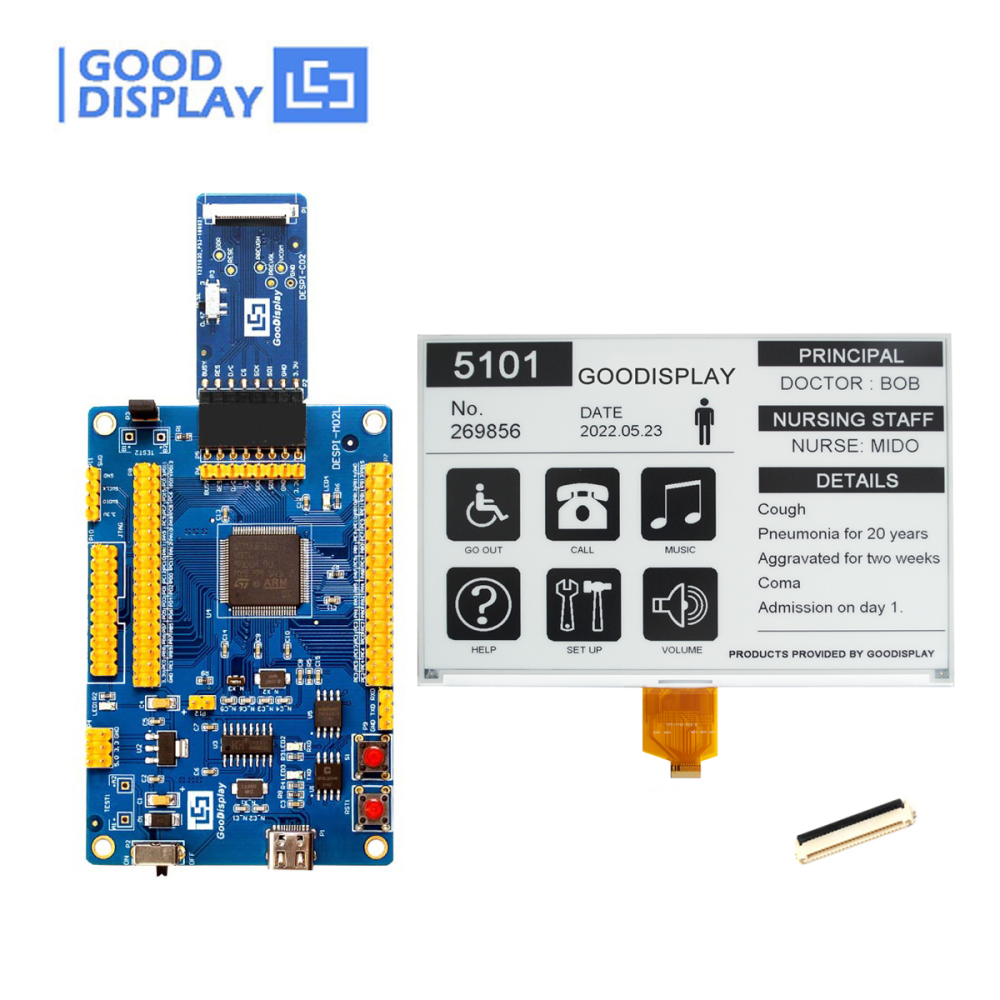

Package C		+		+		+
Package C	*a. 10.2 e-ink paper display panel HD e ink display 10 inch big electronic paper, GDEM102T91 1pc**		*b. FPC Connector 1pc**		c.STM32 E-paper Panel Driver Board Type-C Interface Eink Development Kit, DESPI-L(C02) * 1pc		d. USB Cable * 1pc

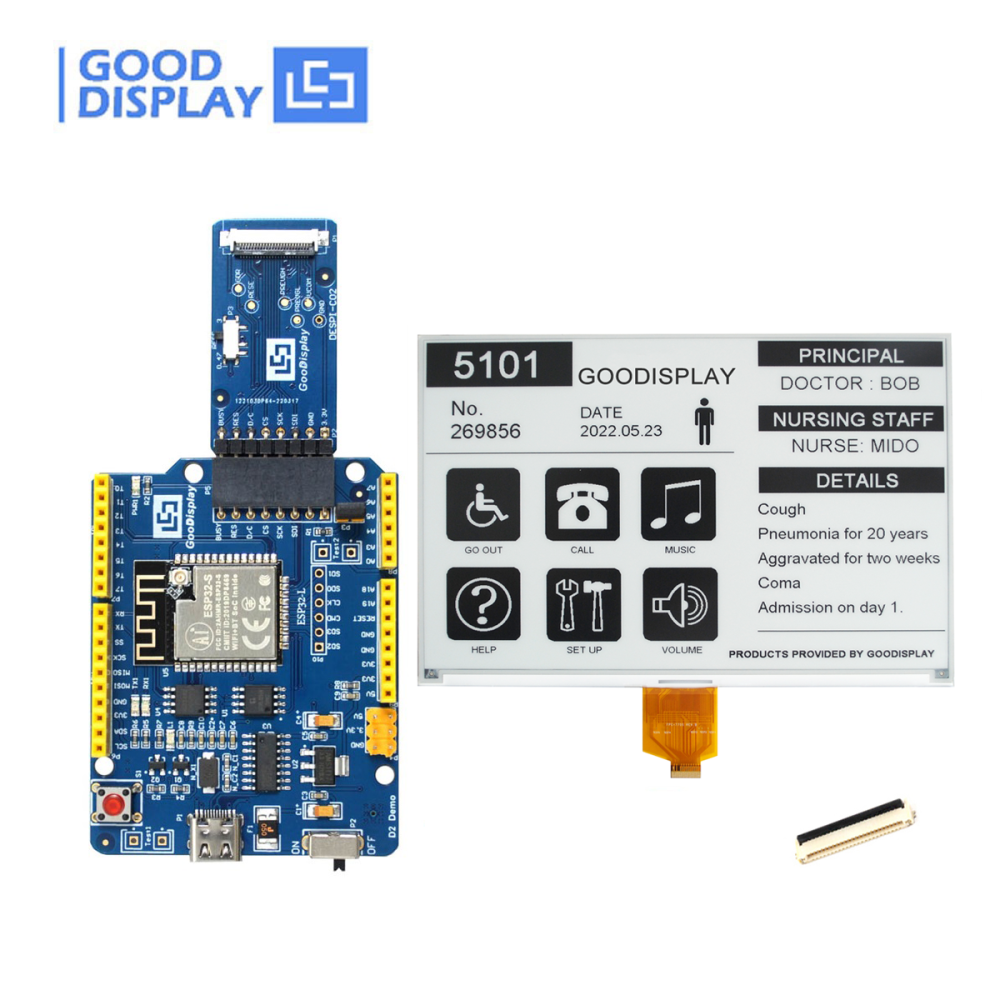

Package D		+		+		+
Package D	*a. 10.2 e-ink paper display panel HD e ink display 10 inch big electronic paper, GDEM102T91 1pc**		*b. FPC Connector 1pc**		c. ESP32 Arduino Platform E-paper Panel Driver Board Type-C Interface Eink Development Kit, ESP32-L(C02) * 1pc		d. USB Cable * 1pc

☆ MAIN PARAMETERS

PART NUMBER	GDEM102T91
TYPE	Dot Matrix	STORAGE TEMP.	-25℃~70℃
SIZE	10.2 inch	CONNECTOR	24 Pin FPC
IC	SSD1677	COLOR	Black, White
RESOLUTION	960x640	INTERFACE	SPI
OUTLINE SIZE(mm)	224x157x1.0	FULL REFRESH(s)	4
ACTIVE SIZE(mm)	215.52x143.68	POWER CONSUMPTION OF THE REFRESH(mW)	48
PIXEL PITCH(mm)	0.2245x0.2245	STANDBY POWER CONSUMPTION (mW)	0.003
OPERATING TEMP.	0℃~50℃

☆ FEATURE

●  Versatile. Use in portrait or landscape format.
●  Bistable. (Will continue to display with no power source)
●  I2C Signal Master Interface to read external temperature sensor.
●  It enable a greater contrast ratio and wider viewing angle with high reflectance compared to liquid crystal displays

● Development platform available STM32 / ESP8266 / ESP32

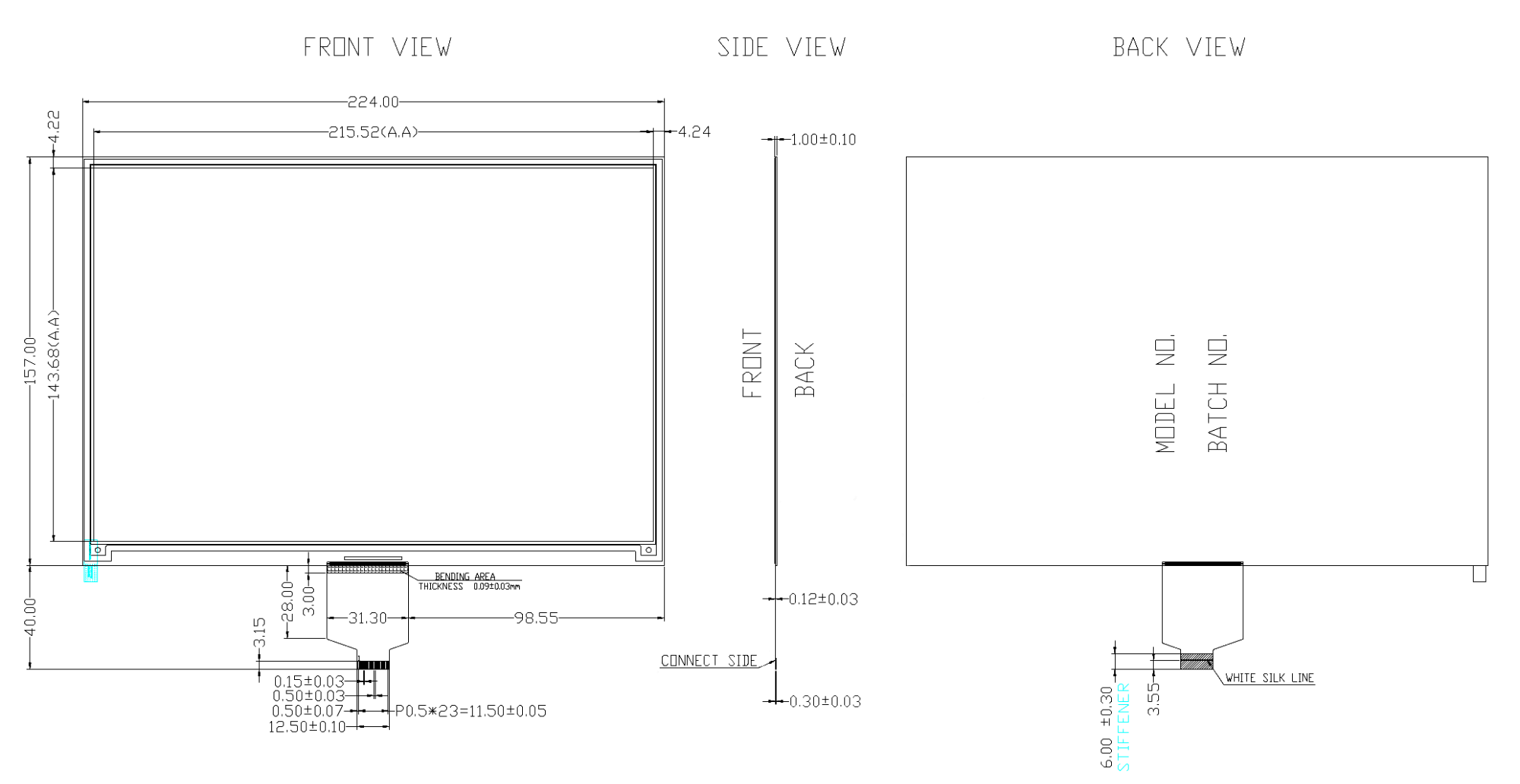

☆ DRAWING

☆ MATCHED DEVELOPMENT KIT

● DESPI-C02 (E-ink Display HAT )

● DESPI-L(C02) (STM32 Platform/Universal)

● ESP8266-L(C02) (WiFi)

● ESP32-L(C02) (WiFi / Bluetooth)

☆ RELATED INFORMATION DOWNLOAD

● GDEM102T91_Specification

● Picture Production and Bitmap Convert for GDEM102T91

● GDEM102T91 ESP8266 Sample Code

● GDEM102T91 STM32 Sample Code

● GDEM102T91 ESP32 Sample Code
