Home > Clearance Sale > 2.13

1/1

Limited Offer!

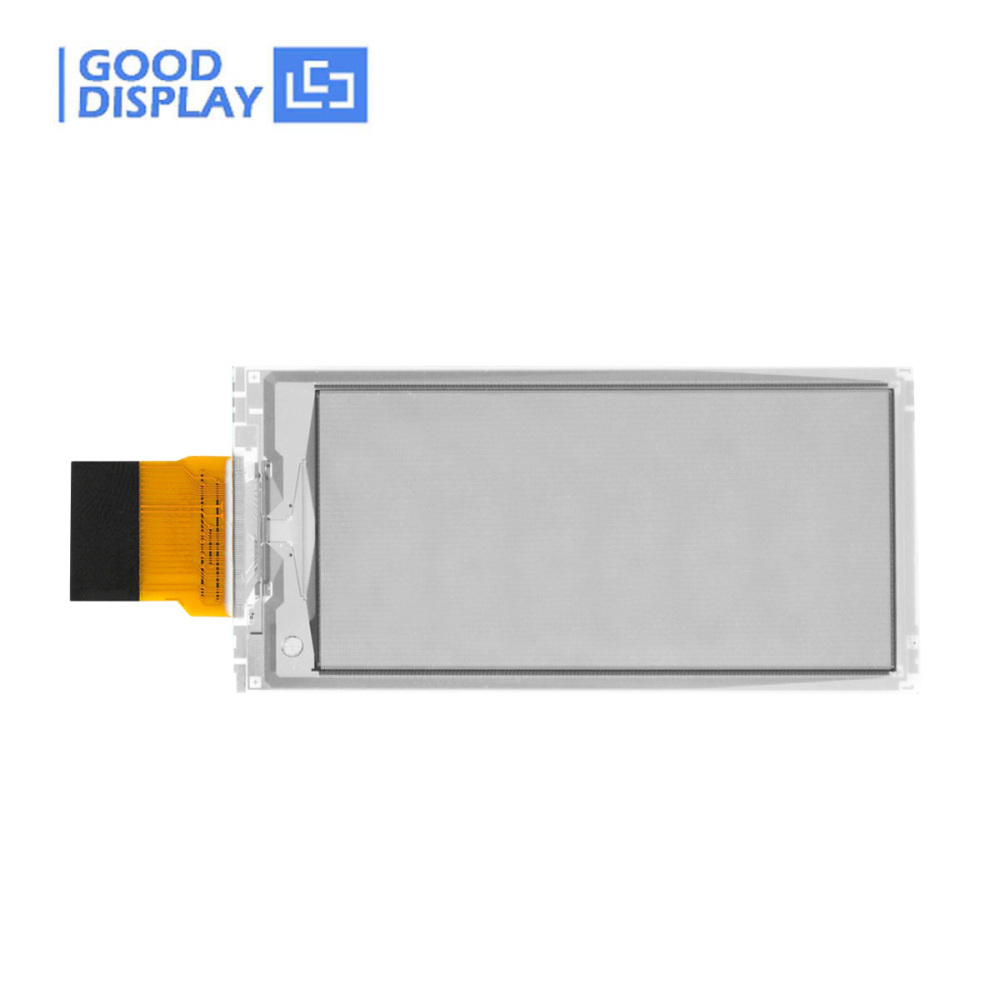

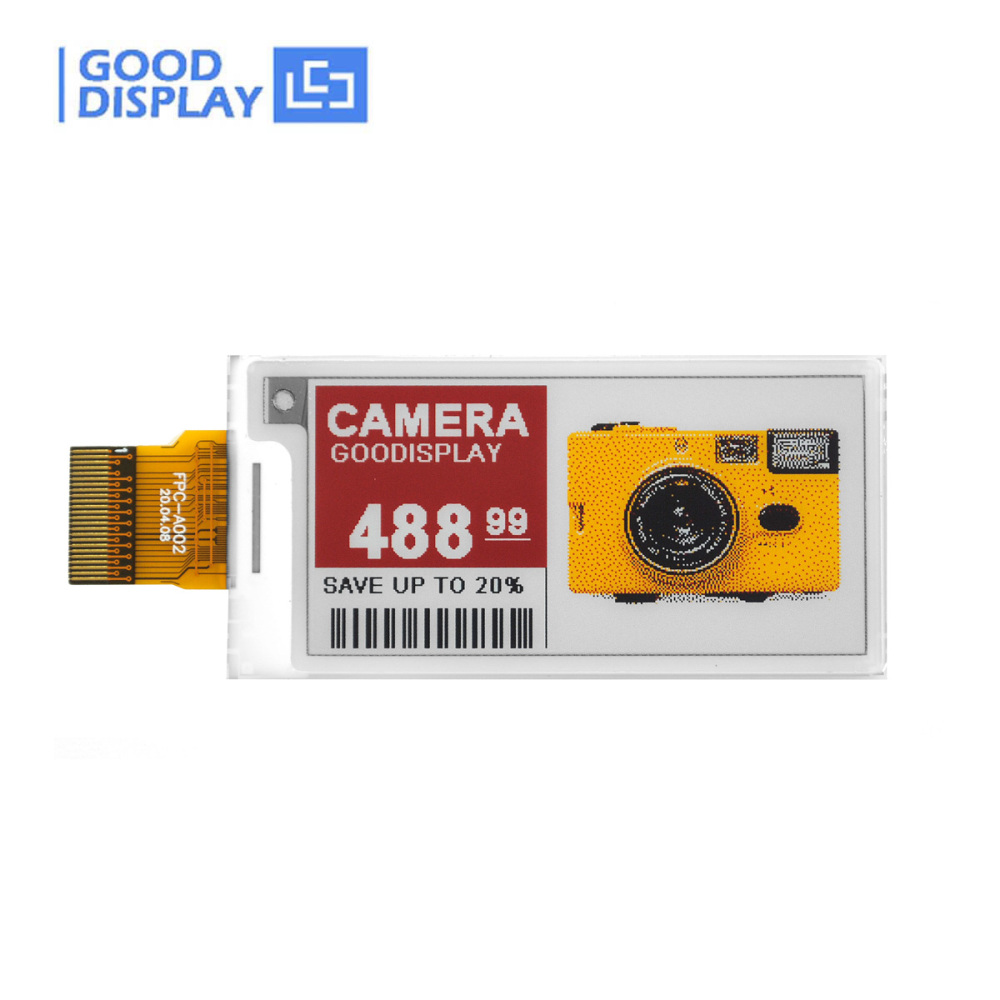

[EOL] 2.13" Four Color 154 PPI E-ink Displays 12s Fast Refresh ePaper Module, GDEY0213F61H

Name: [EOL] 2.13" Four Color 154 PPI E-ink Displays 12s Fast Refresh ePaper Module, GDEY0213F61H
Brand: GOOD DISPLAY
Price: 4.53 USD
Availability: InStock

(0)

11 Sold

$4.53 ~~$5.66~~

20% OFF

2.13" 4-Color E Ink Display Module (GDEY0213F61H) – a fast-refresh ePaper screen with Red, Yellow, Black, and White colors. Featuring 144×296 resolution, SPI interface, and ultra-low power consumption.

GET $3.00 OFF ON ORDERS OVER $59.00

Get it

ERP72QDC

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

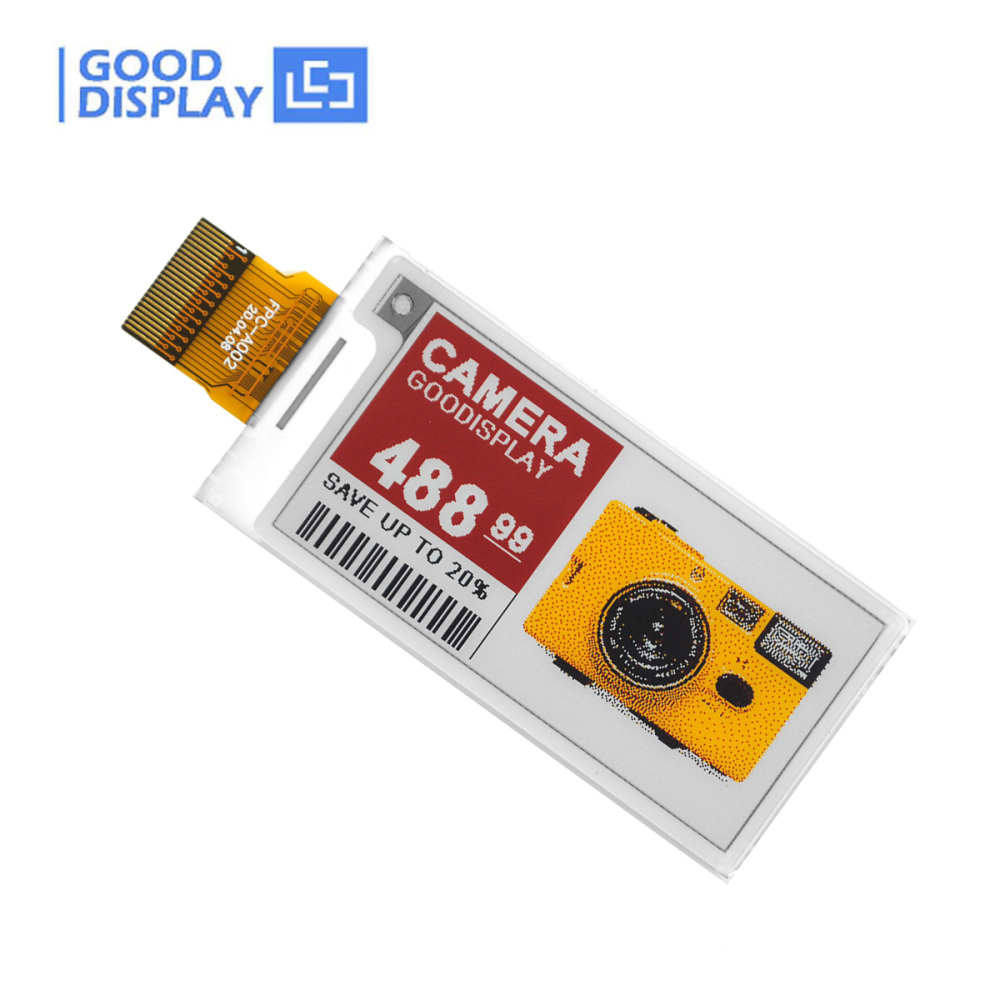

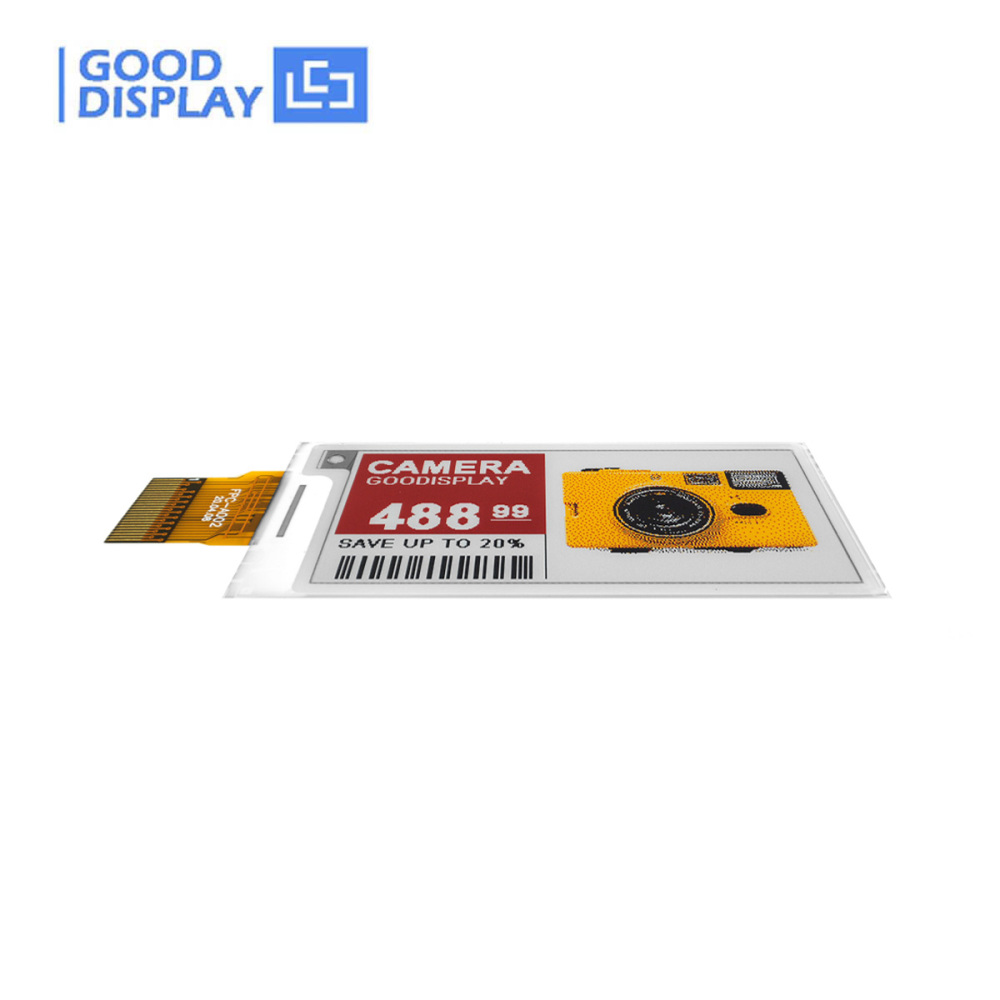

2.13" 4-Color E-Ink Display

The 2.13" 4-Color E Ink Display Module is a high-performance ePaper screen designed for industrial and commercial use. With a resolution of 144×296 pixels, it supports Red, Yellow, Black, and White (RYBW) colors, delivering vibrant visuals. Its fast refresh technology enables updates in just 12s, while the SSD2680A driver IC and SPI interface ensure easy integration.

Core Advantages

Blazing 12s Fast Refresh

• Industry-leading 12s refresh time
• 23% faster than standard ePaper
• Enables near real-time updates
• Ideal for dynamic applications

Full Refresh: 16s

Fast Refresh: 12s

Ultra-Low Power Domination

• Standby: 0.003mW (40% lower)
• Zero power to hold static images
• Years on a single battery
• Drastically reduces maintenance

Refresh Power: 9mW

Standby Power: 0.003mW

Vibrant 4-Color Display

• High-res 144x296 display
• Functional Red/Yellow/Black/White
• Superior readability & contrast
• Paper-like viewing experience

Resolution: 144x296

Colors: R/Y/B/W

Technical Specifications

Part Number GDEY0213F61H

Color Black, White, Red, Yellow

IC SSD2680A

Size 2.13"

Type Dot Matrix

Operating Temp. 0℃~40℃

Resolution 144x296

PPI 154

Storage Temp. -25℃~70℃

Outline Size(mm) 29.2x59.2x1.0

Full Refresh(s) 16

Power Consumption Of The Refresh(mW) 9

Active Size(mm) 23.64x48.6

Fast Refresh(s) 12

Standby Power Consumption (mW) 0.003

Pixel Pitch(mm) 0.1642x0.1642

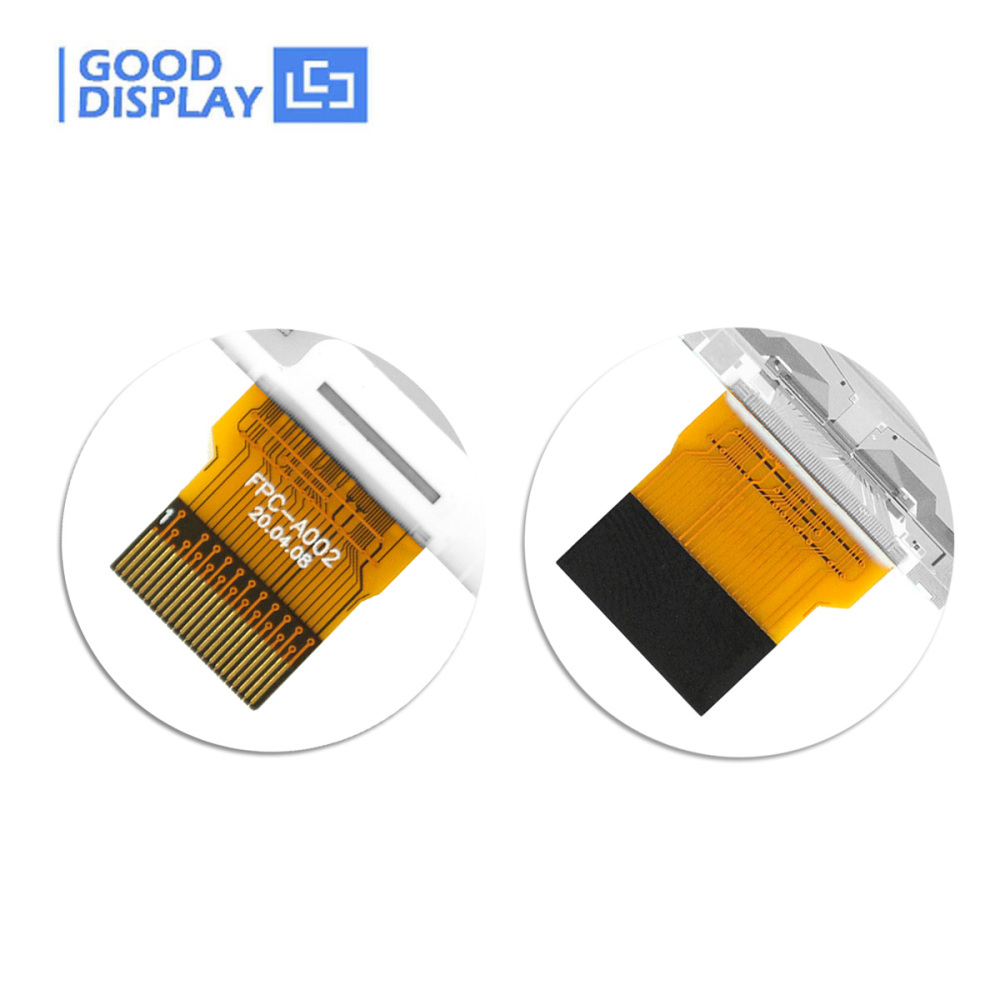

Connector 24pin FPC

Interface SPI

weight(g) 3.3±0.5

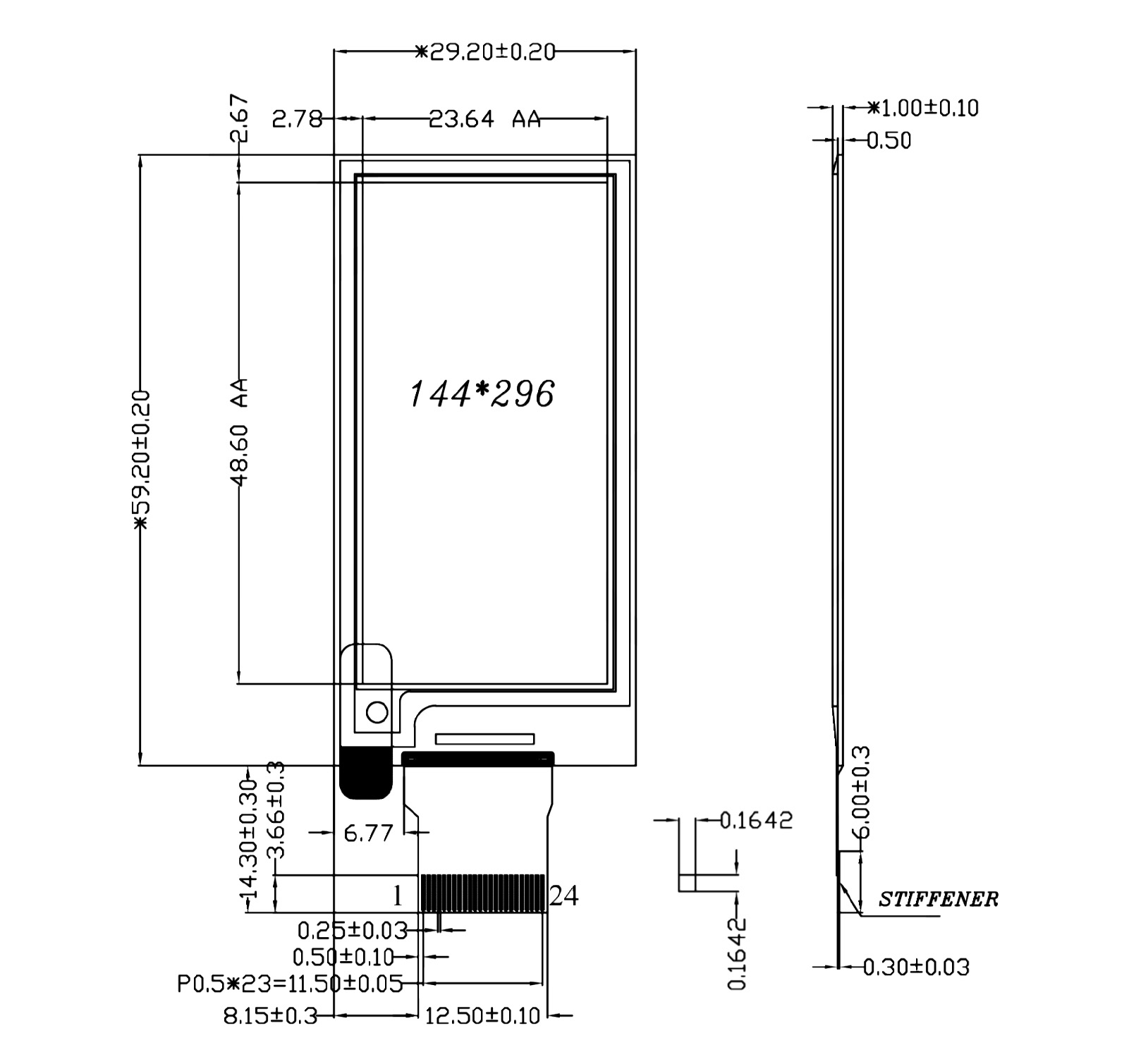

Drawing Details

Matching Driver Boards

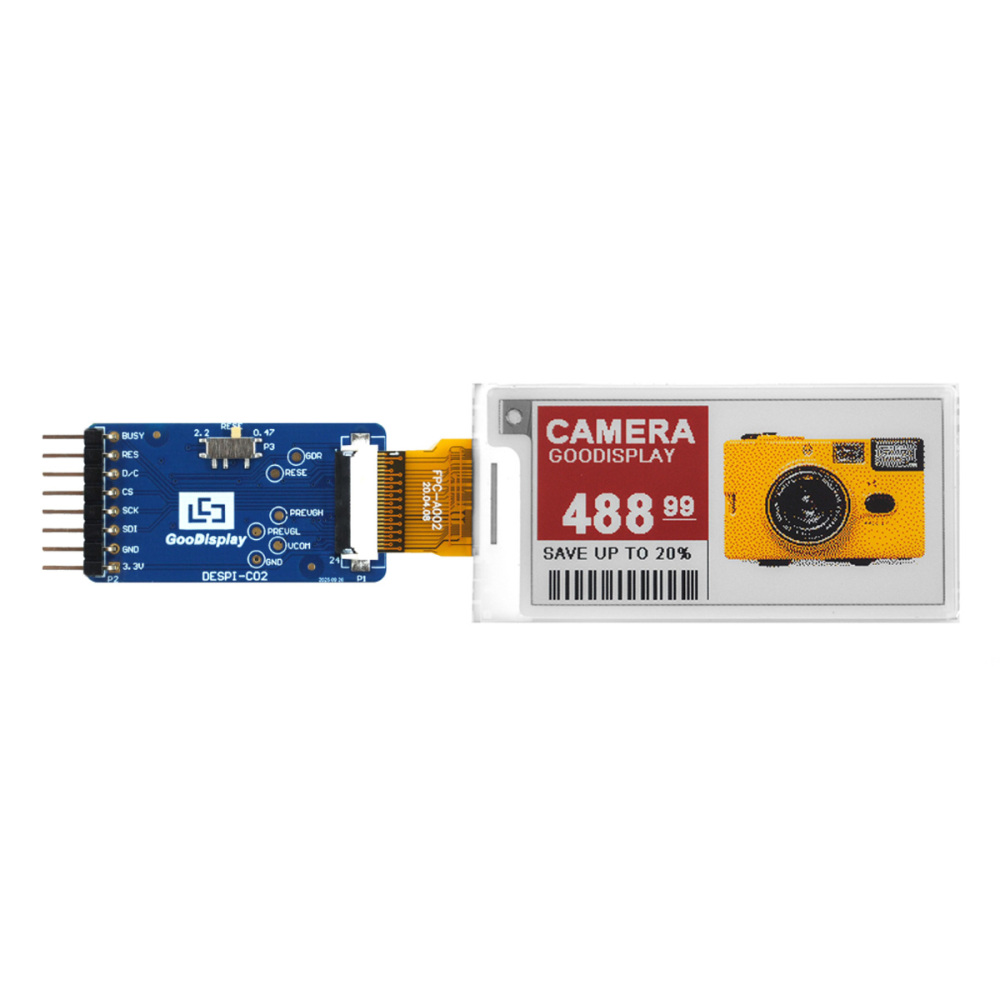

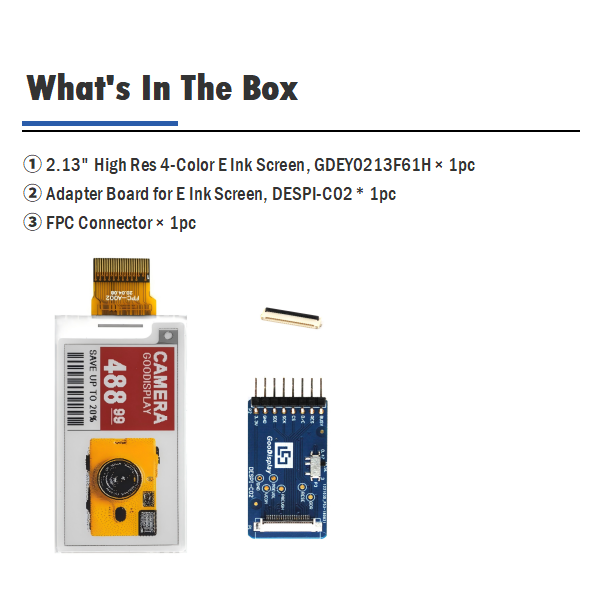

DESPI-C02

Pure interface adapter (no MCU) for connecting external boards to 24-pin SPI EPDs.

View Details

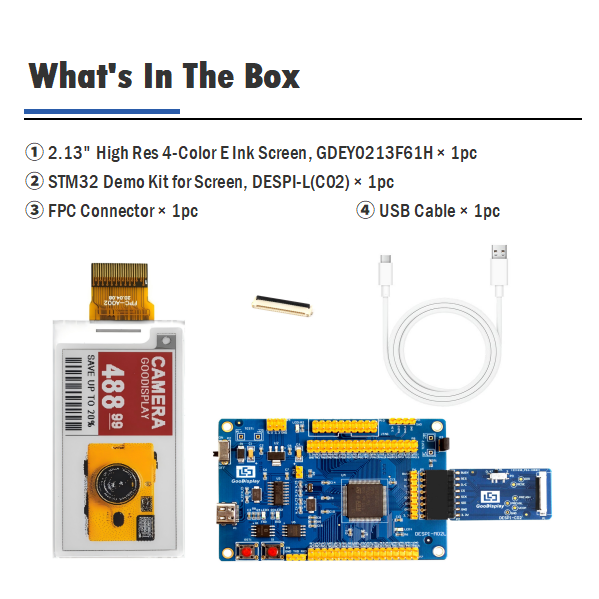

DESPI-L(C02)

Top-tier industrial processing power (Cortex-M), featuring USB data transmission.

View Details

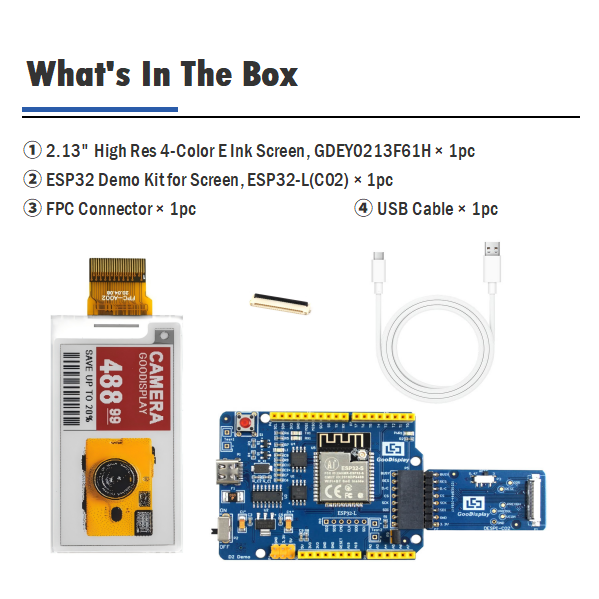

ESP32-L(C02)

Supports common WiFi/BT/USB data transmission.

View Details

ESP8266-L(C02)

Supports common WiFi and USB data transfer.

View Details

DEArduino UNO R4

Simple Arduino development for beginners, featuring USB data transmission.

View Details

ESP32E6-E01

Dedicated 50-pin port for E6 displays + standard 24-pin port.Top-tier ESP32-S3 performance with WiFi/BT/USB.

View Details

Files & Download

[PDF] GDEY0213F61H_Specification

[PDF] SSD2680A Driver IC Datasheet

[PDF] Image2LCD Software Bitmap Conversion Instructions V1.1

[PDF] GDEY0213F61H STM32 Sample Code

[PDF] GDEY0213F61H ESP32 Sample Code

[PDF] GDEY0213F61HESP8266 Sample Code

[PDF] GDEY0213F61H Arduino Sample Code

[PDF] The Latest Catalog

[FAQ] Why can't I download the files?

We Also Recommend

Sustainable Technology

Paperless Future

Each display saves ≈3,000 sheets annually. Join 15,000+ businesses reducing paper waste with ePaper solutions.

Sustainable Packaging

95% recycled materials with FSC-certified packaging. 100% plastic-free protective materials.

Energy Leadership

90% less energy than LCDs. Annual CO₂ reduction equivalent to 50 mature trees.

Why GooDisplay E-Paper Refreshes Faster

Optimized Fast-Refresh FPL

We rigorously select fast-refresh FPL films at the raw material level, laying a solid hardware foundation for high-speed performance.

Smart Temp-Controlled Drive

Our engineers optimize waveform files for different temperature ranges, ensuring excellent display quality even during rapid refresh cycles.

Chip-Level Integrated Solution

Optimized waveforms are built into the display driver chip—activate fast refresh mode with a simple code call!

Display Type	Refresh Capability	Available Sizes
Black & White (B/W) Displays	Supports fast refresh, partial refresh, and 4-level grayscale	0.97" to 10.3"
Black, White & Red (BWR) Displays	Supports fast refresh and partial B/W refresh	2.13" to 11.6"
Black, White, Red & Yellow (BWRY) Displays	Supports fast refresh with multi-color layered updating	0.97" to 11.6"
